the data link layer
The Data Link Layer
  • Framing
  • Error Control
    • Error Correction
    • Error Detection
  • Flow Control
  • Retransmission with Sliding Window Protocols
  • Protocol Specification and Verification
  • Example Data Link Protocols
data link layer services
DATA LINK LAYER Services
  • Unacknowledged connectionless service
    • Voice
  • Acknowledged connectionless service
    • wireless
  • Acknowledged connection-oriented service
    • no out-of-order

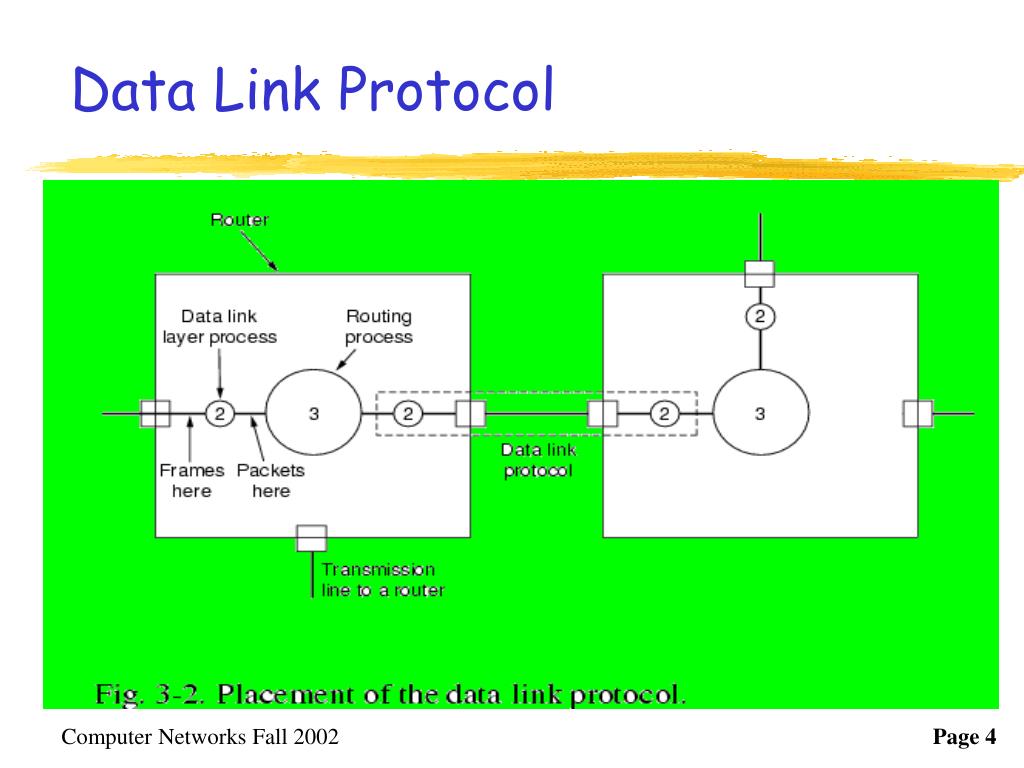

framing
Framing
  • To break the bit stream up into discrete frames and compute the checksum for each frame. When a frame arrives at the destination, the checksum is recomputed and validated.
  • One way to achieve this framing is to insert time gaps between frames. However, networks rarely make any guarantees about timing.

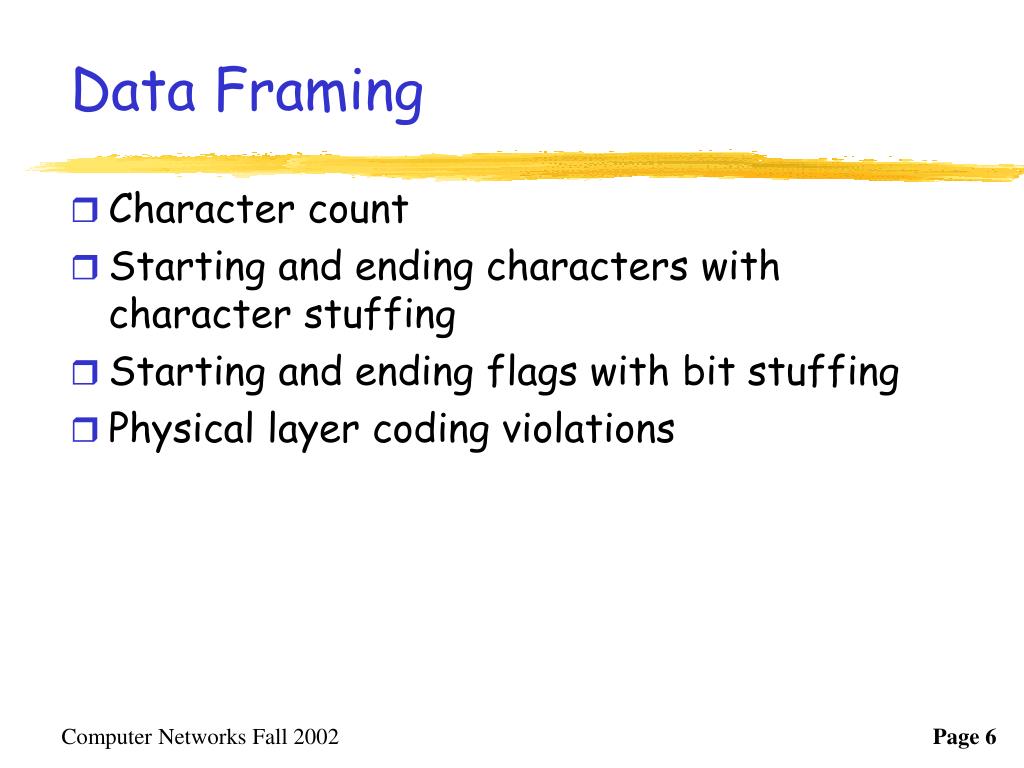

data framing
Data Framing
  • Character count
  • Starting and ending characters with character stuffing
  • Starting and ending flags with bit stuffing
  • Physical layer coding violations
character count

character count

5 1 2 3 4 5 6 7 8 9 8 0 1 2 3 4 5 6 8 7 8 9 0 1 2 3

frame 1

5 characters

frame 2

5 characters

frame 3

8 characters

frame 4

8 characters

one-bit error

5 1 2 3 4 7 6 7 8 9 8 0 1 2 3 4 5 6 8 7 8 9 0 1 2 3

frame 1

5 characters

frame 2

(wrong)

Now a character count

Even if the checksum is incorrect so the destination knows that the frame is bad, it still has no way of telling where the next frame starts.

Character Count

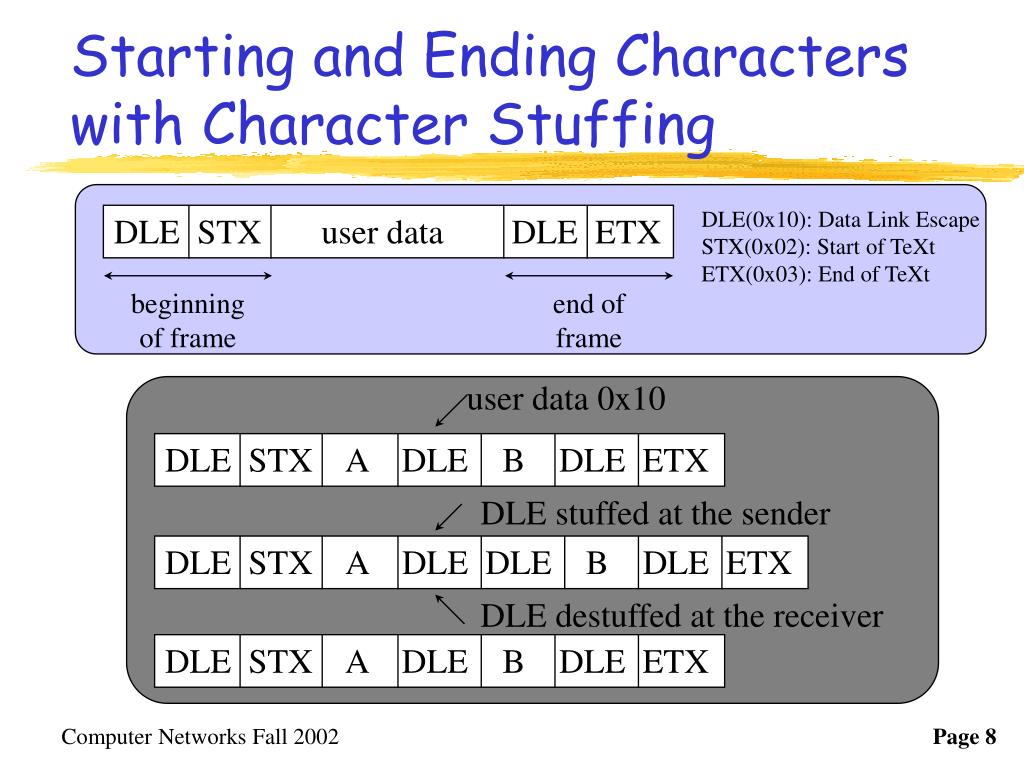

starting and ending characters with character stuffing

DLE(0x10): Data Link Escape

STX(0x02): Start of TeXt

ETX(0x03): End of TeXt

DLE STX user data DLE ETX

beginning

of frame

end of

frame

user data 0x10

DLE STX A DLE B DLE ETX

DLE stuffed at the sender

DLE STX A DLE DLE B DLE ETX

DLE destuffed at the receiver

DLE STX A DLE B DLE ETX

Starting and Ending Characters with Character Stuffing
starting and ending flags with bit stuffing

flag

01111110 user data 01111110

beginning

of frame

end of

frame

original data

011011111111111111110010

bits stuffed at the sender

011011111011111011111010010

bits destuffed at the receiver

011011111111111111110010

Starting and Ending Flags with Bit Stuffing
physical layer coding violations

1 0 0 0 1 1 0

Starting

Delimiter

Ending

Delimiter

user

data

V V 1 V V 0 0 0

V V 0 V V 0 0 0

beginning of frame

end of frame

Physical Layer Coding Violations

V: Violation bit

error control

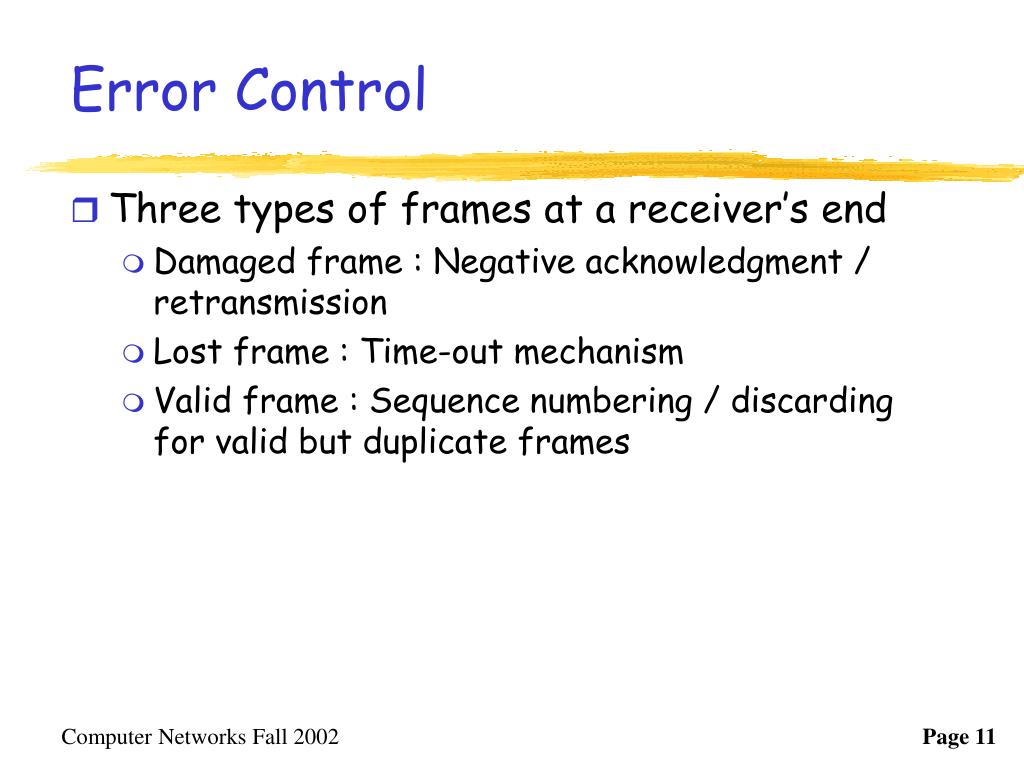

Error Control
  • Three types of frames at a receiver’s end
    • Damaged frame : Negative acknowledgment / retransmission
    • Lost frame : Time-out mechanism
    • Valid frame : Sequence numbering / discarding for valid but duplicate frames
flow control
Flow Control
  • A technique for assuring that a transmitting station does not overwhelm a receiving station with data
error detection and correction
Error Detection and Correction
  • Error-correcting codes
  • Error-detecting codes
codeword
Codeword
  • n-bit codewords with n =m+r and
    • m data bits
    • r redundant or check bits
  • Not all the 2n codewords are legal. In general, only 2m codewords are legal.
  • ASCII codes of 7 bits with 1 even parity bit
    • ASCII code for “A”: 1000001
    • codeword for “A”: 10000010 or 01000001
    • Codeword 10000011 or 11000001 is illegal.
hamming distance
Hamming Distance
  • The number of bit positions in which two codewords differ is called the Hamming distance between these two codewords.
  • The Hamming distance of the complete code is the minimum Hamming distance between all pairs of legal codewords.

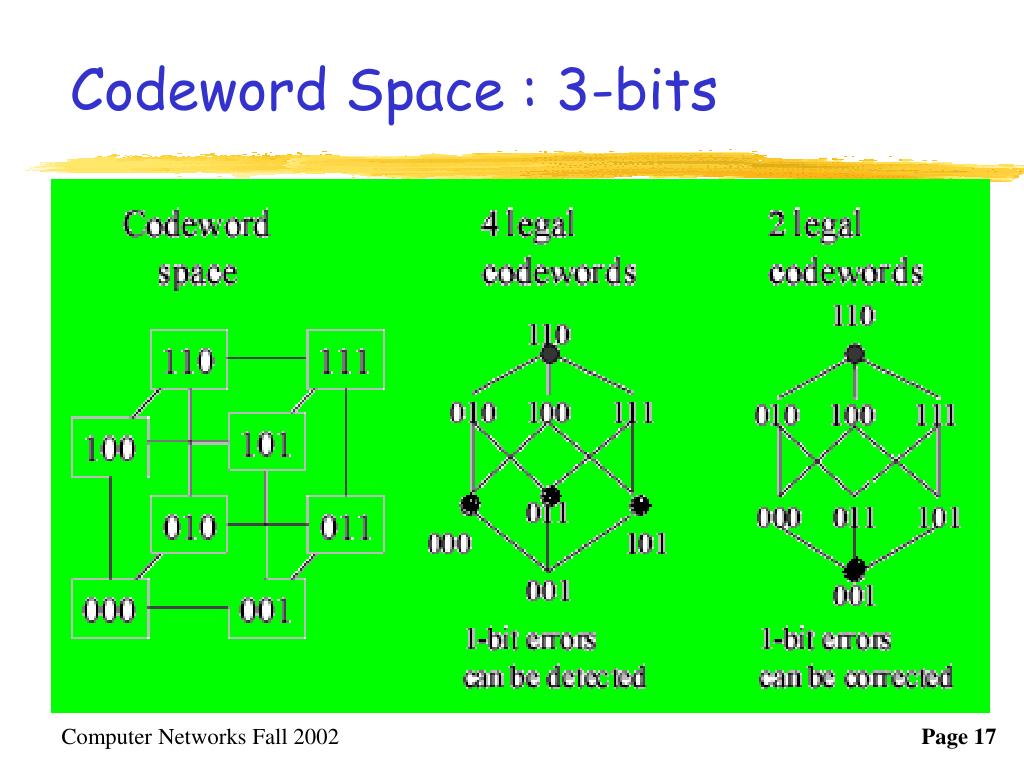

codeword space
Codeword Space
  • To detect d-bit errors, a distance d +1 code is needed.
  • To correct d-bit errors, a distance 2d +1 code is needed.

1-bit error detection

1-bit error correction

determine the number of check bits
Determine the Number of Check bits
  • To correct single bit errors with m bits message and r check bits (n=m+r)
    • Code space : 2m n-bit legal messages(codewords)
    • For an n-bit legal codeword, all its n neighbors at a distance 1 from it are illegal
    • n+1 bit patterns are dedicated to each legal message
    • (n+1)2m <= 2n and consequently (m+r+1)2m <= 2m+r. we have : (m+r+1) <= 2r
hamming code
Hamming Code
  • The bits that are powers of 2 (1, 2, 4, 8, 16, etc.) are check or parity bits of some data bits.
  • For example, m=7 (ASCII) and r=4 (7+4+1 <= 24)
    • B1 : B3 B5 B7 B9 B11
    • B2 : B3 B6 B7 B10 B11
    • B4 : B5 B6 B7
    • B8 : B9 B10 B11

1 001 000 “H”

xx1x001x000

0 1 0 1 0 0

01 01 00

1001

0000

00110010000 codeword

to correct burst errors

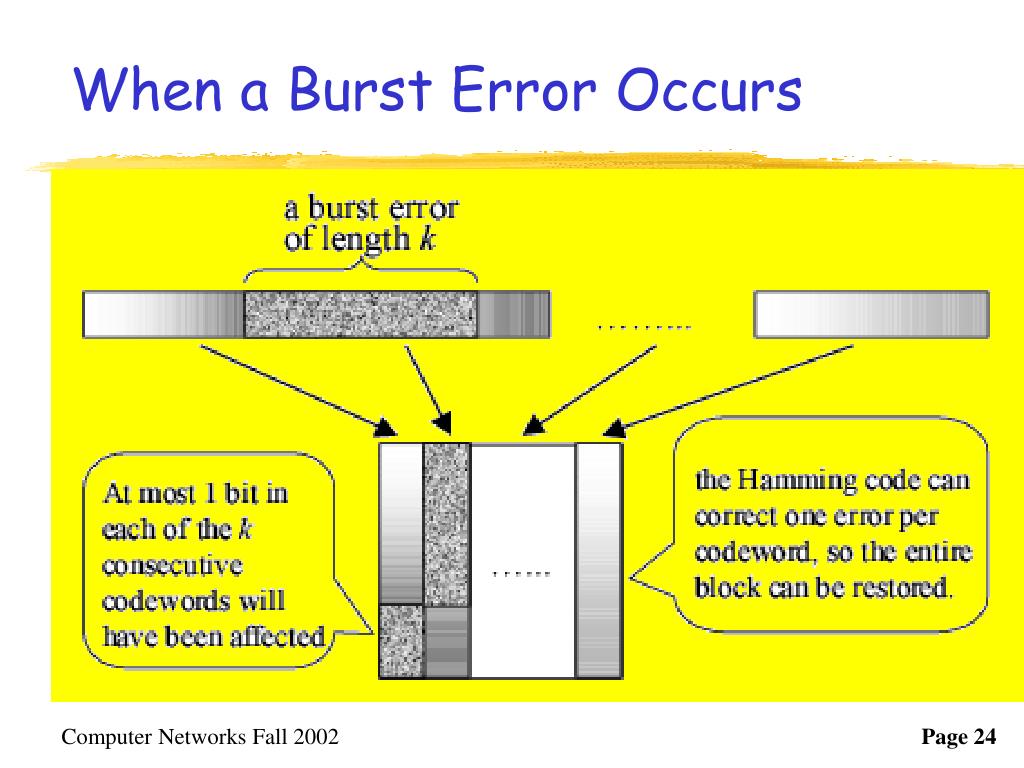

To Correct Burst Errors
  • A sequence of k consecutive codewords are arranged as a matrix, one codeword per row. To correct burst errors, the data should be transmitted one column at a time, i.e., column by column.
  • If a burst error of length k bits occurs, at most 1 bit in each of the k consecutive codewords will have been affected, but the Hamming code can correct one error per codeword, so the entire block can be restored.
to correct burst errors an example

1

2

3

4

5

6

7

8

9

10

11 column

To Correct Burst Errors: An Example

B1 : B3 B5 B7 B9 B11

B2 : B3 B6 B7 B10 B11

B4 : B5 B6 B7

B8 : B9 B10 B11

ASCII Codeword

1001000 00110010000

1100001 10111001001

1101101 11101010101

011 001 111 110 011 000 101 010 001 000 011

burst error

011 001 111 111101 000 101 010 001 000 011

Codeword

00111010000

10110001001

11111010101

Codeword

00110010000

10111001001

11101010101

B1(011100)+B4(1101) => B5

B1(110001)+B4(1000) => B5

B4(1101) => B4

error detection
Error Detection
  • Parity bit
    • low error rate
  • Longitudinal redundancy check (LRC) and Vertical redundancy check (VRC)
  • Cyclic redundancy code (CRC code) / Polynomial code
    • Easy hardware implementation
    • Can detect burst errors
parity bit
Parity Bit
  • block size: 1000 bits
    • Hamming code: 1000+10 bits (m+r+1 <= 2n)
    • parity bit: 1000+1 bits
  • a message: 106 bits
    • without no error
      • Hamming code: 106+10000 bits
      • parity bit: 106+1000 bits
    • with a low error rate 10-6
      • Hamming code: 106+10000 bits
      • parity bit: 106+1000+(1000+1) bits ( one error occurs)

retransmitted block

longitudinal redundancy check and vertical redundancy check

VRC

1 0 1 1 0 1 1 1

1 1 0 1 0 1 1 1

0 0 1 1 1 0 1 0

1 1 1 1 0 0 0 0

1 0 0 0 1 0 1 1

0 1 0 1 1 1 1 1

0 1 1 1 1 1 1 0

LRC

Longitudinal Redundancy Check and Vertical Redundancy Check
cyclic redundancy code crc polynomial code
Cyclic Redundancy Code (CRC) / Polynomial Code
  • A m-bit frame is regarded as the coefficient list for a polynomial, M(x), with m terms, ranging from xm-1 to x0. For example, 110001 represents a polynomial x5+x4+x0.
  • Addition and subtraction are identical to EXCLUSIVE OR. For example,

10011011 11110000

+ 11001010 -10100110

= 01010001 =01010110

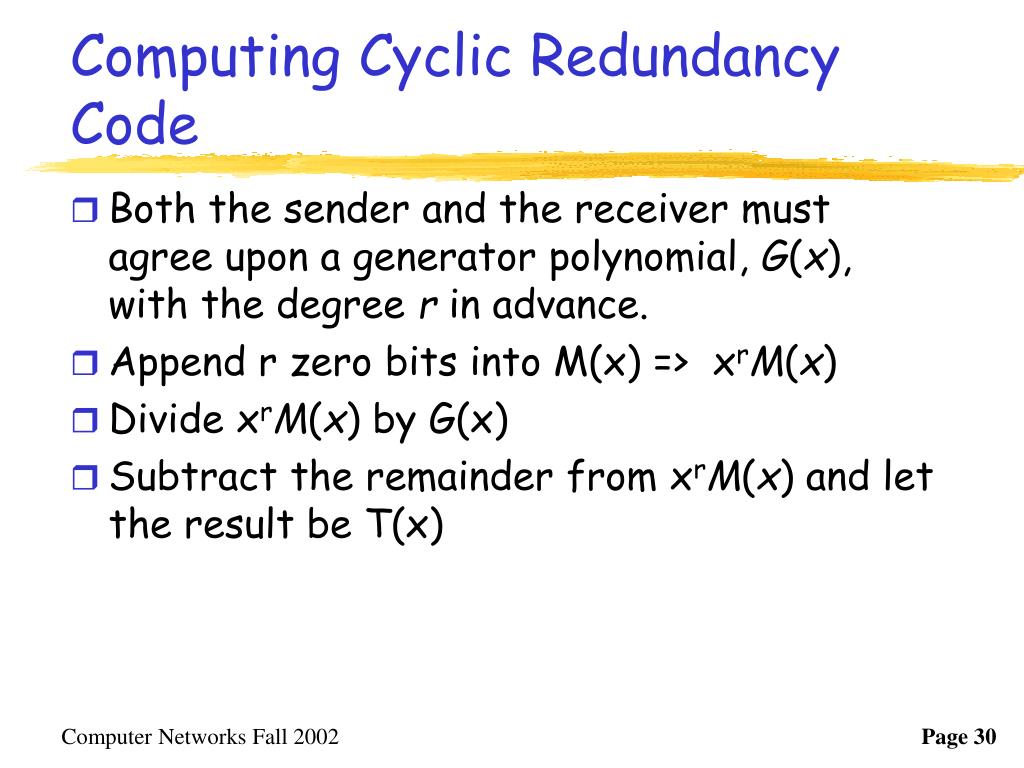

computing cyclic redundancy code
Computing Cyclic Redundancy Code
  • Both the sender and the receiver must agree upon a generator polynomial, G(x), with the degree r in advance.
  • Append r zero bits into M(x) => xrM(x)
  • Divide xrM(x) by G(x)
  • Subtract the remainder from xrM(x) and let the result be T(x)
crc at receiver end
CRC at Receiver End
  • T(x) is received with no error.
    • T(x) is divisible by G(x)
  • When errors represented by error bit pattern E, ( ie. E(x)), occur,
    • (T(x) +E(x)) /G(x) has zero reminder only if E(x) is divisible by G(x)
    • Carefully selects G(x) such that E(x) is not divisible by G(x)
crc with single and double errors

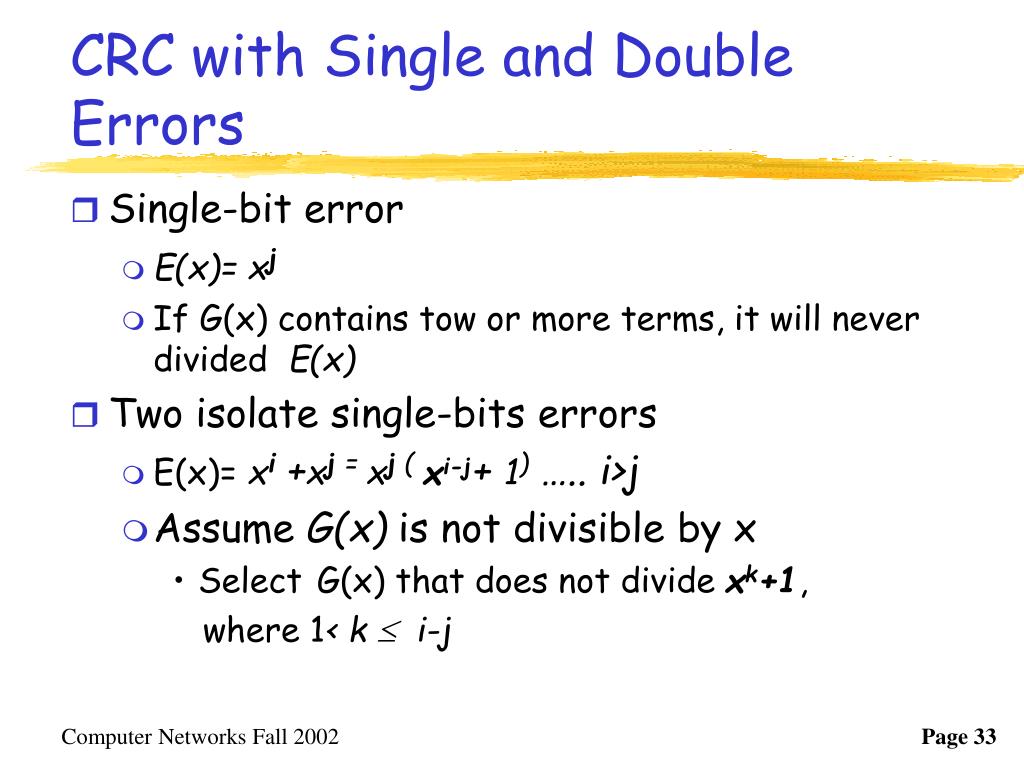

CRC with Single and Double Errors
  • Single-bit error
    • E(x)= xj
    • If G(x) contains tow or more terms, it will neverdivided E(x)
  • Two isolate single-bits errors
    • E(x)= xi +xj = xj ( xi-j+ 1) ….. i>j
    • Assume G(x) is not divisible by x
      • SelectG(x) that does not divide xk+1,

where 1< k  i-j

well known generator polynomials

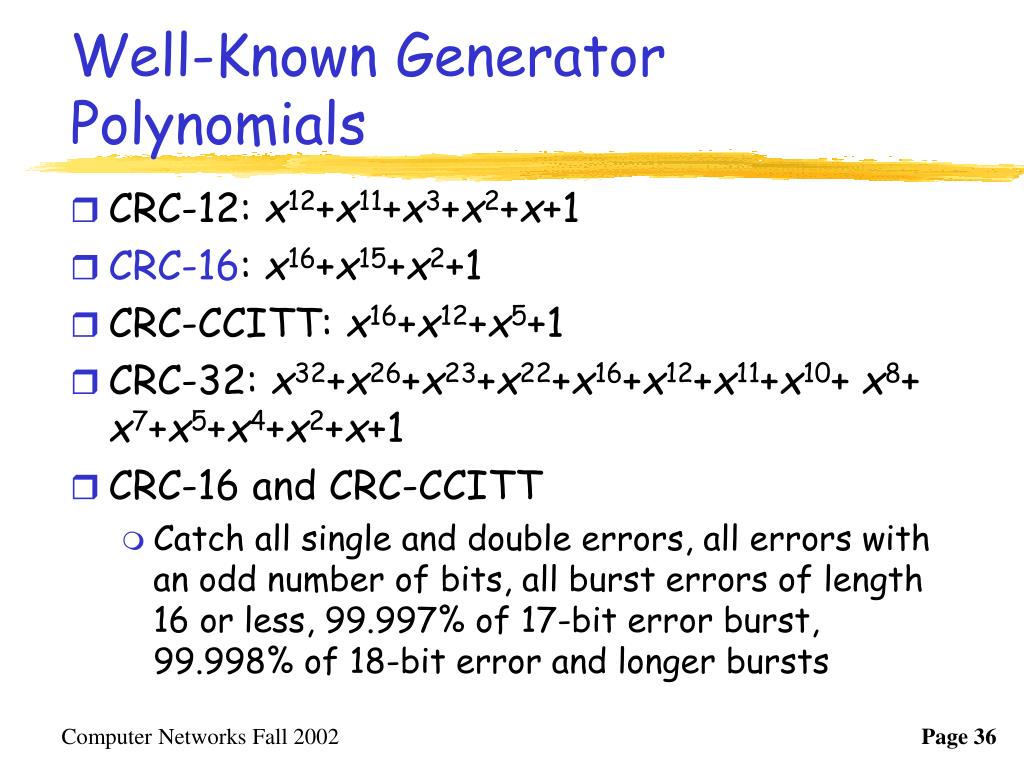

Well-Known Generator Polynomials
  • CRC-12: x12+x11+x3+x2+x+1
  • CRC-16: x16+x15+x2+1
  • CRC-CCITT: x16+x12+x5+1
  • CRC-32: x32+x26+x23+x22+x16+x12+x11+x10+ x8+ x7+x5+x4+x2+x+1
  • CRC-16 and CRC-CCITT
    • Catch all single and double errors, all errors with an odd number of bits, all burst errors of length 16 or less, 99.997% of 17-bit error burst, 99.998% of 18-bit error and longer bursts
flow control techniques

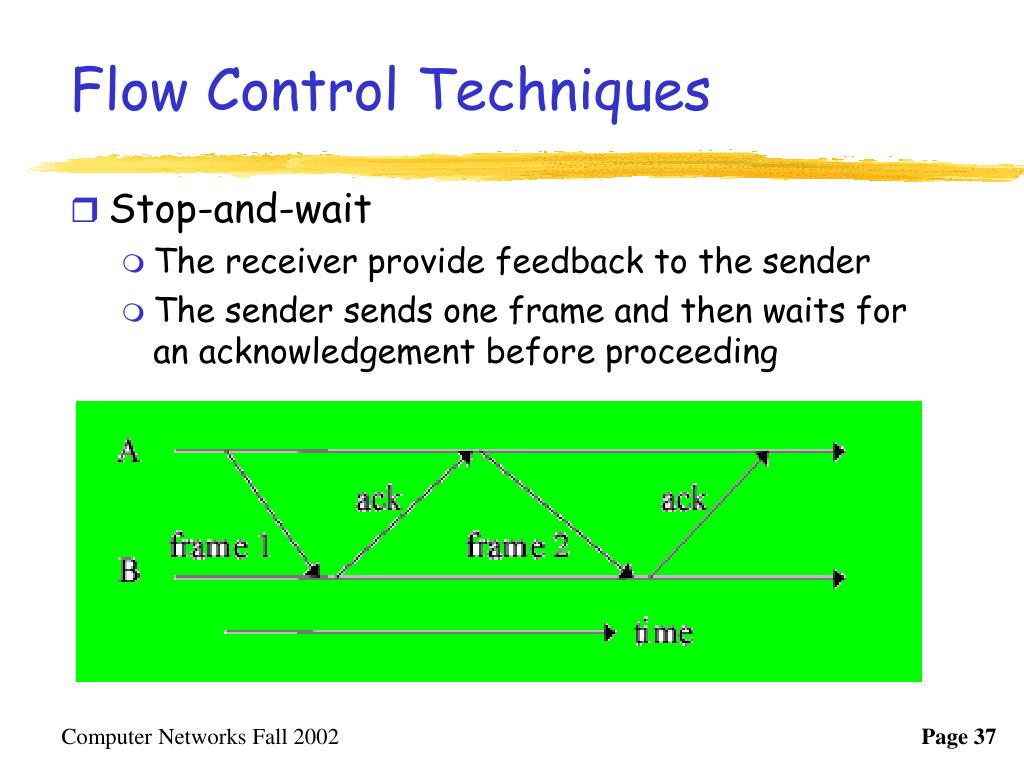

Flow Control Techniques
  • Stop-and-wait
    • The receiver provide feedback to the sender
    • The sender sends one frame and then waits for an acknowledgement before proceeding
dealing with the damaged frames
Dealing with the Damaged Frames
  • Adding a timer ( on sender )
    • The receiver would only send an ack if the data were correctly received
    • After time out, the sender send the frame again
dealing with the lost frames
Dealing with the Lost Frames
  • A lost data frame can be resent by using a timer
  • When an acknowledgement is lost
    • The sender’s timer eventually time-out
    • The sender resends the same data frame
    • After the data frame is received, the receiver sends acknowledgement again

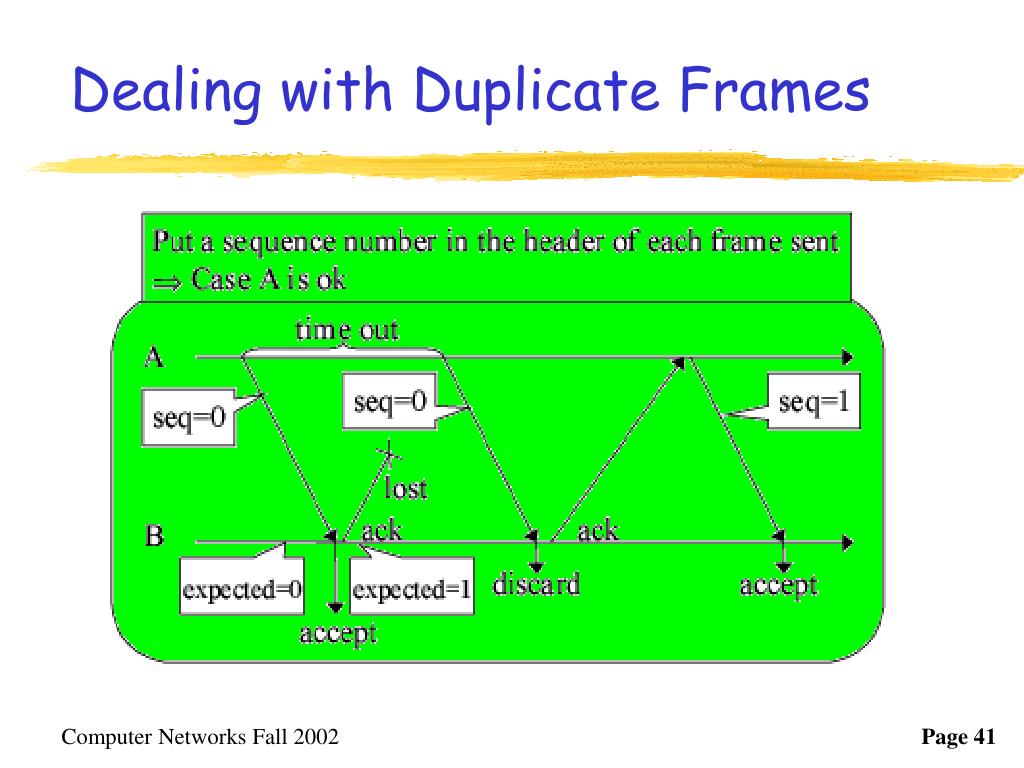

acknowledgement
Acknowledgement
  • Techniques
    • Control Frame
    • Data Frame: Piggybacking
      • The technique of temporarily delaying outgoing acknowledgements so that they can be hooked onto the next outgoing data frame is known as piggybacking.
  • Types
    • Positive Acknowledgement: The received frame has no error.
    • Negative Acknowledgement: The received frame has errors.
flow control1
Flow Control
  • Flow control is a technique for assuring that a transmitting station does not overwhelm a receiving station with data.
  • Sliding Window Protocols: At any instant of time, the sender maintains a set of sequence numbers corresponding to frames it is permitted to send. These frames are said to fall within the sending window. Similarly, the receiver also maintain a receiving window corresponding to the set of frames it is permitted to accept.
sliding windows
Sliding Windows
  • Each outbound frame contain a sequence number ranging from 0 to 2n-1
  • Sending window
    • Maintained by the sender
    • A set of sequence numbers corresponding to frames the sender is permitted to send
  • Receiving window
    • Maintained by the receiver
    • Corresponds the set of frames the receiver is permitted to accept
maintain sliding windows
Maintain Sliding Windows
  • Sending window
    • When a frame is sent, the upper edge of the window is advanced by one
    • When an acknowledgement is received, the lower edge of the window is advanced by one
  • Receiving window
    • Any received frame the sequence number outside the window is discarded
    • When a frame whose sequence number is equal to lower edge of the window is received, the window is rotated by one
sliding window protocols
Sliding Window Protocols
  • One bit sliding window protocol ( Stop-and-Wait)
  • Go-back-N Protocol
  • Selective Repeat Protocol

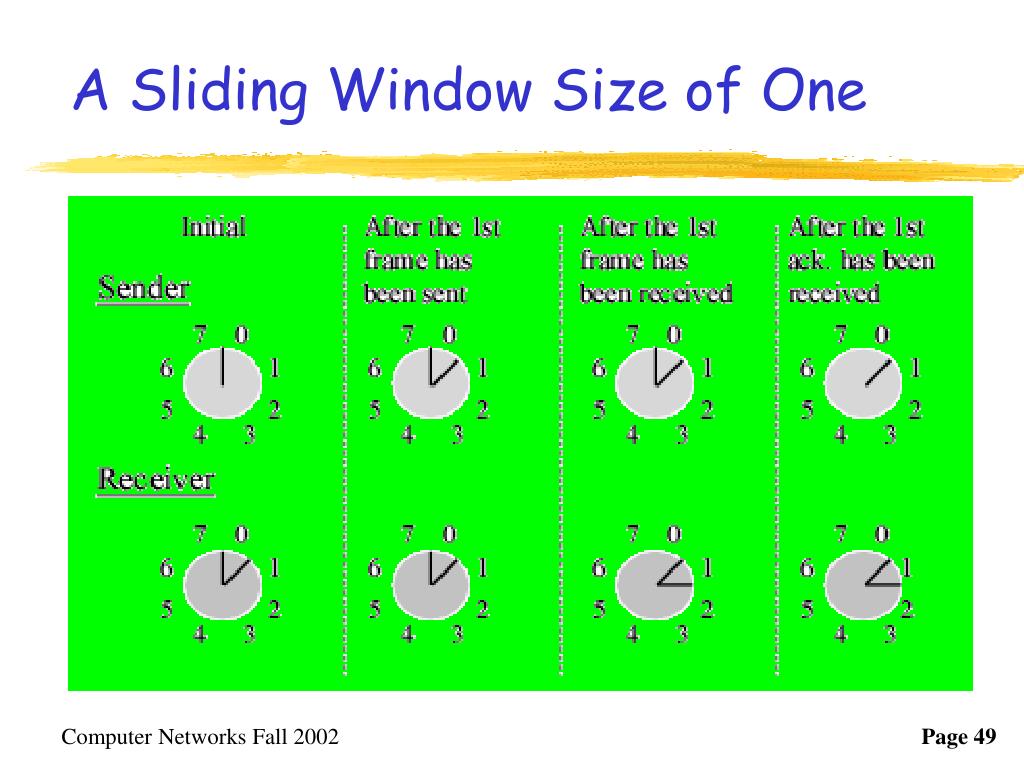

one bit sliding window protocol
One Bit Sliding Window Protocol
  • Stop –and-Wait
    • A protocol in which the sender sends one frame and then waits for an acknowledgement before proceeding.
  • a sliding window protocol with maximum window size = 1
    • Sequence number {0, 1} is sufficient
  • Frame header fields
    • Seq : the sequence number of this frame
    • Ack : the number of the last frame is received
efficiency of stop and wait

time (msec)

t=0 start sending

t=20 completely sent

t=250 frame arrival

t=270 completely received

t=270 acknowledge without delay

t=520 acknowledgement arrival

Efficiency of Stop-and-Wait

Stop-and-Wait

50 kbps data rate

500 msec round-trip delay

1000 bits per frame

26000 bits could be transmitted in 520 msec.

Efficiency: 1000/26000=20/520 < 4% used

pipelining
Pipelining

50 kbps data rate

500 msec round-trip delay

1000 bits per frame

time (msec)

t=0 start sending the first frame

t=20 the first completely sent

t=250 frame arrival

t=270 the first completely received

t=270 acknowledge without delay

t=520 acknowledgement arrival

To pipeline frames without waiting for acknowledgements.

line of utilization for stop and wait
Line of Utilization for Stop-and-Wait
  • Capacity : b bits/sec, frame size : l bits, round-trip delay : R seconds
    • Transmission time : l/b
    • Total duration : R + l/b
    • Utilization : (l/b) / (R + l/b) = l / (l+bR)
go back n
Go-back-N
  • Sender’s window size is n (n >1)
    • At most n outstanding frames can be sent
  • After receiving a damaged frame
    • Receiver discards all subsequent frames
    • Sender retransmits the damaged frame and all its successors after the times out
selective repeat
Selective Repeat
  • Receiver’s window size is n ( n >1 )
    • At most n frames can be buffered
  • Receiver stores all the correct frames following the bad one
  • The sender retransmits only the bad frame not all its successors
retransmission with sliding window protocols
Retransmission with Sliding Window Protocols
  • ARQ (Automatic Repeat reQuest): When an error is detected, the receiver requests that the frame be retransmitted.
    • Stop-and-wait ARQ
    • Go-back-N continuous ARQ
    • Selective-repeat continuous ARQ
  • All of them belong to the sliding window protocols.
  • Both Go-back-N and Selective-repeat ARQs uses the pipelining technique.
slide62
ARQ
  • Instead of using positive or negative acknowledgement, the receiver sends back only the frame number of the next frame is expects
  • On the receipt of each frame (including damaged)
    • It may speed up the transmission of lost or damaged frames, if the time-out value is “loose”
window size
Window Size
  • The optimal sender’s windows size is 1+(round-trip delay / transmission time)
  • Maximum window size of Go-back-N ARQ is MaxSeq, where the sequence number are 0, 1, ... , MaxSeq.
  • Maximum window size of Selective-repeat ARQ is (MaxSeq+1)/2.
protocol specification and verification
Protocol Specification and Verification
  • Finite State Machine Model
  • Petri Net Model
finite state machine model
Finite State Machine Model
  • States
    • Instants that the protocol machine is waiting for the next event to happen
  • Transitions
    • Occur when some event occurs
    • Change form some state to another
finite state machine model for bit destuffing

1/

1/

1/

1/

1/

1/

0/

Finite State Machine Model for Bit Destuffing

Bit destuffing

input/output

0/11110

0/110

end of

frame

S

1

2

3

4

5

6

E

0/0

0/10

1/

0/1110

bit destuffed

T

beginning

of the next

frame

error

0/11111

example data link protocols
Example Data Link Protocols
  • HDLC
    • bit oriented
    • bit stuffing
  • SLIP
  • PPP
    • character oriented
    • character stuffing
    • multiprotocol framing
high level data link control
High-level Data Link Control
  • derived from SDLC (Synchronous Data Link Control) of IBM’s SNA
  • ADCCP (Advanced Data Communication Control Procedure): ANSI
  • HDLC: ISO
  • LAP (Link Access Procedure): X.25 of CCITT
  • LAPB: CCITT
  • http://members.tripod.com/~vkalra/hdlc.html
hdlc frame format

bits

8

8

8

>=0

16

8

01111110 Address Control Data Checksum 01111110

HDLC Frame Format
  • A frame is delimited with the flag sequence 01111110. On idle point-to-point lines, flag sequences are transmitted continuously.
  • Address
    • to identify one of multiple terminals for point-to-multipoint lines
    • to distinguish commands from responses for point-to-point lines
hdlc frame addressing

address=0xC0, command

address=0xC0, response

address=0x80, command

address=0x80, response

HDLC Frame Addressing

PDN

DTE

DCE

Address A

Address B

hdlc frame type
HDLC Frame Type

Control Field

* not defined in LAPB

hdlc p f bit
HDLC P/F Bit
  • In Command frames: P (POLL) bit
  • In Response frames: F (FINAL) bit
  • Each Command frame with the POLL bit set to 1 must receive a Response frame with the FINAL bit set to 1.
hdlc supervisory frame
HDLC Supervisory Frame
  • RR (Receive Ready): acknowledgement frame
    • N(R): the next frame expected to be received
  • REJ (Reject): negative acknowledgement frame
    • N(R): the first frame in sequence not received correctly (Go-back-N protocol)
  • RNR (Receive not Ready): same as Type 0 and telling the sender to stop sending
  • SR (Selective Reject): acknowledgement frame
    • N(R): the frame expected to be retransmitted (Selective Repeat protocol)
hdlc unnumbered frame

Link Initiation

Link Termination

SABM

DISC

UA

UA

SABM

DM

HDLC Unnumbered Frame

accept

reject

UA Unnumbered/Acknowledgement

SABM Set Asynchronous Balanced Mode

DISC Disconnect

DM Disconnected Mode

serial line ip
Serial Line IP
  • SLIP (Serial Line IP): to connect SUN workstations to the Internet over a dial-up line using a modem in 1984
  • RFC 1055
  • Sending IP packets over the line, with a special flag byte at the end for framing. Using character stuffing.
  • Many problems: no error detection, supporting only IP, no authentication, etc.
point to point protocol
Point-to-Point Protocol
  • PPP: RFC 1661, RFC 1662, RFC 1663
  • A multiprotocol framing mechanism suitable for use over modems, HDLC lines, SONET , and other physical layers.
  • Supports error detection, option negotiation, header compression, and optionally, reliable transmission using HDLC framing.
  • Character-oriented
homework
Homework
  • #2, #3, #6, #9,#11
