what is civil engineering

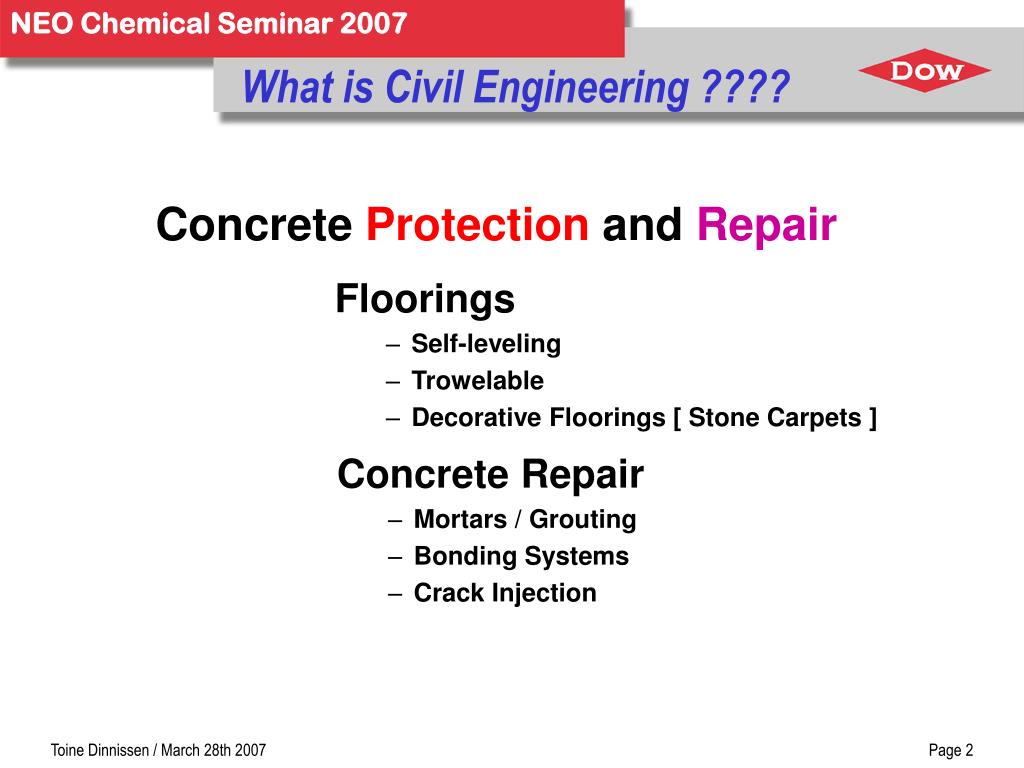

What is Civil Engineering ????

Concrete Protection and Repair

  • Floorings
    • Self-leveling
    • Trowelable
    • Decorative Floorings [ Stone Carpets ]
  • Concrete Repair
    • Mortars / Grouting
    • Bonding Systems
    • Crack Injection
why protect and repair concrete

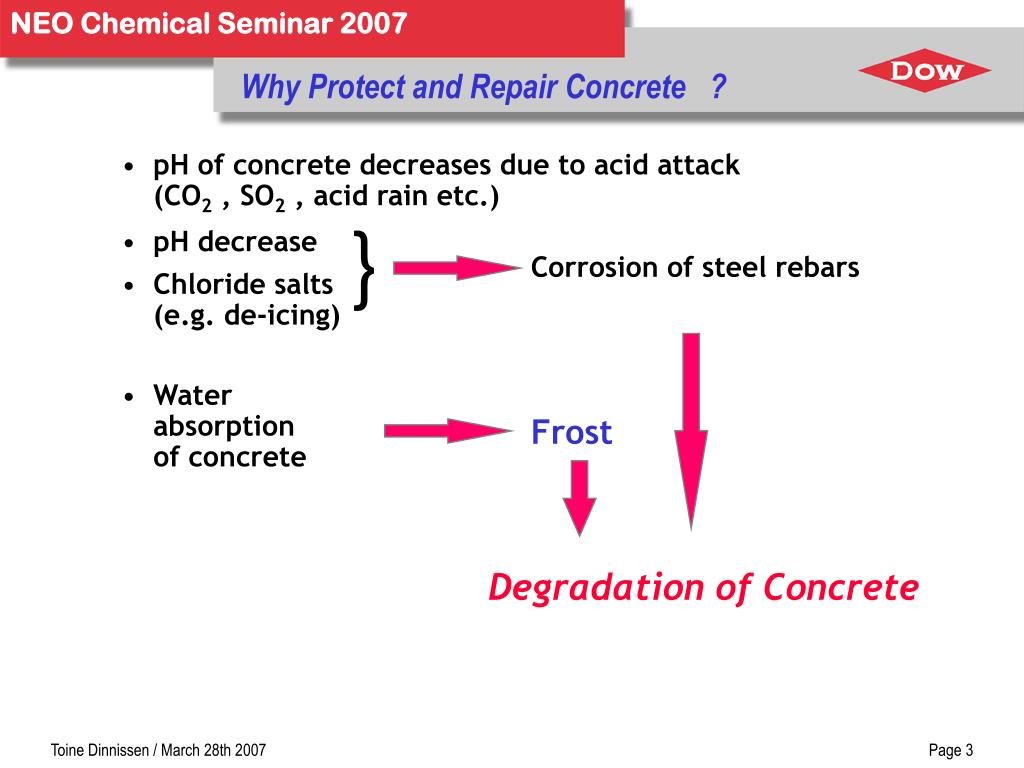

Why Protect and Repair Concrete ?
  • pH of concrete decreases due to acid attack (CO2 , SO2 , acid rain etc.)

}

  • pH decrease

Corrosion of steel rebars

  • Chloride salts (e.g. de-icing)
  • Water absorptionof concrete

Frost

Degradation of Concrete

desired properties
Desired properties

Protection and repair of concrete

  • ambient cure application window
  • easy to apply
  • workable pot-life
  • quick dry to enable to walk on it after 1 day
  • impact strength
  • flexural strength
  • resistance against mechanical stresses
  • crack bridging properties
  • ground water protection
  • chemical resistance
  • self-leveling and seamless flooring systems
features of epoxy resins for ce
Features of Epoxy resins for CE
  • adjustable curing speed at RT
  • low sensitivity to moisture during curing
  • very good adhesion on concrete and “green-concrete”
  • very low linear shrinkage and corresponding tension
  • very good chemical resistance
  • very high durability

BUT

  • limited weatherability (UV-light)
typical flooring composition
Typical Flooring Composition
  • 2 Pack system [ or 3 pack ]

Component A Component B

Epoxy Resin Curing Agent

Pigments Pigments

Quartz sand

Additives Additives

mix prior to use, pot-life of 30 minutes to 2 hours

  • Ambient Cure
surface preparation
Surface Preparation

Surface must be clean and sound.

All dirt, laitance, grease, curing compoundsand other foreign matter must be removedby sandblasting, abrasion, or acid etching.

Water and dust must be removed from allsurfaces immediately prior to application.

crack bridging self leveling flooring system typical three layer 3 days operation build up

Concrete Inspection and Preparation

Crack Bridging Self-leveling Flooring SystemTypical three layer (3 days operation) build-up

Impregnation

  • 300 - 500 g/m2
  • viscosity below 500 mPa.s
  • cover with 1000 g/m2 Quartz-sand 0.2 - 0.7 mm

Finishing Layer

  • 2700 g/mm2 to 2 mm thickness
  • viscosity below 2000 mPa.s

4 mm

Functional Layer

  • 2700 g/m2 to 2 mm thickness
  • viscosity below 2000 mPa.s

Concrete Substrate

dow epoxy resins for civil engineering
Dow Epoxy resins for Civil Engineering
  • D.E.R.™ 331™ / D.E.R. 336 Epoxy Resin
    • Liquid Bisphenol-A based Epoxy Resin
  • D.E.R. 354 Epoxy Resin
    • Liquid Bisphenol-F based Epoxy Resin
  • D.E.R. 352 / D.E.R. 356 Epoxy Resin
    • Liquid Bisphenol-A/F Epoxy Resin
    • { to prevent crystallization }
  • Reactive Diluent Blends { reduced viscosity }

D.E.R. 321 / D.E.R. 324 Epoxy Resin

    • Bisphenol-A type

D.E.R. 353 / D.E.R. 358 Epoxy Resin

    • Bisphenol-A/F type
  • D.E.R. 671-X75 and 684-EK40 Epoxy Resin Solutions
    • Primer - Surface Impregnation

™ Trademark of The Dow Chemical Company

self leveling flooring system typical formulation
Self-leveling Flooring SystemTypical formulation:

Binder [ % ] 40

  • D.E.R.™324 Liquid Epoxy Resin 25.2
  • Quartz-sand [ 0.1 - 0.3 mm ] 35.2
  • Quartz-powder [ < 0.06 mm ] 22.5
  • Titanium-dioxide [ Color ] 1.7
  • Air-release agent 0.4
    • e.g. BYK A-525
  • Amine - Epoxy Adduct Curing Agent 15.1(e.g. Polypox H 043 ex. UPPC )

{Concrete}Compressive Strength = 50 N/mm2 { 40 }Flexural Strength = 60 N/mm2 { 4 }Tensile Strength = 43 N/mm2 { 2 }

STRONGER THAN CONCRETE !!!

™ Trademark of The Dow Chemical Company

regulatory trends

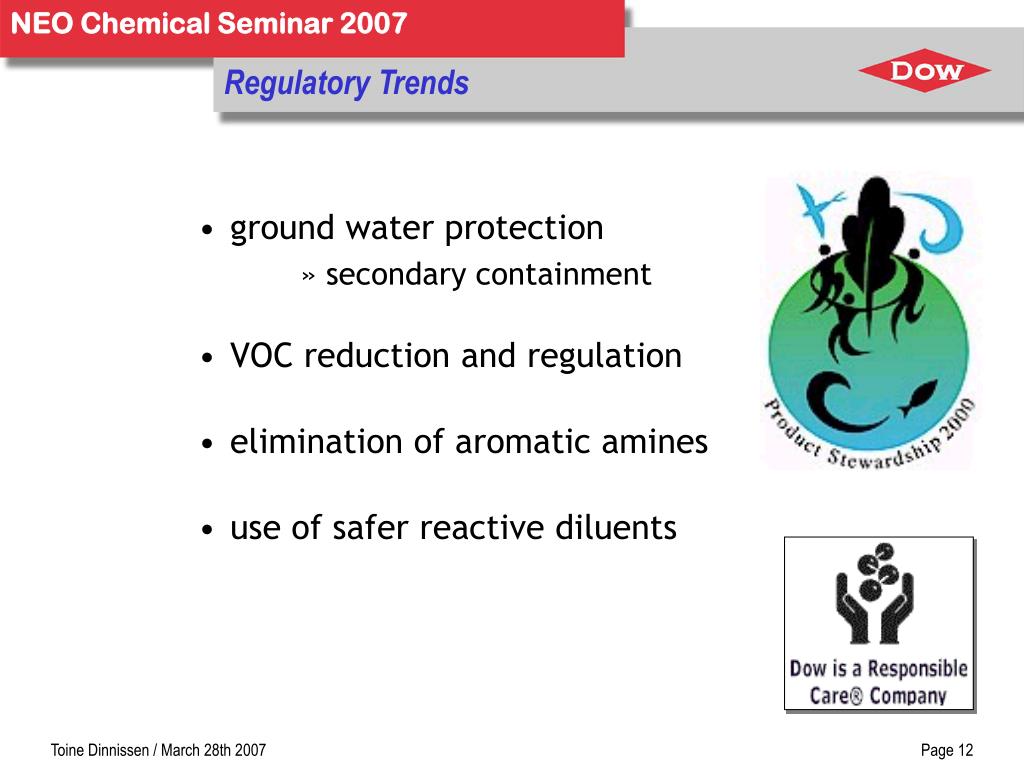

Regulatory Trends
  • ground water protection
      • secondary containment
  • VOC reduction and regulation
  • elimination of aromatic amines
  • use of safer reactive diluents
technology trends
Technology Trends
  • lower temperature cure
    • curing down to, below, 0 °C
    • mainly driven by curing agent
  • lower viscosity { Bisphenol-A/F and RD blends }
    • 500 - 6000 mPa.s @ 25 °C
  • aqueous systems
    • coatings on concrete
    • polymer concrete
    • Epoxy Cement Concrete
  • flexible epoxy resins
    • 50 - 200 % Elongation
    • crack-bridging concrete
  • non crystallizing Resins
    • stable on filler addition
    • winter time outside storage stable
slide14

End of the Civil Engineering Part !!!

Further Technical as well as Product Stewardship related information can be found on www.Dowepoxy.com.

e.g.

Dow Epoxy Products Portfolio incl. Corresponding technical datasheets,

Dow Liquid Epoxy Resin Brochure

Dow Epoxy Novolac Brochure

Dow Epoxy Resin Product Stewardship Manual

Dow Epoxy Curing Agents Product Stewardship Manual
