  1. TCP補充 TCP流量控制 TCP基本的概念 2010-05-NCUT Shih-Chieh Su

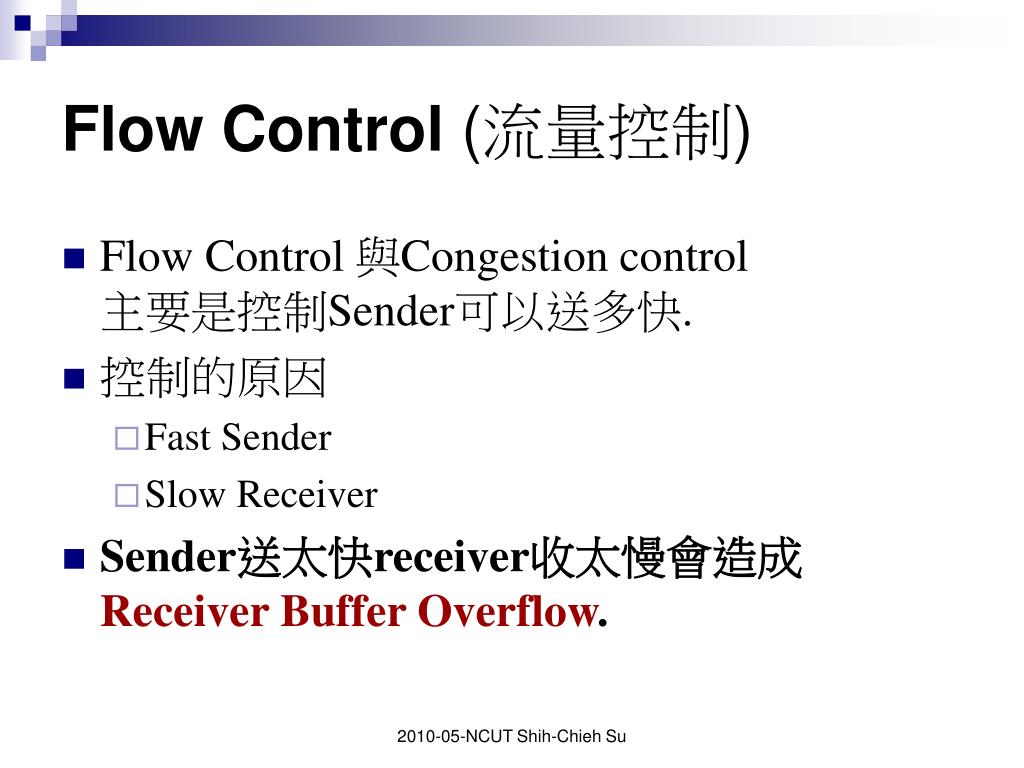

  2. Flow Control (流量控制) • Flow Control 與Congestion control主要是控制Sender可以送多快. • 控制的原因 • Fast Sender • Slow Receiver • Sender送太快receiver收太慢會造成Receiver Buffer Overflow. 2010-05-NCUT Shih-Chieh Su

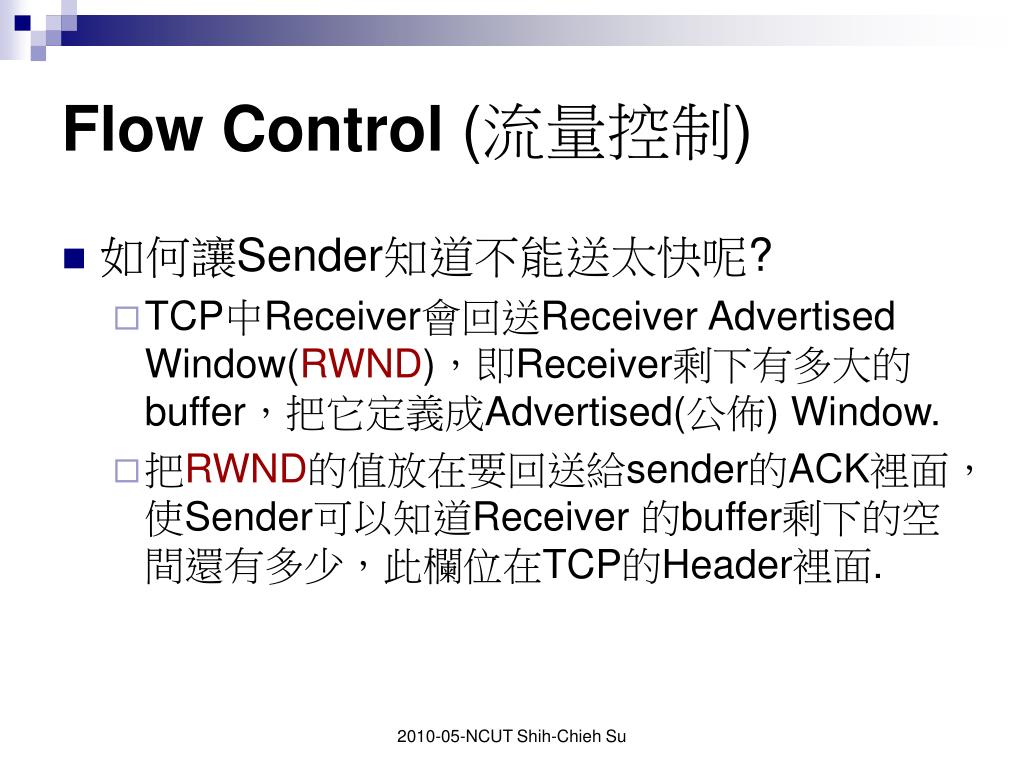

  3. Flow Control (流量控制) • 如何讓Sender知道不能送太快呢? • TCP中Receiver會回送Receiver Advertised Window(RWND)，即Receiver剩下有多大的buffer，把它定義成Advertised(公佈) Window. • 把RWND的值放在要回送給sender的ACK裡面，使Sender可以知道Receiver 的buffer剩下的空間還有多少，此欄位在TCP的Header裡面. 2010-05-NCUT Shih-Chieh Su

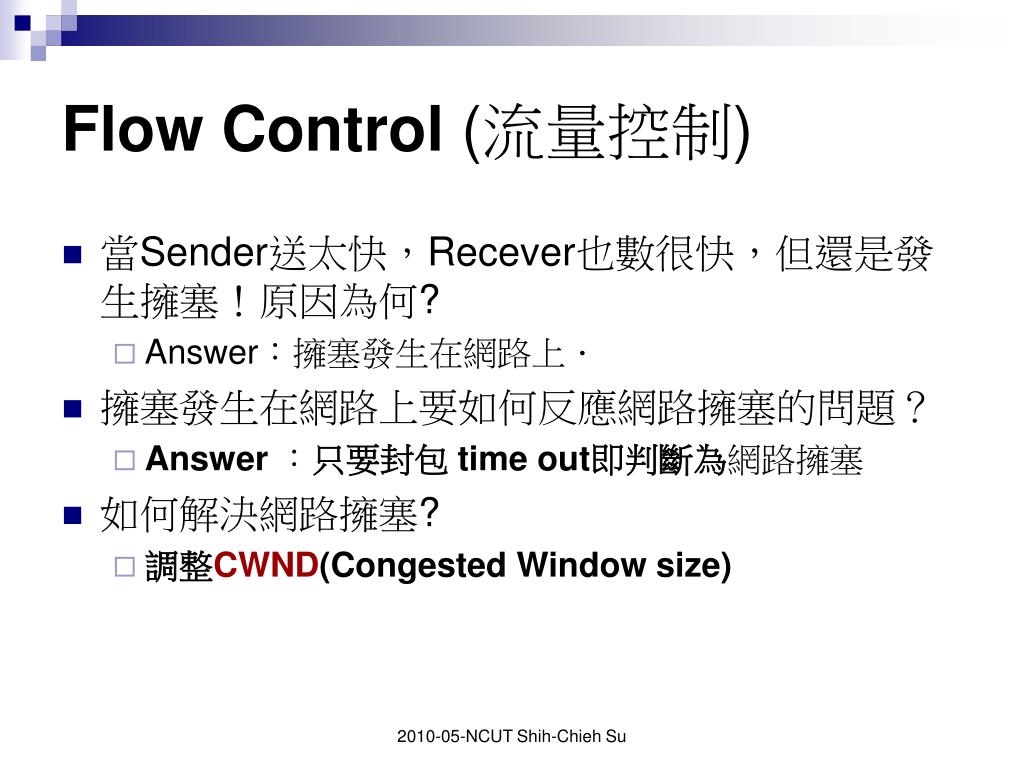

  4. Flow Control (流量控制) • 當Sender送太快，Recever也數很快，但還是發生擁塞！原因為何? • Answer：擁塞發生在網路上． • 擁塞發生在網路上要如何反應網路擁塞的問題？ • Answer ：只要封包 time out即判斷為網路擁塞 • 如何解決網路擁塞? • 調整CWND(Congested Window size) 2010-05-NCUT Shih-Chieh Su

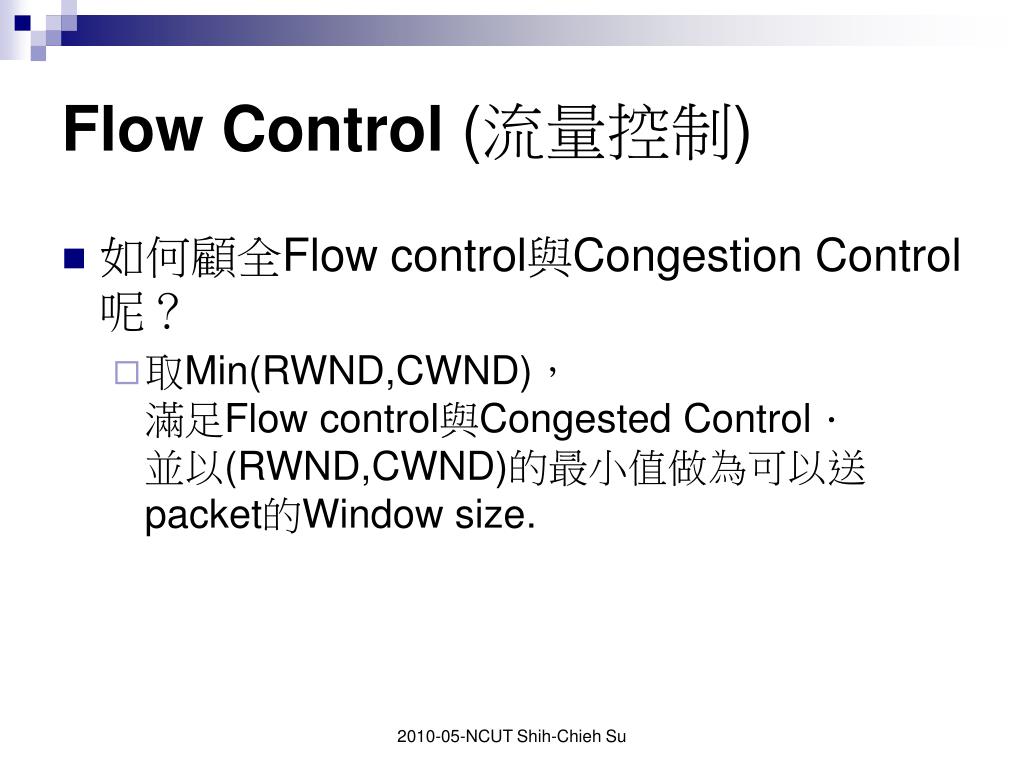

  5. Flow Control (流量控制) • 如何顧全Flow control與Congestion Control呢？ • 取Min(RWND,CWND)，滿足Flow control與Congested Control．並以(RWND,CWND)的最小值做為可以送packet的Window size. 2010-05-NCUT Shih-Chieh Su

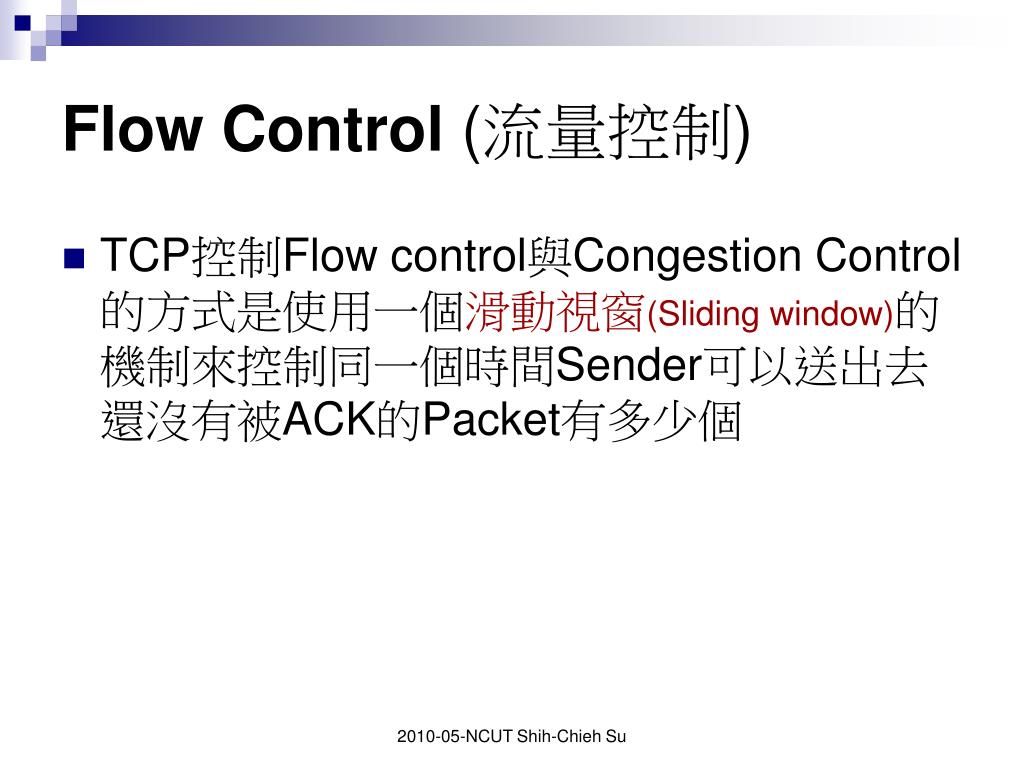

  6. Flow Control (流量控制) • TCP控制Flow control與Congestion Control的方式是使用一個滑動視窗(Sliding window)的機制來控制同一個時間Sender可以送出去還沒有被ACK的Packet有多少個 2010-05-NCUT Shih-Chieh Su

  7. TCP基本的概念 2010-05-NCUT Shih-Chieh Su

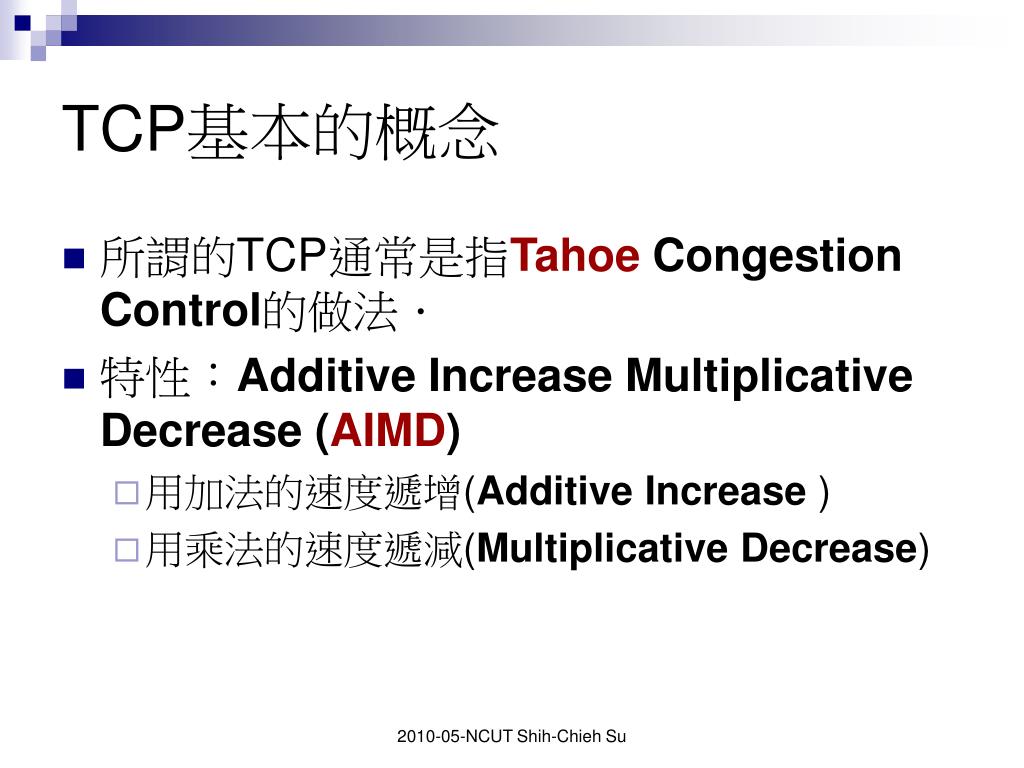

  8. TCP基本的概念 • 所謂的TCP通常是指Tahoe Congestion Control的做法． • 特性：Additive Increase Multiplicative Decrease (AIMD) • 用加法的速度遞增(Additive Increase ) • 用乘法的速度遞減(Multiplicative Decrease) 2010-05-NCUT Shih-Chieh Su

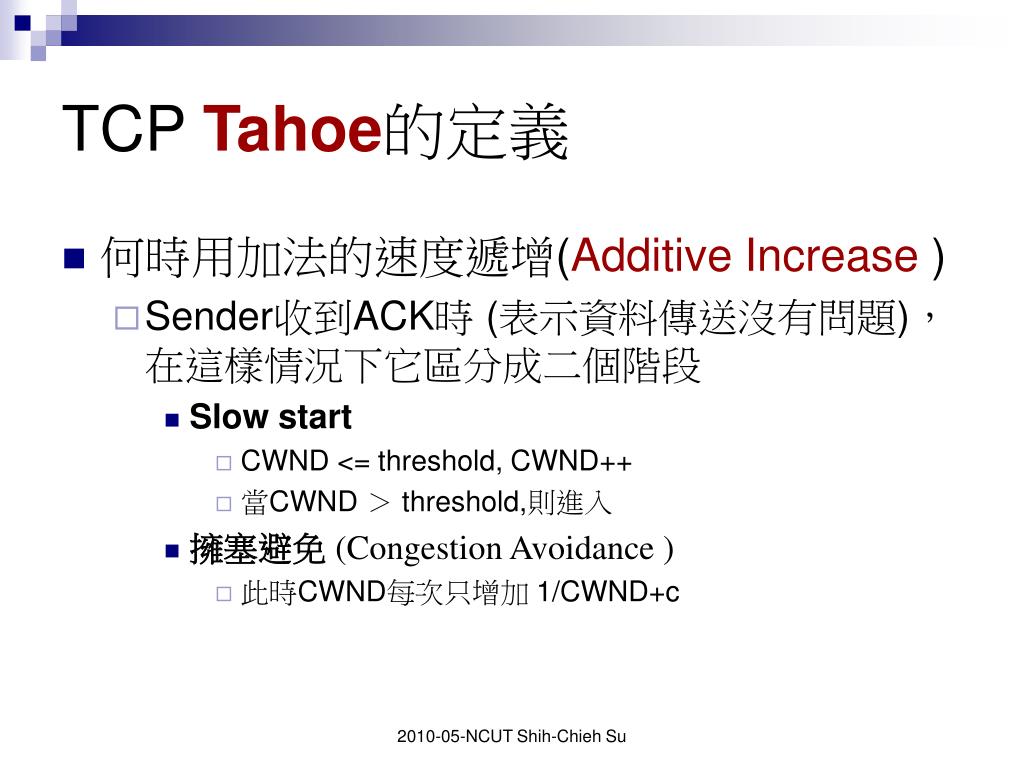

  9. TCP Tahoe的定義 • 何時用加法的速度遞增(Additive Increase) • Sender收到ACK時 (表示資料傳送沒有問題)，在這樣情況下它區分成二個階段 • Slow start • CWND <= threshold, CWND++ • 當CWND ＞ threshold,則進入 • 擁塞避免 (Congestion Avoidance ) • 此時CWND每次只增加 1/CWND+c 2010-05-NCUT Shih-Chieh Su

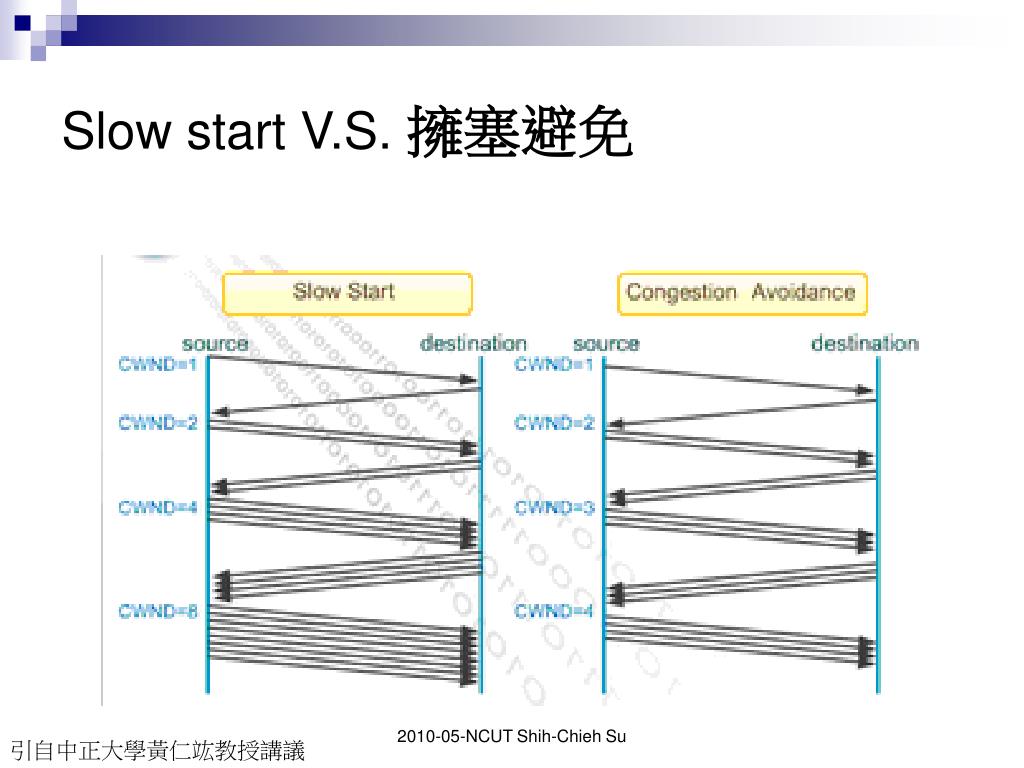

  10. Slow start V.S. 擁塞避免 2010-05-NCUT Shih-Chieh Su 引自中正大學黃仁竑教授講議

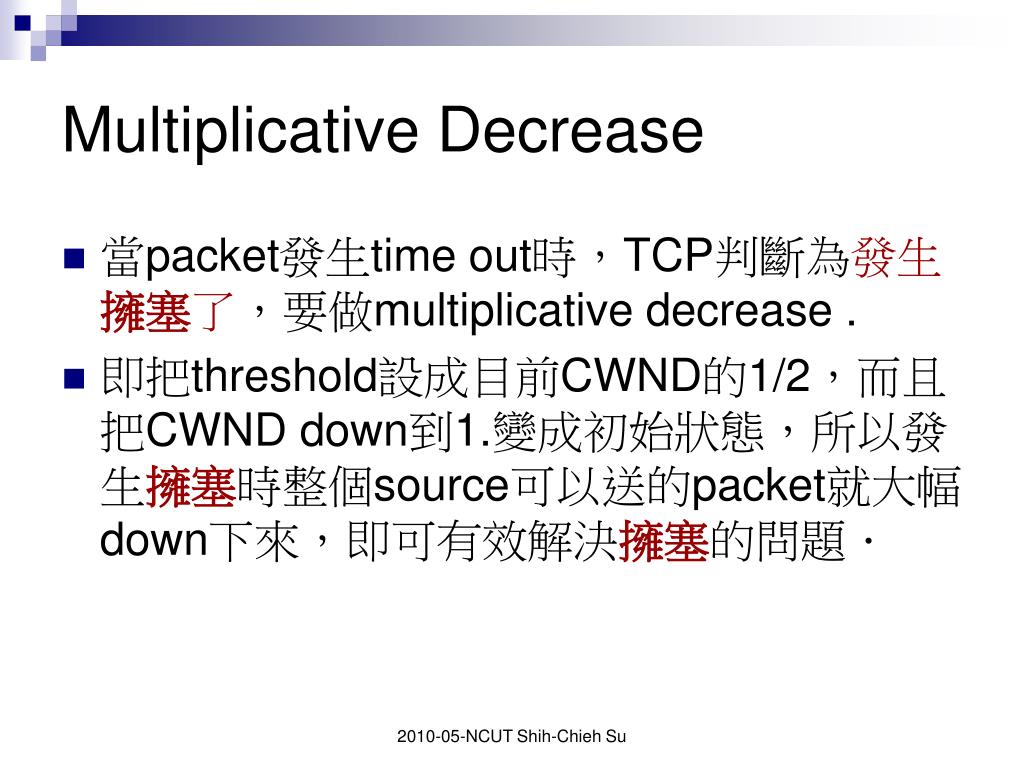

  11. Multiplicative Decrease • 當packet發生time out時，TCP判斷為發生擁塞了，要做multiplicative decrease . • 即把threshold設成目前CWND的1/2，而且把CWND down到1.變成初始狀態，所以發生擁塞時整個source可以送的packet就大幅down下來，即可有效解決擁塞的問題． 2010-05-NCUT Shih-Chieh Su

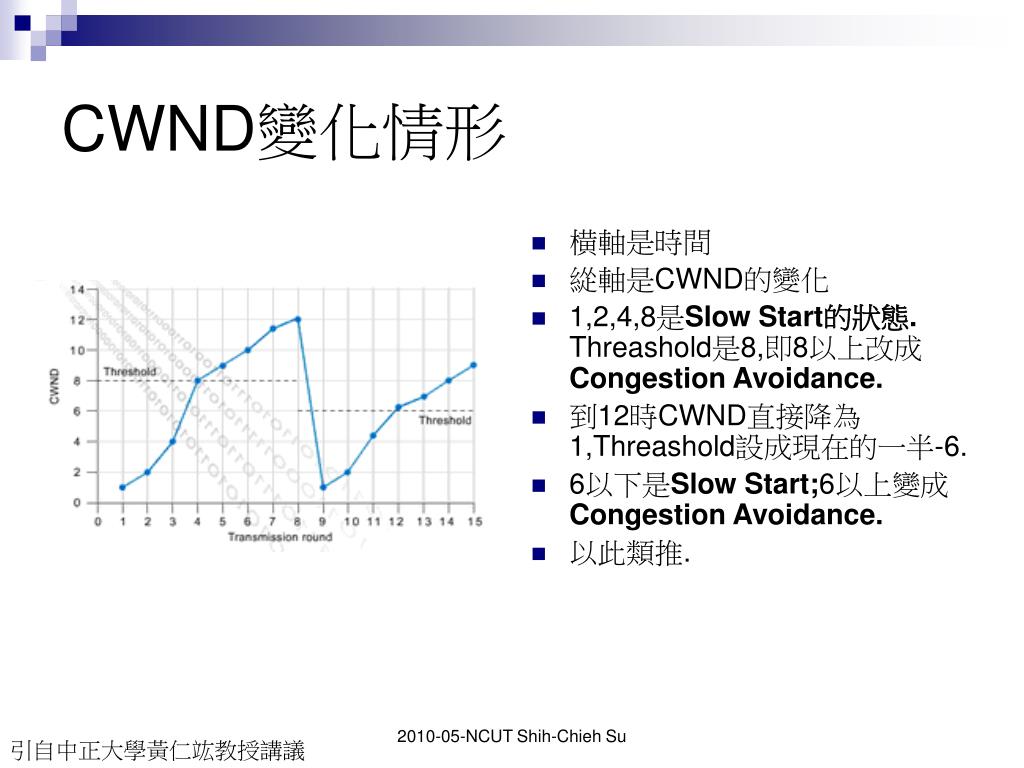

  12. 横軸是時間 緃軸是CWND的變化 1,2,4,8是Slow Start的狀態. Threashold是8,即8以上改成Congestion Avoidance. 到12時CWND直接降為1,Threashold設成現在的一半-6. 6以下是Slow Start;6以上變成Congestion Avoidance. 以此類推. CWND變化情形 2010-05-NCUT Shih-Chieh Su 引自中正大學黃仁竑教授講議

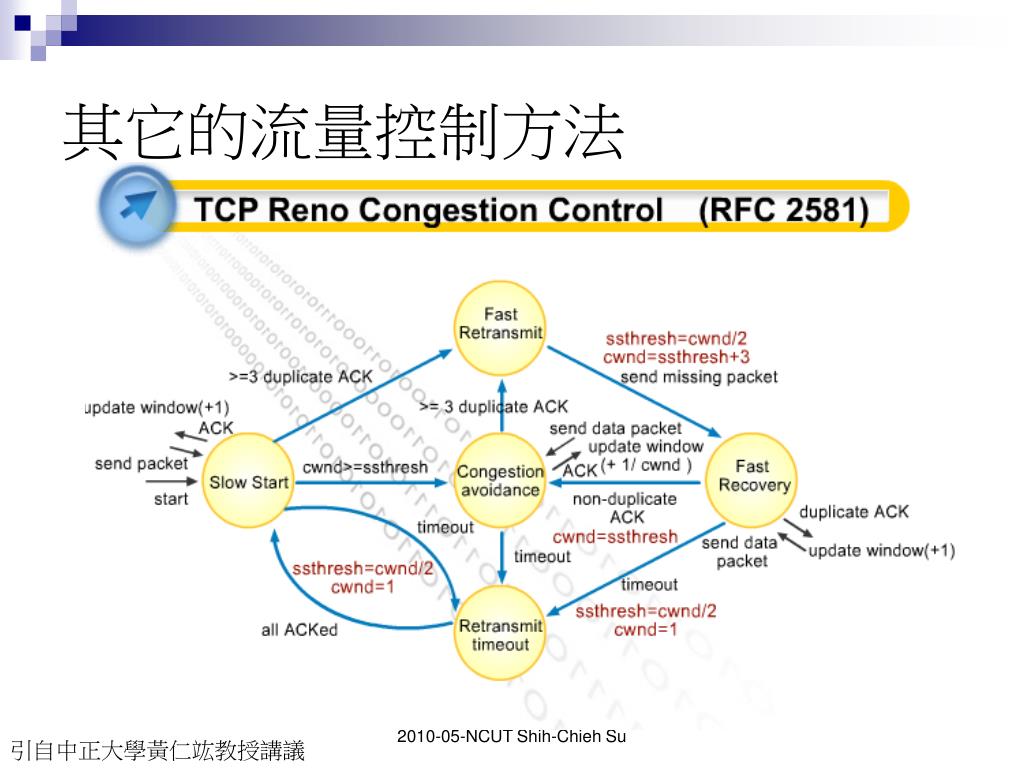

  13. 其它的流量控制方法　 2010-05-NCUT Shih-Chieh Su 引自中正大學黃仁竑教授講議

  14. END 2010-05-NCUT Shih-Chieh Su
