  1. CMW500 – Data Application Unit CMW500 Setup for Cat-M/Nb-IoT network Proprietary and Confidential 1

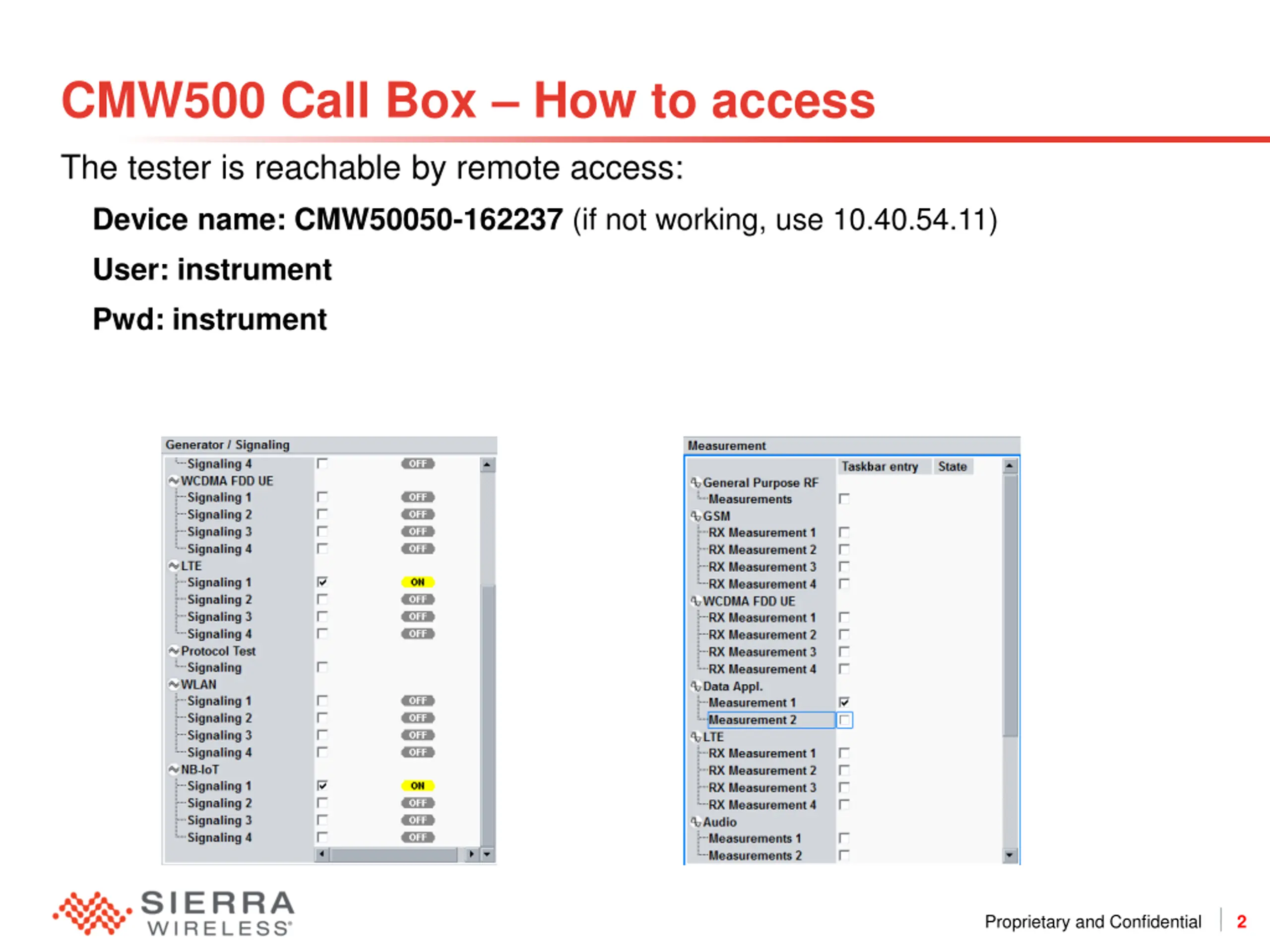

  2. CMW500 Call Box – How to access The tester is reachable by remote access: Device name: CMW50050-162237 (if not working, use 10.40.54.11) User: instrument Pwd: instrument Proprietary and Confidential 2

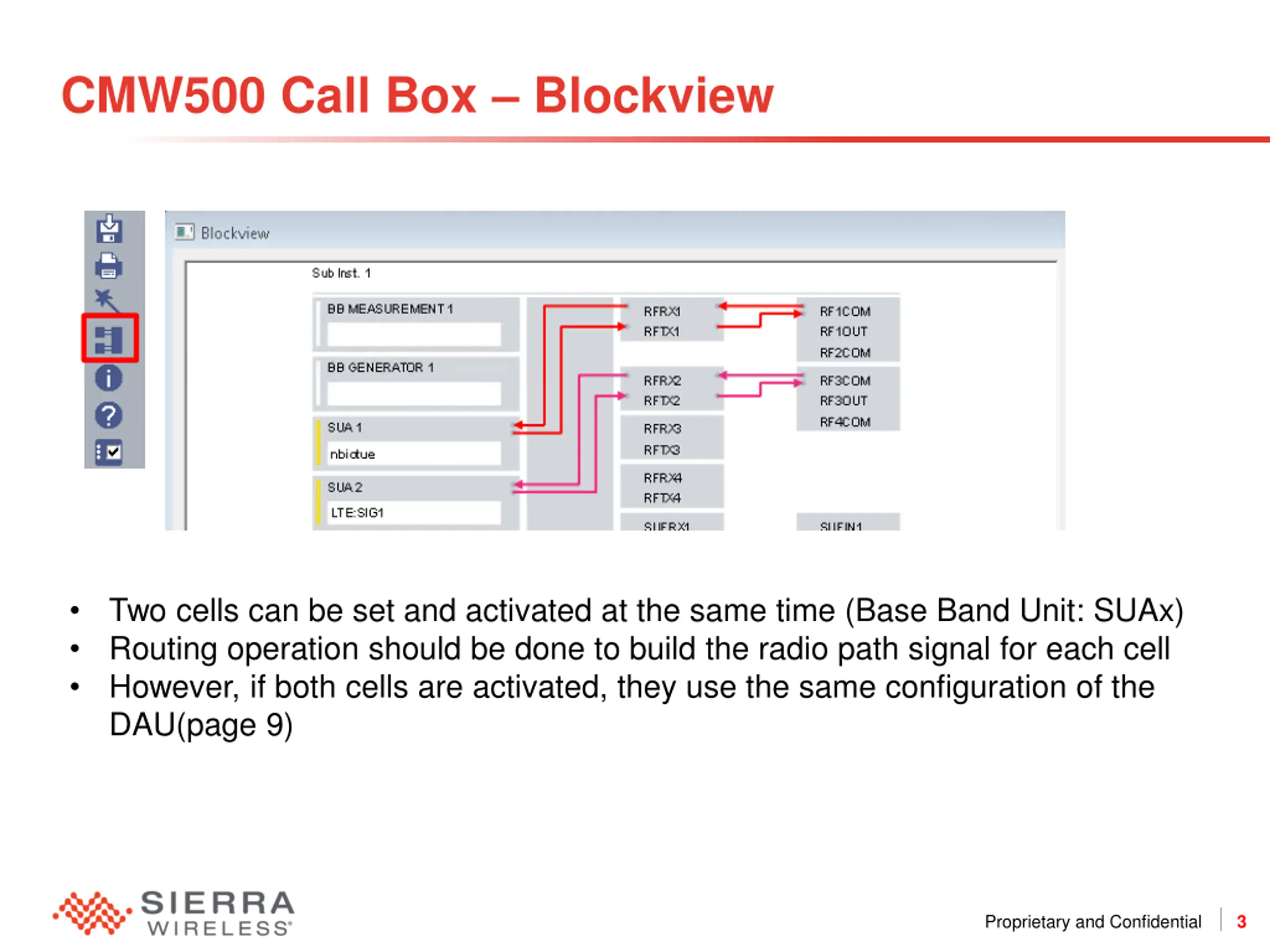

  3. CMW500 Call Box – Blockview Two cells can be set and activated at the same time (Base Band Unit: SUAx) Routing operation should be done to build the radio path signal for each cell However, if both cells are activated, they use the same configuration of the DAU(page 9) • • • Proprietary and Confidential 3

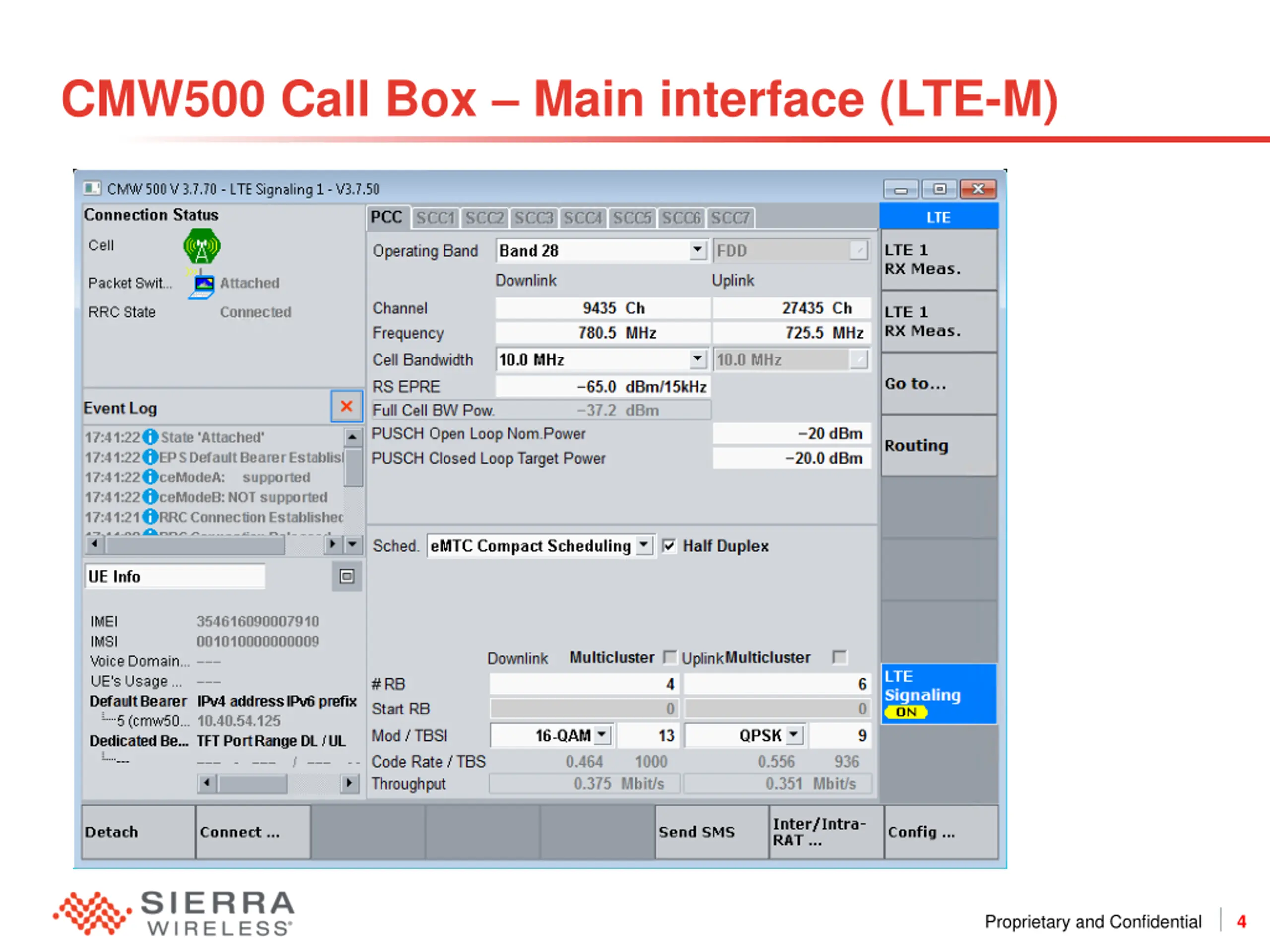

  4. CMW500 Call Box – Main interface (LTE-M) Proprietary and Confidential 4

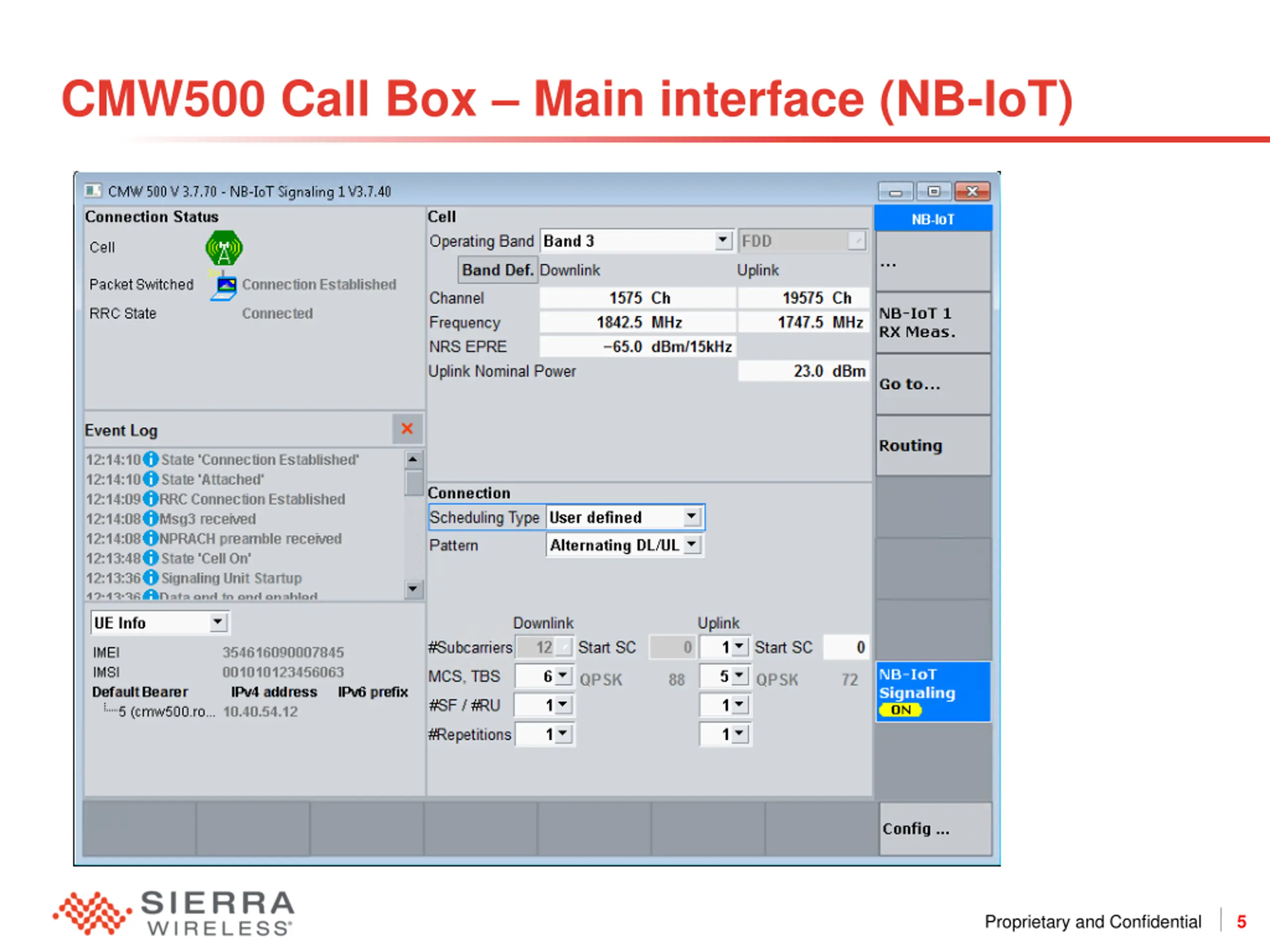

  5. CMW500 Call Box – Main interface (NB-IoT) Proprietary and Confidential 5

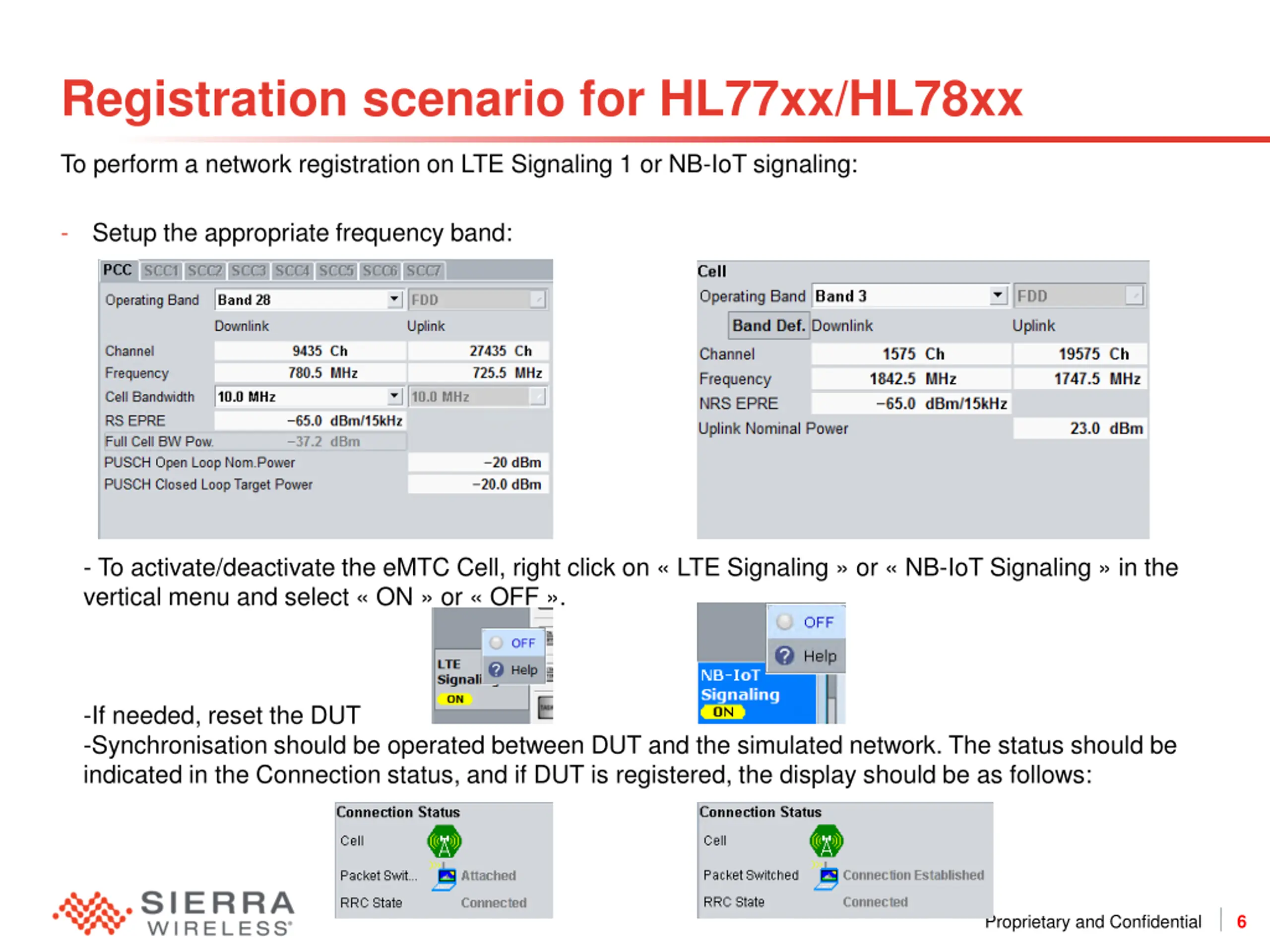

  6. Registration scenario for HL77xx/HL78xx To perform a network registration on LTE Signaling 1 or NB-IoT signaling: - Setup the appropriate frequency band: - To activate/deactivate the eMTC Cell, right click on « LTE Signaling » or « NB-IoT Signaling » in the vertical menu and select « ON » or « OFF ». -If needed, reset the DUT -Synchronisation should be operated between DUT and the simulated network. The status should be indicated in the Connection status, and if DUT is registered, the display should be as follows: Proprietary and Confidential 6

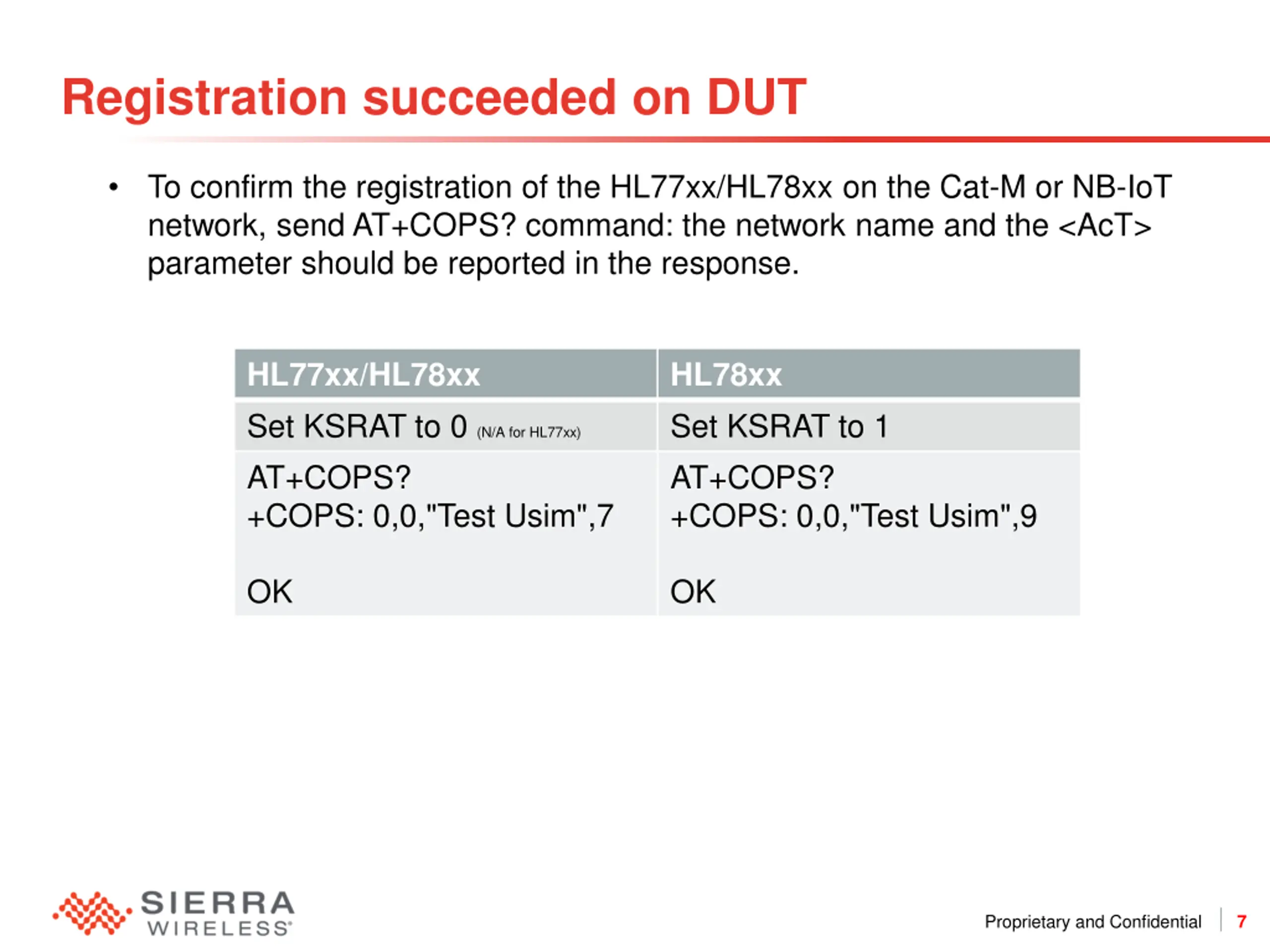

  7. Registration succeeded on DUT To confirm the registration of the HL77xx/HL78xx on the Cat-M or NB-IoT network, send AT+COPS? command: the network name and the <AcT> parameter should be reported in the response. • HL77xx/HL78xx Set KSRAT to 0 (N/A for HL77xx) AT+COPS? +COPS: 0,0,"Test Usim",7 HL78xx Set KSRAT to 1 AT+COPS? +COPS: 0,0,"Test Usim",9 OK OK Proprietary and Confidential 7

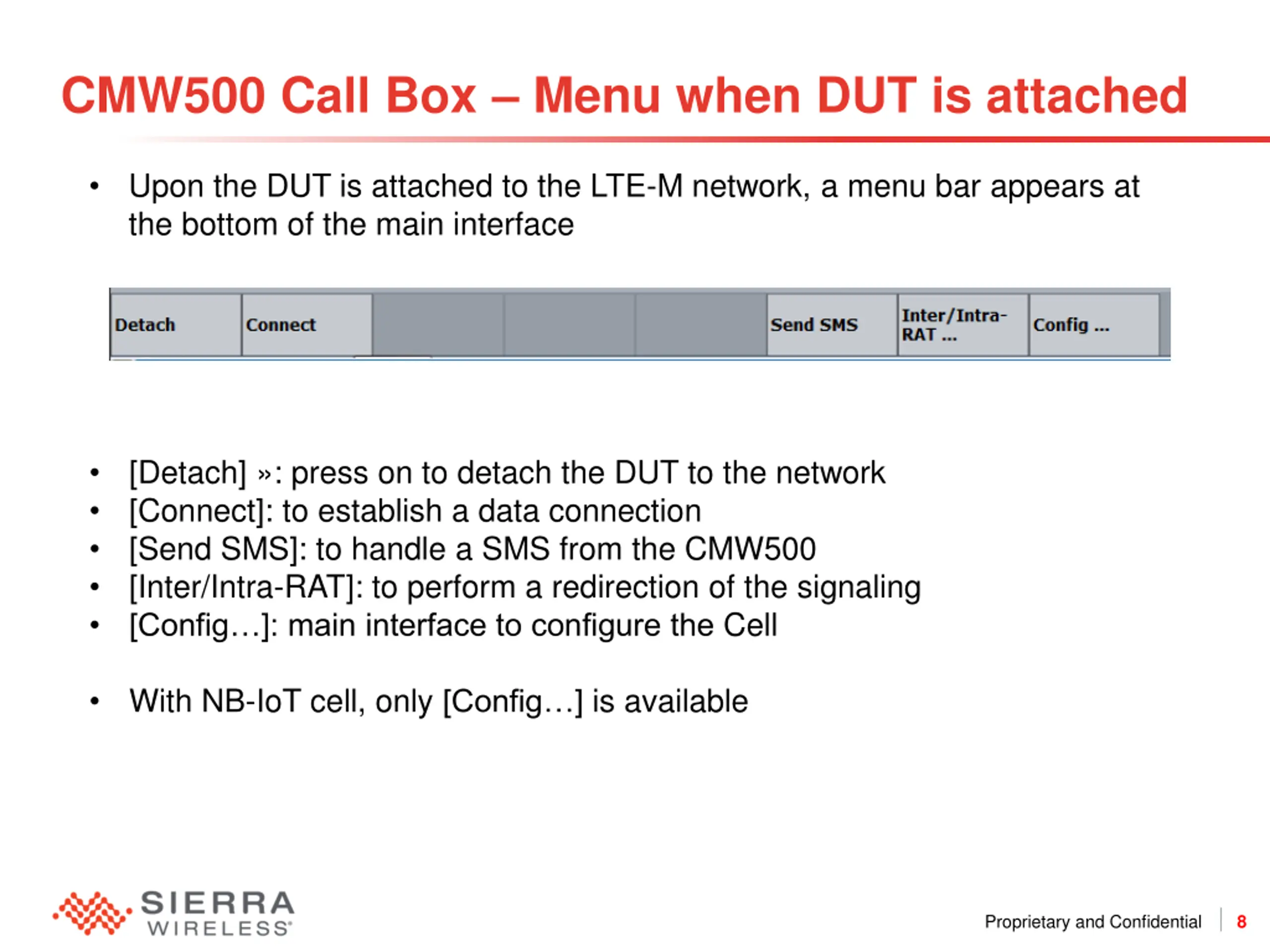

  8. CMW500 Call Box – Menu when DUT is attached Upon the DUT is attached to the LTE-M network, a menu bar appears at the bottom of the main interface • [Detach] »: press on to detach the DUT to the network [Connect]: to establish a data connection [Send SMS]: to handle a SMS from the CMW500 [Inter/Intra-RAT]: to perform a redirection of the signaling [Config…]: main interface to configure the Cell • • • • • With NB-IoT cell, only [Config…] is available • Proprietary and Confidential 8

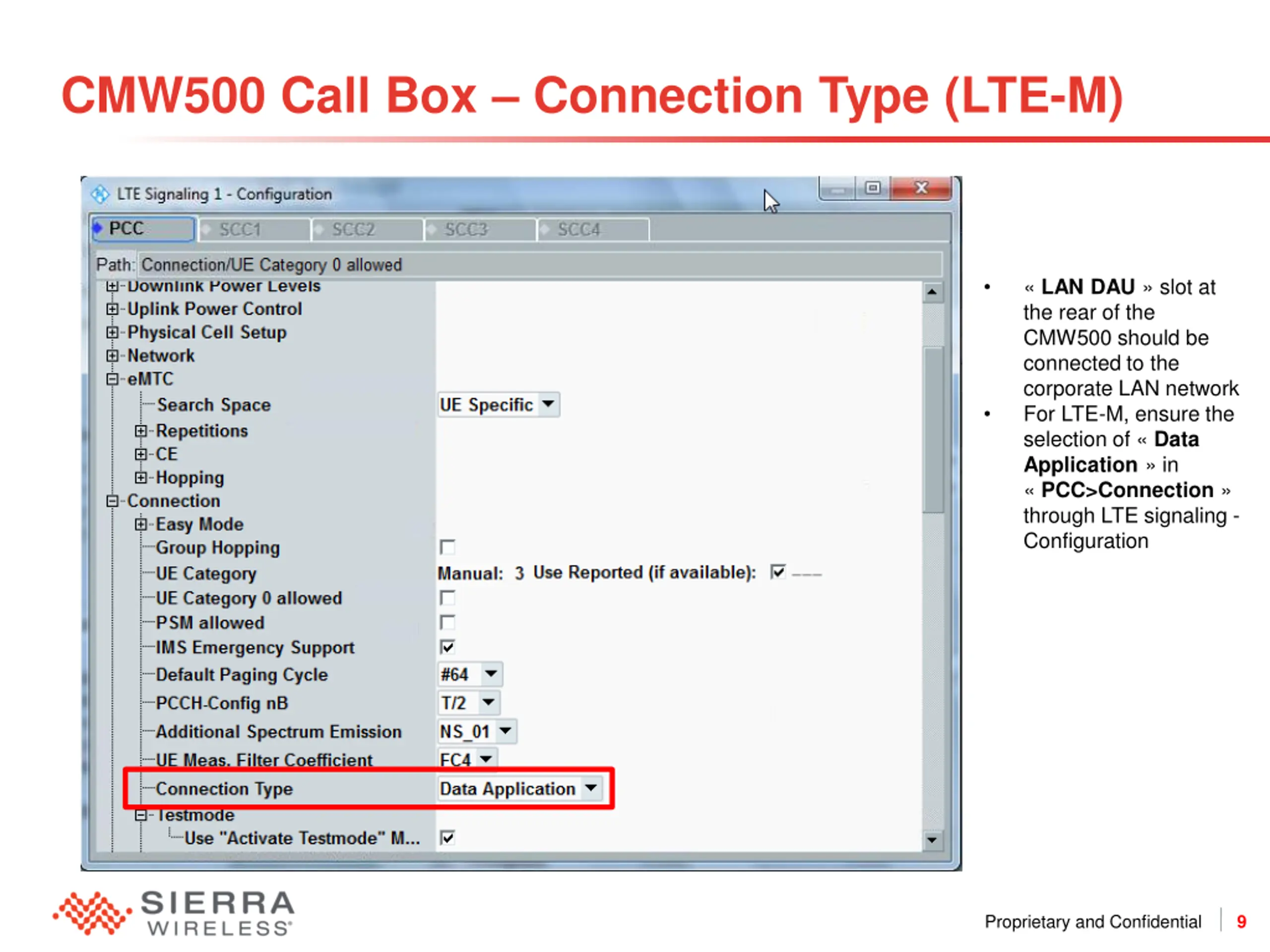

  9. CMW500 Call Box – Connection Type (LTE-M) « LAN DAU » slot at the rear of the CMW500 should be connected to the corporate LAN network For LTE-M, ensure the selection of « Data Application » in « PCC>Connection » through LTE signaling - Configuration • • Proprietary and Confidential 9

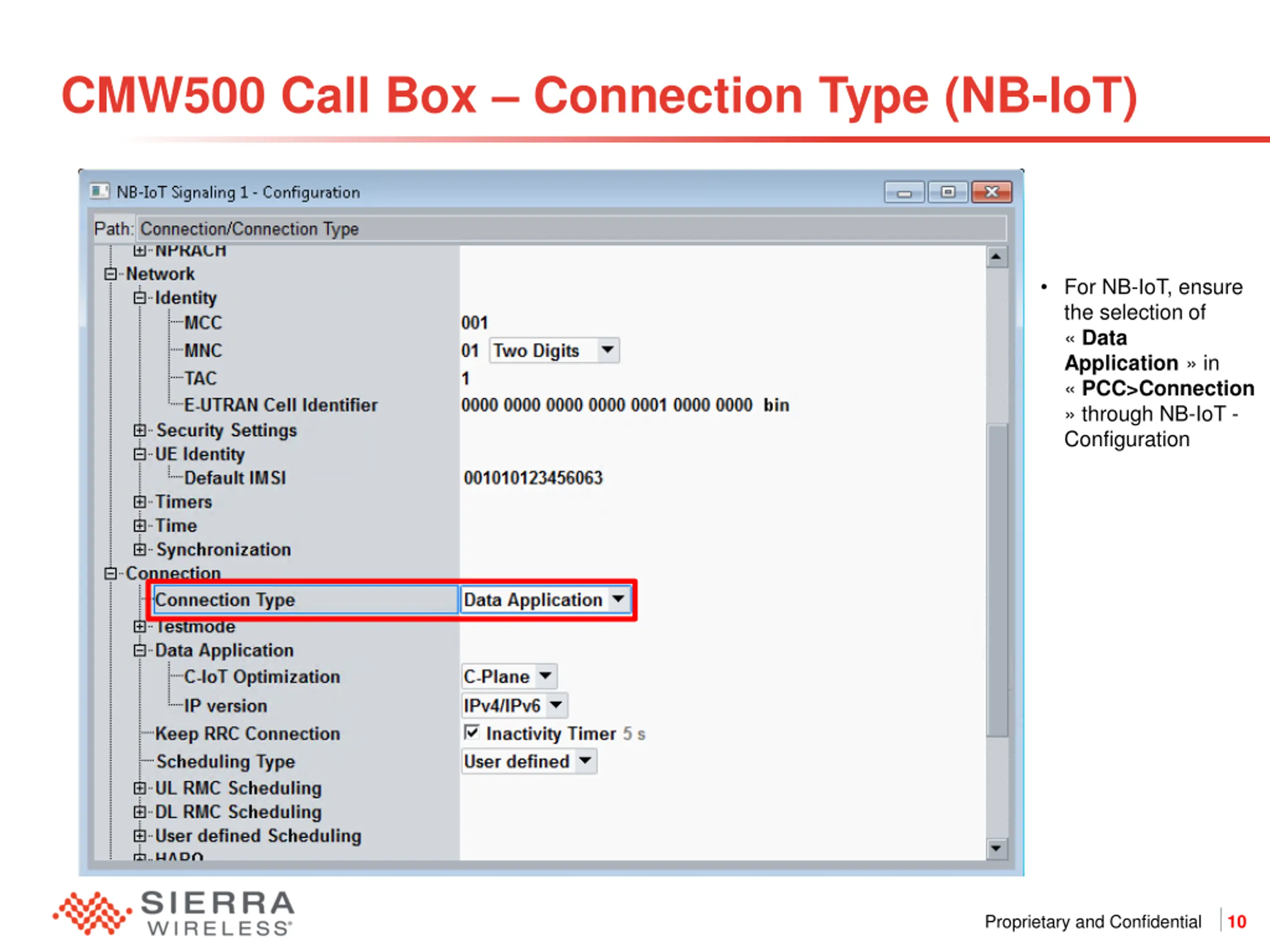

  10. CMW500 Call Box – Connection Type (NB-IoT) • For NB-IoT, ensure the selection of « Data Application » in « PCC>Connection » through NB-IoT - Configuration Proprietary and Confidential 10

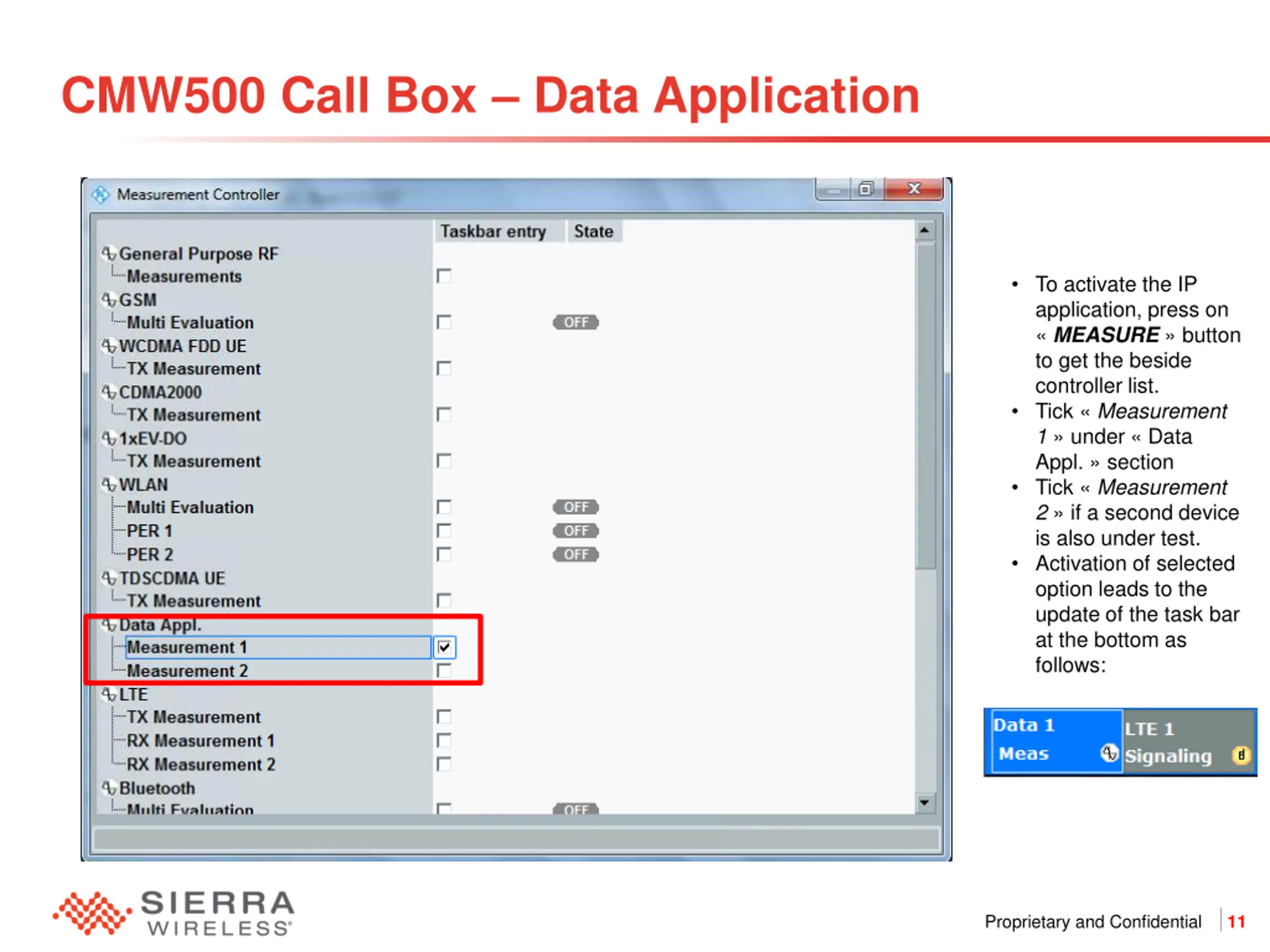

  11. CMW500 Call Box – Data Application • To activate the IP application, press on « MEASURE » button to get the beside controller list. • Tick « Measurement 1 » under « Data Appl. » section • Tick « Measurement 2 » if a second device is also under test. • Activation of selected option leads to the update of the task bar at the bottom as follows: Proprietary and Confidential 11

  12. CMW500 Call Box – Configure services • After pressing on « Data 1 Meas » in the task bar, the main screen appears • « Select RAN » is by default point out at the current signaling: LTE Signaling 1 • To check the configuration of IP applications, press on « Configure Services » button Proprietary and Confidential 12

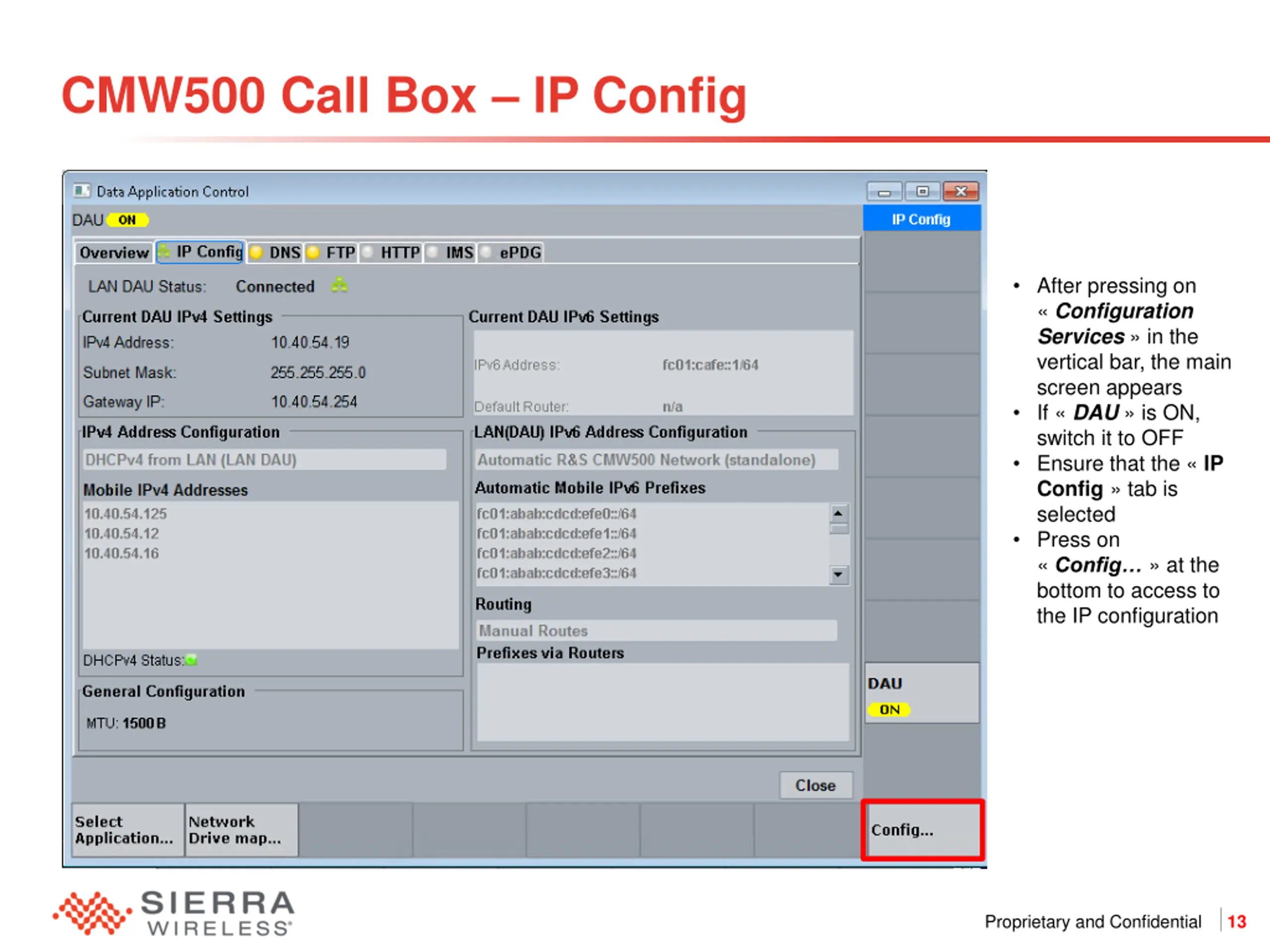

  13. CMW500 Call Box – IP Config • After pressing on « Configuration Services » in the vertical bar, the main screen appears • If « DAU » is ON, switch it to OFF • Ensure that the « IP Config » tab is selected • Press on « Config… » at the bottom to access to the IP configuration Proprietary and Confidential 13

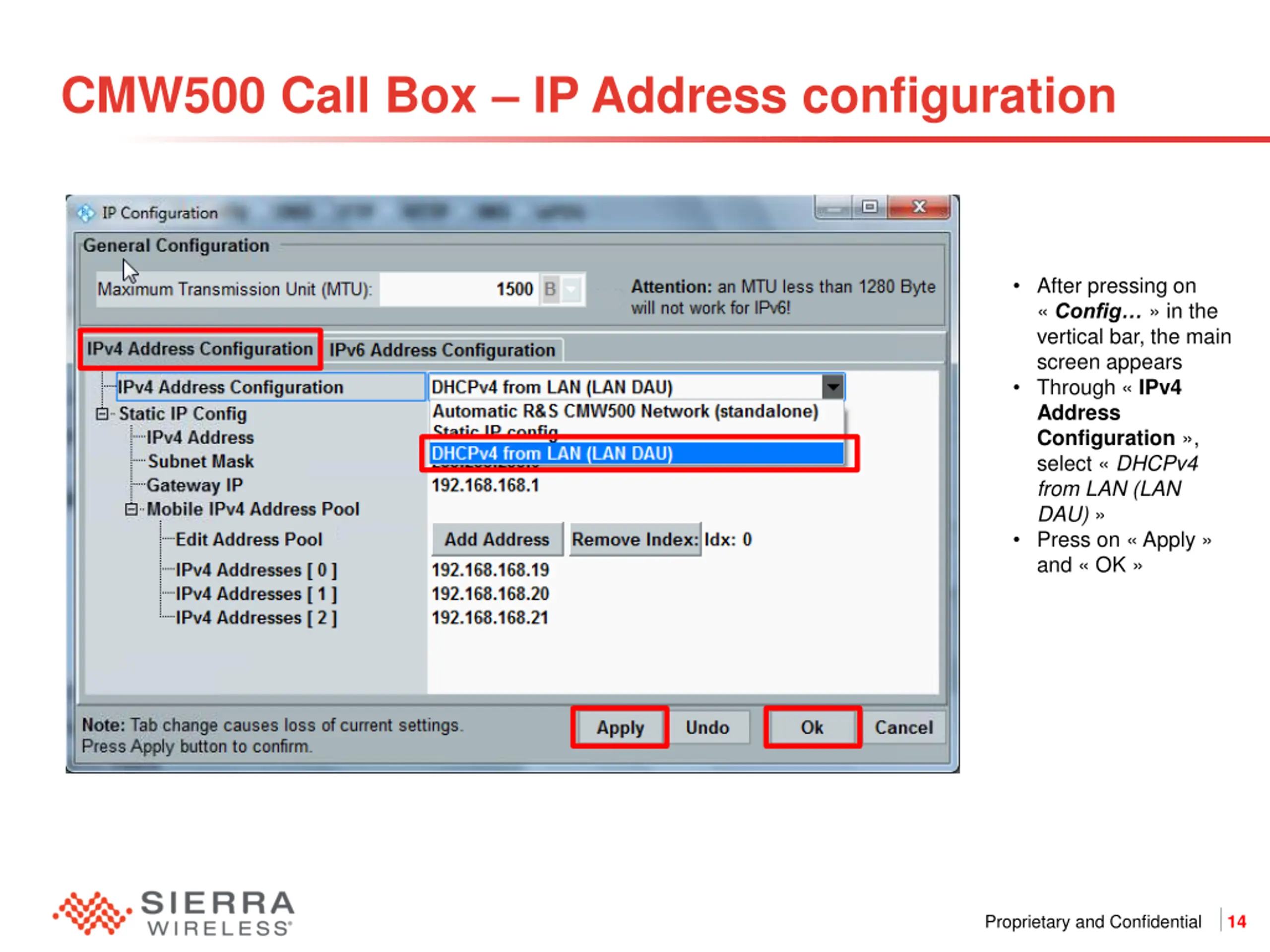

  14. CMW500 Call Box – IP Address configuration • After pressing on « Config… » in the vertical bar, the main screen appears • Through « IPv4 Address Configuration », select « DHCPv4 from LAN (LAN DAU) » • Press on « Apply » and « OK » Proprietary and Confidential 14

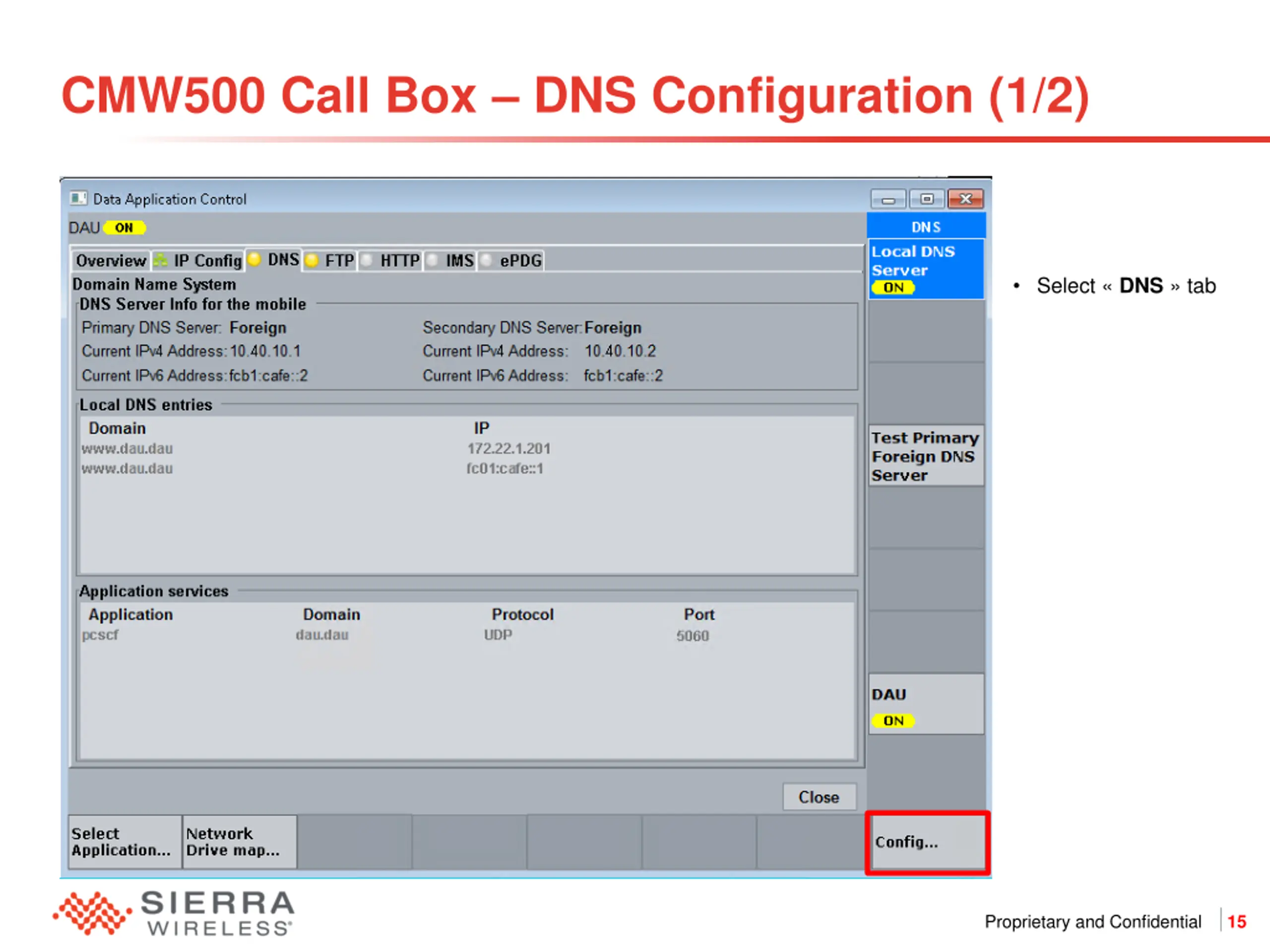

  15. CMW500 Call Box – DNS Configuration (1/2) • Select « DNS » tab Proprietary and Confidential 15

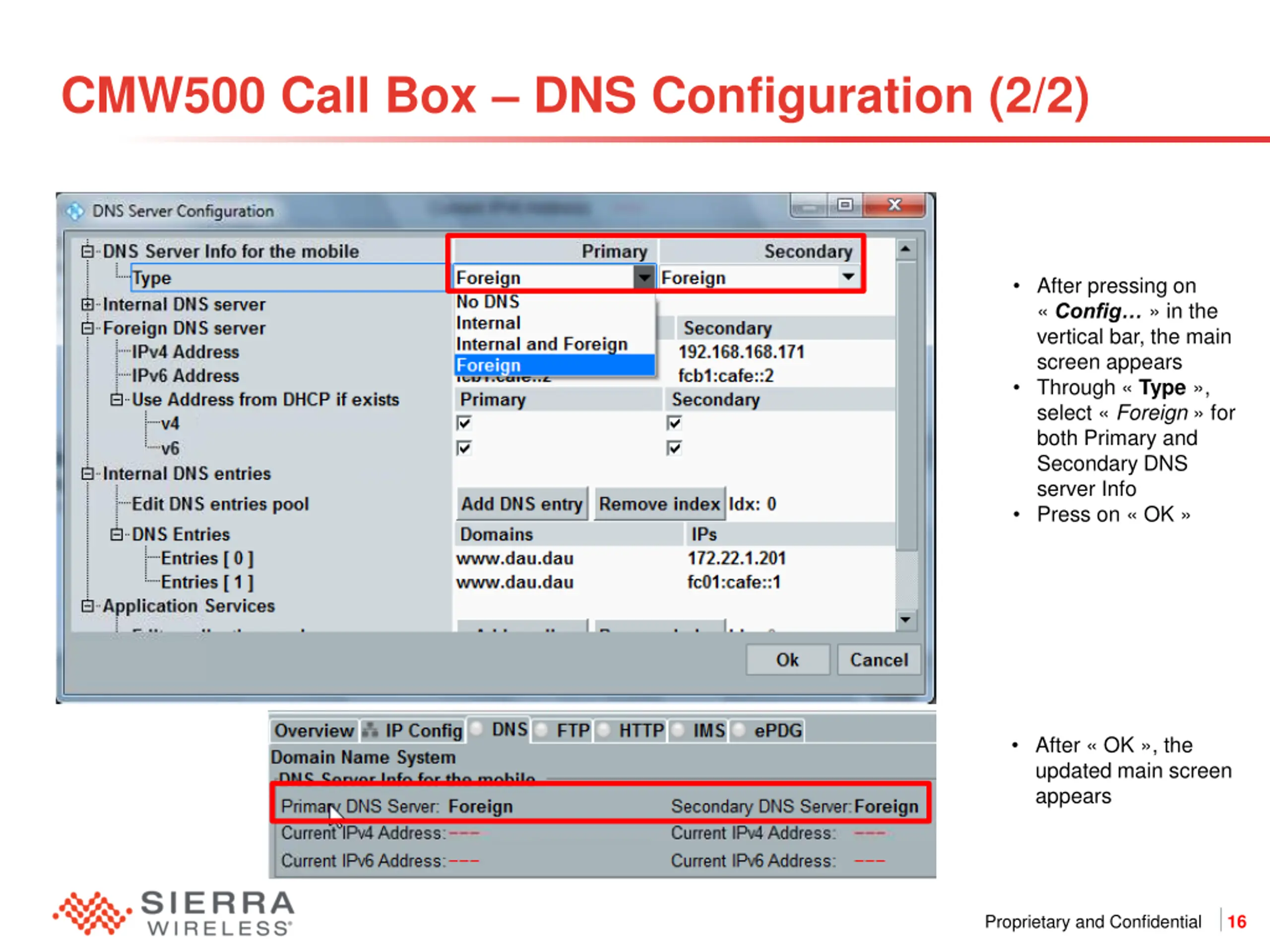

  16. CMW500 Call Box – DNS Configuration (2/2) • After pressing on « Config… » in the vertical bar, the main screen appears • Through « Type », select « Foreign » for both Primary and Secondary DNS server Info • Press on « OK » • After « OK », the updated main screen appears Proprietary and Confidential 16

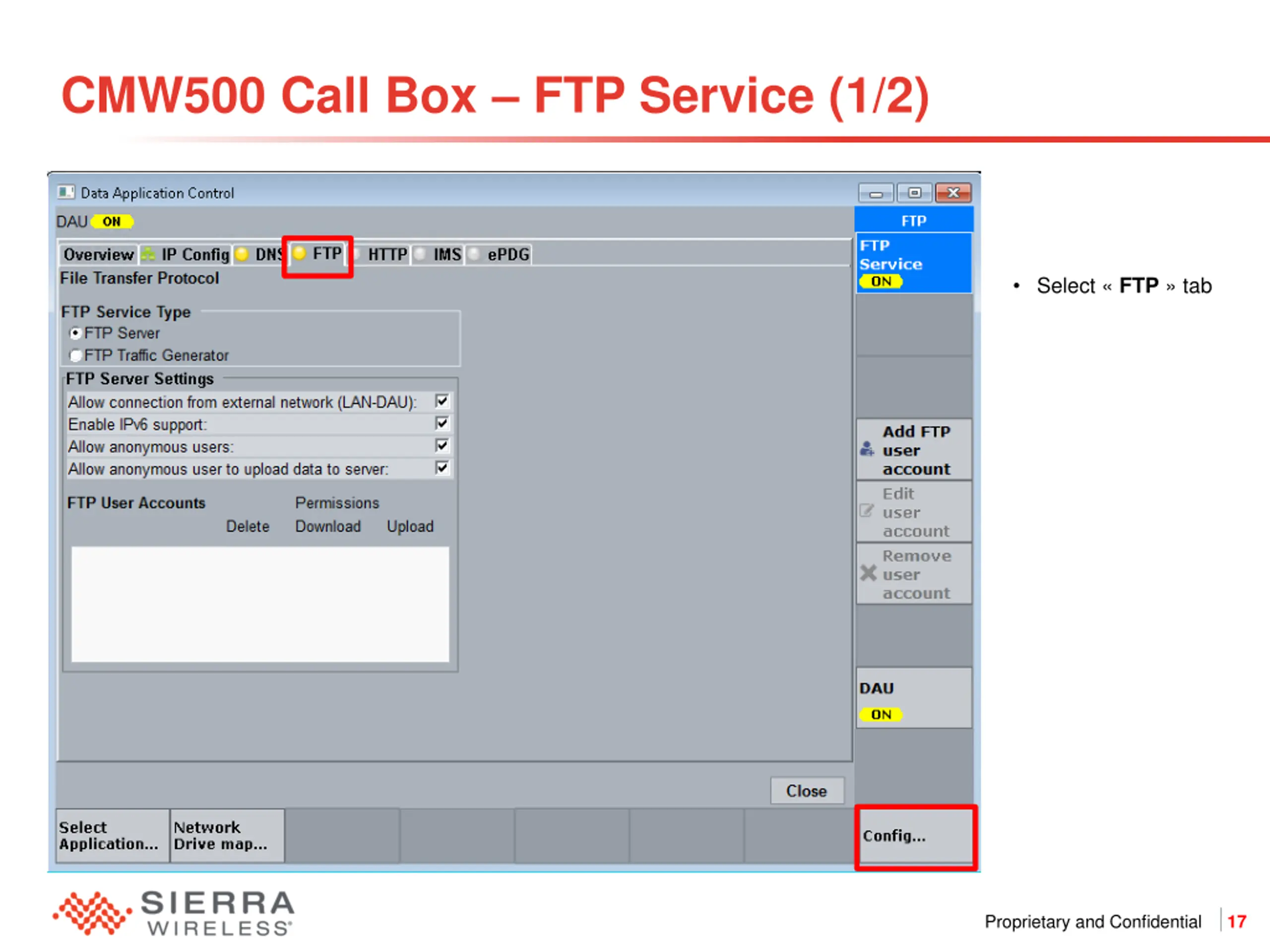

  17. CMW500 Call Box – FTP Service (1/2) • Select « FTP » tab Proprietary and Confidential 17

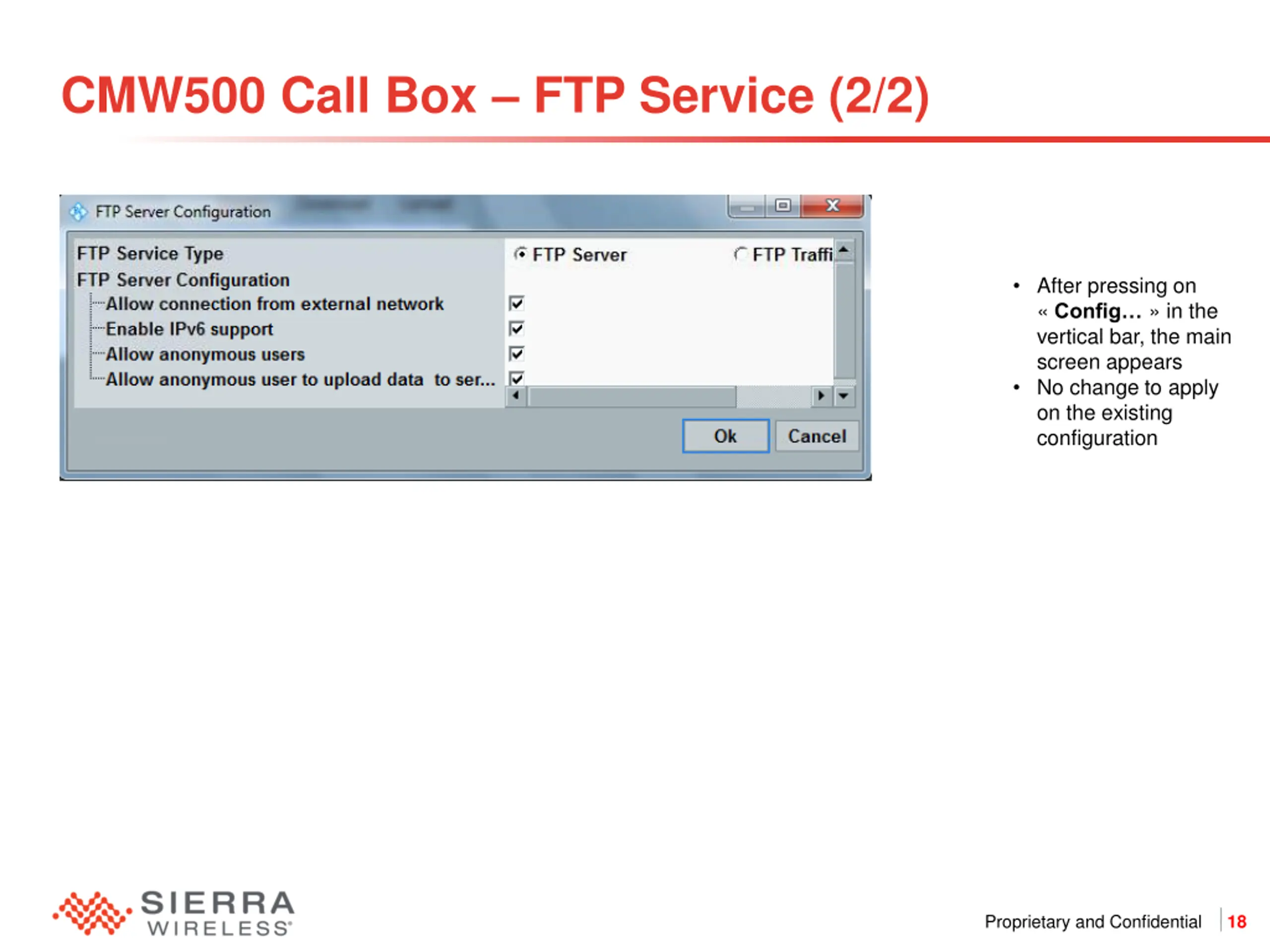

  18. CMW500 Call Box – FTP Service (2/2) • After pressing on « Config… » in the vertical bar, the main screen appears • No change to apply on the existing configuration Proprietary and Confidential 18

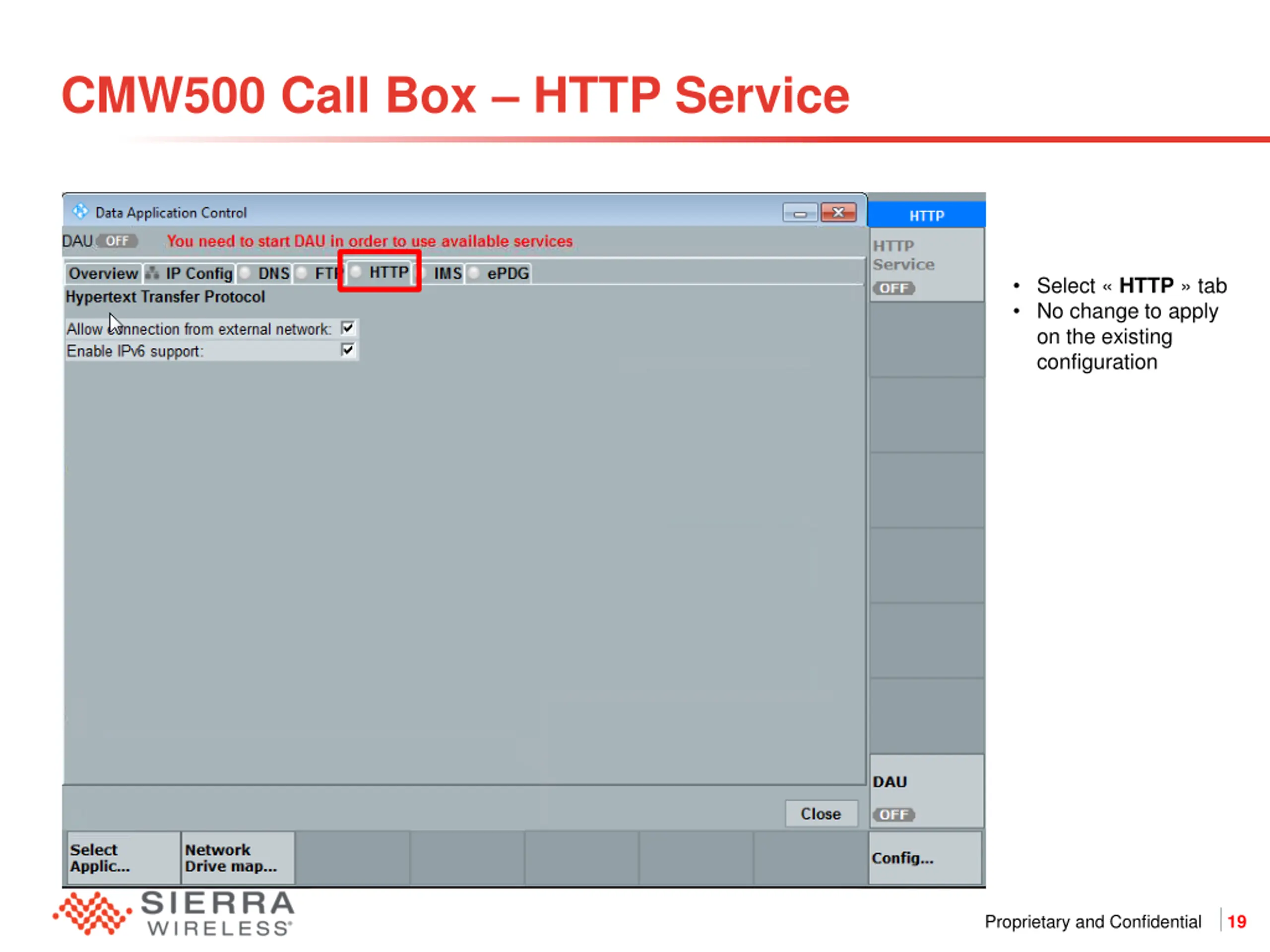

  19. CMW500 Call Box – HTTP Service • Select « HTTP » tab • No change to apply on the existing configuration Proprietary and Confidential 19

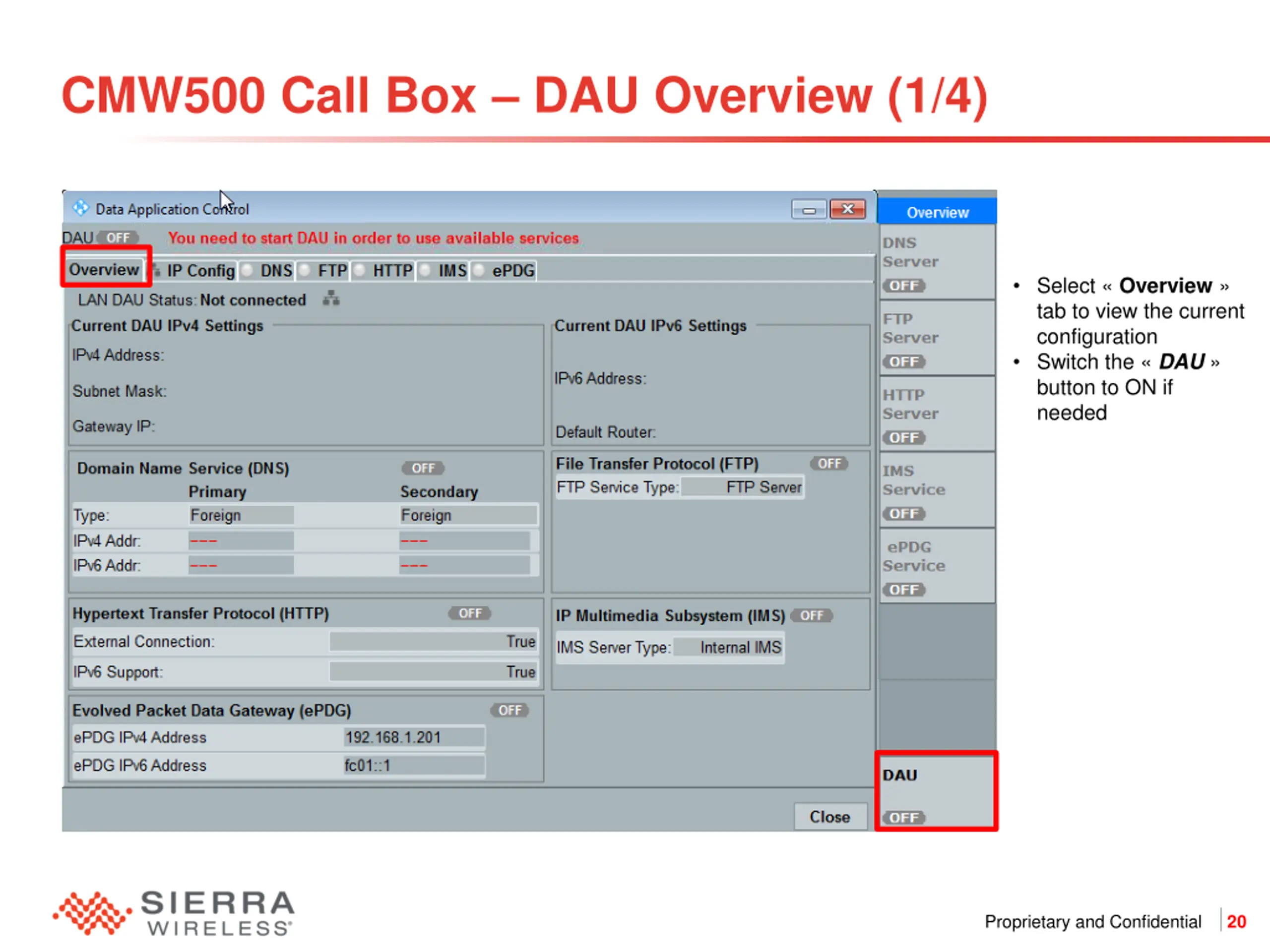

  20. CMW500 Call Box – DAU Overview (1/4) • Select « Overview » tab to view the current configuration • Switch the « DAU » button to ON if needed Proprietary and Confidential 20

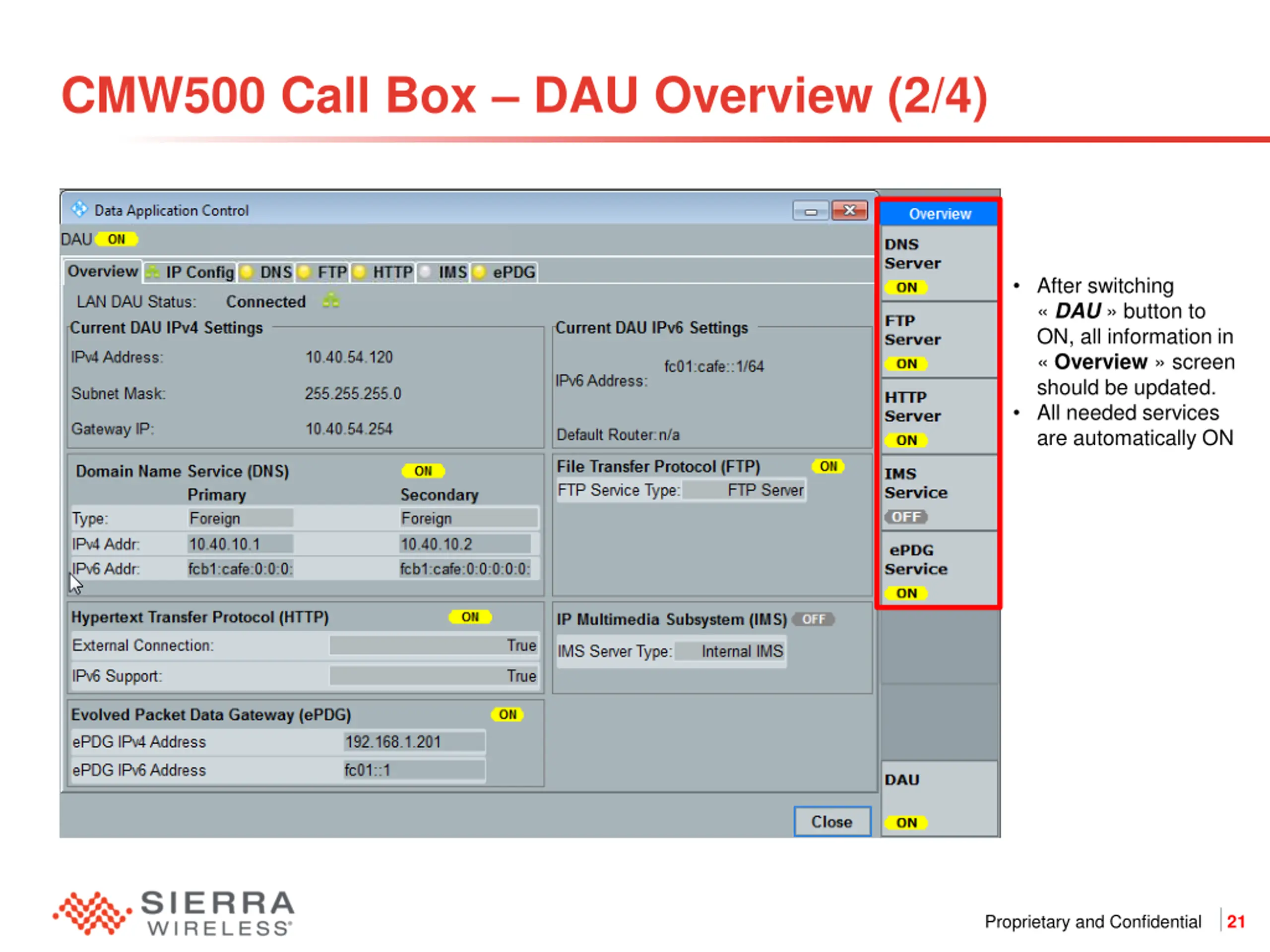

  21. CMW500 Call Box – DAU Overview (2/4) • After switching « DAU » button to ON, all information in « Overview » screen should be updated. • All needed services are automatically ON Proprietary and Confidential 21

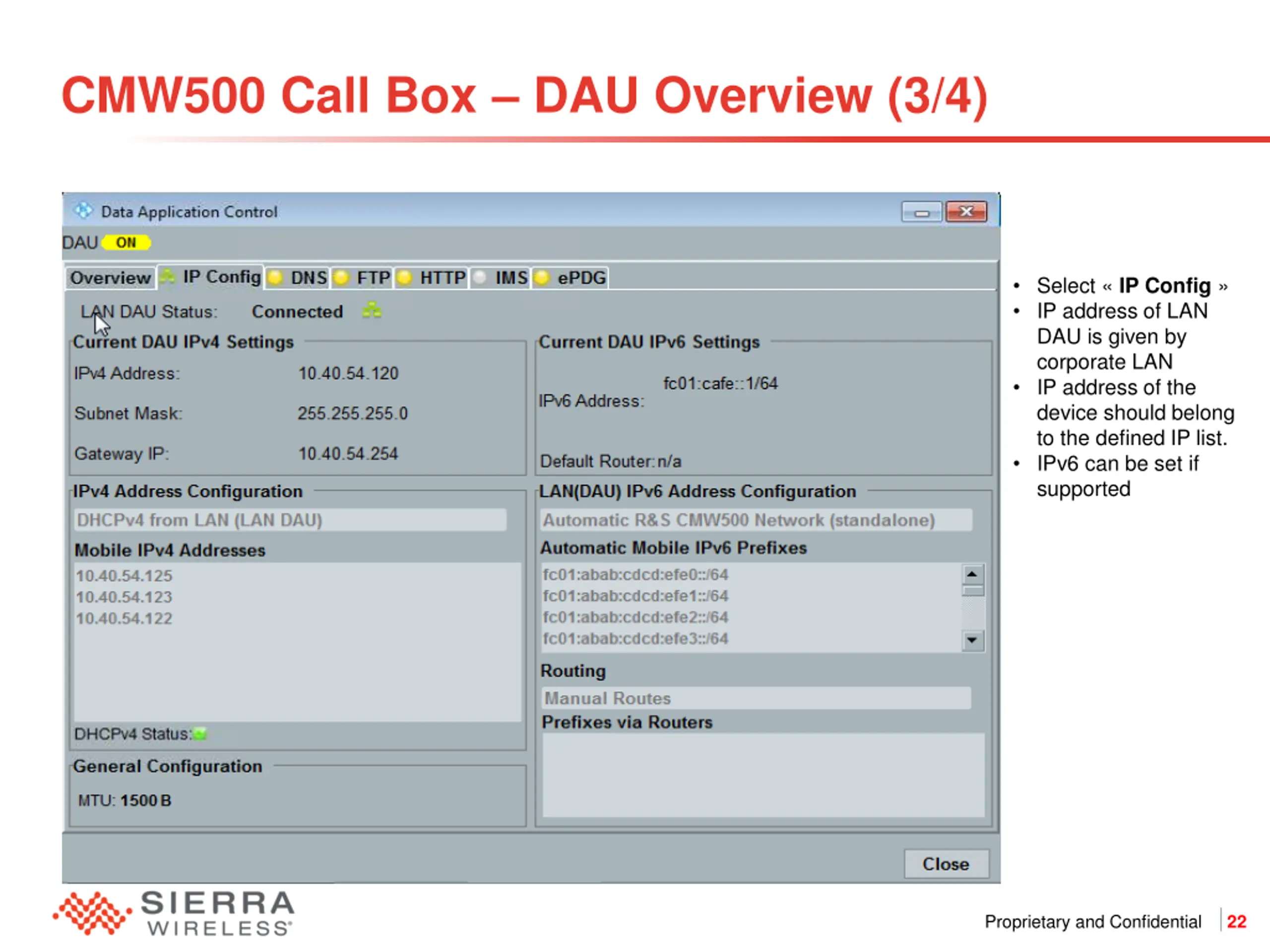

  22. CMW500 Call Box – DAU Overview (3/4) • Select « IP Config » • IP address of LAN DAU is given by corporate LAN • IP address of the device should belong to the defined IP list. • IPv6 can be set if supported Proprietary and Confidential 22

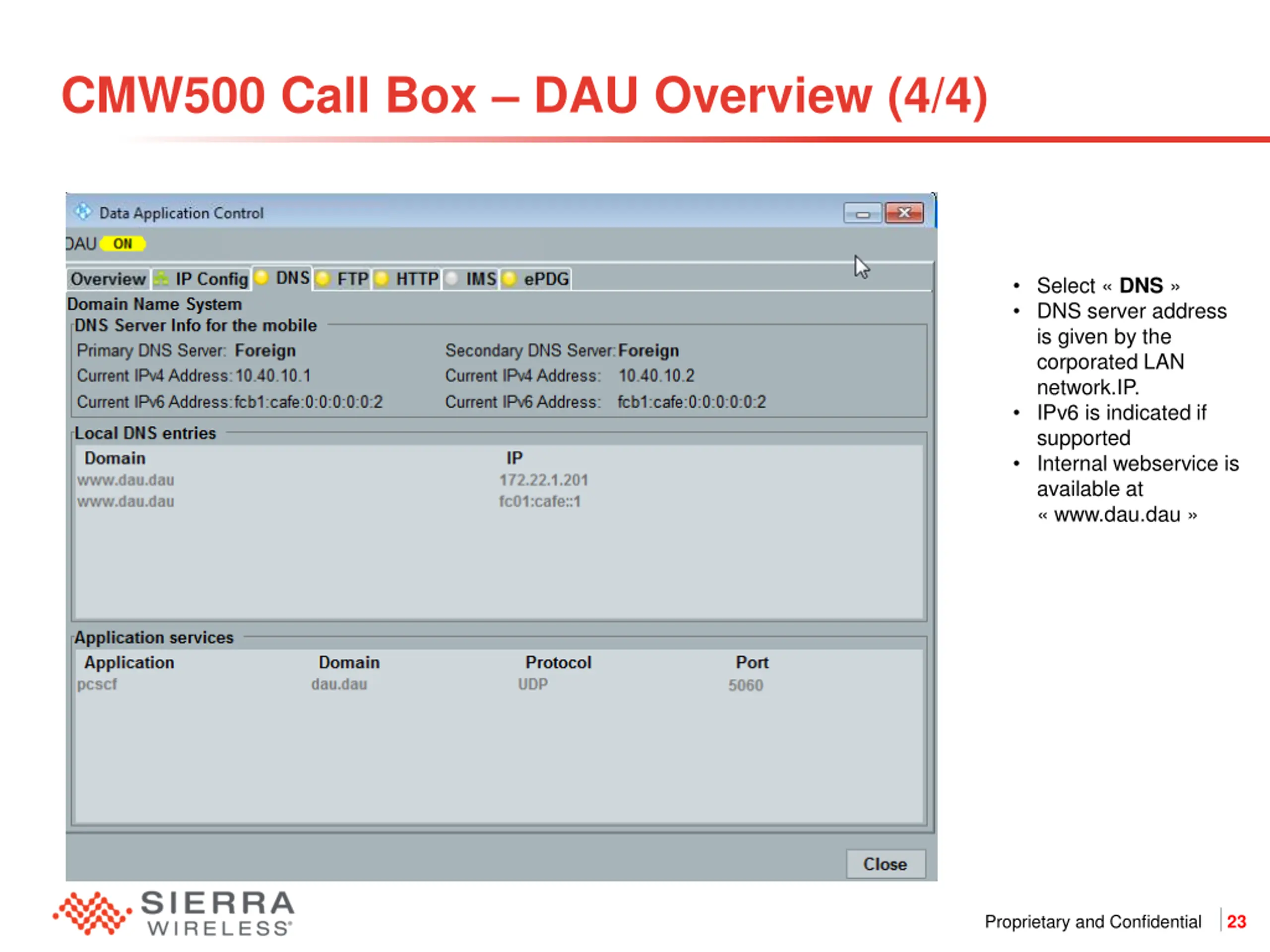

  23. CMW500 Call Box – DAU Overview (4/4) • Select « DNS » • DNS server address is given by the corporated LAN network.IP. • IPv6 is indicated if supported • Internal webservice is available at « www.dau.dau » Proprietary and Confidential 23

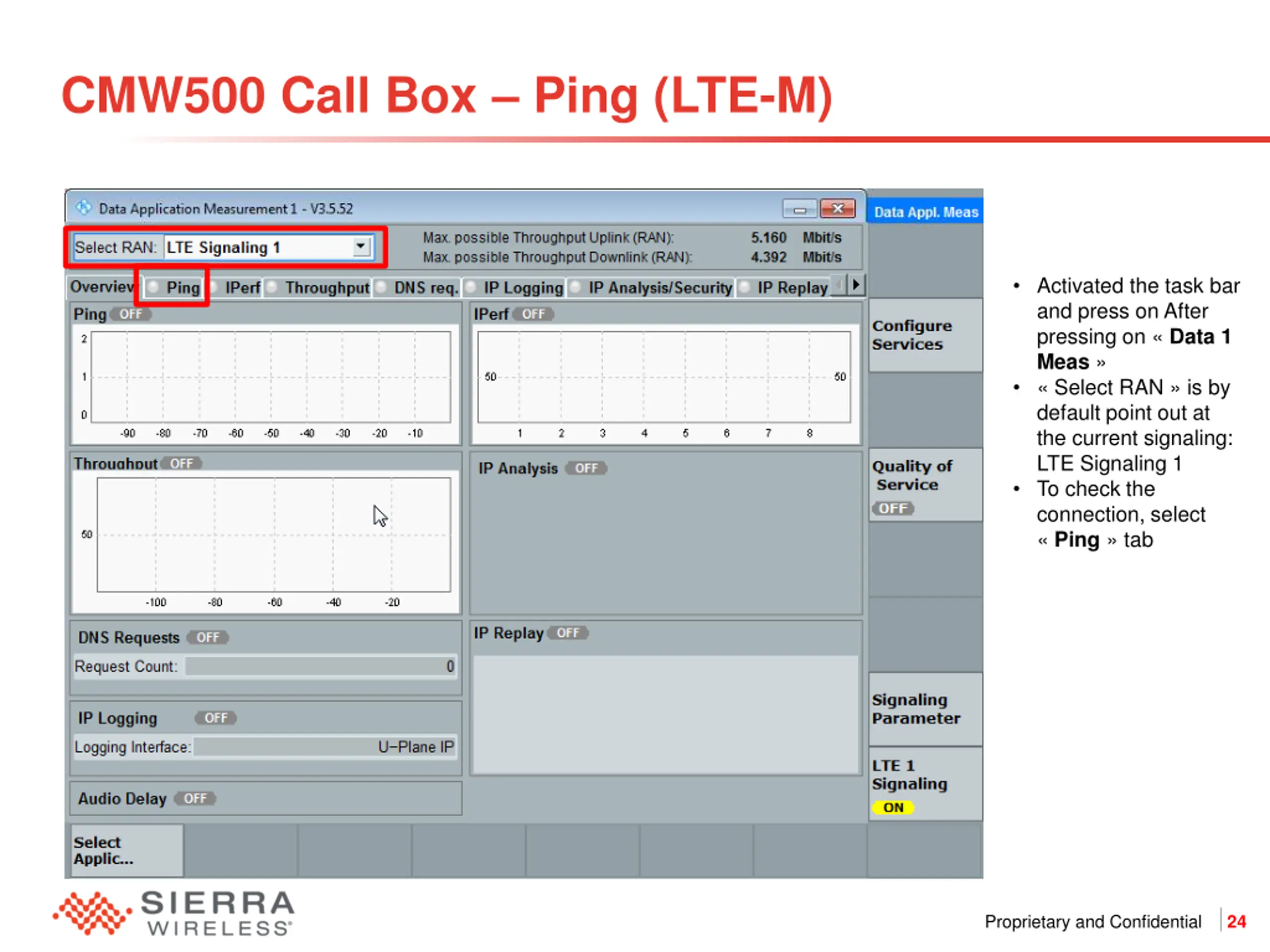

  24. CMW500 Call Box – Ping (LTE-M) • Activated the task bar and press on After pressing on « Data 1 Meas » • « Select RAN » is by default point out at the current signaling: LTE Signaling 1 • To check the connection, select « Ping » tab Proprietary and Confidential 24

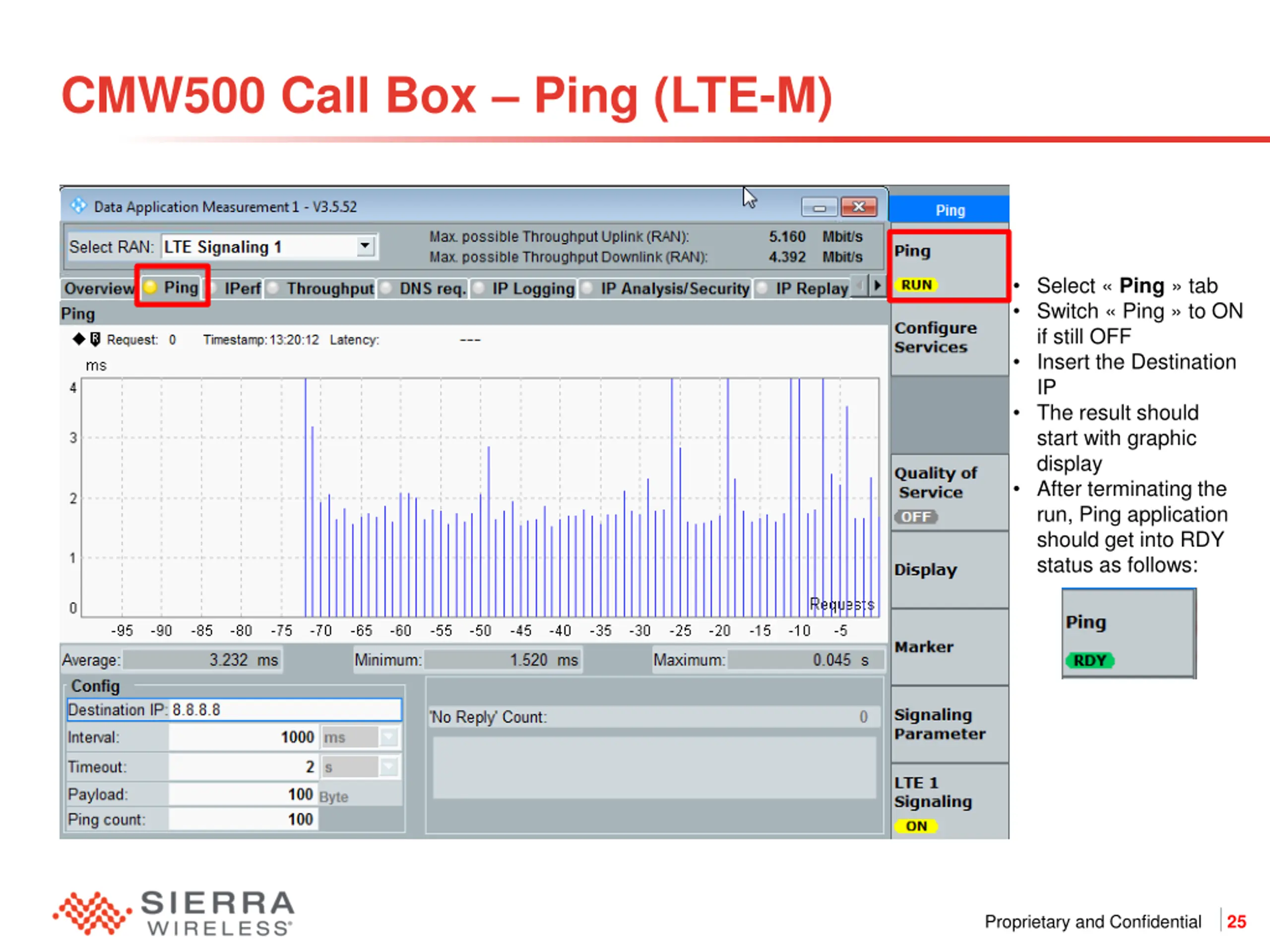

  25. CMW500 Call Box – Ping (LTE-M) • Select « Ping » tab • Switch « Ping » to ON if still OFF • Insert the Destination IP • The result should start with graphic display • After terminating the run, Ping application should get into RDY status as follows: Proprietary and Confidential 25

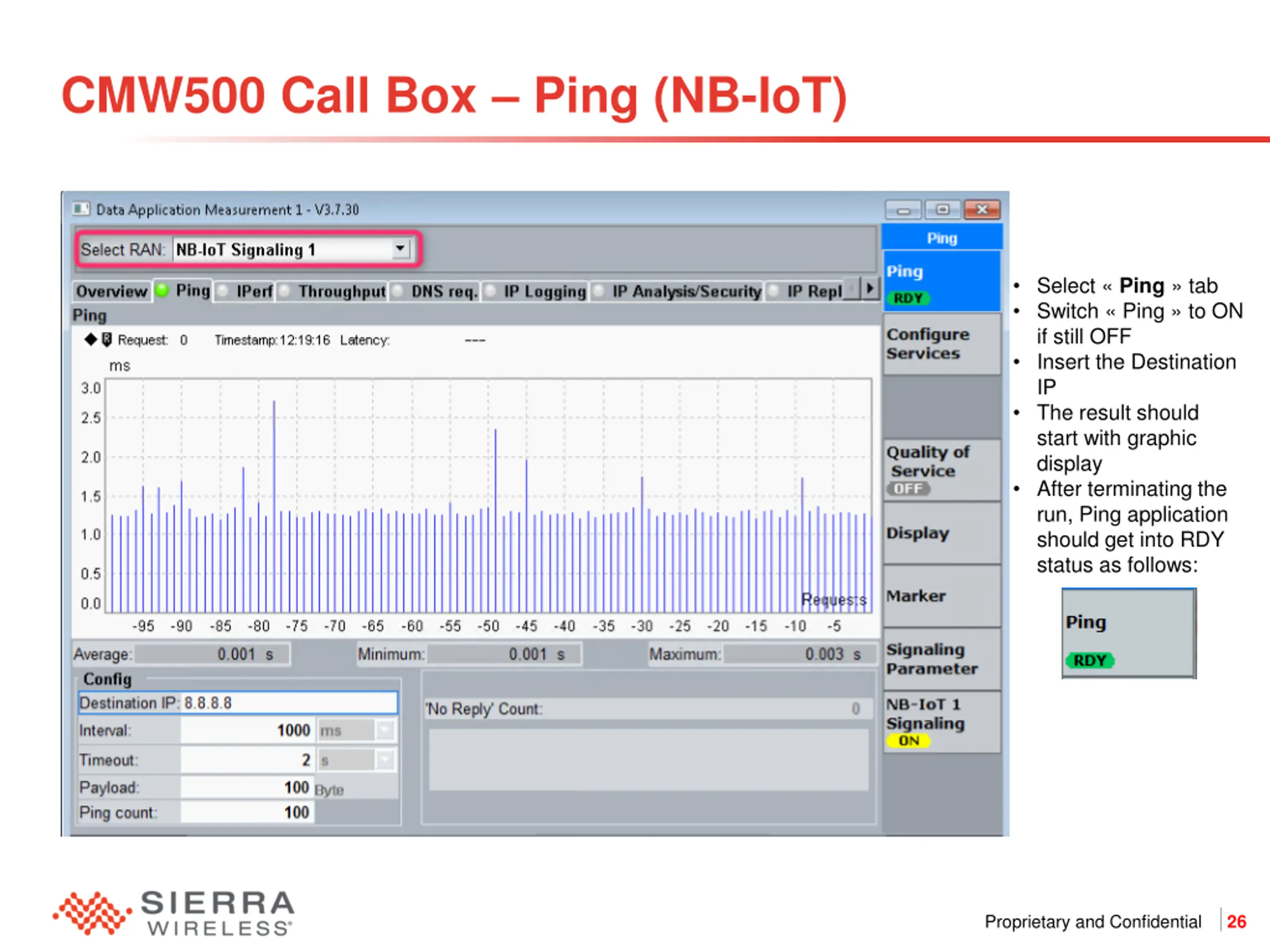

  26. CMW500 Call Box – Ping (NB-IoT) • Select « Ping » tab • Switch « Ping » to ON if still OFF • Insert the Destination IP • The result should start with graphic display • After terminating the run, Ping application should get into RDY status as follows: Proprietary and Confidential 26

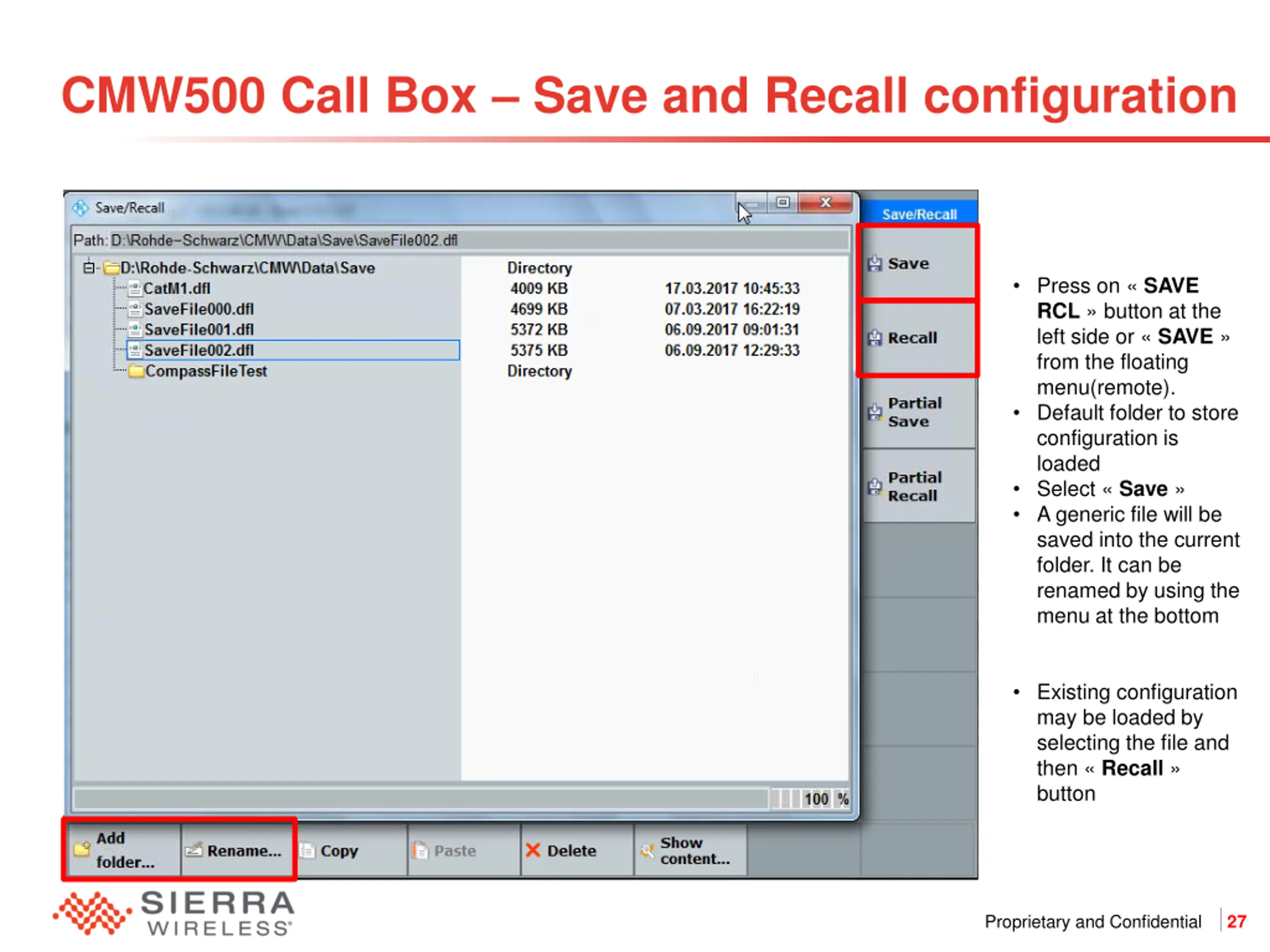

  27. CMW500 Call Box – Save and Recall configuration • Press on « SAVE RCL » button at the left side or « SAVE » from the floating menu(remote). • Default folder to store configuration is loaded • Select « Save » • A generic file will be saved into the current folder. It can be renamed by using the menu at the bottom • Existing configuration may be loaded by selecting the file and then « Recall » button Proprietary and Confidential 27

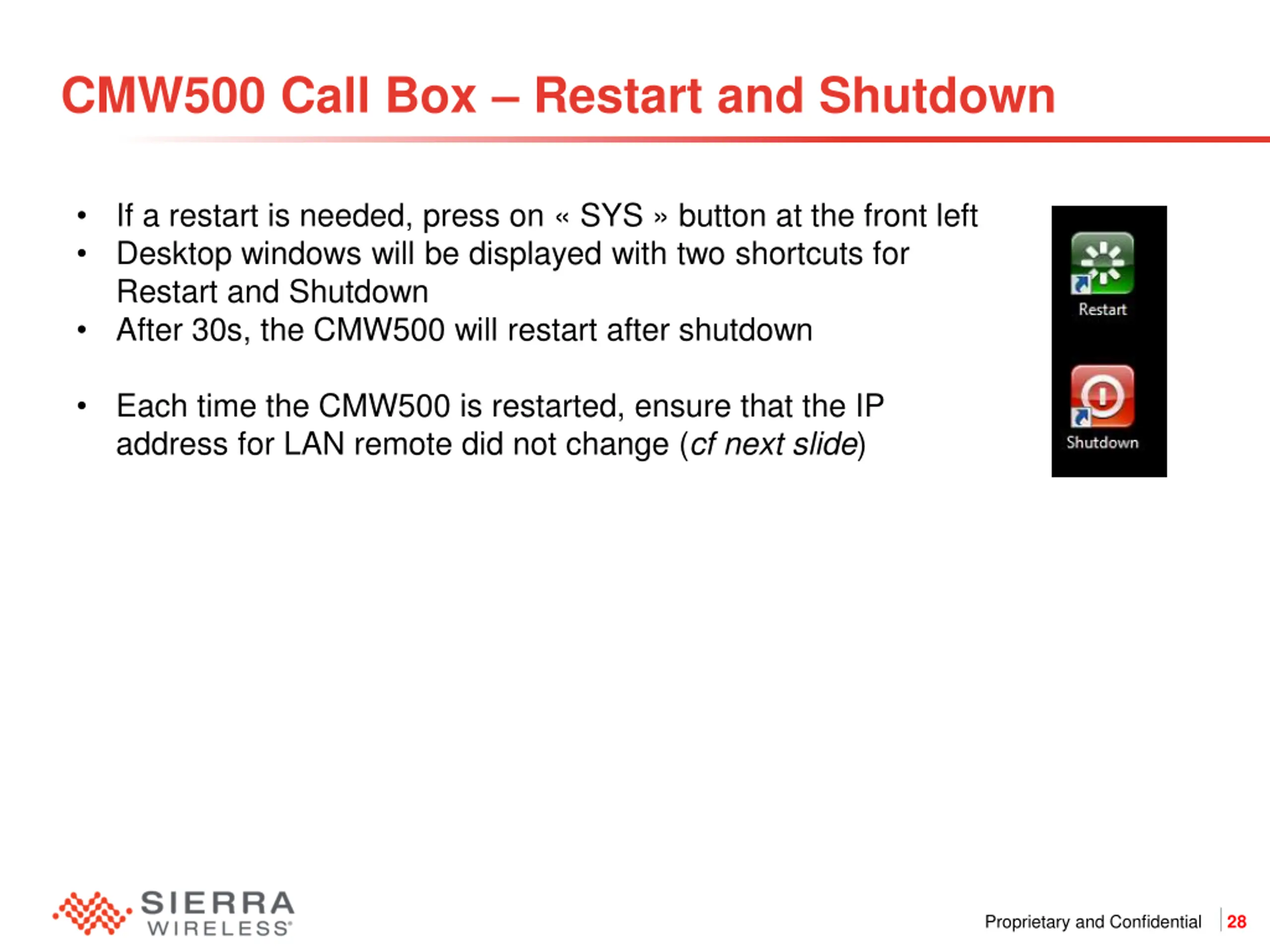

  28. CMW500 Call Box – Restart and Shutdown If a restart is needed, press on « SYS » button at the front left Desktop windows will be displayed with two shortcuts for Restart and Shutdown After 30s, the CMW500 will restart after shutdown • • • Each time the CMW500 is restarted, ensure that the IP address for LAN remote did not change (cf next slide) • Proprietary and Confidential 28

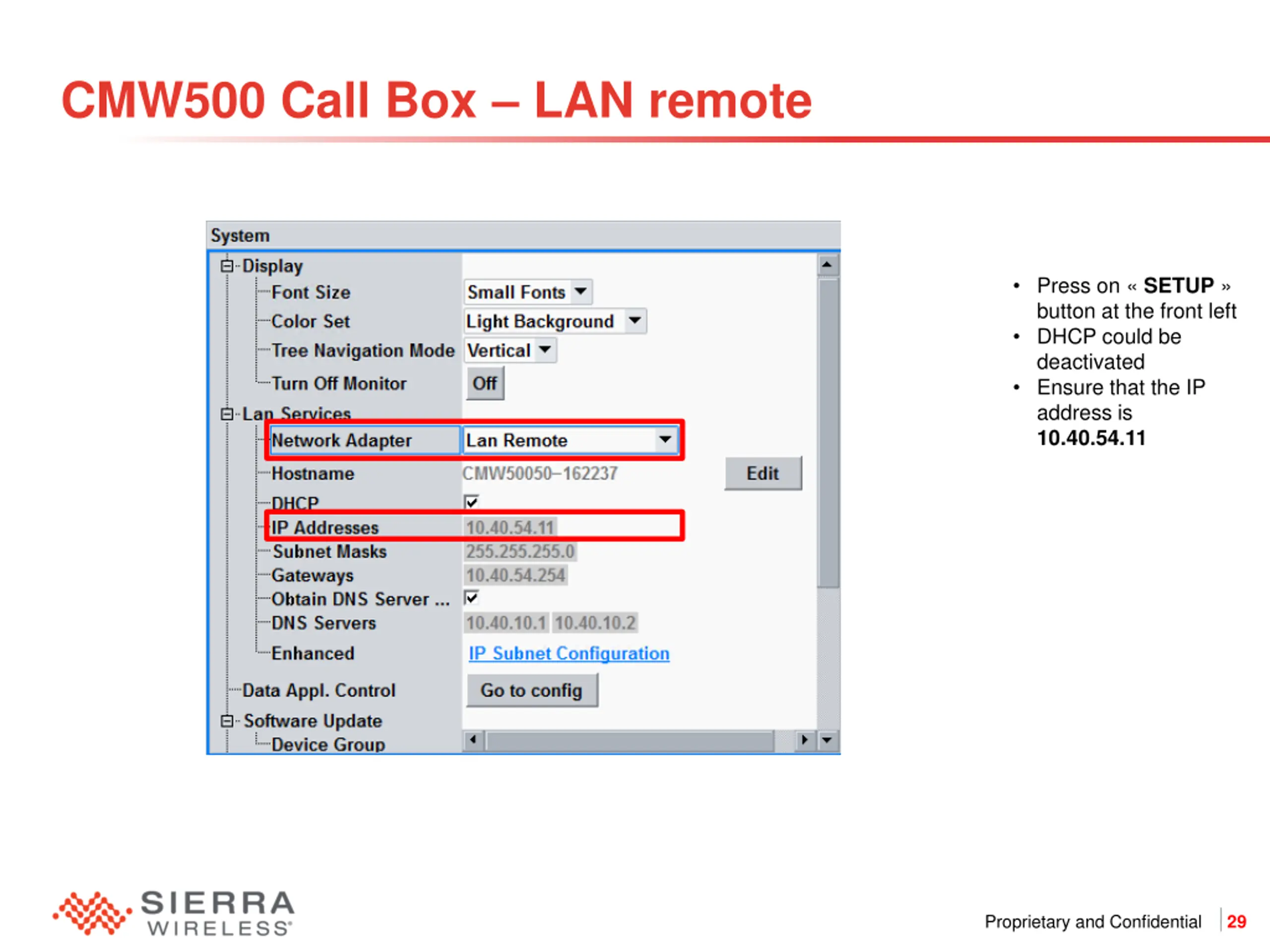

  29. CMW500 Call Box – LAN remote • Press on « SETUP » button at the front left • DHCP could be deactivated • Ensure that the IP address is 10.40.54.11 Proprietary and Confidential 29

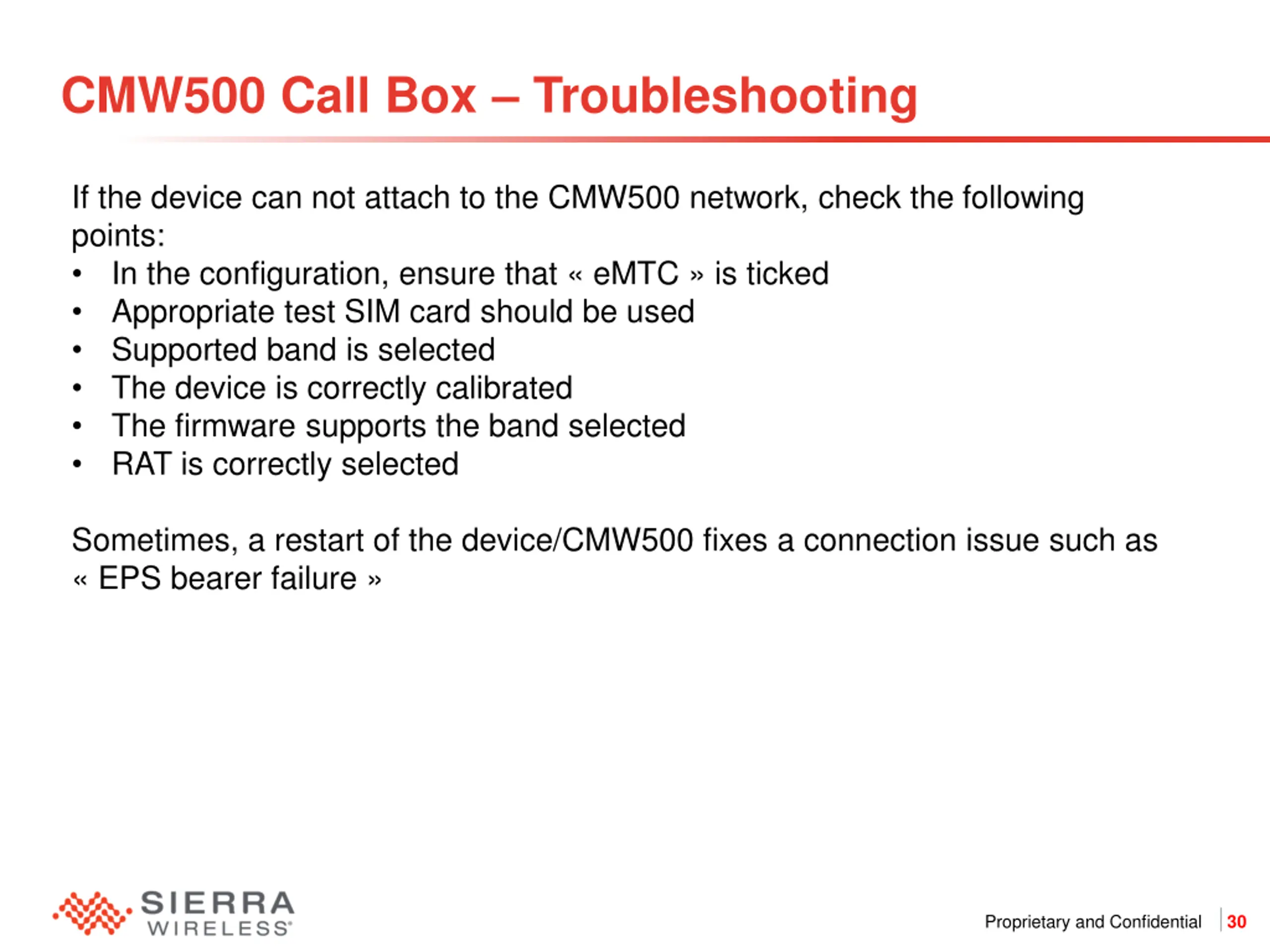

  30. CMW500 Call Box – Troubleshooting If the device can not attach to the CMW500 network, check the following points: • In the configuration, ensure that « eMTC » is ticked • Appropriate test SIM card should be used • Supported band is selected • The device is correctly calibrated • The firmware supports the band selected • RAT is correctly selected Sometimes, a restart of the device/CMW500 fixes a connection issue such as « EPS bearer failure » Proprietary and Confidential 30
