  1. ASTM A105 Fittings

  2. Introduction to ASTM A105 Fittings Overview of ASTM A105 Fittings ASTM A105 forged fittings are made from seamless forged carbon steel, designed to connect different piping systems primarily in the oil and gas industry. ● The chemical composition includes elements such as nickel, chromium, molybdenum, copper, and vanadium, enhancing their strength and durability. ● These fittings are versatile, allowing for both threaded and welded connections, which are essential for ensuring leak-proof piping systems. ● ASTM A105 fittings are critical in manipulating the characteristics of fluid media within pipelines, ensuring efficient flow and safety in high- pressure environments. ●

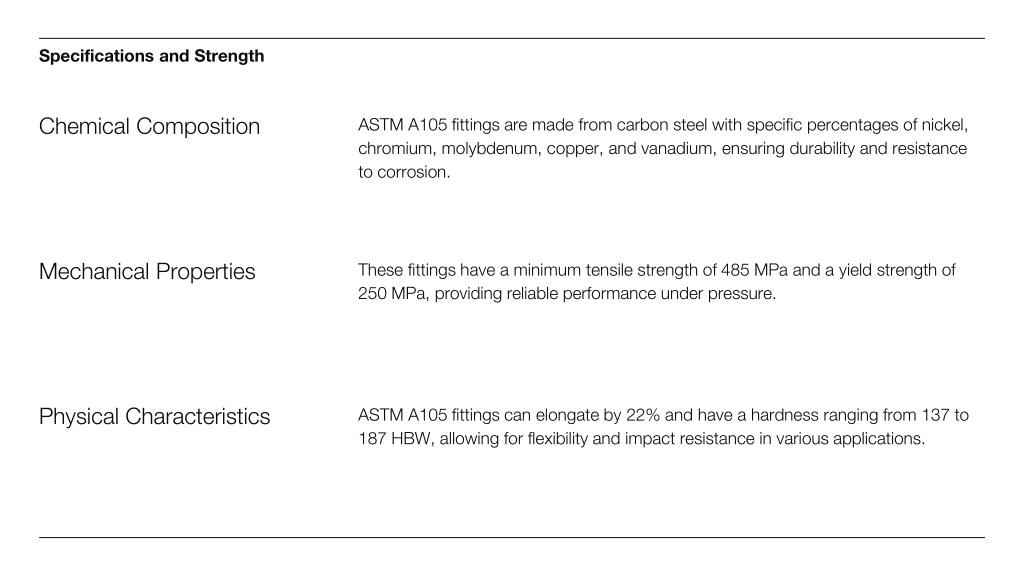

  3. Specifications and Strength Chemical Composition ASTM A105 fittings are made from carbon steel with specific percentages of nickel, chromium, molybdenum, copper, and vanadium, ensuring durability and resistance to corrosion. Mechanical Properties These fittings have a minimum tensile strength of 485 MPa and a yield strength of 250 MPa, providing reliable performance under pressure. Physical Characteristics ASTM A105 fittings can elongate by 22% and have a hardness ranging from 137 to 187 HBW, allowing for flexibility and impact resistance in various applications.

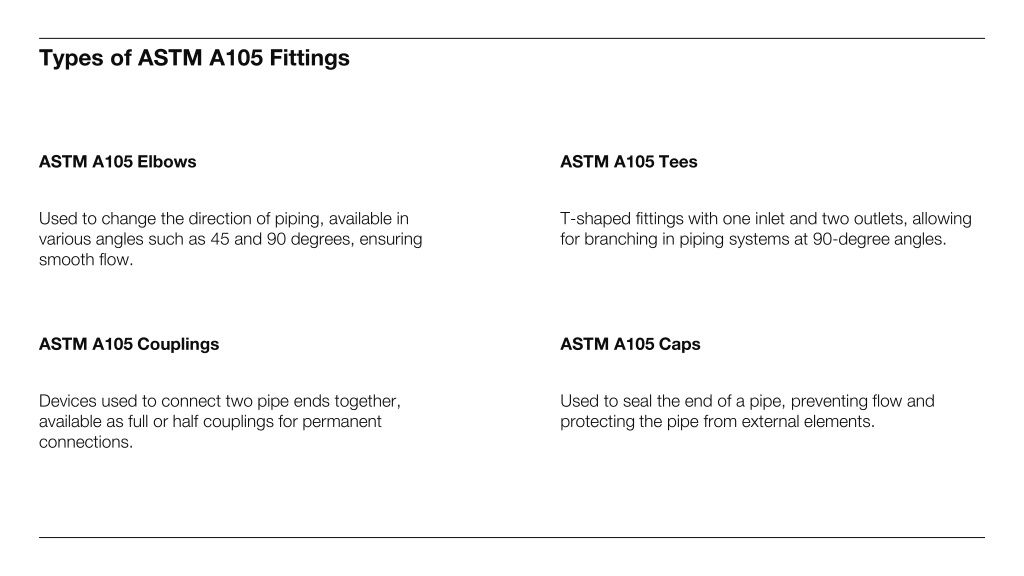

  4. Types of ASTM A105 Fittings ASTM A105 Elbows ASTM A105 Tees Used to change the direction of piping, available in various angles such as 45 and 90 degrees, ensuring smooth flow. T-shaped fittings with one inlet and two outlets, allowing for branching in piping systems at 90-degree angles. ASTM A105 Couplings ASTM A105 Caps Devices used to connect two pipe ends together, available as full or half couplings for permanent connections. Used to seal the end of a pipe, preventing flow and protecting the pipe from external elements.

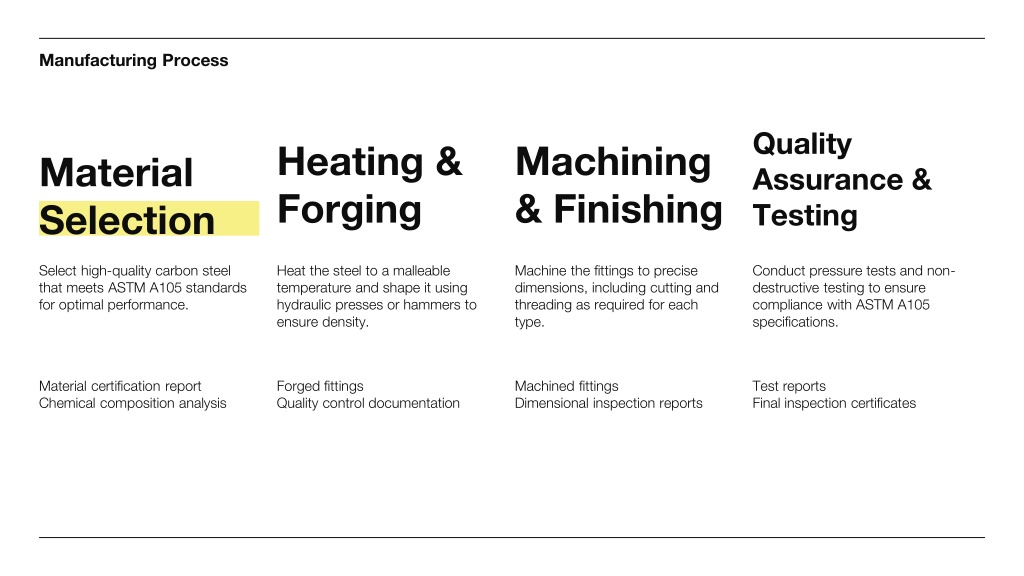

  5. Manufacturing Process Quality Assurance & Testing Heating & Forging Machining & Finishing Material Selection Select high-quality carbon steel that meets ASTM A105 standards for optimal performance. Heat the steel to a malleable temperature and shape it using hydraulic presses or hammers to ensure density. Machine the fittings to precise dimensions, including cutting and threading as required for each type. Conduct pressure tests and non- destructive testing to ensure compliance with ASTM A105 specifications. Material certification report Chemical composition analysis Forged fittings Quality control documentation Machined fittings Dimensional inspection reports Test reports Final inspection certificates

  6. Applications in Industry ASTM A105 fittings are widely used in the oil and gas industry, playing a crucial role in the assembly of piping systems. They are designed to withstand high pressures and temperatures, making them ideal for applications in refineries and petrochemical plants. Additionally, these fittings are utilized in power generation facilities and water treatment plants, where reliable connections are essential for maintaining system integrity and efficiency.

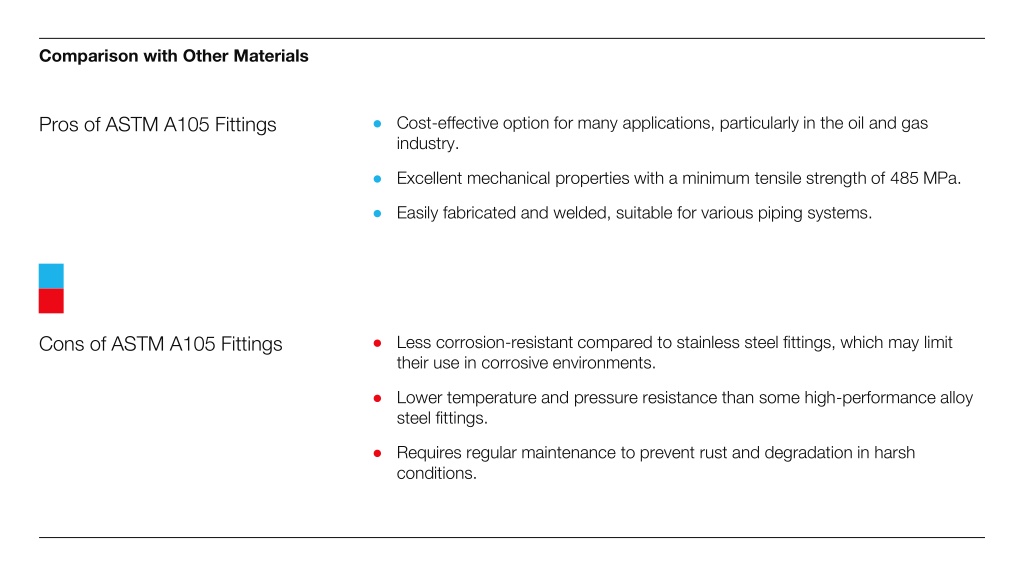

  7. Comparison with Other Materials Pros of ASTM A105 Fittings ● Cost-effective option for many applications, particularly in the oil and gas industry. ● Excellent mechanical properties with a minimum tensile strength of 485 MPa. ● Easily fabricated and welded, suitable for various piping systems. Cons of ASTM A105 Fittings ● Less corrosion-resistant compared to stainless steel fittings, which may limit their use in corrosive environments. ● Lower temperature and pressure resistance than some high-performance alloy steel fittings. ● Requires regular maintenance to prevent rust and degradation in harsh conditions.

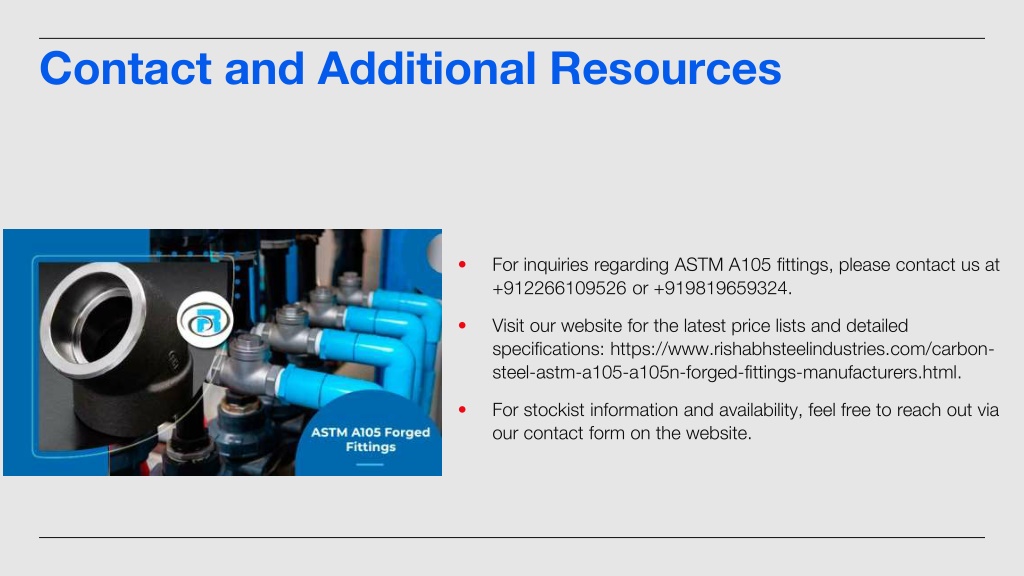

  8. Contact and Additional Resources • For inquiries regarding ASTM A105 fittings, please contact us at +912266109526 or +919819659324. • Visit our website for the latest price lists and detailed specifications: https://www.rishabhsteelindustries.com/carbon- steel-astm-a105-a105n-forged-fittings-manufacturers.html. • For stockist information and availability, feel free to reach out via our contact form on the website.
