Klassendiagramm für die Workflowausführung

Klassendiagramm für die Workflowausführung. State <<abstract>> - Status status, String comment

stasia
Download Presentation

Klassendiagramm für die Workflowausführung

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

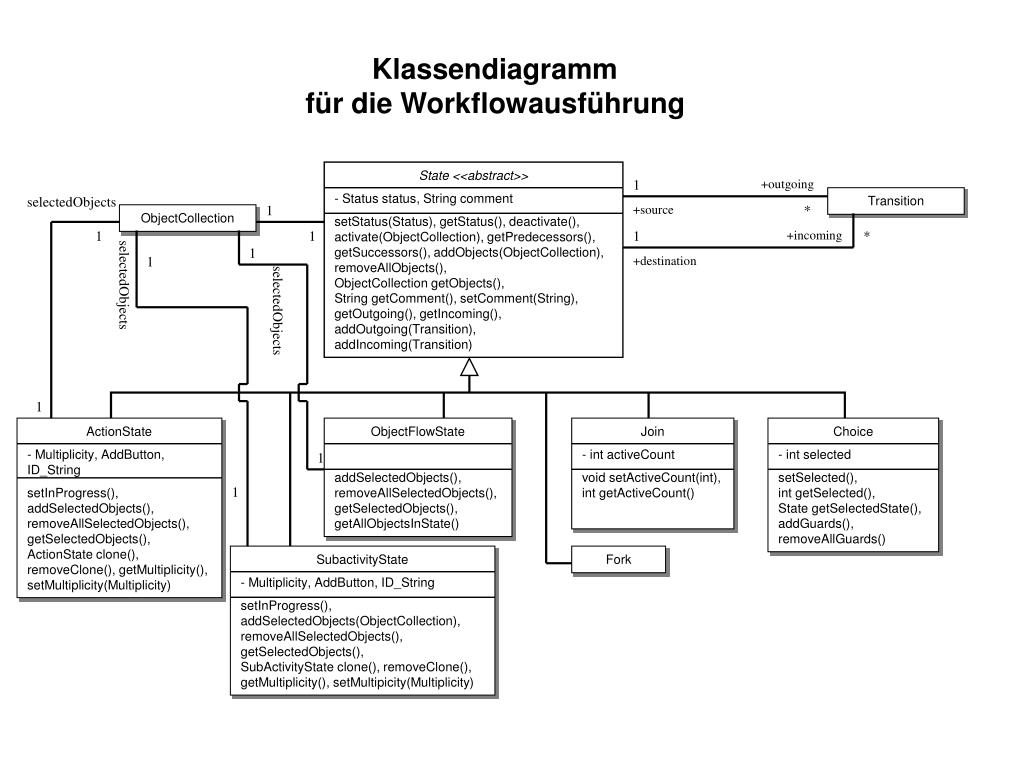

  1. Klassendiagramm für die Workflowausführung State <<abstract>> - Status status, String comment setStatus(Status), getStatus(), deactivate(), activate(ObjectCollection), getPredecessors(), getSuccessors(), addObjects(ObjectCollection), removeAllObjects(),ObjectCollection getObjects(),String getComment(), setComment(String), getOutgoing(), getIncoming(), addOutgoing(Transition), addIncoming(Transition) Choice - int selected setSelected(), int getSelected(), State getSelectedState(), addGuards(), removeAllGuards() Join - int activeCount void setActiveCount(int), int getActiveCount() ActionState - Multiplicity, AddButton, ID_String setInProgress(), addSelectedObjects(), removeAllSelectedObjects(), getSelectedObjects(), ActionState clone(), removeClone(), getMultiplicity(), setMultiplicity(Multiplicity) ObjectFlowState addSelectedObjects(), removeAllSelectedObjects(), getSelectedObjects(), getAllObjectsInState() SubactivityState - Multiplicity, AddButton, ID_String setInProgress(), addSelectedObjects(ObjectCollection), removeAllSelectedObjects(), getSelectedObjects(),SubActivityState clone(), removeClone(), getMultiplicity(), setMultipicity(Multiplicity) 1 +outgoing selectedObjects Transition 1 +source * ObjectCollection 1 1 1 +incoming * 1 1 +destination selectedObjects selectedObjects 1 1 1 Fork
