Presentation Transcript
string analysis for dynamic field access

String Analysis for Dynamic Field Access

Esben Andreasen

Magnus Madsen

Department of Computer Science

Aarhus University

motivation
Motivation
  • Static Analysis of JavaScript
    • type analysis, bug finding or refactoring
    • a key component is Points-To analysis
  • Analysis of JavaScript is a difficult
    • a flexible object model (prototype-based)
    • dynamic field access
    • coercions and eval
    • non-standard scope rules
    • ...

Today

static field access
Static Field Access

Receiver

Field Name

dynamic field access dfa
Dynamic Field Access (DFA)

where e is any expression

dynamic reads
Dynamic Reads

Object

Array

v = o["p"]

v = o["p" + "q"]

v = o[???]

o

length

map

pop

push

reduce

reduceRight

reverse

shift

slice

some

sort

splice

unshift

__defineGetter__

__defineSetter__

__lookupGetter__

__lookupSetter__

constructor

hasOwnProperty

(4 more)

concat

every

filter

forEach

indexOf

join

lastIndexOf

dynamic writes

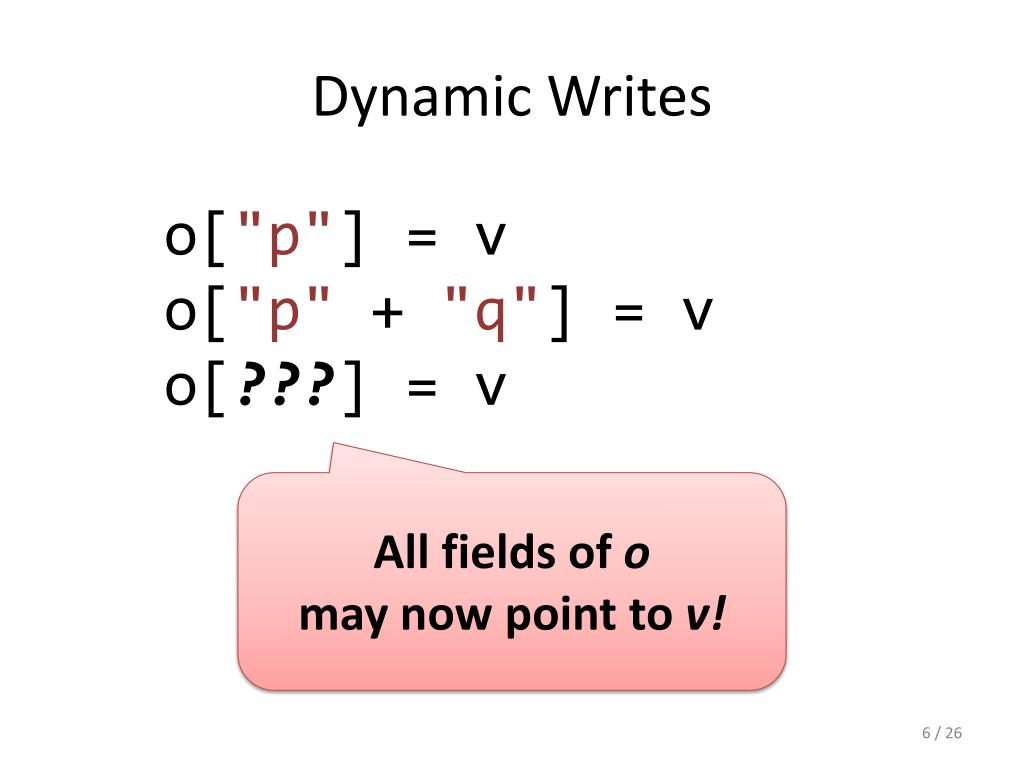

Dynamic Writes

o["p"] = v

o["p" + "q"] = v

o[???] = v

All fields of o

may now point to v!

dynamic reads writes
Dynamic Reads & Writes

o[e1][e2] = v

e.g. prototype

e.g. toString

All fields of Object

may now point to v!

spurious event handlers
Spurious Event Handlers

var elm = $("#button");

elm.onclick = function() {}

elm[???] = function() {}

The function is registered as all possible event handlers

usage in practice

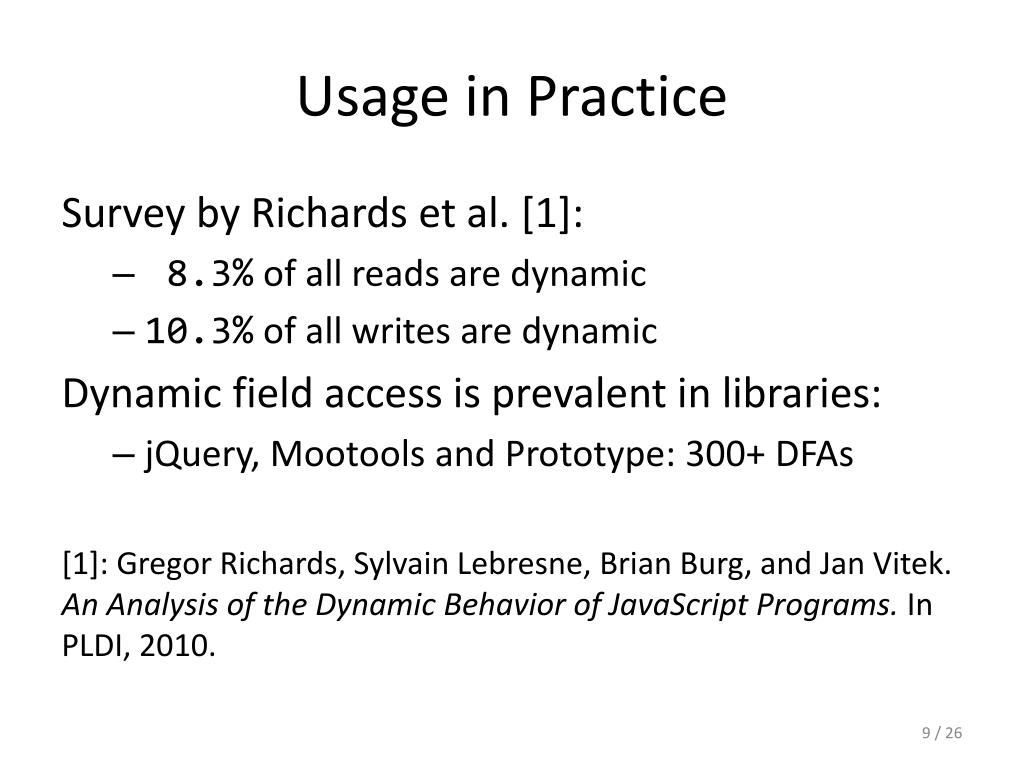

Usage in Practice

Survey by Richards et al. [1]:

  • 8.3% of all reads are dynamic
  • 10.3% of all writes are dynamic

Dynamic field access is prevalent in libraries:

  • jQuery, Mootools and Prototype: 300+ DFAs

[1]: Gregor Richards, Sylvain Lebresne, Brian Burg, and Jan Vitek. An Analysis of the Dynamic Behavior of JavaScript Programs. In PLDI, 2010.

proposed solution
Proposed Solution

What we need: A way to distinguish strings flowing into dynamic field accesses.

Solution: A set of light-weight lattices.

  • focus on concatenate, equaland join
  • compact and efficient
  • ideally O(1)time and space
simple lattices
(Simple) Lattices
  • Constant String (CS)

single concrete string, e.g. "push".

  • String Set (SS)

set of k strings, e.g. "pop"and "push".

  • Length Interval (LI)

min. and max. length, e.g. the interval [3; 4] for the strings "pop" and "push".

character inclusion ci
Character Inclusion (CI)

Sets of characters which may and mustoccur.

Example for the strings "pop" and "push":

prefixes and suffixes
Prefixes and Suffixes
  • Prefix-Suffix Characters (PS)

first and last character, e.g. for the strings "pop" and "push":

and

  • Prefix Suffix Inclusion (PSI)

may and must sets of characters for the first and last character.

(like the character inclusion lattice.)

index predicate
Index Predicate

A boolean valued predicate which may/must hold for each of the first string indices.

Examples:

  • isUppercase (useful for e.g. ”lastIndexOf”)
  • isUnderscore (useful for e.g. ”__defineGetter__”)
  • isDigit (useful for array indices)
index predicate concatenation
Index Predicate: Concatenation

+

1

0

0

1

0

1

1

0

0

0

1

0

0

1

1

1

0

0

0

may-case

1

0

0

1

1

1

1

0

0

0

1

0

0

1

0

1

1

0

0

0

string hash

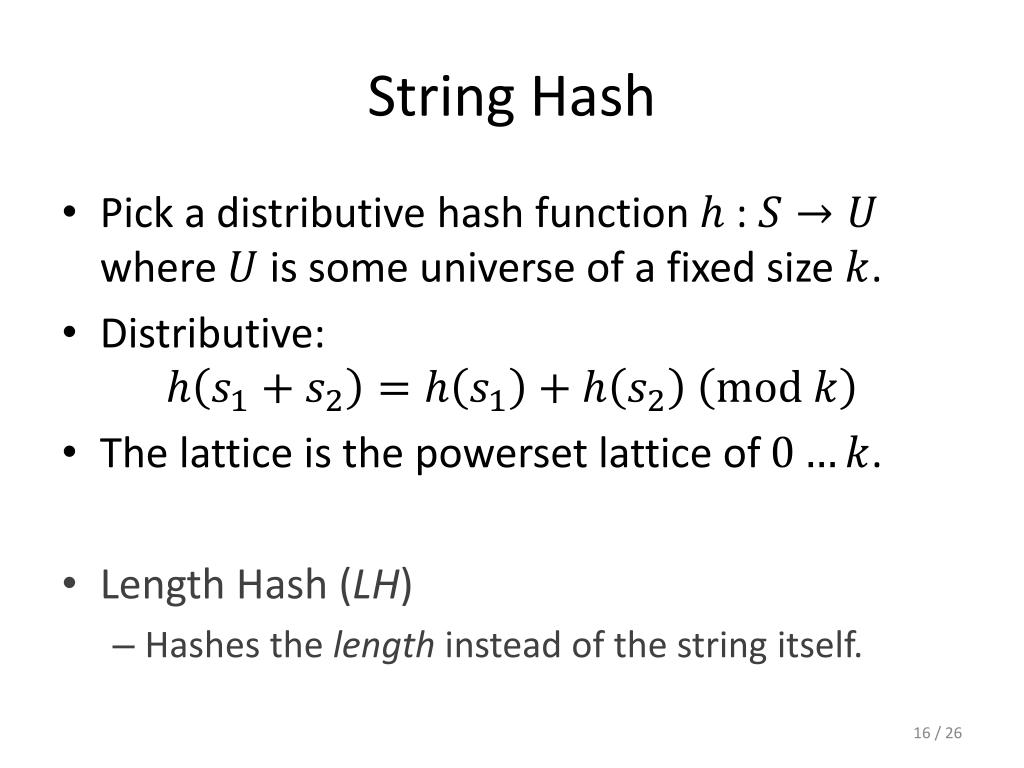

String Hash
  • Pick a distributive hash function : where is some universe of a fixed size .
  • Distributive:
  • The lattice is the powerset lattice of .
  • Length Hash (LH)
    • Hashes the length instead of the string itself.
string hash example
String Hash: Example

foo = (the quick brown fox)

4

33

29

40

13

  • String Constant
  • Prefix Suffix
  • Character Inclusion
  • Index Predicate
string hash concatenation
String Hash: Concatenation

Example: Let and

Assume a universe of size then:

Easy to compute in iterations.

Paper has solution in time.

overview
Overview
  • The Hlattice is the (reduced) product of
    • the string set lattice (SS)
    • the character inclusion lattice (CI)
    • the string hash lattice (SH)
evaluation
Evaluation

Q1: How precise are the lattices, independent of any particular analysis, for reasoning about strings used in DFAs?

Q2: To what degree does a more precise string lattice, for DFAs, improve overall precision and performance of a static analysis?

evaluation dynamic analysis
Evaluation: Dynamic Analysis

We perform a recordand replay of several popular JavaScript libraries:

Record:

  • The history of every string flowing to a DFA.
  • The field names of every receiver object at a DFA.

Replay:

  • For every DFA merge the histories of strings and determine for each lattice if it has a false positive.

(example next slide)

dynamic analysis example
Dynamic Analysis: Example

e = (c ? "a": "b") + "x"

o = {"ax": 1, "bx": 2}

v = o[e];

+

What fields are read by

evaluating o[e] in

the abstract?

join

"x"

"a"

"b"

evaluation dynamic analysis1
Evaluation: Dynamic Analysis

DFAs with zero false positives

Const. Str. Insufficient

Hybrid

Prefix/Suffic Incl.

evaluation static analysis
Evaluation: Static Analysis

Flow-sensitive dataflow analysis for JavaScript

  • inter-procedural, context-insensitive
  • instantiated with the constant and hybrid lattices

Benchmarks

  • Mozilla Sunspider + Google Octane
  • Various GitHub projects
summary
Summary
  • Dynamic field access is common in JavaScript.
  • Simple constant propagation is insufficient for reasoning about dynamic field accesses.
  • The proposed hybridlatticeimproves precision and performance for 7 out of 10 benchmark programs.

Thank You!

arrays
Arrays

var a = [1, 2, 3];

var i = 0;

while (...) {

var x = a[i++];

}

string patterns

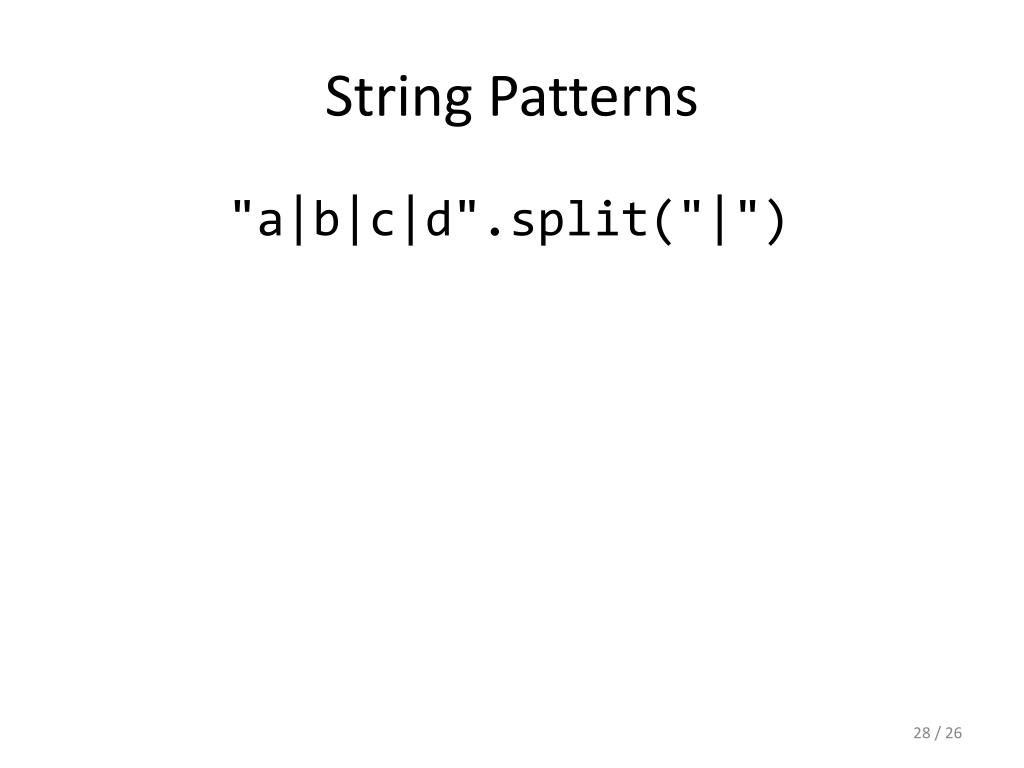

String Patterns

"a|b|c|d".split("|")

number type string l attices
Number- & Type String Lattices
  • Number String (N)

A powerset lattice of the strings:

{Infinity, -Infinity, NaN, 0, 1, ...}

  • Type String (T)

A powerset lattice of the strings:

{Boolean, Function, Object, String, Undefined}
