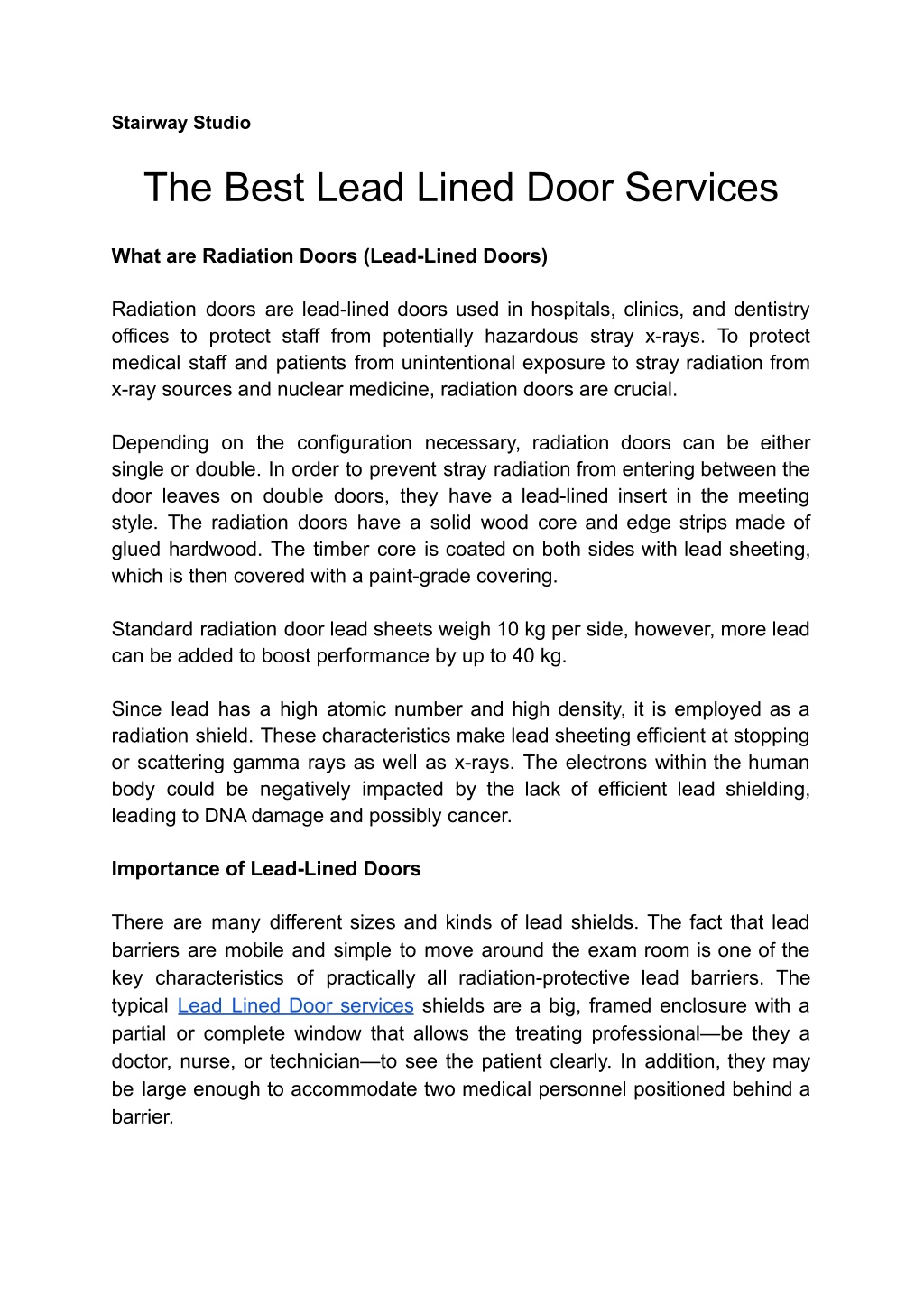

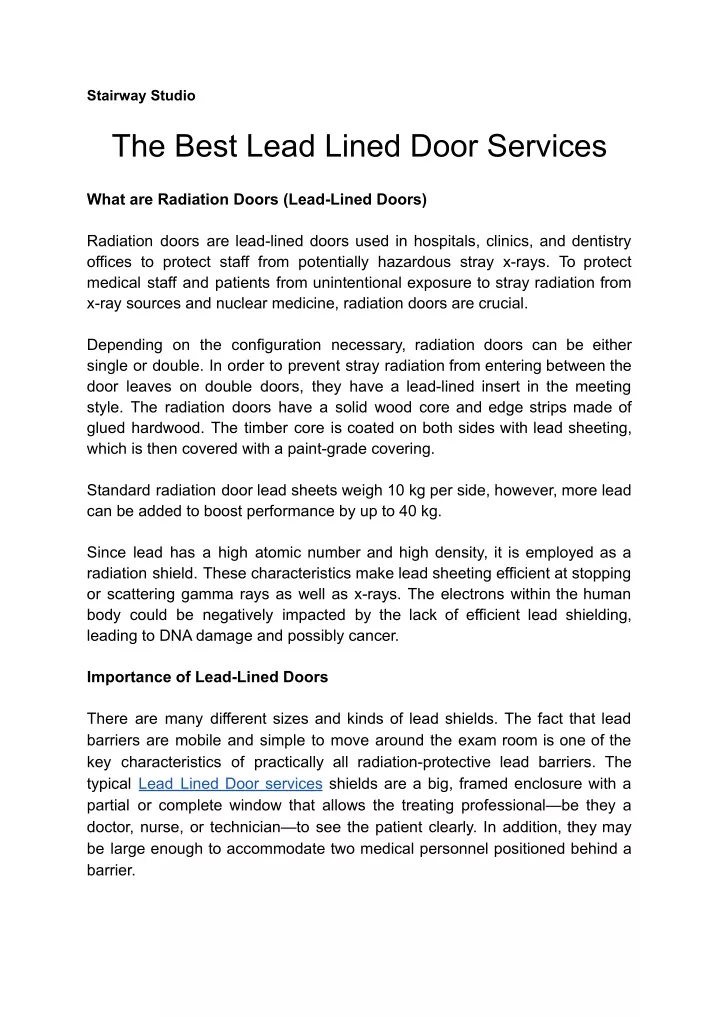

1. Stairway Studio The Best Lead Lined Door Services What are Radiation Doors (Lead-Lined Doors) Radiation doors are lead-lined doors used in hospitals, clinics, and dentistry offices to protect staff from potentially hazardous stray x-rays. To protect medical staff and patients from unintentional exposure to stray radiation from x-ray sources and nuclear medicine, radiation doors are crucial. Depending on the configuration necessary, radiation doors can be either single or double. In order to prevent stray radiation from entering between the door leaves on double doors, they have a lead-lined insert in the meeting style. The radiation doors have a solid wood core and edge strips made of glued hardwood. The timber core is coated on both sides with lead sheeting, which is then covered with a paint-grade covering. Standard radiation door lead sheets weigh 10 kg per side, however, more lead can be added to boost performance by up to 40 kg. Since lead has a high atomic number and high density, it is employed as a radiation shield. These characteristics make lead sheeting efficient at stopping or scattering gamma rays as well as x-rays. The electrons within the human body could be negatively impacted by the lack of efficient lead shielding, leading to DNA damage and possibly cancer. Importance of Lead-Lined Doors There are many different sizes and kinds of lead shields. The fact that lead barriers are mobile and simple to move around the exam room is one of the key characteristics of practically all radiation-protective lead barriers. The typical Lead Lined Door services shields are a big, framed enclosure with a partial or complete window that allows the treating professional—be they a doctor, nurse, or technician—to see the patient clearly. In addition, they may be large enough to accommodate two medical personnel positioned behind a barrier.

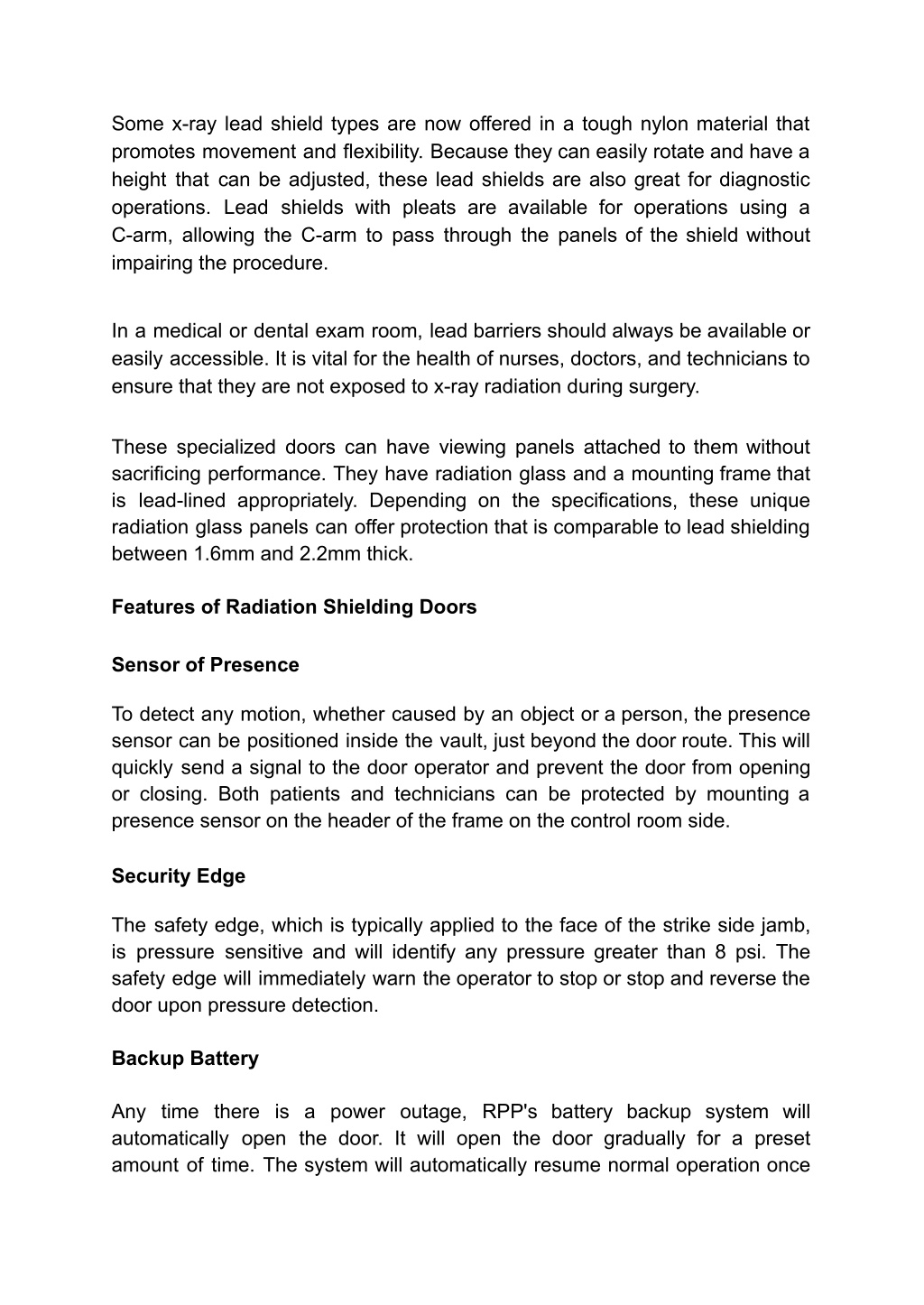

2. Some x-ray lead shield types are now offered in a tough nylon material that promotes movement and flexibility. Because they can easily rotate and have a height that can be adjusted, these lead shields are also great for diagnostic operations. Lead shields with pleats are available for operations using a C-arm, allowing the C-arm to pass through the panels of the shield without impairing the procedure. In a medical or dental exam room, lead barriers should always be available or easily accessible. It is vital for the health of nurses, doctors, and technicians to ensure that they are not exposed to x-ray radiation during surgery. These specialized doors can have viewing panels attached to them without sacrificing performance. They have radiation glass and a mounting frame that is lead-lined appropriately. Depending on the specifications, these unique radiation glass panels can offer protection that is comparable to lead shielding between 1.6mm and 2.2mm thick. Features of Radiation Shielding Doors Sensor of Presence To detect any motion, whether caused by an object or a person, the presence sensor can be positioned inside the vault, just beyond the door route. This will quickly send a signal to the door operator and prevent the door from opening or closing. Both patients and technicians can be protected by mounting a presence sensor on the header of the frame on the control room side. Security Edge The safety edge, which is typically applied to the face of the strike side jamb, is pressure sensitive and will identify any pressure greater than 8 psi. The safety edge will immediately warn the operator to stop or stop and reverse the door upon pressure detection. Backup Battery Any time there is a power outage, RPP's battery backup system will automatically open the door. It will open the door gradually for a preset amount of time. The system will automatically resume normal operation once

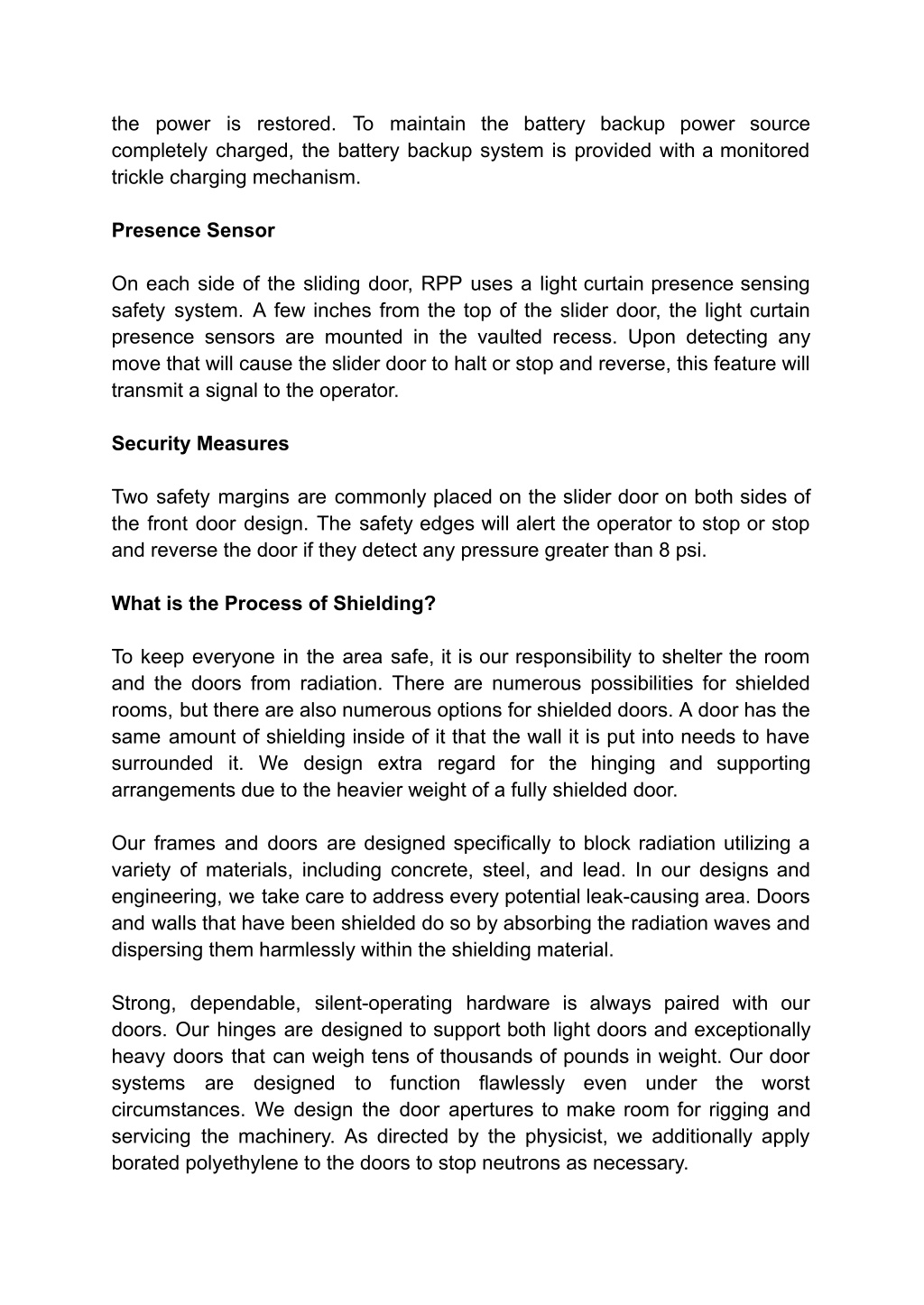

3. the power is restored. To maintain the battery backup power source completely charged, the battery backup system is provided with a monitored trickle charging mechanism. Presence Sensor On each side of the sliding door, RPP uses a light curtain presence sensing safety system. A few inches from the top of the slider door, the light curtain presence sensors are mounted in the vaulted recess. Upon detecting any move that will cause the slider door to halt or stop and reverse, this feature will transmit a signal to the operator. Security Measures Two safety margins are commonly placed on the slider door on both sides of the front door design. The safety edges will alert the operator to stop or stop and reverse the door if they detect any pressure greater than 8 psi. What is the Process of Shielding? To keep everyone in the area safe, it is our responsibility to shelter the room and the doors from radiation. There are numerous possibilities for shielded rooms, but there are also numerous options for shielded doors. A door has the same amount of shielding inside of it that the wall it is put into needs to have surrounded it. We design extra regard for the hinging and supporting arrangements due to the heavier weight of a fully shielded door. Our frames and doors are designed specifically to block radiation utilizing a variety of materials, including concrete, steel, and lead. In our designs and engineering, we take care to address every potential leak-causing area. Doors and walls that have been shielded do so by absorbing the radiation waves and dispersing them harmlessly within the shielding material. Strong, dependable, silent-operating hardware is always paired with our doors. Our hinges are designed to support both light doors and exceptionally heavy doors that can weigh tens of thousands of pounds in weight. Our door systems are designed to function circumstances. We design the door apertures to make room for rigging and servicing the machinery. As directed by the physicist, we additionally apply borated polyethylene to the doors to stop neutrons as necessary. flawlessly even under the worst

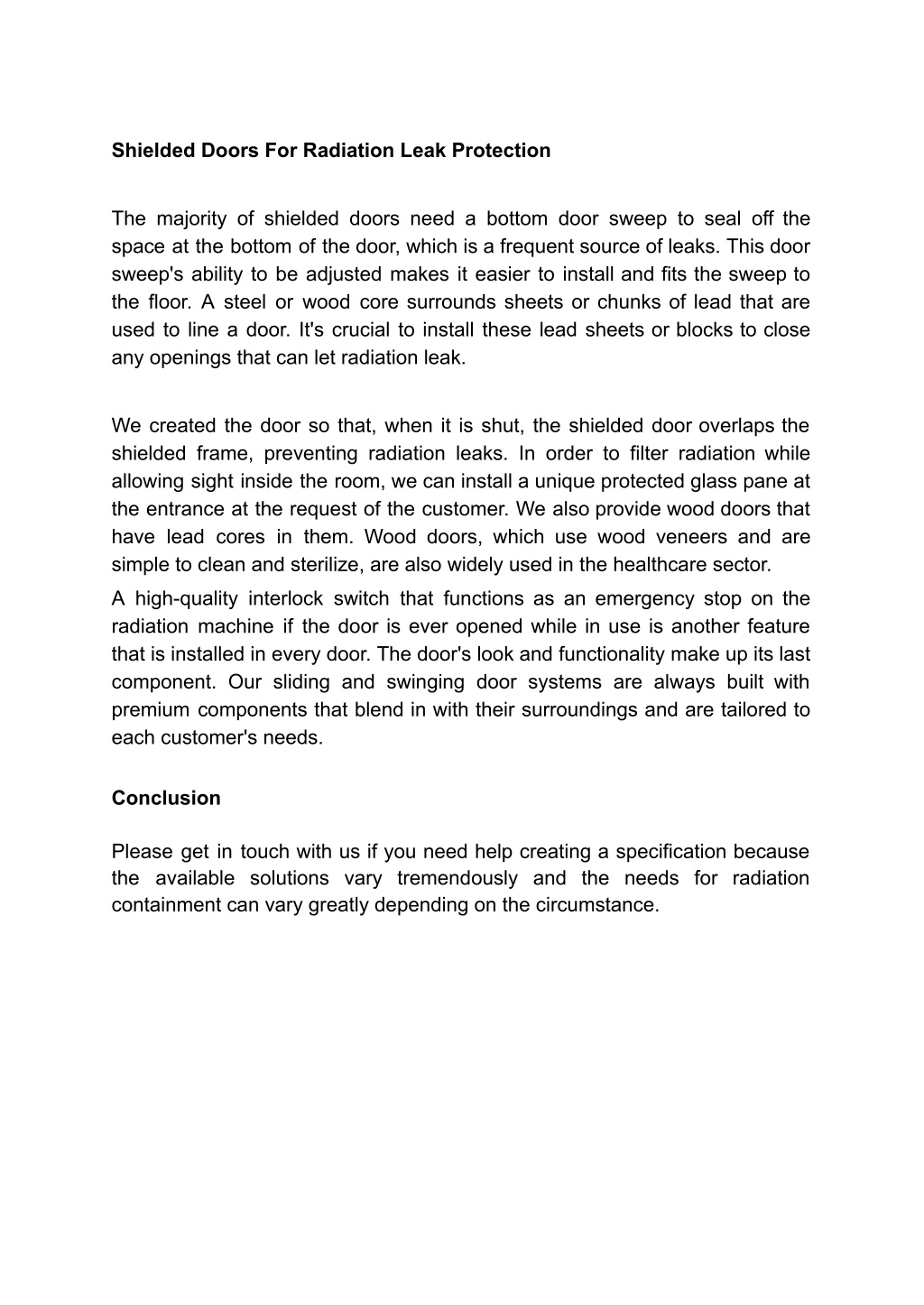

4. Shielded Doors For Radiation Leak Protection The majority of shielded doors need a bottom door sweep to seal off the space at the bottom of the door, which is a frequent source of leaks. This door sweep's ability to be adjusted makes it easier to install and fits the sweep to the floor. A steel or wood core surrounds sheets or chunks of lead that are used to line a door. It's crucial to install these lead sheets or blocks to close any openings that can let radiation leak. We created the door so that, when it is shut, the shielded door overlaps the shielded frame, preventing radiation leaks. In order to filter radiation while allowing sight inside the room, we can install a unique protected glass pane at the entrance at the request of the customer. We also provide wood doors that have lead cores in them. Wood doors, which use wood veneers and are simple to clean and sterilize, are also widely used in the healthcare sector. A high-quality interlock switch that functions as an emergency stop on the radiation machine if the door is ever opened while in use is another feature that is installed in every door. The door's look and functionality make up its last component. Our sliding and swinging door systems are always built with premium components that blend in with their surroundings and are tailored to each customer's needs. Conclusion Please get in touch with us if you need help creating a specification because the available solutions vary tremendously and the needs for radiation containment can vary greatly depending on the circumstance.
