Analytical and Numerical Approaches for Linear Systems: Handling Piecewise Continuous Functions

Explore ECE 280's three main strategies to solve first-order linear systems with piecewise continuity using analytic and computational methods in MATLAB. Analyze the physics requirements enforcing continuity in x(t) for intervals.

stacy
Download Presentation

Analytical and Numerical Approaches for Linear Systems: Handling Piecewise Continuous Functions

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

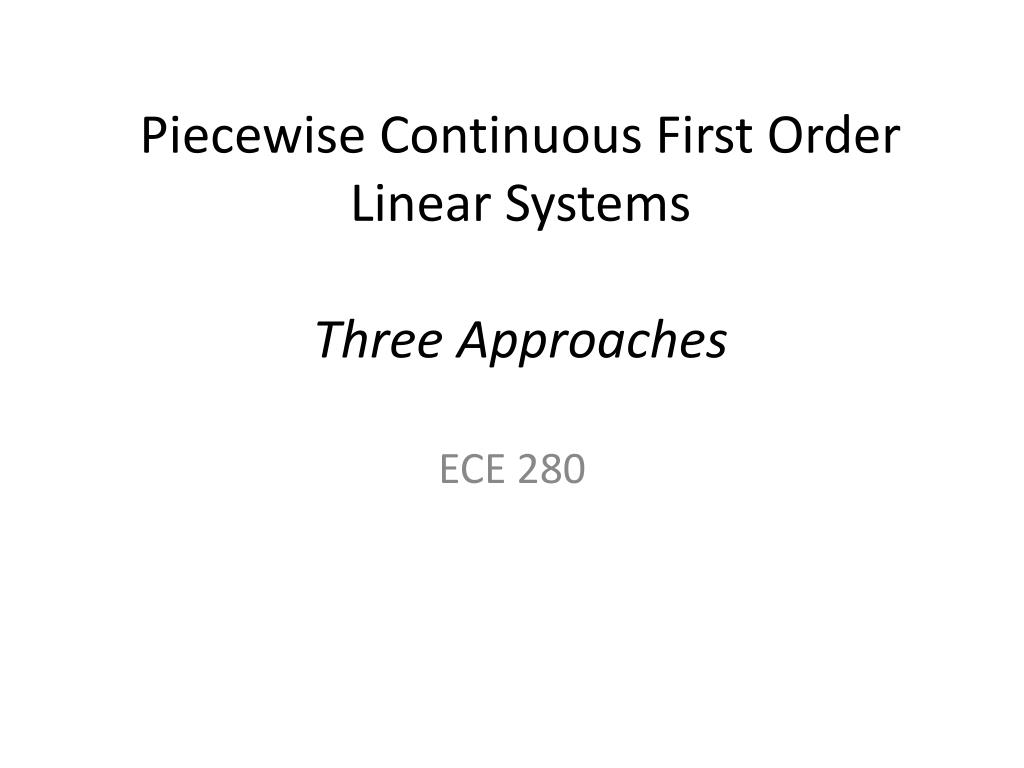

  1. Piecewise Continuous First Order Linear SystemsThree Approaches ECE 280

  2. Analytical Approach and the physics require that x(t) be continuous for first interval = -1 for x > 1 but since x(t) must be continuous x(1) = 1 - 1 - x(t) =

  3. Symbolic Matlab Approach – Script (1 of 2)

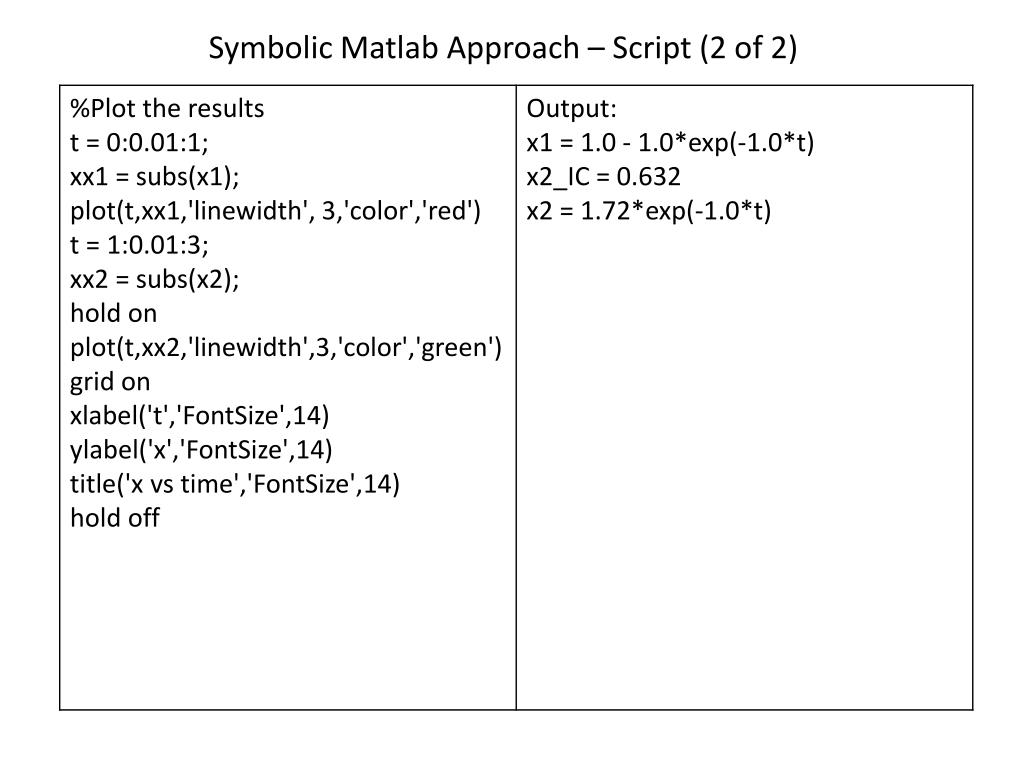

  4. Symbolic Matlab Approach – Script (2 of 2)

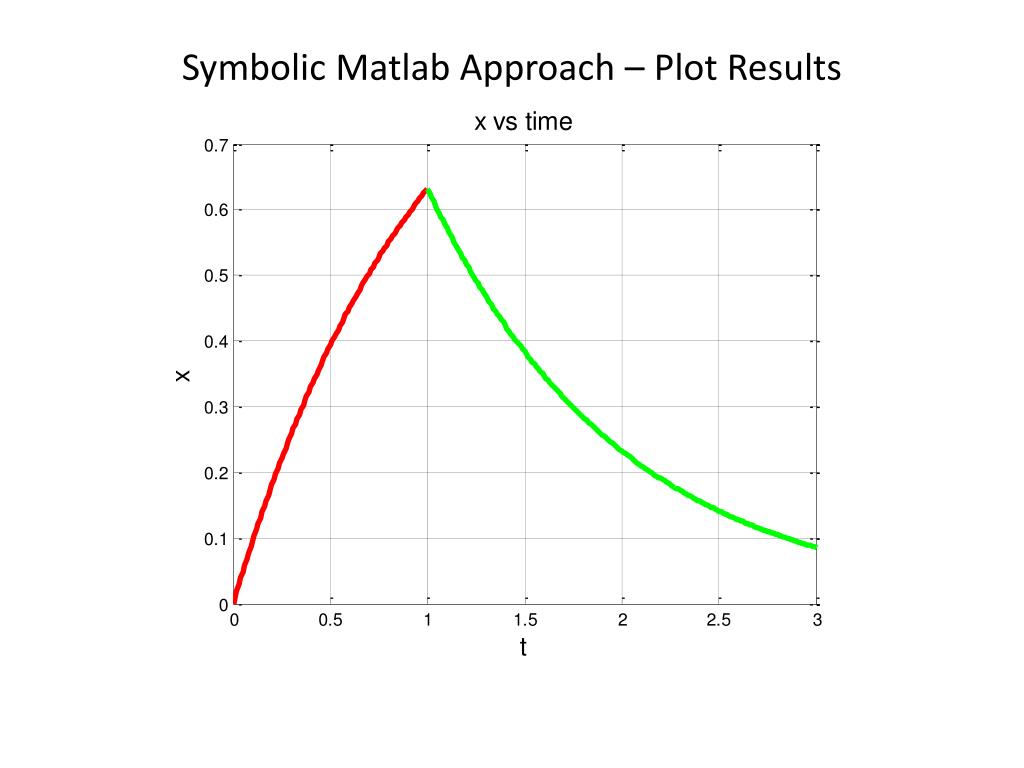

  5. Symbolic Matlab Approach – Plot Results

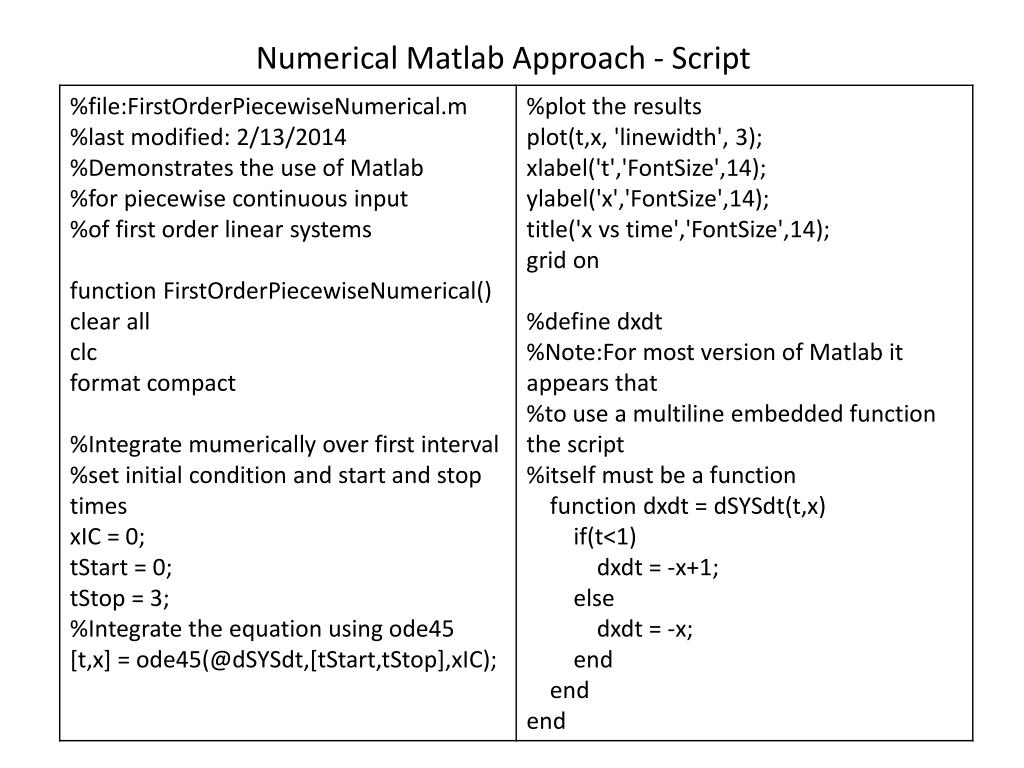

  6. Numerical Matlab Approach - Script

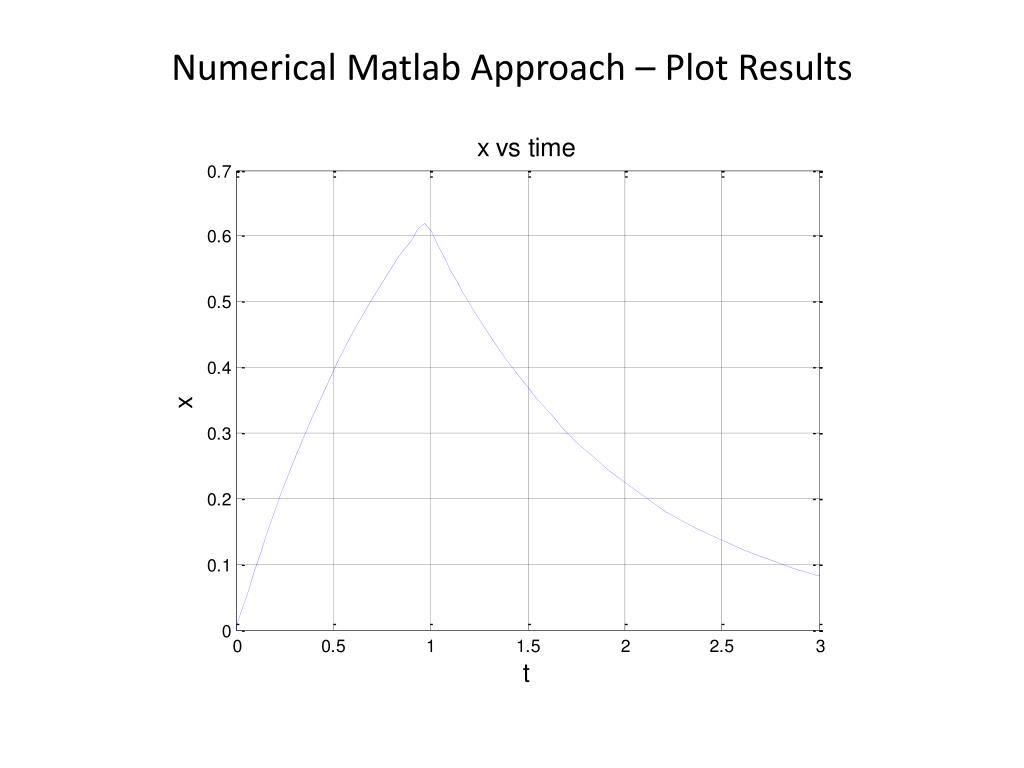

  7. Numerical Matlab Approach – Plot Results
