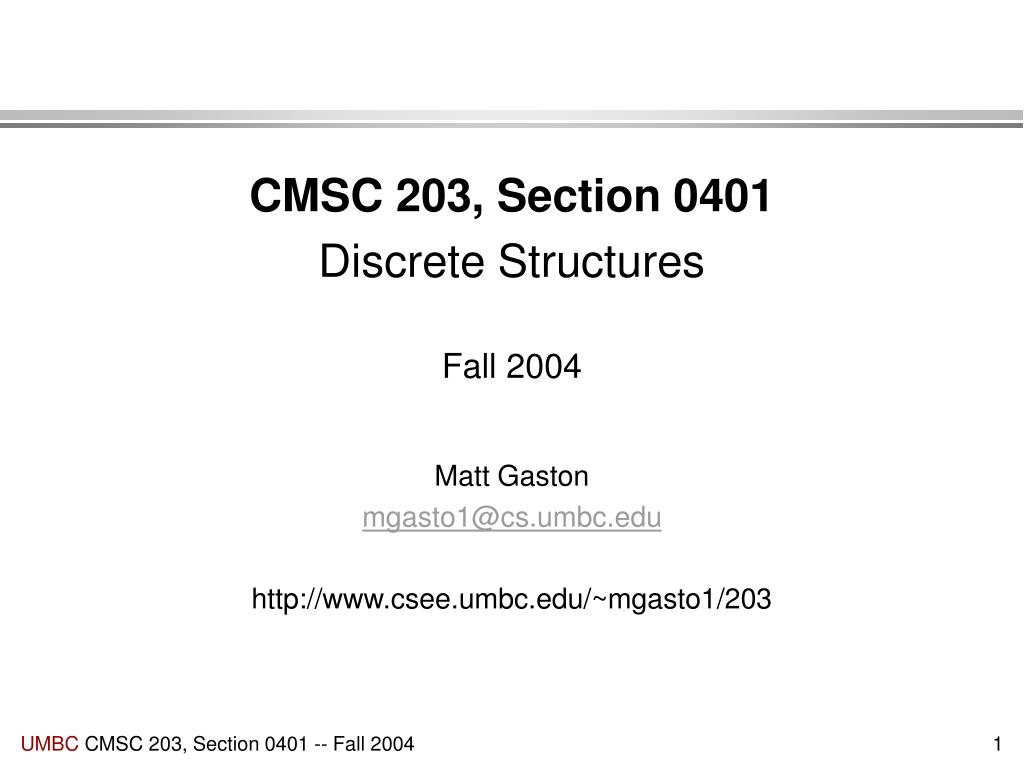

CMSC 203, Section 0401

Discrete Structures

Fall 2004

Matt Gaston

mgasto1@cs.umbc.edu

http://www.csee.umbc.edu/~mgasto1/203

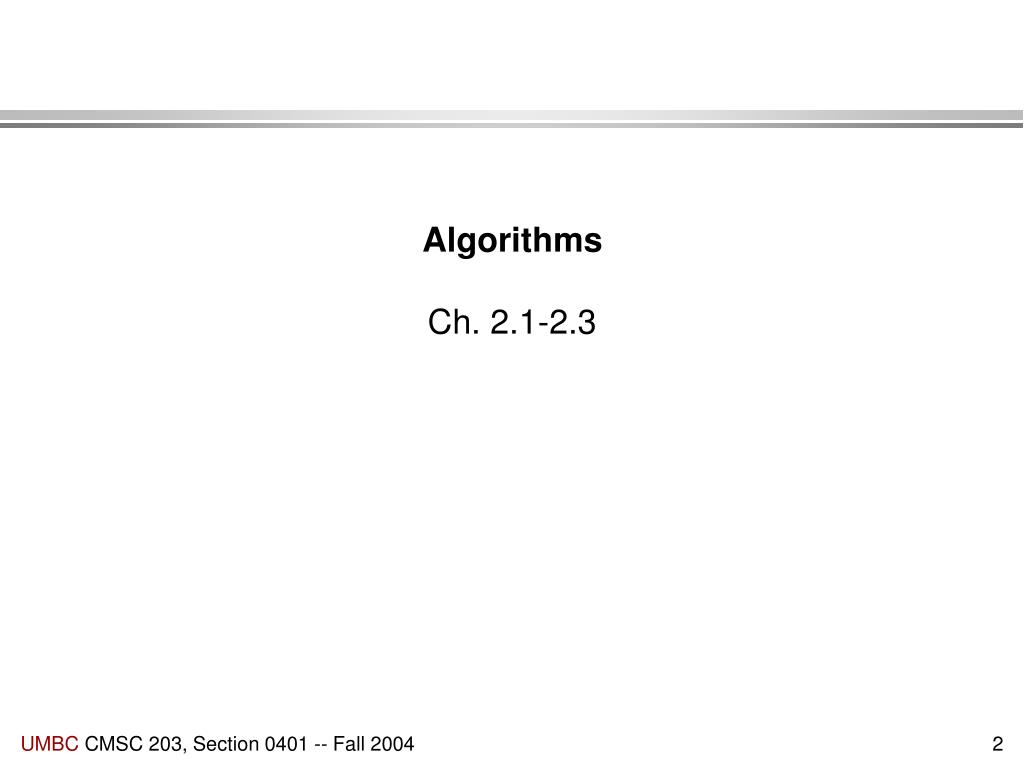

Algorithms

Ch. 2.1-2.3

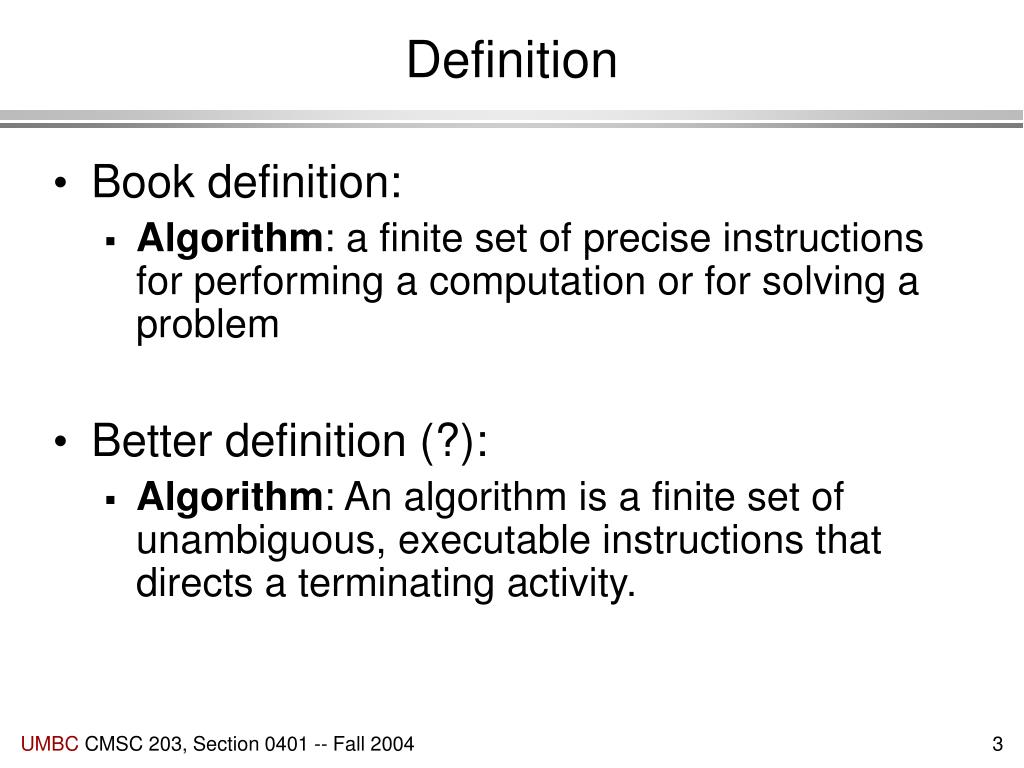

Definition
• Book definition:
• Algorithm: a finite set of precise instructions for performing a computation or for solving a problem
• Better definition (?):
• Algorithm: An algorithm is a finite set of unambiguous, executable instructions that directs a terminating activity.

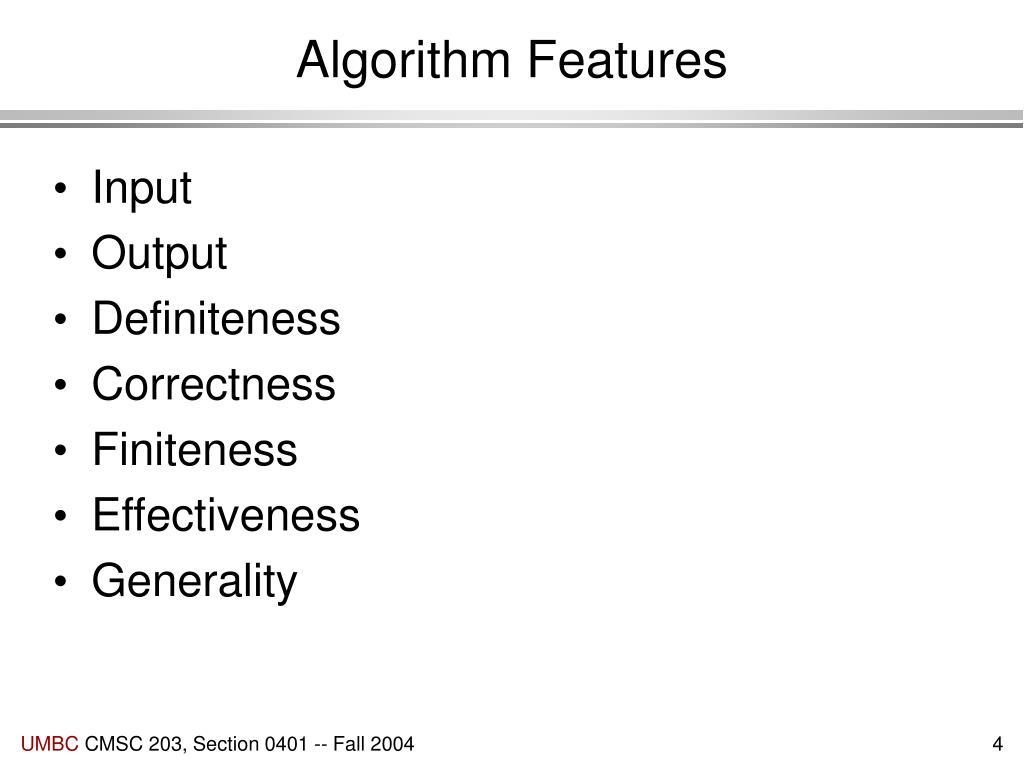

Algorithm Features
• Input
• Output
• Definiteness
• Correctness
• Finiteness
• Effectiveness
• Generality

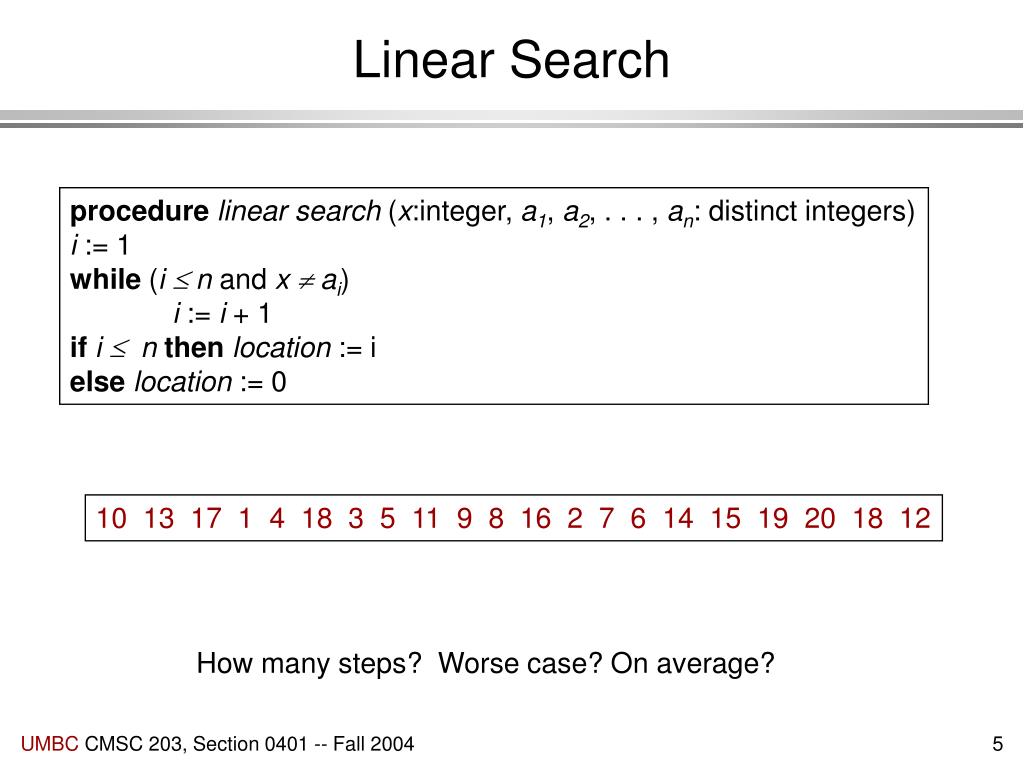

Linear Search

procedurelinear search (x:integer, a1, a2, . . . , an: distinct integers)

i := 1

while (i  n and x  ai)

i := i + 1

ifi  n thenlocation := i

elselocation := 0

10 13 17 1 4 18 3 5 11 9 8 16 2 7 6 14 15 19 20 18 12

How many steps? Worse case? On average?

Binary Search

procedurebinary search (x:integer, a1, a2, . . . , an: increasing integers)

i := 1

j := n

while (i  j)

begin

m :=  (i + j) / 2 

ifx  amtheni := m + 1

elsej := m

end

if x = aithen location := I

else location := 0

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20

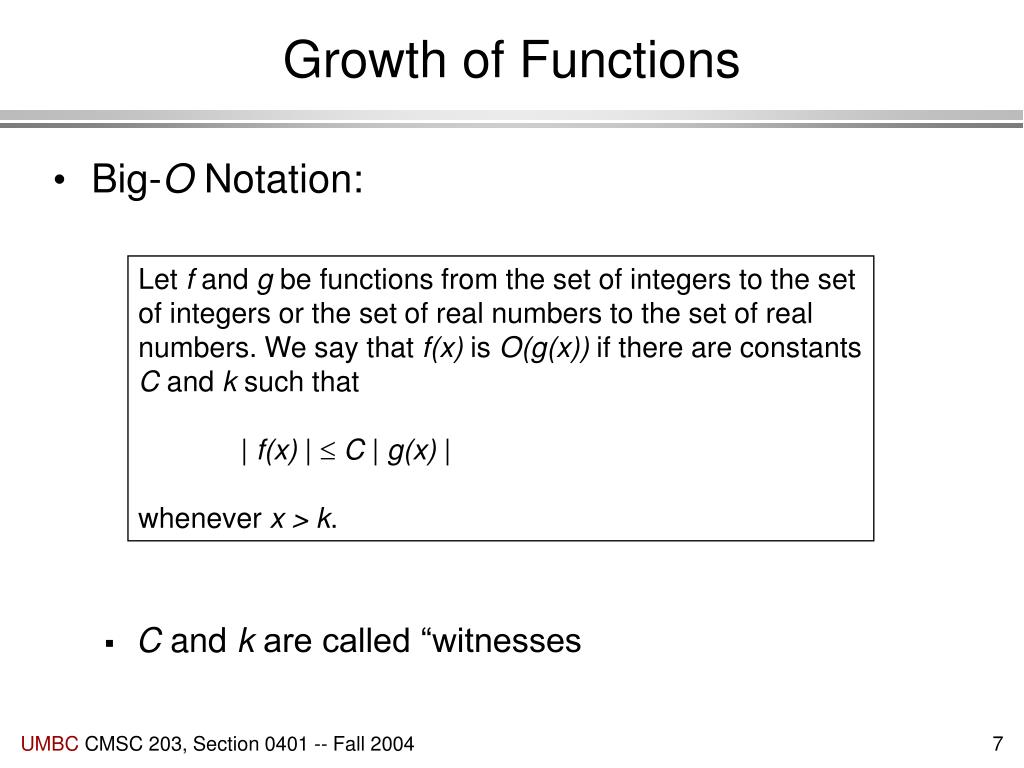

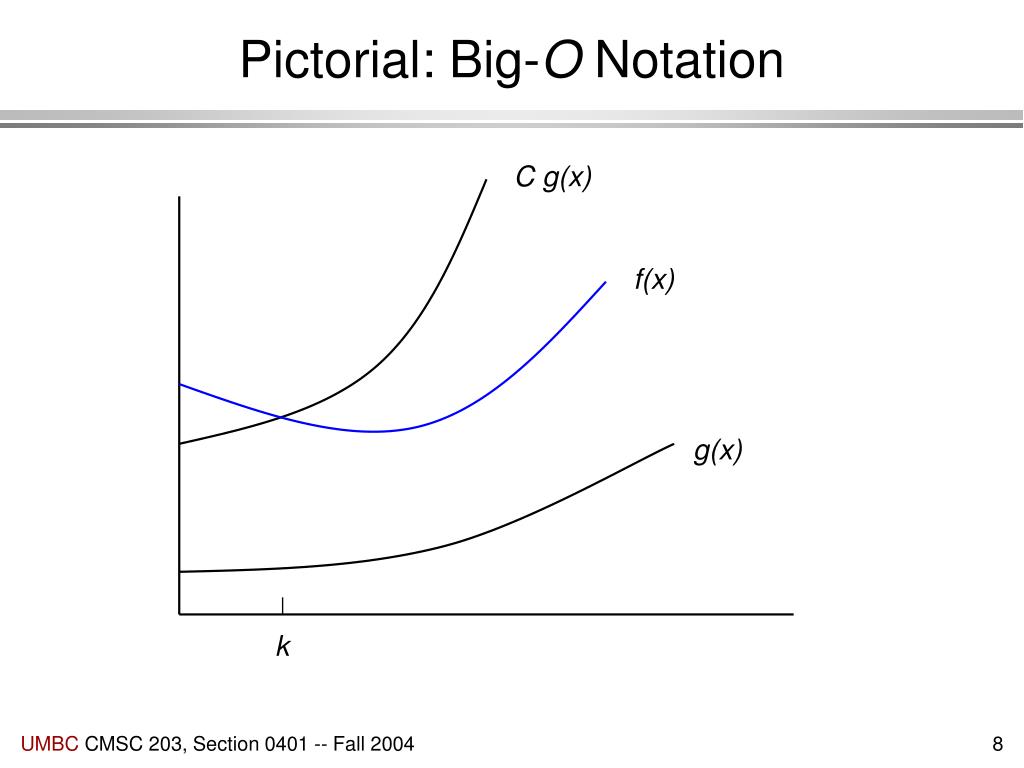

Growth of Functions
• Big-O Notation:
• C and k are called “witnesses

Let f and g be functions from the set of integers to the set

of integers or the set of real numbers to the set of real

numbers. We say that f(x) is O(g(x)) if there are constants

C and k such that

| f(x) |  C | g(x) |

whenever x > k.

Example
• 7x2 = O(x3)

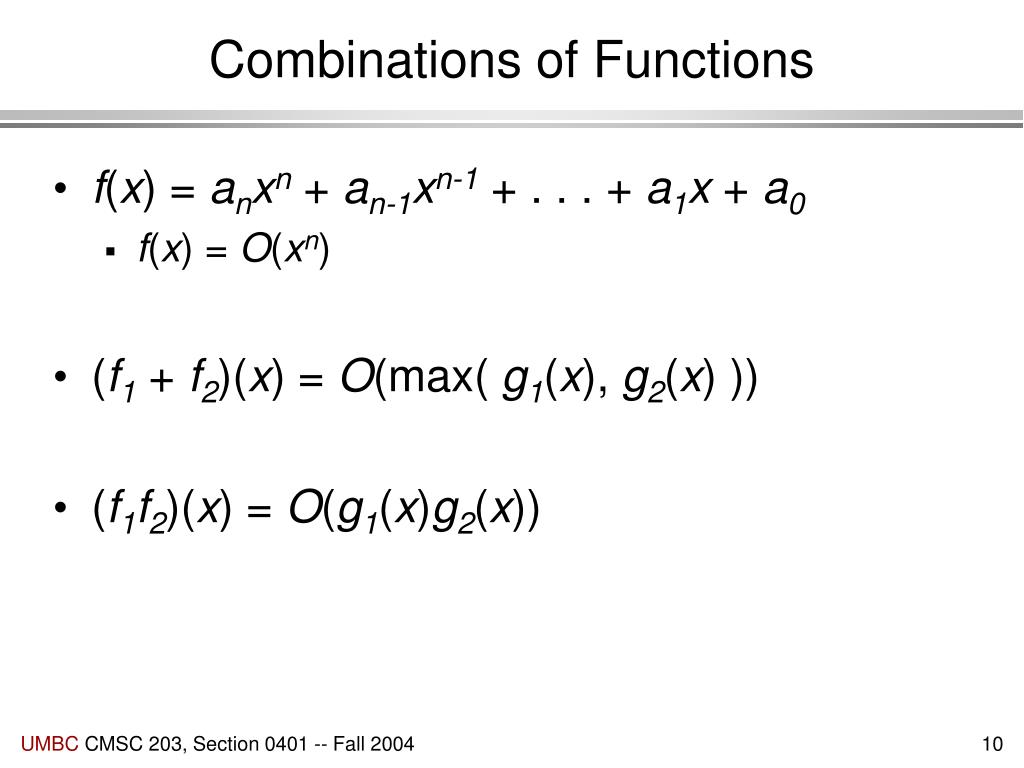

Combinations of Functions
• f(x) = anxn + an-1xn-1 + . . . + a1x + a0
• f(x) = O(xn)
• (f1 + f2)(x) = O(max( g1(x), g2(x) ))
• (f1f2)(x) = O(g1(x)g2(x))

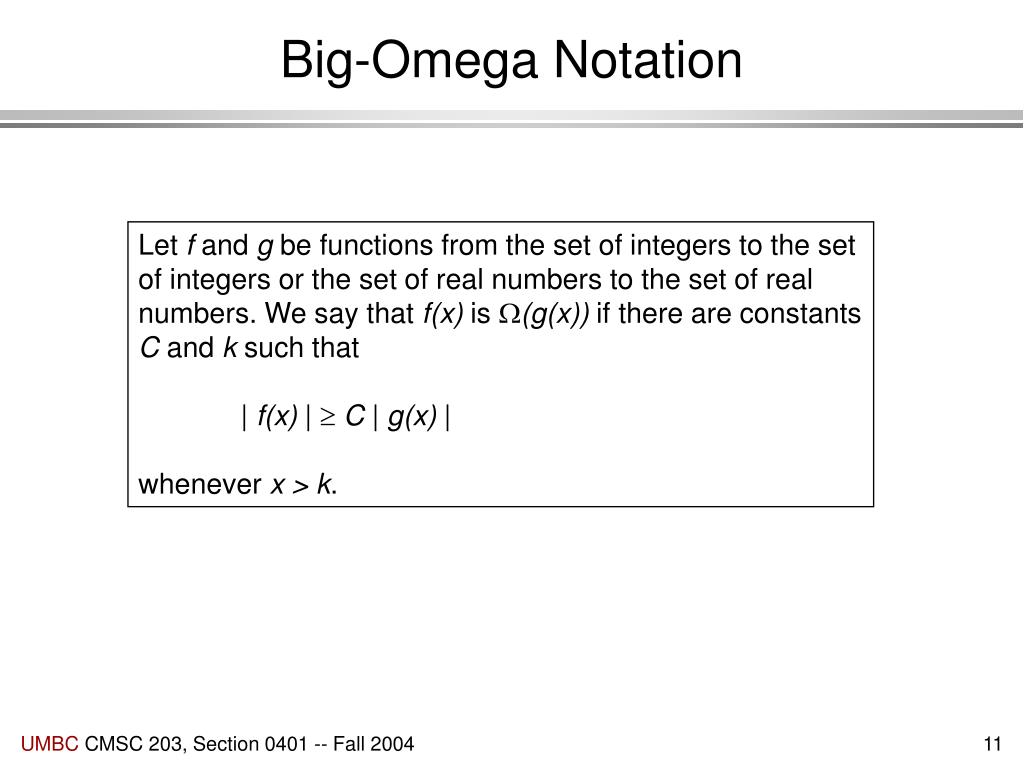

Big-Omega Notation

Let f and g be functions from the set of integers to the set

of integers or the set of real numbers to the set of real

numbers. We say that f(x) is (g(x)) if there are constants

C and k such that

| f(x) |  C | g(x) |

whenever x > k.

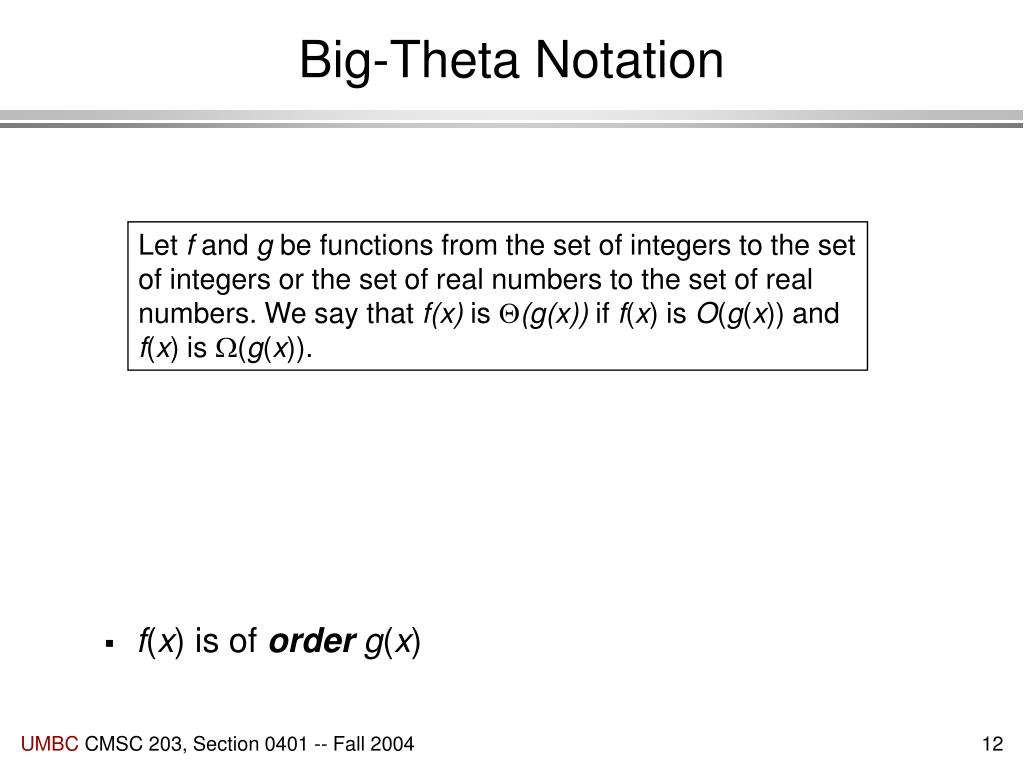

Big-Theta Notation
• f(x) is of orderg(x)

Let f and g be functions from the set of integers to the set

of integers or the set of real numbers to the set of real

numbers. We say that f(x) is (g(x)) if f(x) is O(g(x)) and

f(x) is (g(x)).

Bubble Sort

procedurebubble sort (a1, a2, . . . , an)

for i := 1 ton – 1

for j := 1 ton – i

ifaj > aj+1then interchange aj and aj+1

{a1, a2, . . . , an is in increasing order }

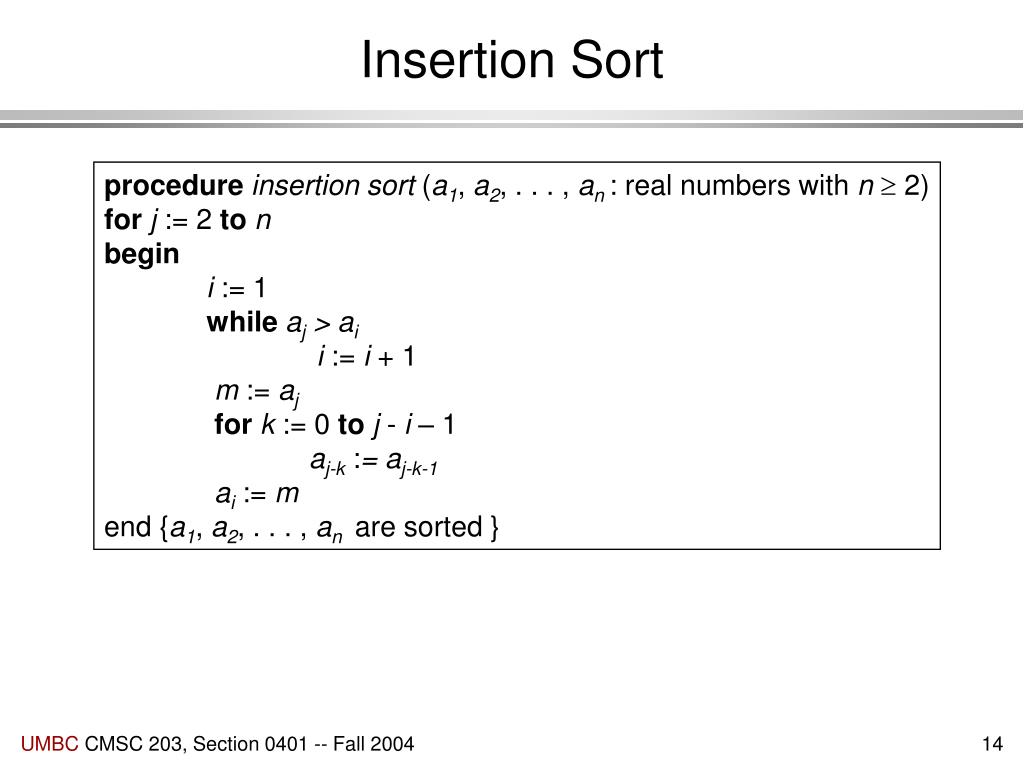

Insertion Sort

procedureinsertion sort (a1, a2, . . . , an : real numbers with n  2)

for j := 2 ton

begin

i := 1

whileaj > ai

i := i + 1

m := aj

for k := 0 toj - i – 1

aj-k:= aj-k-1

ai:= m

end {a1, a2, . . . , an are sorted }

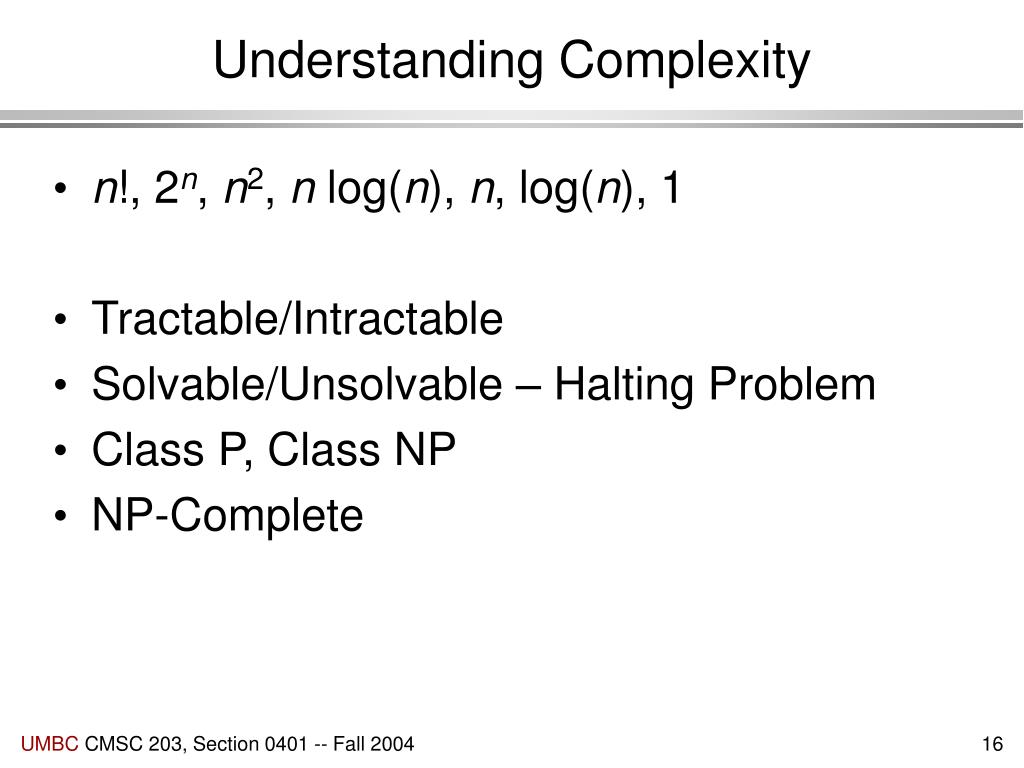

Understanding Complexity
• n!, 2n, n2, n log(n), n, log(n), 1
• Tractable/Intractable
• Solvable/Unsolvable – Halting Problem
• Class P, Class NP
• NP-Complete
