Dispelling Myths and Misconceptions Through the Visualization of Quantum Concepts in General Chemistry

Dispelling Myths and Misconceptions Through the Visualization of Quantum Concepts in General Chemistry. Morton Hoffman, 1 Dan Dill, 1 Peter Garik, 2 Alex Golger 1 1) Department of Chemistry 2) School of Education Boston University Boston, Massachusetts 02215

stacie
Download Presentation

Dispelling Myths and Misconceptions Through the Visualization of Quantum Concepts in General Chemistry

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

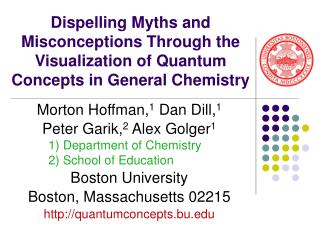

  1. Dispelling Myths and Misconceptions Through the Visualization of Quantum Concepts in General Chemistry Morton Hoffman,1 Dan Dill,1 Peter Garik,2 Alex Golger1 1) Department of Chemistry 2) School of Education Boston University Boston, Massachusetts 02215 http://quantumconcepts.bu.edu

  2. QC in some current general chemistry textbooks http://quantumconcepts.bu.edu

  3. What topics are presented? http://quantumconcepts.bu.edu

  4. What attitudes toward QC do students bring into general chemistry? • Fear and loathing from pre-college science courses and the popular culture. • Rumors that it’s about some strange equations and dead, Germanic guys with umlauts in their names. • Concerns that it’s about “mechanics” and other non-inspiring subjects from physics. http://quantumconcepts.bu.edu

  5. Do students “get it?” • Most are puzzled about the whole thing. • Many see it merely as impenetrable mathematics with no relevance to reality. • Some can do the algorithmic “plug-and-chug” calculations without too much difficulty. • A few have a satisfactory conceptual understanding. • A couple are inspired by it and want to learn more. http://quantumconcepts.bu.edu

  6. Why should we bother with Quantum Concepts? • It is basis for understanding spectroscopy, electronic structure, periodic properties. • It is the essence of nanotechnology, quantum computing . . . the future. • It provides insight into the deeply microscopic (atomic, molecular) world. • It encompasses all of chemistry and is completely interdisciplinary. http://quantumconcepts.bu.edu

  7. General chemistry students and Quantum Concepts • Quantum Concepts are among the most challenging and unsatisfying topics for students (and instructors). • The quantum world makes no sense to everyday intuition; at best, it’s all mathematics. • Failure to reconcile this intuition with quantum behavior results in deeply seated myths and misconceptions. • Quantum Concepts do not seem to provide usefulinsights for the rest of general chemistry. http://quantumconcepts.bu.edu

  8. An e-mail from a chemistry professor at a four-year college I certainly find that chapter (Chapter 6, in Brown and LeMay I think) the hardest to teach...because, of course, it's such a skimmed-over thing, without the required mathematics. And then we just “pull out of the hat” things like orbitals and quantum numbers. Once we get into trends and hybridization, things settle down again, but I certainly sense general revolt for a week or two. http://quantumconcepts.bu.edu

  9. What are some of the prevalent myths and misconceptions about Quantum Concepts? • The electron “waves” as it moves. • Through the absorption or emission of light energy, electrons “jump” from one quantum level to another. • Electrons “go around” the atom in a particular quantum state. • Spectral lines represent “energy levels” of the electron. http://quantumconcepts.bu.edu

  10. More myths and misconceptions • When a “photon” is absorbed, light vanishes; when a “photon” is emitted, light appears. • The “orbital” pictures represent the regions in space in which the electrons move. • The “wavefunction” is a static mathematical representation of the electron in the atom. http://quantumconcepts.bu.edu

  11. The Resolution: Include Time!and avoid missed connections These myths and misconceptions arise because time has been left out! http://quantumconcepts.bu.edu

  12. Incoming general chemistry students and physics • They have a good understanding of the spatial description of waves (wavelength and amplitude). • They have a poor understanding of the temporal description of waves (period and frequency). • They have difficulty linking the spatial and temporal behavior of waves. • They are weak in their understanding of the energetics of waves and the nature of fields. • They generally do not know that EM waves have electric and magnetic fields associated with them. http://quantumconcepts.bu.edu

  13. Our approach • Learning cycle-based activities: data collection, analysis, extension. • Interactive guided-inquiry software that examines spectroscopy and electron orbital energies. • Interactive graphical renderings of time-dependent atomic orbitals without mathematics! • Visualizations of the beats that correspond to dipole excitations of atoms. • A visual introduction to the selection rules for quantum absorption and emission. http://quantumconcepts.bu.edu

  14. Guided inquiry software Used in conjunction with lecture demonstrations, lecture/discussion workshops, lab exercises, and homework. • Project 1: spectroscopy of atomic hydrogen and hydrogen-like ions. • Project 2: introduction to the normal modes of one- (cable) and two-dimensional (square and circular membranes) waves with analogy to the modes of a bound electron. • Project 3: time-dependent behavior of electron orbitals and their interaction with light. http://quantumconcepts.bu.edu

  15. The Resolution:Include Time! When time is properly included, three key concepts emerge: • The electron wavefunction does change with time. • Electron density in a specific energy state is nevertheless static: nothing moves, nothing evolves, nothing changes. • The mixing of energy states accounts for all motion, evolution, and change. http://quantumconcepts.bu.edu

  16. Our Conclusion:Include Time! • Proper treatment of “time” in quantum systems is crucial. • It provides the correct framework on which students can reason about quantum change. • Without this framework, myths and misconceptions are the inevitable consequence. http://quantumconcepts.bu.edu

  17. Why should students in general chemistry learn this stuff? • Nature continually undergoes change. • Chemistry is the science of change. • Time dependence in the quantum world is the analogue for all change in chemistry. • Quantum time dependence is the basis for students to learn how and why things happen. http://quantumconcepts.bu.edu

  18. Acknowledgements • Peter Carr, Programmer • Joshua Csehak and Lars Travers,Ace Coders Programming • Judith Kelley, Project Evaluator • Funding, U.S. Department of Education Fund for the Improvement of Post Secondary Education (FIPSE Grant P116B020856) http://quantumconcepts.bu.edu
