Data Structures and Algorithms in C

1. DATA STRUCTURES & ALGORITHMS IN C https://nareshit.com/courses/c-language-online-training

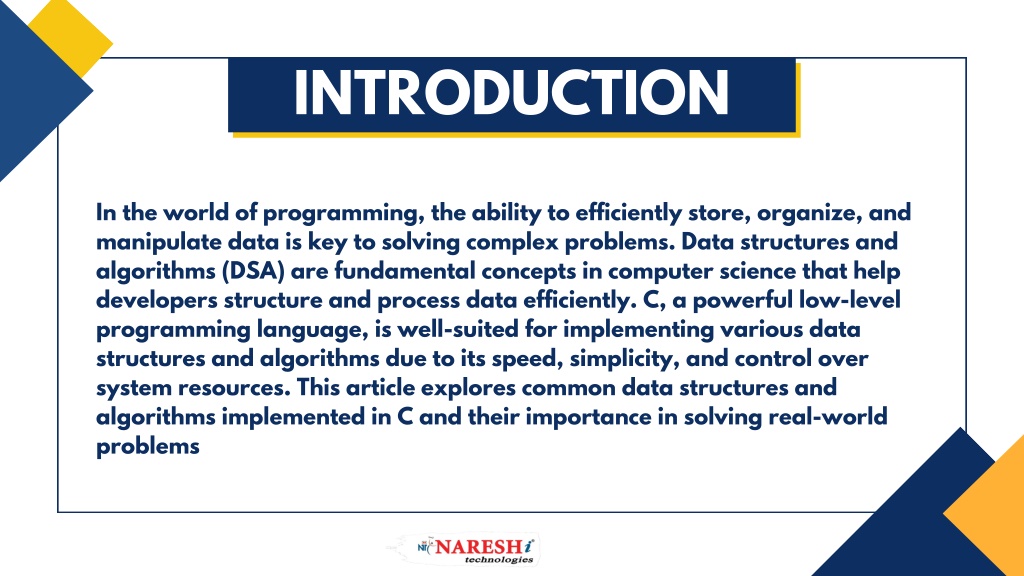

2. INTRODUCTION In the world of programming, the ability to efficiently store, organize, and manipulate data is key to solving complex problems. Data structures and algorithms (DSA) are fundamental concepts in computer science that help developers structure and process data efficiently. C, a powerful low-level programming language, is well-suited for implementing various data structures and algorithms due to its speed, simplicity, and control over system resources. This article explores common data structures and algorithms implemented in C and their importance in solving real-world problems

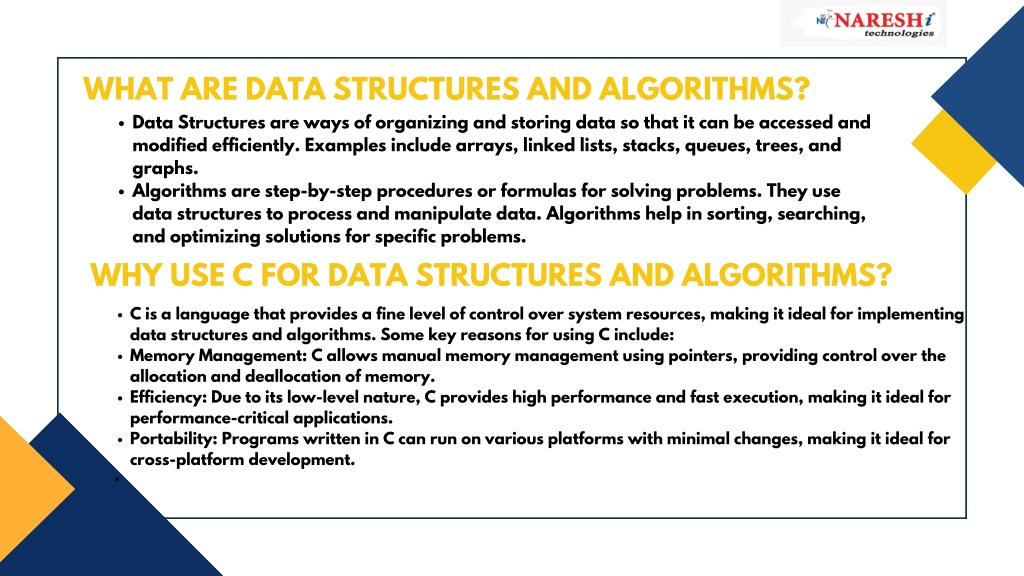

3. WHAT ARE DATA STRUCTURES AND ALGORITHMS? Data Structures are ways of organizing and storing data so that it can be accessed and modified efficiently. Examples include arrays, linked lists, stacks, queues, trees, and graphs. Algorithms are step-by-step procedures or formulas for solving problems. They use data structures to process and manipulate data. Algorithms help in sorting, searching, and optimizing solutions for specific problems. WHY USE C FOR DATA STRUCTURES AND ALGORITHMS? C is a language that provides a fine level of control over system resources, making it ideal for implementing data structures and algorithms. Some key reasons for using C include: Memory Management: C allows manual memory management using pointers, providing control over the allocation and deallocation of memory. Efficiency: Due to its low-level nature, C provides high performance and fast execution, making it ideal for performance-critical applications. Portability: Programs written in C can run on various platforms with minimal changes, making it ideal for cross-platform development.

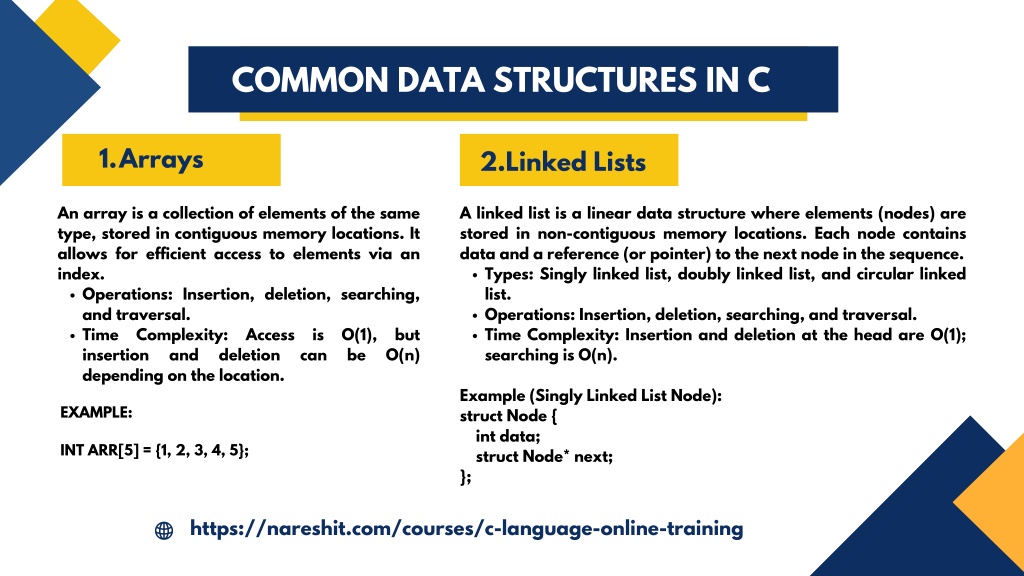

4. COMMON DATA STRUCTURES IN C 1. Arrays 2.Linked Lists An array is a collection of elements of the same type, stored in contiguous memory locations. It allows for efficient access to elements via an index. Operations: Insertion, deletion, searching, and traversal. Time Complexity: insertion and deletion depending on the location. A linked list is a linear data structure where elements (nodes) are stored in non-contiguous memory locations. Each node contains data and a reference (or pointer) to the next node in the sequence. Types: Singly linked list, doubly linked list, and circular linked list. Operations: Insertion, deletion, searching, and traversal. Time Complexity: Insertion and deletion at the head are O(1); searching is O(n). Access is O(1), be but O(n) can Example (Singly Linked List Node): struct Node { int data; struct Node* next; }; EXAMPLE: INT ARR[5] = {1, 2, 3, 4, 5}; https://nareshit.com/courses/c-language-online-training

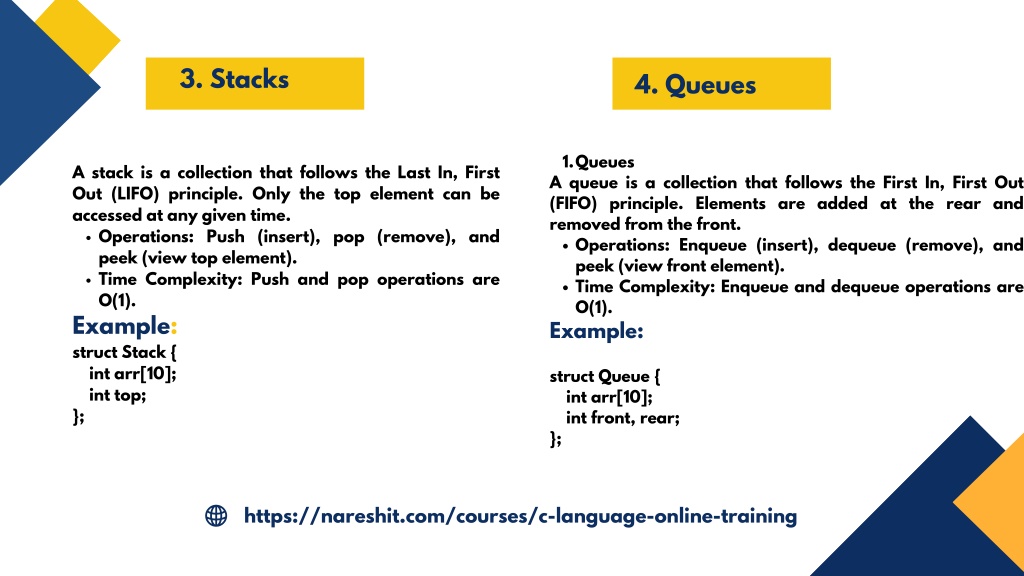

5. 3. Stacks 4. Queues Queues A queue is a collection that follows the First In, First Out (FIFO) principle. Elements are added at the rear and removed from the front. Operations: Enqueue (insert), dequeue (remove), and peek (view front element). Time Complexity: Enqueue and dequeue operations are O(1). Example: 1. A stack is a collection that follows the Last In, First Out (LIFO) principle. Only the top element can be accessed at any given time. Operations: Push (insert), pop (remove), and peek (view top element). Time Complexity: Push and pop operations are O(1). Example: struct Stack { int arr[10]; int top; }; struct Queue { int arr[10]; int front, rear; }; https://nareshit.com/courses/c-language-online-training

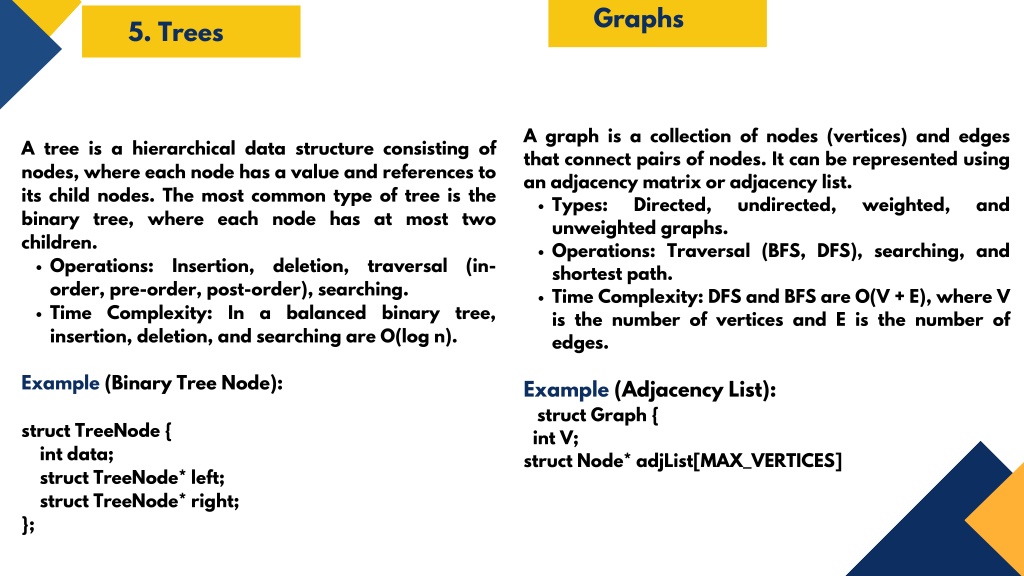

6. Graphs 5. Trees A graph is a collection of nodes (vertices) and edges that connect pairs of nodes. It can be represented using an adjacency matrix or adjacency list. Types: Directed, undirected, unweighted graphs. Operations: Traversal (BFS, DFS), searching, and shortest path. Time Complexity: DFS and BFS are O(V + E), where V is the number of vertices and E is the number of edges. A tree is a hierarchical data structure consisting of nodes, where each node has a value and references to its child nodes. The most common type of tree is the binary tree, where each node has at most two children. Operations: Insertion, deletion, traversal (in- order, pre-order, post-order), searching. Time Complexity: In a balanced binary tree, insertion, deletion, and searching are O(log n). weighted, and Example (Binary Tree Node): Example (Adjacency List): struct Graph { int V; struct Node* adjList[MAX_VERTICES] struct TreeNode { int data; struct TreeNode* left; struct TreeNode* right; };

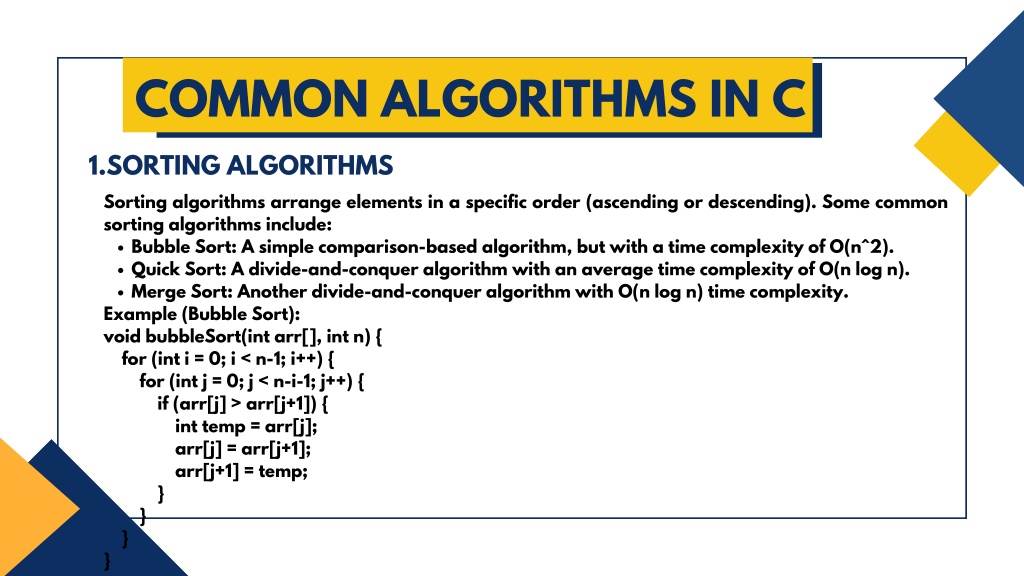

7. COMMON ALGORITHMS IN C 1.SORTING ALGORITHMS Sorting algorithms arrange elements in a specific order (ascending or descending). Some common sorting algorithms include: Bubble Sort: A simple comparison-based algorithm, but with a time complexity of O(n^2). Quick Sort: A divide-and-conquer algorithm with an average time complexity of O(n log n). Merge Sort: Another divide-and-conquer algorithm with O(n log n) time complexity. Example (Bubble Sort): void bubbleSort(int arr[], int n) { for (int i = 0; i < n-1; i++) { for (int j = 0; j < n-i-1; j++) { if (arr[j] > arr[j+1]) { int temp = arr[j]; arr[j] = arr[j+1]; arr[j+1] = temp; } } } }

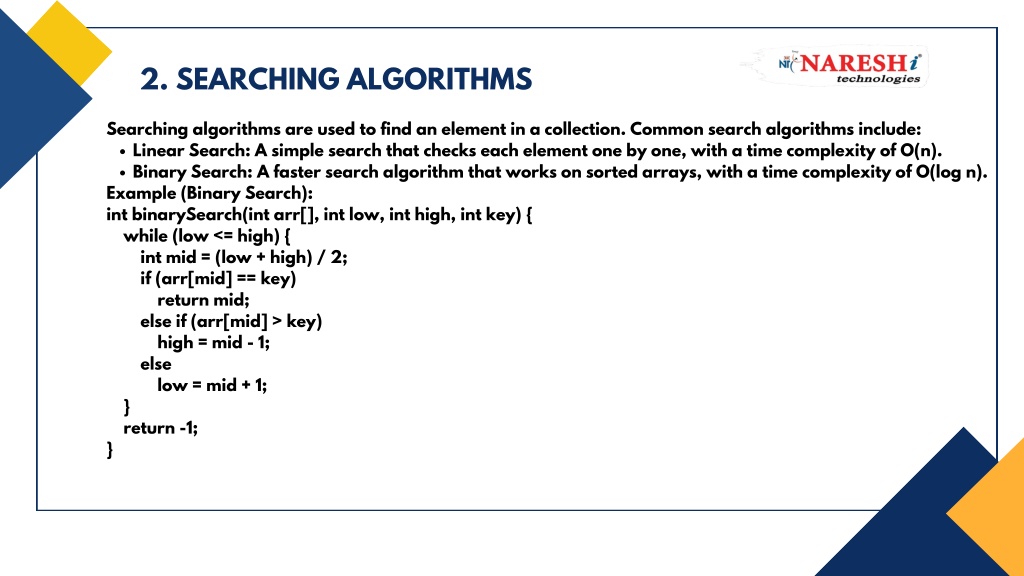

8. 2. SEARCHING ALGORITHMS Searching algorithms are used to find an element in a collection. Common search algorithms include: Linear Search: A simple search that checks each element one by one, with a time complexity of O(n). Binary Search: A faster search algorithm that works on sorted arrays, with a time complexity of O(log n). Example (Binary Search): int binarySearch(int arr[], int low, int high, int key) { while (low <= high) { int mid = (low + high) / 2; if (arr[mid] == key) return mid; else if (arr[mid] > key) high = mid - 1; else low = mid + 1; } return -1; }

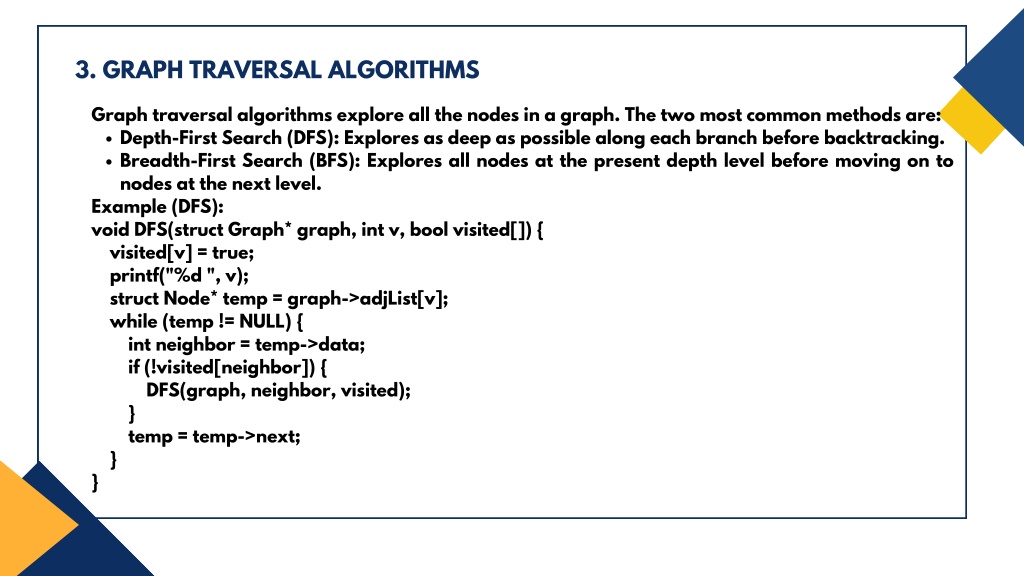

9. 3. GRAPH TRAVERSAL ALGORITHMS Graph traversal algorithms explore all the nodes in a graph. The two most common methods are: Depth-First Search (DFS): Explores as deep as possible along each branch before backtracking. Breadth-First Search (BFS): Explores all nodes at the present depth level before moving on to nodes at the next level. Example (DFS): void DFS(struct Graph* graph, int v, bool visited[]) { visited[v] = true; printf("%d ", v); struct Node* temp = graph->adjList[v]; while (temp != NULL) { int neighbor = temp->data; if (!visited[neighbor]) { DFS(graph, neighbor, visited); } temp = temp->next; } }

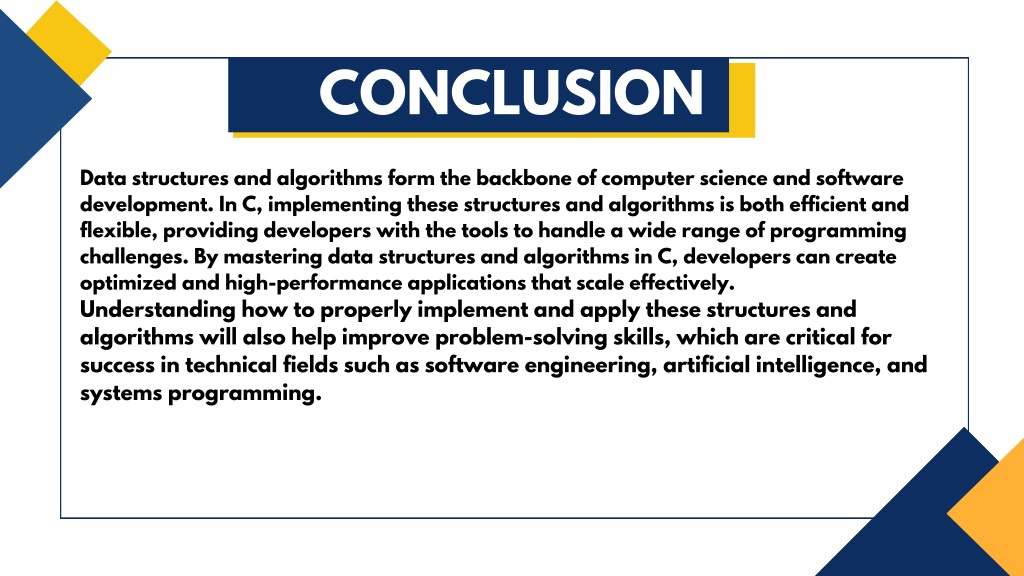

10. CONCLUSION Data structures and algorithms form the backbone of computer science and software development. In C, implementing these structures and algorithms is both efficient and flexible, providing developers with the tools to handle a wide range of programming challenges. By mastering data structures and algorithms in C, developers can create optimized and high-performance applications that scale effectively. Understanding how to properly implement and apply these structures and algorithms will also help improve problem-solving skills, which are critical for success in technical fields such as software engineering, artificial intelligence, and systems programming.
