The Ultimate Guide to Selecting the Right Tooling for CNC Press Brakes

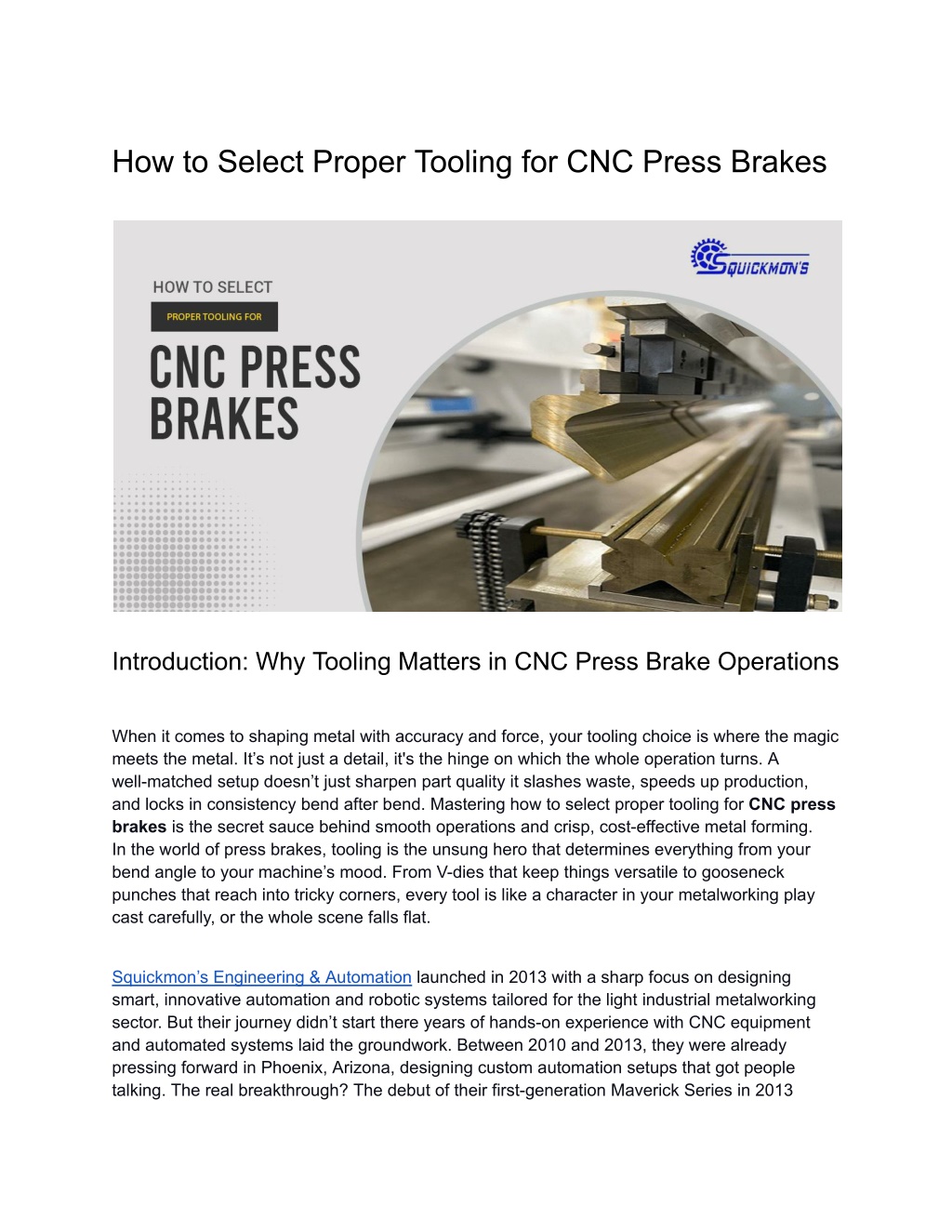

1. How to Select Proper Tooling for CNC Press Brakes Introduction: Why Tooling Matters in CNC Press Brake Operations When it comes to shaping metal with accuracy and force, your tooling choice is where the magic meets the metal. It’s not just a detail, it's the hinge on which the whole operation turns. A well-matched setup doesn’t just sharpen part quality it slashes waste, speeds up production, and locks in consistency bend after bend. Mastering how to select proper tooling for CNC press brakes is the secret sauce behind smooth operations and crisp, cost-effective metal forming. In the world of press brakes, tooling is the unsung hero that determines everything from your bend angle to your machine’s mood. From V-dies that keep things versatile to gooseneck punches that reach into tricky corners, every tool is like a character in your metalworking play cast carefully, or the whole scene falls flat. Squickmon’s Engineering & Automation launched in 2013 with a sharp focus on designing smart, innovative automation and robotic systems tailored for the light industrial metalworking sector. But their journey didn’t start there years of hands-on experience with CNC equipment and automated systems laid the groundwork. Between 2010 and 2013, they were already pressing forward in Phoenix, Arizona, designing custom automation setups that got people talking. The real breakthrough? The debut of their first-generation Maverick Series in 2013

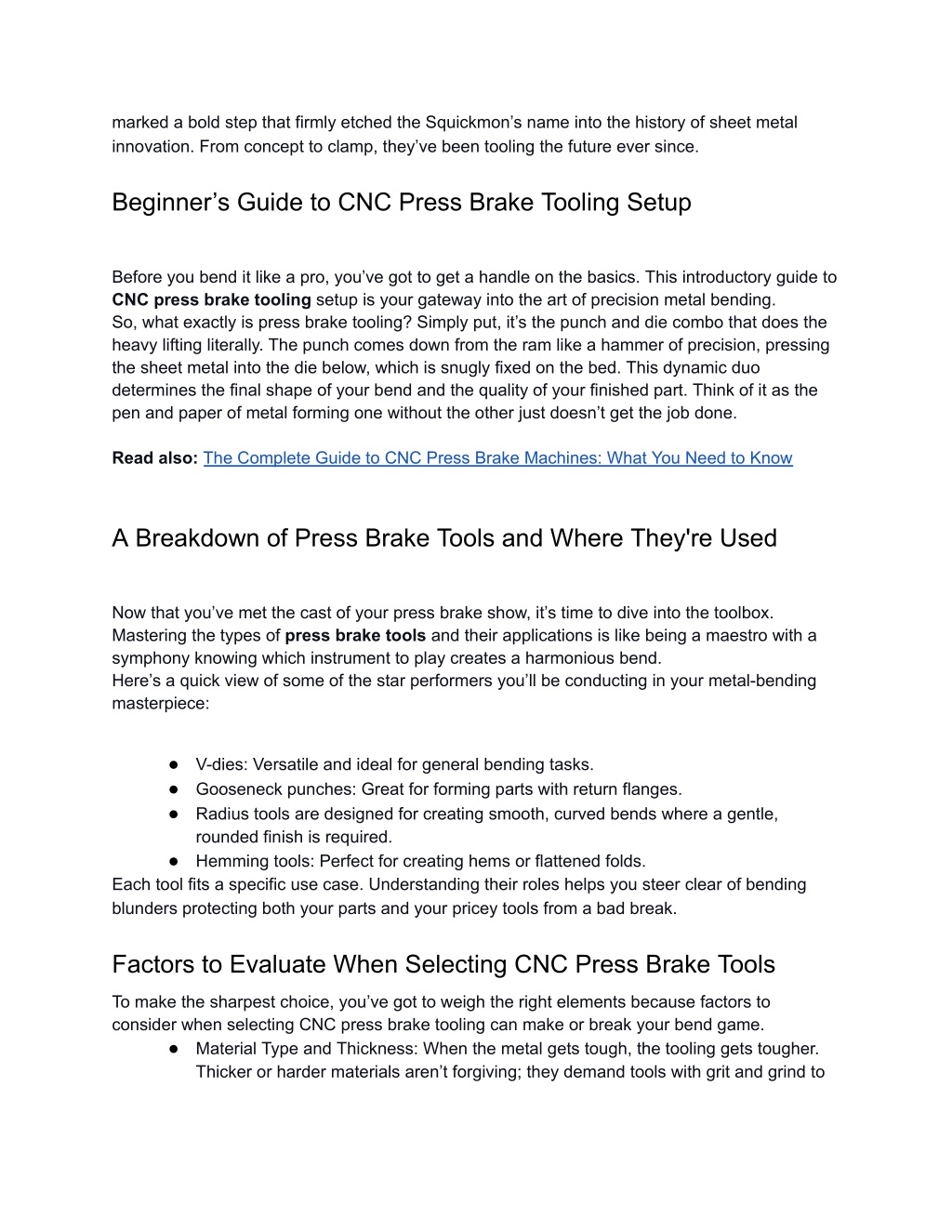

2. marked a bold step that firmly etched the Squickmon’s name into the history of sheet metal innovation. From concept to clamp, they’ve been tooling the future ever since. Beginner’s Guide to CNC Press Brake Tooling Setup Before you bend it like a pro, you’ve got to get a handle on the basics. This introductory guide to CNC press brake tooling setup is your gateway into the art of precision metal bending. So, what exactly is press brake tooling? Simply put, it’s the punch and die combo that does the heavy lifting literally. The punch comes down from the ram like a hammer of precision, pressing the sheet metal into the die below, which is snugly fixed on the bed. This dynamic duo determines the final shape of your bend and the quality of your finished part. Think of it as the pen and paper of metal forming one without the other just doesn’t get the job done. Read also:The Complete Guide to CNC Press Brake Machines: What You Need to Know A Breakdown of Press Brake Tools and Where They're Used Now that you’ve met the cast of your press brake show, it’s time to dive into the toolbox. Mastering the types of press brake tools and their applications is like being a maestro with a symphony knowing which instrument to play creates a harmonious bend. Here’s a quick view of some of the star performers you’ll be conducting in your metal-bending masterpiece: ● V-dies: Versatile and ideal for general bending tasks. ● Gooseneck punches: Great for forming parts with return flanges. ● Radius tools are designed for creating smooth, curved bends where a gentle, rounded finish is required. ● Hemming tools: Perfect for creating hems or flattened folds. Each tool fits a specific use case. Understanding their roles helps you steer clear of bending blunders protecting both your parts and your pricey tools from a bad break. Factors to Evaluate When Selecting CNC Press Brake Tools To make the sharpest choice, you’ve got to weigh the right elements because factors to consider when selecting CNC press brake tooling can make or break your bend game. ● Material Type and Thickness: When the metal gets tough, the tooling gets tougher. Thicker or harder materials aren’t forgiving; they demand tools with grit and grind to

3. handle the pressure without cracking under it. Bend Angle and Radius: Specific tools are designed for specific angles and radio. ● Machine Tonnage: Make sure the tool can withstand the force generated by your press brake. ● Tooling Material: Hardened steel tools offer longer life; soft steel is more affordable. ● Matching the material’s properties with the right tooling guarantees precise results and extends the lifespan of your tools. Selecting Punch and Die Sets for Press Brakes: The Core Decision One of the most vital decisions is selecting punch and die sets for press brakes. The die opening should match the punch tip radius and material thickness to avoid distortion or cracking. Additionally, ensure the tool is compatible with both CNC and hydraulic press brake systems. A mismatch may result in poor performance or even equipment damage. Always review machine specs before investing in a new set. Press Brake Tooling Guide for Beginners This press brake tooling guide for beginners helps new users navigate the essentials: ● Use a tooling checklist: Includes proper labeling and daily inspection. ● Store tools correctly: Avoid rust and misalignment. ● Avoid common mistakes: Such as mismatched dies or improper clamping. ● Being organized and methodical reduces downtime and tool wear significantly. CNC Press Brake Tooling for Precision Metal Forming For precision bending, tool setup is everything. Precision metal forming with CNC press brakes relies on specialized tooling, including: Accurate tool alignment Utilizing crowning systems to compensate for machine deflection. Fine-tuning back gauge positions The right tooling eliminates trial-and-error, delivering consistently high-quality parts with minimal adjustment. A Guide to Selecting the Perfect Press Brake Tools for Precise Bending. To achieve tight tolerances, here's how to choose press brake tools for accurate bending: Choose V-die openings that are 8 to 10 times the thickness of the material.

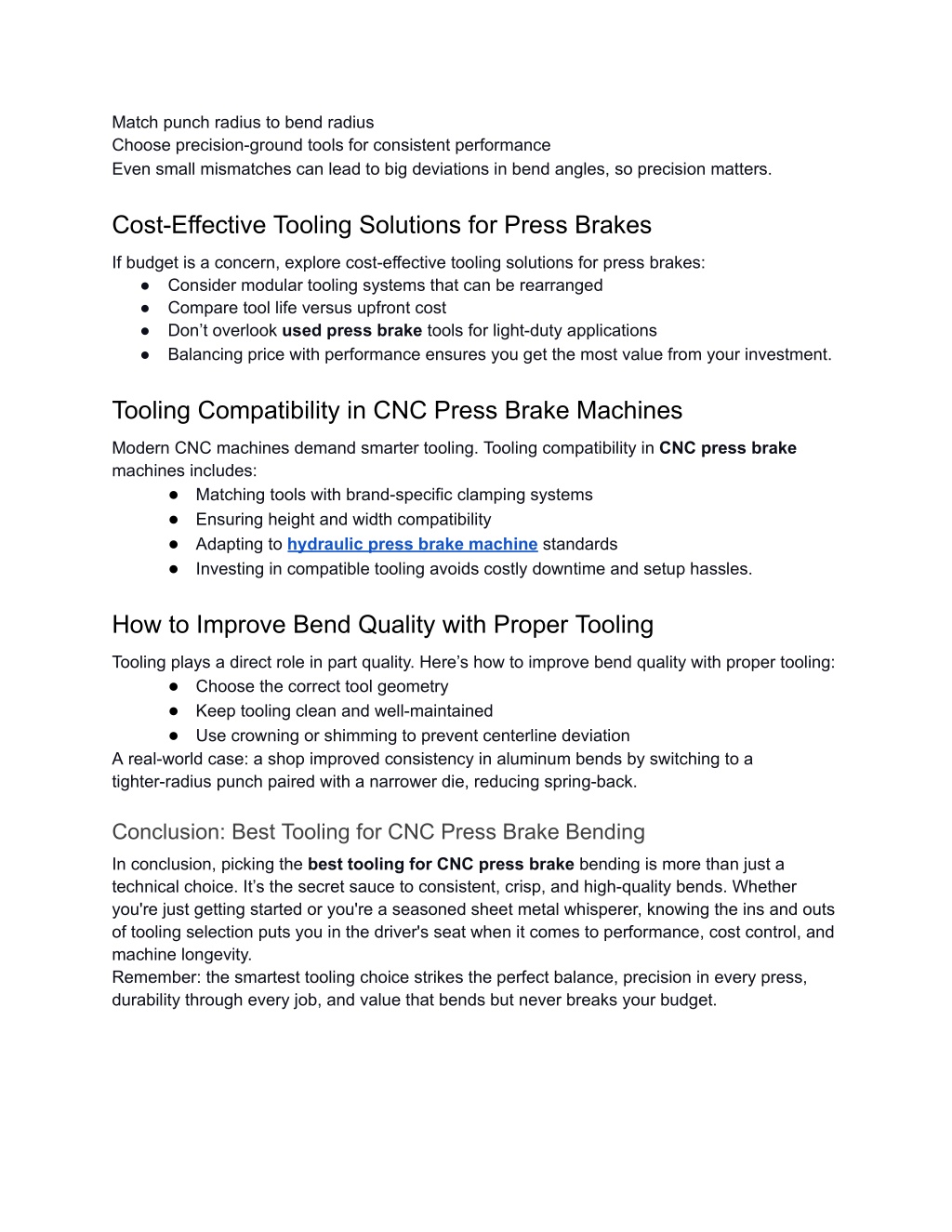

4. Match punch radius to bend radius Choose precision-ground tools for consistent performance Even small mismatches can lead to big deviations in bend angles, so precision matters. Cost-Effective Tooling Solutions for Press Brakes If budget is a concern, explore cost-effective tooling solutions for press brakes: ● Consider modular tooling systems that can be rearranged ● Compare tool life versus upfront cost ● Don’t overlook used press brake tools for light-duty applications ● Balancing price with performance ensures you get the most value from your investment. Tooling Compatibility in CNC Press Brake Machines Modern CNC machines demand smarter tooling. Tooling compatibility in CNC press brake machines includes: ● Matching tools with brand-specific clamping systems ● Ensuring height and width compatibility ● Adapting to hydraulic press brake machine standards ● Investing in compatible tooling avoids costly downtime and setup hassles. How to Improve Bend Quality with Proper Tooling Tooling plays a direct role in part quality. Here’s how to improve bend quality with proper tooling: ● Choose the correct tool geometry ● Keep tooling clean and well-maintained ● Use crowning or shimming to prevent centerline deviation A real-world case: a shop improved consistency in aluminum bends by switching to a tighter-radius punch paired with a narrower die, reducing spring-back. Conclusion: Best Tooling for CNC Press Brake Bending In conclusion, picking the best tooling for CNC press brake bending is more than just a technical choice. It’s the secret sauce to consistent, crisp, and high-quality bends. Whether you're just getting started or you're a seasoned sheet metal whisperer, knowing the ins and outs of tooling selection puts you in the driver's seat when it comes to performance, cost control, and machine longevity. Remember: the smartest tooling choice strikes the perfect balance, precision in every press, durability through every job, and value that bends but never breaks your budget.
