The Benefits of Multiple Axis Backstops for CNC Press Brakes

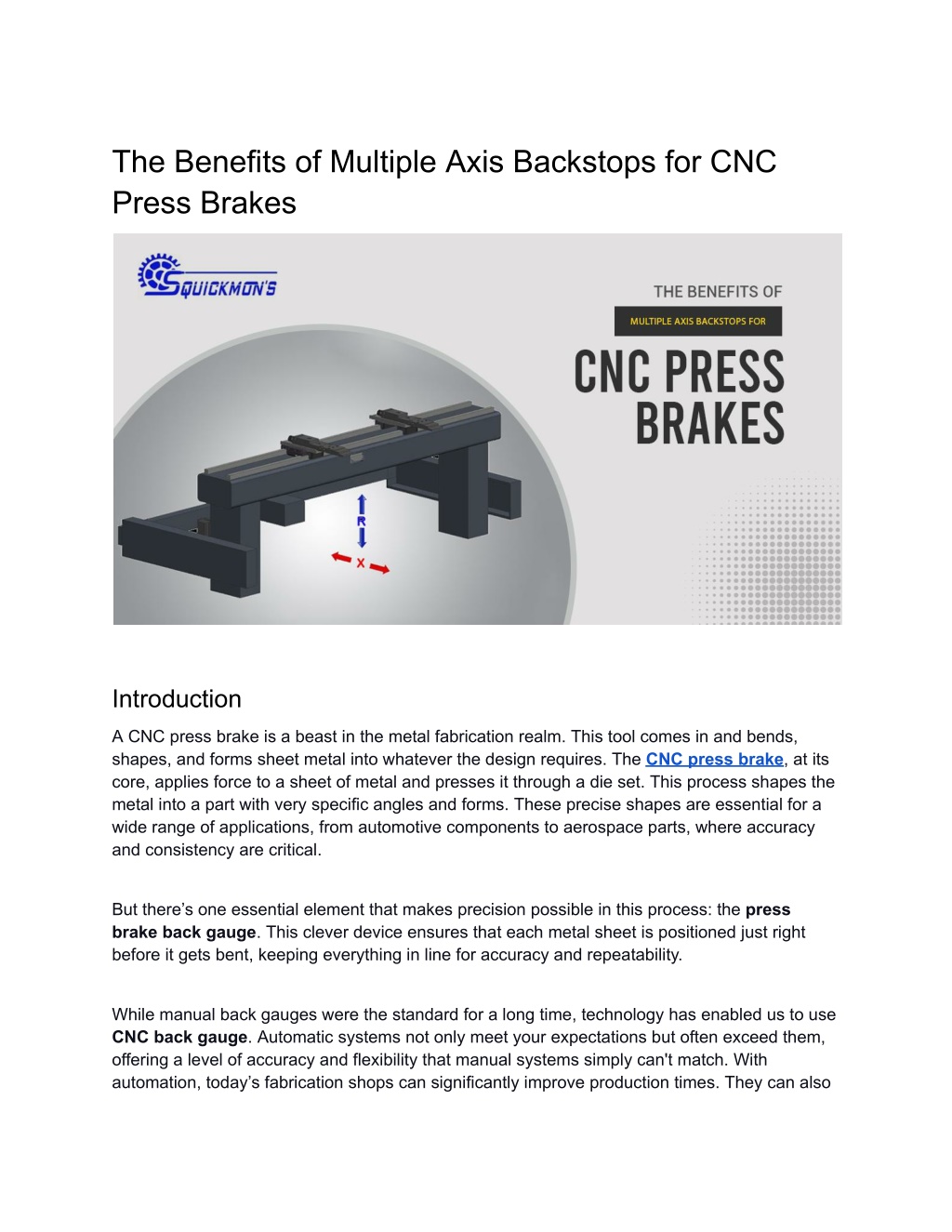

1. The Benefits of Multiple Axis Backstops for CNC Press Brakes Introduction A CNC press brake is a beast in the metal fabrication realm. This tool comes in and bends, shapes, and forms sheet metal into whatever the design requires. The CNC press brake, at its core, applies force to a sheet of metal and presses it through a die set. This process shapes the metal into a part with very specific angles and forms. These precise shapes are essential for a wide range of applications, from automotive components to aerospace parts, where accuracy and consistency are critical. But there’s one essential element that makes precision possible in this process: the press brake back gauge. This clever device ensures that each metal sheet is positioned just right before it gets bent, keeping everything in line for accuracy and repeatability. While manual back gauges were the standard for a long time, technology has enabled us to use CNC back gauge. Automatic systems not only meet your expectations but often exceed them, offering a level of accuracy and flexibility that manual systems simply can't match. With automation, today’s fabrication shops can significantly improve production times. They can also

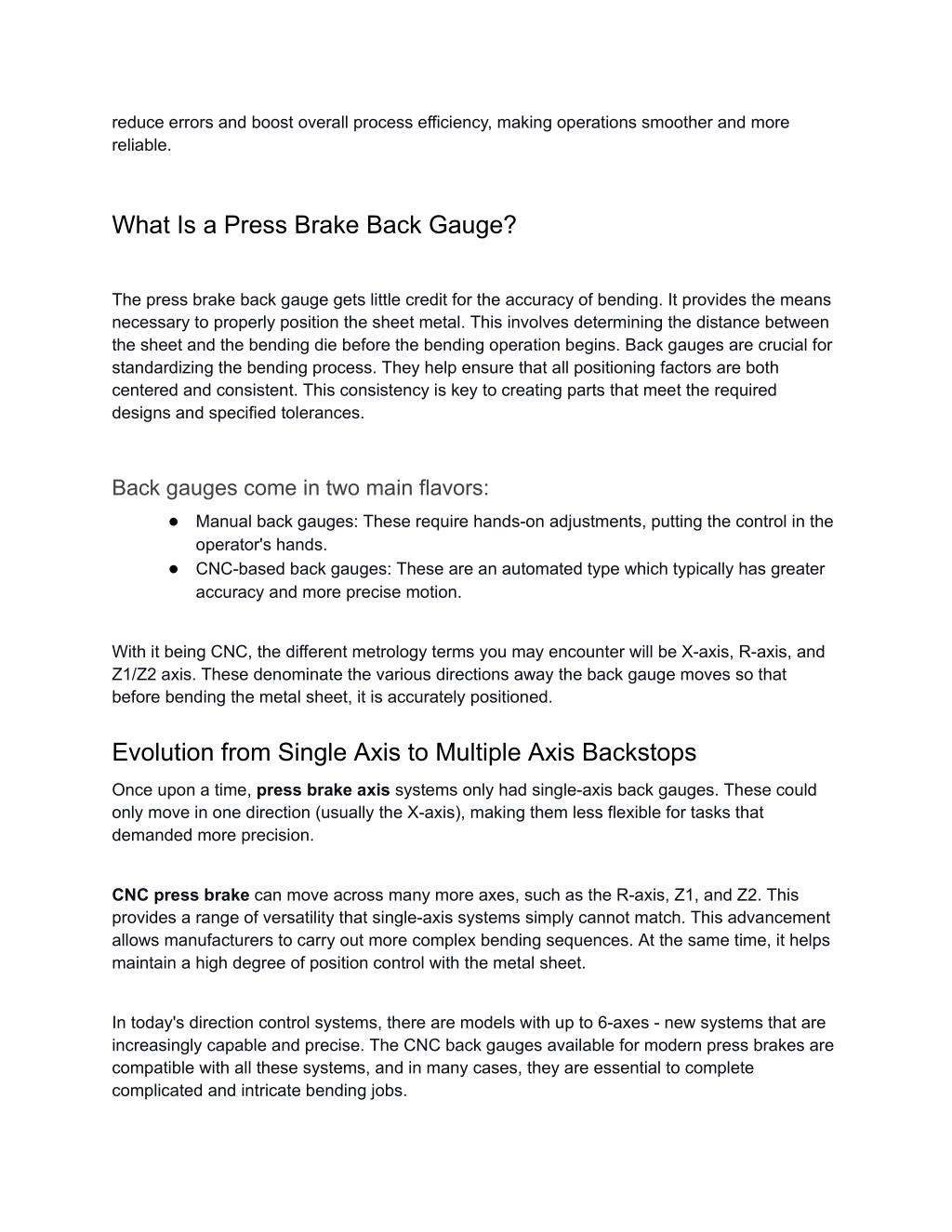

2. reduce errors and boost overall process efficiency, making operations smoother and more reliable. What Is a Press Brake Back Gauge? The press brake back gauge gets little credit for the accuracy of bending. It provides the means necessary to properly position the sheet metal. This involves determining the distance between the sheet and the bending die before the bending operation begins. Back gauges are crucial for standardizing the bending process. They help ensure that all positioning factors are both centered and consistent. This consistency is key to creating parts that meet the required designs and specified tolerances. Back gauges come in two main flavors: ● Manual back gauges: These require hands-on adjustments, putting the control in the operator's hands. ● CNC-based back gauges: These are an automated type which typically has greater accuracy and more precise motion. With it being CNC, the different metrology terms you may encounter will be X-axis, R-axis, and Z1/Z2 axis. These denominate the various directions away the back gauge moves so that before bending the metal sheet, it is accurately positioned. Evolution from Single Axis to Multiple Axis Backstops Once upon a time, press brake axis systems only had single-axis back gauges. These could only move in one direction (usually the X-axis), making them less flexible for tasks that demanded more precision. CNC press brake can move across many more axes, such as the R-axis, Z1, and Z2. This provides a range of versatility that single-axis systems simply cannot match. This advancement allows manufacturers to carry out more complex bending sequences. At the same time, it helps maintain a high degree of position control with the metal sheet. In today's direction control systems, there are models with up to 6-axes - new systems that are increasingly capable and precise. The CNC back gauges available for modern press brakes are compatible with all these systems, and in many cases, they are essential to complete complicated and intricate bending jobs.

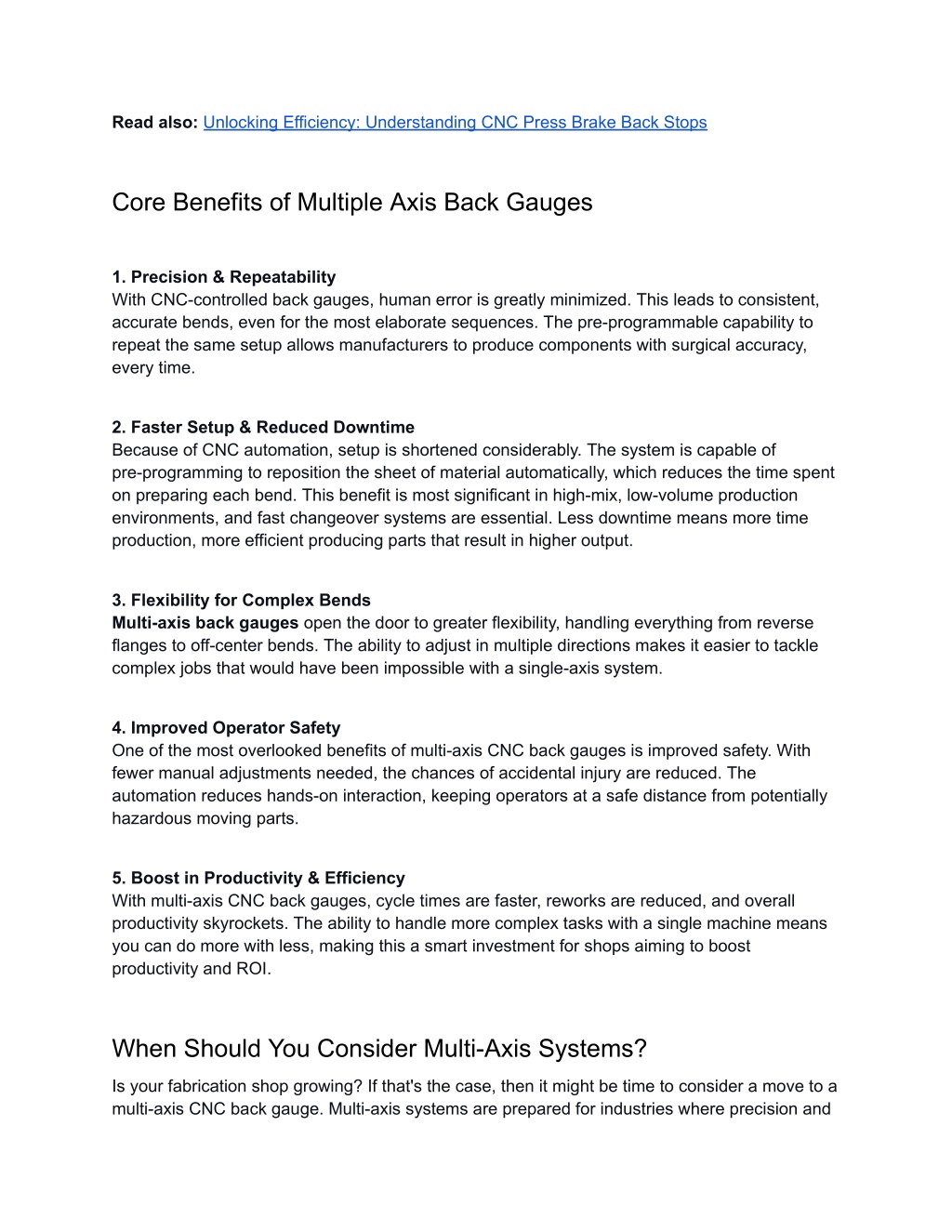

3. Read also:Unlocking Efficiency: Understanding CNC Press Brake Back Stops Core Benefits of Multiple Axis Back Gauges 1. Precision & Repeatability With CNC-controlled back gauges, human error is greatly minimized. This leads to consistent, accurate bends, even for the most elaborate sequences. The pre-programmable capability to repeat the same setup allows manufacturers to produce components with surgical accuracy, every time. 2. Faster Setup & Reduced Downtime Because of CNC automation, setup is shortened considerably. The system is capable of pre-programming to reposition the sheet of material automatically, which reduces the time spent on preparing each bend. This benefit is most significant in high-mix, low-volume production environments, and fast changeover systems are essential. Less downtime means more time production, more efficient producing parts that result in higher output. 3. Flexibility for Complex Bends Multi-axis back gauges open the door to greater flexibility, handling everything from reverse flanges to off-center bends. The ability to adjust in multiple directions makes it easier to tackle complex jobs that would have been impossible with a single-axis system. 4. Improved Operator Safety One of the most overlooked benefits of multi-axis CNC back gauges is improved safety. With fewer manual adjustments needed, the chances of accidental injury are reduced. The automation reduces hands-on interaction, keeping operators at a safe distance from potentially hazardous moving parts. 5. Boost in Productivity & Efficiency With multi-axis CNC back gauges, cycle times are faster, reworks are reduced, and overall productivity skyrockets. The ability to handle more complex tasks with a single machine means you can do more with less, making this a smart investment for shops aiming to boost productivity and ROI. When Should You Consider Multi-Axis Systems? Is your fabrication shop growing? If that's the case, then it might be time to consider a move to a multi-axis CNC back gauge. Multi-axis systems are prepared for industries where precision and

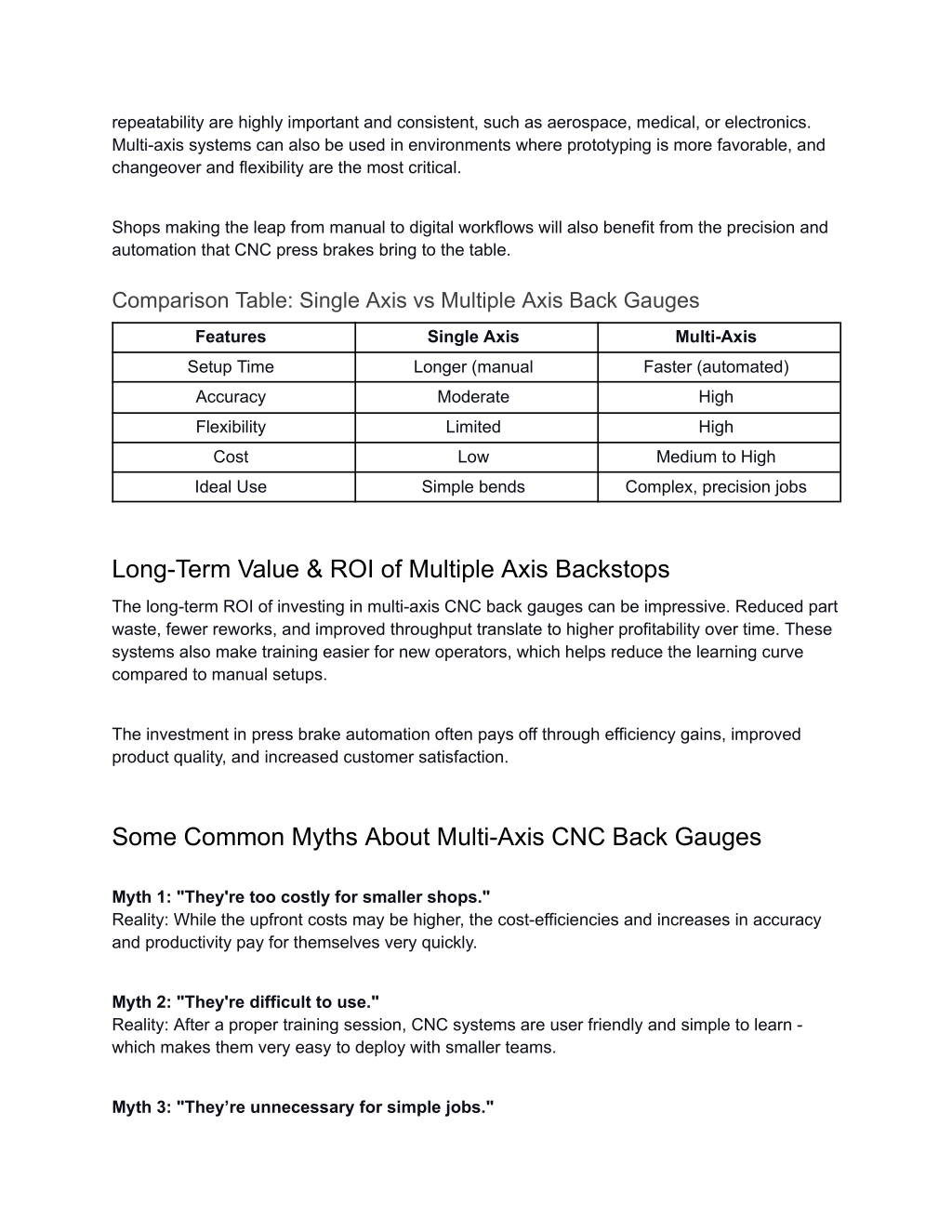

4. repeatability are highly important and consistent, such as aerospace, medical, or electronics. Multi-axis systems can also be used in environments where prototyping is more favorable, and changeover and flexibility are the most critical. Shops making the leap from manual to digital workflows will also benefit from the precision and automation that CNC press brakes bring to the table. Comparison Table: Single Axis vs Multiple Axis Back Gauges Features Single Axis Multi-Axis Setup Time Longer (manual Faster (automated) Accuracy Moderate High Flexibility Limited High Cost Low Medium to High Ideal Use Simple bends Complex, precision jobs Long-Term Value & ROI of Multiple Axis Backstops The long-term ROI of investing in multi-axis CNC back gauges can be impressive. Reduced part waste, fewer reworks, and improved throughput translate to higher profitability over time. These systems also make training easier for new operators, which helps reduce the learning curve compared to manual setups. The investment in press brake automation often pays off through efficiency gains, improved product quality, and increased customer satisfaction. Some Common Myths About Multi-Axis CNC Back Gauges Myth 1: "They're too costly for smaller shops." Reality: While the upfront costs may be higher, the cost-efficiencies and increases in accuracy and productivity pay for themselves very quickly. Myth 2: "They're difficult to use." Reality: After a proper training session, CNC systems are user friendly and simple to learn - which makes them very easy to deploy with smaller teams. Myth 3: "They’re unnecessary for simple jobs."

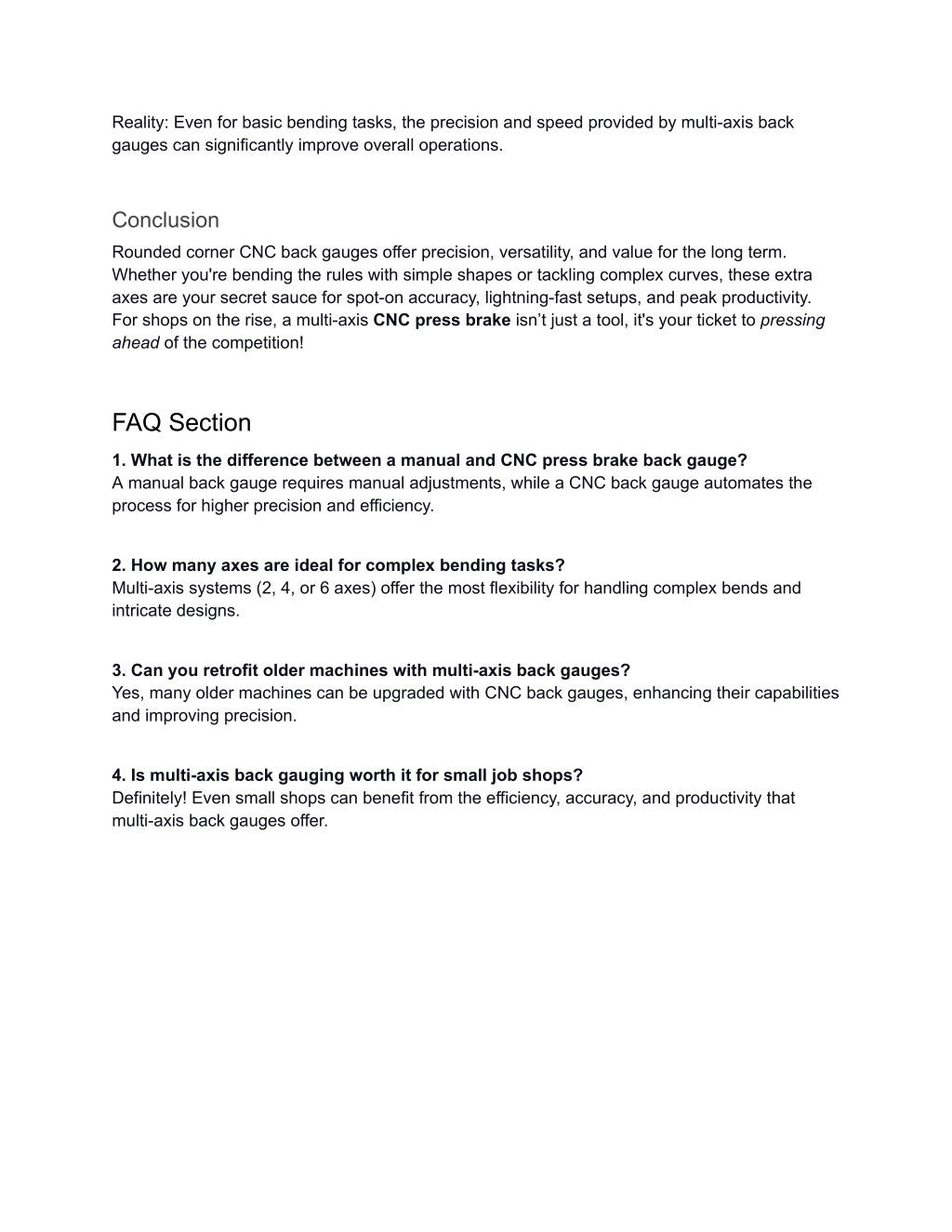

5. Reality: Even for basic bending tasks, the precision and speed provided by multi-axis back gauges can significantly improve overall operations. Conclusion Rounded corner CNC back gauges offer precision, versatility, and value for the long term. Whether you're bending the rules with simple shapes or tackling complex curves, these extra axes are your secret sauce for spot-on accuracy, lightning-fast setups, and peak productivity. For shops on the rise, a multi-axis CNC press brake isn’t just a tool, it's your ticket to pressing ahead of the competition! FAQ Section 1. What is the difference between a manual and CNC press brake back gauge? A manual back gauge requires manual adjustments, while a CNC back gauge automates the process for higher precision and efficiency. 2. How many axes are ideal for complex bending tasks? Multi-axis systems (2, 4, or 6 axes) offer the most flexibility for handling complex bends and intricate designs. 3. Can you retrofit older machines with multi-axis back gauges? Yes, many older machines can be upgraded with CNC back gauges, enhancing their capabilities and improving precision. 4. Is multi-axis back gauging worth it for small job shops? Definitely! Even small shops can benefit from the efficiency, accuracy, and productivity that multi-axis back gauges offer.
