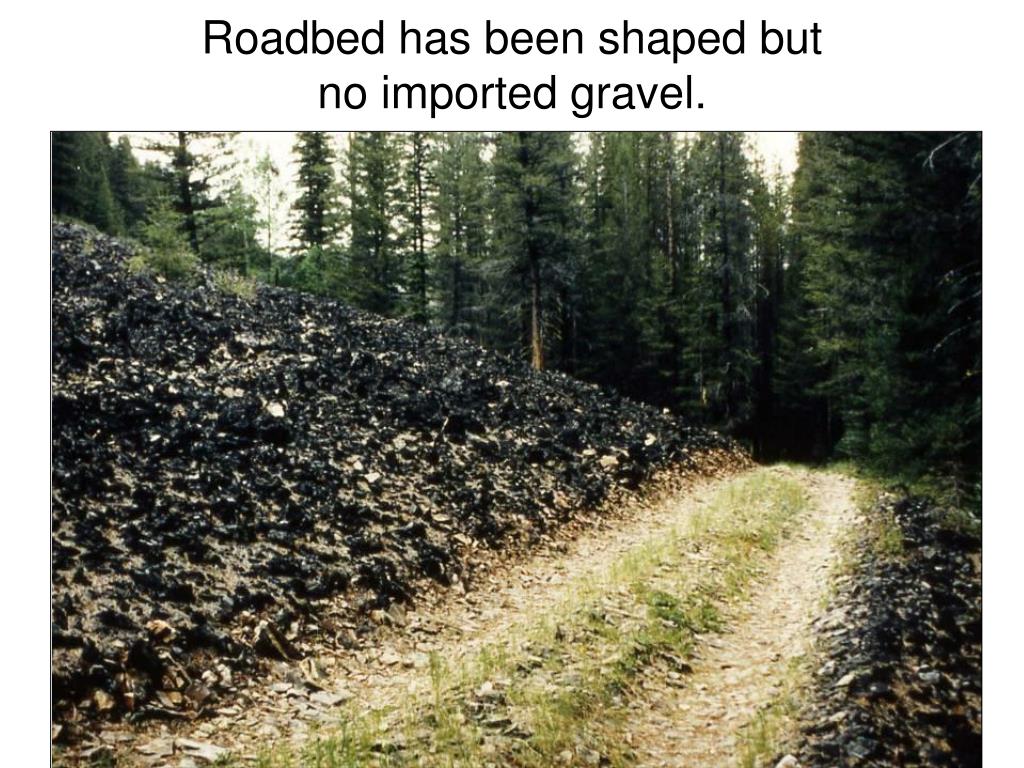

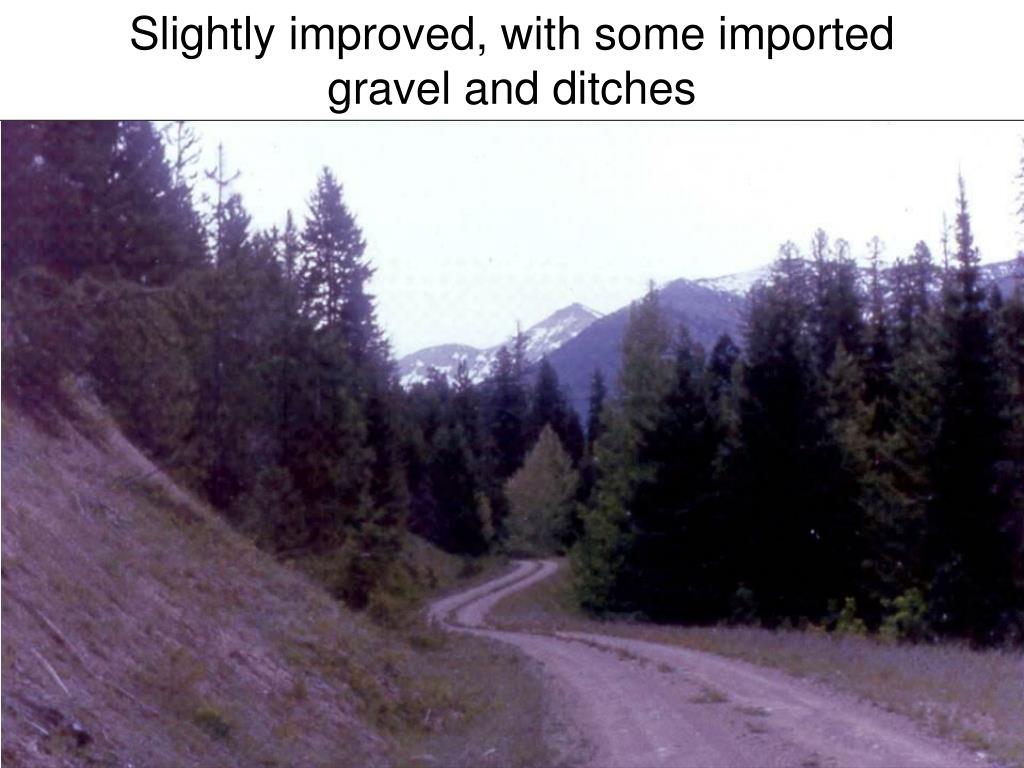

Gravel Roads: Theory and Engineering. How Are Roads Built?. Evolution Stock trails Double tracks Gravel road Asphalt road Revolution New construction. Typical Gravel Road Section. Unimproved double track. Roadbed has been shaped but no imported gravel.

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

Gravel Roads: Theory and Engineering


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript

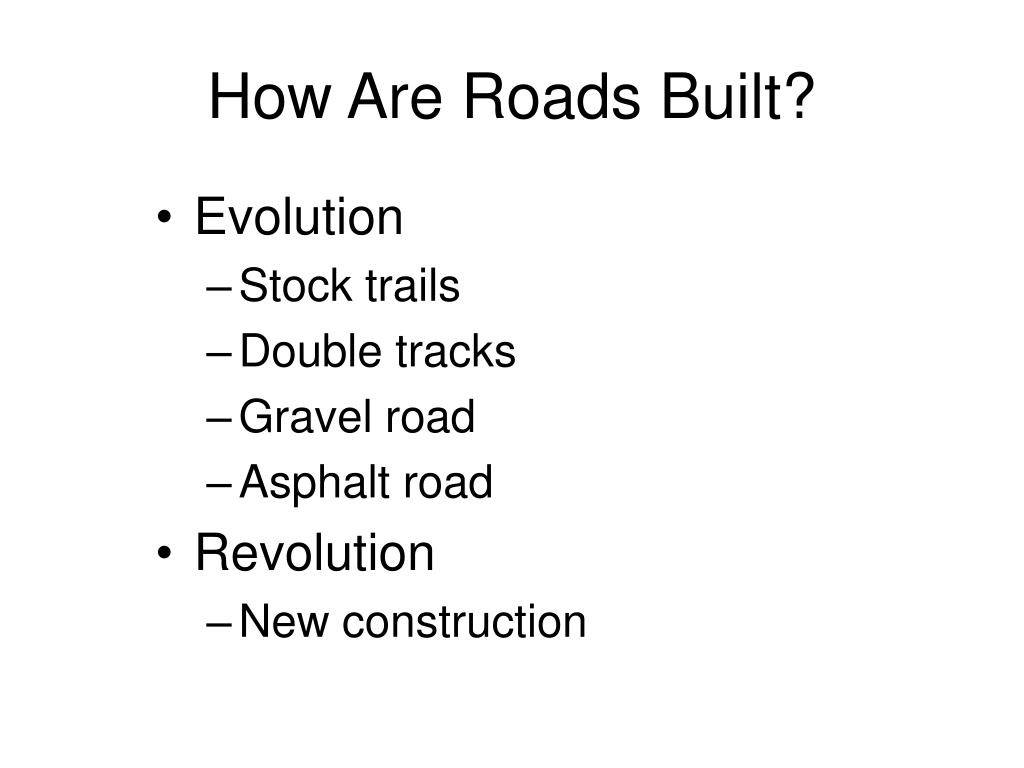

how are roads built
How Are Roads Built?
  • Evolution
    • Stock trails

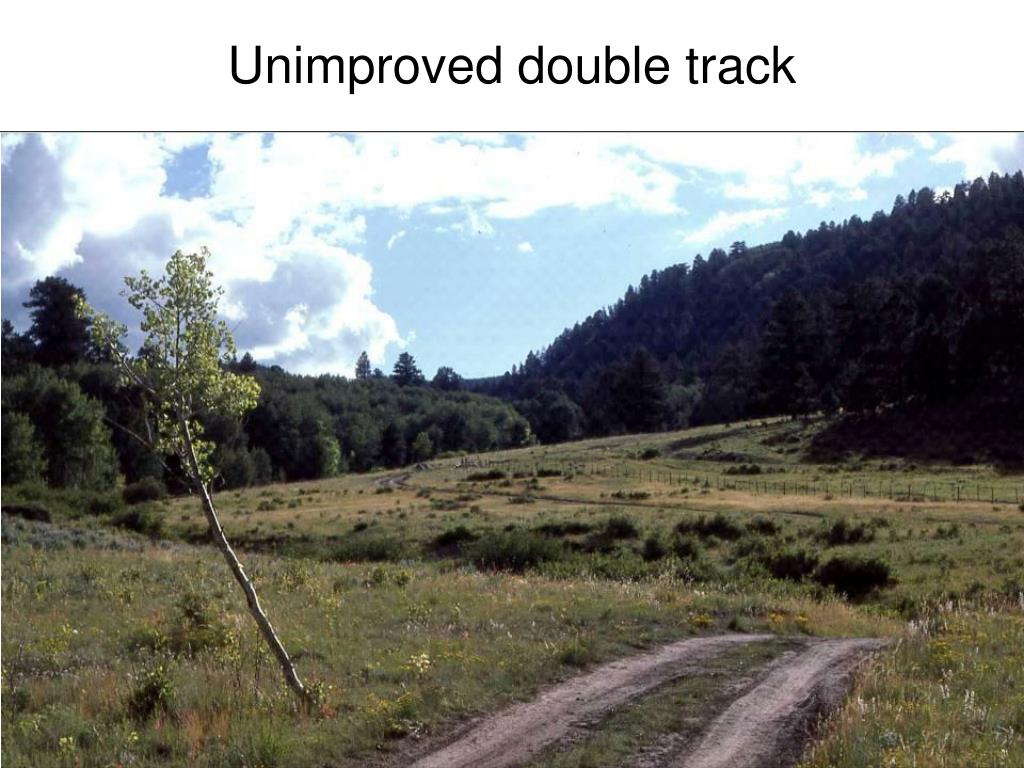

    • Double tracks

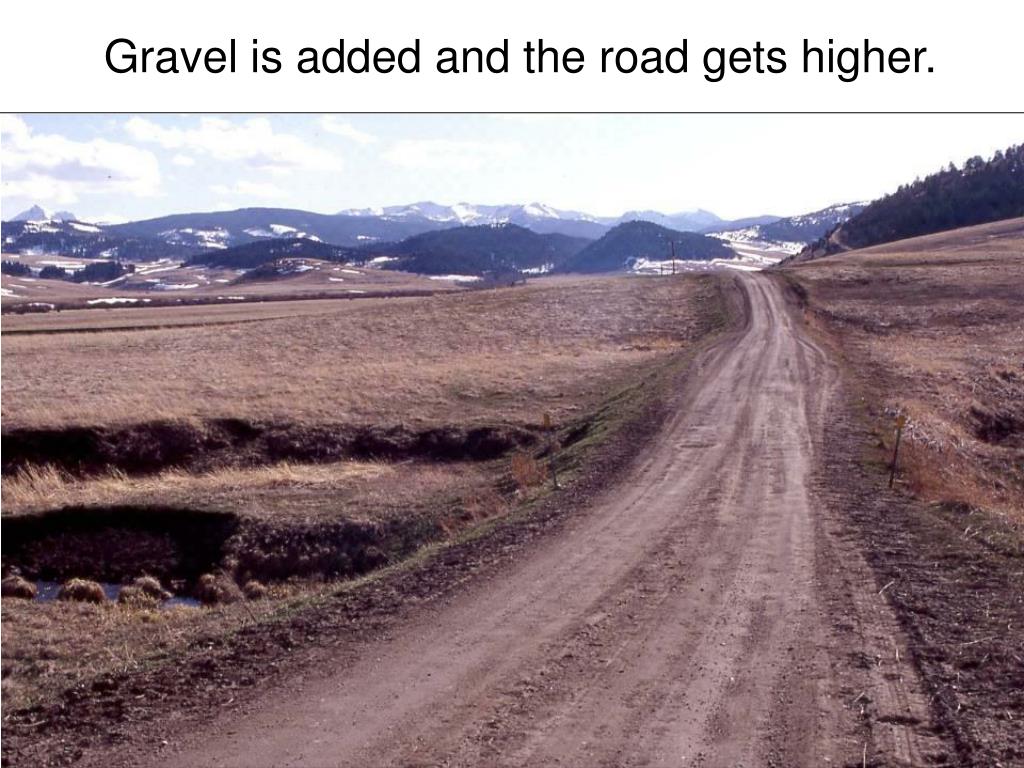

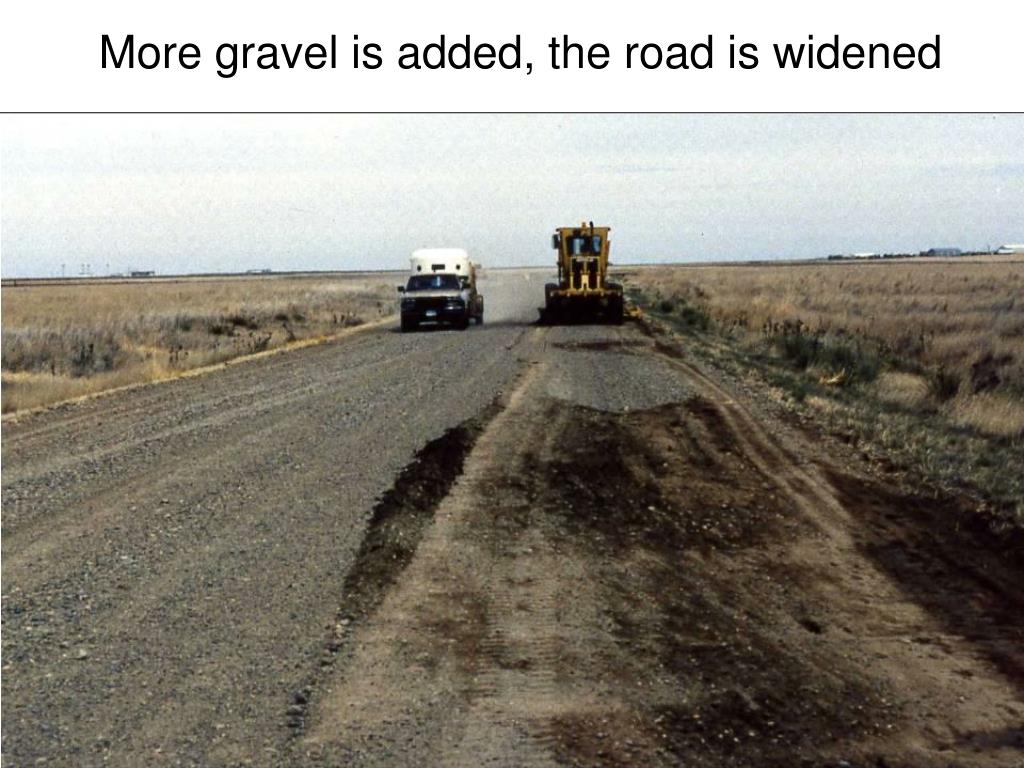

    • Gravel road
    • Asphalt road
  • Revolution
    • New construction

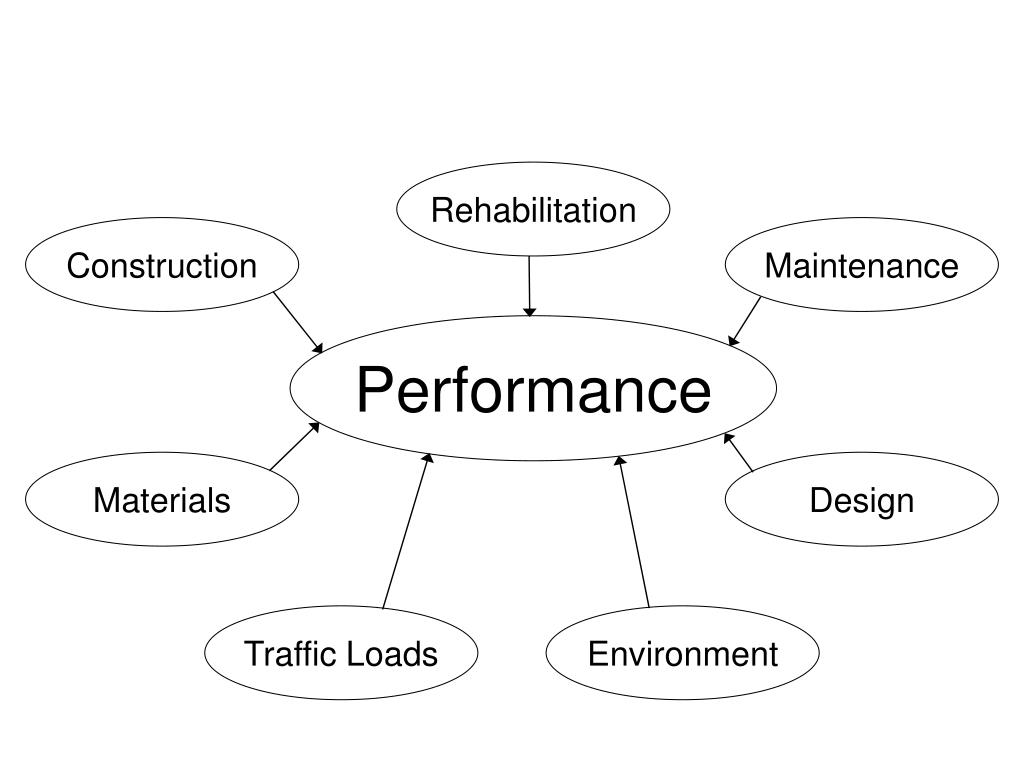

slide11

Construction

Maintenance

Rehabilitation

Materials

Design

Traffic Loads

Environment

Performance

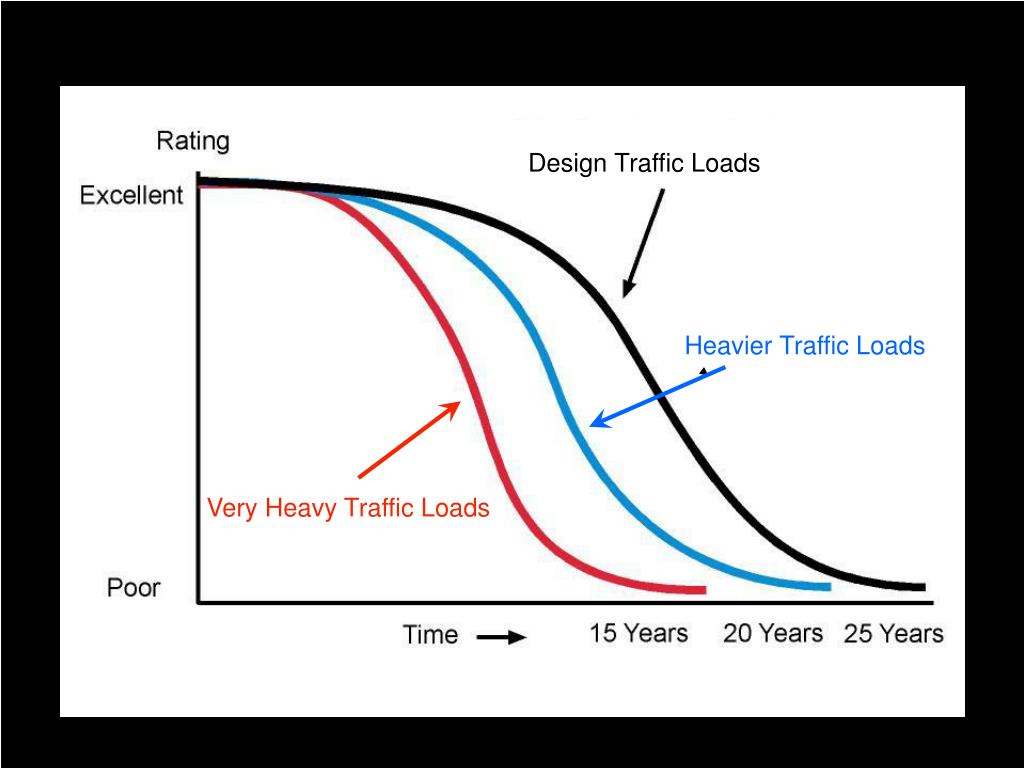

dls with excellent maint
DLS with Excellent Maint

Design Traffic Loads

Heavier Traffic Loads

Very Heavy Traffic Loads

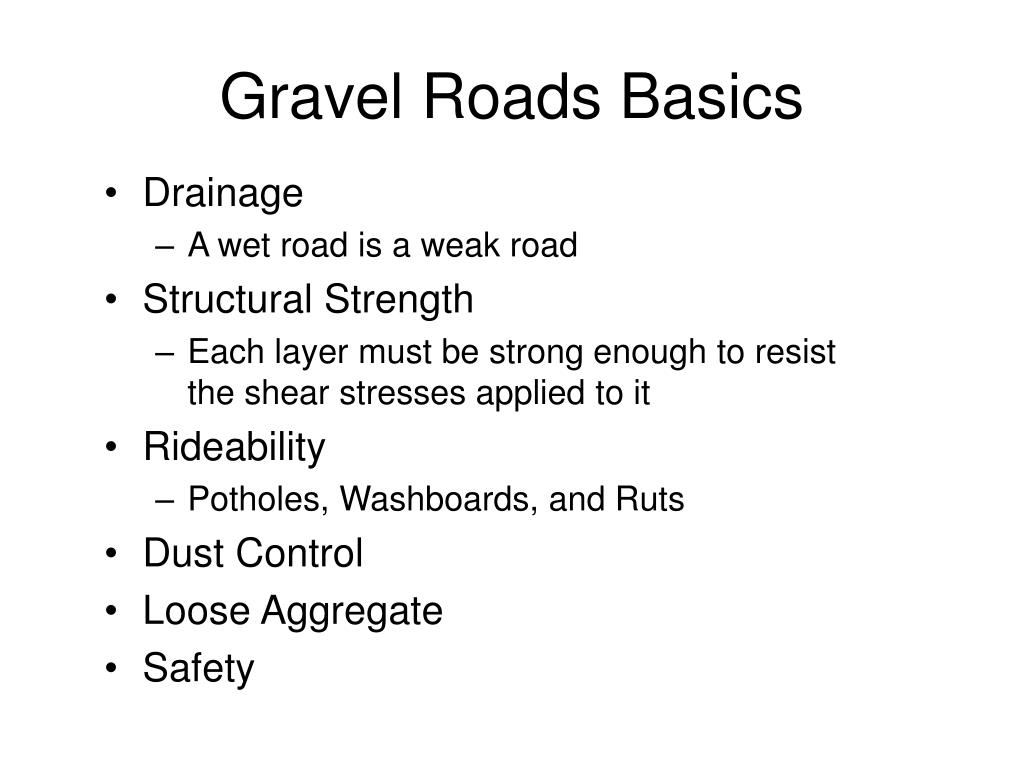

gravel roads basics
Gravel Roads Basics
  • Drainage
    • A wet road is a weak road
  • Structural Strength
    • Each layer must be strong enough to resist the shear stresses applied to it
  • Rideability
    • Potholes, Washboards, and Ruts
  • Dust Control
  • Loose Aggregate
  • Safety
structural properties of roads

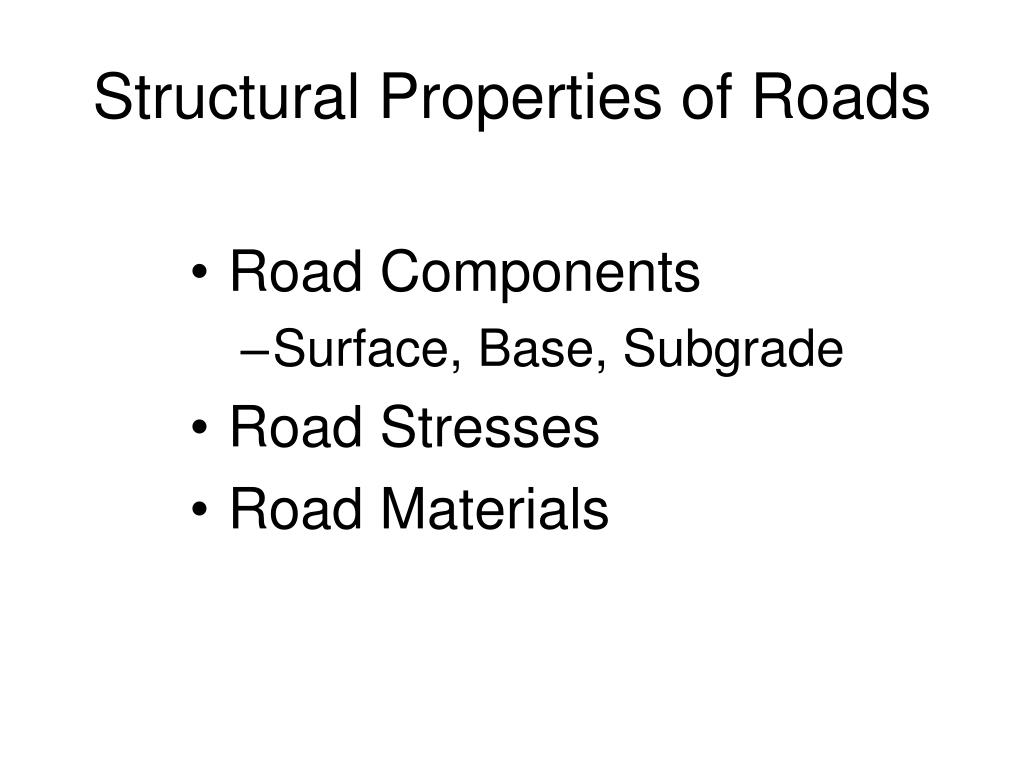

Structural Properties of Roads
  • Road Components
    • Surface, Base, Subgrade
  • Road Stresses
  • Road Materials
roads structural strengths
Roads’ Structural Strengths
  • Tire pressure at 25 to 125 psi
  • Strength, from high to low
    • Concrete
    • Asphalt

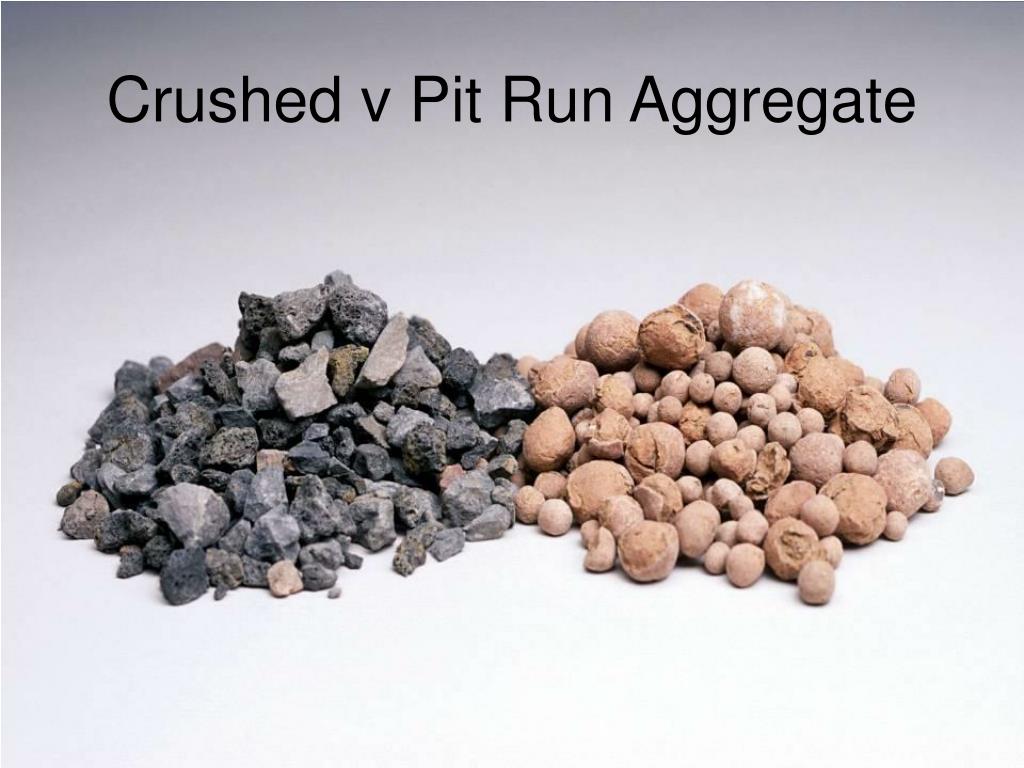

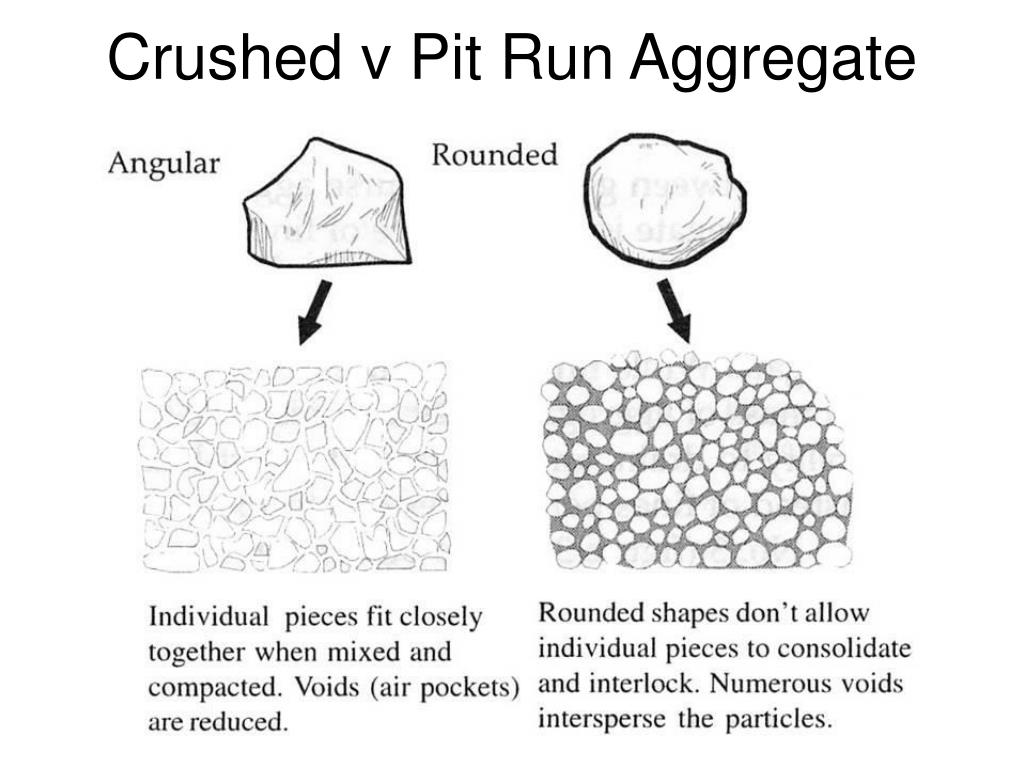

    • Crushed Base
    • Pit Run Subbase
    • Borrow Special Excavation
    • Subgrade
      • Sandy or Gravelly
      • Clayey
stresses

Shear Stress

Compressive Stress

Stresses

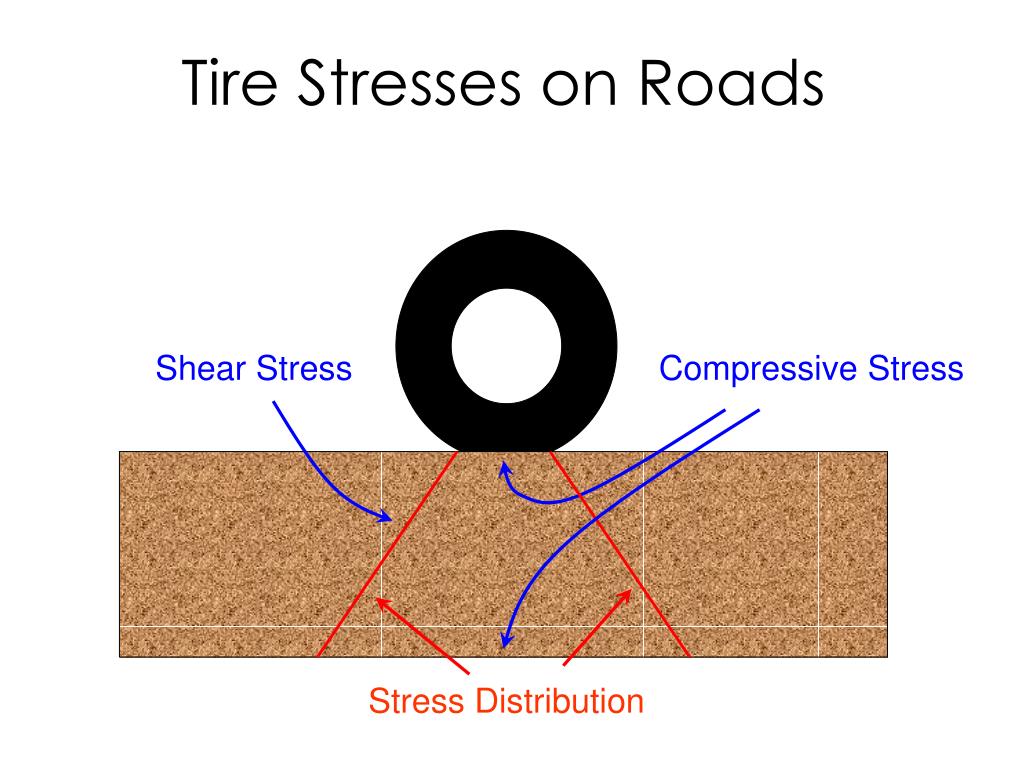

tire stresses on roads

Shear Stress

Compressive Stress

Stress Distribution

Tire Stresses on Roads

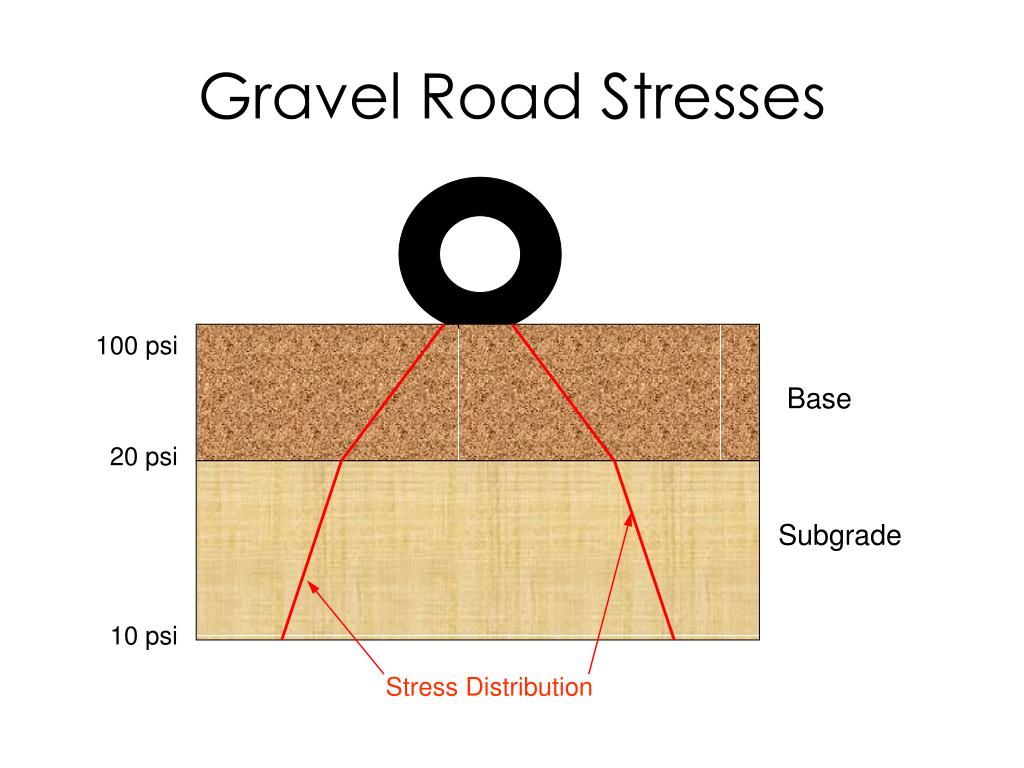

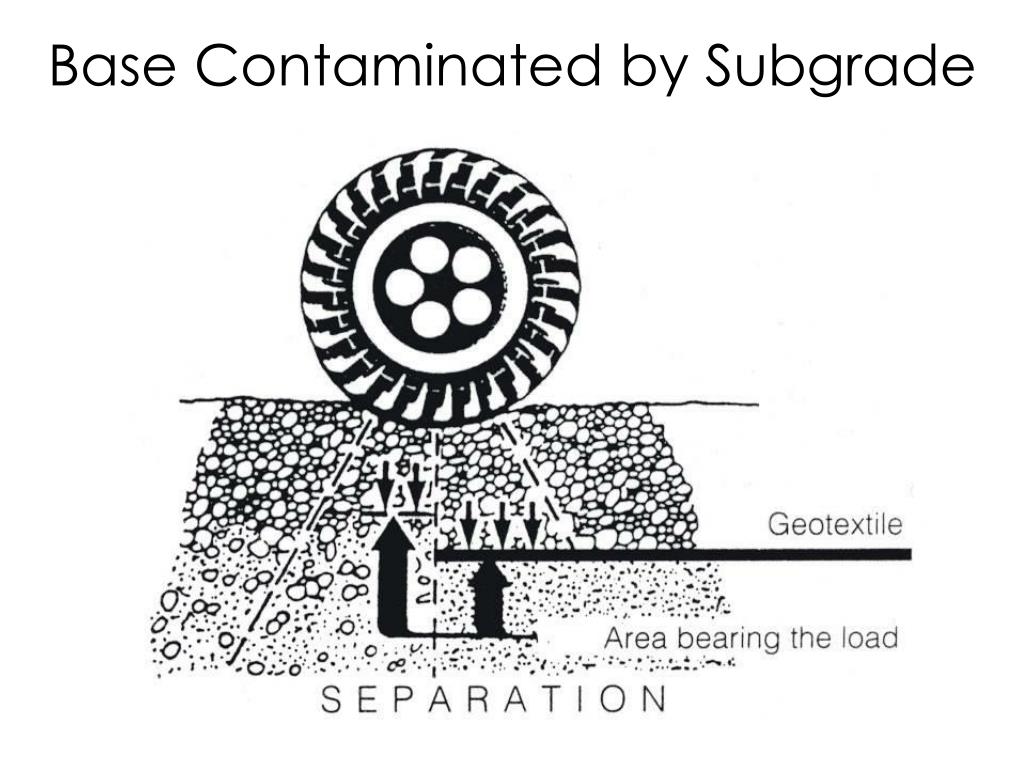

gravel road stresses
Gravel Road Stresses

100 psi

Base

20 psi

Subgrade

10 psi

Stress Distribution

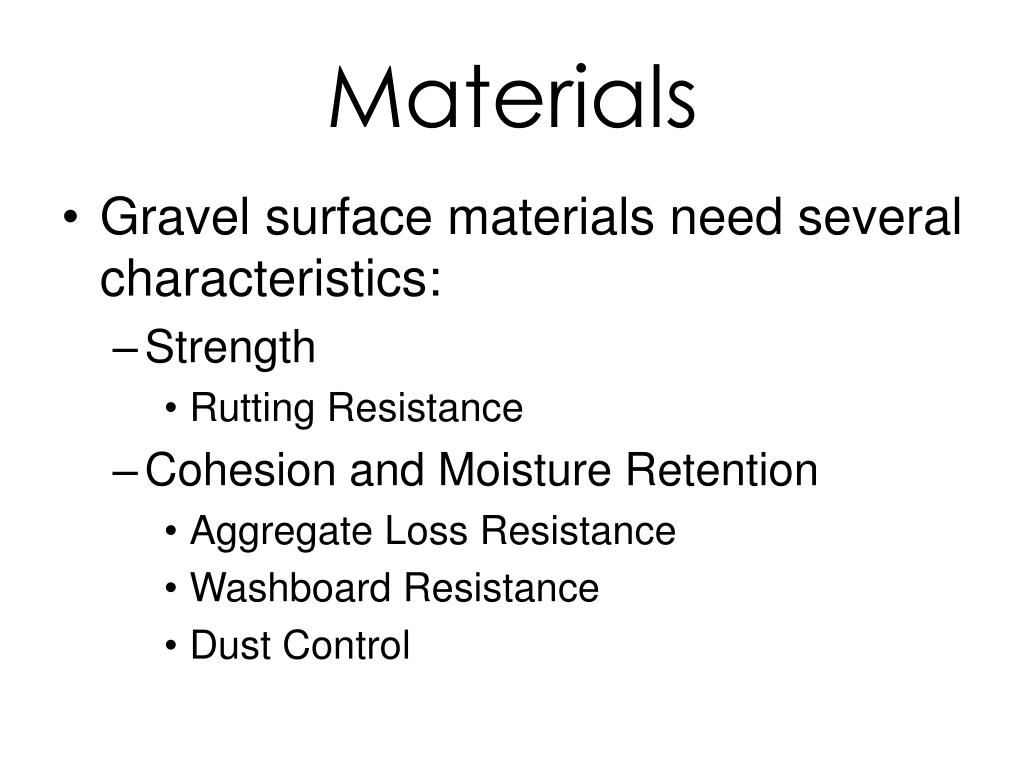

materials
Materials
  • Gravel surface materials need several characteristics:
    • Strength
      • Rutting Resistance
    • Cohesion and Moisture Retention
      • Aggregate Loss Resistance
      • Washboard Resistance
      • Dust Control
gravel road materials
Gravel Road Materials
  • Too much sands
    • Washboarding
  • Too many silts and clays
    • Rutting
    • Dust problems
  • Not enough larger gravel
    • Aggregate loss
    • Dust problems

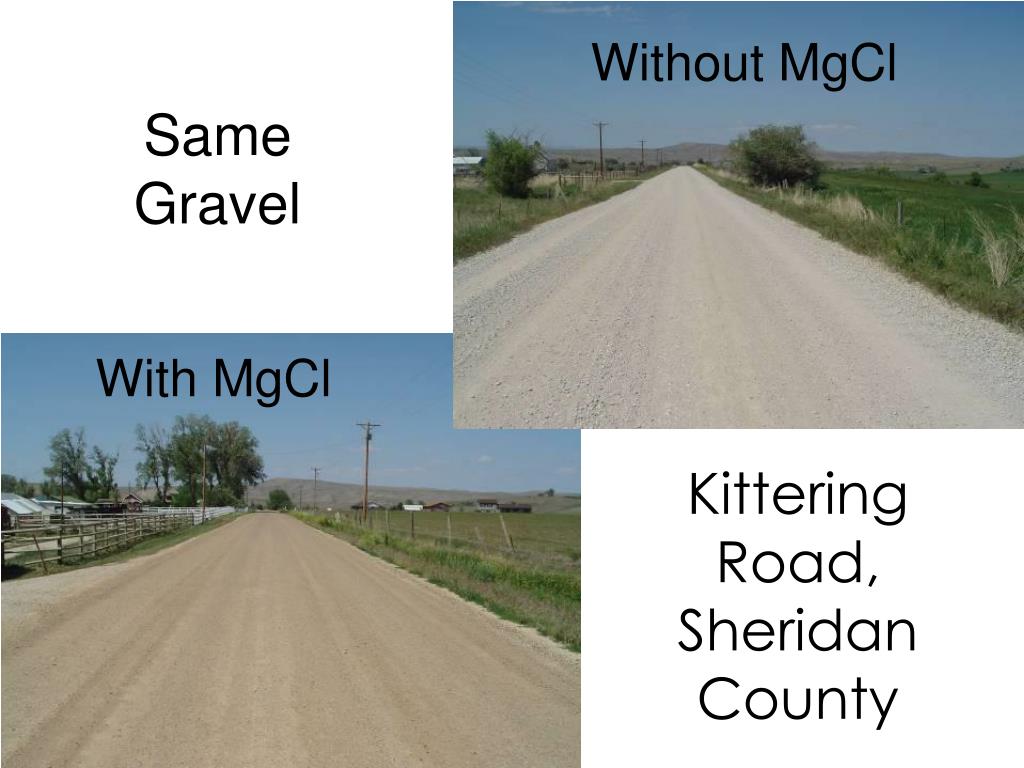

dust suppressants
Dust Suppressants
  • Magnesium Chloride, MgCl
    • Chemically bonds moisture with gravel
    • Keeps dust down
    • Prevents loss of fines
  • Common in Sheridan County, rarely in Johnson and Carbon Counties
    • Make a note in the comment if road appears to have MgCl
    • Gravel surface looks damp when other gravel roads are dry
compaction
Compaction
  • Soil must be compacted (densified) to obtain strength/stability
  • Reduce air voids in soil structure

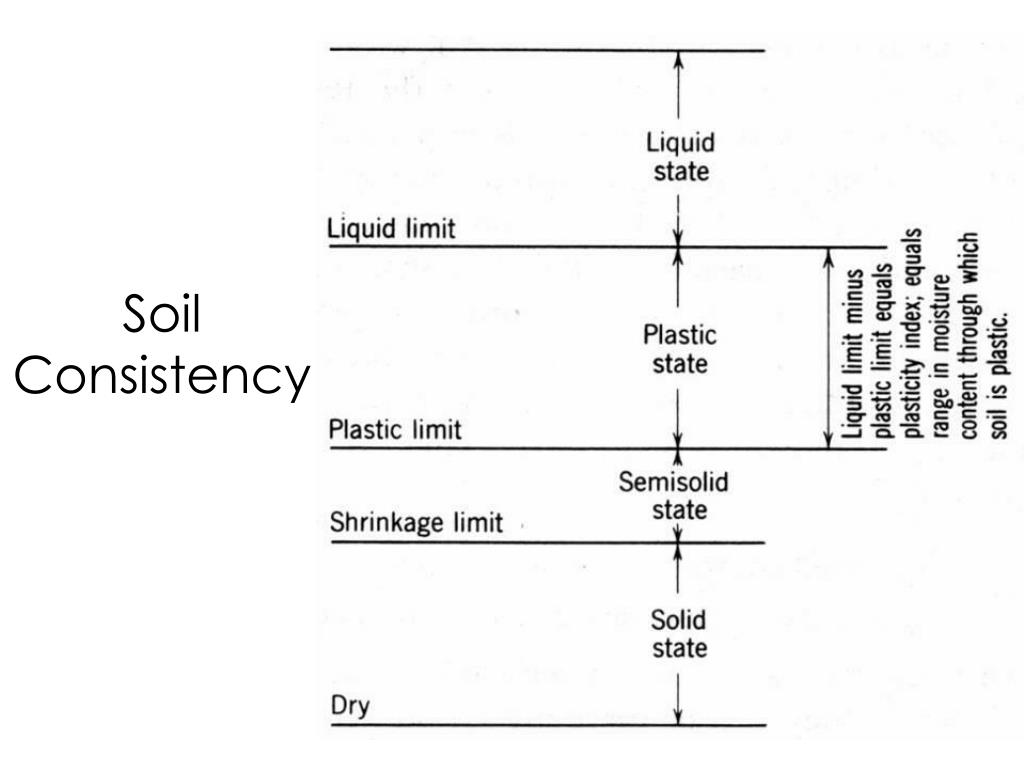

plasticity limits
Plasticity Limits
  • Properties of material passing #40 sieve
  • Determined mostly by type and percentage of clays
  • Sometimes referred to as “Atterberg Limits”

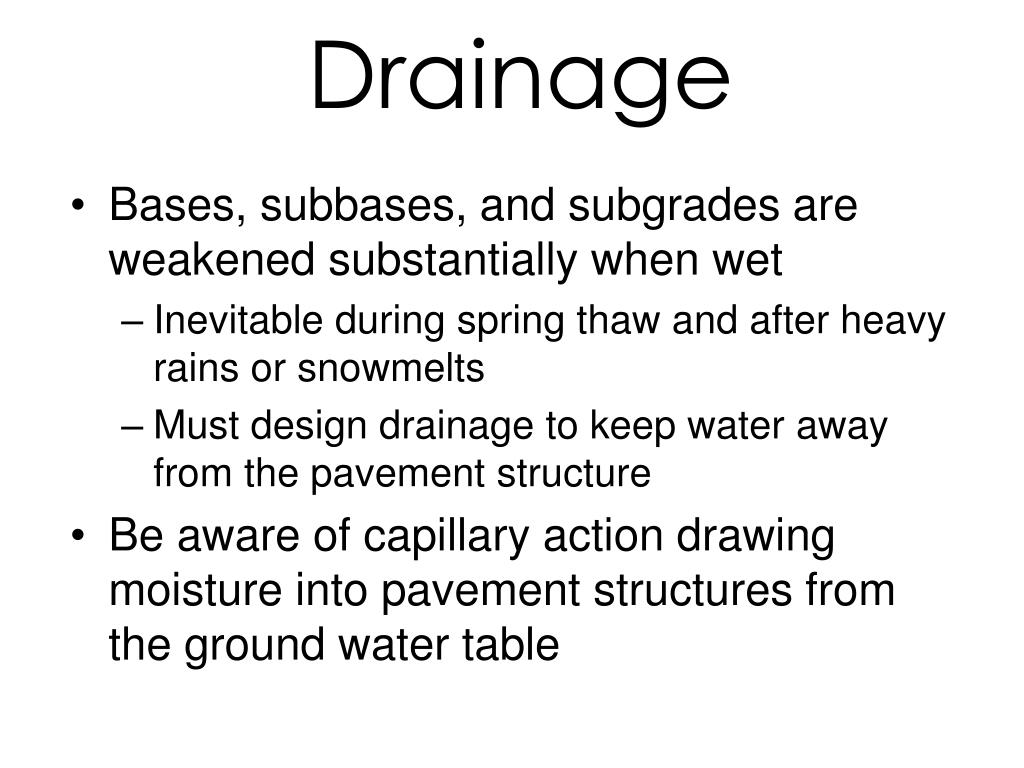

drainage
Drainage
  • Bases, subbases, and subgrades are weakened substantially when wet

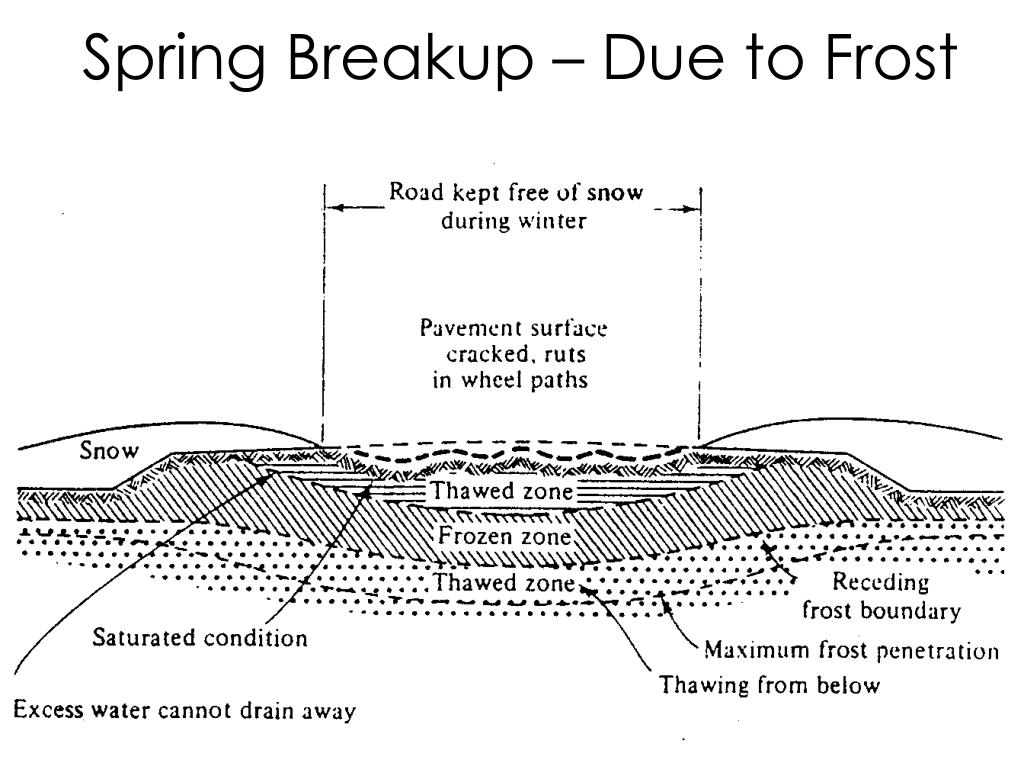

    • Inevitable during spring thaw and after heavy rains or snowmelts
    • Must design drainage to keep water away from the pavement structure
  • Be aware of capillary action drawing moisture into pavement structures from the ground water table
slide30

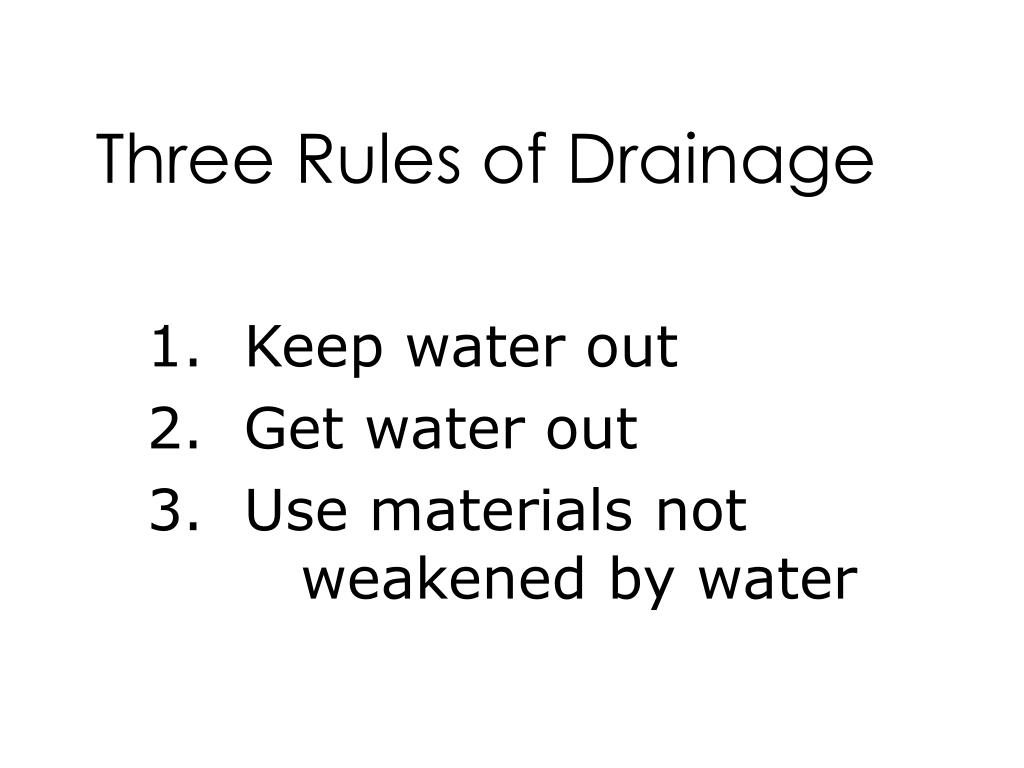

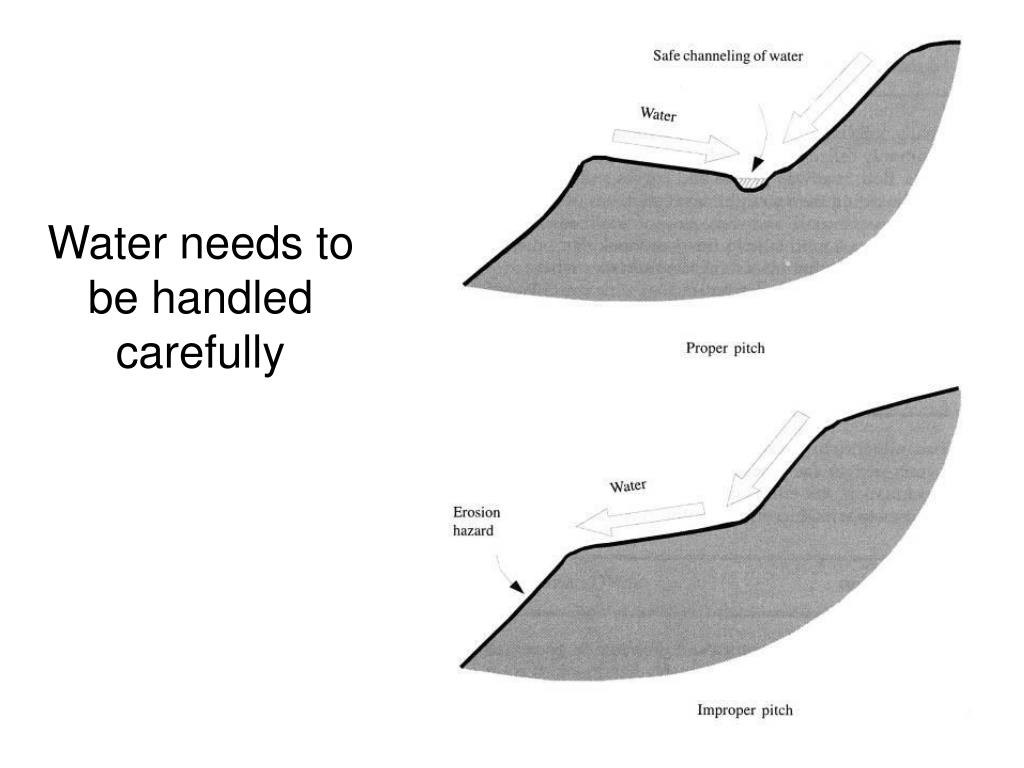

Three Rules of Drainage

1. Keep water out

2. Get water out

3. Use materials not weakened by water

drainage33
Drainage
  • Drainage Systems

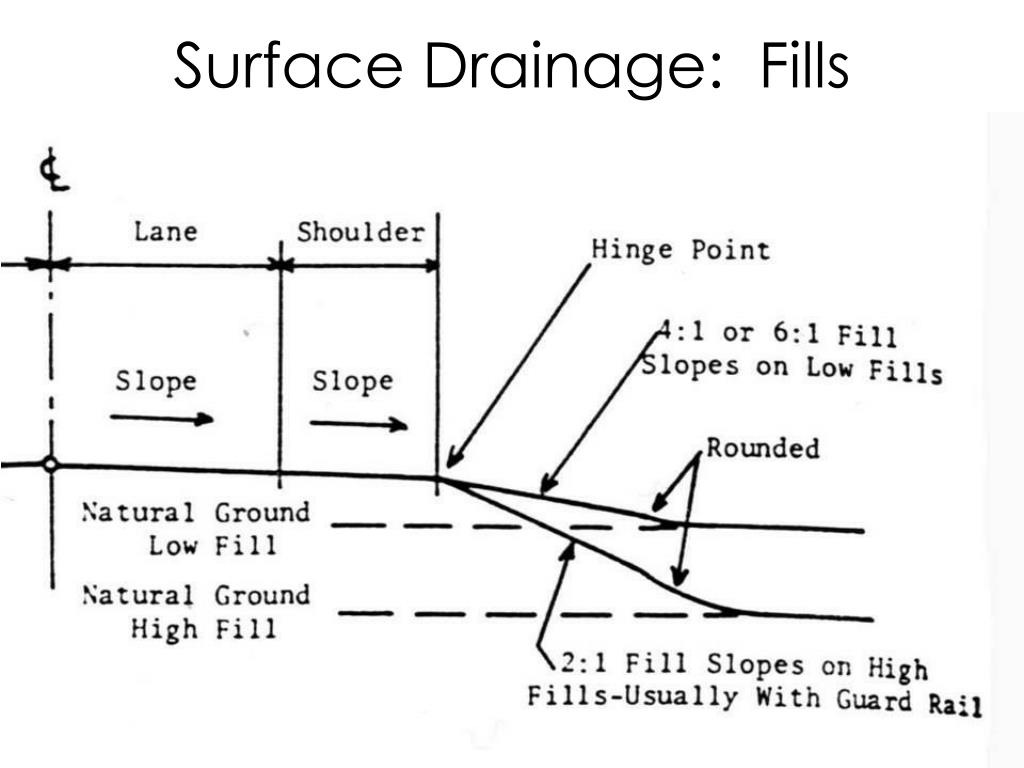

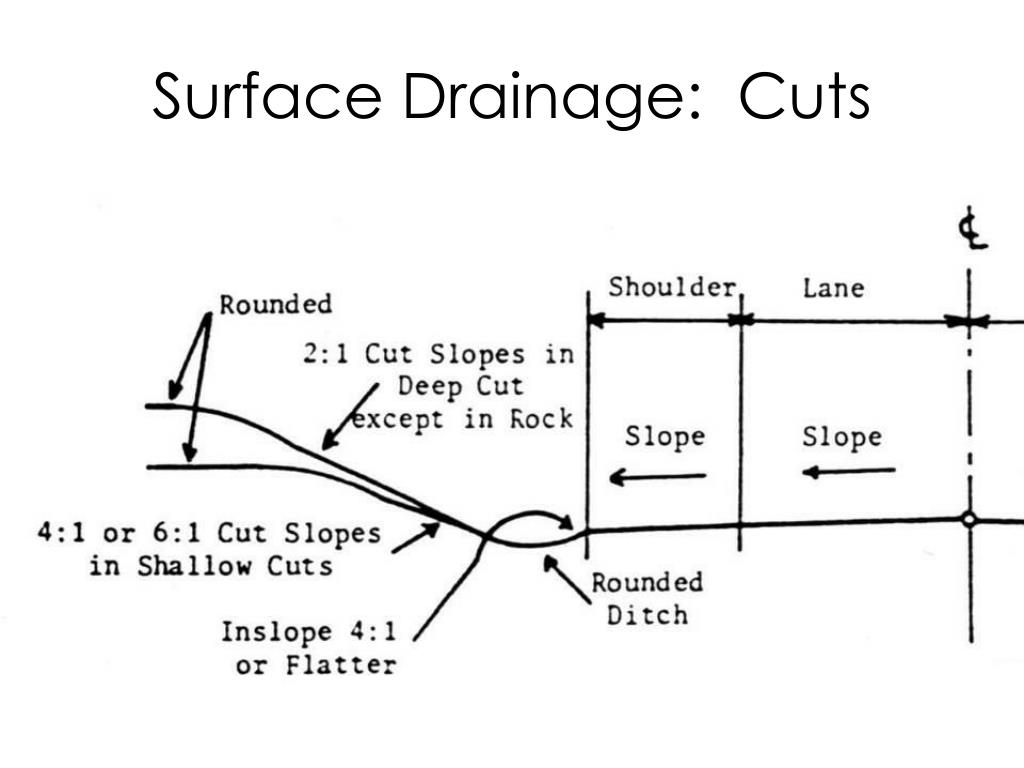

    • Surface: to remove surface run off
      • Ditches
      • Gutters
      • Cross slope
    • Subsurface: to remove ground water
      • Edge drains
      • Under drains
gravel surface must shed water

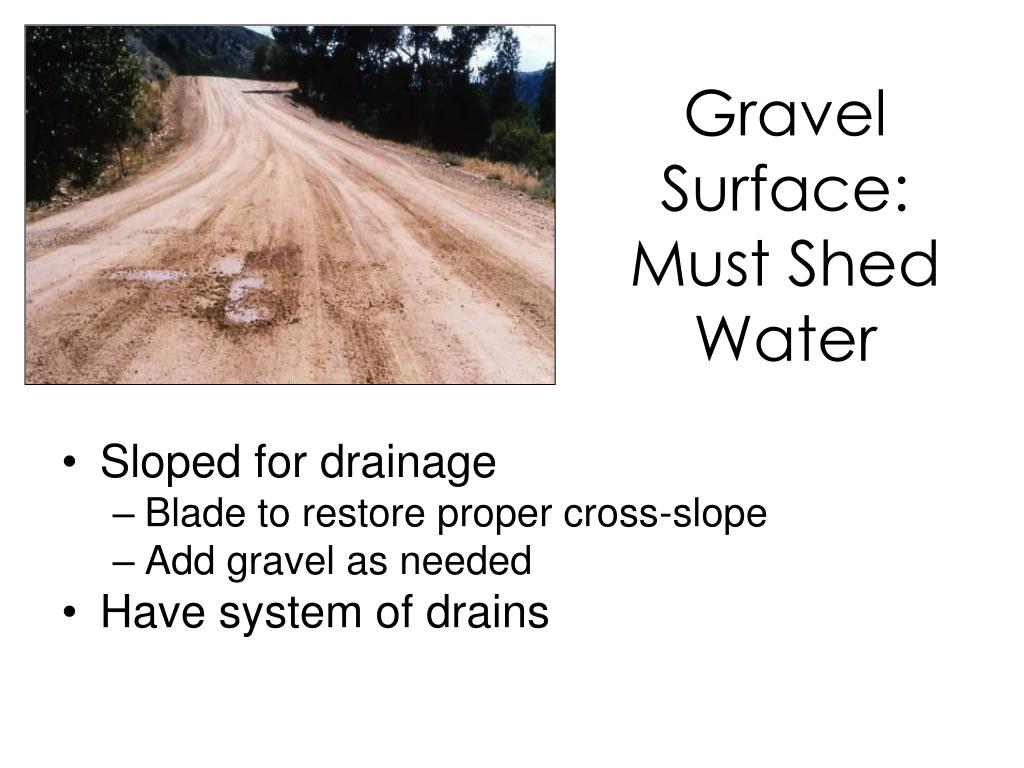

Gravel Surface: Must Shed Water
  • Sloped for drainage
    • Blade to restore proper cross-slope
    • Add gravel as needed
  • Have system of drains
drainage38
Drainage
  • Estimate time of drainage

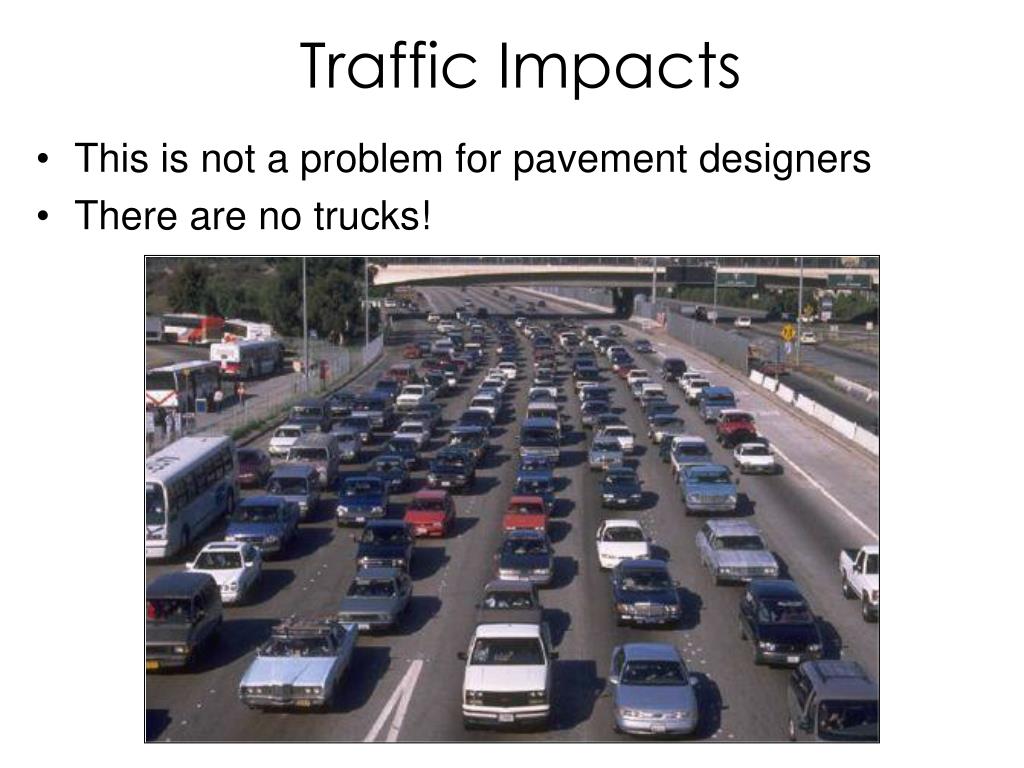

traffic impacts
Traffic Impacts
  • This is not a problem for pavement designers
  • There are no trucks!
low volume rural roads
Low Volume Rural Roads
  • May have very inconsistent truck traffic
    • Logging is intermittent and seasonal
    • Oil and gas drilling is heavy, then almost non-existent
    • Heavy mine traffic may avoid high volume times of day, open weigh stations
    • Ranch and agricultural traffic is highly seasonal
    • Consider construction traffic
