  1. Proprietary & Confidential Information HV IC Presentation PLM_Lighting Korea Power Conversion Jul. 2009

  2. Market Definition BLDC motor for Electric Carts Motor Inverter for white goods or Industrial PDP sustain and energy recovery driver HID Inverter Half bridge SMPS Ballast for Fluorescent Lamp Class D Audio Amplifier

  3. Product lists by segments ( * : under development ) Appliance Motor FAN7380 FAN7382 FAN7383FAN7384FAN7388 FAN7888 FAN73833 FAN7389* FAN7380 FAN7382 FAN7383FAN7384FAN7388 FAN73833 FAN7392 FAN7393* FAN7389* E-bike & E-Scooter FAN7361 FAN7371FAN7382FAN7385 FAN7390 FAN73711 FAN73611* Display FAN7380 FAN7382 FAN7383FAN7384FAN7388 FAN7392 FAN7393* FAN73932 Industrial FAN7371FAN7380FAN7382 FAN73832 FAN7387 FAN7382 FAN7361 FAN7371FAN7382 FAN7390 FAN73832 FAN7392 FAN7393* FAN73932 FAN73933* Lighting FAN7371FAN7390FAN7388 Audio Automotive Power Supply

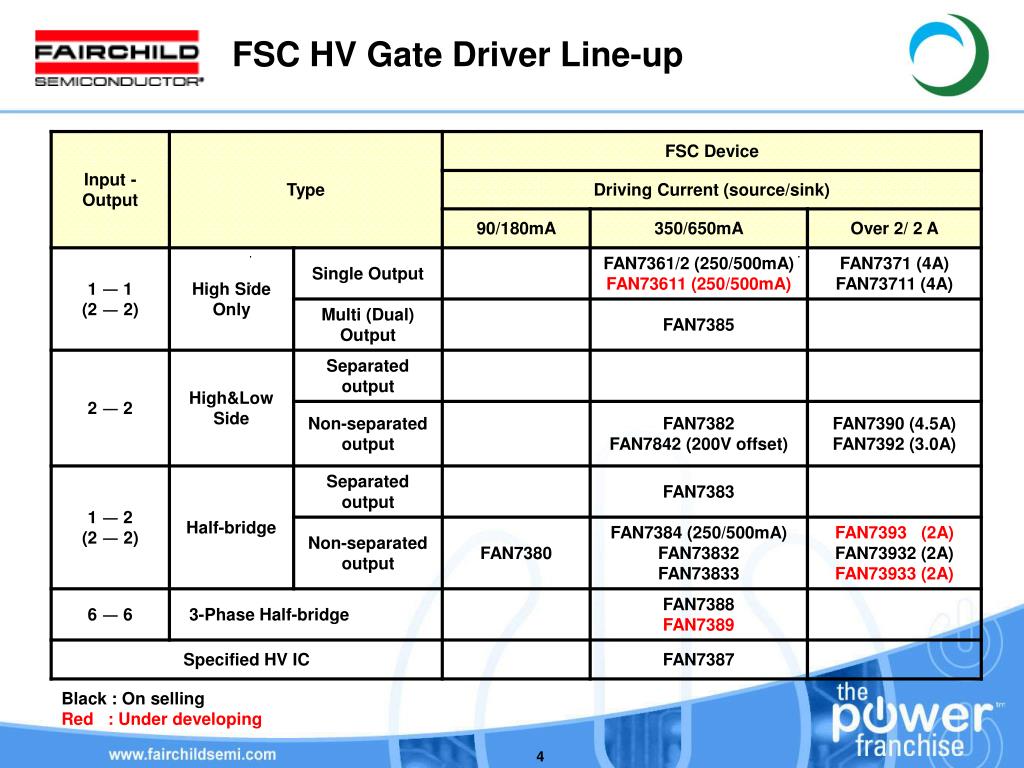

  4. FSC HV Gate Driver Line-up Black : On selling Red : Under developing

  5. Planning On Development MP High Voltage Gate Drive IC 2004 2006 2007 2008 2009 0.5A HB,CS,DT (FAN7384) 0.5A Half Bridge (FAN73833) 0.5A 1 in HB,SD,DT (FAN7383),14SOP 3A 2-2 H&L Side, SD (FAN7392) 0.5A 1in HB,SD,DT (FAN73832),8SOP 3 Phase Driver, CS,FO (FAN7389) Self Oscillation (FAN7387) 0.2A Half Bridge (FAN7380) 3A 1-2 Half-Bridge, SD,DT (FAN7393/FAN73932) 3 Phase Half-Bridge (FAN7388) 3A 2-2 Half-Bridge, DT (FAN73933) 0.5A H&L Side (FAN7382/FAN7842) 4.5A H&L Side (FAN7390) 1ch,4.0A High Side (FAN73711) 1ch,0.5A High Side (FAN7361/2) 1ch,4.0A High Side (FAN7371) 1ch,0.5A High Side (FAN73611) 2ch,0.5A High Side (FAN7385) HDG4 HDG4/HDG4D HDG4D

  6. Cross Reference Black: On selling Red : Under developing

  7. Noise Immunity Performance

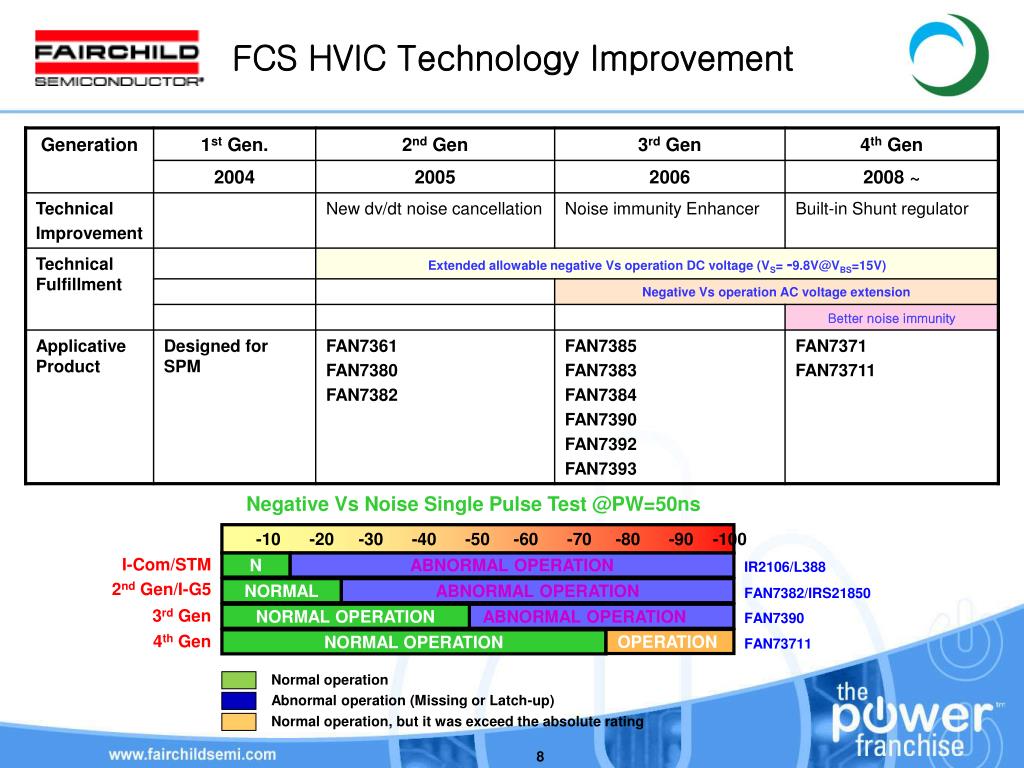

  8. Normal operation, but it was exceed the absolute rating Abnormal operation (Missing or Latch-up) FCS HVIC Technology Improvement Negative Vs Noise Single Pulse Test @PW=50ns -10 -20 -30 -40 -50 -60 -70 -80 -90 -100 I-Com/STM N ABNORMAL OPERATION IR2106/L388 2nd Gen/I-G5 NORMAL ABNORMAL OPERATION FAN7382/IRS21850 3rd Gen NORMAL OPERATION ABNORMAL OPERATION FAN7390 4th Gen OPERATION NORMAL OPERATION FAN73711 Normal operation

  9. Negative VS transient SOA Tested by FCS Lab Note 1.Transient negative Vs SOA characteristic was only bench test result.

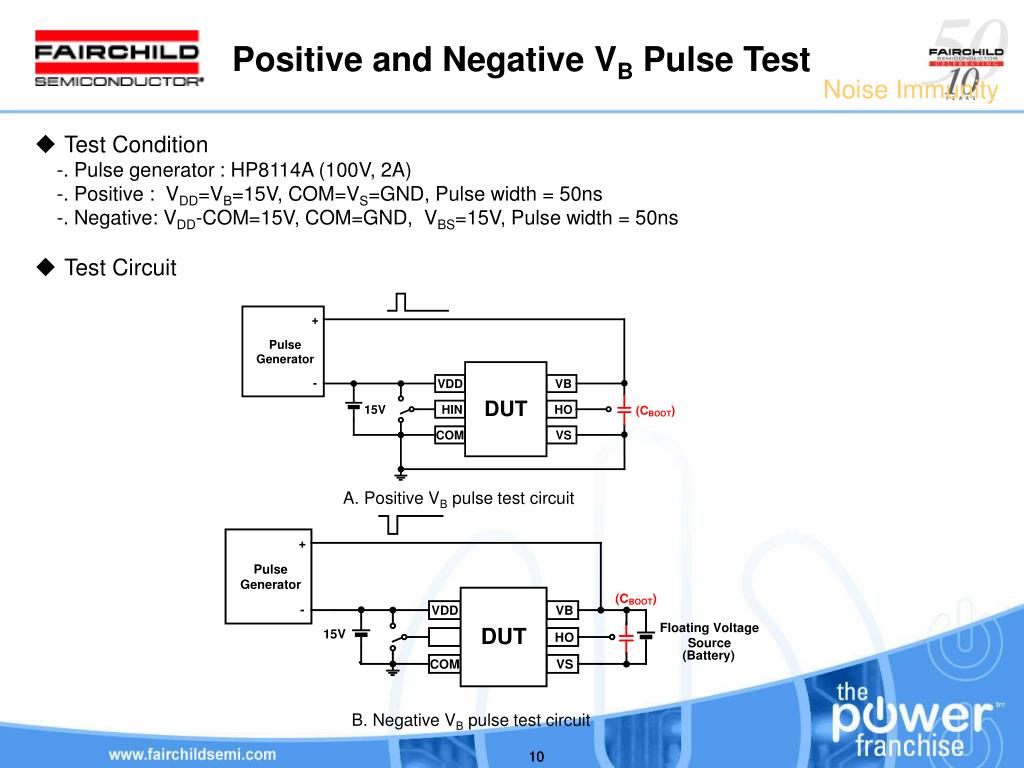

  10. Positive and Negative VB Pulse Test Noise Immunity • Test Condition • -. Pulse generator : HP8114A (100V, 2A) -. Positive : VDD=VB=15V, COM=VS=GND, Pulse width = 50ns -. Negative: VDD-COM=15V, COM=GND, VBS=15V, Pulse width = 50ns • Test Circuit A. Positive VB pulse test circuit B. Negative VB pulse test circuit 10

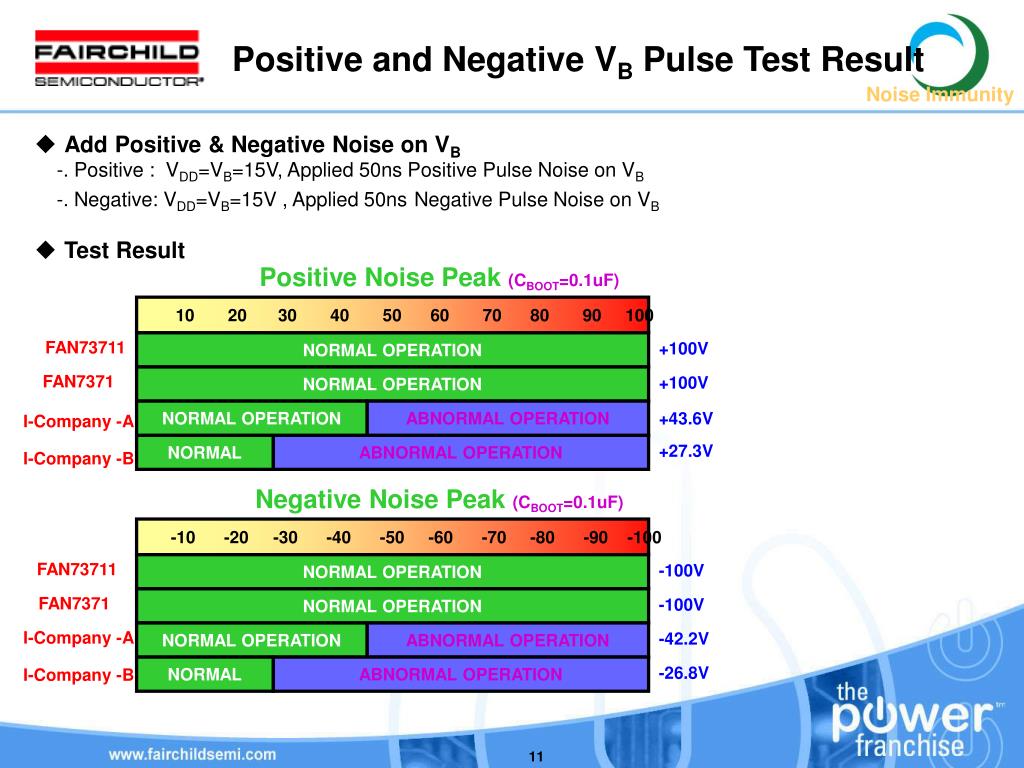

  11. Positive and Negative VB Pulse Test Result Noise Immunity • Add Positive & Negative Noise on VB • -. Positive : VDD=VB=15V, Applied 50ns Positive Pulse Noise on VB -. Negative: VDD=VB=15V , Applied 50nsNegative Pulse Noise on VB • Test Result Positive Noise Peak (CBOOT=0.1uF) 10 20 30 40 50 60 70 80 90 100 FAN73711 NORMAL OPERATION +100V FAN7371 NORMAL OPERATION +100V NORMAL OPERATION ABNORMAL OPERATION +43.6V I-Company-A NORMAL ABNORMAL OPERATION +27.3V I-Company-B Negative Noise Peak (CBOOT=0.1uF) -10 -20 -30 -40 -50 -60 -70 -80 -90 -100 FAN73711 NORMAL OPERATION -100V FAN7371 NORMAL OPERATION -100V I-Company-A NORMAL OPERATION ABNORMAL OPERATION -42.2V NORMAL ABNORMAL OPERATION -26.8V I-Company-B

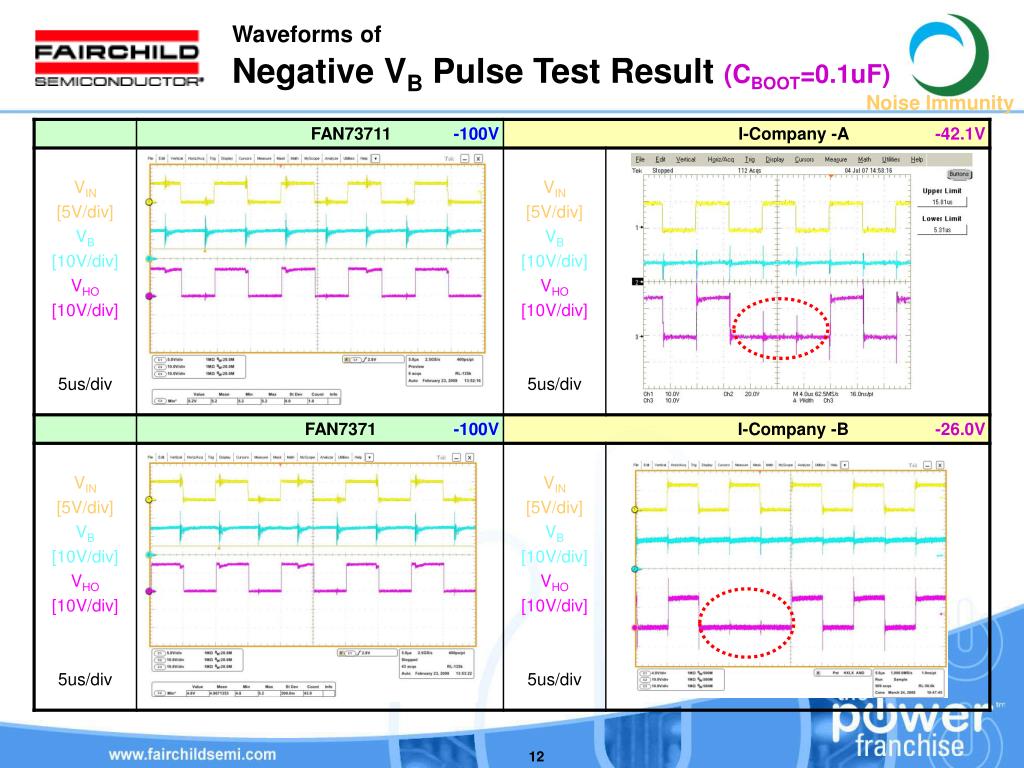

  12. Waveforms of Negative VB Pulse Test Result (CBOOT=0.1uF) Noise Immunity

  13. Negative VS Pulse Test Noise Immunity • Test Condition • -. Pulse generator : HP8114A (100V, 2A) -. Negative : VDD=VB=15V, COM=GND, VS=Negative Pulse (width = 50ns) • Test Circuit B. Negative VS pulse test circuit 13

  14. Negative Noise Peak -10 -20 -30 -40 -50 -60 -70 -80 -90 -100 FAN73711 NORMAL OPERATION NORMAL -75V FAN7371 NORMAL OPERATION ABNORMAL OPERATION -40.1V I-Company N ABNORMAL OPERATION -6.5V Negative VS Pulse & DC Voltage Test Result Noise Immunity • Add Negative Noise on VS • -. Negative : VDD=VB=15V, Applied 50ns Negative Pulse Noise on VS • Test Result Negative DC Voltage -1 -2 -3 -4 -5 -6 -7 -8 -9 -1 0 FAN73711 NORMAL OPERATION -10.09V FAN7371 NORMAL OPERATION No -9.52V I-Company NORMAL OPERATION No Output -6.44V

  15. Waveforms of Negative VS Pulse Test Result Noise Immunity

  16. Product Introduction Appendix A. Product introduction

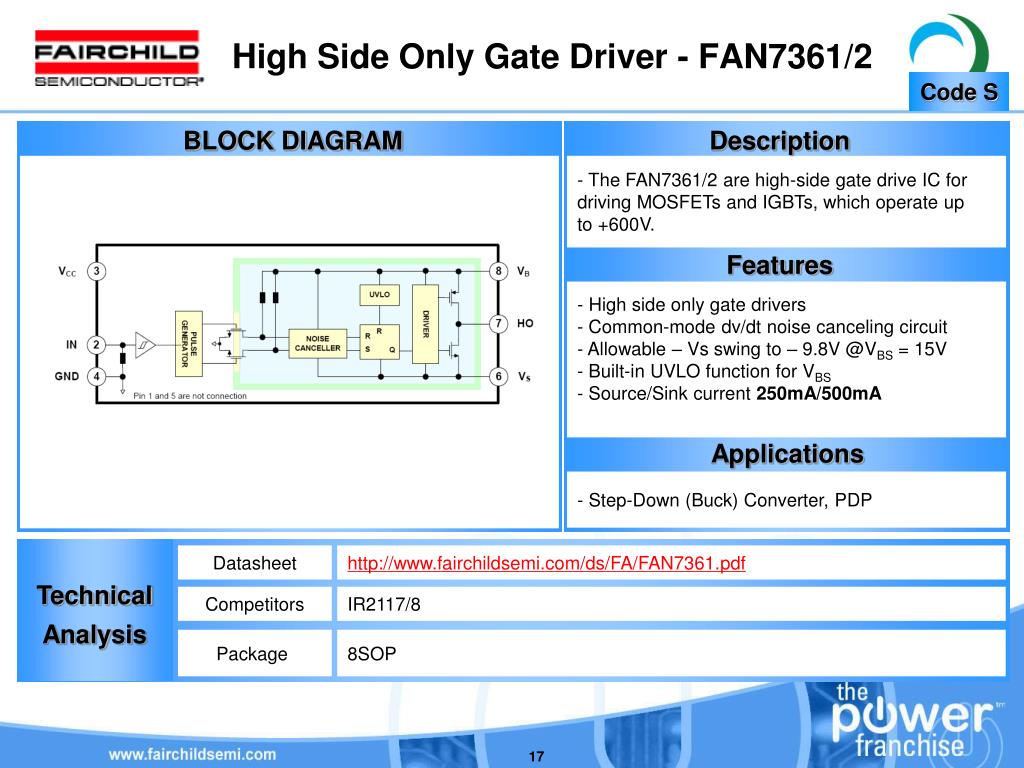

  17. High Side Only Gate Driver- FAN7361/2 Code S BLOCK DIAGRAM Description - The FAN7361/2 are high-side gate drive IC for driving MOSFETs and IGBTs, which operate up to +600V. Features • - High side only gate drivers • Common-mode dv/dt noise canceling circuit • Allowable – Vs swing to – 9.8V @VBS = 15V • Built-in UVLO function for VBS • Source/Sink current 250mA/500mA Applications - Step-Down (Buck) Converter, PDP Datasheet http://www.fairchildsemi.com/ds/FA/FAN7361.pdf Technical Analysis Competitors IR2117/8 Package 8SOP

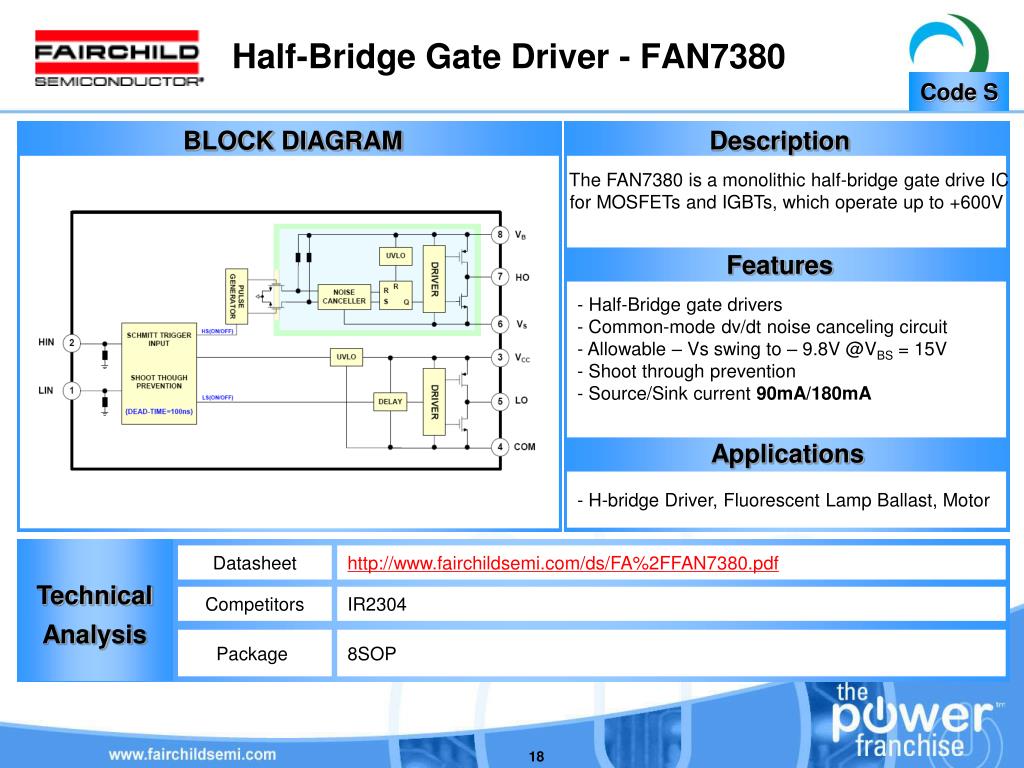

  18. Half-Bridge Gate Driver- FAN7380 Code S BLOCK DIAGRAM Description The FAN7380 is a monolithic half-bridge gate drive IC for MOSFETs and IGBTs, which operate up to +600V Features • - Half-Bridge gate drivers • Common-mode dv/dt noise canceling circuit • Allowable – Vs swing to – 9.8V @VBS = 15V • Shoot through prevention • Source/Sink current 90mA/180mA Applications • H-bridge Driver, Fluorescent Lamp Ballast, Motor Datasheet http://www.fairchildsemi.com/ds/FA%2FFAN7380.pdf Technical Analysis Competitors IR2304 Package 8SOP

  19. High & Low Side Gate Driver- FAN7382 Code S BLOCK DIAGRAM Description • The FAN7382 is a high & low side gate drive IC • for driving MOSFETs and IGBTs, which operate up • to +600V. Features • - High & Low side gate drivers • Common-mode dv/dt noise canceling circuit • Allowable – Vs swing to – 9.8V @VBS = 15V • Built-in UVLO function for VBS and VCC • Source/Sink current 350mA/650mA Applications • Inverter Motor, PDP sustain, SMPS, Ballast, • Induction heating, Electric carts, etc.. Datasheet http://www.fairchildsemi.com/ds/FA%2FFAN7382.pdf Technical Analysis Competitors IR2106, L6387, M63991FP Package 8SOP/DIP, 14SOP

  20. High & Low Side Gate Driver- FAN7842 Code S BLOCK DIAGRAM Description • The FAN7842 is a high & low side gate driver IC • for driving MOSFETs and IGBTs, which operate up • to +200V. Features • - High and Low side gate drivers • - Common-mode dv/dt noise canceling circuit • - Allowable – Vs swing to – 9.8V @VBS = 15V • - Built-in UVLO function for VBS and VCC • Source/Sink current 350mA/650mA Applications • Inverter Motor, PDP sustain, SMPS, Ballast, • Electric carts, etc.. Datasheet http://www.fairchildsemi.com/ds/FA%2FFAN7842.pdf Technical Analysis Competitors IR2106, L6387, M63991FP Package 8SOP

  21. 1-2 Half Bridge Gate Driver- FAN7383 Code S BLOCK DIAGRAM Description • The FAN7383 is 1 input 2output half-bridge gate • driver IC for driving MOSFETs and IGBTs, which • operate up to +600V. Features • - Half-Bridge gate drivers • Common-mode dv/dt noise canceling circuit • Allowable – Vs swing to – 9.8V @VBS = 15V • Separated Source/Sink outputs • Source/Sink current 350mA/650mA • Shut down and dead-time control function Applications • Inverter Motor, SMPS. Datasheet http://www.fairchildsemi.com/ds/FA%2FFAN7383.pdf Technical Analysis Competitors IR2109/21094, L6384 Package 14SOP

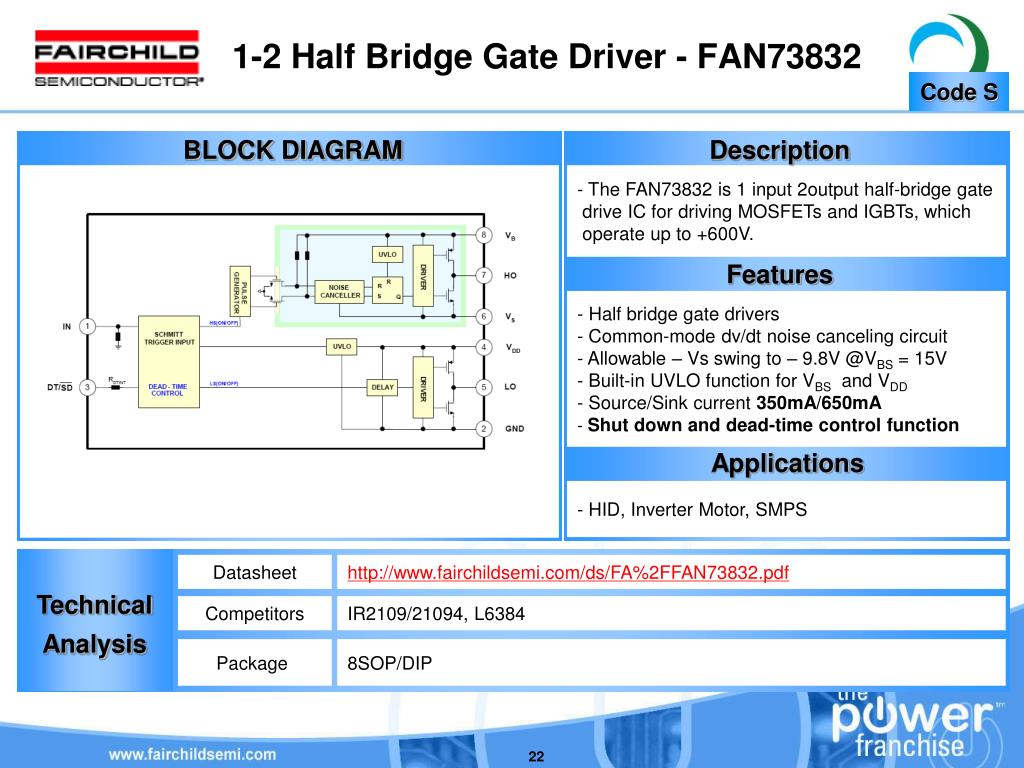

  22. 1-2 Half Bridge Gate Driver- FAN73832 Code S BLOCK DIAGRAM Description • The FAN73832 is 1 input 2output half-bridge gate • drive IC for driving MOSFETs and IGBTs, which • operate up to +600V. Features • - Half bridge gate drivers • Common-mode dv/dt noise canceling circuit • Allowable – Vs swing to – 9.8V @VBS = 15V • Built-in UVLO function for VBS and VDD • Source/Sink current 350mA/650mA • Shut down and dead-time control function Applications • HID, Inverter Motor, SMPS Datasheet http://www.fairchildsemi.com/ds/FA%2FFAN73832.pdf Technical Analysis Competitors IR2109/21094, L6384 Package 8SOP/DIP

  23. Half Bridge Gate Driver- FAN7384 Code S BLOCK DIAGRAM Description • The FAN7384 is half-bridge gate drive IC for • driving MOSFETs and IGBTs, which operate up to • +600V. Features • - Half bridge gate drivers • Common-mode dv/dt noise canceling circuit • Allowable – Vs swing to – 9.8V @VBS = 15V • Built-in UVLO function for VBS and VDD • Source/Sink current 250mA/500mA • Shut down, short circuit protection and fault output Applications • Inverter Motor, SMPS, Electric carts, etc.. Datasheet http://www.fairchildsemi.com/ds/FA%2FFAN7384.pdf Technical Analysis Competitors L6386 Package 14SOP

  24. Dual High-Side Gate Driver - FAN7385 Code S BLOCK DIAGRAM Description • The FAN7385 is an dual high side gate drive • IC for driving MOSFETs and IGBTs, which • operate up to +600V. Features • - Dual high sidegate drivers • Built-in UVLO function for each channel • Allowable – Vs swing to – 9.8V @VBS = 15V • Source/Sink current 350mA/650mA Applications • PDP ERC, Class D Audio amplifier Datasheet http://www.fairchildsemi.com/ds/FA%2FFAN7385.pdf Technical Analysis Competitors M81707FP Package 14-SOP

  25. High Current High-Side Gate Driver - FAN7371 Code S BLOCK DIAGRAM Description • The FAN7371 is an high current high side • gate drive IC for driving MOSFETs and IGBTs, • which operate up to +600V. Features • - High side only gate drivers • Built-in UVLO function for VBS • Built-in Shunt regulator for VDD and VBS • Allowable – Vs swing to – 9.8V @VBS = 15V • Source/Sink current 4.0A/4.0A Applications • PDP Sustain and ERC, Class D Audio amplifier http://www.fairchildsemi.com/ds/FA%2FFAN7371.pdf Datasheet Technical Analysis Competitors IRS21851 PKG 8SOP

  26. 3-Phase Half Bridge Gate Driver IC -FAN7388 Code S BLOCK DIAGRAM Description The FAN7388 is a monolithic 3-phase half-bridge gate drive IC designed for high voltage, high speed driving MOSFETs and IGBTs operating up to +600V. Features • - 3-Phase half-bridge gate drivers • - Common-mode dv/dt noise canceling circuit • - Allowable – Vs swing to – 9.8V @VBS = 15V • - Built-in UVLO function for VBS and VDD • Shoot through prevention with dead-time • Sourcing/Sinking Current 350mA/650mA Applications • 3-Phase Motor Driver, http://www.fairchildsemi.com/ds/FA%2FFAN7388.pdf Datasheet Technical Analysis Competitors - IR2131, HIP4086 Package - 20SOP

  27. High Current High & Low Side Gate Driver IC-FAN7390 Code S BLOCK DIAGRAM Description The FAN7390 can drive high speed MOSFETs and IGBTs that operate up to +600V. It have a buffered output stage with all NMOS transistors designed for high pulse current driving capability Features - High & Low side gate drivers - Common-mode dv/dt noise canceling circuit - Allowable – Vs swing to – 9.8V @VBS = 15V - Built-in UVLO function for VBS and VDD - 3.3V and 5V Input logic compatible - Sourcing/ Sinking current4.5A/4.5A Applications • H-Bridge Driver, SMPS, PDP Sustain Driver Datasheet http://www.fairchildsemi.com/ds/FA%2FFAN7390.pdf Technical Analysis Competitors - IRS2186 Package - 8SOP, 8DIP, 14SOP

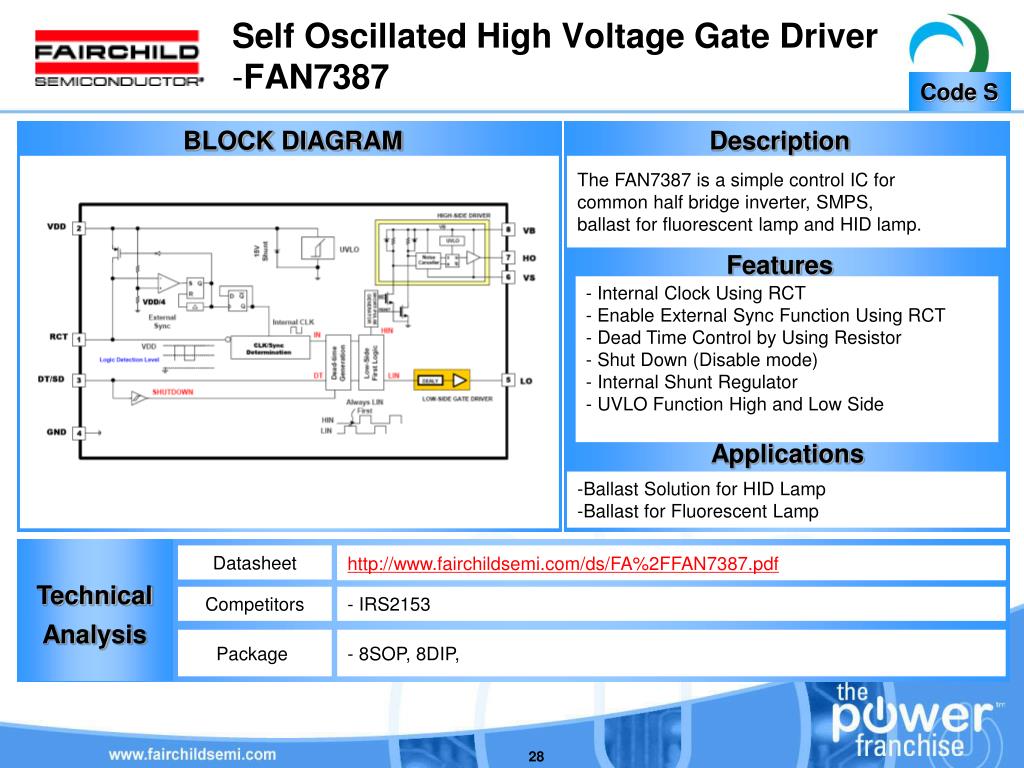

  28. Self Oscillated High Voltage Gate Driver-FAN7387 Code S BLOCK DIAGRAM Description The FAN7387 is a simple control IC for common half bridge inverter, SMPS, ballast for fluorescent lamp and HID lamp. Features • Internal Clock Using RCT • Enable External Sync Function Using RCT • - Dead Time Control by Using Resistor • - Shut Down (Disable mode) • - Internal Shunt Regulator • - UVLO Function High and Low Side Applications -Ballast Solution for HID Lamp -Ballast for Fluorescent Lamp Datasheet http://www.fairchildsemi.com/ds/FA%2FFAN7387.pdf Technical Analysis Competitors - IRS2153 Package - 8SOP, 8DIP,

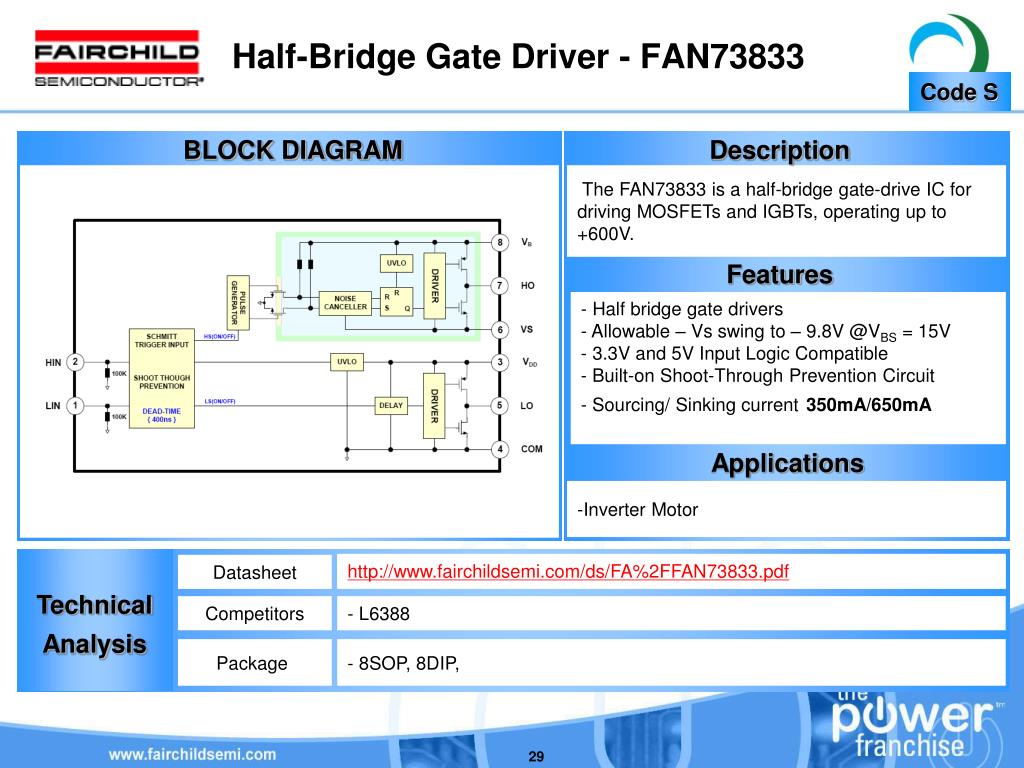

  29. Half-Bridge Gate Driver- FAN73833 Code S BLOCK DIAGRAM Description The FAN73833 is a half-bridge gate-drive IC for driving MOSFETs and IGBTs, operating up to +600V. Features • - Half bridge gate drivers • - Allowable – Vs swing to – 9.8V @VBS = 15V • - 3.3V and 5V Input Logic Compatible • Built-on Shoot-Through Prevention Circuit • Sourcing/ Sinking current350mA/650mA Applications -Inverter Motor http://www.fairchildsemi.com/ds/FA%2FFAN73833.pdf Datasheet Technical Analysis Competitors - L6388 Package - 8SOP, 8DIP,

  30. Introduction of New HV Gate Drive IC

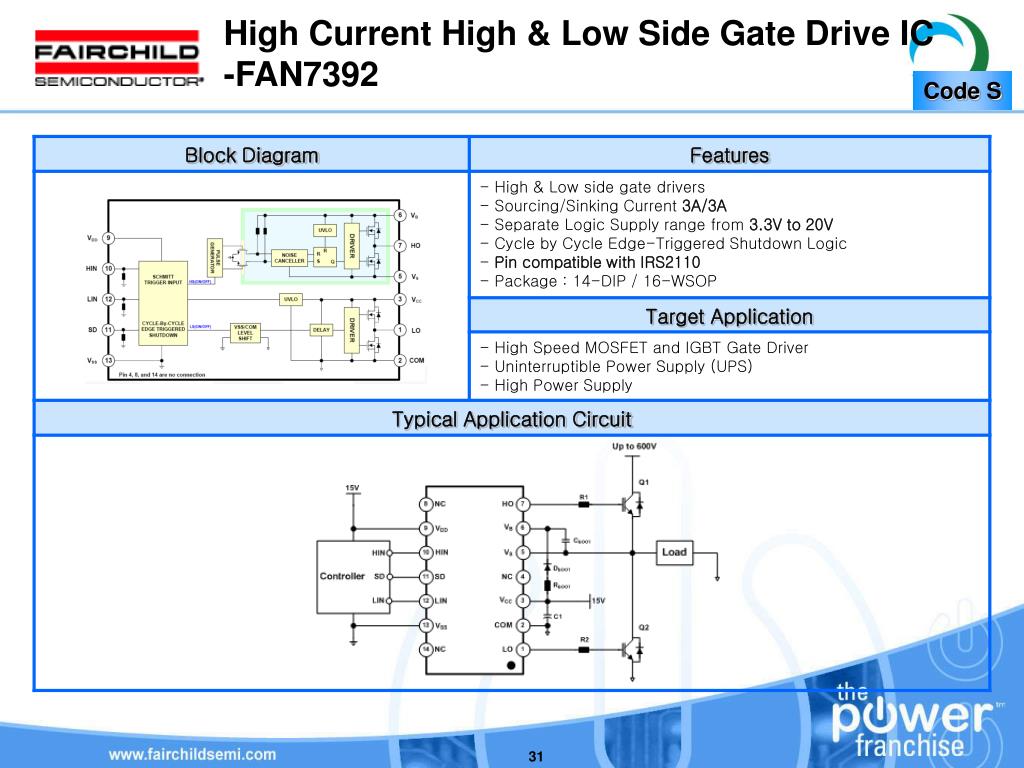

  31. High Current High & Low Side Gate Drive IC-FAN7392 Code S

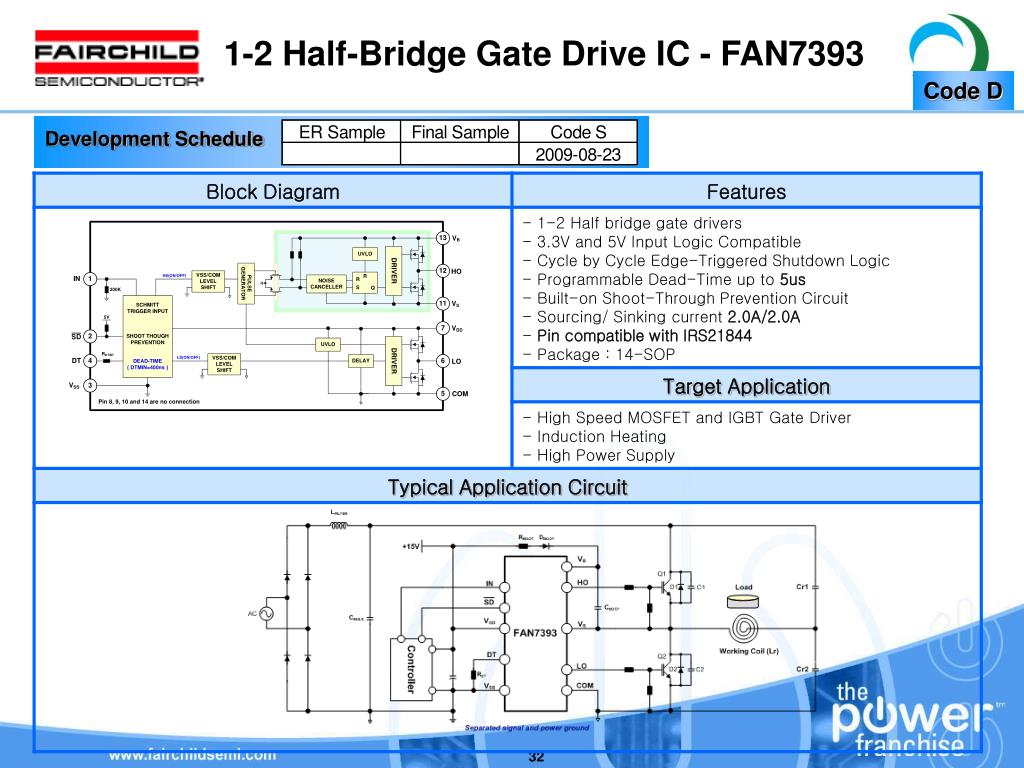

  32. Development Schedule 1-2 Half-Bridge Gate Drive IC- FAN7393 Code D

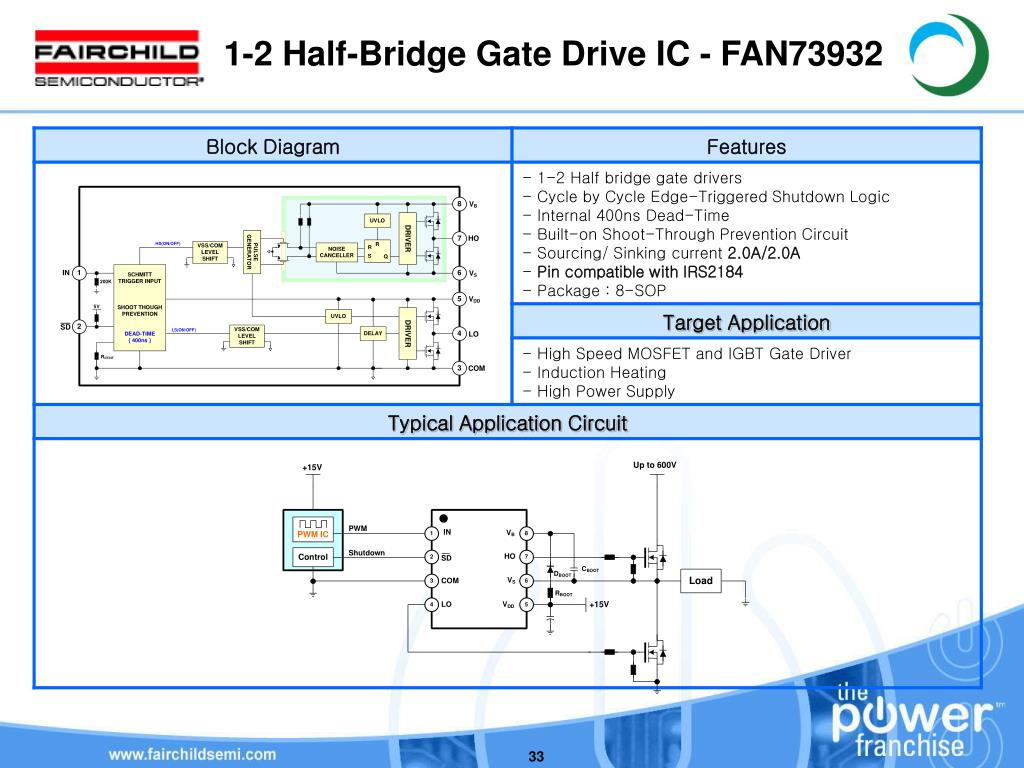

  33. 1-2 Half-Bridge Gate Drive IC- FAN73932

  34. Development Schedule Half-Bridge Gate Drive IC- FAN73933 Code D

  35. Development Schedule 3-Phase Half-Bridge Gate Drive IC- FAN7389 Code D

  36. High Current High-Side Gate Drive IC - FAN73711

  37. FAN7371 and FAN73711 Comparison • What’s different • The FAN73711 is a new high-side gate drive IC that replace the FAN7371 and are pin-to-pin compatible. • Strong performance for noise immunity compare with FAN7371 and IRS2185x • Dynamic Electrical Characteristics • There are no changes in the dynamic electrical characteristics. • Electrical Characteristics • Compare with FAN7371, • The typical value for IPBS was significantly decreased. • The shunt regulator clamping capability was improved.

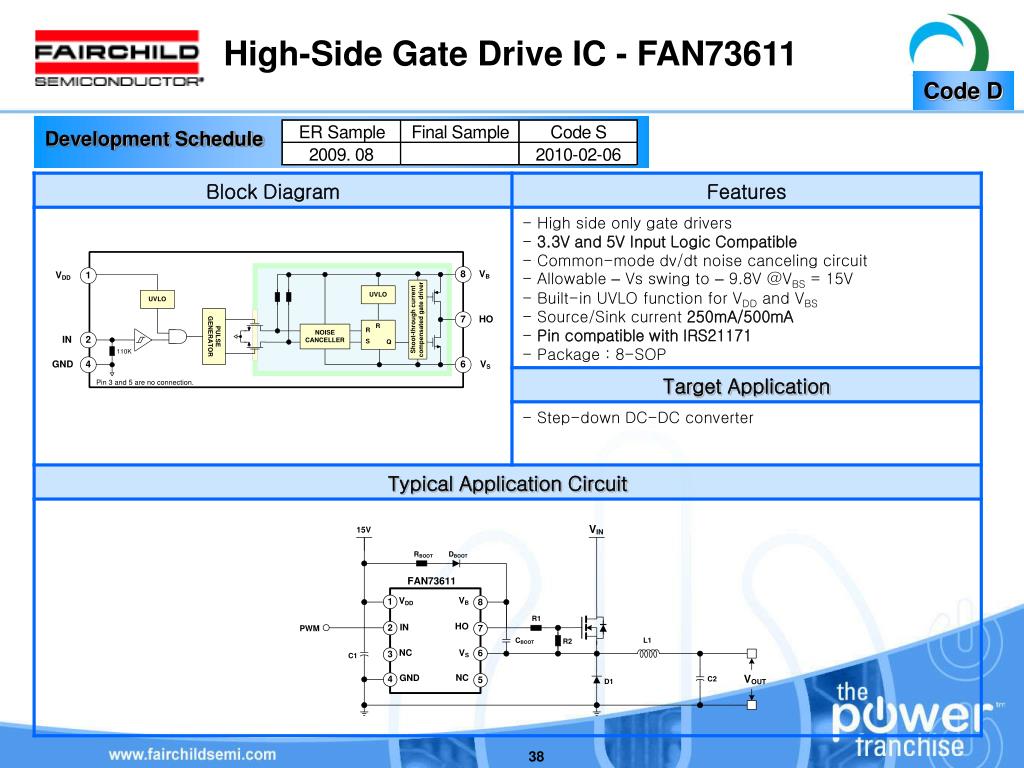

  38. Development Schedule High-Side Gate Drive IC - FAN73611 Code D

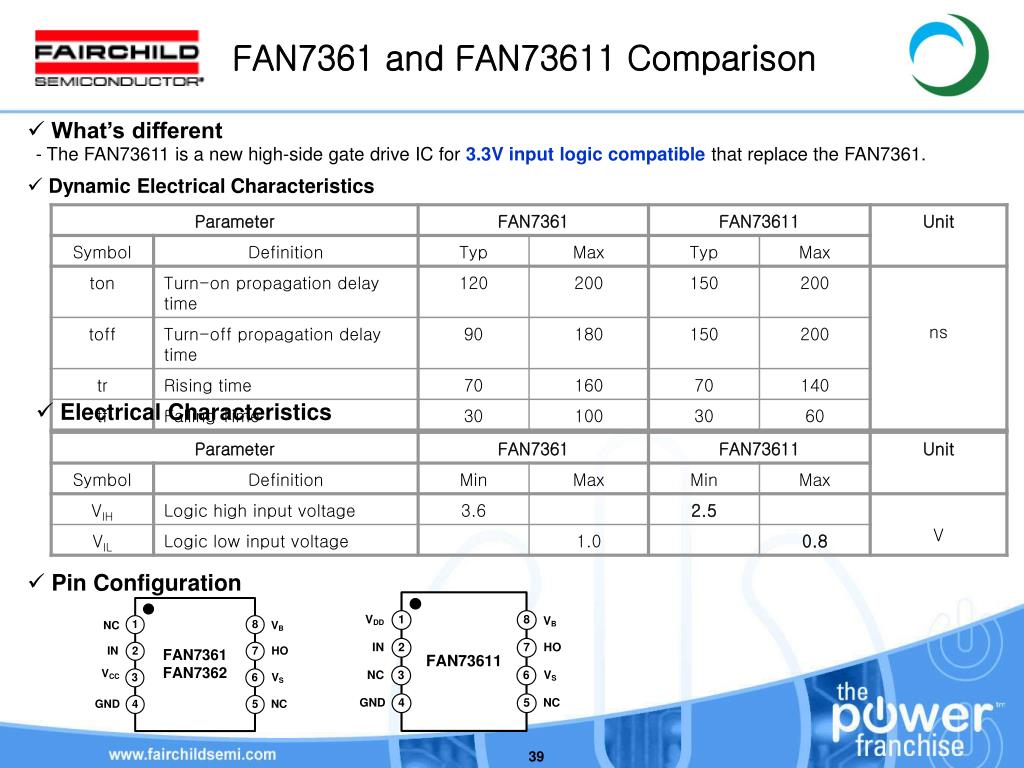

  39. FAN7361 and FAN73611 Comparison • What’s different • The FAN73611 is a new high-side gate drive IC for 3.3V input logic compatible that replace the FAN7361. • Dynamic Electrical Characteristics • Electrical Characteristics • Pin Configuration
