  1. Ammi Blankrot April 26, 2011 Reduced Instruction Set Computing (RISC)

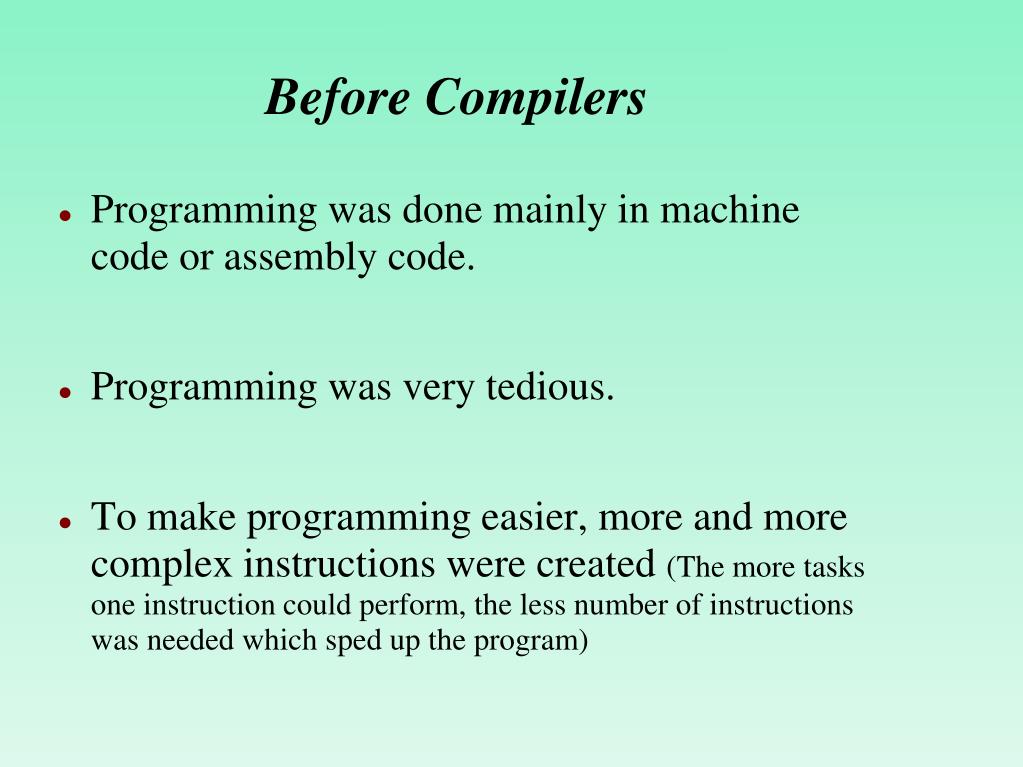

  2. Before Compilers • Programming was done mainly in machine code or assembly code. • Programming was very tedious. • To make programming easier, more and more complex instructions were created (The more tasks one instruction could perform, the less number of instructions was needed which sped up the program)

  3. Computers had very little memory • A lot of information was packed into the programs • Instructions of variable size, instructions which perform multiple operations, instructions that both moved data and performed data computations, and therefore instructions that varied in cycle times • The ability to pack instructions densely was considered more important than instruction decodability

  4. Register count was small • Bits in registers are more expensive than external memory, and would have been difficult to include in large numbers due to technology limitations • More registers require more instruction bits which requires more memory which was expensive at the time

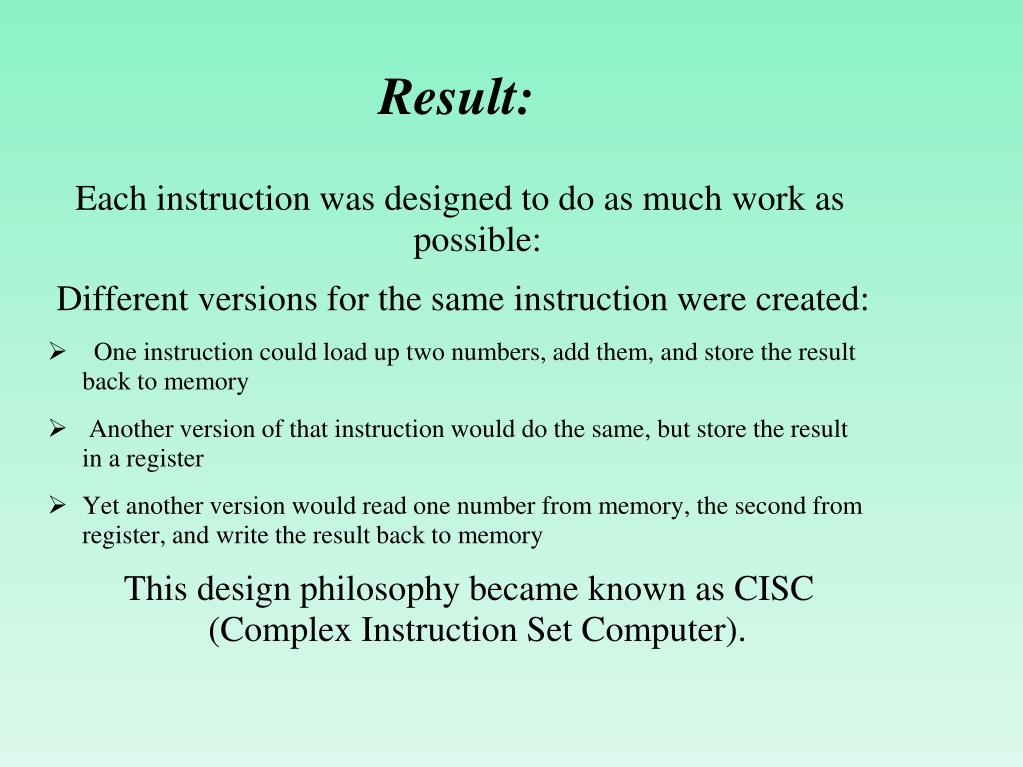

  5. Result: • Each instruction was designed to do as much work as possible: • Different versions for the same instruction were created: • One instruction could load up two numbers, add them, and store the result back to memory • Another version of that instruction would do the same, but store the result in a register • Yet another version would read one number from memory, the second from register, and write the result back to memory • This design philosophy became known as CISC (Complex Instruction Set Computer).

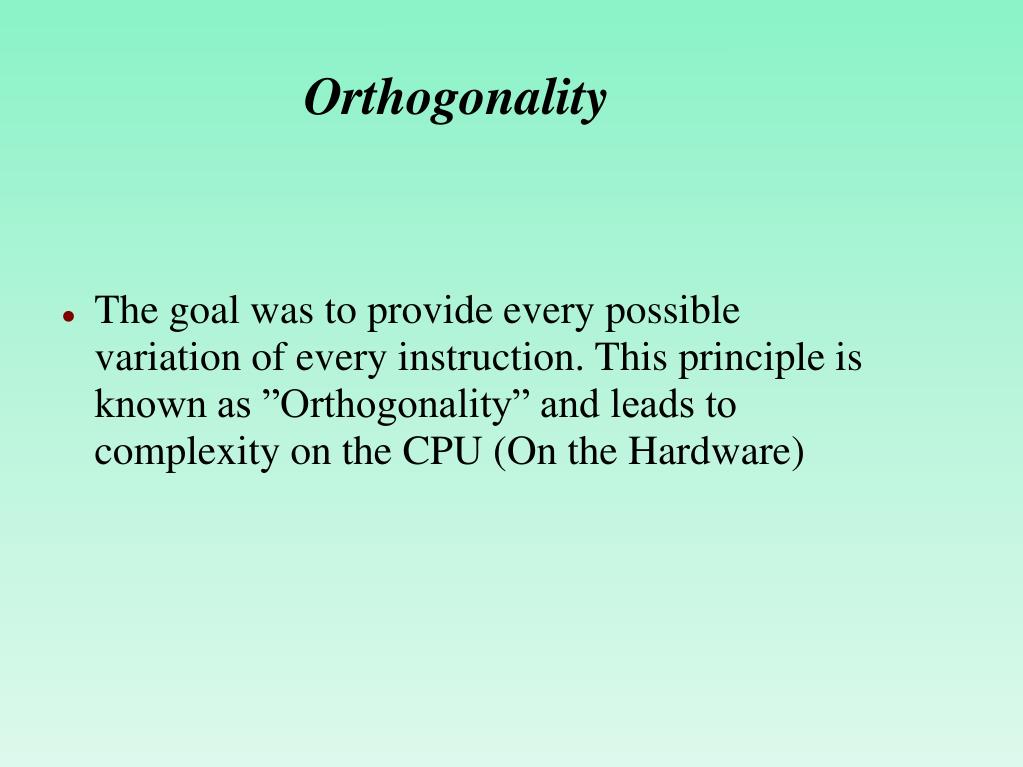

  6. Orthogonality • The goal was to provide every possible variation of every instruction. This principle is known as ”Orthogonality” and leads to complexity on the CPU (On the Hardware)

  7. Compilers Arrive • A compiler is a computer program (or set of programs) that transforms source code written in a programming language (High Level) into another computer language (Low level, often having a binary form known as object code). The most common reason for wanting to transform source code is to create an executable program. • The greatest benefit to the use of compilers is the ability to re-use code. • The majority of programming began to shift more towards software and less in hardware

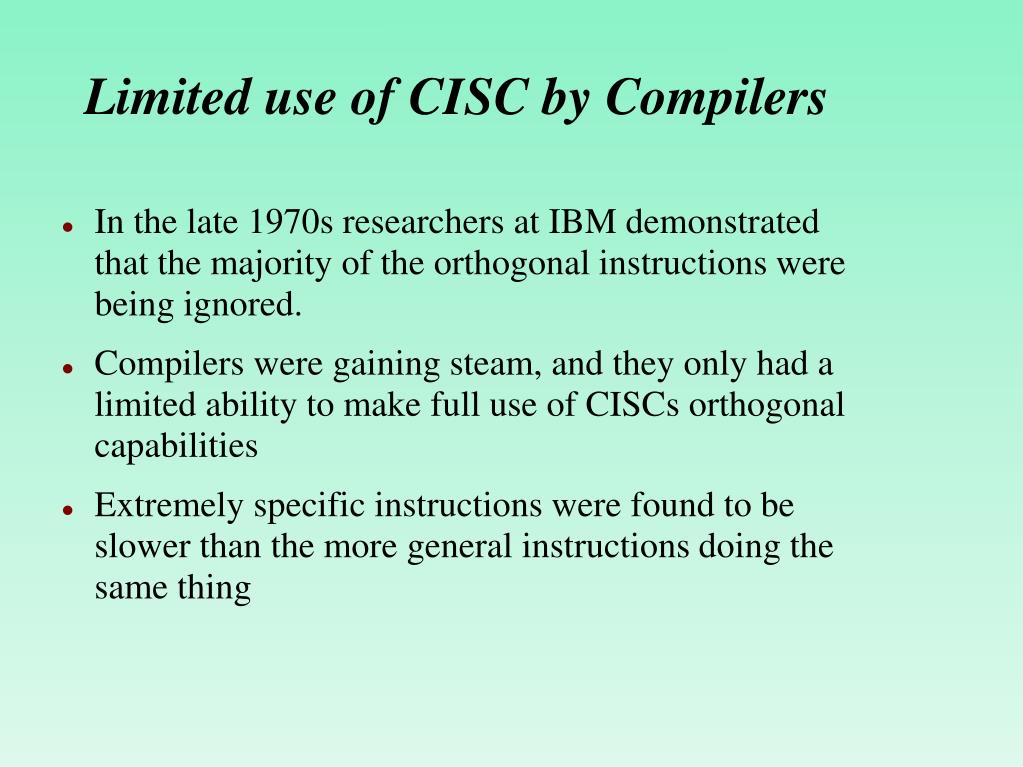

  8. Limited use of CISC by Compilers • In the late 1970s researchers at IBM demonstrated that the majority of the orthogonal instructions were being ignored. • Compilers were gaining steam, and they only had a limited ability to make full use of CISCs orthogonal capabilities • Extremely specific instructions were found to be slower than the more general instructions doing the same thing

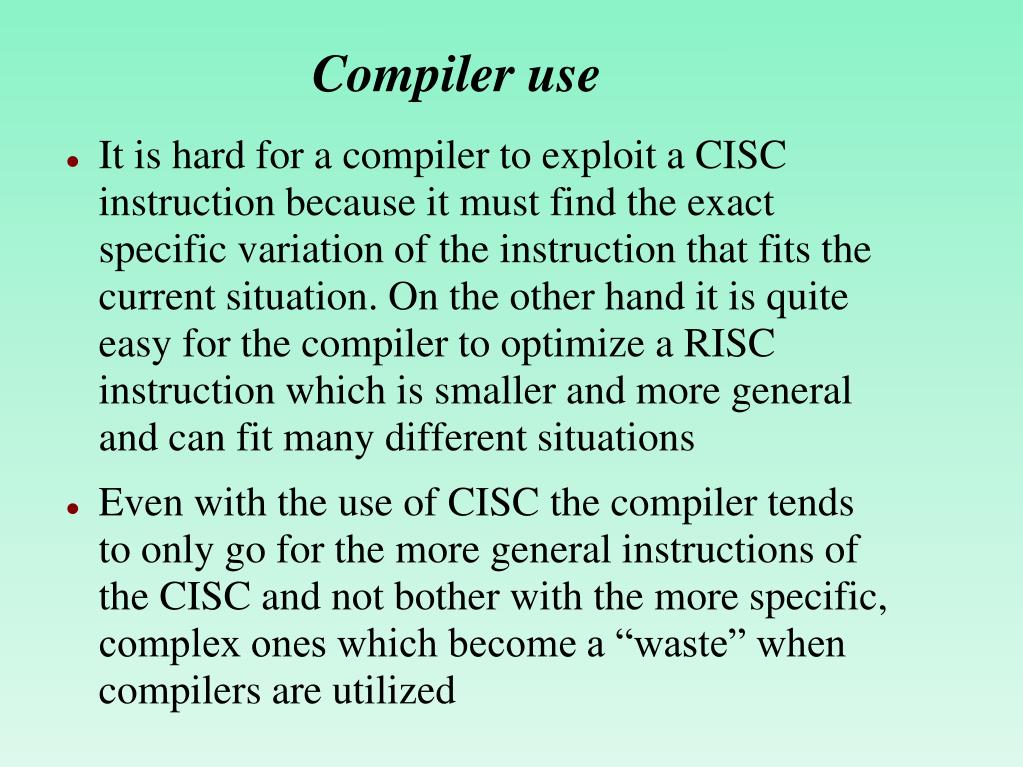

  9. Compiler use • It is hard for a compiler to exploit a CISC instruction because it must find the exact specific variation of the instruction that fits the current situation. On the other hand it is quite easy for the compiler to optimize a RISC instruction which is smaller and more general and can fit many different situations • Even with the use of CISC the compiler tends to only go for the more general instructions of the CISC and not bother with the more specific, complex ones which become a “waste” when compilers are utilized

  10. CPU speedup • CPUs started to run faster than the memory they used • To support the higher CPU speeds, more registers were needed • Additional registers would require more space on the chip • This space could be created by reducing the complexity of the CPU

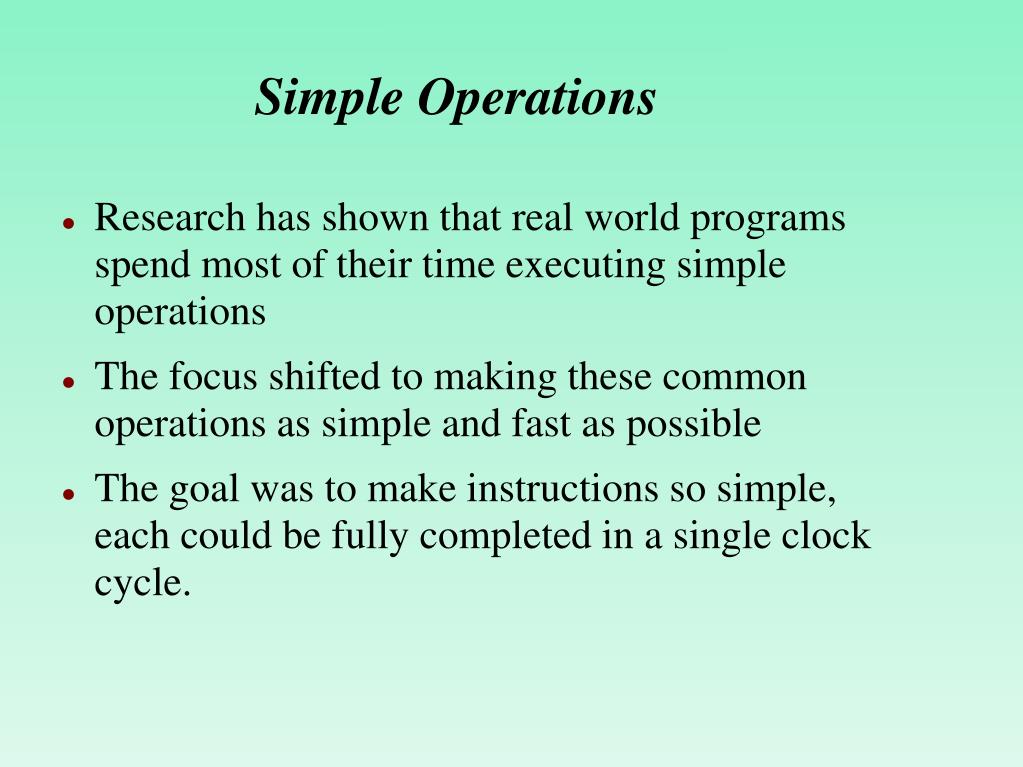

  11. Simple Operations • Research has shown that real world programs spend most of their time executing simple operations • The focus shifted to making these common operations as simple and fast as possible • The goal was to make instructions so simple, each could be fully completed in a single clock cycle.

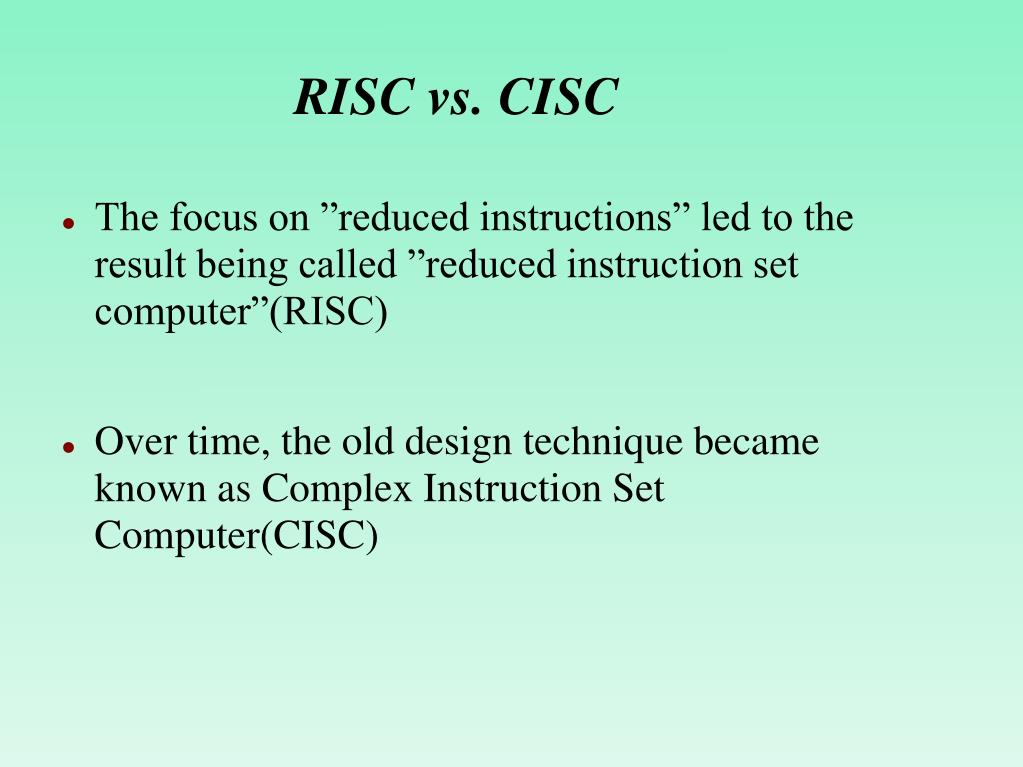

  12. RISC vs. CISC • The focus on ”reduced instructions” led to the result being called ”reduced instruction set computer”(RISC) • Over time, the old design technique became known as Complex Instruction Set Computer(CISC)

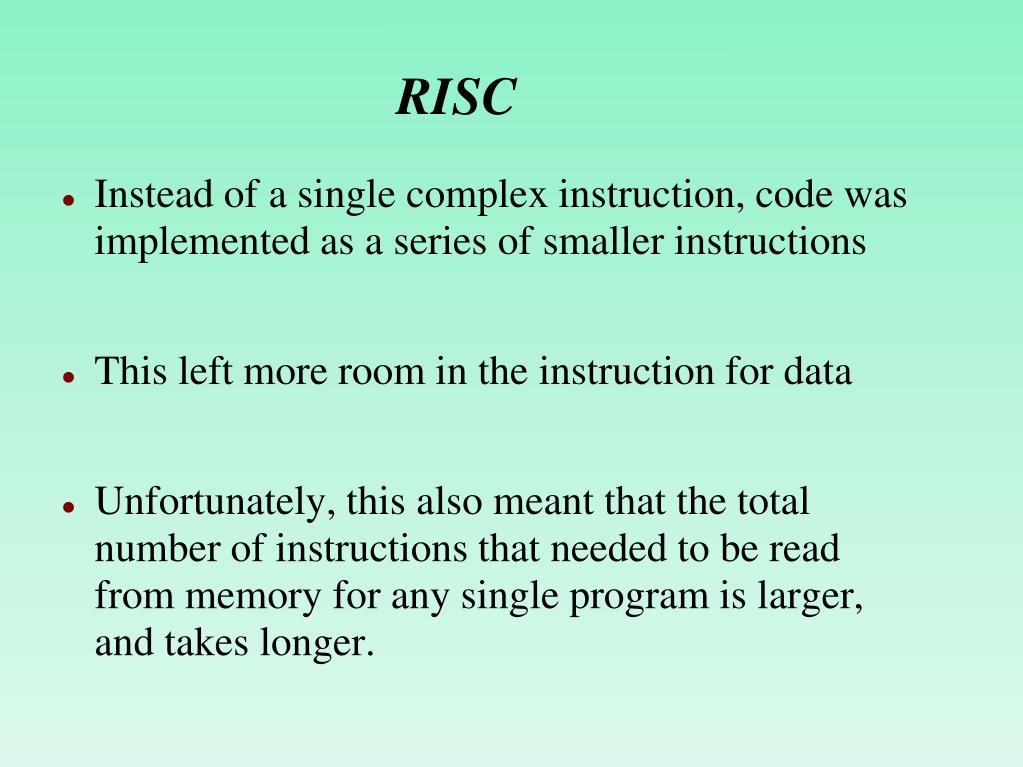

  13. RISC • Instead of a single complex instruction, code was implemented as a series of smaller instructions • This left more room in the instruction for data • Unfortunately, this also meant that the total number of instructions that needed to be read from memory for any single program is larger, and takes longer.

  14. More Speed • In an attempt to speed up processors, the ideas of having pipelined and superscalar processors were conceived • Because of the streamlining of the RISC architecture, RISC chips easily took advantage of these new techniques • The complexity of CISC architecture kept CISC chips from immediately taking advantage of the new technology.

  15. Side by Side CISC RISC Complexity on software side Register-to-Register : load and store are separate instructions More instructions necessary to provide same functionality • Complexity found in hardware • Memory-to-memory : load and store functionality found in a single instruction • Less lines of code needed to provide same functionality

  16. All instructions of a uniform size with more or less uniform timing cycle Instructions are easier to decode because of how they are set up-ex: opcode will always be in the same place Capable of using pipelining by design Side by Side (Continued) RISC CISC • Instructions not always the same size • Instructions are difficult to decode because instructions are not uniform • To make use of pipelining, instructions need to be broken down to smaller components at processor level

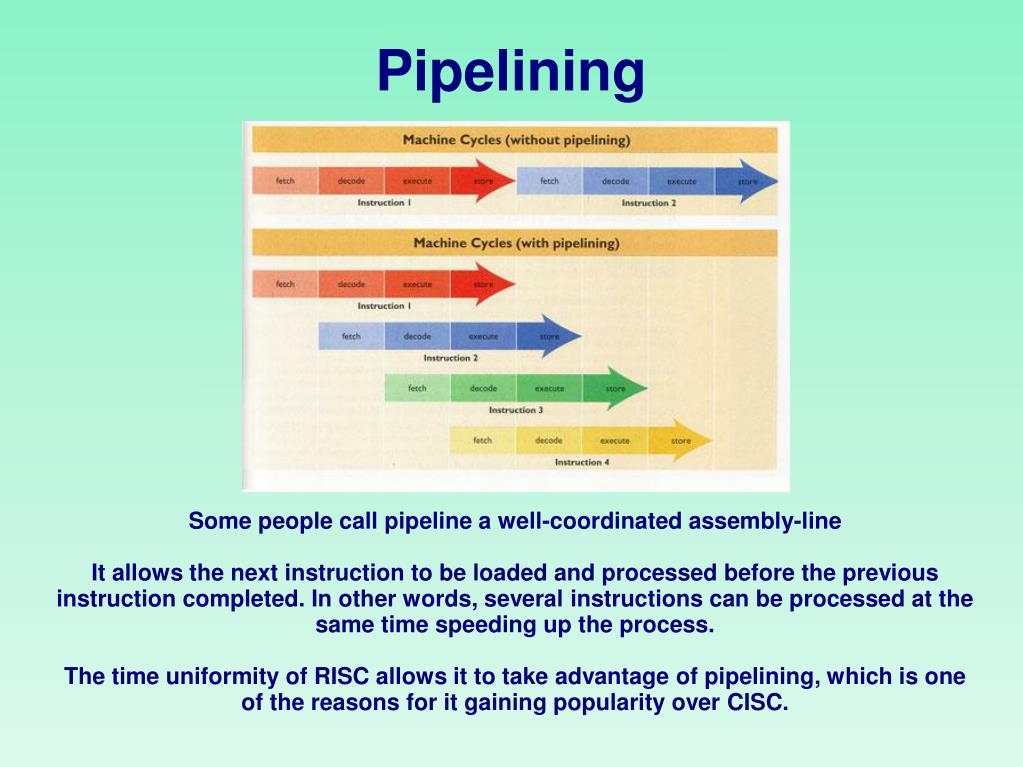

  17. Pipelining Some people call pipeline a well-coordinated assembly-line It allows the next instruction to be loaded and processed before the previous instruction completed. In other words, several instructions can be processed at the same time speeding up the process. The time uniformity of RISC allows it to take advantage of pipelining, which is one of the reasons for it gaining popularity over CISC.

  18. Analogy: Imagine Michael Jordan playing against a team all by himself. Who will win ? Possibilities: The team is not very well trained or coordinated and the timing of their actions are inconsistent. Michael Jordan is so talented and could probably win the game The team is very well trained and coordinated. They work well together and have been coached very well. None of them is quite as talented as Michael Jordan but since they know how work together as a team, more than likely they will win the game

  19. Analogy (continued) • Without pipelining CISC would win over RISC just like Michael Jordan would win over an uncoordinated team. A CISC instruction, like Michael Jordan, is very “talented”: One large robust instruction that can achieve many things • With pipelining RISC would win over CISC just like a well trained team would overcome the Michael Jordan of CISC being able to more efficiently carry out the instructions with each one carrying out a simple task

  20. RISC (A general definition from the Book) • A large number of general purpose registers and /or the use of compiler technology to optimize register usage (A greater number of simpler instructions requires a greater number of registers to hold temporary data and instructions) • A limited and simple instruction set • An emphasis on optimizing the instruction pipeline

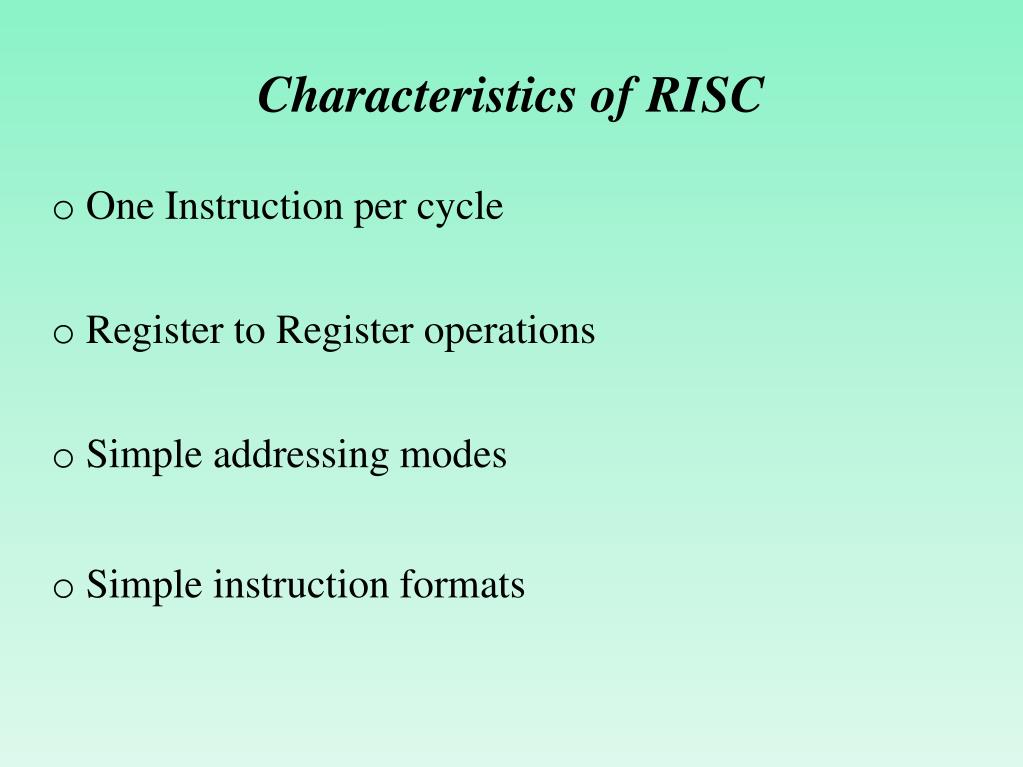

  21. Characteristics of RISC • One Instruction per cycle • Register to Register operations • Simple addressing modes • Simple instruction formats

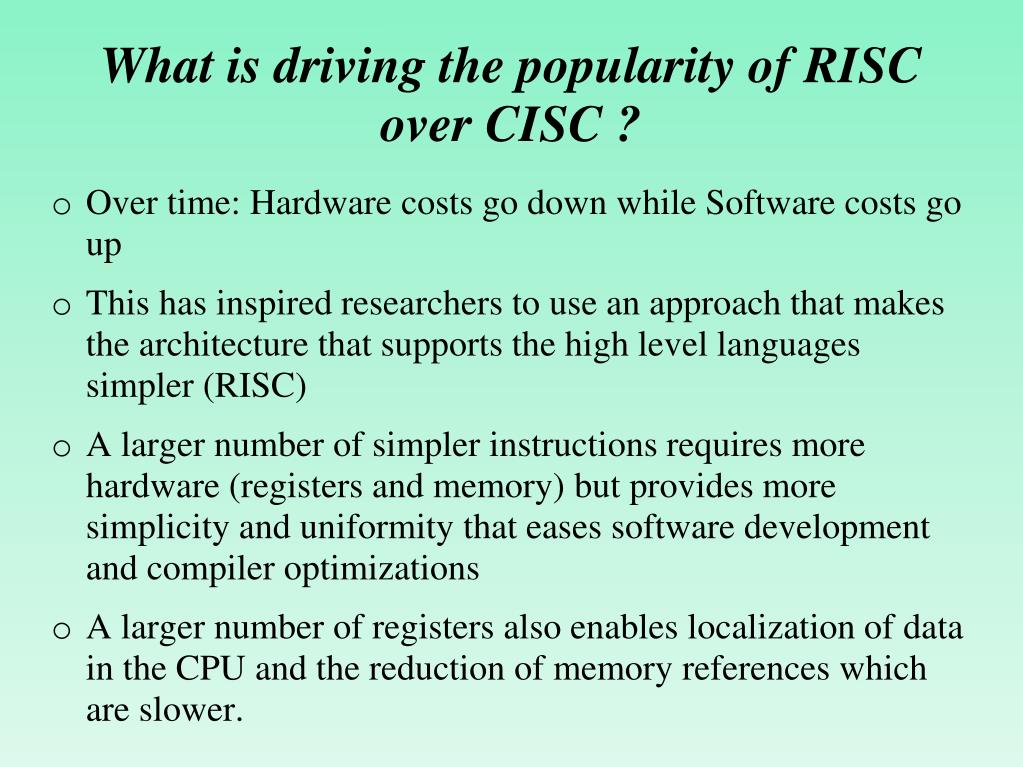

  22. What is driving the popularity of RISC over CISC ? • Over time: Hardware costs go down while Software costs go up • This has inspired researchers to use an approach that makes the architecture that supports the high level languages simpler (RISC) • A larger number of simpler instructions requires more hardware (registers and memory) but provides more simplicity and uniformity that eases software development and compiler optimizations • A larger number of registers also enables localization of data in the CPU and the reduction of memory references which are slower.

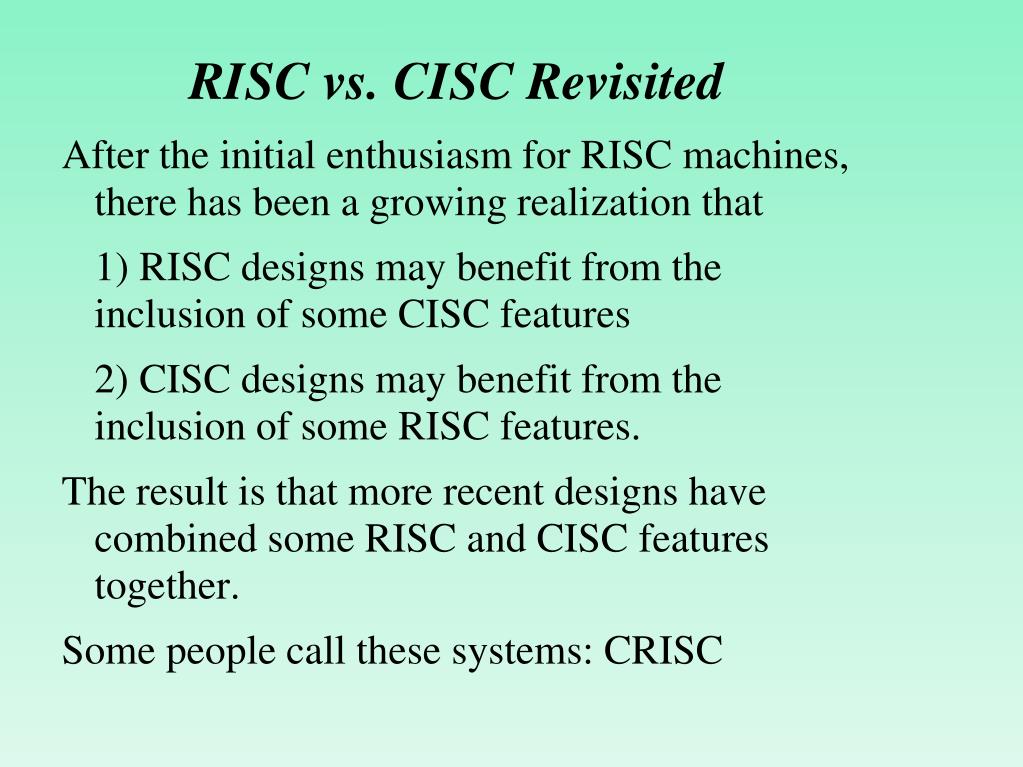

  23. RISC vs. CISC Revisited • After the initial enthusiasm for RISC machines, there has been a growing realization that • 1) RISC designs may benefit from the inclusion of some CISC features • 2) CISC designs may benefit from the inclusion of some RISC features. • The result is that more recent designs have combined some RISC and CISC features together. • Some people call these systems: CRISC

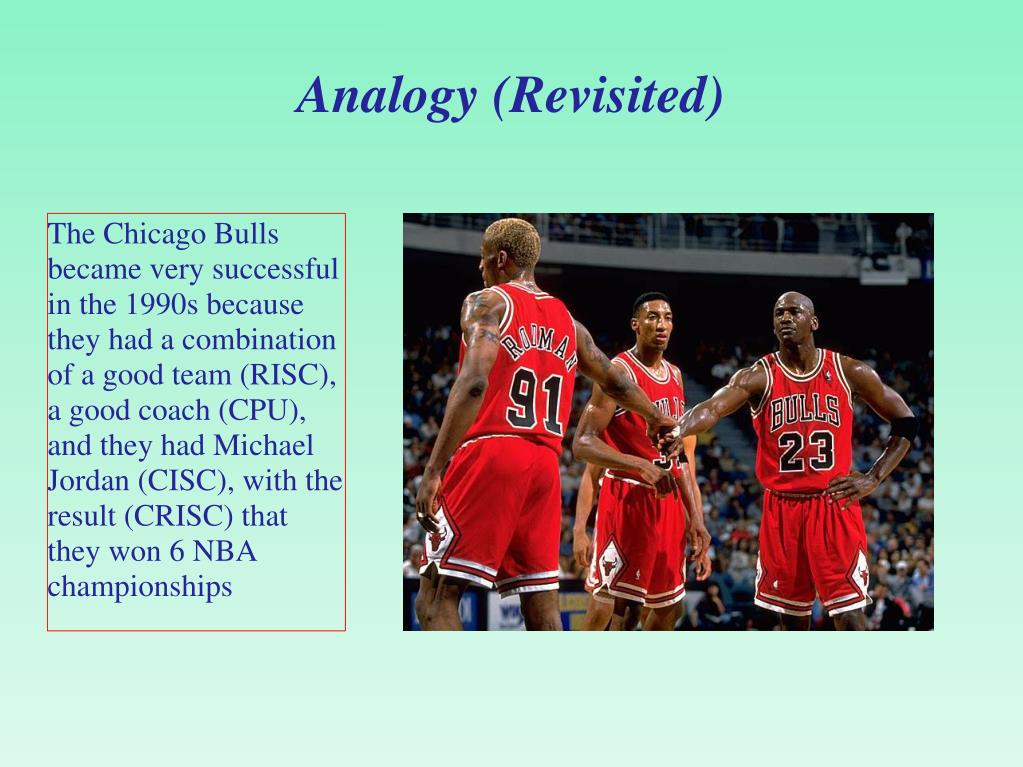

  24. Analogy (Revisited) • The Chicago Bulls became very successful in the 1990s because they had a combination of a good team (RISC), a good coach (CPU), and they had Michael Jordan (CISC), with the result (CRISC) that they won 6 NBA championships

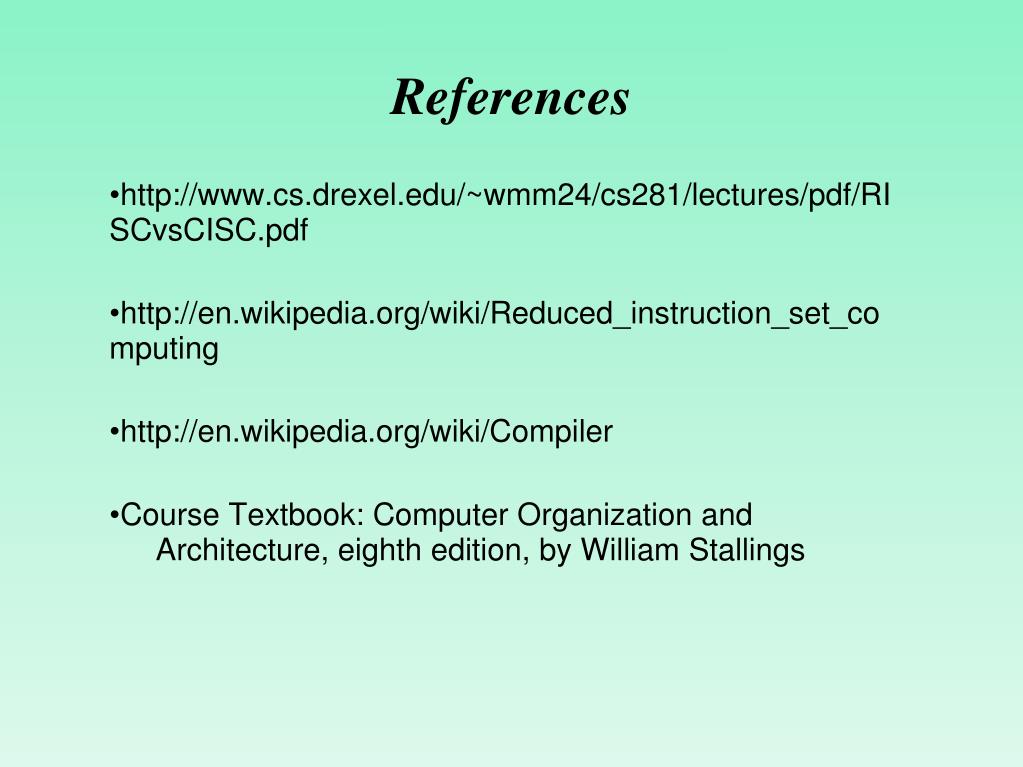

  25. References • http://www.cs.drexel.edu/~wmm24/cs281/lectures/pdf/RISCvsCISC.pdf • http://en.wikipedia.org/wiki/Reduced_instruction_set_computing • http://en.wikipedia.org/wiki/Compiler • Course Textbook: Computer Organization and Architecture, eighth edition, by William Stallings
