Presentation Transcript
slide1

GEM production facility upgrade

Piotr Bielówka

RD51, CERN, Dec 2012

slide2

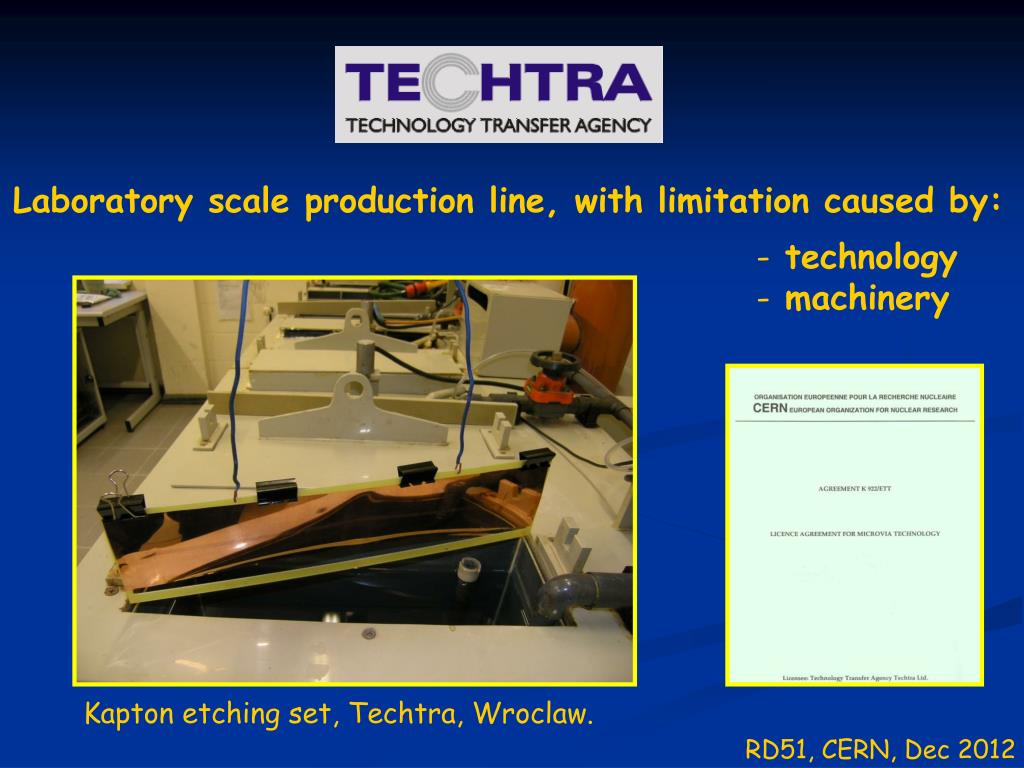

Laboratory scale production line, with limitation caused by:

  • technology
  • machinery

Kapton etching set, Techtra, Wroclaw.

RD51, CERN, Dec 2012

slide3

Steps towards big GEMs:

  • to implement „single mask” technique - CERN
  • to acquirededicated set of PCB machines - WPT

Access to EU funds through Wroclaw Technology Park (WPT) - non profit organization.

RD51, CERN, Dec 2012

slide4

WPT support for the implementation

of a research and development project

Cost comparison

slide5

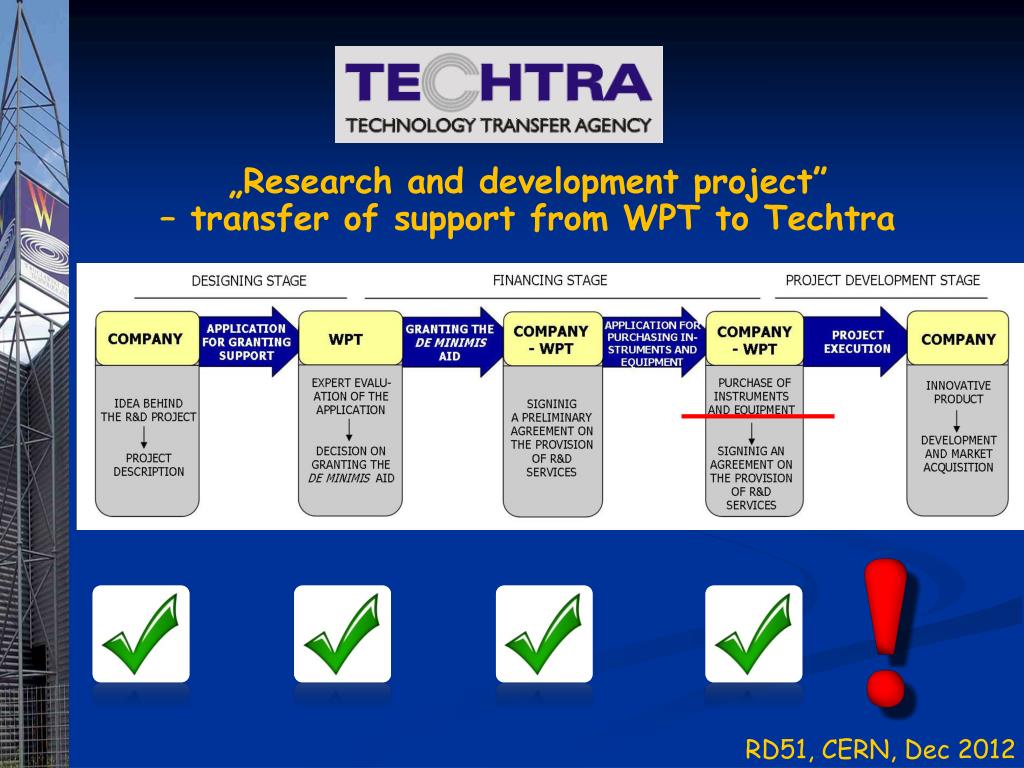

„Research and development project”

– transfer of support from WPT to Techtra

RD51, CERN, Dec 2012

slide6

WPT

Tendering procedure inconvenient for suppliers:

TECHTRA

External Validation

Board

BROKER

CERN

PRODUCER

PRODUCER

PRODUCER

PRODUCER

RD51, CERN, Dec 2012

slide7

EU tendering rules means:

  • long lasting procedure
  • bidders claims

RD51, CERN, Dec 2012

slide8

Delivery Schedule

  • „Delivery”:
  • Installation
  • Filling with consumables
  • First run:“GEM like boards”
  • Training:additional human resources

RD51, CERN, Dec 2012

slide9

1

Reserve

2

3

Room 1 – 48 m2

Room 2 – 48 m2

Room 3 – 86 m2

Total – 182 m2

RD51, CERN, Dec 2012

slide10

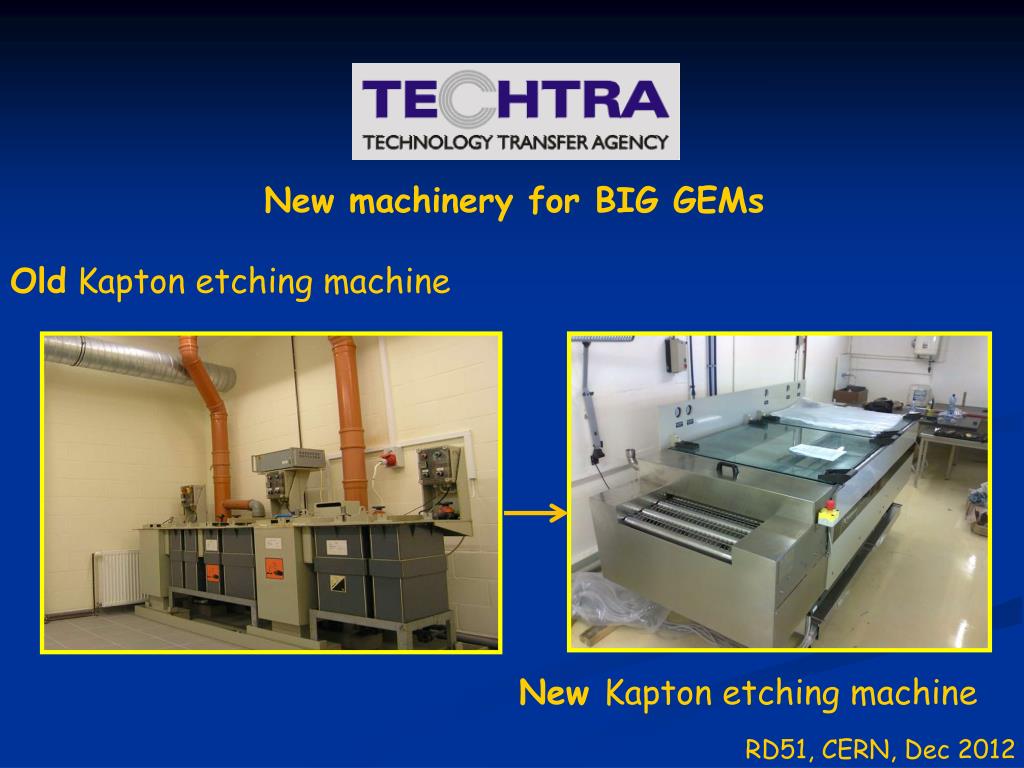

New machinery for BIG GEMs

Old Kapton etching machine

New Kapton etching machine

RD51, CERN, Dec 2012

slide11

Single mask technology

implementation

New developer

Old developing

and etching set

New Cuetcher

RD51, CERN, Dec 2012

slide12

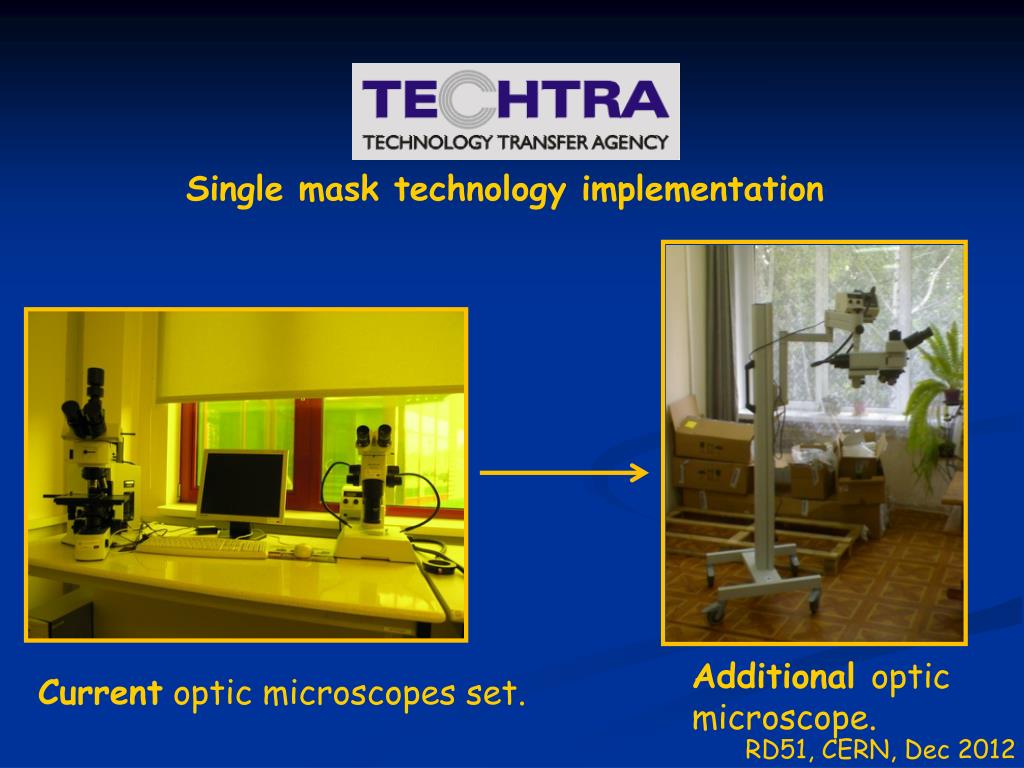

Single mask technology implementation

Additional optic microscope.

Current optic microscopes set.

RD51, CERN, Dec 2012

slide13

Preliminary „Single side” Kapton etching test :

Problems caused by:

- Cleaning procedure

- High etching reagents concentration

RD51, CERN, Dec 2012

slide14

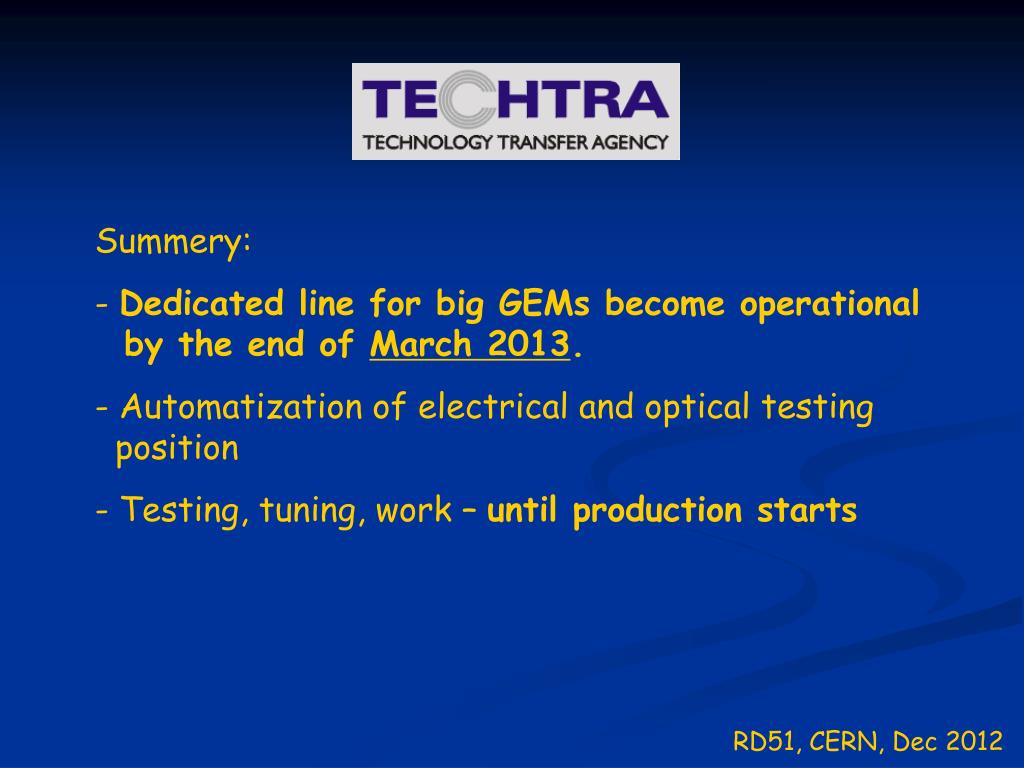

Summery:

- Dedicated line for big GEMs become operational by the end of March 2013.

- Automatization of electrical and optical testing position

- Testing, tuning, work – until production starts

RD51, CERN, Dec 2012
