  1. 成功大學醫學院核子醫學科部 李碧芳 (Bi-Fang Lee)

  2. SPECT Planar scintigraphy Gamma Camera

  3. Nuclear Brain Imaging • Clinical indication • Cerebrovascular disease • Epilepsy • Dementia • Brain death • CSF flow dynamic study • Other

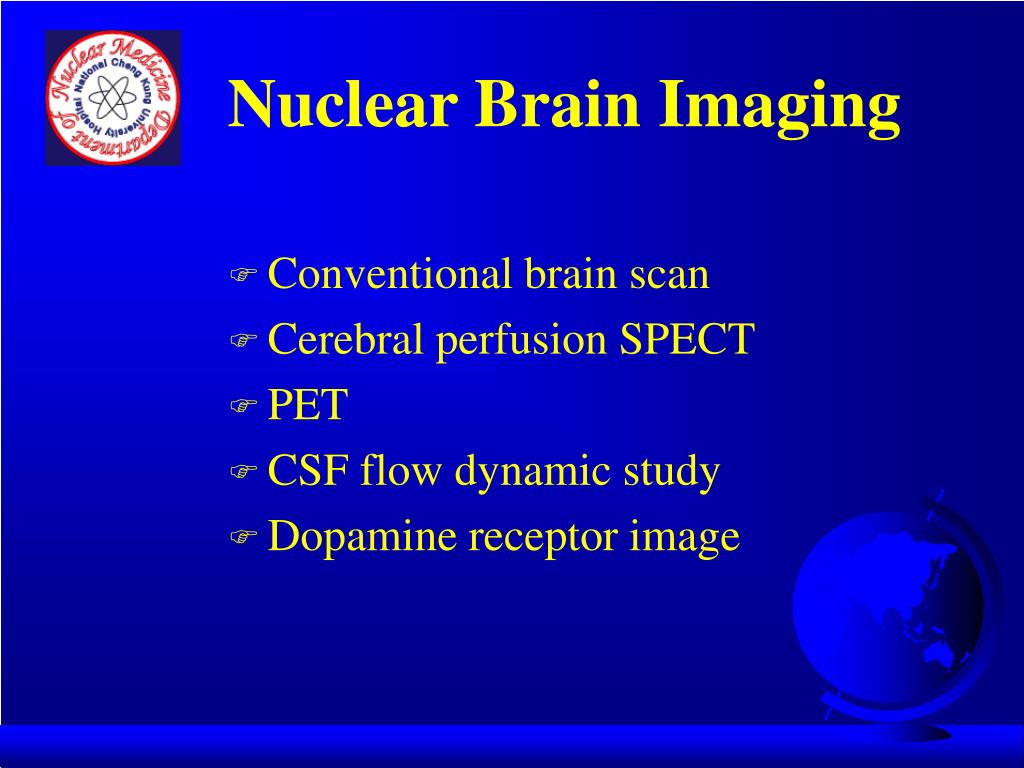

  4. Nuclear Brain Imaging • Conventional brain scan • Cerebral perfusion SPECT • PET • CSF flow dynamic study • Dopamine receptor image

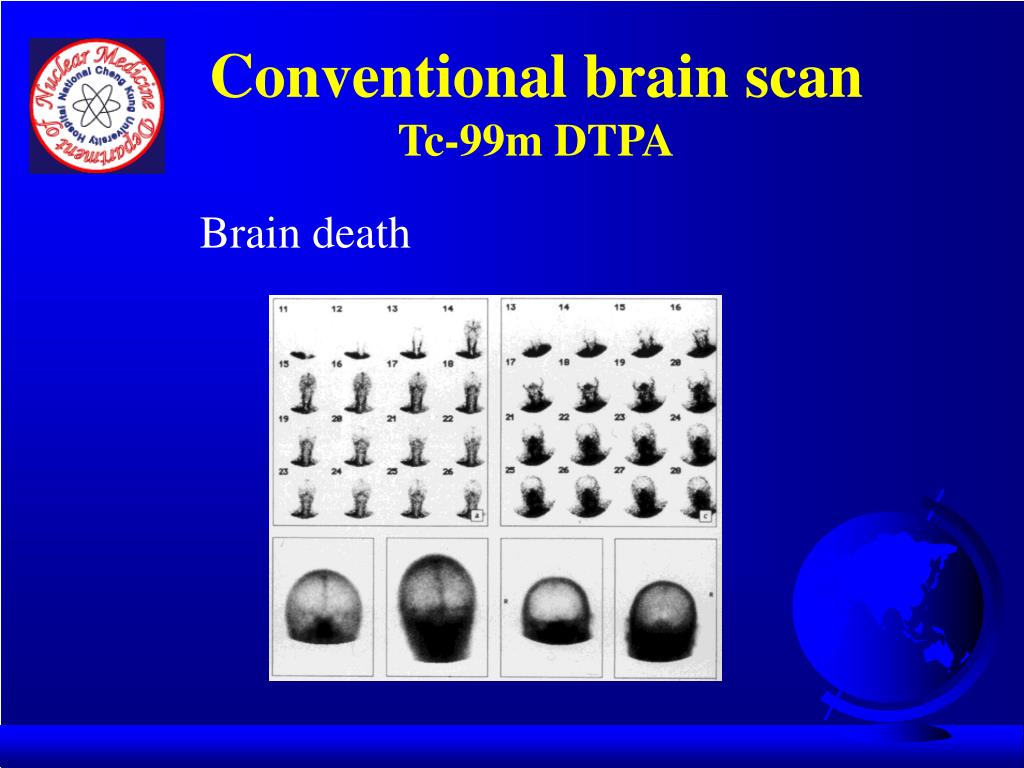

  5. Conventional brain scanTc-99m DTPA Brain death

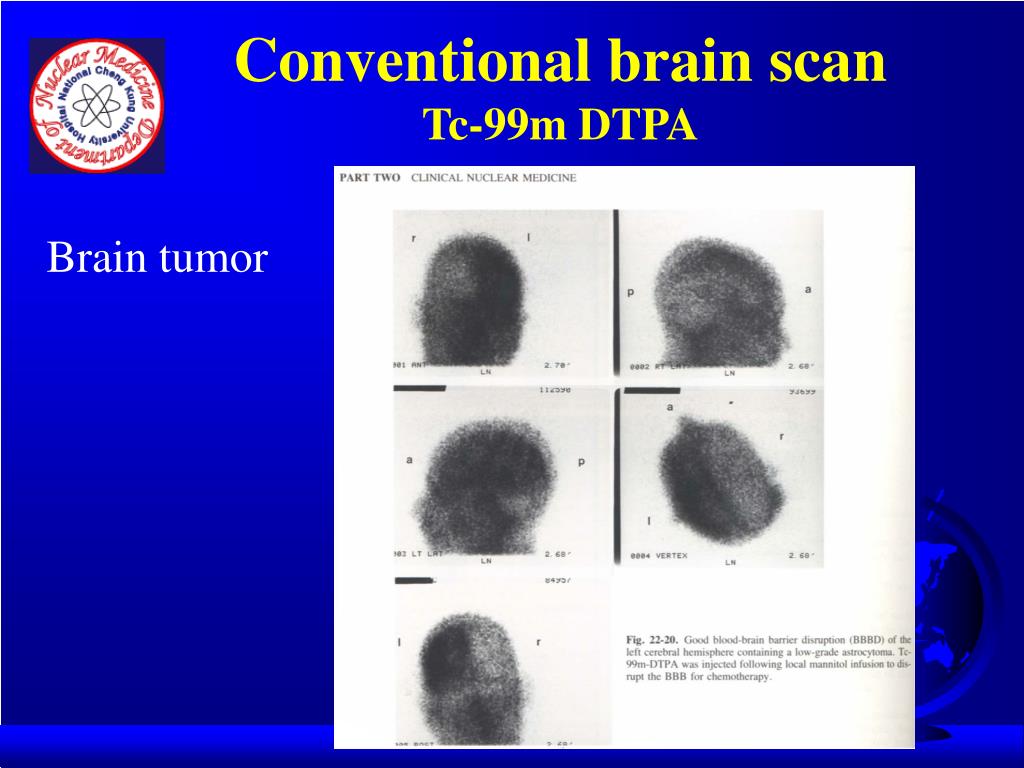

  6. Conventional brain scanTc-99m DTPA Brain tumor

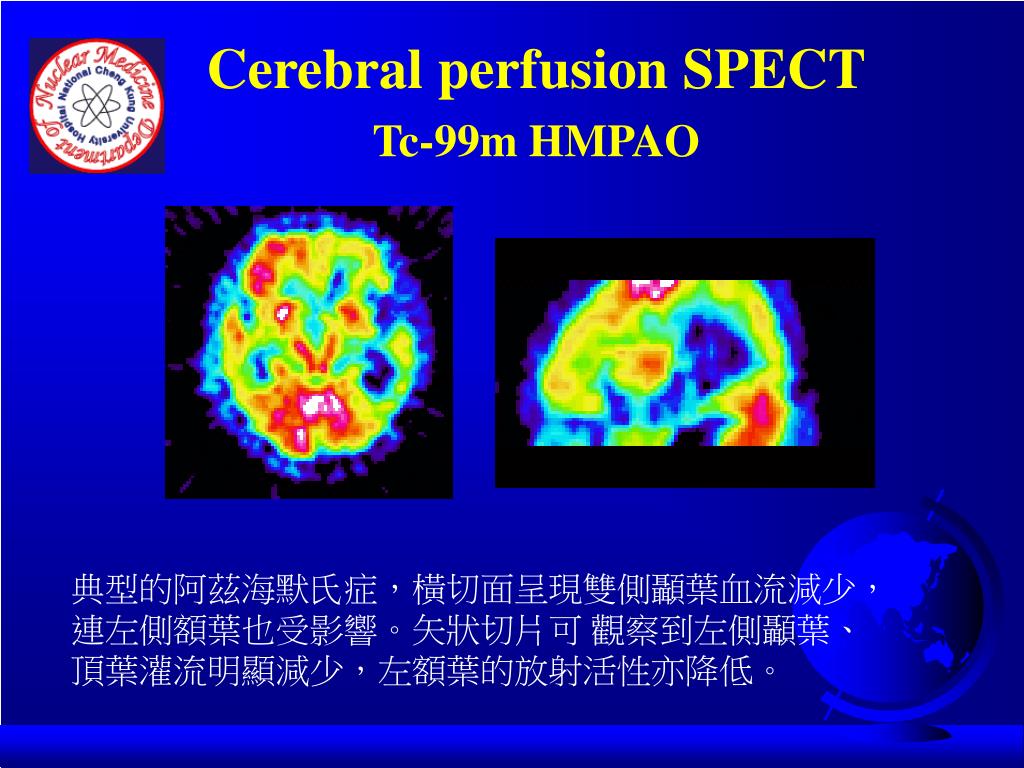

  7. Cerebral perfusion SPECTTc-99m HMPAO 典型的阿茲海默氏症，橫切面呈現雙側顳葉血流減少，連左側額葉也受影響。矢狀切片可 觀察到左側顳葉、頂葉灌流明顯減少，左額葉的放射活性亦降低。

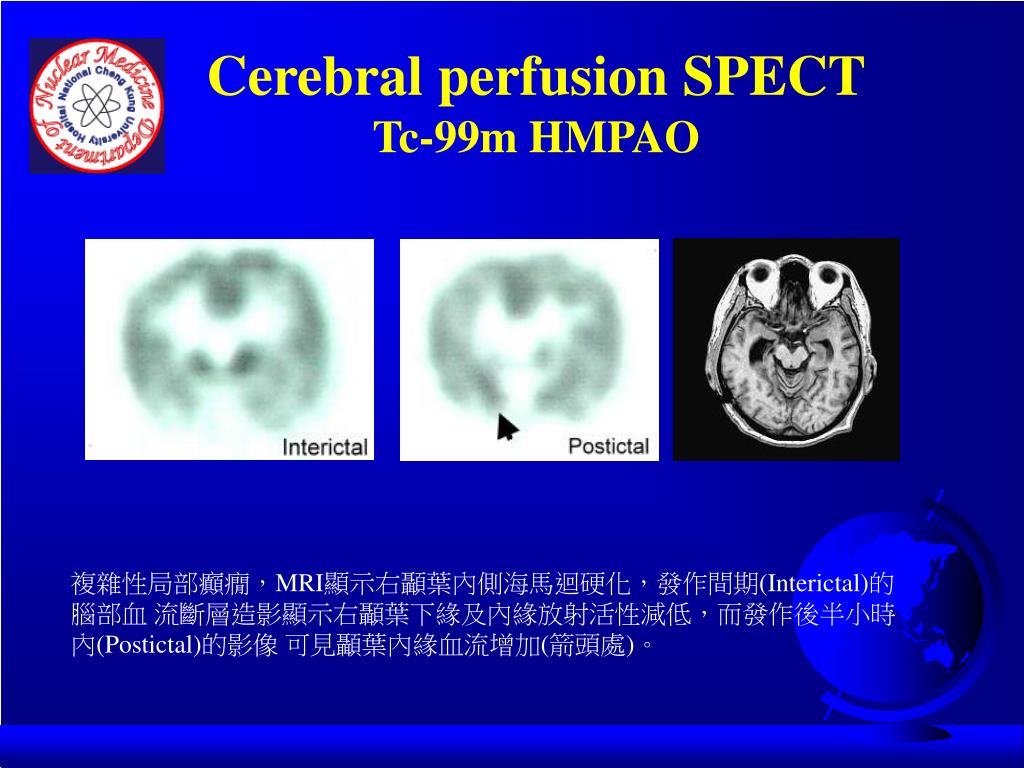

  8. Cerebral perfusion SPECTTc-99m HMPAO 複雜性局部癲癇，MRI顯示右顳葉內側海馬迴硬化，發作間期(Interictal)的腦部血 流斷層造影顯示右顳葉下緣及內緣放射活性減低，而發作後半小時內(Postictal)的影像 可見顳葉內緣血流增加(箭頭處)。

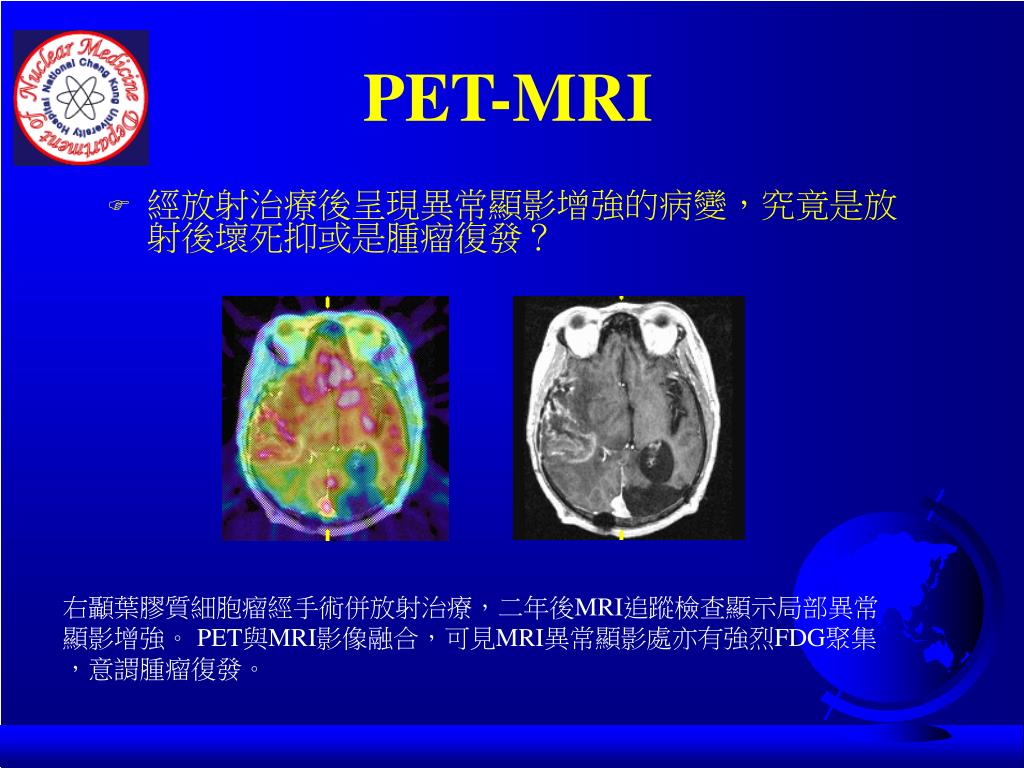

  9. PET-MRI • 經放射治療後呈現異常顯影增強的病變，究竟是放射後壞死抑或是腫瘤復發？ 右顳葉膠質細胞瘤經手術併放射治療，二年後MRI追蹤檢查顯示局部異常顯影增強。 PET與MRI影像融合，可見MRI異常顯影處亦有強烈FDG聚集，意謂腫瘤復發。

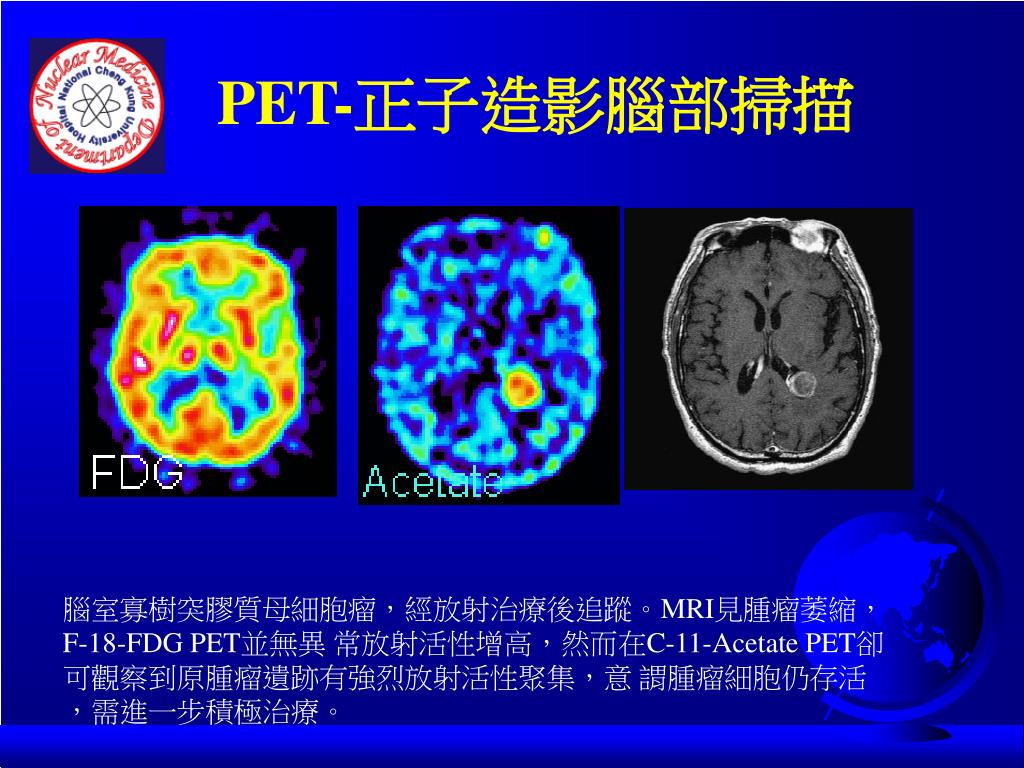

  10. PET-正子造影腦部掃描 腦室寡樹突膠質母細胞瘤，經放射治療後追蹤。MRI見腫瘤萎縮，F-18-FDG PET並無異 常放射活性增高，然而在C-11-Acetate PET卻可觀察到原腫瘤遺跡有強烈放射活性聚集，意 謂腫瘤細胞仍存活，需進一步積極治療。

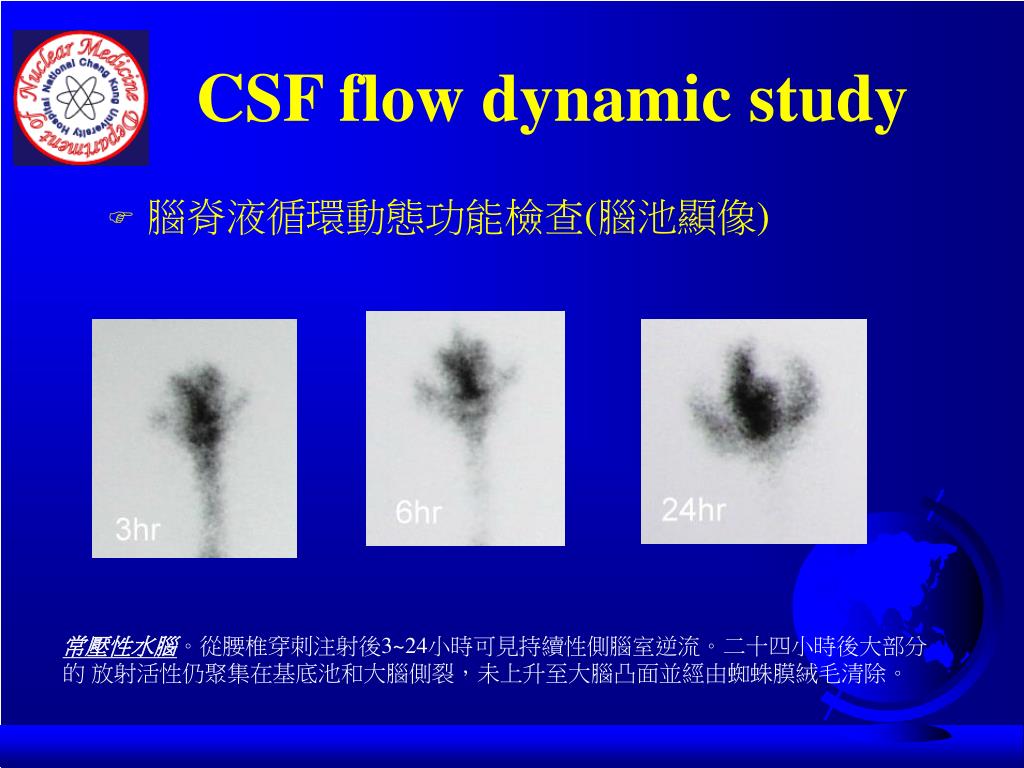

  11. CSF flow dynamic study • 腦脊液循環動態功能檢查(腦池顯像) 常壓性水腦。從腰椎穿刺注射後3~24小時可見持續性側腦室逆流。二十四小時後大部分 的 放射活性仍聚集在基底池和大腦側裂，未上升至大腦凸面並經由蜘蛛膜絨毛清除。

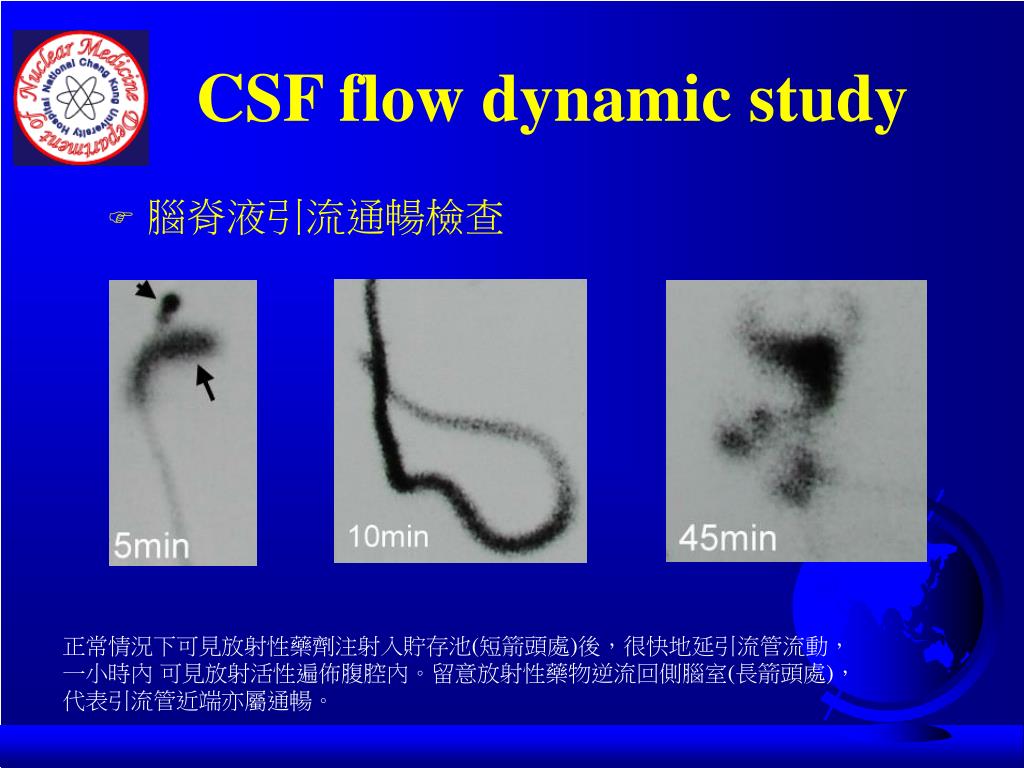

  12. CSF flow dynamic study • 腦脊液引流通暢檢查 正常情況下可見放射性藥劑注射入貯存池(短箭頭處)後，很快地延引流管流動， 一小時內 可見放射活性遍佈腹腔內。留意放射性藥物逆流回側腦室(長箭頭處)， 代表引流管近端亦屬通暢。
