  1. SMA5233 Particle Methods and Molecular DynamicsLecture 6: Coarse-grained hybrid MDA/P Chen Yu ZongTel: 6516-6877Email: phacyz@nus.edu.sghttp://bidd.nus.edu.sgRoom 08-14, level 8, S16 National University of Singapore

  2. Flow Chart For a Typical MD Program Initialize Variables Build Model Define Material Set Boundary Conditions Start Initialize Variables • Define the positions of the atoms • Assign randomly generated velocities Integrate End

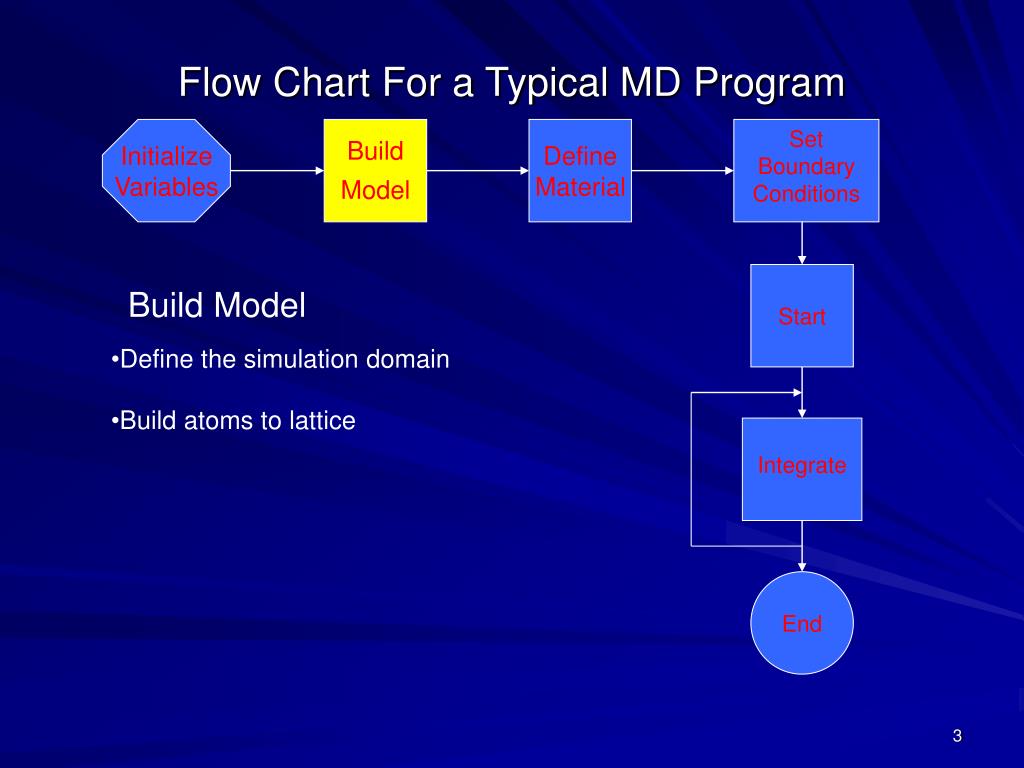

  3. Flow Chart For a Typical MD Program Initialize Variables Build Model Define Material Set Boundary Conditions Start Build Model • Define the simulation domain • Build atoms to lattice Integrate End

  4. Flow Chart For a Typical MD Program Initialize Variables Build Model Define Material Set Boundary Conditions Start Define Material • Specify interatomic potentials Integrate End

  5. Flow Chart For a Typical MD Program Initialize Variables Build Model Define Material Set Boundary Conditions Start Set Boundary Conditions • Set initial temperature distribution • Specify thermodynamic controls Integrate End

  6. Flow Chart For a Typical MD Program Initialize Variables Build Model Define Material Set Boundary Conditions Start Start • Compute the forces at time=0 • Set frequency of outputs Integrate End

  7. Flow Chart For a Typical MD Program Initialize Variables Build Model Define Material Set Boundary Conditions Start Integrate • Compute the atomic trajectories • Compute other desired outputs Integrate End

  8. Flow Chart For a Typical MD Program Initialize Variables Build Model Define Material Set Boundary Conditions Start End • Compute final thermodynamic outputs • Calculate program statistics Integrate End

  9. Computation of material properties based on explicit treatment of atomic degrees of freedom Computationally expensive Too many degrees of freedom Only capable on small DNA duplexes Time duration in nanoseconds Fully Atomistic Simulations Limitations

  10. Coarse-grained Model • DNA Sugar and Phosphate groups reduced to one molecule(bead) • Each DNA base is represented by one molecule(bead) Coarse-grained Model Fully Atomistic Model

  11. Computationally less expensive Decreases degrees of freedom Advantages of the Coarse-grained Model • Allows for longer DNA duplexes • Time length up to microsecond Coarse-grained model DNA duplex Chemical structure of DNA duplex

  12. Coarse-grained Model • One or multiple amino acids reduced to one molecule(bead)

  13. Intra-Polymer Forces – Combinations Of the Following: • Lennard-Jones Repulsion • Stiff (Fraenkel) / Hookean Spring • Finitely-Extensible Non-linear Elastic (FENE) Spring

  14. Intra-Polymer Forces – Combinations Of the Following: • Lennard-Jones Repulsion • Finitely-Extensible Non-linear Elastic (FENE) Spring

  15. Intra-Polymer Forces (continued) • Marko-Siggia WormLike Chain Can be adjusted if M>2 (Underhill, Doyle 2004) Stiff: Schlijper, Hoogerbrugge, Manke, 1995 Hookean + Lennard-Jones: Nikunen, Karttunen, Vattulainen, 2003 FENE: Chen, Phan-Thien, Fan, Khoo, 2004

  16. An Example

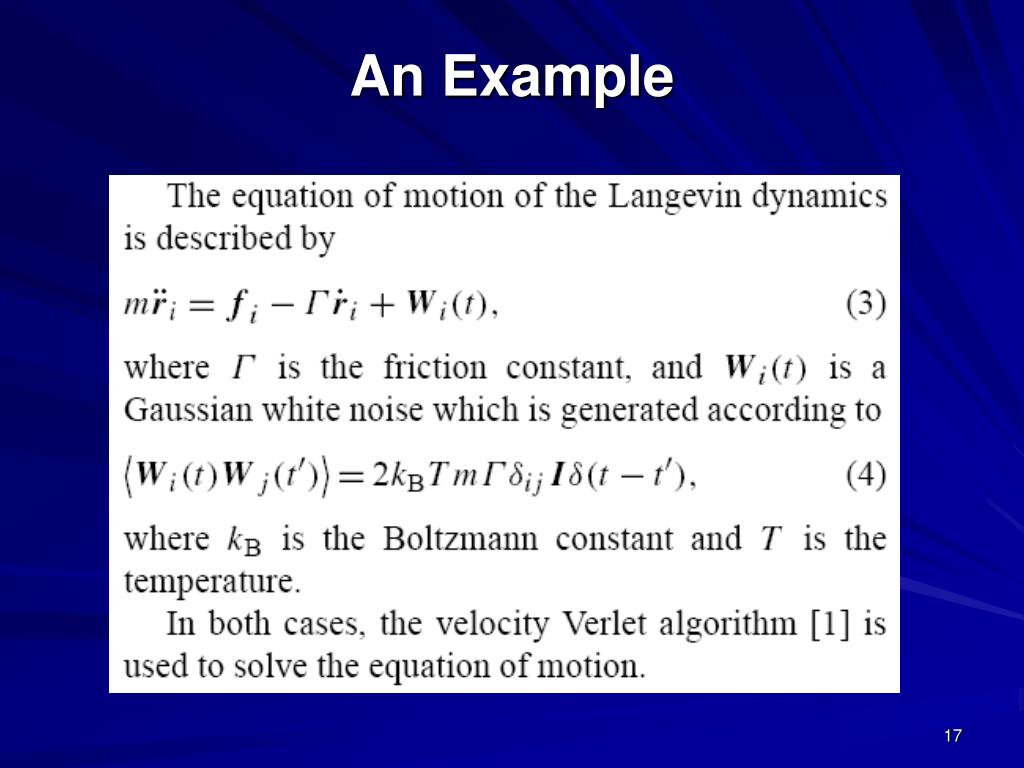

  17. An Example

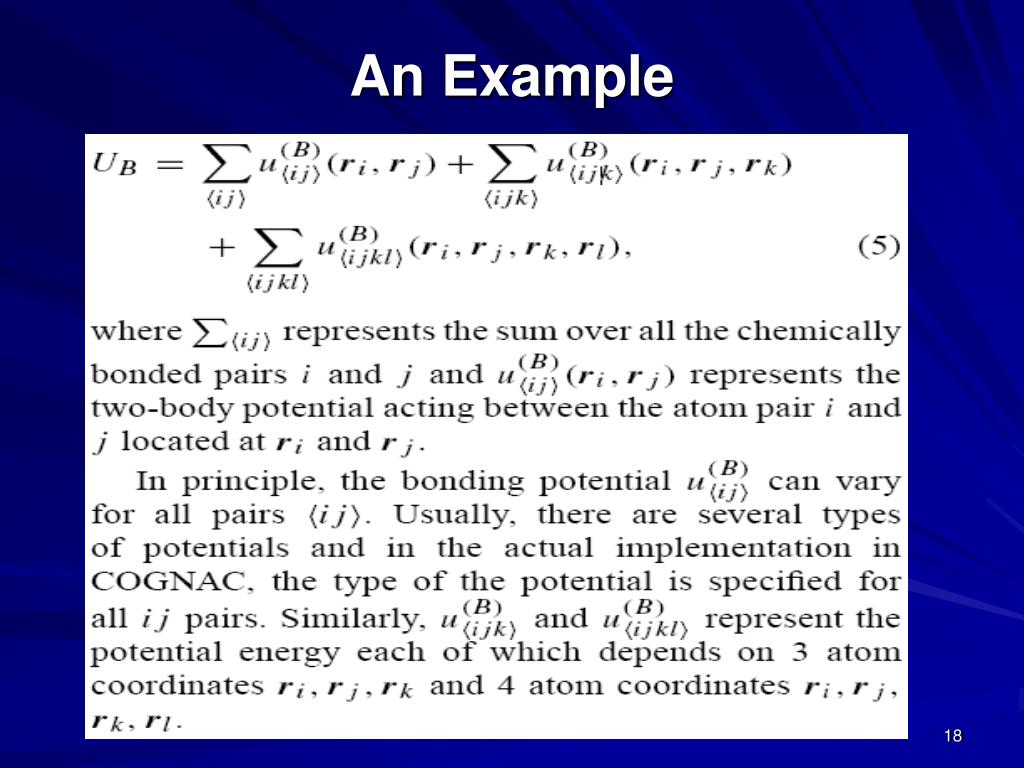

  18. An Example

  19. An Example

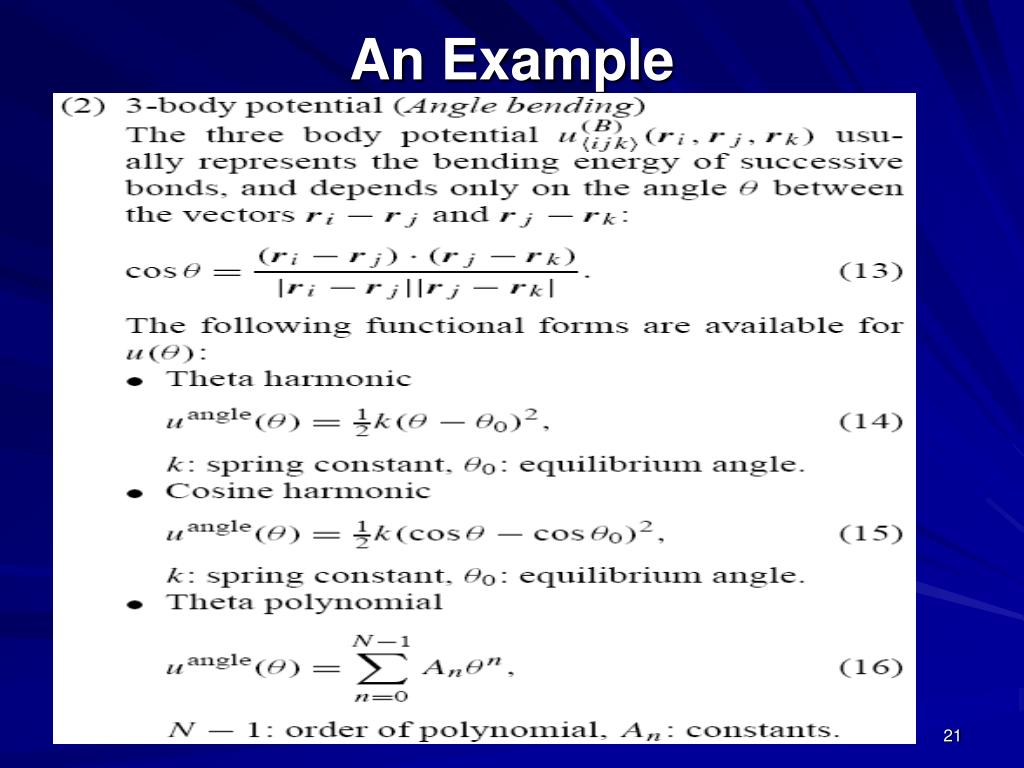

  20. An Example

  21. An Example

  22. An Example

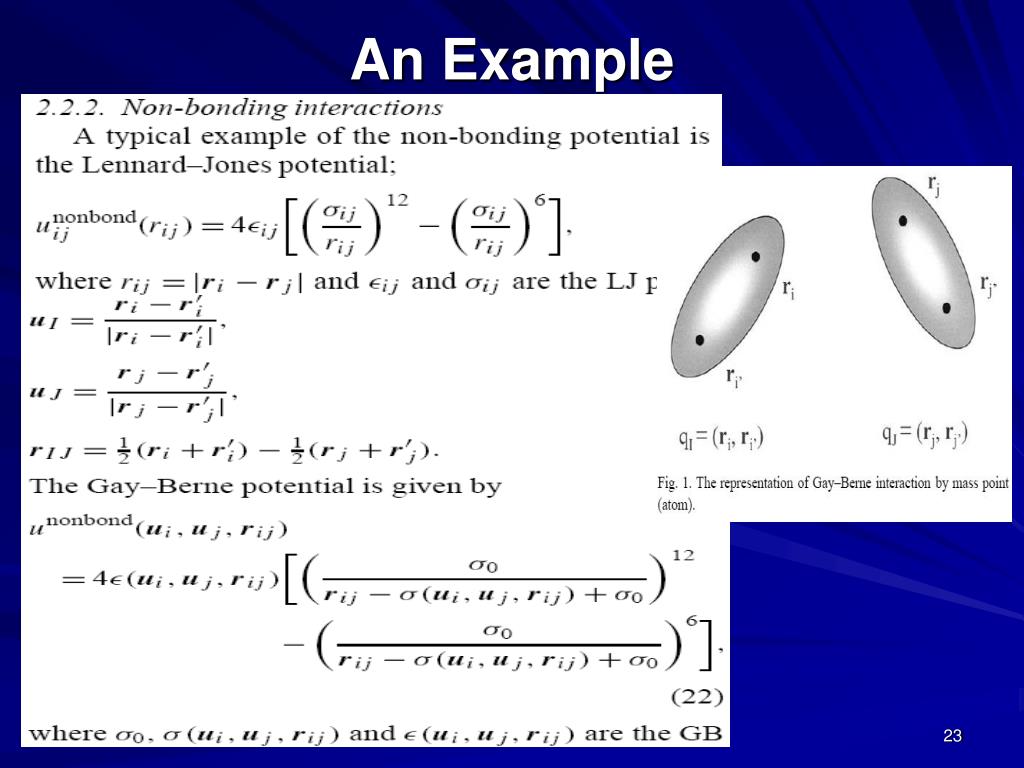

  23. An Example

  24. An Example

  25. A Case Study

  26. A Case Study

  27. A Case Study

  28. A Case Study
