Presentation Transcript
Evaluation of land model simulations across multiple sites and multiple models results from the nacp site level synthesis effort

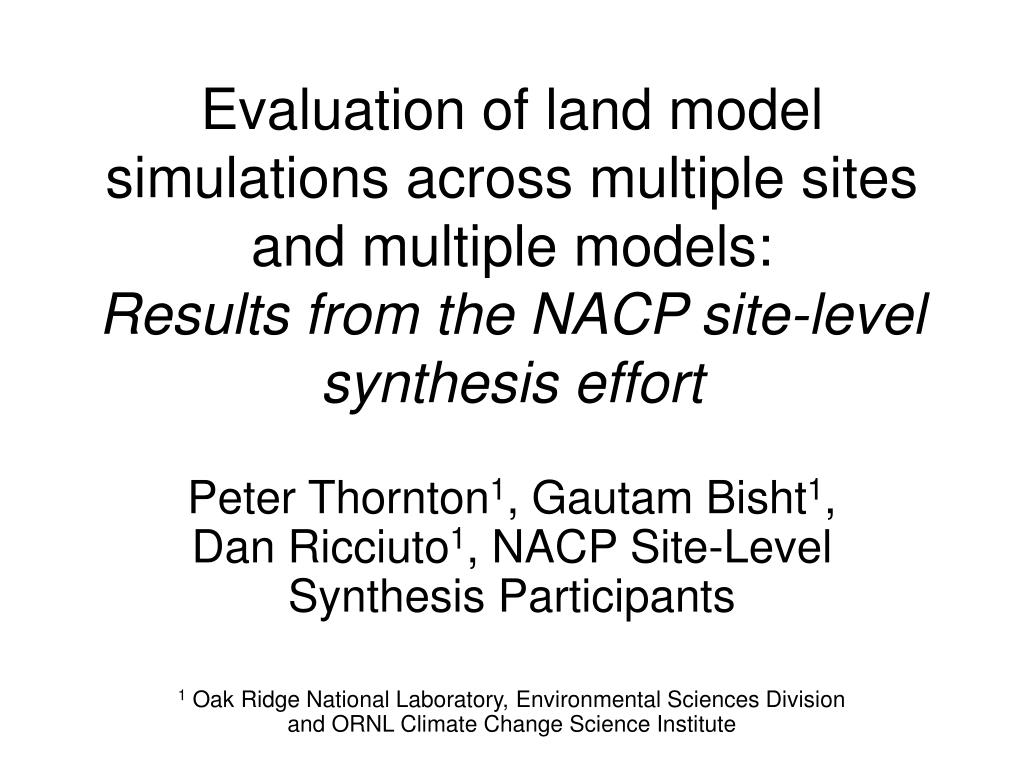

Evaluation of land model simulations across multiple sites and multiple models:Results from the NACP site-level synthesis effort

Peter Thornton1, Gautam Bisht1, Dan Ricciuto1, NACP Site-Level Synthesis Participants

1 Oak Ridge National Laboratory, Environmental Sciences Division and ORNL Climate Change Science Institute


Sponsors
Sponsors and multiple models:

  • NASA Terrestrial Ecology Program

  • DOE, Office of Biological and Environmental Research, Climate and Environmental Sciences Division, Terrestrial Ecosystem Science Program


Premise
Premise and multiple models:

  • Models can and should serve as tools for the integration and synthesis of our best understanding and knowledge

  • Models can and should provide testable (falsifiable) hypotheses

  • Through model-data synthesis efforts, those hypotheses can and should be tested, and discarded or improved when confidence is shown to be low


Analysis setting
Analysis setting and multiple models:

  • Subset of sites and models from full NACP site-level synthesis effort

  • Forest sites (evergreen and deciduous)

  • Range of climates

  • Models that include diurnal cycle

  • Carbon, sensible heat, latent heat fluxes

  • Diurnal cycle, seasonal cycle, interannual variability, long-term mean

  • Influence of steady-state vs. transient forcings


12 models and 13 sites

CAN-IBIS and multiple models:

CNCLASS

CLM-CN

ECOSYS

ED2

ISOLSM

LOTEC

ORCHIDEE

SIB

SIBCASA

SSIB2

TECO

CA-Ca1 Campbell River

CA-Oas Old aspen

CA-Obs Old black spruce

CA-Ojp Old jack pine

CA-Qfo Mature black spruce

CA-TP4 Turkey Point

US-Dk3 Duke Forest pine

US-Ha1 Harvard Forest main

US-Ho1 Howland main

US-Me2 Metolius intermediate

US-MOz Missouri Ozark

US-NR1 Niwot Ridge

US-UMB U Michigan Bio Stn

12 Models and 13 Sites


Diurnal cycle of gpp us dk3
Diurnal cycle of GPP: US-Dk3 and multiple models:

Mean diurnal cycle for June-July-August, y-axis units = umol/m2/s, x-axis is half-hour time step. Results from steady-state simulations

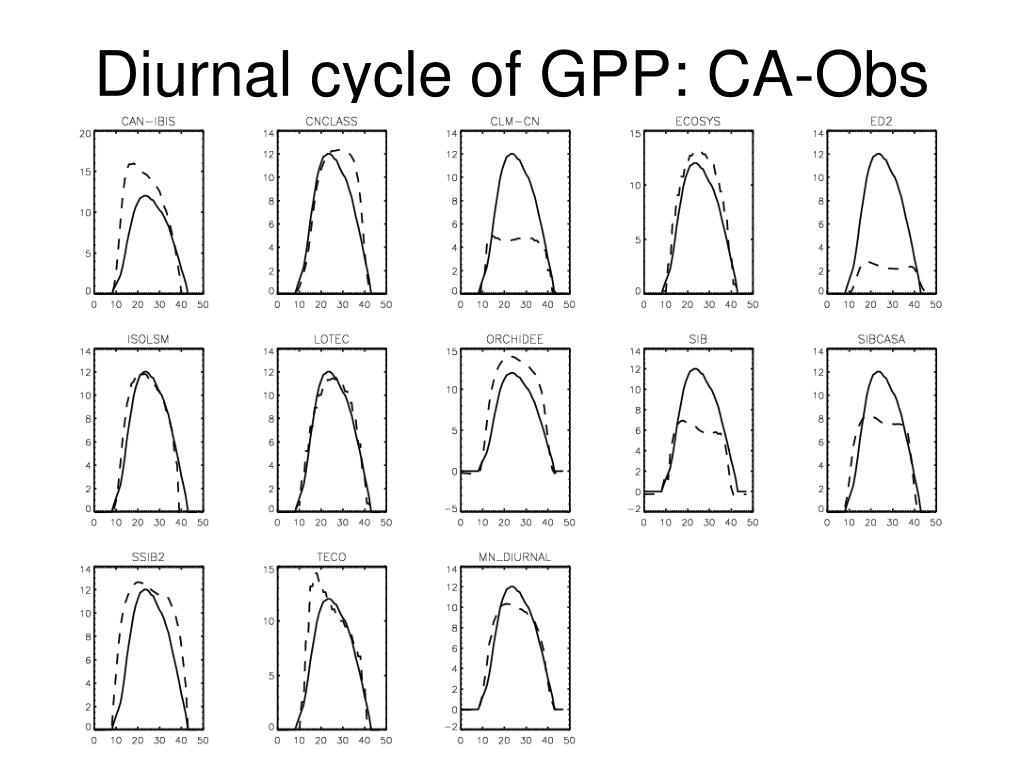

Diurnal cycle of gpp ca obs
Diurnal cycle of GPP: CA-Obs and multiple models:

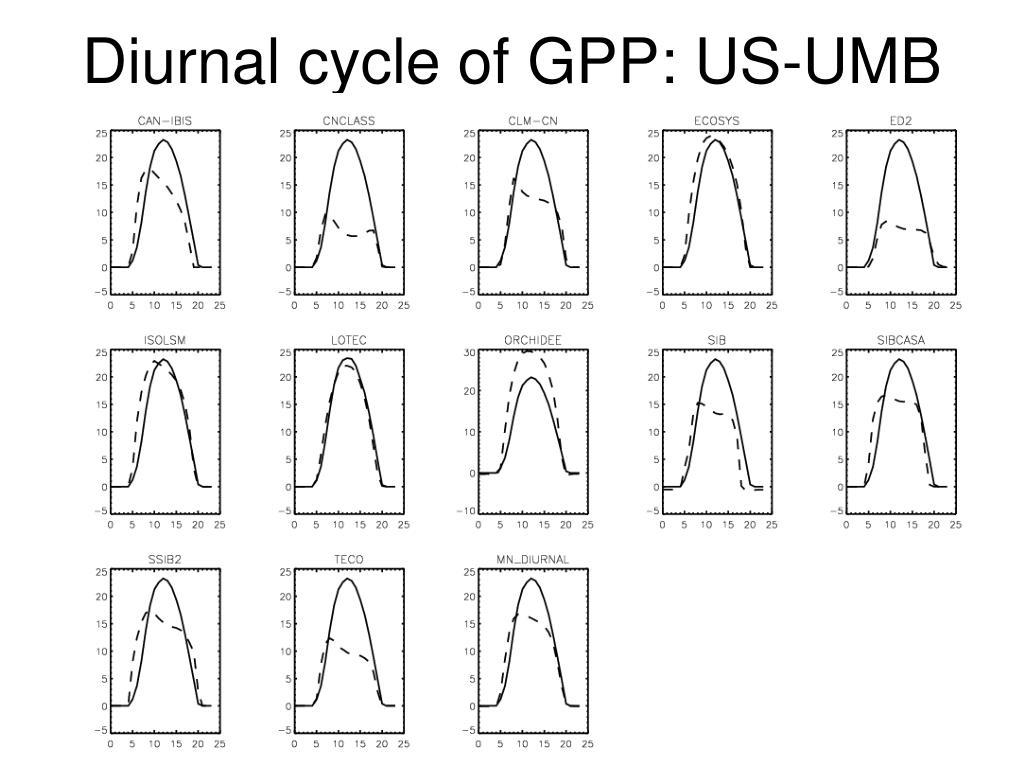

Diurnal cycle of gpp us umb
Diurnal cycle of GPP: US-UMB and multiple models:

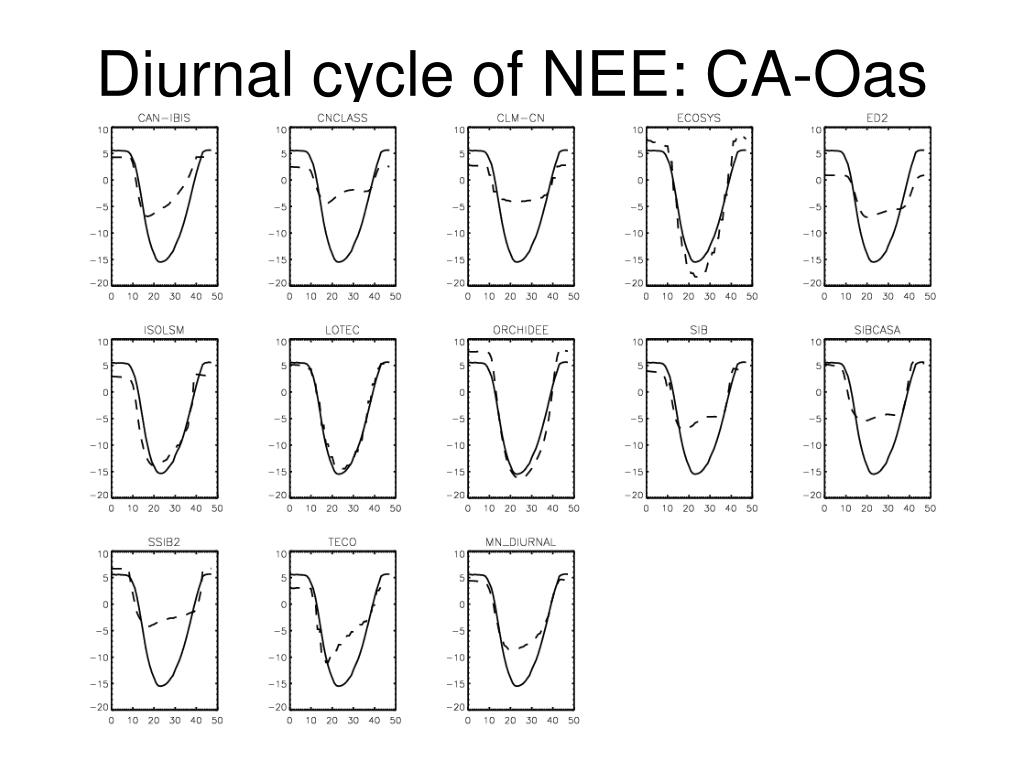

Diurnal cycle of nee ca oas
Diurnal cycle of NEE: CA-Oas and multiple models:


Diurnal cycle of nee us ha1
Diurnal cycle of NEE: US-Ha1 and multiple models:


Diurnal cycle of nee us dk3
Diurnal cycle of NEE: US-Dk3 and multiple models:


Diurnal cycle of nee clm cn
Diurnal cycle of NEE: CLM-CN and multiple models:


Seasonal cycle of clm cn us ha1
Seasonal cycle of CLM-CN: US-Ha1 and multiple models:

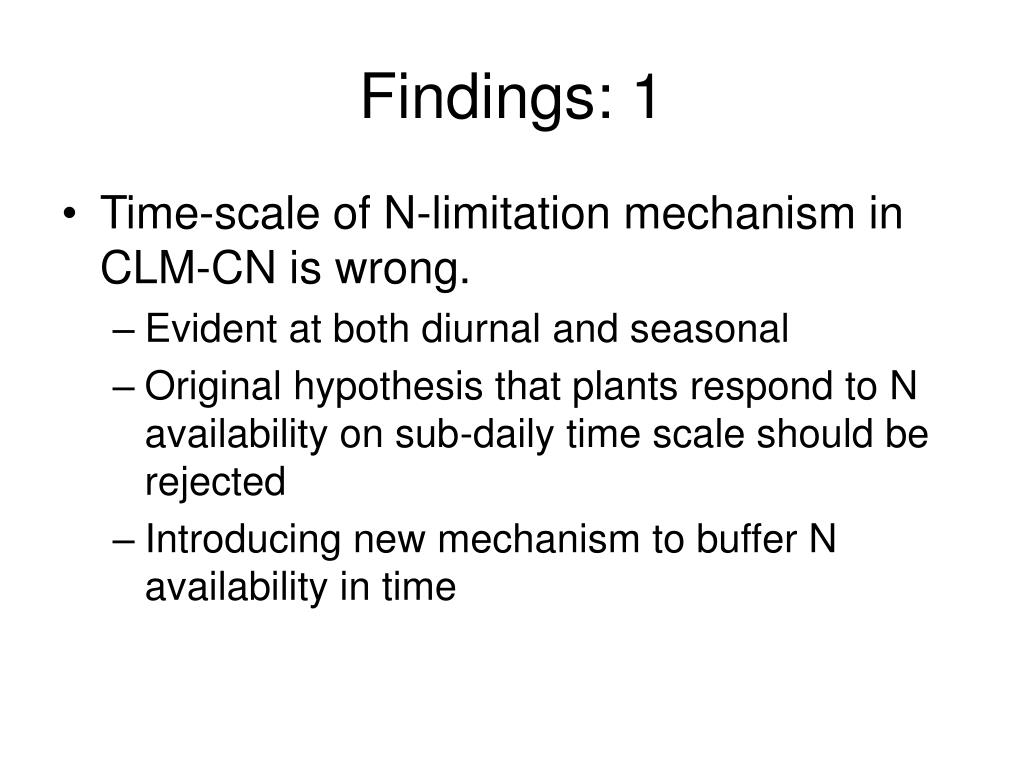

Findings 1
Findings: 1 and multiple models:

  • Time-scale of N-limitation mechanism in CLM-CN is wrong.

    • Evident at both diurnal and seasonal

    • Original hypothesis that plants respond to N availability on sub-daily time scale should be rejected

    • Introducing new mechanism to buffer N availability in time

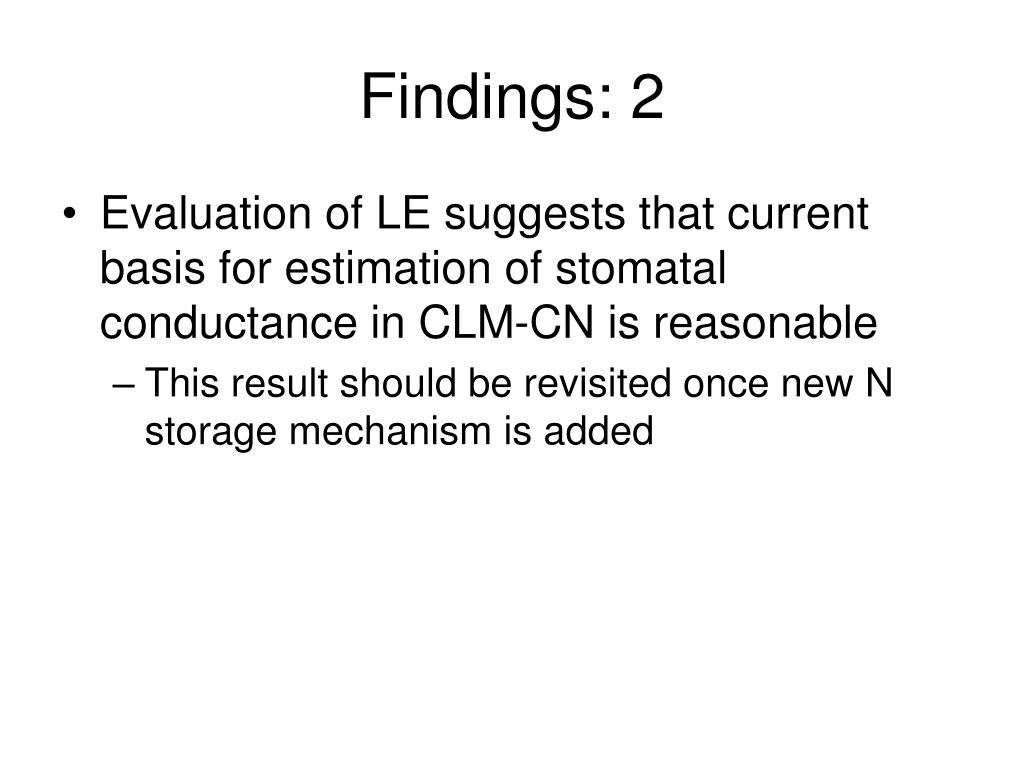

Findings 2
Findings: 2 and multiple models:

  • Evaluation of LE suggests that current basis for estimation of stomatal conductance in CLM-CN is reasonable

    • This result should be revisited once new N storage mechanism is added

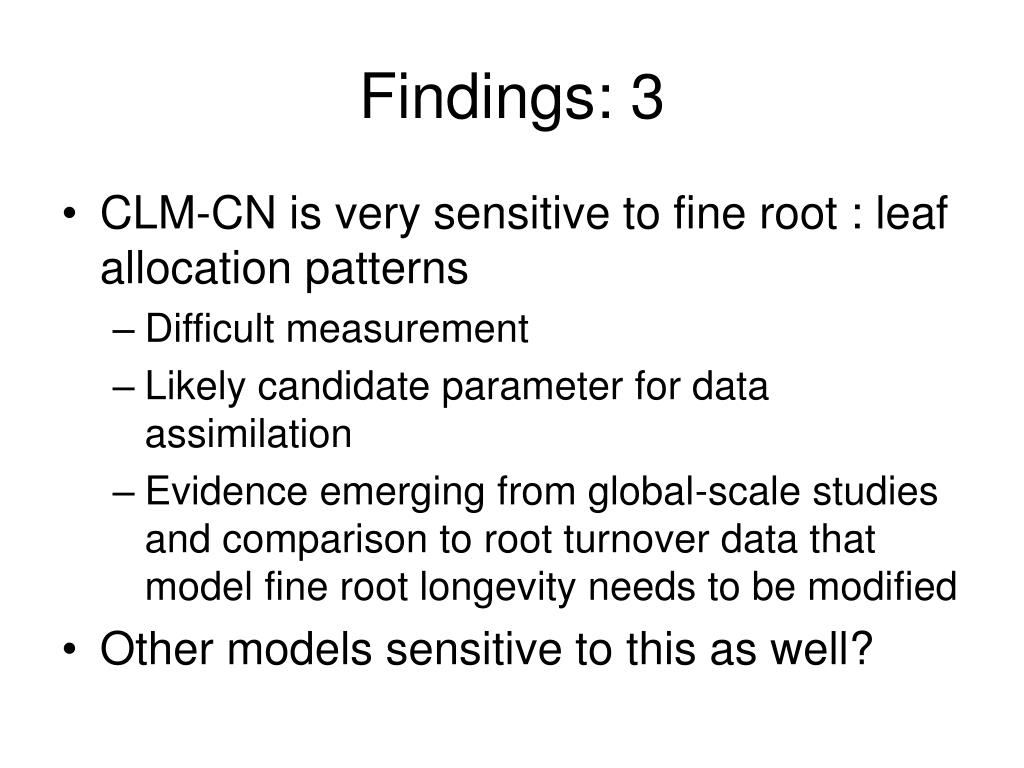

Findings 3
Findings: 3 and multiple models:

  • CLM-CN is very sensitive to fine root : leaf allocation patterns

    • Difficult measurement

    • Likely candidate parameter for data assimilation

    • Evidence emerging from global-scale studies and comparison to root turnover data that model fine root longevity needs to be modified

  • Other models sensitive to this as well?

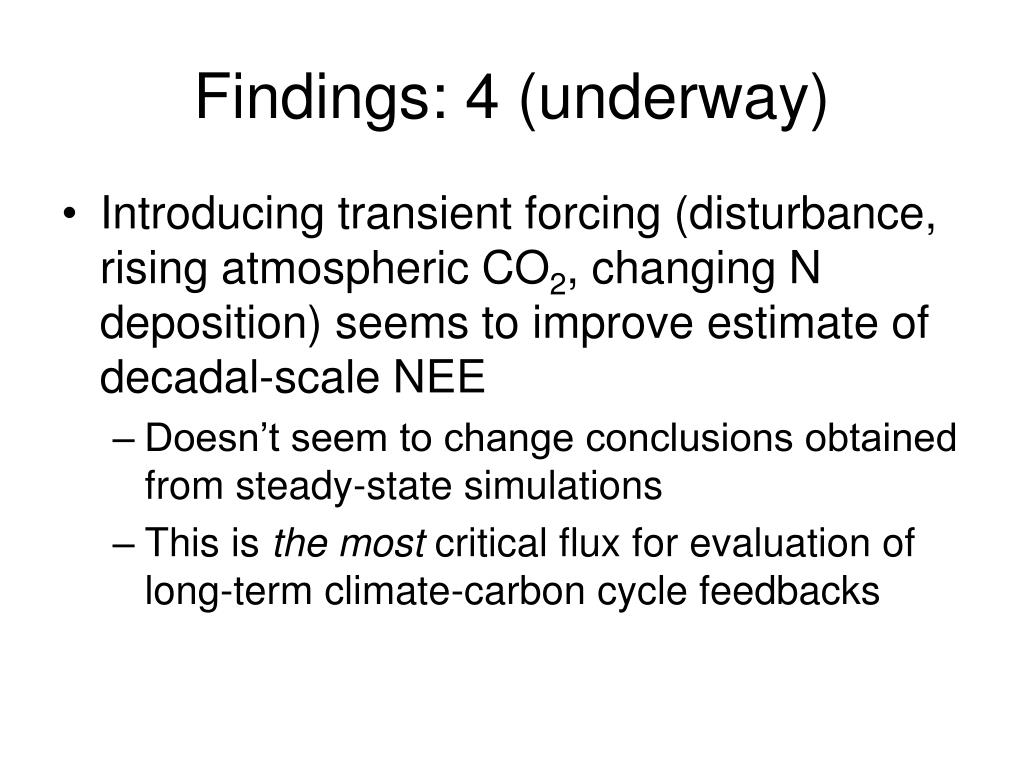

Findings 4 underway
Findings: 4 (underway) and multiple models:

  • Introducing transient forcing (disturbance, rising atmospheric CO2, changing N deposition) seems to improve estimate of decadal-scale NEE

    • Doesn’t seem to change conclusions obtained from steady-state simulations

    • This is the most critical flux for evaluation of long-term climate-carbon cycle feedbacks

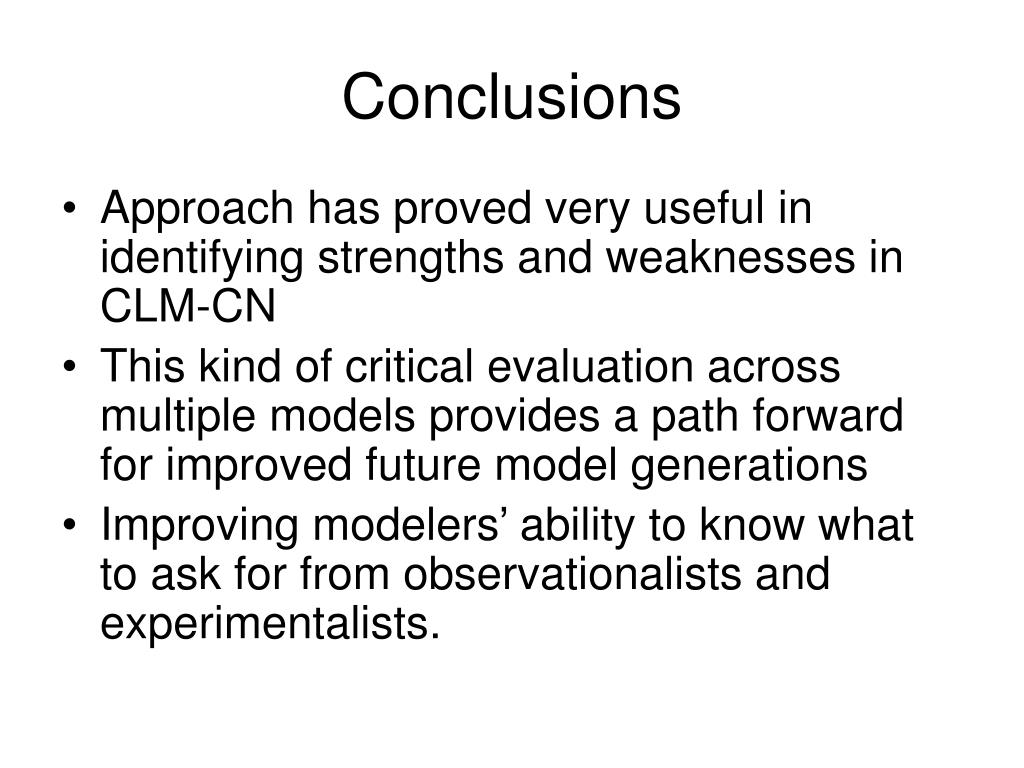

Conclusions
Conclusions and multiple models:

  • Approach has proved very useful in identifying strengths and weaknesses in CLM-CN

  • This kind of critical evaluation across multiple models provides a path forward for improved future model generations

  • Improving modelers’ ability to know what to ask for from observationalists and experimentalists.
