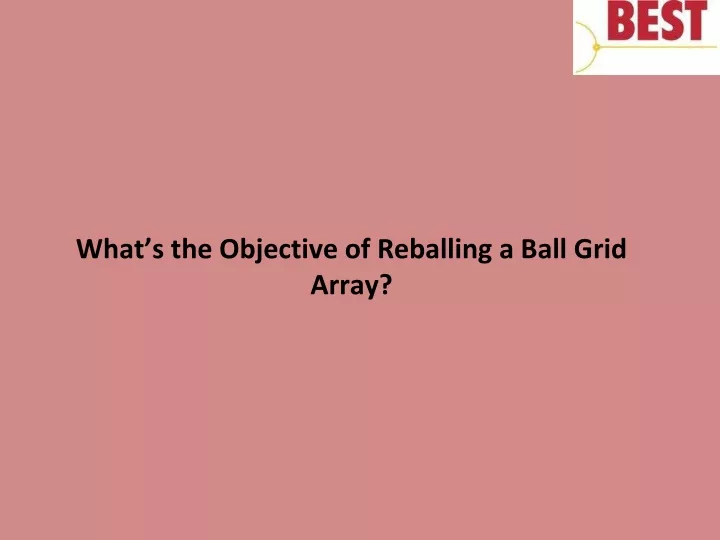

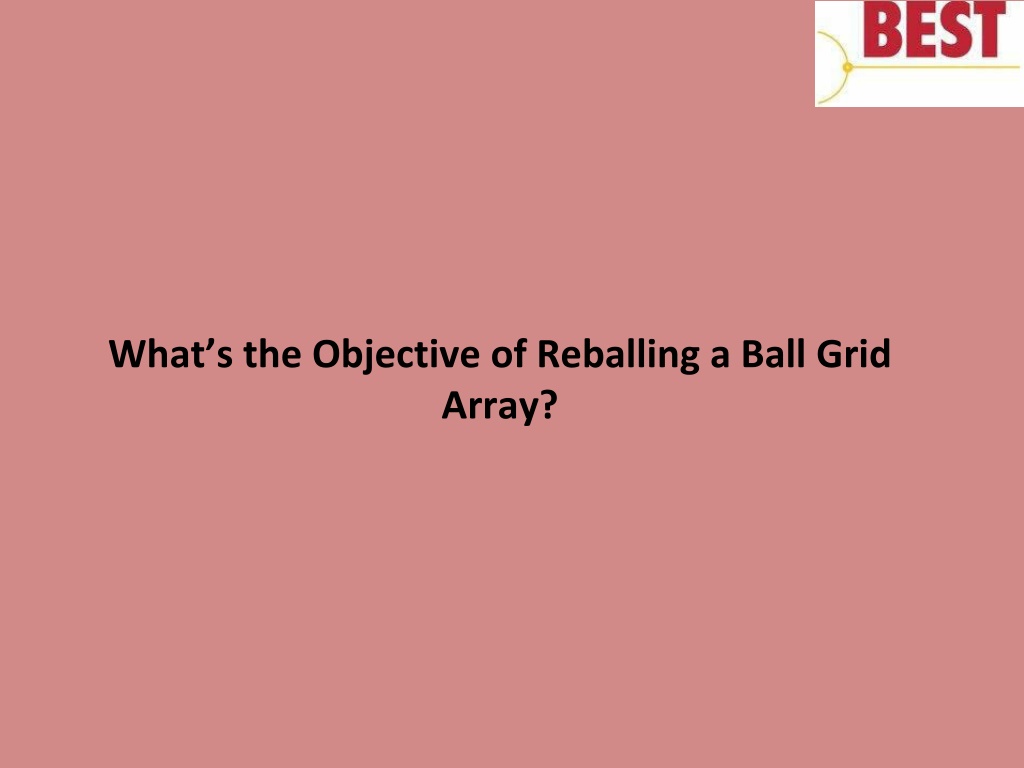

  1. What’s the Objective of Reballing a Ball Grid Array?

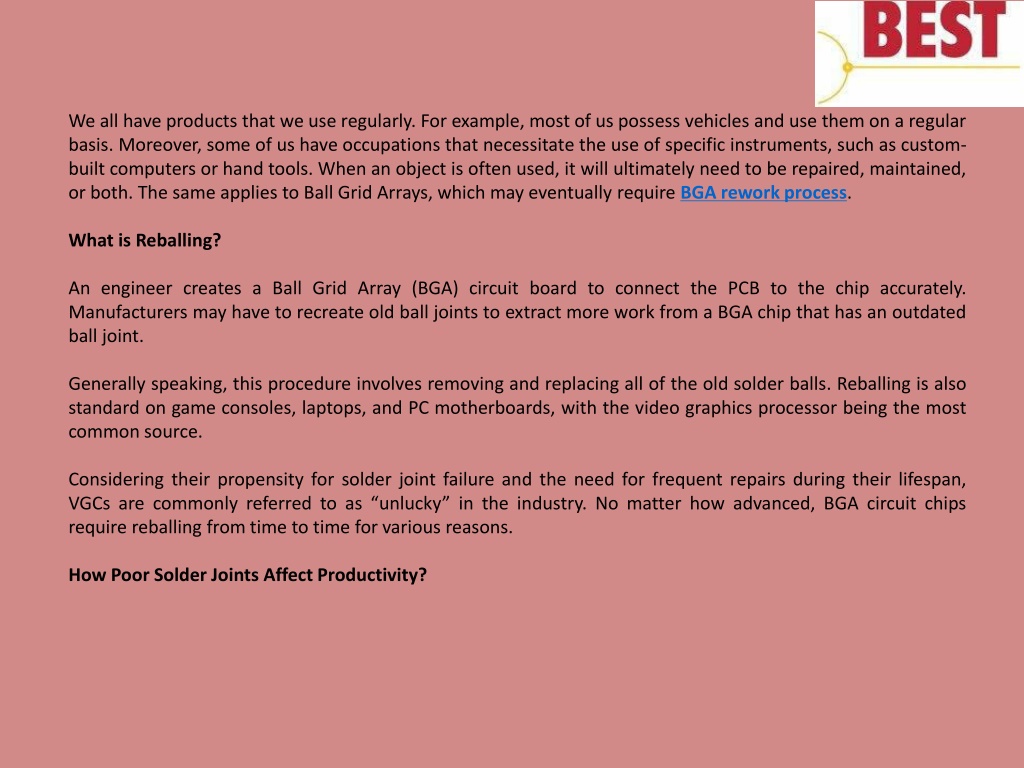

  2. We all have products that we use regularly. For example, most of us possess vehicles and use them on a regular basis. Moreover, some of us have occupations that necessitate the use of specific instruments, such as custom- built computers or hand tools. When an object is often used, it will ultimately need to be repaired, maintained, or both. The same applies to Ball Grid Arrays, which may eventually require BGA rework process. What is Reballing? An engineer creates a Ball Grid Array (BGA) circuit board to connect the PCB to the chip accurately. Manufacturers may have to recreate old ball joints to extract more work from a BGA chip that has an outdated ball joint. Generally speaking, this procedure involves removing and replacing all of the old solder balls. Reballing is also standard on game consoles, laptops, and PC motherboards, with the video graphics processor being the most common source. Considering their propensity for solder joint failure and the need for frequent repairs during their lifespan, VGCs are commonly referred to as “unlucky” in the industry. No matter how advanced, BGA circuit chips require reballing from time to time for various reasons. How Poor Solder Joints Affect Productivity?

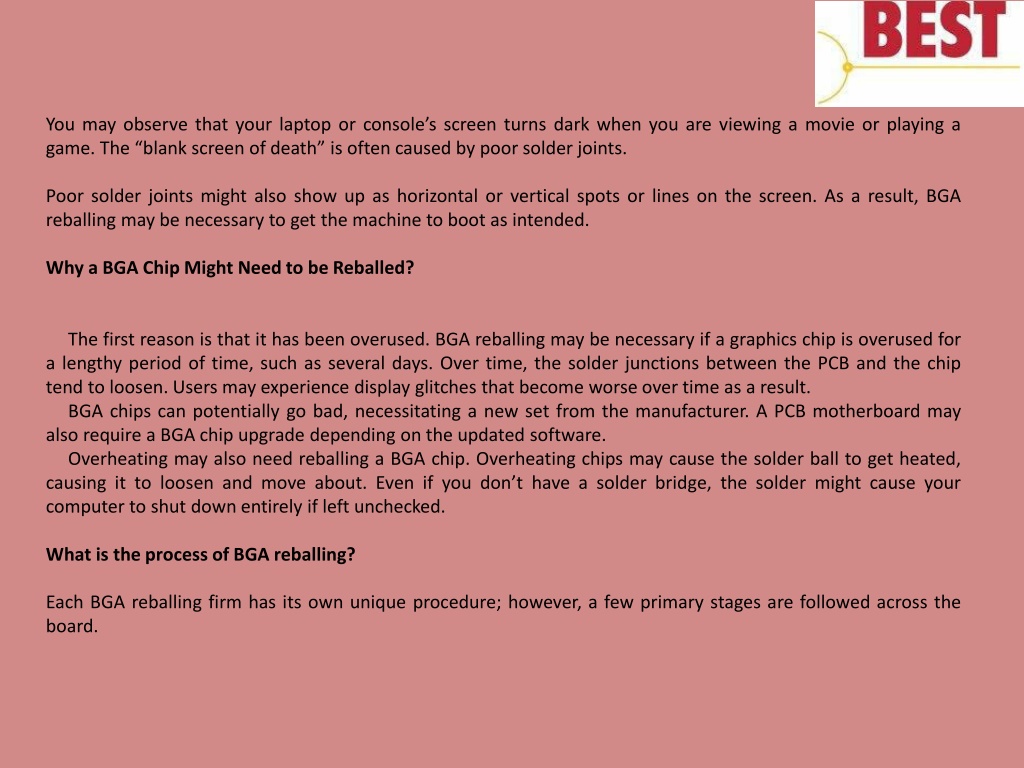

  3. You may observe that your laptop or console’s screen turns dark when you are viewing a movie or playing a game. The “blank screen of death” is often caused by poor solder joints. Poor solder joints might also show up as horizontal or vertical spots or lines on the screen. As a result, BGA reballing may be necessary to get the machine to boot as intended. Why a BGA Chip Might Need to be Reballed? The first reason is that it has been overused. BGA reballing may be necessary if a graphics chip is overused for a lengthy period of time, such as several days. Over time, the solder junctions between the PCB and the chip tend to loosen. Users may experience display glitches that become worse over time as a result. BGA chips can potentially go bad, necessitating a new set from the manufacturer. A PCB motherboard may also require a BGA chip upgrade depending on the updated software. Overheating may also need reballing a BGA chip. Overheating chips may cause the solder ball to get heated, causing it to loosen and move about. Even if you don’t have a solder bridge, the solder might cause your computer to shut down entirely if left unchecked. What is the process of BGA reballing? Each BGA reballing firm has its own unique procedure; however, a few primary stages are followed across the board.

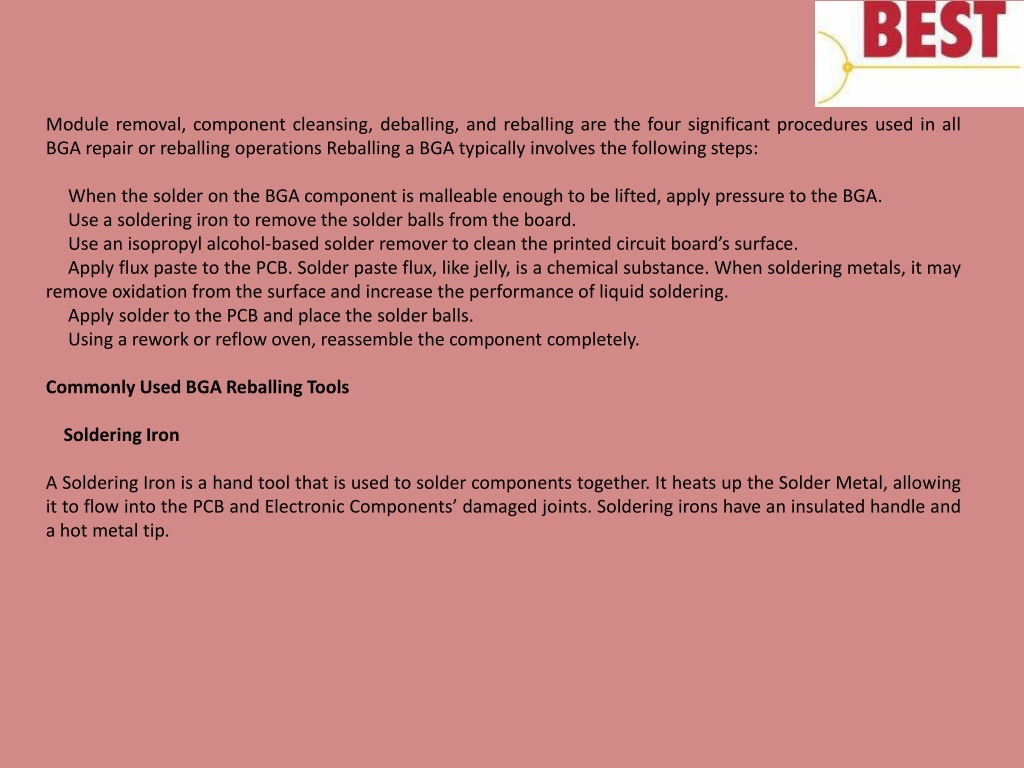

  4. Module removal, component cleansing, deballing, and reballing are the four significant procedures used in all BGA repair or reballing operations Reballing a BGA typically involves the following steps: When the solder on the BGA component is malleable enough to be lifted, apply pressure to the BGA. Use a soldering iron to remove the solder balls from the board. Use an isopropyl alcohol-based solder remover to clean the printed circuit board’s surface. Apply flux paste to the PCB. Solder paste flux, like jelly, is a chemical substance. When soldering metals, it may remove oxidation from the surface and increase the performance of liquid soldering. Apply solder to the PCB and place the solder balls. Using a rework or reflow oven, reassemble the component completely. Commonly Used BGA Reballing Tools Soldering Iron A Soldering Iron is a hand tool that is used to solder components together. It heats up the Solder Metal, allowing it to flow into the PCB and Electronic Components’ damaged joints. Soldering irons have an insulated handle and a hot metal tip.

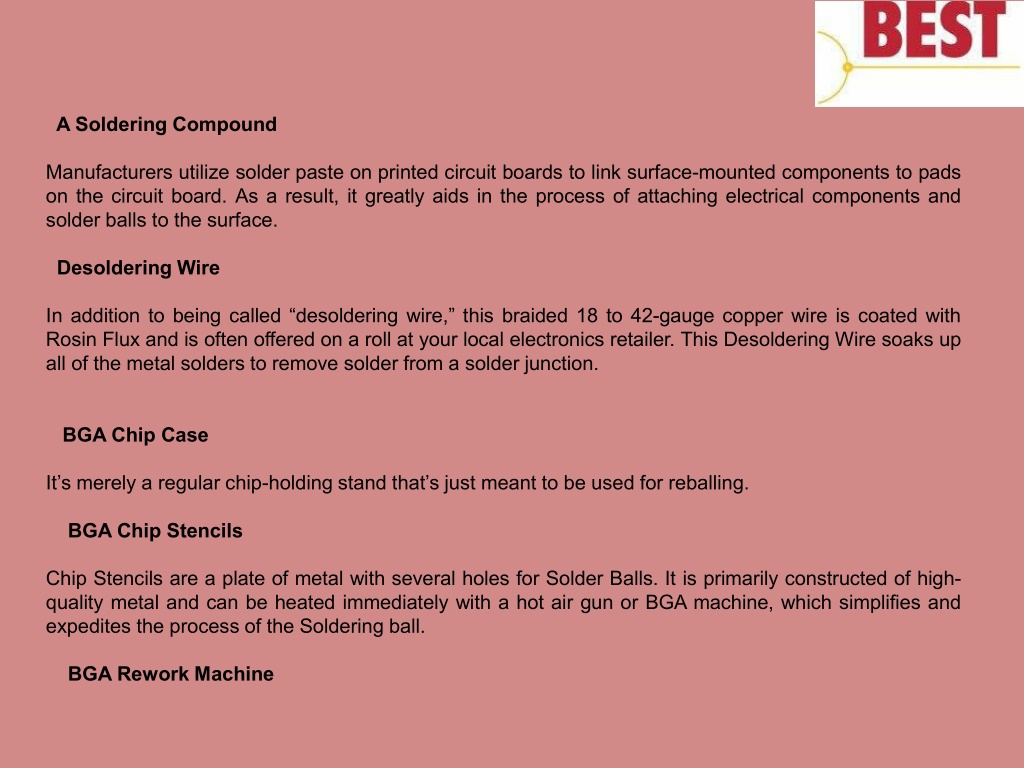

  5. A Soldering Compound Manufacturers utilize solder paste on printed circuit boards to link surface-mounted components to pads on the circuit board. As a result, it greatly aids in the process of attaching electrical components and solder balls to the surface. Desoldering Wire In addition to being called “desolderingwire,” this braided 18 to 42-gauge copper wire is coated with Rosin Flux and is often offered on a roll at your local electronics retailer. This Desoldering Wire soaks up all of the metal solders to remove solder from a solder junction. BGA Chip Case It’s merely a regular chip-holding stand that’s just meant to be used for reballing. BGA Chip Stencils Chip Stencils are a plate of metal with several holes for Solder Balls. It is primarily constructed of high- quality metal and can be heated immediately with a hot air gun or BGA machine, which simplifies and expedites the process of the Soldering ball. BGA Rework Machine

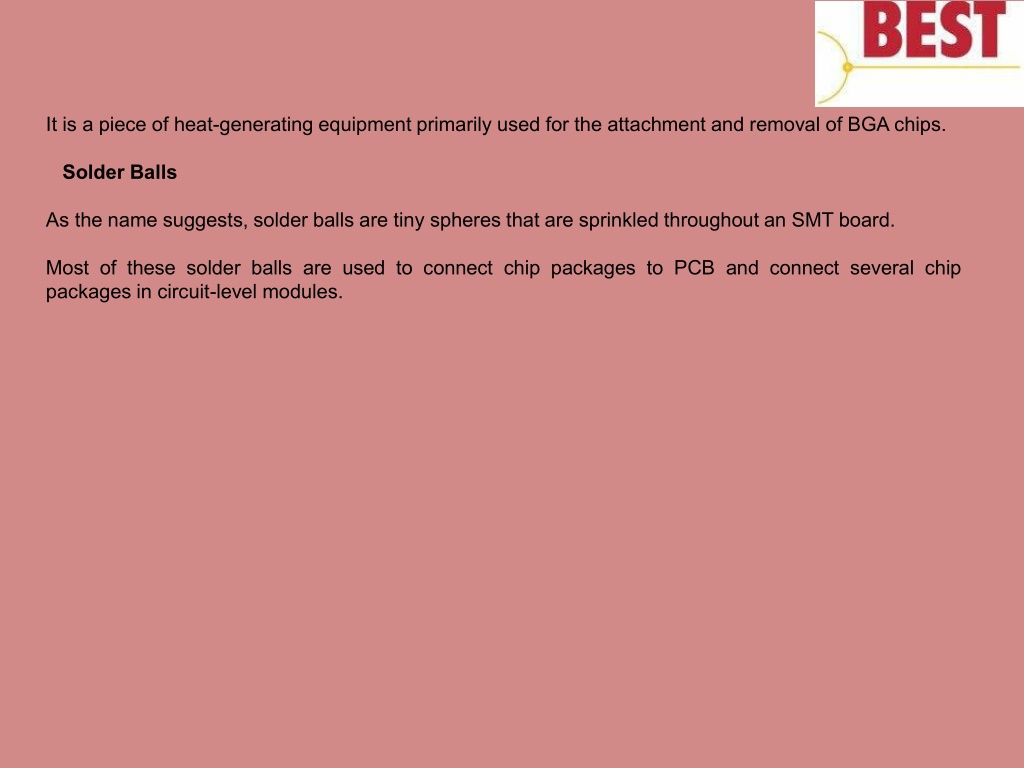

  6. It is a piece of heat-generating equipment primarily used for the attachment and removal of BGA chips. Solder Balls As the name suggests, solder balls are tiny spheres that are sprinkled throughout an SMT board. Most of these solder balls are used to connect chip packages to PCB and connect several chip packages in circuit-level modules.

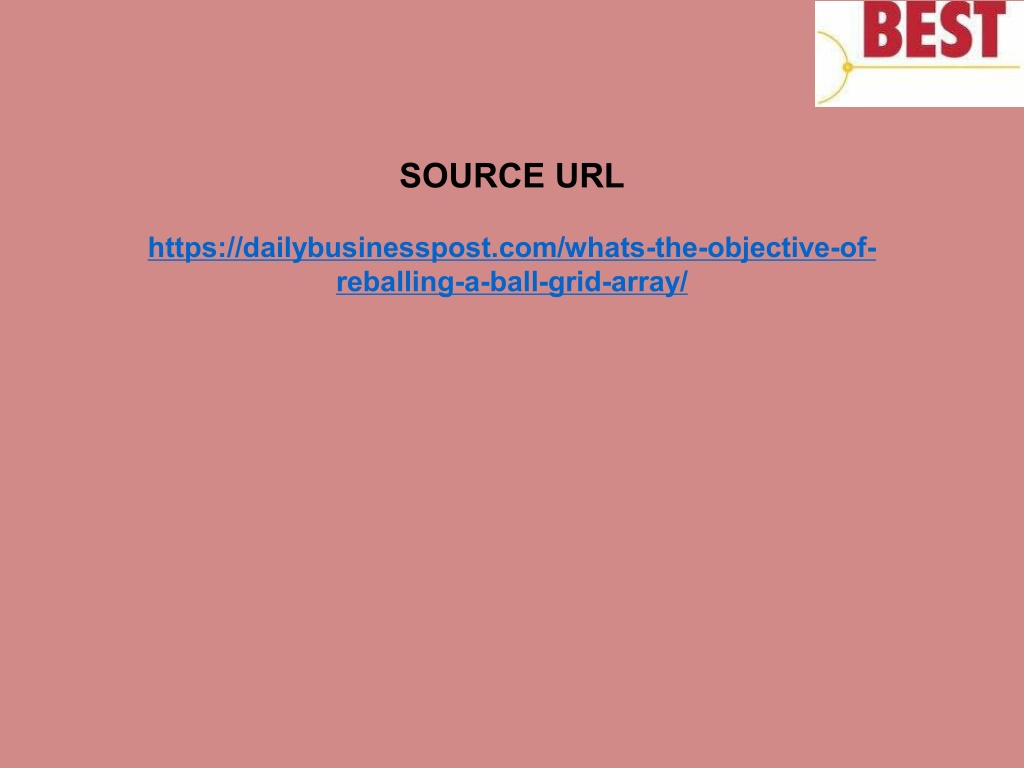

  7. SOURCE URL https://dailybusinesspost.com/whats-the-objective-of- reballing-a-ball-grid-array/
