To undertake or Not To Do BGA Reballing

1. To undertake or Not To Do BGA Reballing

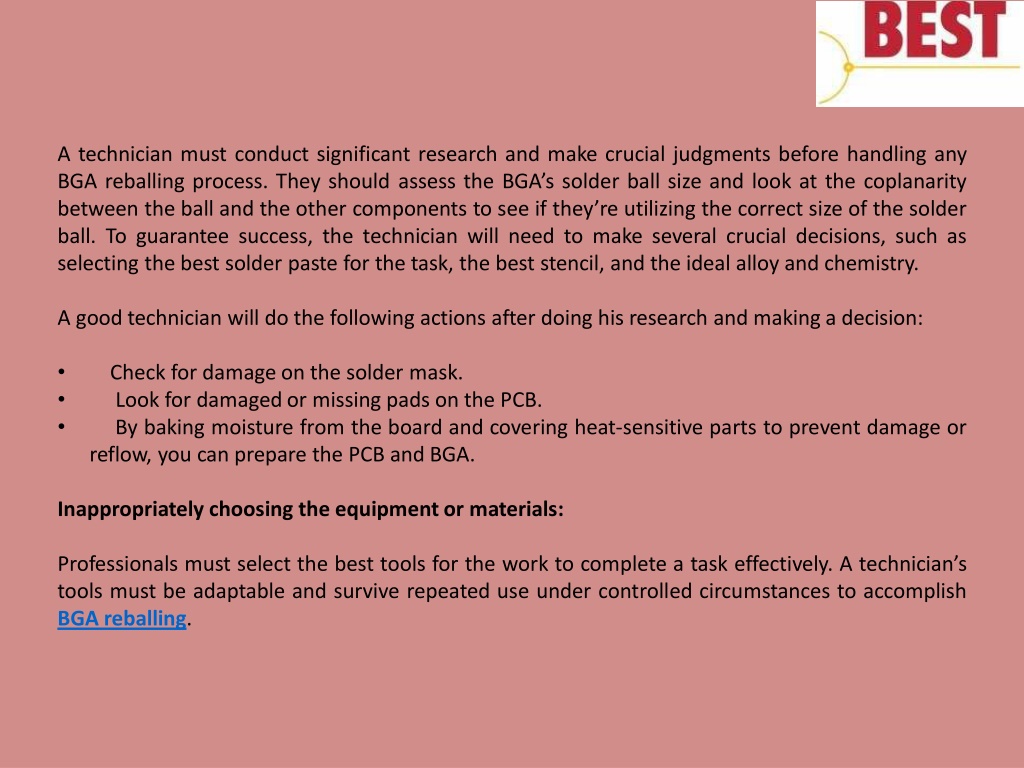

2. A technician must conduct significant research and make crucial judgments before handling any BGA reballing process. They should assess the BGA’s solder ball size and look at the coplanarity between the ball and the other components to see if they’re utilizing the correct size of the solder ball. To guarantee success, the technician will need to make several crucial decisions, such as selecting the best solder paste for the task, the best stencil, and the ideal alloy and chemistry. A good technician will do the following actions after doing his research and making a decision: • • • Check for damageon the solder mask. Look for damagedor missing pads on the PCB. By baking moisture from the board and covering heat-sensitive parts to prevent damage or reflow, you can prepare the PCB and BGA. Inappropriately choosing the equipmentor materials: Professionals must select the best tools for the work to complete a task effectively. A technician’s tools must be adaptable and survive repeated use under controlled circumstances to accomplish BGA reballing.

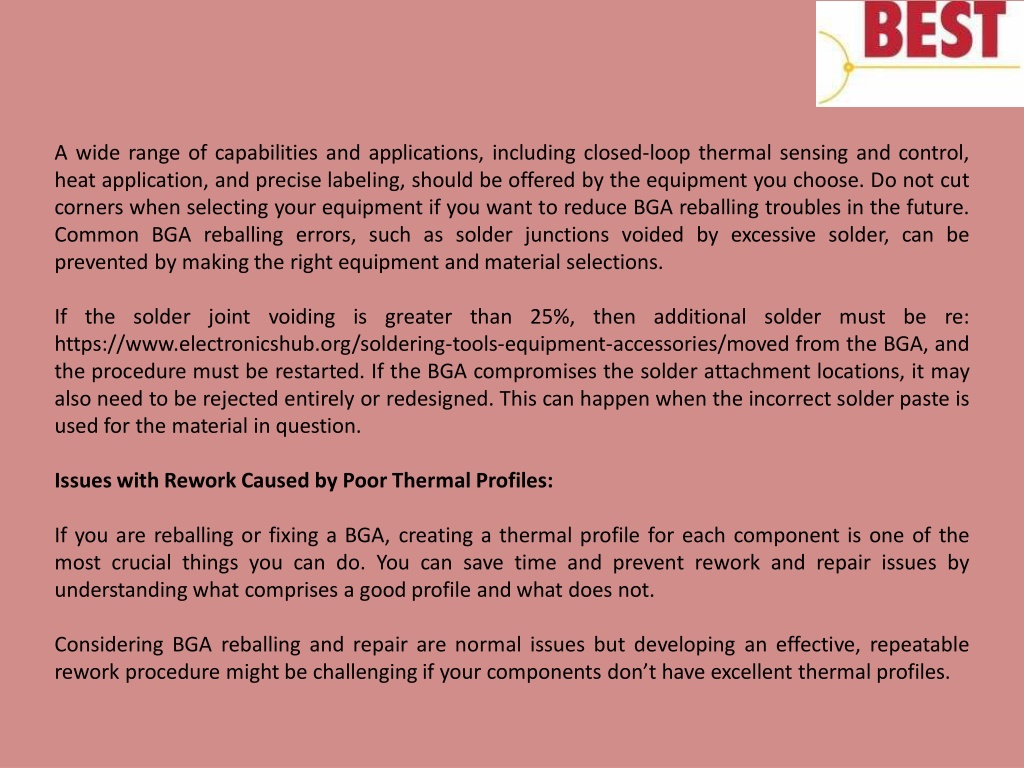

3. A wide range of capabilities and applications, including closed-loop thermal sensing and control, heat application, and precise labeling, should be offered by the equipment you choose. Do not cut corners when selecting your equipment if you want to reduce BGA reballing troubles in the future. Common BGA reballing errors, such as solder junctions voided by excessive solder, can be prevented by makingthe right equipment and material selections. If the solder joint voiding is greater than 25%, then additional solder must be re: https://www.electronicshub.org/soldering-tools-equipment-accessories/moved from the BGA, and the procedure must be restarted. If the BGA compromises the solder attachment locations, it may also need to be rejected entirely or redesigned. This can happen when the incorrect solder paste is used for the material in question. Issueswith Rework Caused by Poor Thermal Profiles: If you are reballing or fixing a BGA, creating a thermal profile for each component is one of the most crucial things you can do. You can save time and prevent rework and repair issues by understanding what comprises a good profile and what does not. Considering BGA reballing and repair are normal issues but developing an effective, repeatable rework procedure might be challenging if your components don’t have excellent thermal profiles.

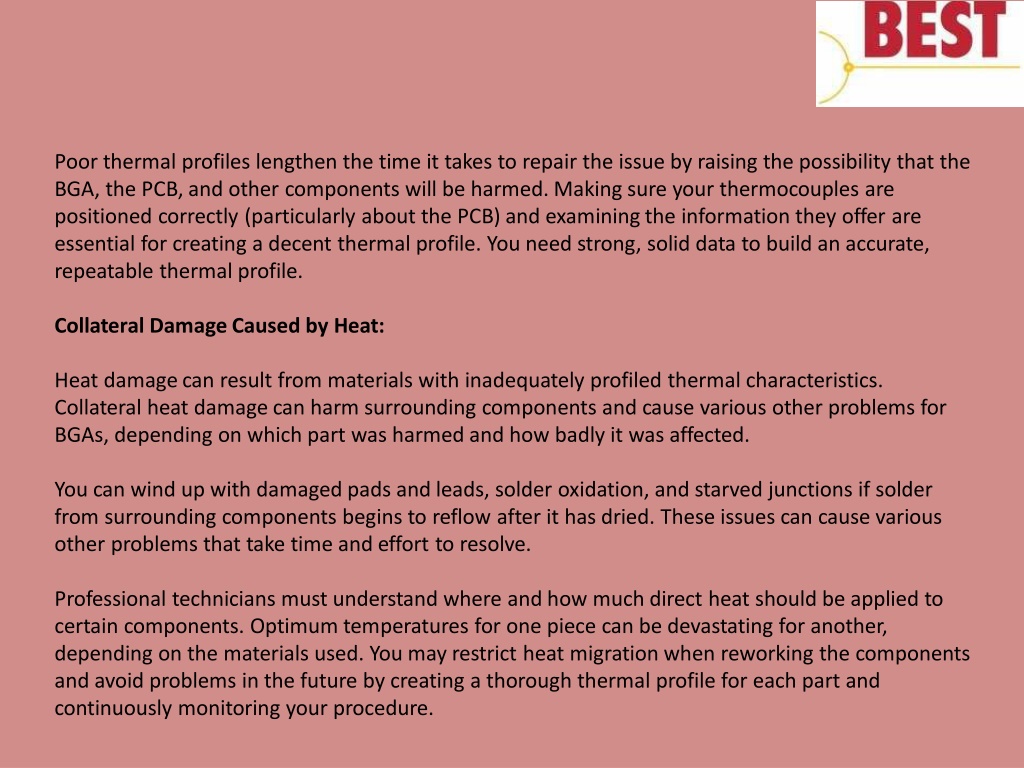

4. Poor thermal profiles lengthen the time it takes to repair the issue by raising the possibility that the BGA, the PCB, and other components will be harmed. Making sure your thermocouples are positioned correctly (particularly about the PCB) and examining the information they offer are essential for creating a decent thermal profile. You need strong, solid data to build an accurate, repeatable thermal profile. Collateral Damage Caused by Heat: Heat damage can result from materials with inadequately profiled thermal characteristics. Collateral heat damage can harm surrounding components and cause various other problems for BGAs, depending on which part was harmed and how badly it was affected. You can wind up with damaged pads and leads, solder oxidation, and starved junctions if solder from surrounding components begins to reflow after it has dried. These issues can cause various other problems that take time and effort to resolve. Professional technicians must understand where and how much direct heat should be applied to certain components. Optimum temperatures for one piece can be devastating for another, depending on the materials used. You may restrict heat migration when reworking the components and avoid problems in the future by creating a thorough thermal profile for each part and continuously monitoring your procedure.

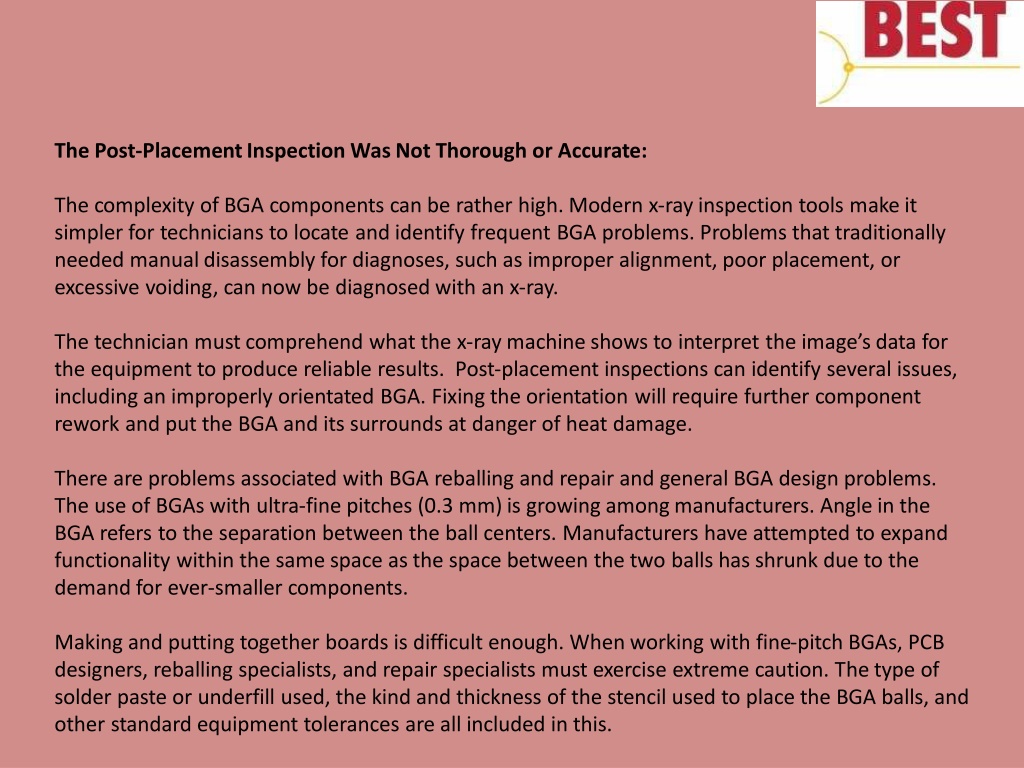

5. The Post-Placement Inspection Was Not Thorough or Accurate: The complexity of BGA components can be rather high. Modern x-ray inspection tools make it simpler for technicians to locate and identify frequent BGA problems. Problems that traditionally needed manual disassembly for diagnoses, such as improper alignment, poor placement, or excessive voiding, can now be diagnosed with an x-ray. The technician must comprehend what the x-ray machine shows to interpret the image’s data for the equipment to produce reliable results. Post-placement inspections can identify several issues, including an improperly orientated BGA. Fixing the orientation will require further component rework and put the BGA and its surrounds at danger of heat damage. There are problems associated with BGA reballing and repair and general BGA design problems. The use of BGAs with ultra-fine pitches (0.3 mm) is growing among manufacturers. Angle in the BGA refers to the separation between the ball centers. Manufacturers have attempted to expand functionality within the same space as the space between the two balls has shrunk due to the demand for ever-smaller components. Making and putting together boards is difficult enough. When working with fine-pitch BGAs, PCB designers, reballing specialists, and repair specialists must exercise extreme caution. The type of solder paste or underfill used, the kind and thickness of the stencil used to place the BGA balls, and other standard equipment tolerances are all included in this.

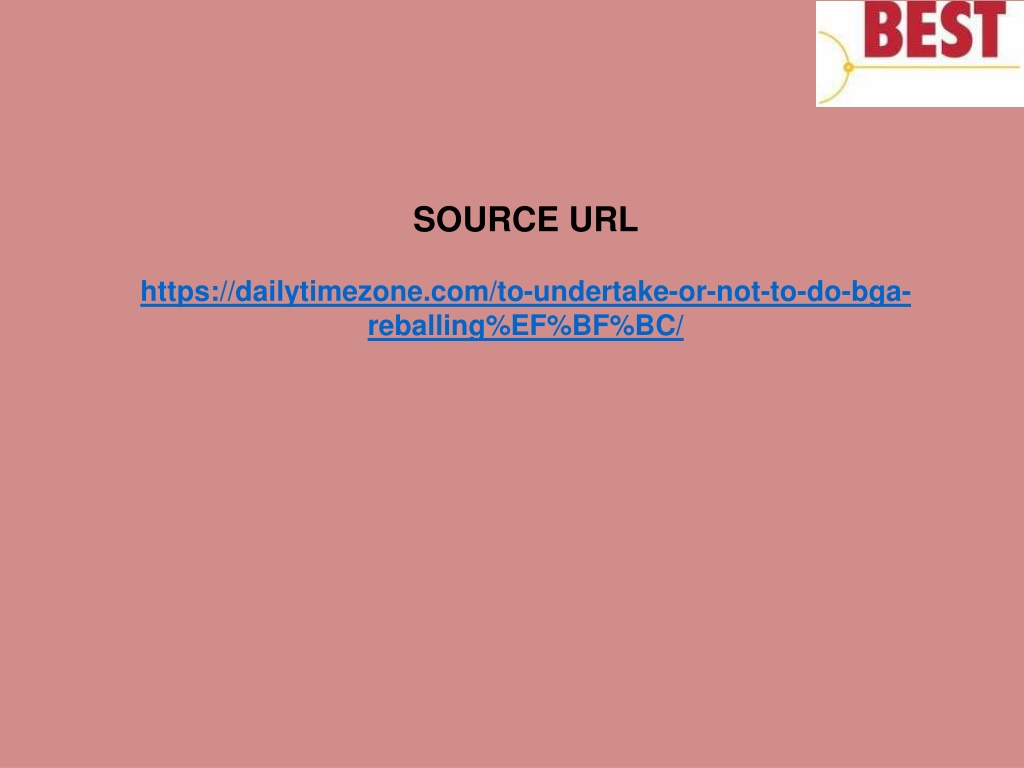

6. SOURCE URL https://dailytimezone.com/to-undertake-or-not-to-do-bga- reballing%EF%BF%BC/
