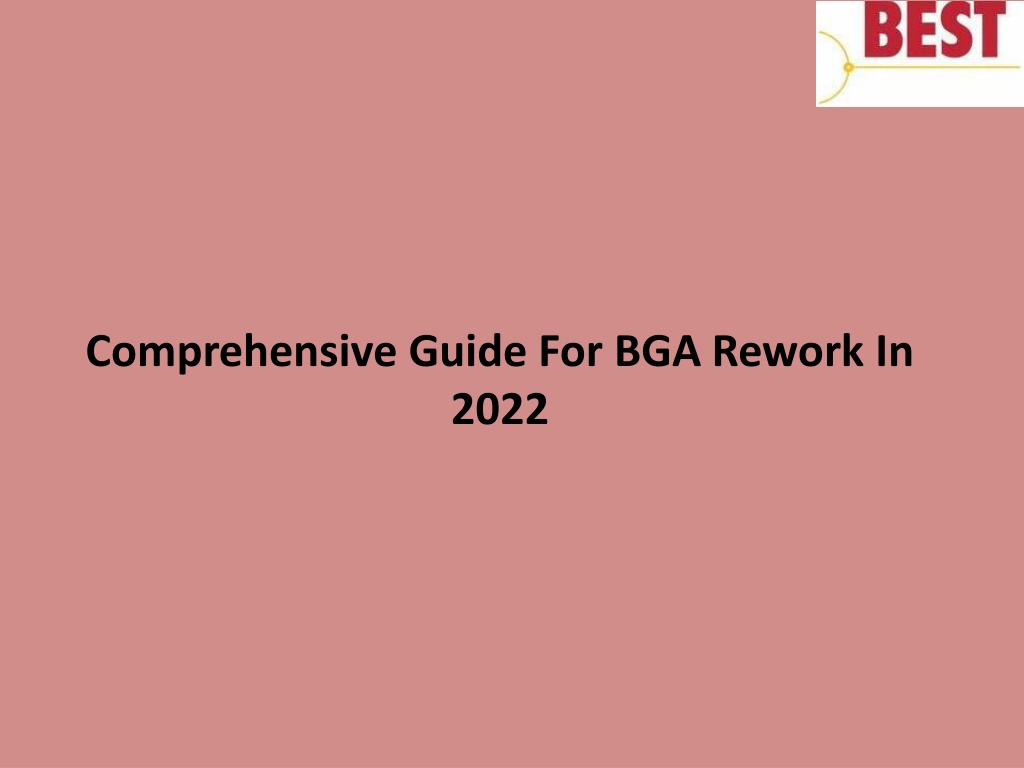

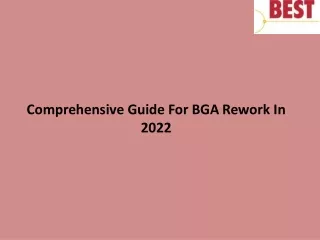

  1. Comprehensive Guide For BGA Rework In 2022

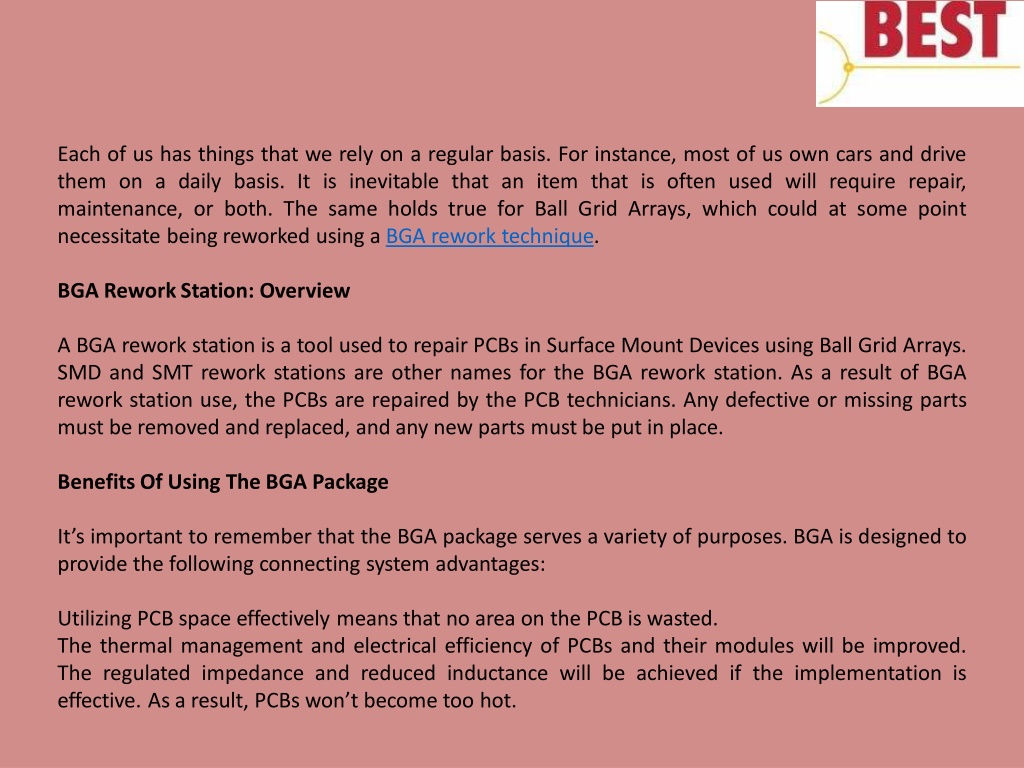

  2. Each of us has things that we rely on a regular basis. For instance, most of us own cars and drive them on a daily basis. It is inevitable that an item that is often used will require repair, maintenance, or both. The same holds true for Ball Grid Arrays, which could at some point necessitate being reworked using a BGA rework technique. BGA ReworkStation: Overview A BGA rework station is a tool used to repair PCBs in Surface Mount Devices using Ball Grid Arrays. SMD and SMT rework stations are other names for the BGA rework station. As a result of BGA rework station use, the PCBs are repaired by the PCB technicians. Any defective or missing parts must be removed and replaced, and any new parts must be put in place. Benefits Of Using The BGA Package It’s important to remember that the BGA package serves a variety of purposes. BGA is designed to provide the following connecting system advantages: Utilizing PCB space effectively means that no area on the PCB is wasted. The thermal management and electrical efficiency of PCBs and their modules will be improved. The regulated impedance and reduced inductance will be achieved if the implementation is effective. As a result, PCBs won’t become too hot.

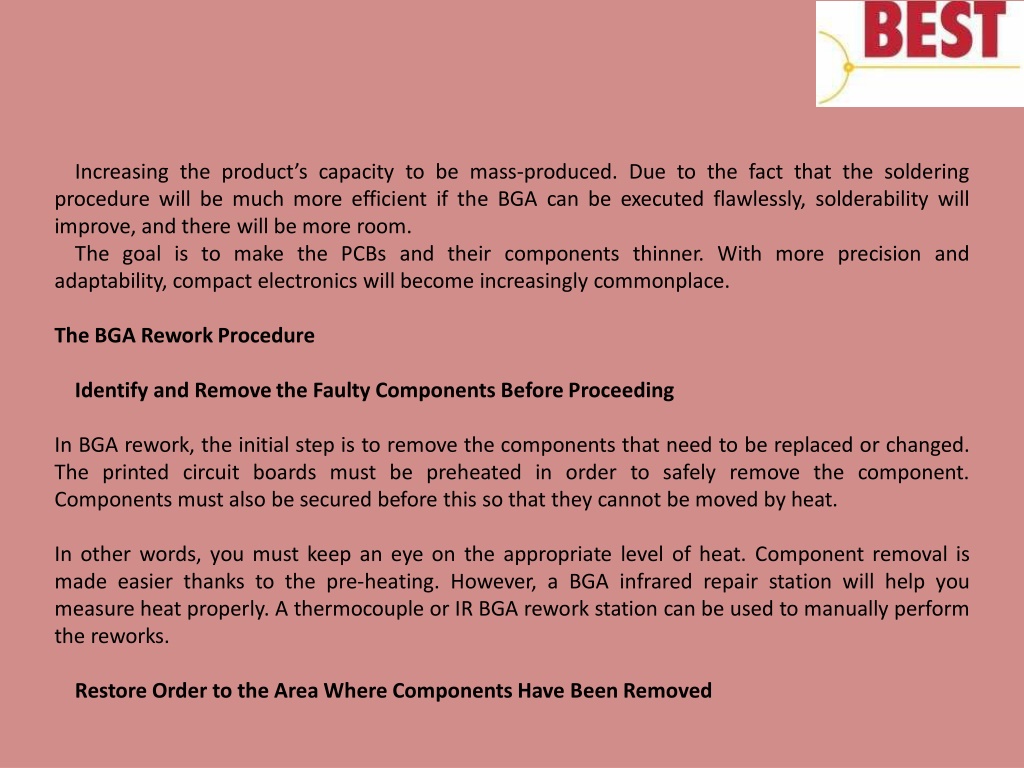

  3. Increasing the product’s capacity to be mass-produced. Due to the fact that the soldering procedure will be much more efficient if the BGA can be executed flawlessly, solderability will improve, and there will be more room. The goal is to make the PCBs and their components thinner. With more precision and adaptability, compact electronics will become increasingly commonplace. The BGA ReworkProcedure Identify and Removethe Faulty Components Before Proceeding In BGA rework, the initial step is to remove the components that need to be replaced or changed. The printed circuit boards must be preheated in order to safely remove the component. Components must also be secured before this so that they cannot be moved by heat. In other words, you must keep an eye on the appropriate level of heat. Component removal is made easier thanks to the pre-heating. However, a BGA infrared repair station will help you measure heat properly. A thermocouple or IR BGA rework station can be used to manually perform the reworks. Restore Order to the Area Where Components Have BeenRemoved

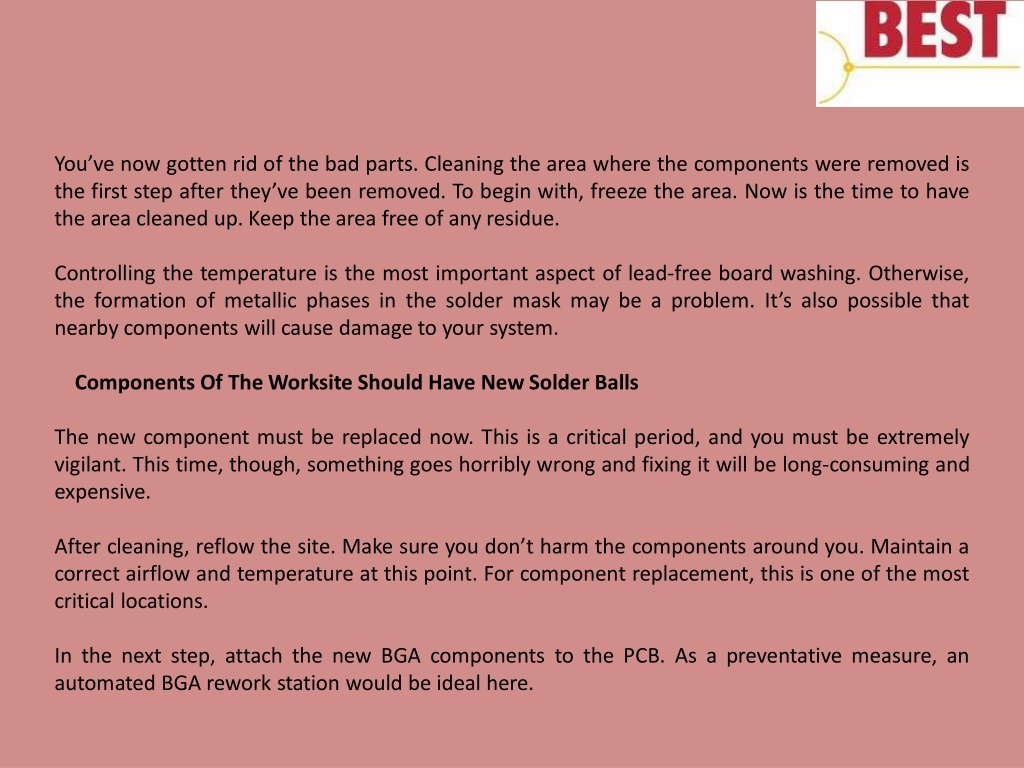

  4. You’ve now gotten rid of the bad parts. Cleaning the area where the components were removed is the first step after they’ve been removed. To begin with, freeze the area. Now is the time to have the area cleaned up. Keep the area free of any residue. Controlling the temperature is the most important aspect of lead-free board washing. Otherwise, the formation of metallic phases in the solder mask may be a problem. It’s also possible that nearby components will cause damage to your system. Components Of The Worksite Should Have NewSolder Balls The new component must be replaced now. This is a critical period, and you must be extremely vigilant. This time, though, something goes horribly wrong and fixing it will be long-consuming and expensive. After cleaning, reflow the site. Make sure you don’t harm the components around you. Maintain a correct airflow and temperature at this point. For component replacement, this is one of the most critical locations. In the next step, attach the new BGA components to the PCB. As a preventative measure, an automated BGA rework station would be ideal here.

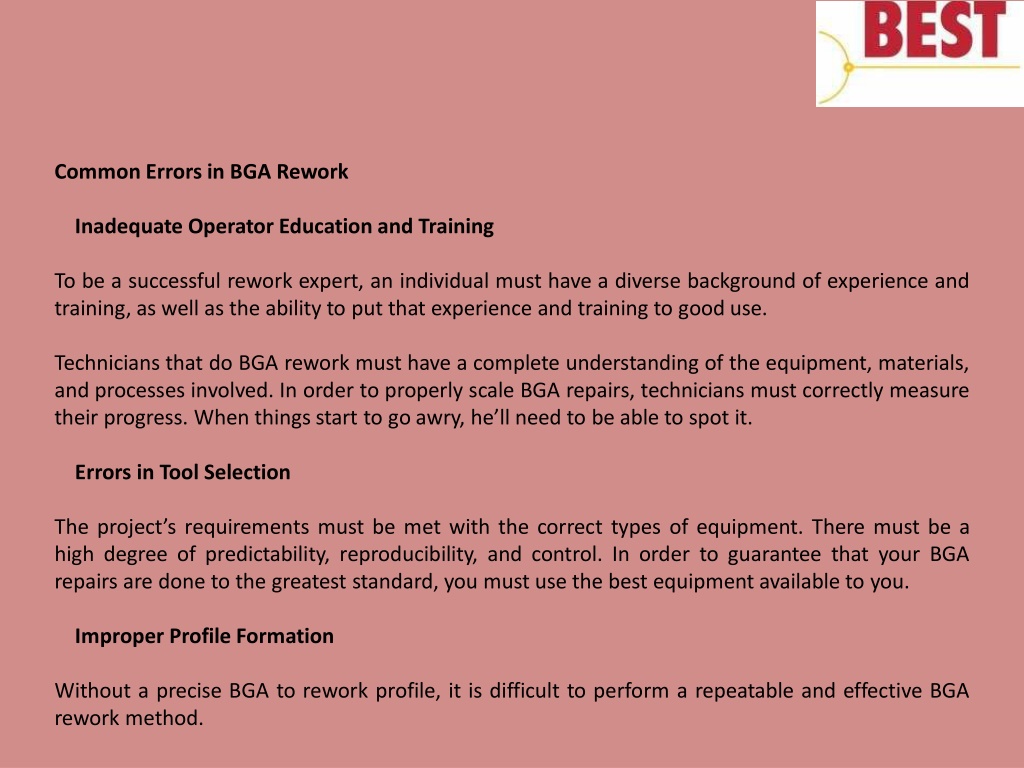

  5. Common Errors in BGA Rework Inadequate Operator Education and Training To be a successful rework expert, an individual must have a diverse background of experience and training, as well as the ability to put that experience and training to good use. Technicians that do BGA rework must have a complete understanding of the equipment, materials, and processes involved. In order to properly scale BGA repairs, technicians must correctly measure their progress. When things start to go awry, he’ll need to be able to spot it. Errors in Tool Selection The project’s requirements must be met with the correct types of equipment. There must be a high degree of predictability, reproducibility, and control. In order to guarantee that your BGA repairs are done to the greatest standard, you must use the best equipment available to you. Improper Profile Formation Without a precise BGA to rework profile, it is difficult to perform a repeatable and effective BGA rework method.

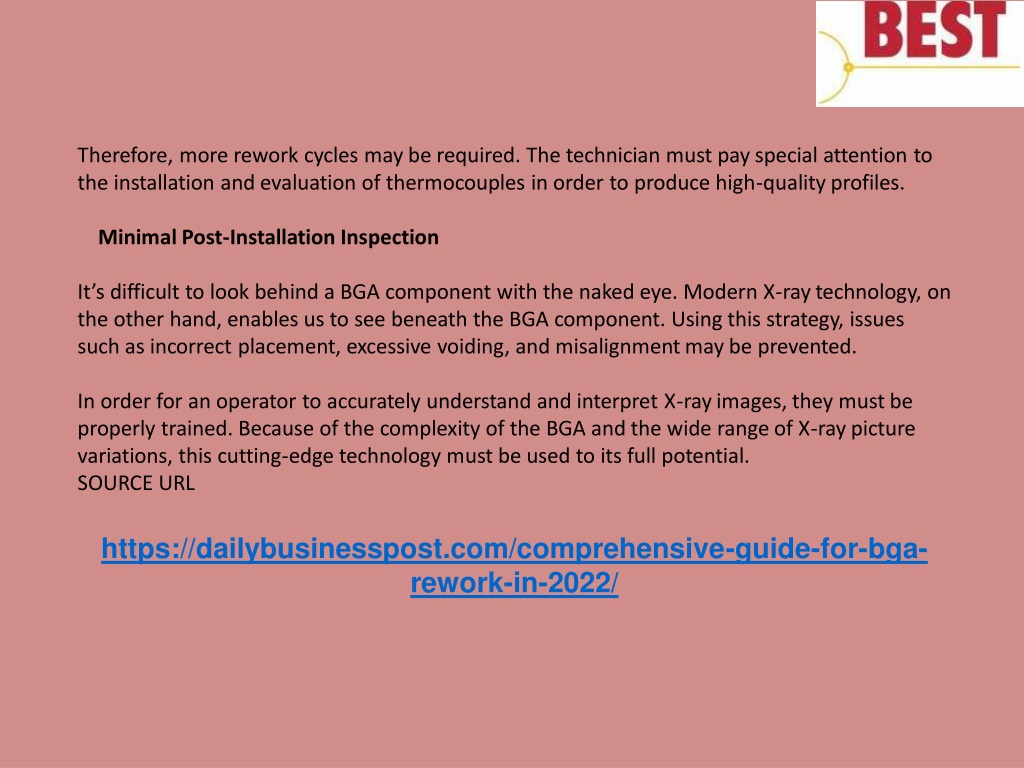

  6. Therefore, more rework cycles may be required. The technician must pay special attention to the installation and evaluation of thermocouples in order to produce high-quality profiles. Minimal Post-Installation Inspection It’s difficult to look behind a BGA component with the naked eye. Modern X-ray technology, on the other hand, enables us to see beneath the BGA component. Using this strategy, issues such as incorrect placement, excessive voiding, and misalignment may be prevented. In order for an operator to accurately understand and interpret X-ray images, they must be properly trained. Because of the complexity of the BGA and the wide range of X-ray picture variations, this cutting-edge technology must be used to its full potential. SOURCE URL https://dailybusinesspost.com/comprehensive-guide-for-bga- rework-in-2022/
