All you need to know about BGA Reballing

BGA reballing may be necessary if a graphics chip is overused for a lengthy period of time, such as several days. In most cases, the solder connections between the PCB and the chip will loosen up over time. Users may experience display difficulties that may worsen over time as a consequence of the problem. To know more visit website: https://www.solder.net/ .

solder4
Download Presentation

All you need to know about BGA Reballing

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. All you need to know about BGA Reballing

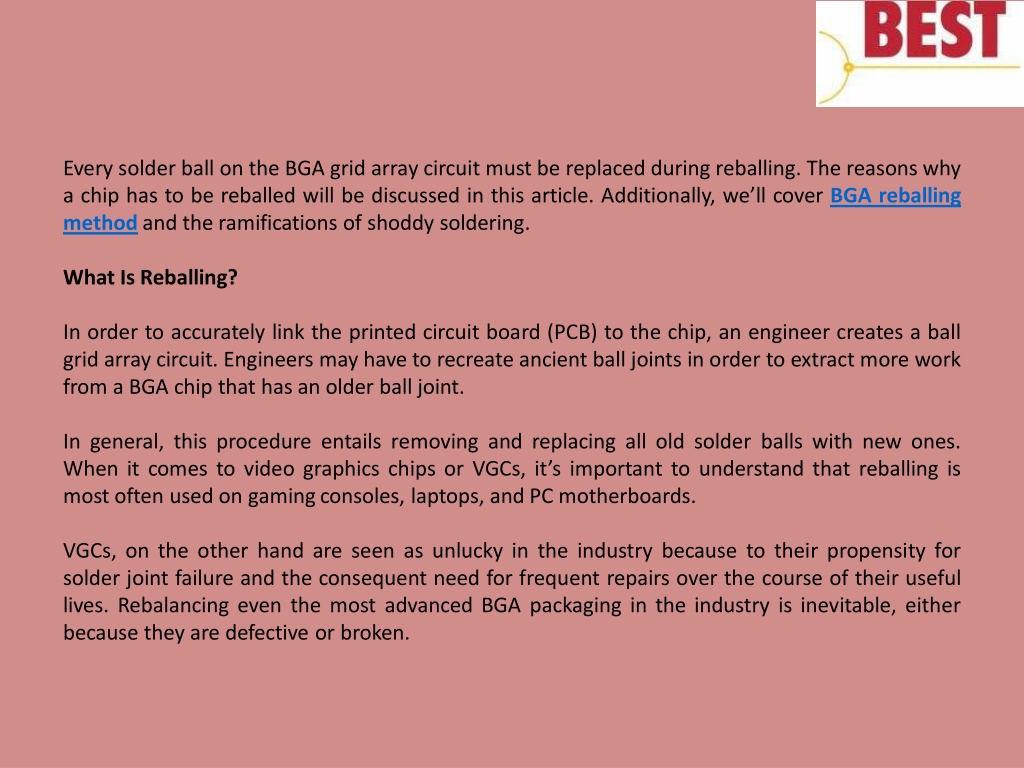

  2. Every solder ball on the BGA grid array circuit must be replaced during reballing. The reasons why a chip has to be reballed will be discussed in this article. Additionally, we’ll cover BGA reballing methodand the ramifications of shoddy soldering. What Is Reballing? In order to accurately link the printed circuit board (PCB) to the chip, an engineer creates a ball grid array circuit. Engineers may have to recreate ancient ball joints in order to extract more work from a BGA chip that has an older ball joint. In general, this procedure entails removing and replacing all old solder balls with new ones. When it comes to video graphics chips or VGCs, it’s important to understand that reballing is most often used on gamingconsoles, laptops, and PC motherboards. VGCs, on the other hand are seen as unlucky in the industry because to their propensity for solder joint failure and the consequent need for frequent repairs over the course of their useful lives. Rebalancing even the most advanced BGA packaging in the industry is inevitable, either because they are defective or broken.

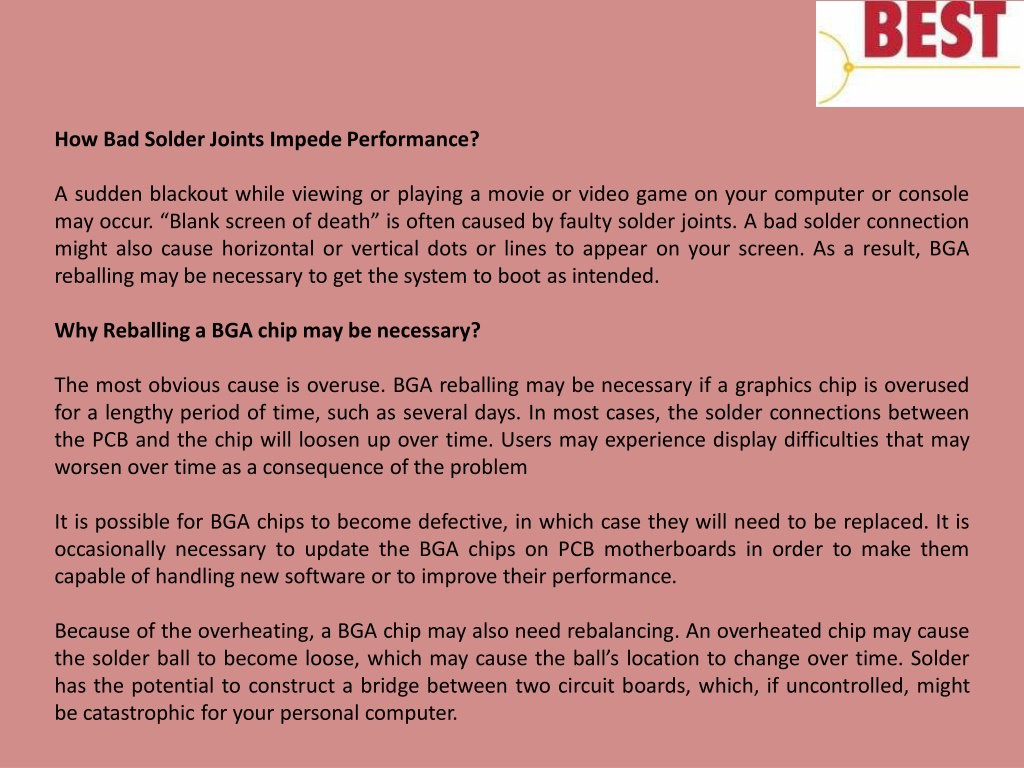

  3. How Bad Solder Joints ImpedePerformance? A sudden blackout while viewing or playing a movie or video game on your computer or console may occur. “Blank screen of death” is often caused by faulty solder joints. A bad solder connection might also cause horizontal or vertical dots or lines to appear on your screen. As a result, BGA reballing may be necessary to get the system to boot as intended. Why Reballing a BGA chip may be necessary? The most obvious cause is overuse. BGA reballing may be necessary if a graphics chip is overused for a lengthy period of time, such as several days. In most cases, the solder connections between the PCB and the chip will loosen up over time. Users may experience display difficulties that may worsen over time as a consequence of the problem It is possible for BGA chips to become defective, in which case they will need to be replaced. It is occasionally necessary to update the BGA chips on PCB motherboards in order to make them capable of handling new software or to improve their performance. Because of the overheating, a BGA chip may also need rebalancing. An overheated chip may cause the solder ball to become loose, which may cause the ball’s location to change over time. Solder has the potential to construct a bridge between two circuit boards, which, if uncontrolled, might be catastrophic for your personal computer.

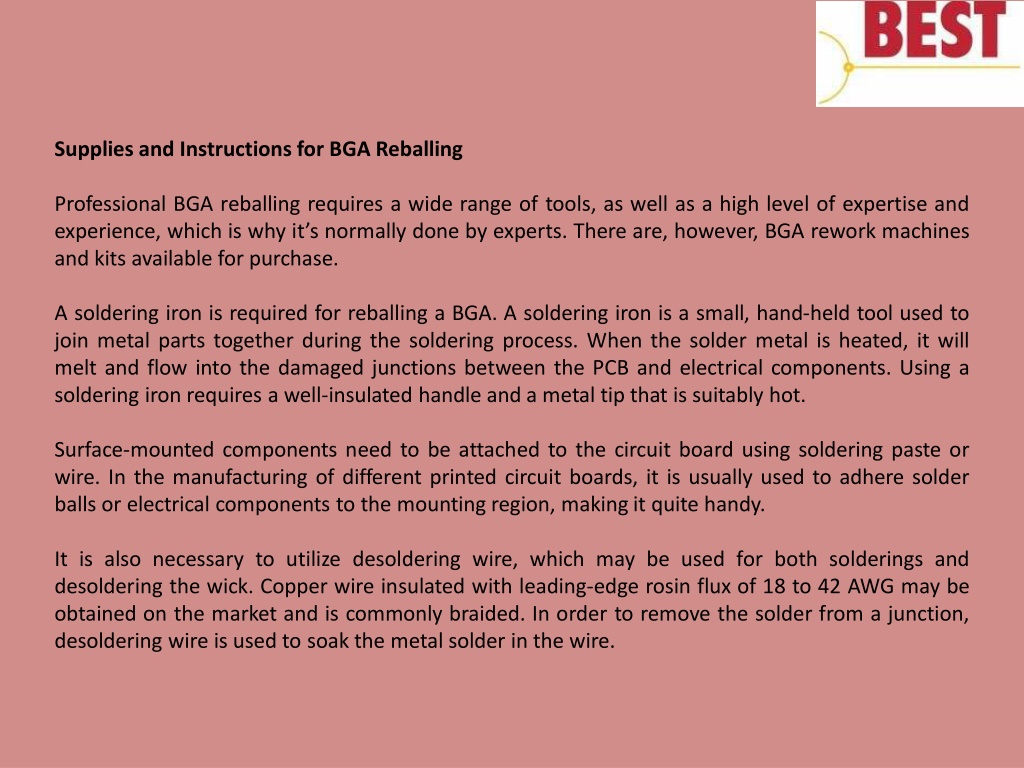

  4. Supplies and Instructions for BGA Reballing Professional BGA reballing requires a wide range of tools, as well as a high level of expertise and experience, which is why it’s normally done by experts. There are, however, BGA rework machines and kits available for purchase. A soldering iron is required for reballing a BGA. A soldering iron is a small, hand-held tool used to join metal parts together during the soldering process. When the solder metal is heated, it will melt and flow into the damaged junctions between the PCB and electrical components. Using a soldering iron requires a well-insulated handle and a metal tip that is suitably hot. Surface-mounted components need to be attached to the circuit board using soldering paste or wire. In the manufacturing of different printed circuit boards, it is usually used to adhere solder balls or electrical components to the mounting region, makingit quite handy. It is also necessary to utilize desoldering wire, which may be used for both solderings and desoldering the wick. Copper wire insulated with leading-edge rosin flux of 18 to 42 AWG may be obtained on the market and is commonly braided. In order to remove the solder from a junction, desoldering wire is used to soak the metal solder in the wire.

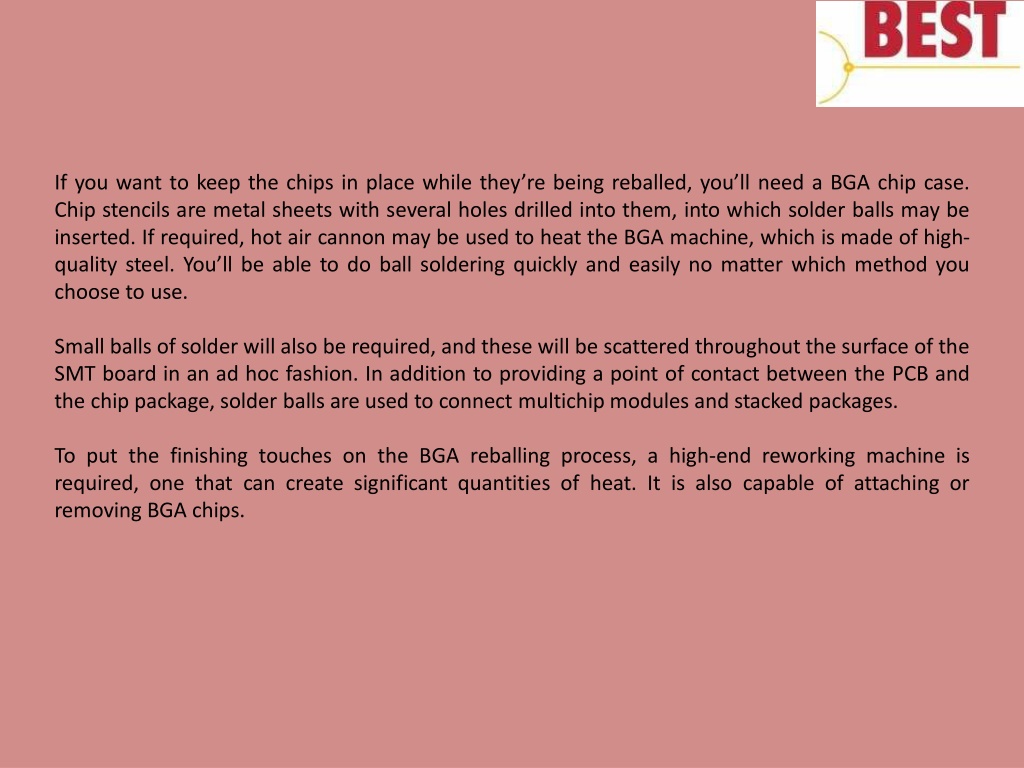

  5. If you want to keep the chips in place while they’re being reballed, you’ll need a BGA chip case. Chip stencils are metal sheets with several holes drilled into them, into which solder balls may be inserted. If required, hot air cannon may be used to heat the BGA machine, which is made of high- quality steel. You’ll be able to do ball soldering quickly and easily no matter which method you choose to use. Small balls of solder will also be required, and these will be scattered throughout the surface of the SMT board in an ad hoc fashion. In addition to providing a point of contact between the PCB and the chip package, solder balls are used to connect multichip modules and stacked packages. To put the finishing touches on the BGA reballing process, a high-end reworking machine is required, one that can create significant quantities of heat. It is also capable of attaching or removing BGA chips.

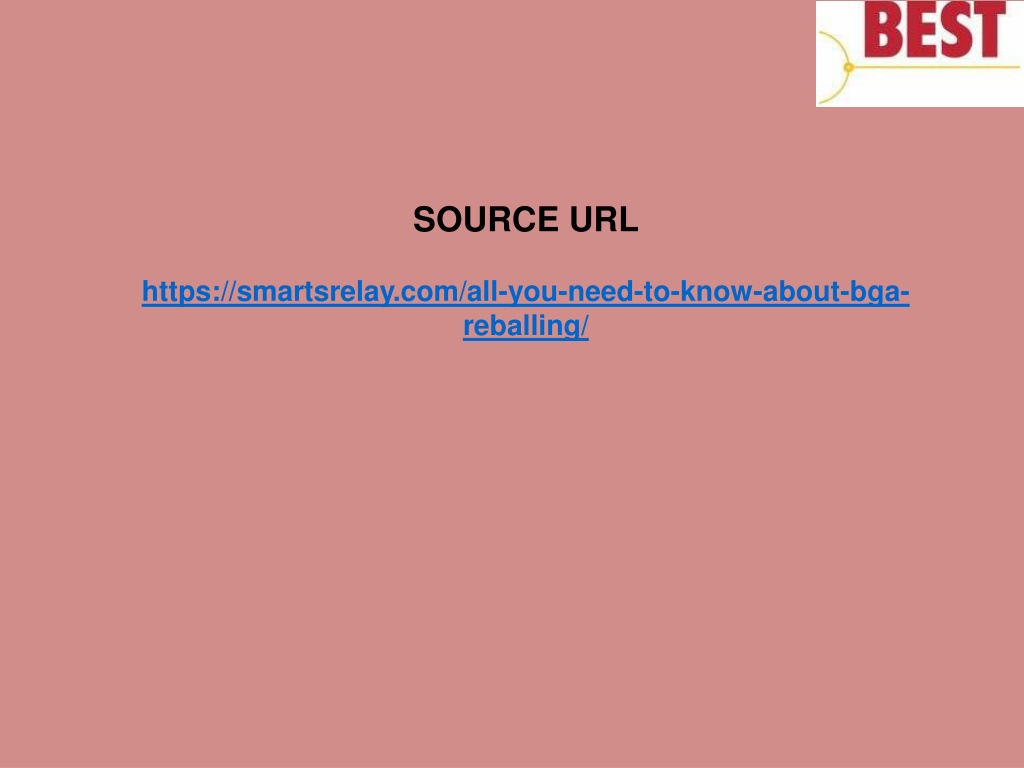

  6. SOURCE URL https://smartsrelay.com/all-you-need-to-know-about-bga- reballing/
