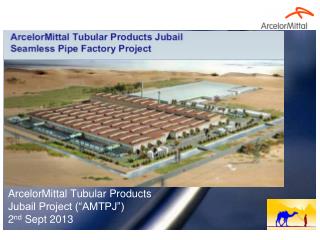

ArcelorMittal Tubular Products Jubail Project (“AMTPJ”) 2 nd Sept 2013 PowerPoint Presentation
Download Presentation
ArcelorMittal Tubular Products Jubail Project (“AMTPJ”) 2 nd Sept 2013

Loading in 2 Seconds...

play fullscreen
1 / 32

ArcelorMittal Tubular Products Jubail Project (“AMTPJ”) 2 nd Sept 2013 - PowerPoint PPT Presentation


  • 406 Views
  • Uploaded on

ArcelorMittal Tubular Products Jubail Project (“AMTPJ”) 2 nd Sept 2013. 0. ArcelorMittal Jubail Project overview capability highlights . Constructing a 600,000 t/yr Seamless Tube Mill in Saudi Arabia to supply the energy tubes market of the Middle East & North Africa from a local source:

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'ArcelorMittal Tubular Products Jubail Project (“AMTPJ”) 2 nd Sept 2013' - solana


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
slide2

ArcelorMittal JubailProject overview capability highlights

  • Constructing a 600,000 t/yr Seamless Tube Mill in Saudi Arabia to supply the energy tubes market of the Middle East & North Africa from a local source:
    • Product: OCTG (Oil Country Tubular Goods) & Line Pipe for Oil and Gas
    • Manufacturing Size range from 4 1/2” to 16”
    • Finishing Size range 2 3/8” to 16” (Green pipe sourced from inter-company units)
    • Approximate split: 60/40: OCTG / Line Pipe
    • Heat treatment capability at 330 kt/yr
  • Joint venture with Al-Tanmiah Company for Industrial and Commercial Investment of Riyadh:

Jubail

Confidential Information

slide3

AMTPJ – Health & Safety Performance

Health and Safety – June 2013

*W : Warning letter ** T: Termination letter

  • Safety Concern:
  • Housekeeping
  • Repeated none compliance to AMJ Safety requirements
  • Mitigation:
  • AMJ Site Management to assist in enforcing safety requirements
slide4

Project Overview

Plant Layout and Equipment Capacities

slide5

ArcelorMittal JubailBuilt with state-of-the-art technology

  • Hot mill: PQF® (premium quality finishing) SMS Meer (Germany)
  • Heat treating: SMS Elotherm (Germany) and Tenova LOI Italiampianti (Italy)
  • Furnace: Tenova LOI Italiampianti (Italy)
  • Electrical systems: ABB (Switzerland)
  • Cutting: Linsinger (Austria)
  • Straightening & hydrotesting: Bronx (USA)
  • Non destructive testing: Tuboscope (USA)
  • Threading: PMC–Colinet (Belgium and USA)

12-stand sizing mill

slide6

(9) Operational Readiness – Our Business

Pillars Launch Priority

Sales Marketing

product sp ecification and grades
Product: Specification and Grades

Seamless OCTG Casing & Tubing

Grades: H40, J55, K55, M65, L80, C95, N80-1, N80-Q, C90, T95, P110, Q125

High collapse grades also available.

End finishes include:

P-plain end, S-short round thread, L-long round thread, B-buttress thread,

H-Hunting Energy Services premium connection

Seamless Line Pipe

Grades:

API5L B, X42, X46, X52, X56, X60, X65, X70

EN 10208-2 L245NB, L290NB, L360NB, L360QB, L415QB, L450QB

ASTM A53* A, B

A106* A, B, C

ASTM A333* 1, 3, 6

* Standard pipe; high and low temperature services

slide8

ArcelorMittal – Global R&D

… strongly supporting specialties

ArcelorMittal R&D…

  • Around 1,300 full time researchers
  • Annual R&D expenditure of $300 million
  • Number one R&D in the industry
  • Working on all development axes
    • Research into products & steel solutions
    • Process research
    • Technical assistance to the plants
  • Worldwide network of 11 research centres, further supported by a network of scientific and academic partners worldwide
  • R&D spending focused on 7 areas:
    • Automotive, Packaging, Construction, Energy, General Industry, Long products and Special Plates

R&D Key challenges in accordance with the Group strategy

  • Product: Differentiated product offer
  • Geography: Support the transfer of technology
  • between plants
  • Value chain: Transverse projects optimising the
  • product value along the complete value chain from mining to finishedproducts

Research & development enables to realize our ambitions

in technological innovation and sustainability

r d centre gent belgium
R&D Centre – Gent, Belgium

Unique facilities in processing, characterization and testing of metal alloys

Completely integrated metallurgical processing center

Unique facilities in processing and characterization of metal alloys

  • Wide range of casting possibilities
  • 5 rolling stand of which 2 continuous
  • Multi-purpose dynamic annealing line with transverse flux inductor
  • Complete mechanical testing facilities
  • Advanced characterisation equipment like dilatometry, torsion and easy access to high speed-compression
  • Complete sampling preparation facilities including waterjet cutting
  • Unique reactive continuous annealing simulator
  • Fully equipped hydrogen lab
  • Fully equipped chemical characterisation laboratory
  • Extensive electron microscope facilities
  • Complete coating laboratory including novel curing techniques and corrosion laboratory
  • All major welding and cutting techniques available ((hybrid) laser, SAW, MIG/MAG/TIG)
  • Forming and rapid prototyping capabilities
  • Complete facilities for electromagnetic characterisation
  • Large experience in Finite Element Modeling
slide12

AM Jubail – Overview

Billet Preparation Area

  • Construction completed
  • Equipment Commissioning ongoing
  • First billet cut on 9 May 2013
slide13

AM Jubail – Overview

Rotary Heart Furnace

  • 200t/hr Capacity
  • 48m diameter – 5.5m max billet length
  • Construction completed
  • Under Commissioning
slide14

AM Jubail – Overview

Cone Type Piercer

  • Construction walkthrough
  • Under Commissioning
slide15

AM Jubail – Overview

PQF – Premium Quality Finishing Mill

  • Construction walkthrough
  • Under Pre-Commissioning
slide16

AM Jubail – Overview

Induction Furnace

  • Construction completed - walkthrough
slide17

AM Jubail – Overview

12 Stand Sizing Mill

  • Under Construction
slide18

AM Jubail – Overview

Cooling Bed

  • Construction completed
  • Under Commissioning
slide19

AM Jubail – Overview

Hydraulic Systems

  • Construction completed
  • Under Pre-Commissioning
slide20

AM Jubail – Overview

Layer Saw Line

  • Most Construction completed
  • Under Pre-Commissioning
slide21

AM Jubail – Overview

Straightening

  • Most Construction completed
  • Under Pre-Commissioning
slide22

AM Jubail – Overview

Inspection and Prove-up Area

  • Most Construction completed
  • Under Pre-Commissioning
slide23

AM Jubail – Overview

Heat Treatment 1 - Induction Furnace

  • Construction ongoing
  • Under Pre-Commissioning

Induction

Quench

slide24

AM Jubail – Overview

Heat Treatment 2 – Gas fired Furnace

  • Construction ongoing
  • Under Pre-Commissioning

Tempering

Furnace

Hardening

Furnace

slide25

AM Jubail – Overview

OCTG Line

  • Construction completed
  • Under Pre-Commissioning

Threading

Machine

MPI End

Inspection

Coupling

Torque

slide26

AM Jubail – Overview

Hydrostatic Machine

  • Construction completed
  • Under Pre-Commissioning
slide27

AM Jubail – Overview

Coating System

  • Construction completed
  • Under Pre-Commissioning

Coating System

slide28

AM Jubail – Overview

Bundling for OCTG 2

  • Areas still under Construction
  • Under Pre-Commissioning

Bundling System

slide29

AM Jubail – Overview

Final Material Storage

  • Area ready
slide30

AM Jubail – Overview

LPG / SNG Storage

  • LPG Storage ready
  • Access road completed
  • Awaiting final approval before gas delivery
slide31

AM Jubail – Overview

Water Treatment Stock

  • Construction completed
  • Under Commissioning

Water Treatment Filter

Sea Water Cooling Tower

slide32

AM Jubail – Overview

115kV Substation

  • Completed
