MPEG2 FGS Implementation. ECE 738 Advanced Digital Image Processing Author: Deshan Yang 05/01/2003. Introduction of FGS. FGS = fine granularity scalability For MPEG2 / MPEG4 and others

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'MPEG2 FGS Implementation' - sol


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
mpeg2 fgs implementation

MPEG2 FGS Implementation

ECE 738

Advanced Digital Image Processing

Author: Deshan Yang

05/01/2003

introduction of fgs

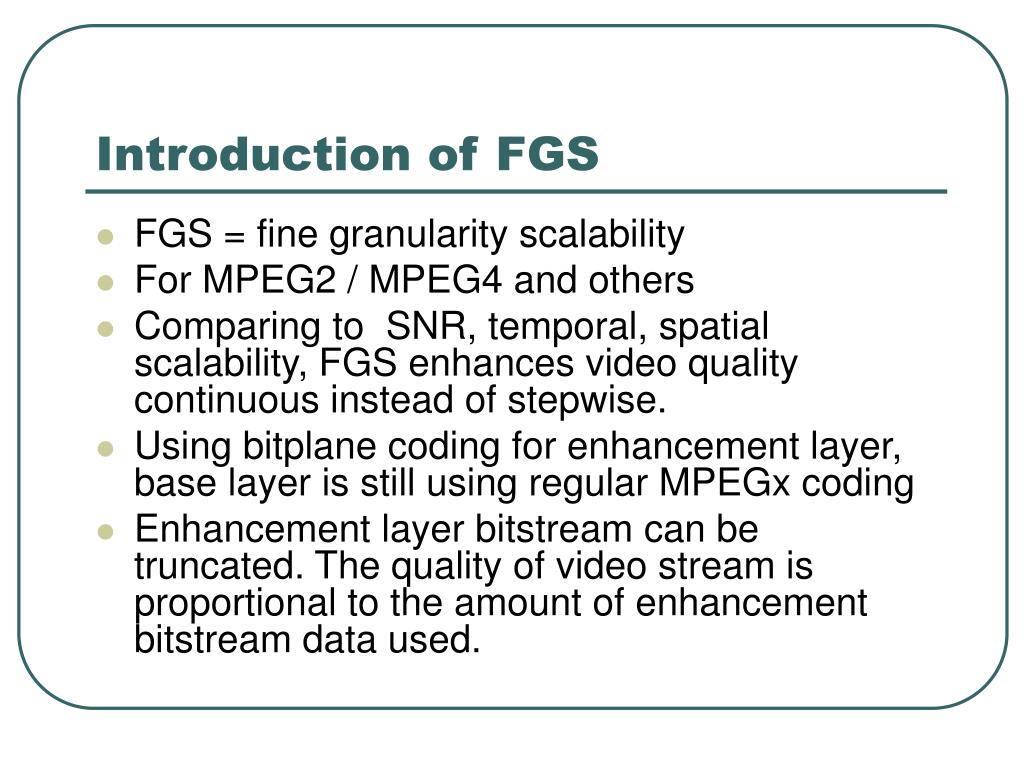

Introduction of FGS
  • FGS = fine granularity scalability
  • For MPEG2 / MPEG4 and others
  • Comparing to SNR, temporal, spatial scalability, FGS enhances video quality continuous instead of stepwise.
  • Using bitplane coding for enhancement layer, base layer is still using regular MPEGx coding
  • Enhancement layer bitstream can be truncated. The quality of video stream is proportional to the amount of enhancement bitstream data used.
project outline
Project outline
  • Implement MPEG2 FGS enhancement into the current MPEG2 codec project from MPEG MSSG (MPEG Software Simulation Group).
  • Implementation includes:
    • Updating the current MPEG2 codec source code to support FGS
    • Implementing bitplane VL Codec and bit streaming
    • Implementing a new FGS enabled MPEG2 player
  • Challenges
    • Understanding and using the MSSG MPEG2 codec source code (much more difficult than it seems to be)
    • Bitplane coding / decoding
    • MPEG2 player on Windows platform
    • Media data to play with
source code
Source code
  • MPEG2 codec source code is from:MPEG Software Simulation Group (MSSG) athttp://www.mpeg.org/MPEG/MSSG/
  • MPEG2 player source code: searching google.com for mpg2w11b.zip.
  • My MPEG2 FGS player is combined from the the MPEG2 player with my MPEG2 FGS decoder MPEG2 player source.
mpeg2 encoder
MPEG2 Encoder
  • More configurable options to control FGS encoding.
  • Integrating FGS enhancement layer bitplane encoder into the original MPEG2 encoder
    • Encoding base layer in very low bit rate
    • Calculate the DCT coefficients residues before and after the quantization step.
    • Encoding the DCT coefficients residues with the bitplane VLC
    • Encoded bitplane VLC output data are stored (as binary files) as the enhancement layer bitstream
  • Supporting I-frame and P-frame, not B-frame
mpeg2 decoder
MPEG2 Decoder
  • More configurable options to control FGS decoding
  • Integrating the FGS bitplane VLD into the original MPEG2 decoder
    • Accessing the enhancement layer bit stream (from binary files on disk)
    • Decoding DCT residues from the enhancement bit stream
    • Control the degree of enhancement
    • Generating the enhanced DCT coefficients
    • Decoding the enhanced DCT coefficients to get better video over base layer
  • Supporting I-frame and P-frame, not B-frame
mpeg2 player
MPEG2 Player
  • Combination of original MPEG2 player with the new MPEG2 FGS decoder
  • New features
    • Supporting FGS
    • Replay
    • Stop
    • Stretching to window
    • Supporting wide screen format
    • FGS scale change on the fly
    • Turning FGS on/off
    • Player window resizing
    • Supporting new command line options
dct coefficients
DCT Coefficients
  • Before quantization88,-14,0,0,-3,0,0,0,-40,-2,-2,0,0,0,0,0,-7,8,3,0,0,0,0,0,-5,0,0,0,0,0,0,0,0,3,0,0,0,0,0,0,0,3,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,4,0,0,0,0,2
  • After base layer quantization88,0,0,0,0,0,0,0,-32,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,-0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,1
  • Difference0,-14,0,0,-3,0,0,0,-8,-2,-2,0,0,0,0,0,-7,8,3,0,0,0,0,0,-5,0,0,0,0,0,0,0,0,3,0,0,0,0,0,0,0,3,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,4,0,0,0,0,1
  • Sign bitsx,1,x,x,1,x,x,x,1,1,1,x,x,x,x,x,1,0,0,x,x,x,x,x,1,x,x,x,x,x,x,x,x,0,x,x,x,x,x,x,x,0,x,x,x,x,x,x,x,x,x,x,x,x,x,x,x,x,0,x,x,x,x,0
  • Compressed sign bits1,1,1,1,1,1,0,0,1,0,0,0,0
bitplane coding
Bitplane coding
  • DCT coefficient differences:0, -14, 0, 0, -3, 0, 0, 0, -8, -2, -2, 0, 0, 0, 0, 0, -7, 8, 3, 0, 0, 0, 0, 0, -5, 0, 0, 0, 0, 0, 0, 0, 0, 3, 0, 0, 0, 0, 0, 0, 0, 3, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 4, 0, 0, 0, 0, 0
  • Bit planes:

0: 0000000000000000000000000000000000000000000000000000000000000000

1: 0000000000000000000000000000000000000000000000000000000000000000

2: 0000000000000000000000000000000000000000000000000000000000000000

3: 0000000000000000000000000000000000000000000000000000000000000000

4: 0100000010000000010000000000000000000000000000000000000000000000

5: 0100000000000000100000001000000000000000000000000000000000100000

6: 0100100001100000101000000000000001000000010000000000000000000000

7: 0000100000000000101000001000000001000000010000000000000000000000

8: 0200200022200000211000002000000001000000010000000000000000100000 (sign bits)

  • Compressed sign bits: 1,1,1,1,1,1,0,0,1,0,0,0,0
  • Bitplane VLC encoding

Planes 0,1,2,3 are all zero

Plane 4: (1, 0, 0), (6, 0, 0), (8, 1, 0)

Plane 5: (1, 0, 0), (14, 0, 0), (7, 0, 0), (33, 1, 0)

Plane 6: (1, 0, 0), (2, 0, 0), (4, 0, 0), (0, 0, 0), (5, 0, 0), (1, 0, 0), (14, 0, 0), (7, 1, 0)

Plane 7: (4, 0, 0), (11, 0, 0), (1, 0, 0), (5, 0, 0), (8, 0, 0), (7, 1, 1)

bitplane coding cont
Bitplane coding (cont.)

Code format: BPnnnnnn

B: End of block flag, P: End of plane flag, nnnnnn: number of 0 before 1

3F=00111111=“All zero plane”, BF=0x10111111=“All planes are zero)

bitplane vl codec
Bitplane VL Codec
  • VLC
    • Splitting DCT coefficients to bitplanes
    • Converting each bitplane to VL codes
    • Converting VL codes to binary codes (Huffman codes)
    • Storing binary codes as enhancement layer bitstream (binary file)
  • VLD
    • Loading binary codes from enhancement layer bitstream (binary file)
    • Converting binary codes (Huffman codes) to VL codes
    • Converting VL codes to bitplanes
    • Merging bitplanes to DCT coefficients
slide16

No FGS

15% FGS

65% FGS

30% FGS

30% FGS

slide17
Demo
  • Run fgs.bat
issues
Issues
  • Enhancement layer bitstream size is much bigger than the base layer bitstream size.
  • Motion prediction can not be applied to enhancement layer
  • Current implementation only supports I-frame and P-frame, not B-frame yet
  • Current implementation does not support Huffman VLC coding in the bitplane VLC. I don’t have a good Huffman VLC table, and Huffman VLC will only help to reduce the enhancement bitstream size ¼ anyway.
