Screw Conveyor

Sodimate's screw conveyor equipment offers versatility and efficiency by helping in transport bulk powders between two points (remove) without altering feeding accuracy. At Sodimate we have over 40 years of experience and provide quality material handling conveyor systems, including screw conveyors, flexible conveyors, agitator hoppers, auger conveyors, and much more. Call us today for more information and visit here: https://bit.ly/3dPL31g

sodimate
Download Presentation

Screw Conveyor

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

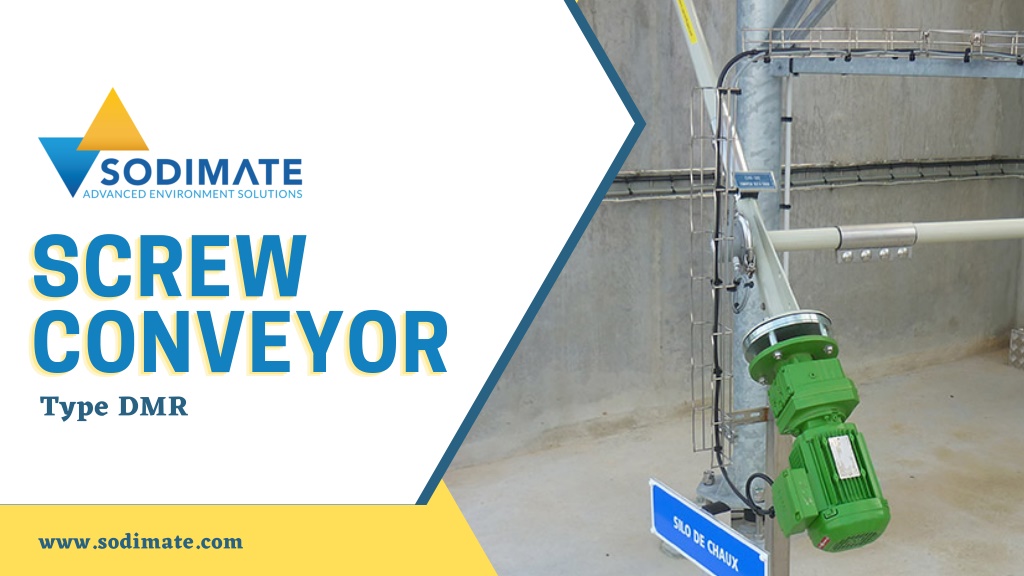

  1. SCREW SCREW SCREW CONVEYOR CONVEYOR CONVEYOR Type DMR www.sodimate.com

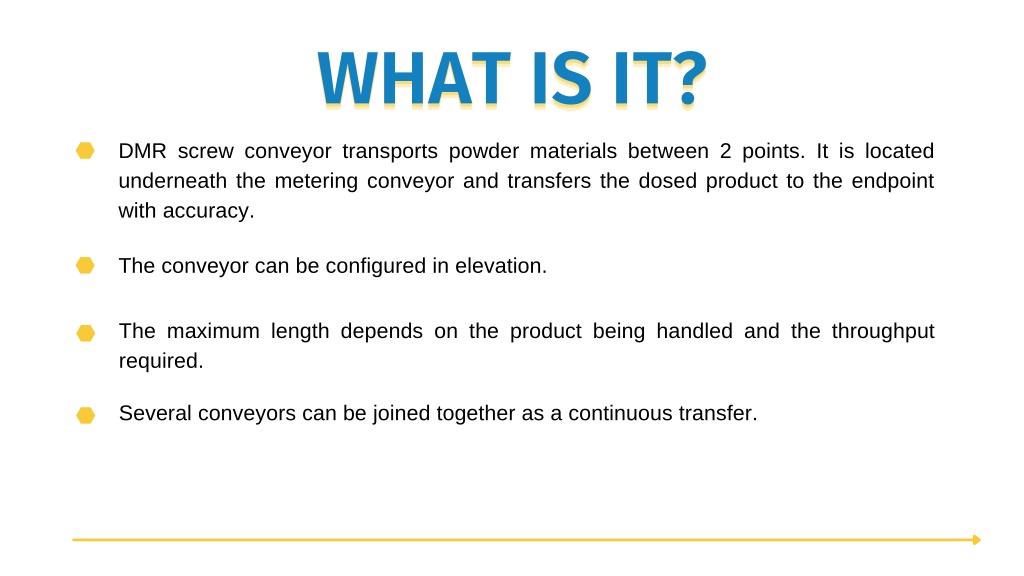

  2. WHAT IS IT? WHAT IS IT? WHAT IS IT? DMR screw conveyor transports powder materials between 2 points. It is located underneath the metering conveyor and transfers the dosed product to the endpoint with accuracy. The conveyor can be configured in elevation. The maximum length depends on the product being handled and the throughput required. Several conveyors can be joined together as a continuous transfer.

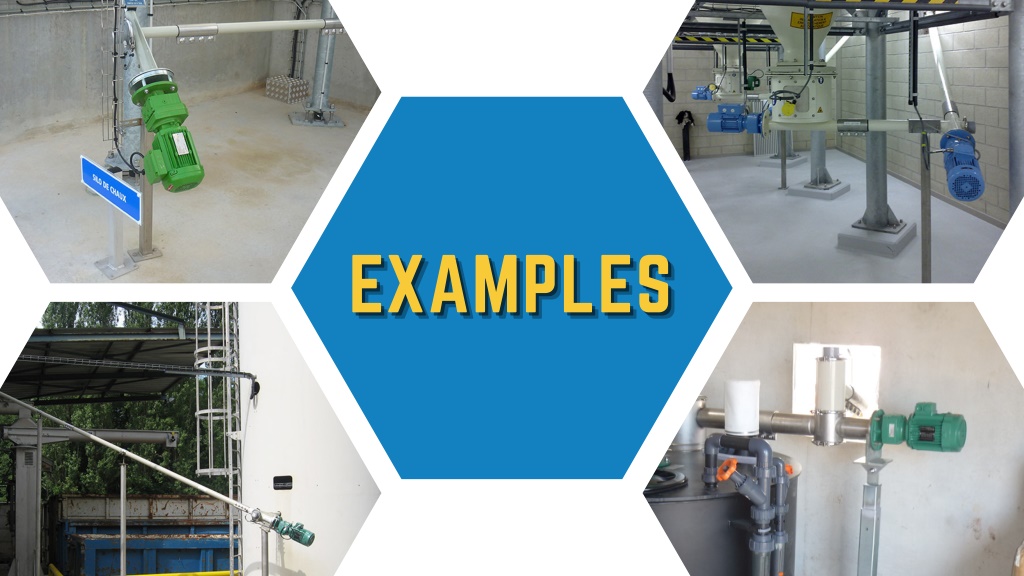

  3. EXAMPLES EXAMPLES EXAMPLES

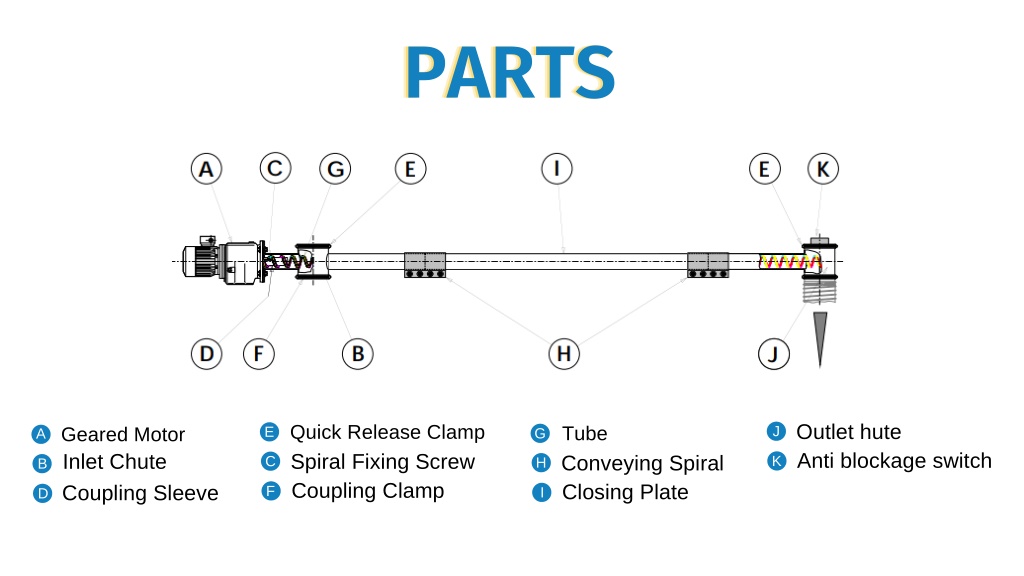

  4. PARTS PARTS PARTS J Outlet hute K Anti blockage switch Quick Release Clamp Spiral Fixing Screw F Coupling Clamp Tube Conveying Spiral I Closing Plate Geared Motor Inlet Chute E G A C H B D Coupling Sleeve

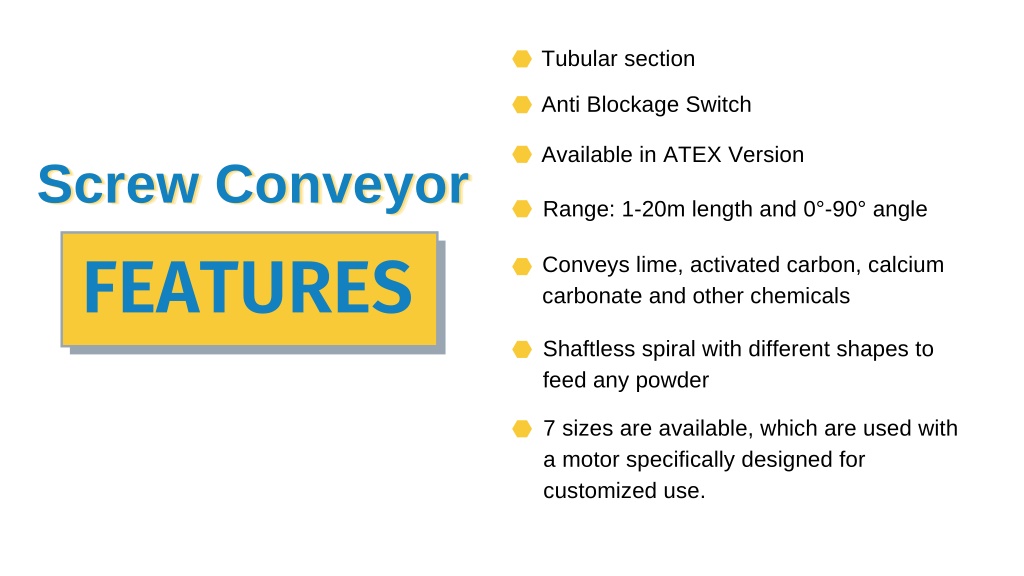

  5. Tubular section Anti Blockage Switch Available in ATEX Version Screw Conveyor Screw Conveyor Screw Conveyor Range: 1-20m length and 0°-90° angle FEATURES FEATURES FEATURES Conveys lime, activated carbon, calcium carbonate and other chemicals Shaftless spiral with different shapes to feed any powder 7 sizes are available, which are used with a motor specifically designed for customized use.

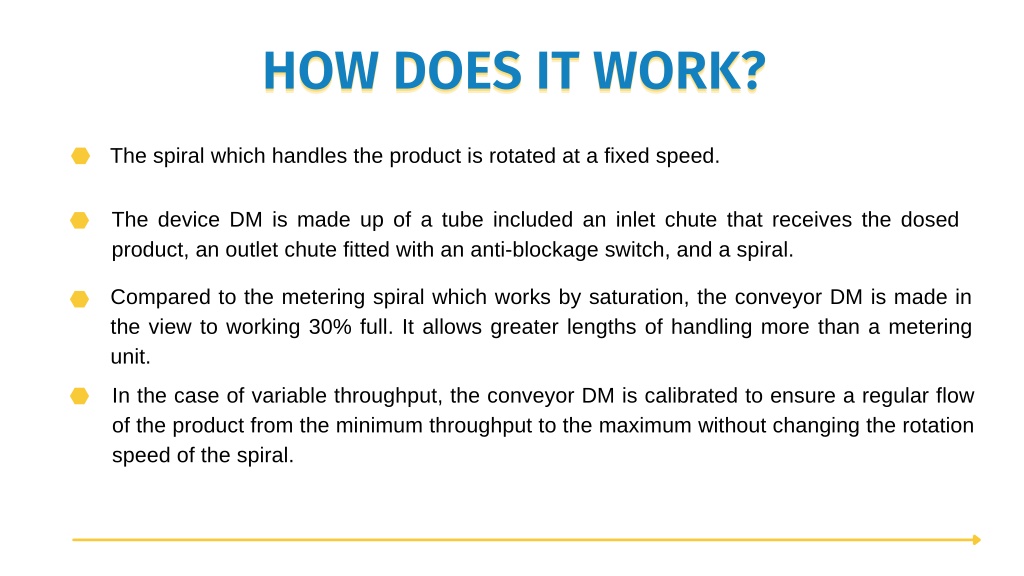

  6. HOW DOES IT WORK? HOW DOES IT WORK? HOW DOES IT WORK? The spiral which handles the product is rotated at a fixed speed. The device DM is made up of a tube included an inlet chute that receives the dosed product, an outlet chute fitted with an anti-blockage switch, and a spiral. Compared to the metering spiral which works by saturation, the conveyor DM is made in the view to working 30% full. It allows greater lengths of handling more than a metering unit. In the case of variable throughput, the conveyor DM is calibrated to ensure a regular flow of the product from the minimum throughput to the maximum without changing the rotation speed of the spiral.

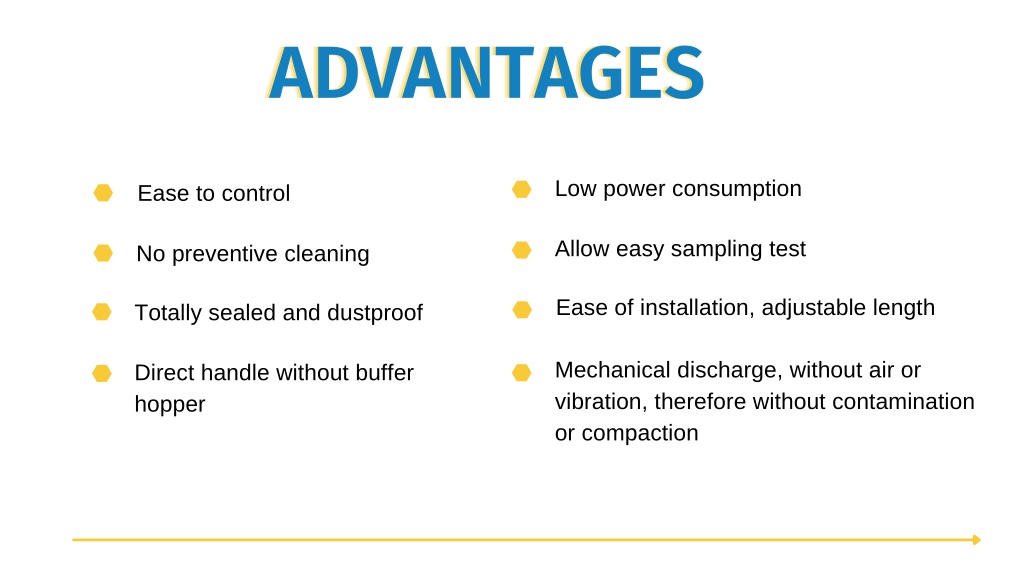

  7. ADVANTAGES ADVANTAGES ADVANTAGES Low power consumption Ease to control Allow easy sampling test No preventive cleaning Ease of installation, adjustable length Totally sealed and dustproof Mechanical discharge, without air or vibration, therefore without contamination or compaction Direct handle without buffer hopper

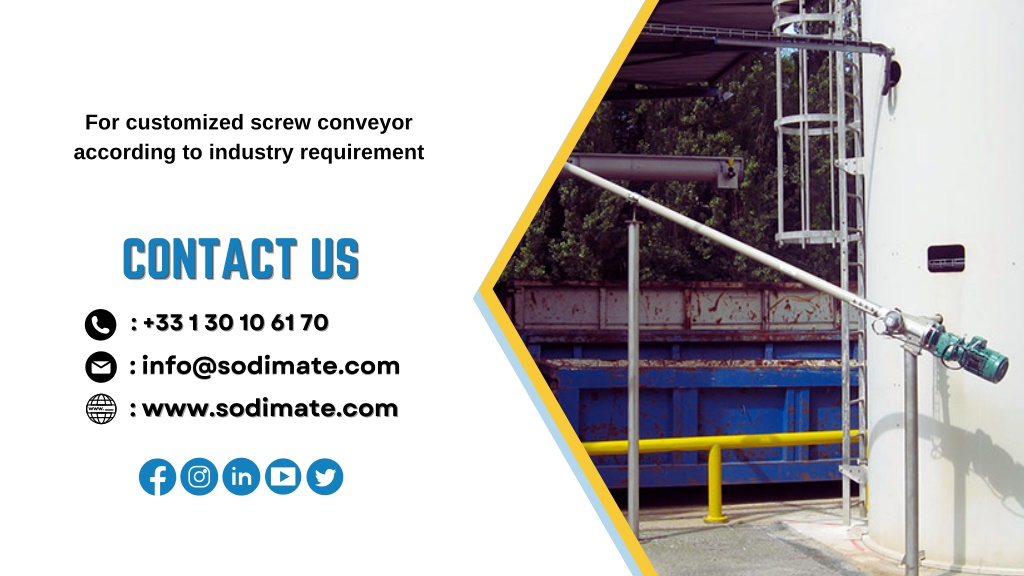

  8. For customized screw conveyor according to industry requirement CONTACT US CONTACT US CONTACT US : :+33130106170 +33130106170 : info@sodimate.com : info@sodimate.com ::www.sodimate.com www.sodimate.com
