Presentation Transcript
slide1

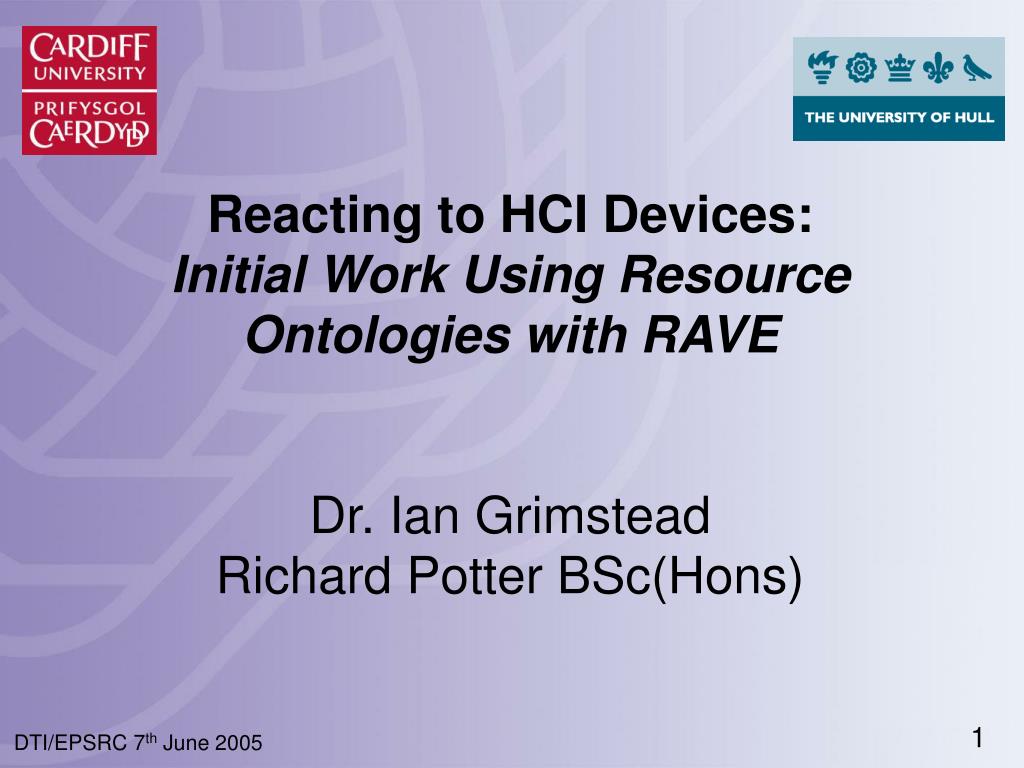

Reacting to HCI Devices:Initial Work Using Resource Ontologies with RAVEDr. Ian GrimsteadRichard Potter BSc(Hons)
presentation structure
Presentation Structure
  • Aims and Objectives
  • Background to Ontologies
  • Background to RAVE
  • Initial extension of RAVE
  • Demonstration
  • Questions and Answers.
slide3

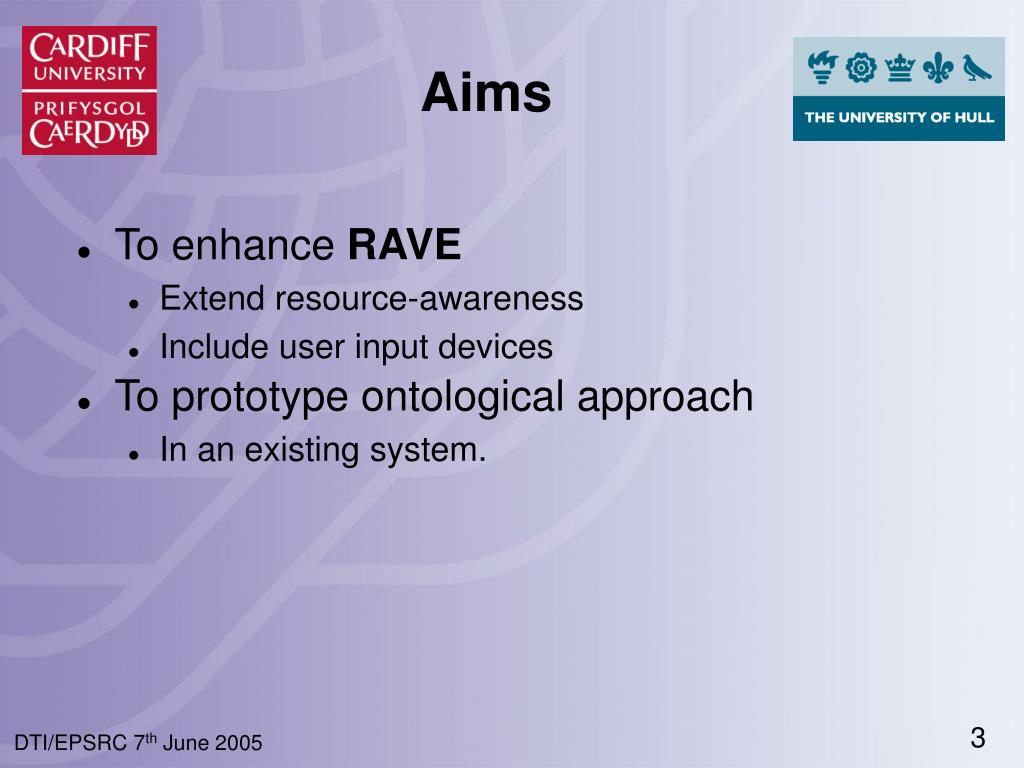

Aims
  • To enhance RAVE
    • Extend resource-awareness
    • Include user input devices
  • To prototype ontological approach
    • In an existing system.
objectives
Objectives
  • Implement “Widgets”
    • Enable Widgets to request interaction support
  • Enable RAVE to access Ontology
    • RAVE widgets announce interaction style required
    • Ontology finds best fit
    • Resource interfaced with RAVE for information exchange.
background to ontologies

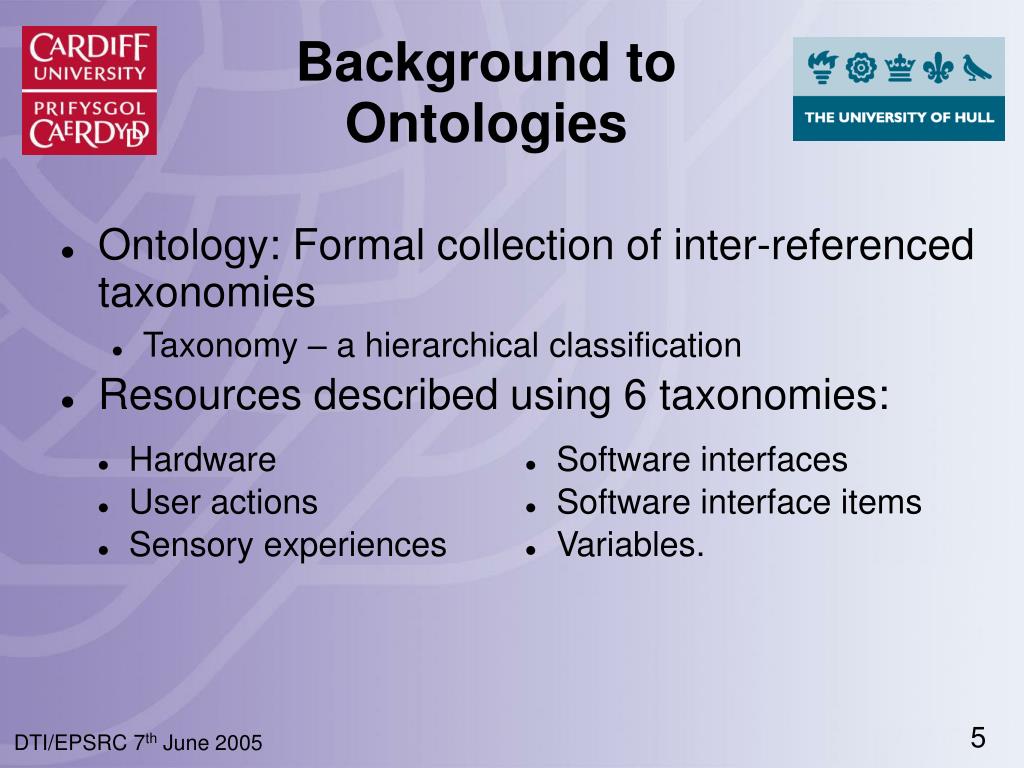

Background to Ontologies
  • Ontology: Formal collection of inter-referenced taxonomies
    • Taxonomy – a hierarchical classification

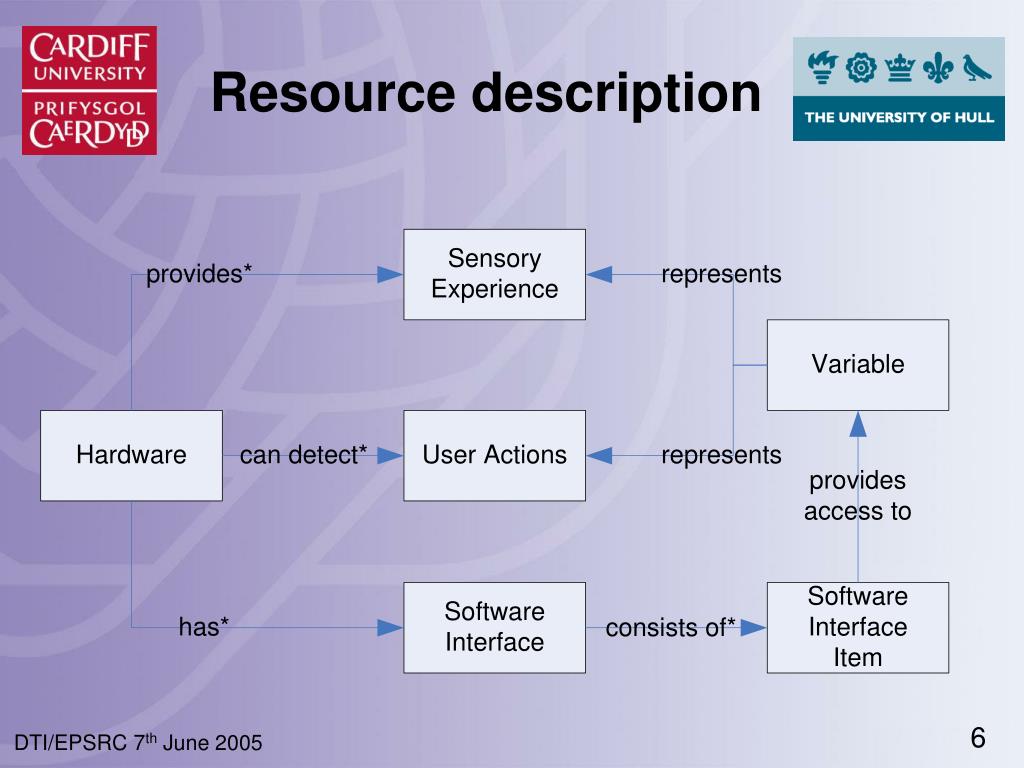

  • Resources described using 6 taxonomies:
  • Hardware
  • User actions
  • Sensory experiences
  • Software interfaces
  • Software interface items
  • Variables.
categorisation

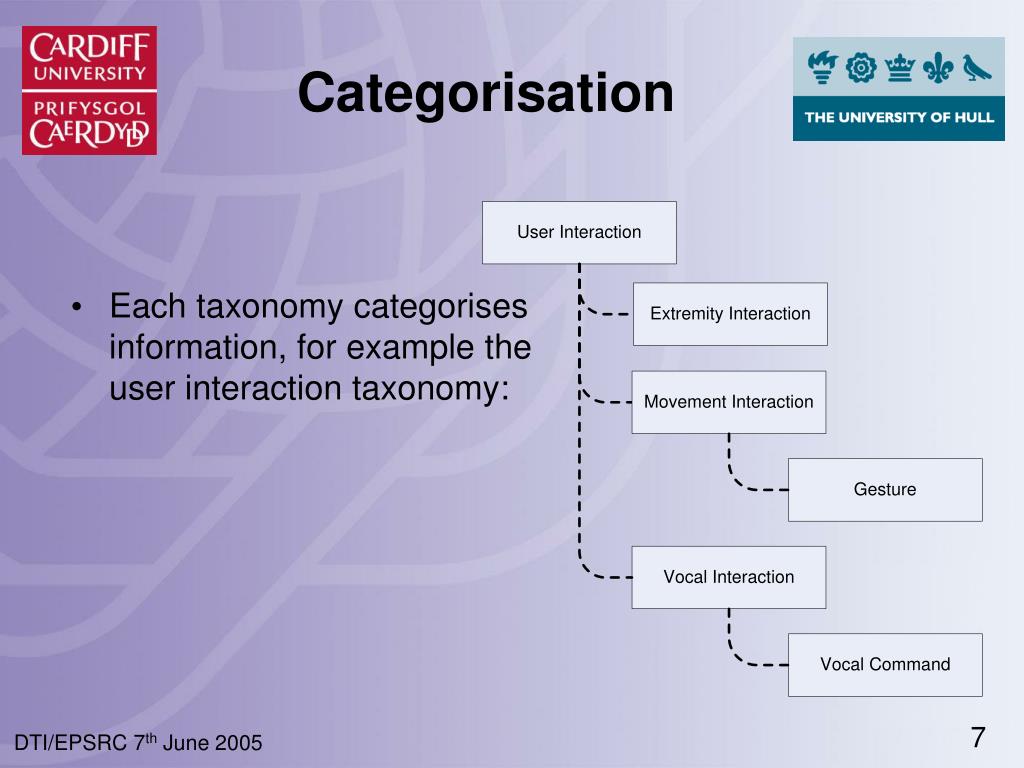

Categorisation
  • Each taxonomy categorises information, for example the user interaction taxonomy:
libraries and apis

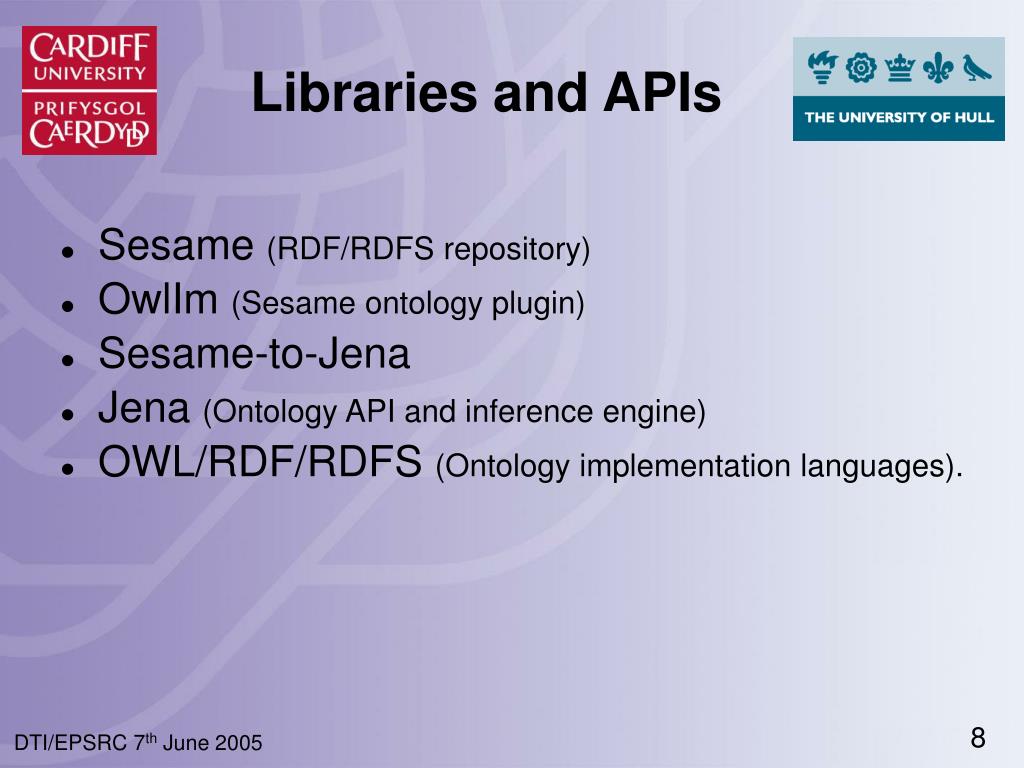

Libraries and APIs
  • Sesame (RDF/RDFS repository)
  • OwlIm (Sesame ontology plugin)
  • Sesame-to-Jena
  • Jena (Ontology API and inference engine)
  • OWL/RDF/RDFS (Ontology implementation languages).
background to rave

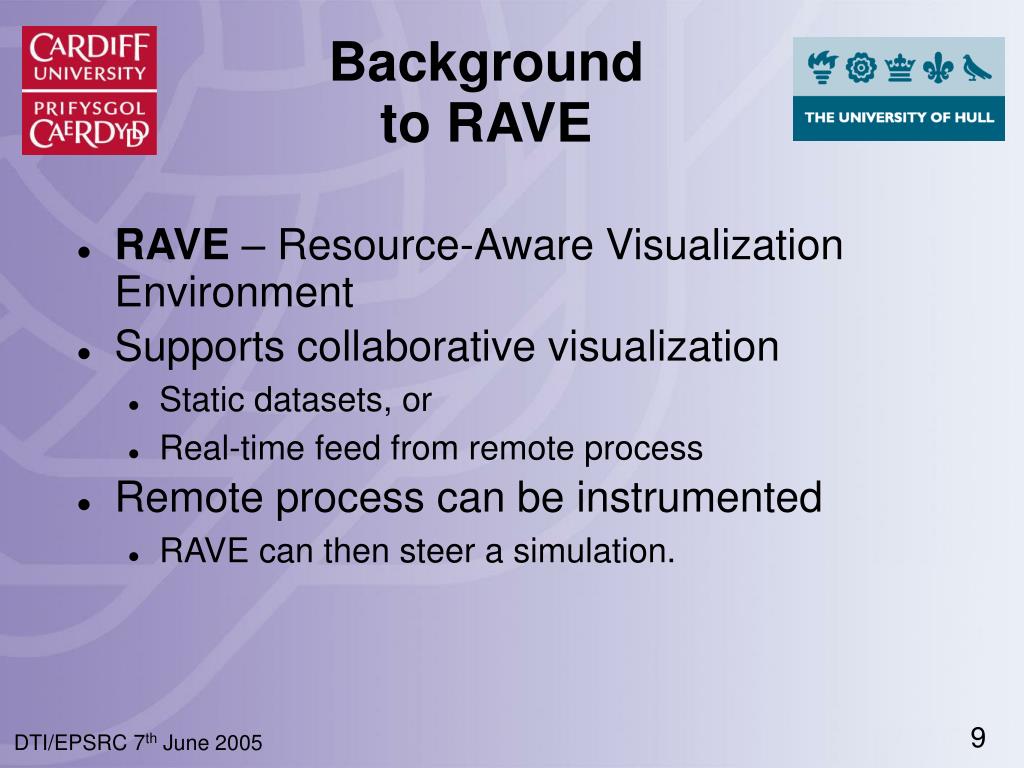

Backgroundto RAVE
  • RAVE – Resource-Aware Visualization Environment
  • Supports collaborative visualization
    • Static datasets, or
    • Real-time feed from remote process
  • Remote process can be instrumented
    • RAVE can then steer a simulation.
data distribution

RAVE

Client

Internet

or remote

machine

RAVE

Client

Visualization

Data

Raw

Data

RAVE

Client

Data

Server

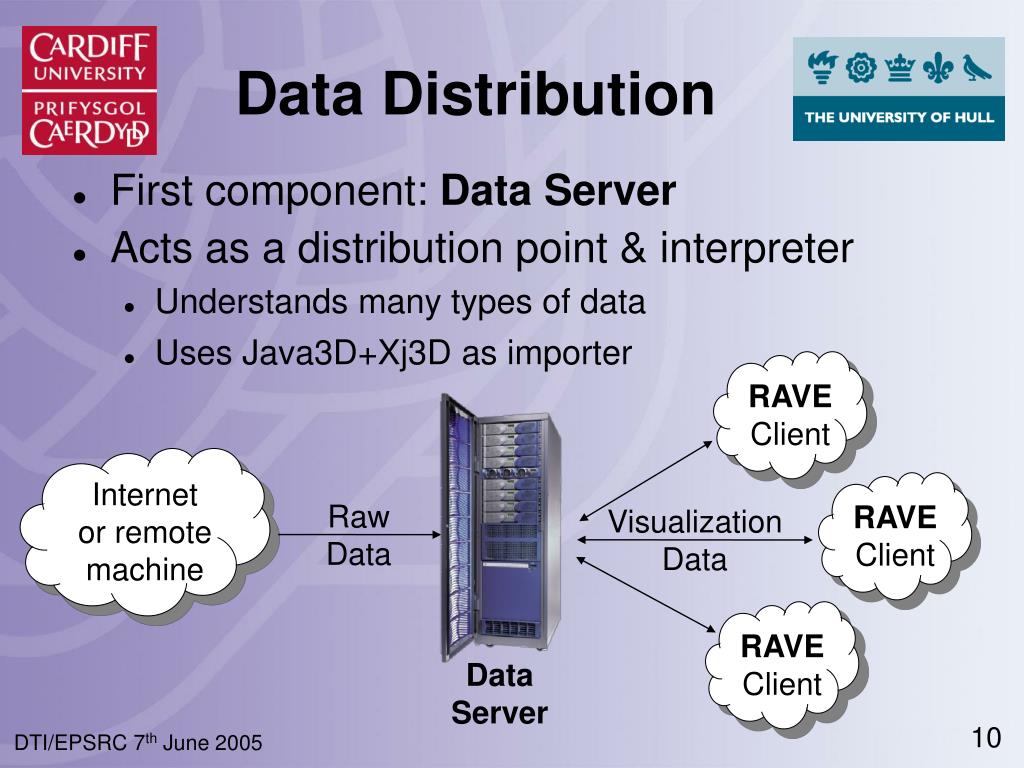

Data Distribution
  • First component: Data Server
  • Acts as a distribution point & interpreter
    • Understands many types of data
    • Uses Java3D+Xj3D as importer
displaying data

Visual drawn on local machine

Visualization

Data

Data

Server

Displaying Data
  • Second component: Active RAVE Client
    • “Active” – facilities to draw on its own
  • Accepts feed from Data Server
  • Presents images of data to user

Active RAVE Client

computational steering

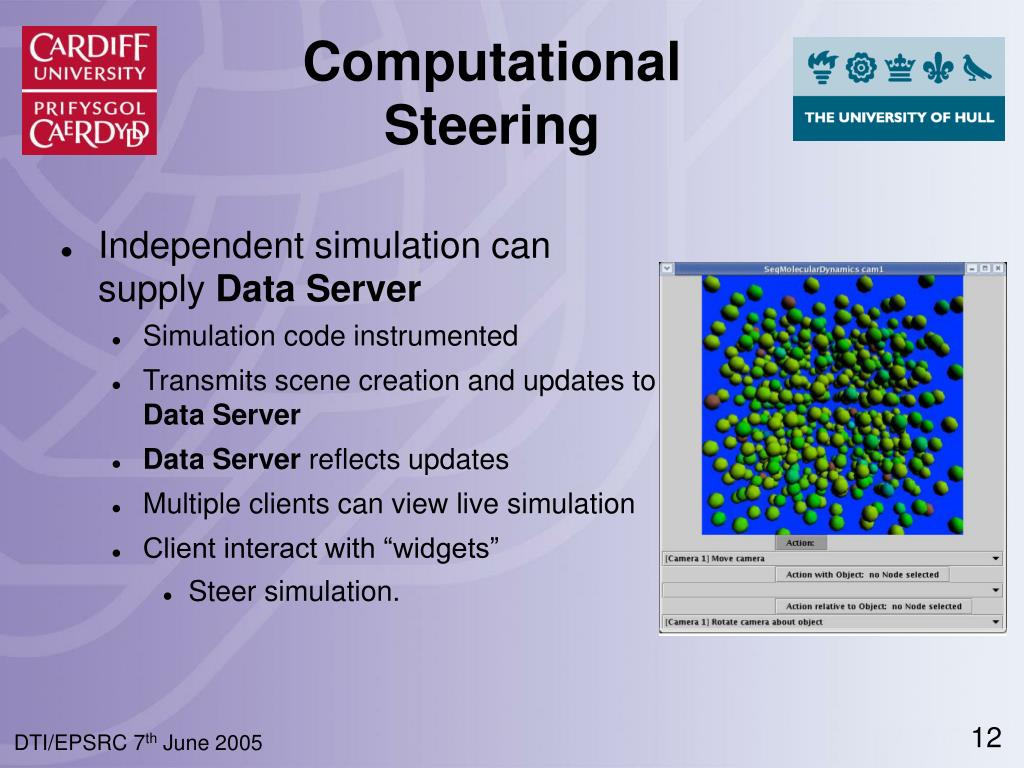

Computational Steering
  • Independent simulation can supply Data Server
    • Simulation code instrumented
    • Transmits scene creation and updates to Data Server
    • Data Server reflects updates
    • Multiple clients can view live simulation
    • Client interact with “widgets”
      • Steer simulation.
summary

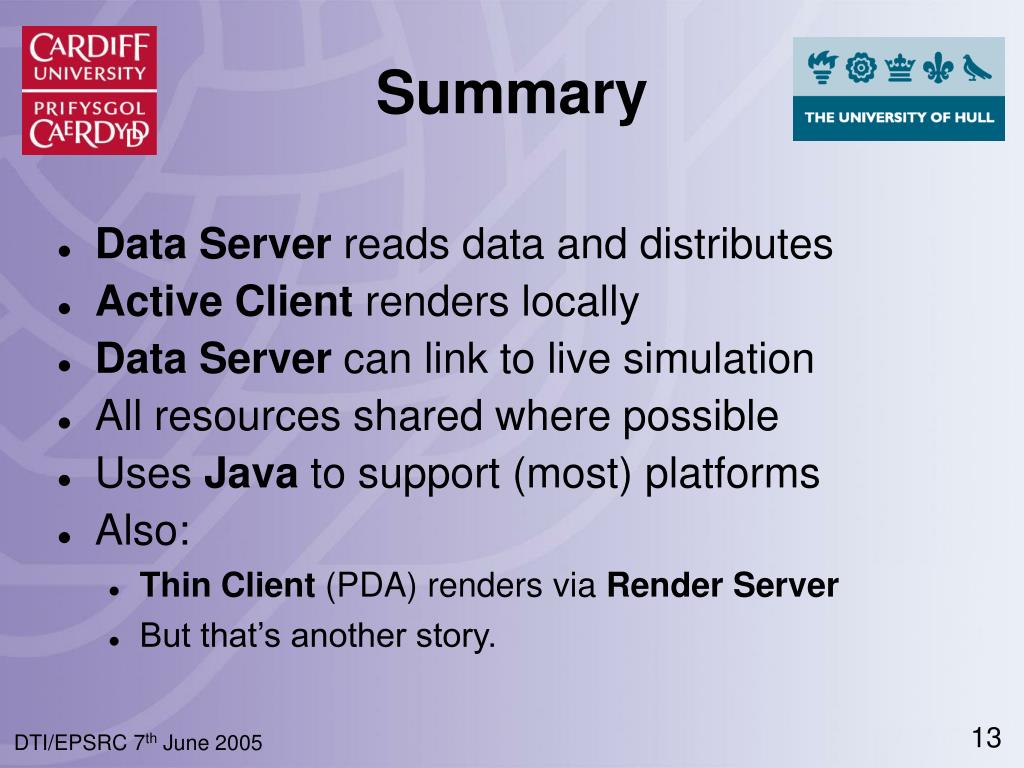

Summary
  • Data Server reads data and distributes
  • Active Client renders locally
  • Data Server can link to live simulation
  • All resources shared where possible
  • Uses Java to support (most) platforms
  • Also:
    • Thin Client (PDA) renders via Render Server
    • But that’s another story.
resource support

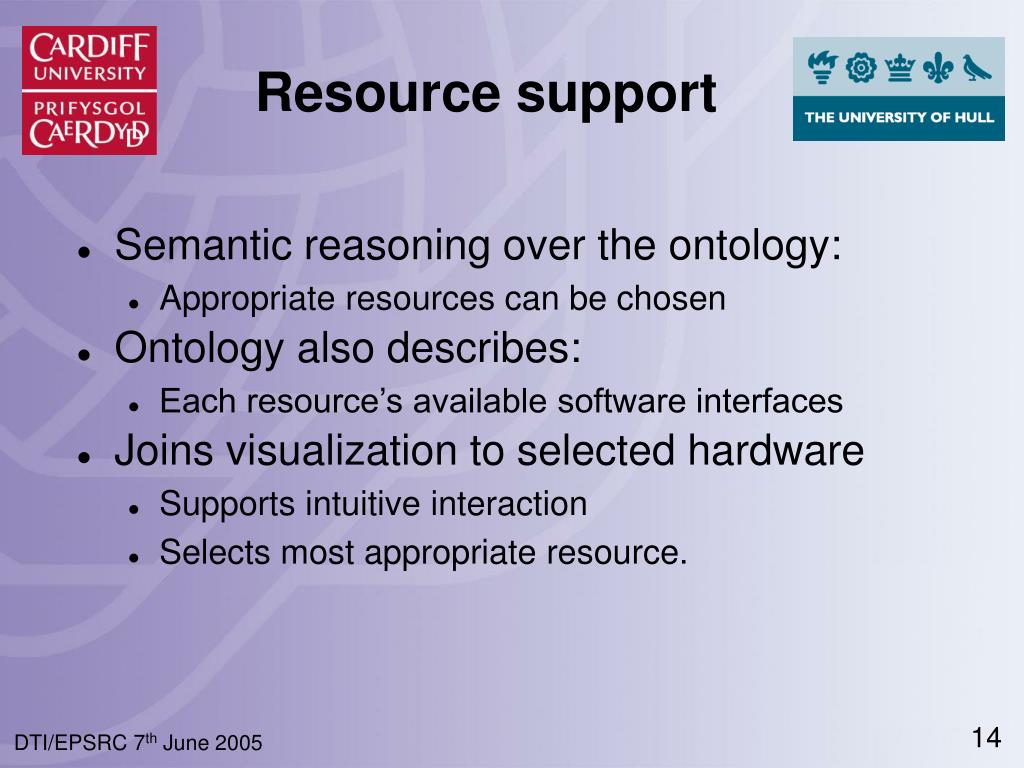

Resource support
  • Semantic reasoning over the ontology:
    • Appropriate resources can be chosen
  • Ontology also describes:
    • Each resource’s available software interfaces
  • Joins visualization to selected hardware
    • Supports intuitive interaction
    • Selects most appropriate resource.
initial extension to rave

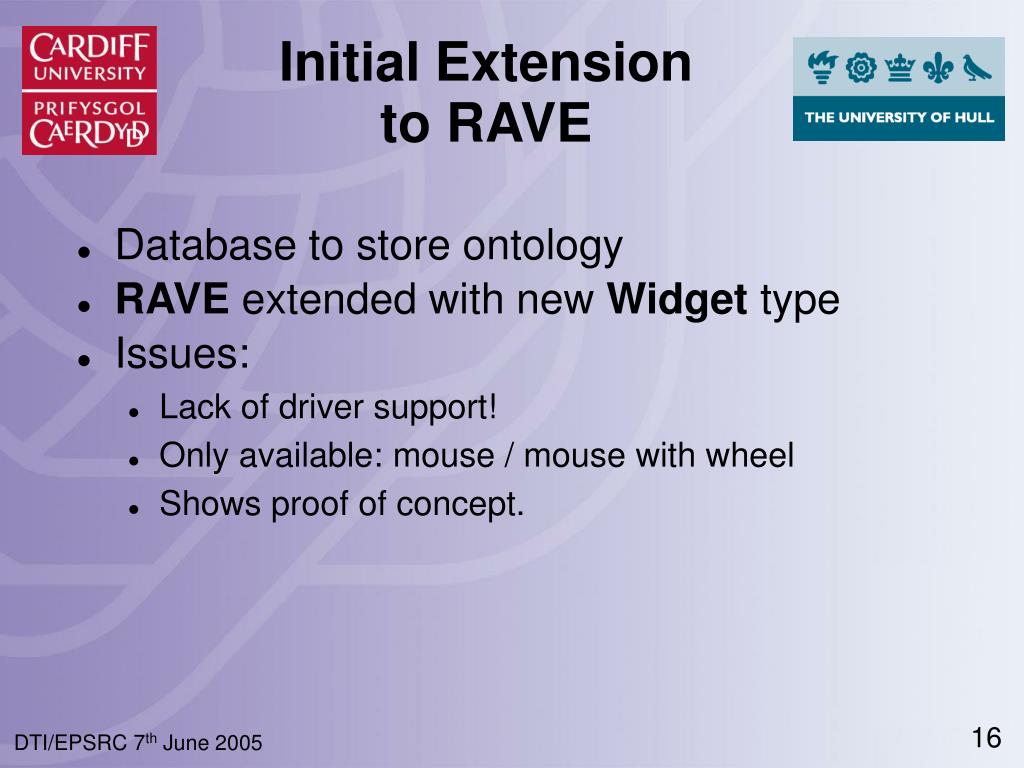

Initial Extensionto RAVE
  • Database to store ontology
  • RAVE extended with new Widget type
  • Issues:
    • Lack of driver support!
    • Only available: mouse / mouse with wheel
    • Shows proof of concept.
demonstration

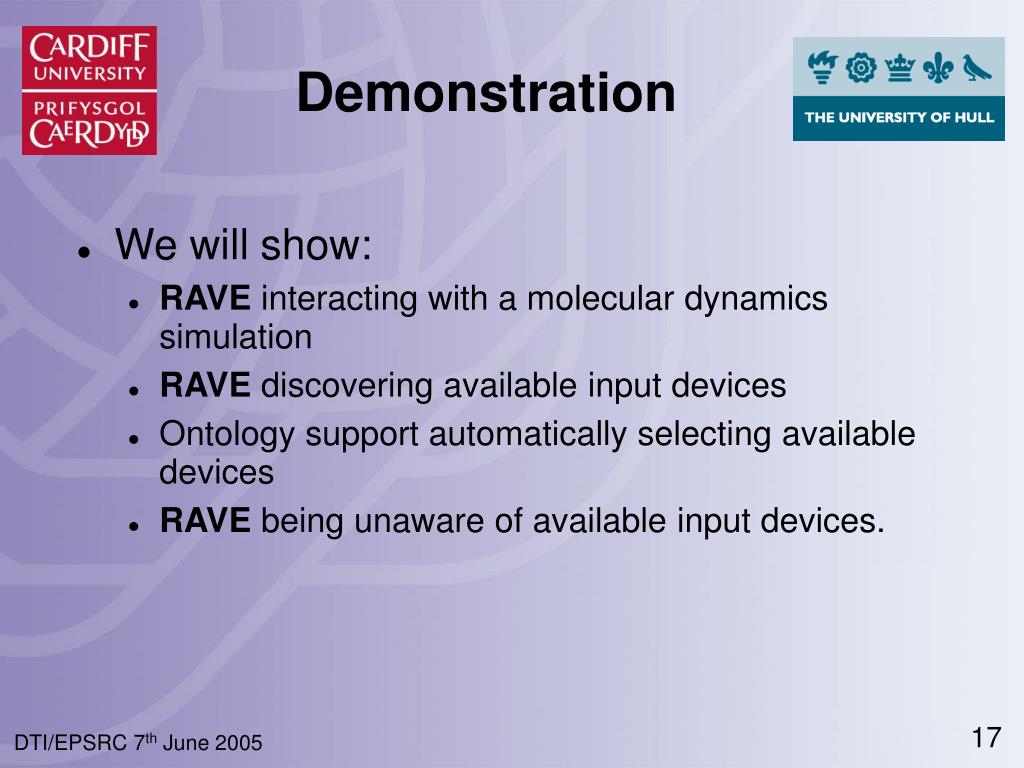

Demonstration
  • We will show:
    • RAVE interacting with a molecular dynamics simulation
    • RAVE discovering available input devices
    • Ontology support automatically selecting available devices
    • RAVE being unaware of available input devices.
questions and answers
Questions and Answers

Questions…

…and possibly answers?
