5.4 绕组的极性

a. c. d. b. 5.4 绕组的极性. 一、同极性端（同名端）. 当电流分别从两个线圈的某端流入时，产生的磁通的方向相同，则称该两端为同极性端，用“ .” 或“＊”表示。 当磁通变化时，在同极性端感应电动势的极性也相同。. 例：图示的线圈电路，试判断两线圈的同极性端。. a,d 是一组同极性端. b,c 是另一组同极性端. a,c 是异名端， b,d 是异名端. 实际电工设备的多个绕组的首端是一组同极性端，末端是另一组同极性端。. 二、变压器绕组的联接. 110V. 110V. 220V. 110V. 串联： 异名端相连. 并联：

snana
Download Presentation

5.4 绕组的极性

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

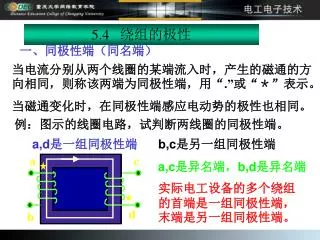

  1. a c d b 5.4 绕组的极性 一、同极性端（同名端） 当电流分别从两个线圈的某端流入时，产生的磁通的方向相同，则称该两端为同极性端，用“.”或“＊”表示。 当磁通变化时，在同极性端感应电动势的极性也相同。 例：图示的线圈电路，试判断两线圈的同极性端。 a,d是一组同极性端 b,c是另一组同极性端 a,c是异名端，b,d是异名端 实际电工设备的多个绕组的首端是一组同极性端，末端是另一组同极性端。

  2. 二、变压器绕组的联接 110V 110V 220V 110V 串联： 异名端相连 并联： 同名端相连
