350-601 VOL2-Question

350-601 Implementing and Operating Cisco Data Center Core Technologies (DCCOR) VOL2

smijohnson3
Download Presentation

350-601 VOL2-Question

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

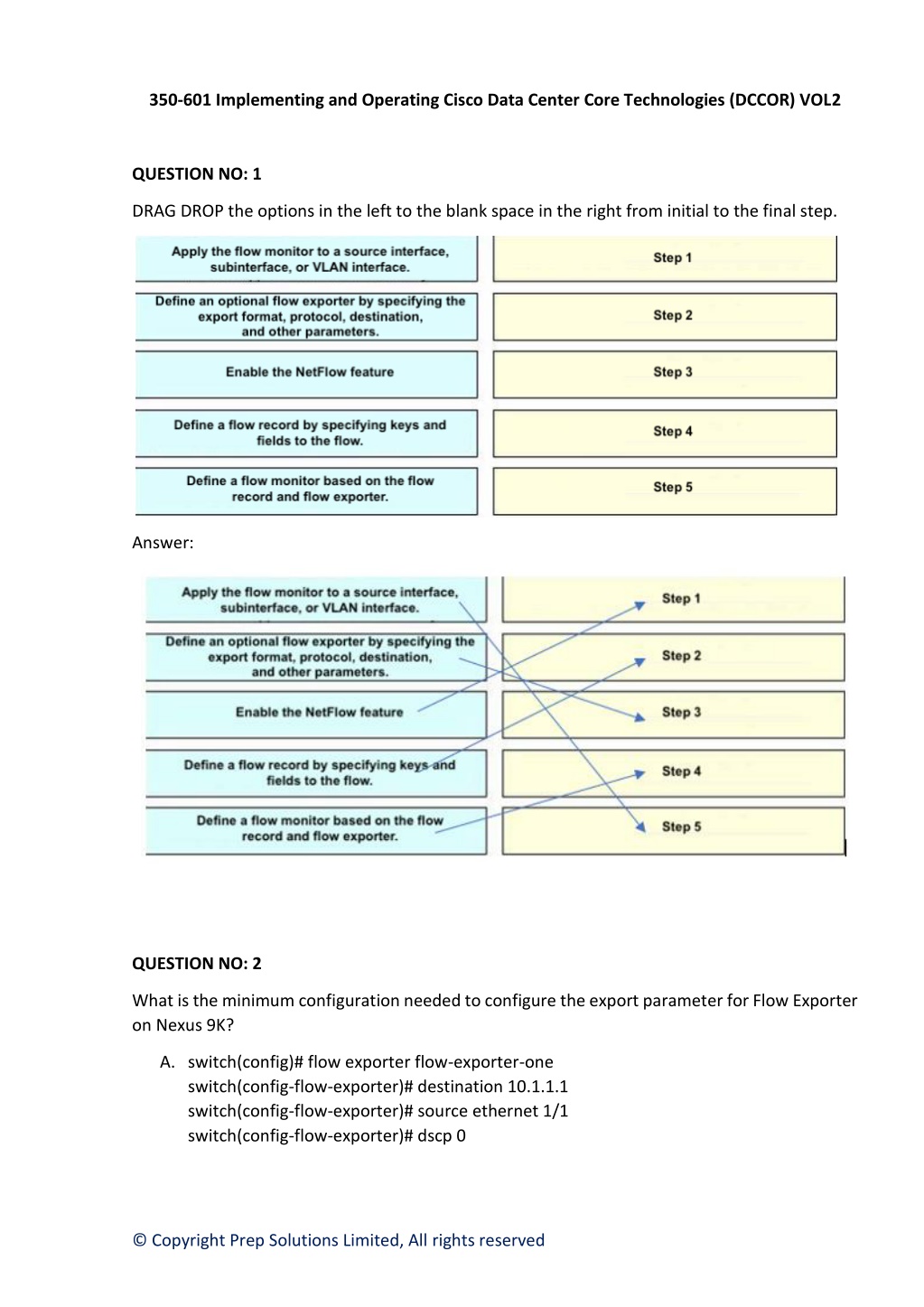

  1. 350-601 Implementing and Operating Cisco Data Center Core Technologies (DCCOR) VOL2 QUESTION NO: 1 DRAG DROP the options in the left to the blank space in the right from initial to the final step. Answer: QUESTION NO: 2 What is the minimum configuration needed to configure the export parameter for Flow Exporter on Nexus 9K? A.switch(config)# flow exporter flow-exporter-one switch(config-flow-exporter)# destination 10.1.1.1 switch(config-flow-exporter)# source ethernet 1/1 switch(config-flow-exporter)# dscp 0 © Copyright Prep Solutions Limited, All rights reserved

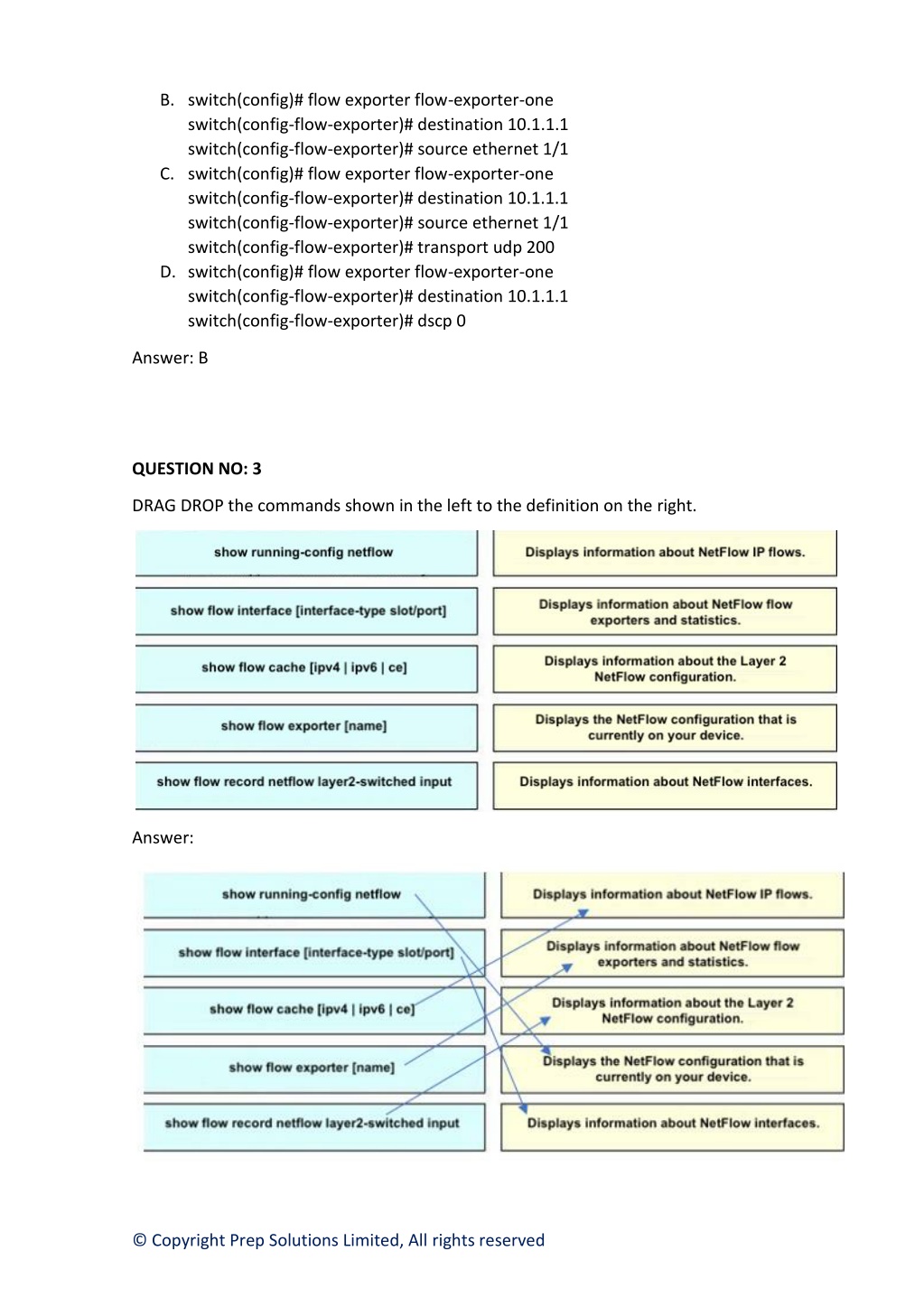

  2. B.switch(config)# flow exporter flow-exporter-one switch(config-flow-exporter)# destination 10.1.1.1 switch(config-flow-exporter)# source ethernet 1/1 C.switch(config)# flow exporter flow-exporter-one switch(config-flow-exporter)# destination 10.1.1.1 switch(config-flow-exporter)# source ethernet 1/1 switch(config-flow-exporter)# transport udp 200 D.switch(config)# flow exporter flow-exporter-one switch(config-flow-exporter)# destination 10.1.1.1 switch(config-flow-exporter)# dscp 0 Answer: B QUESTION NO: 3 DRAG DROP the commands shown in the left to the definition on the right. Answer: © Copyright Prep Solutions Limited, All rights reserved

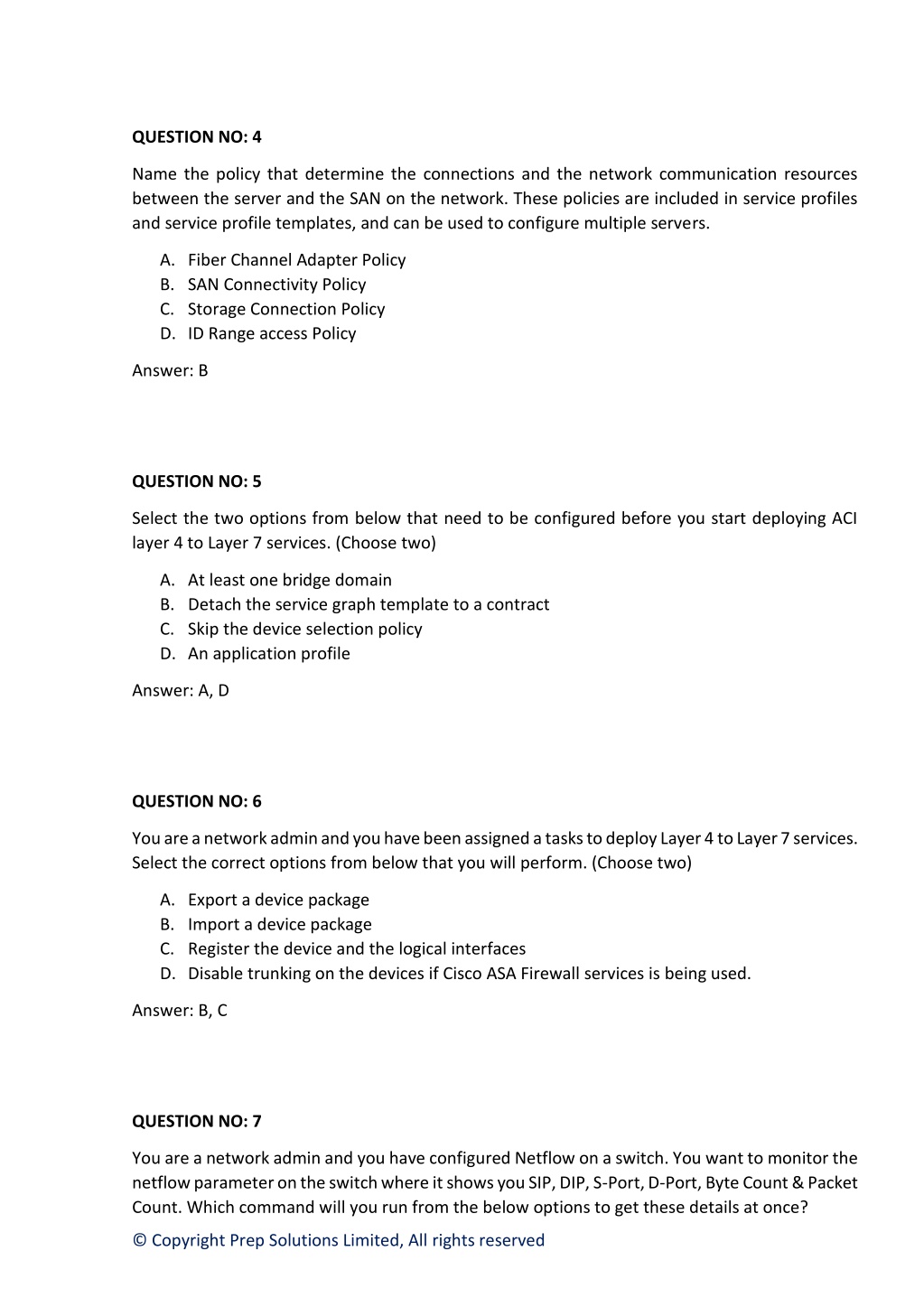

  3. QUESTION NO: 4 Name the policy that determine the connections and the network communication resources between the server and the SAN on the network. These policies are included in service profiles and service profile templates, and can be used to configure multiple servers. A.Fiber Channel Adapter Policy B.SAN Connectivity Policy C.Storage Connection Policy D.ID Range access Policy Answer: B QUESTION NO: 5 Select the two options from below that need to be configured before you start deploying ACI layer 4 to Layer 7 services. (Choose two) A.At least one bridge domain B.Detach the service graph template to a contract C.Skip the device selection policy D.An application profile Answer: A, D QUESTION NO: 6 You are a network admin and you have been assigned a tasks to deploy Layer 4 to Layer 7 services. Select the correct options from below that you will perform. (Choose two) A.Export a device package B.Import a device package C.Register the device and the logical interfaces D.Disable trunking on the devices if Cisco ASA Firewall services is being used. Answer: B, C QUESTION NO: 7 You are a network admin and you have configured Netflow on a switch. You want to monitor the netflow parameter on the switch where it shows you SIP, DIP, S-Port, D-Port, Byte Count & Packet Count. Which command will you run from the below options to get these details at once? © Copyright Prep Solutions Limited, All rights reserved

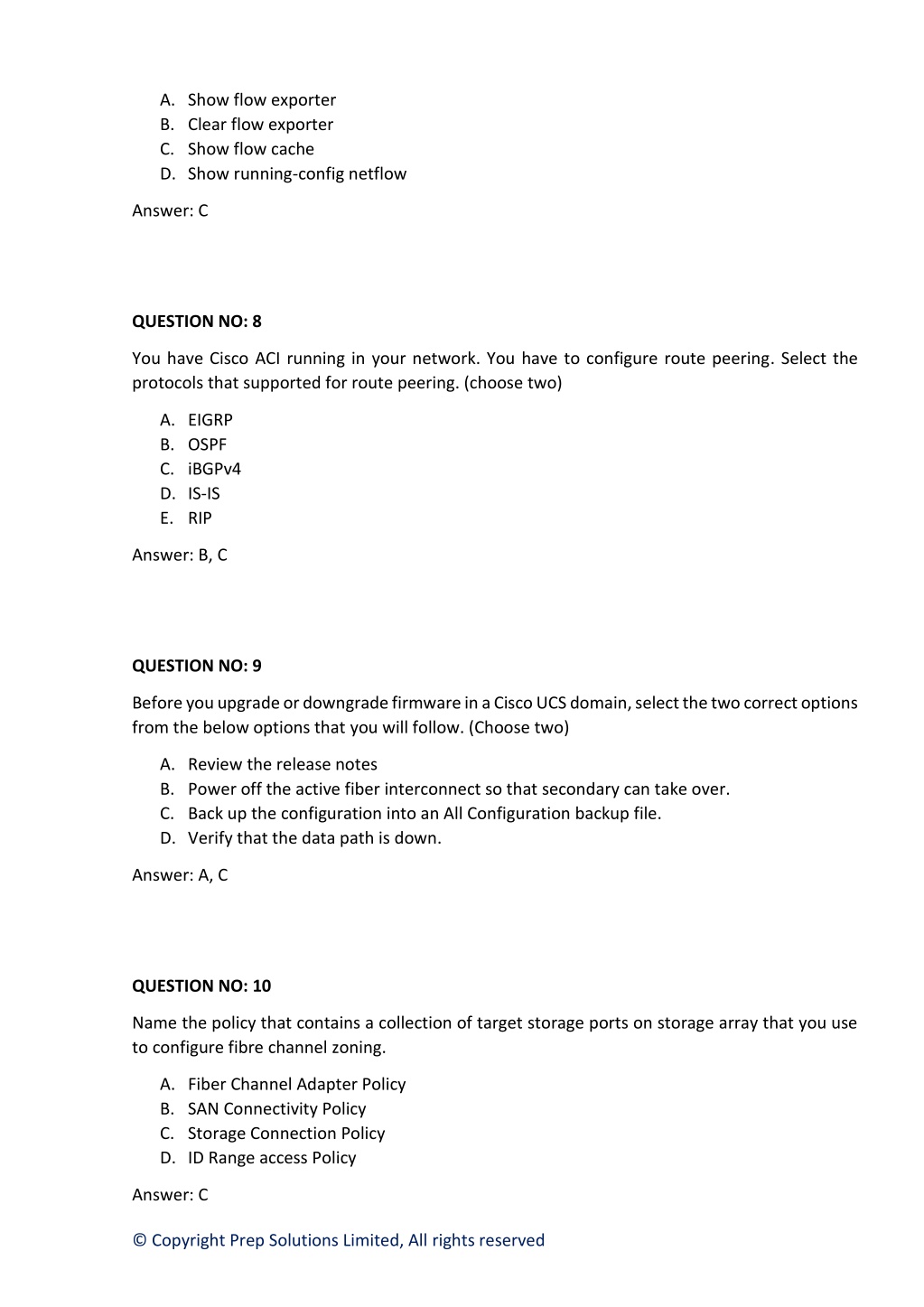

  4. A.Show flow exporter B.Clear flow exporter C.Show flow cache D.Show running-config netflow Answer: C QUESTION NO: 8 You have Cisco ACI running in your network. You have to configure route peering. Select the protocols that supported for route peering. (choose two) A.EIGRP B.OSPF C.iBGPv4 D.IS-IS E.RIP Answer: B, C QUESTION NO: 9 Before you upgrade or downgrade firmware in a Cisco UCS domain, select the two correct options from the below options that you will follow. (Choose two) A.Review the release notes B.Power off the active fiber interconnect so that secondary can take over. C.Back up the configuration into an All Configuration backup file. D.Verify that the data path is down. Answer: A, C QUESTION NO: 10 Name the policy that contains a collection of target storage ports on storage array that you use to configure fibre channel zoning. A.Fiber Channel Adapter Policy B.SAN Connectivity Policy C.Storage Connection Policy D.ID Range access Policy Answer: C © Copyright Prep Solutions Limited, All rights reserved

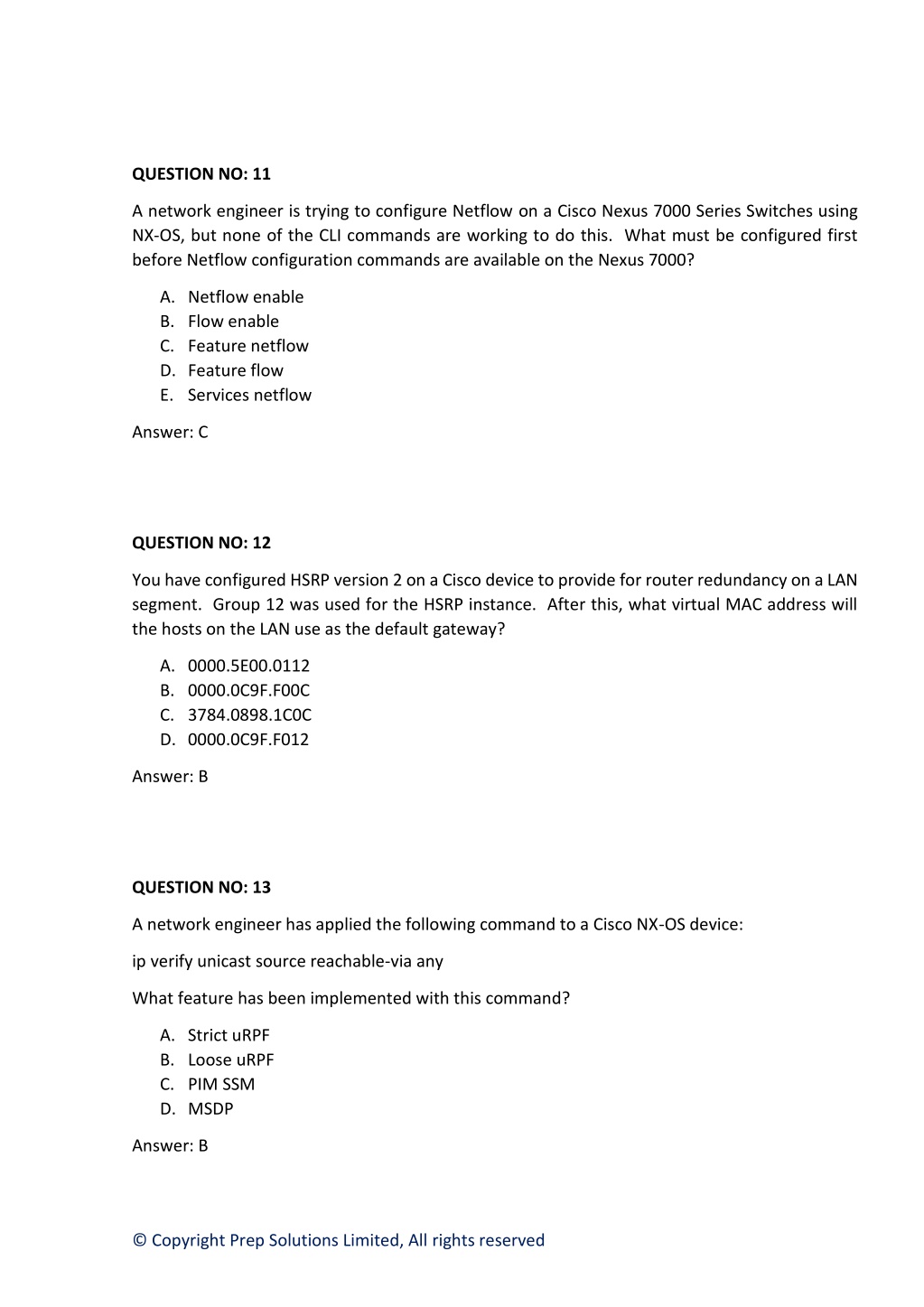

  5. QUESTION NO: 11 A network engineer is trying to configure Netflow on a Cisco Nexus 7000 Series Switches using NX-OS, but none of the CLI commands are working to do this. What must be configured first before Netflow configuration commands are available on the Nexus 7000? A.Netflow enable B.Flow enable C.Feature netflow D.Feature flow E.Services netflow Answer: C QUESTION NO: 12 You have configured HSRP version 2 on a Cisco device to provide for router redundancy on a LAN segment. Group 12 was used for the HSRP instance. After this, what virtual MAC address will the hosts on the LAN use as the default gateway? A.0000.5E00.0112 B.0000.0C9F.F00C C.3784.0898.1C0C D.0000.0C9F.F012 Answer: B QUESTION NO: 13 A network engineer has applied the following command to a Cisco NX-OS device: ip verify unicast source reachable-via any What feature has been implemented with this command? A.Strict uRPF B.Loose uRPF C.PIM SSM D.MSDP Answer: B © Copyright Prep Solutions Limited, All rights reserved

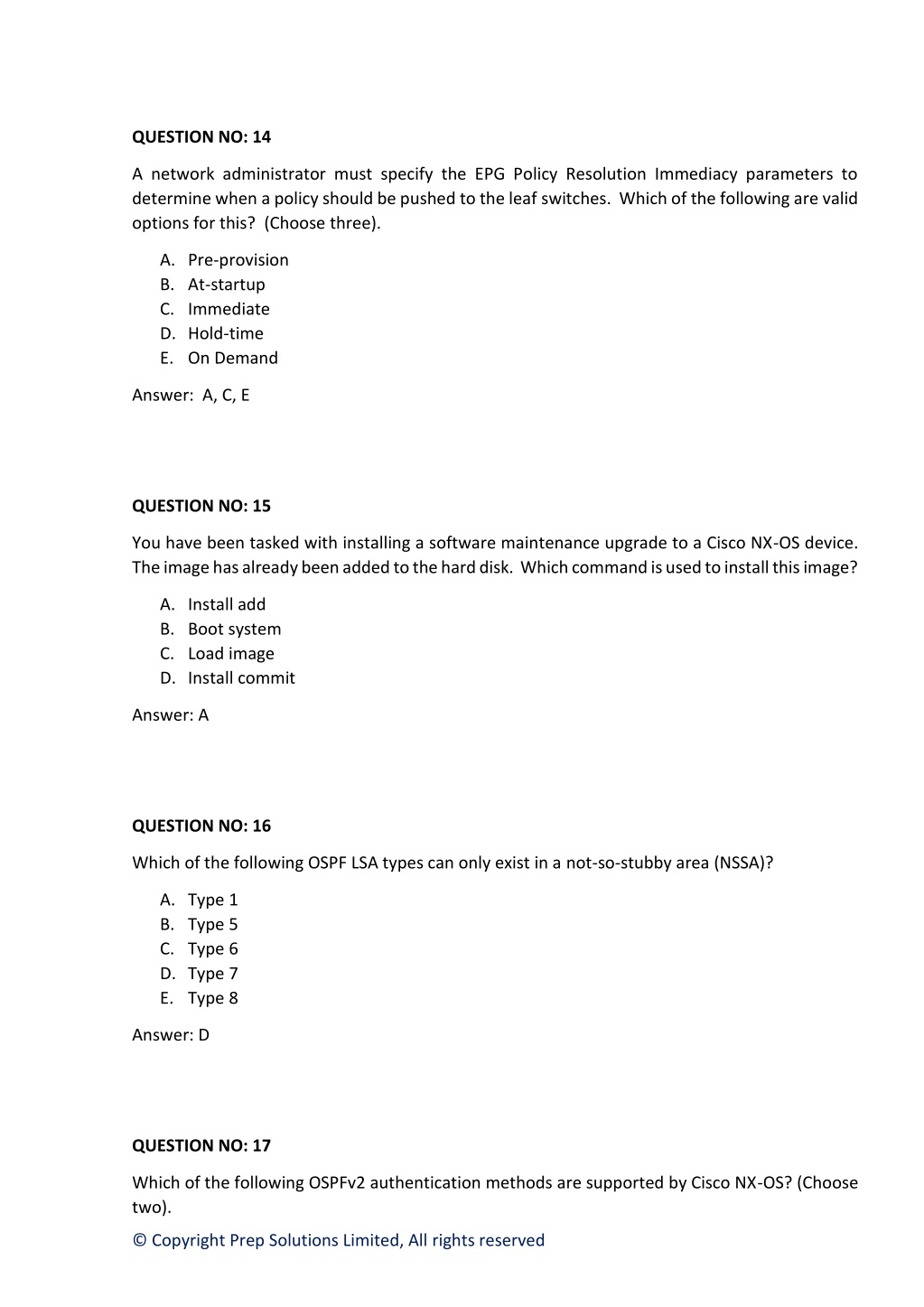

  6. QUESTION NO: 14 A network administrator must specify the EPG Policy Resolution Immediacy parameters to determine when a policy should be pushed to the leaf switches. Which of the following are valid options for this? (Choose three). A.Pre-provision B.At-startup C.Immediate D.Hold-time E.On Demand Answer: A, C, E QUESTION NO: 15 You have been tasked with installing a software maintenance upgrade to a Cisco NX-OS device. The image has already been added to the hard disk. Which command is used to install this image? A.Install add B.Boot system C.Load image D.Install commit Answer: A QUESTION NO: 16 Which of the following OSPF LSA types can only exist in a not-so-stubby area (NSSA)? A.Type 1 B.Type 5 C.Type 6 D.Type 7 E.Type 8 Answer: D QUESTION NO: 17 Which of the following OSPFv2 authentication methods are supported by Cisco NX-OS? (Choose two). © Copyright Prep Solutions Limited, All rights reserved

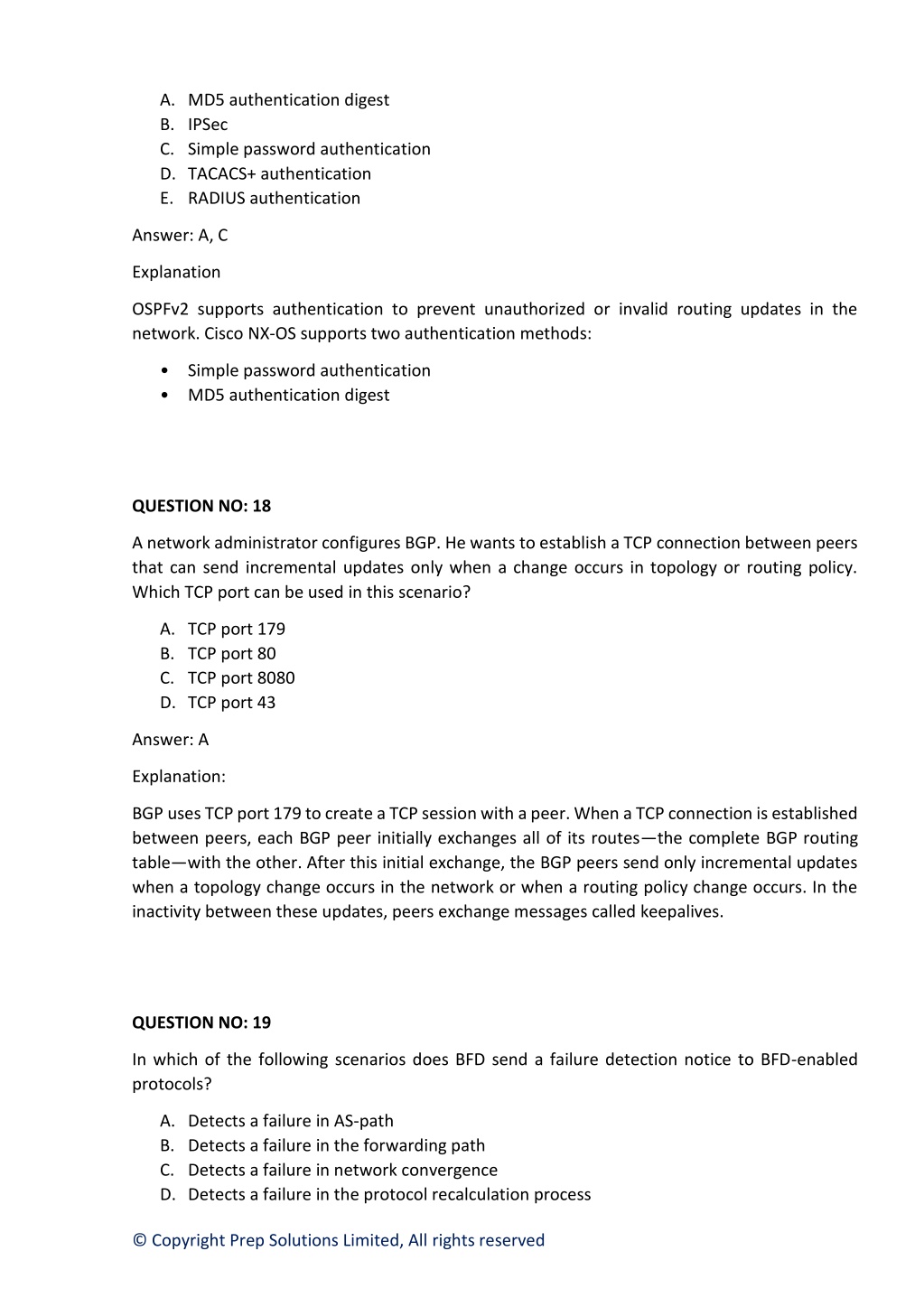

  7. A.MD5 authentication digest B.IPSec C.Simple password authentication D.TACACS+ authentication E.RADIUS authentication Answer: A, C Explanation OSPFv2 supports authentication to prevent unauthorized or invalid routing updates in the network. Cisco NX-OS supports two authentication methods: •Simple password authentication •MD5 authentication digest QUESTION NO: 18 A network administrator configures BGP. He wants to establish a TCP connection between peers that can send incremental updates only when a change occurs in topology or routing policy. Which TCP port can be used in this scenario? A.TCP port 179 B.TCP port 80 C.TCP port 8080 D.TCP port 43 Answer: A Explanation: BGP uses TCP port 179 to create a TCP session with a peer. When a TCP connection is established between peers, each BGP peer initially exchanges all of its routes—the complete BGP routing table—with the other. After this initial exchange, the BGP peers send only incremental updates when a topology change occurs in the network or when a routing policy change occurs. In the inactivity between these updates, peers exchange messages called keepalives. QUESTION NO: 19 In which of the following scenarios does BFD send a failure detection notice to BFD-enabled protocols? A.Detects a failure in AS-path B.Detects a failure in the forwarding path C.Detects a failure in network convergence D.Detects a failure in the protocol recalculation process © Copyright Prep Solutions Limited, All rights reserved

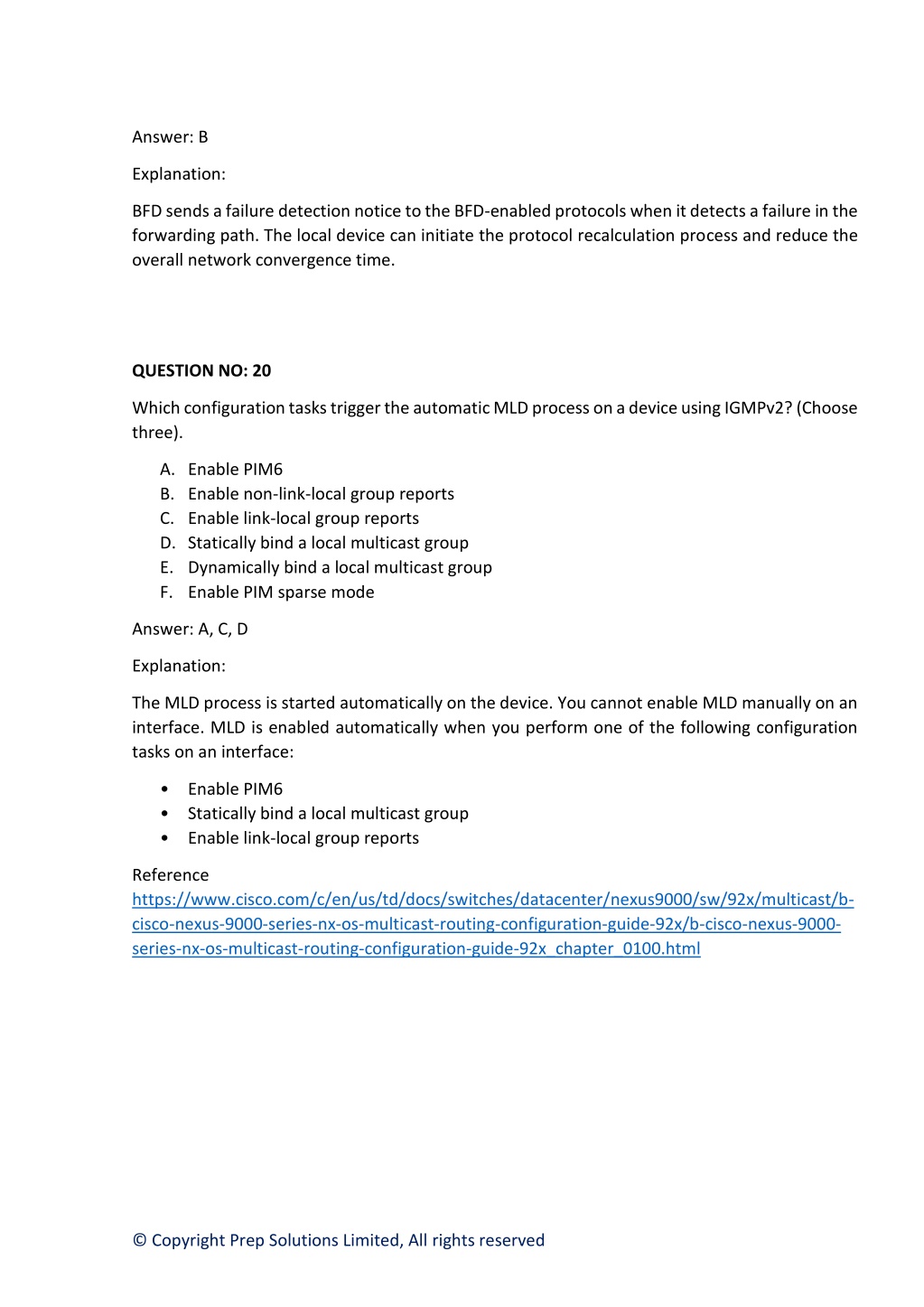

  8. Answer: B Explanation: BFD sends a failure detection notice to the BFD-enabled protocols when it detects a failure in the forwarding path. The local device can initiate the protocol recalculation process and reduce the overall network convergence time. QUESTION NO: 20 Which configuration tasks trigger the automatic MLD process on a device using IGMPv2? (Choose three). A.Enable PIM6 B.Enable non-link-local group reports C.Enable link-local group reports D.Statically bind a local multicast group E.Dynamically bind a local multicast group F.Enable PIM sparse mode Answer: A, C, D Explanation: The MLD process is started automatically on the device. You cannot enable MLD manually on an interface. MLD is enabled automatically when you perform one of the following configuration tasks on an interface: •Enable PIM6 •Statically bind a local multicast group •Enable link-local group reports Reference https://www.cisco.com/c/en/us/td/docs/switches/datacenter/nexus9000/sw/92x/multicast/b- cisco-nexus-9000-series-nx-os-multicast-routing-configuration-guide-92x/b-cisco-nexus-9000- series-nx-os-multicast-routing-configuration-guide-92x_chapter_0100.html © Copyright Prep Solutions Limited, All rights reserved
