Chapter 18 vectors and arrays

Chapter 18Vectors and Arrays

John Keyser’s

Modification of Slides by

BjarneStroustrup

www.stroustrup.com/Programming

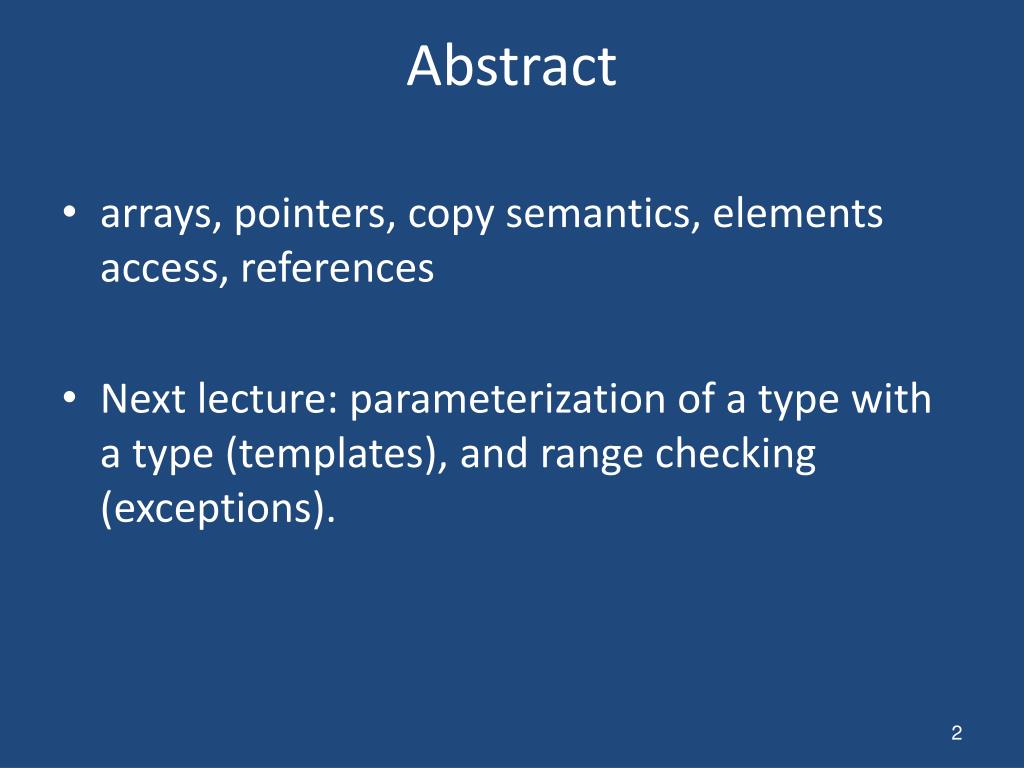

Abstract
Abstract

  • arrays, pointers, copy semantics, elements access, references

  • Next lecture: parameterization of a type with a type (templates), and range checking (exceptions).


Overview
Overview

  • Vector revisited

    • How are they implemented?

  • Pointers and free store

  • Destructors

  • Copy constructor and copy assignment

  • Arrays

  • Array and pointer problems

  • Changing size

  • Templates

  • Range checking and exceptions


Reminder
Reminder

  • Why look at the vector implementation?

    • To see how the standard library vector really works

    • To introduce basic concepts and language features

      • Free store (heap)

      • Copying

      • Dynamically growing data structures

    • To see how to directly deal with memory

    • To see the techniques and concepts you need to understand C

      • Including the dangerous ones

    • To demonstrate class design techniques

    • To see examples of “neat” code and good design

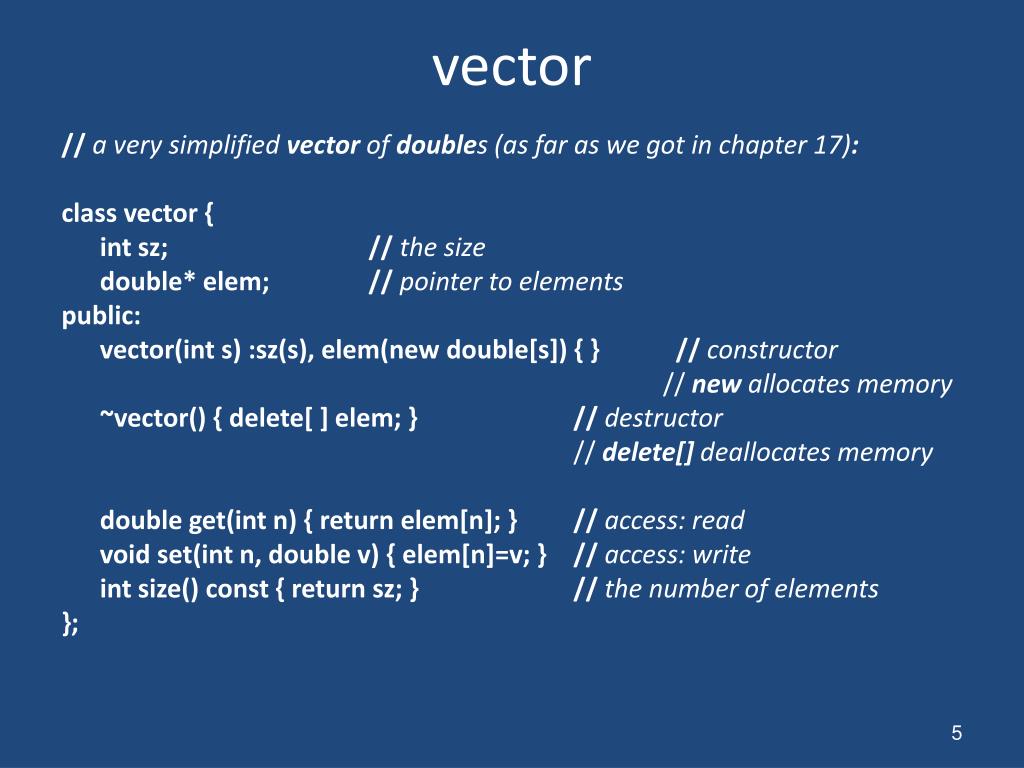

Vector
vector

// a very simplified vector of doubles (as far as we got in chapter 17):

class vector {

intsz; // the size

double* elem; // pointer to elements

public:

vector(int s) :sz(s), elem(new double[s]) { } // constructor

// new allocates memory

~vector() { delete[ ] elem; } // destructor

// delete[] deallocatesmemory

double get(int n) { return elem[n]; } // access: read

void set(int n, double v) { elem[n]=v; } // access: write

int size() const { return sz; } // the number of elements

};

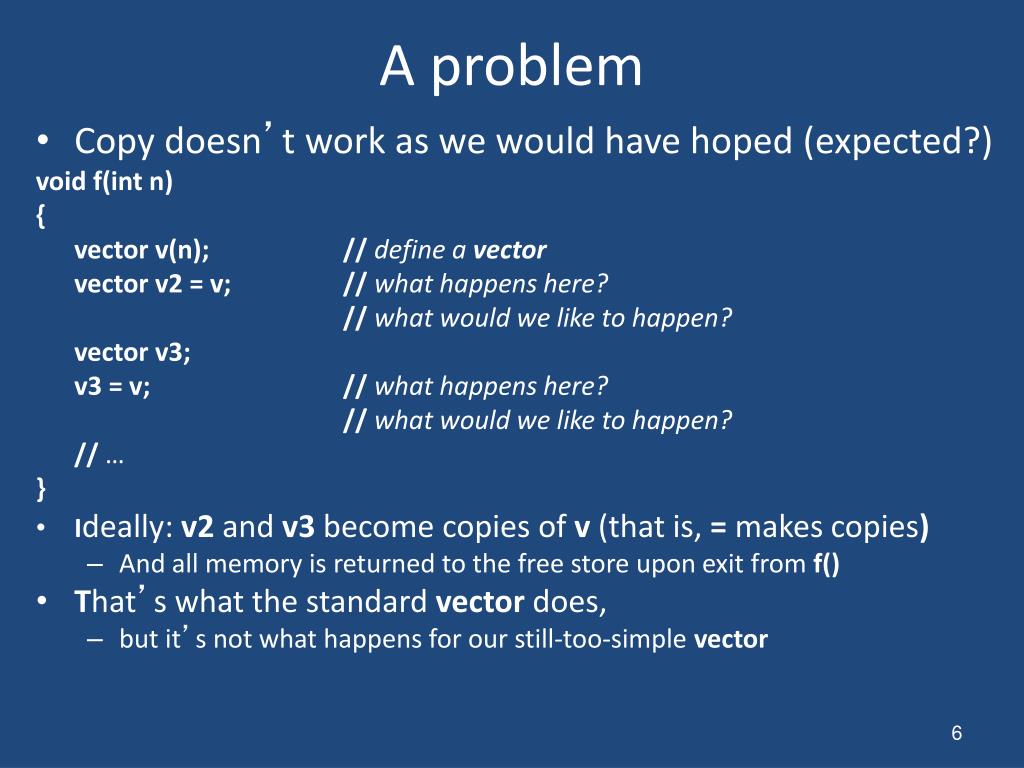

A problem
A problem

  • Copy doesn’t work as we would have hoped (expected?)

    void f(int n)

    {

    vector v(n); // define a vector

    vector v2 = v; // what happens here?

    // what would we like to happen?

    vector v3;

    v3 = v; // what happens here?

    // what would we like to happen?

    // …

    }

  • Ideally: v2 and v3 become copies of v (that is, = makes copies)

    • And all memory is returned to the free store upon exit from f()

  • That’s what the standard vector does,

    • but it’s not what happens for our still-too-simple vector

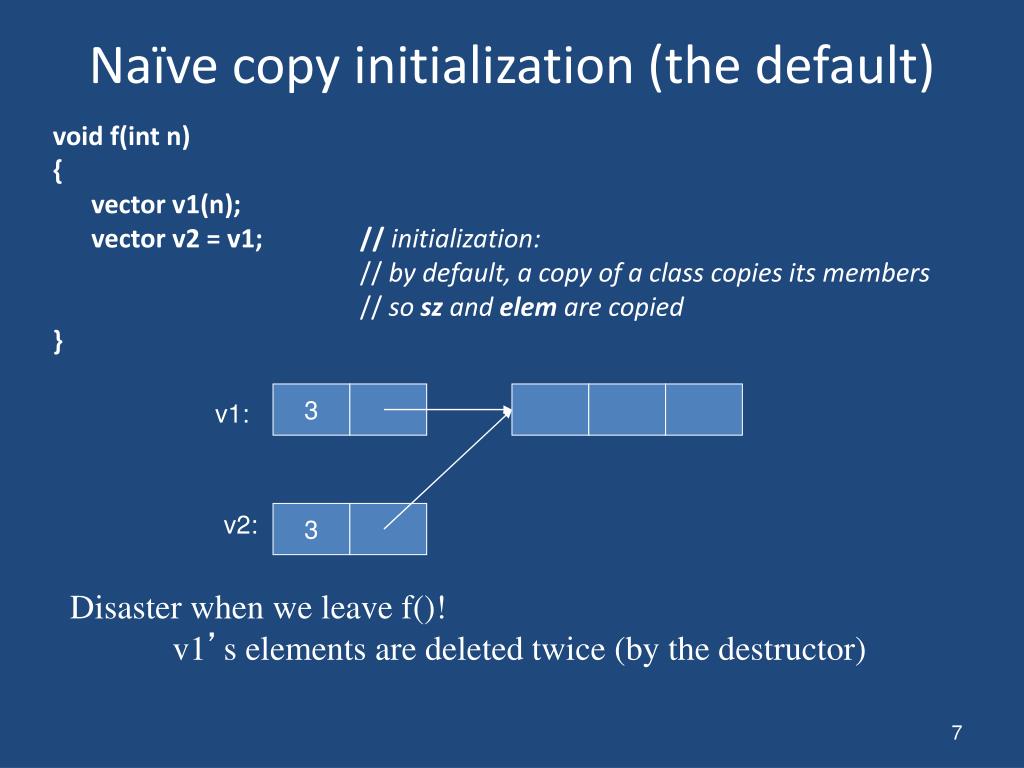

Na ve copy initialization the default
Naïve copy initialization (the default)

void f(int n)

{

vector v1(n);

vector v2 = v1; // initialization:

// by default, a copy of a class copies its members

// so sz and elemare copied

}

3

v1:

v2:

3

Disaster when we leave f()! v1’s elements are deleted twice (by the destructor)


Na ve copy assignment the default
Naïve copy assignment (the default)

void f(int n)

{

vector v1(n);

vector v2(4);

v2 = v1; // assignment :

// by default, a copy of a class copies its members

// so sz and elem are copied

}

3

v1:

2nd

1st

v2:

4 3

Disaster when we leave f()! v1’s elements are deleted twice (by the destructor) memory leak: v2’s elements are not deleted

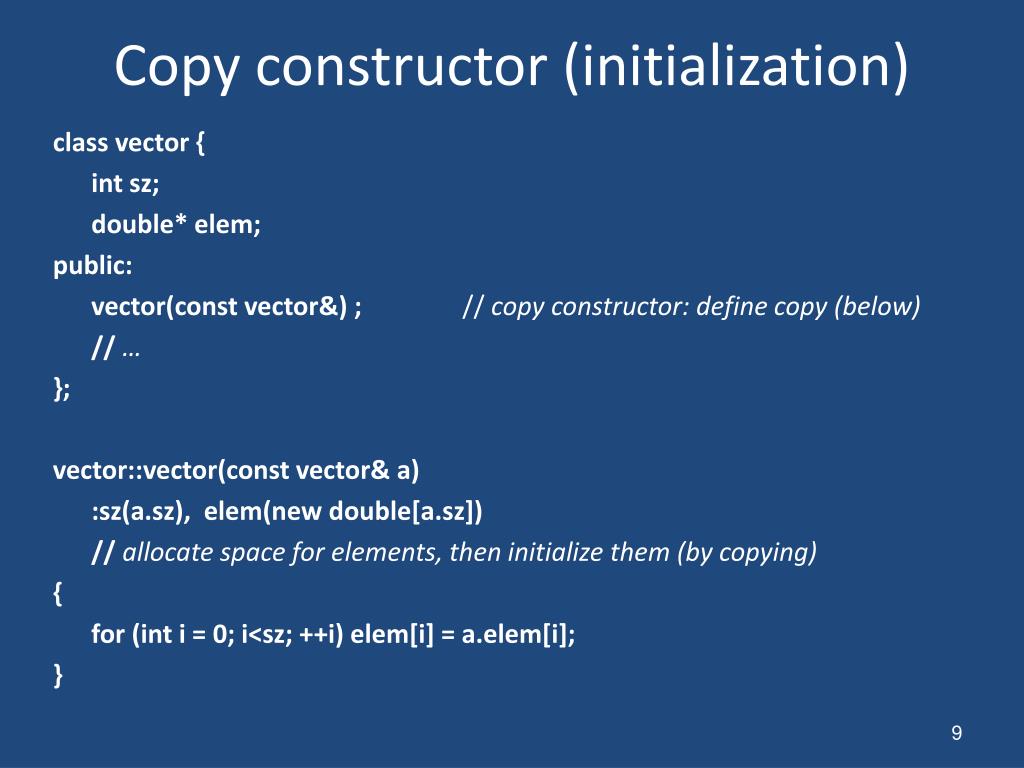

Copy constructor initialization
Copy constructor (initialization)

class vector {

int sz;

double* elem;

public:

vector(const vector&) ; // copy constructor: define copy (below)

// …

};

vector::vector(const vector& a)

:sz(a.sz), elem(new double[a.sz])

// allocate space for elements, then initialize them (by copying)

{

for (int i = 0; i<sz; ++i) elem[i] = a.elem[i];

}

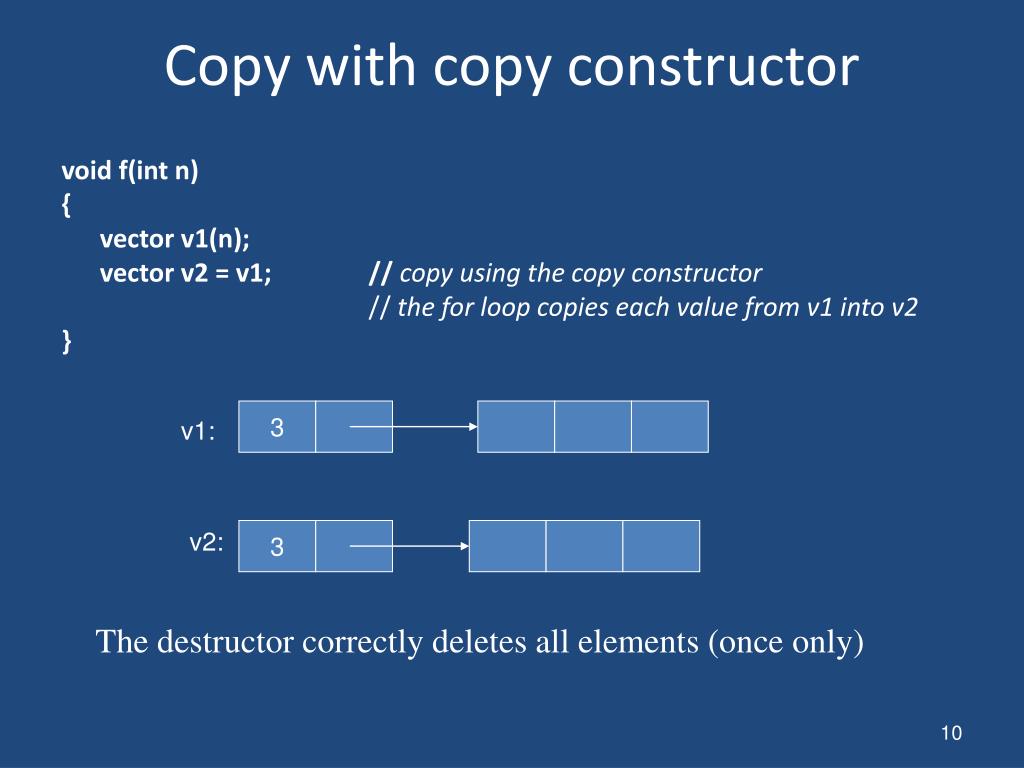

Copy with copy constructor
Copy with copy constructor

void f(int n)

{

vector v1(n);

vector v2 = v1; // copy using the copy constructor

// the for loop copies each value from v1 into v2

}

3

v1:

v2:

3

The destructor correctly deletes all elements (once only)

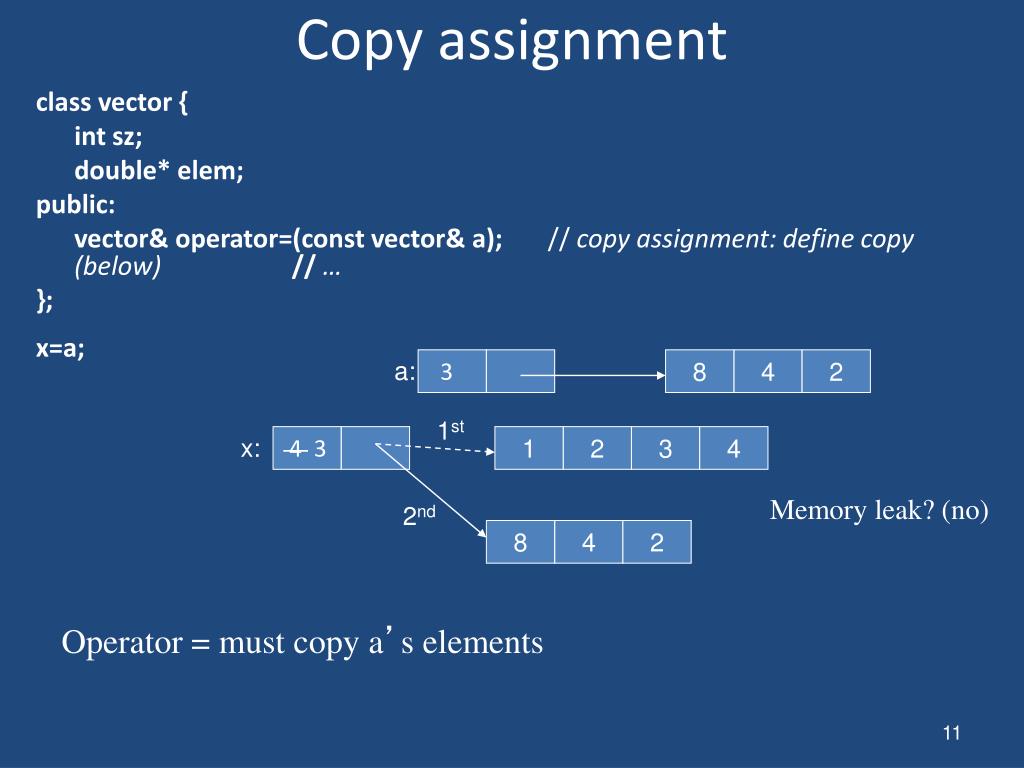

Copy assignment
Copy assignment

class vector {

int sz;

double* elem;

public:

vector& operator=(const vector& a); // copy assignment: define copy (below) // …

};

x=a;

a:

3

8

4

2

1st

x:

4 3

1

2

3

4

Memory leak? (no)

2nd

8

4

2

Operator = must copy a’s elements

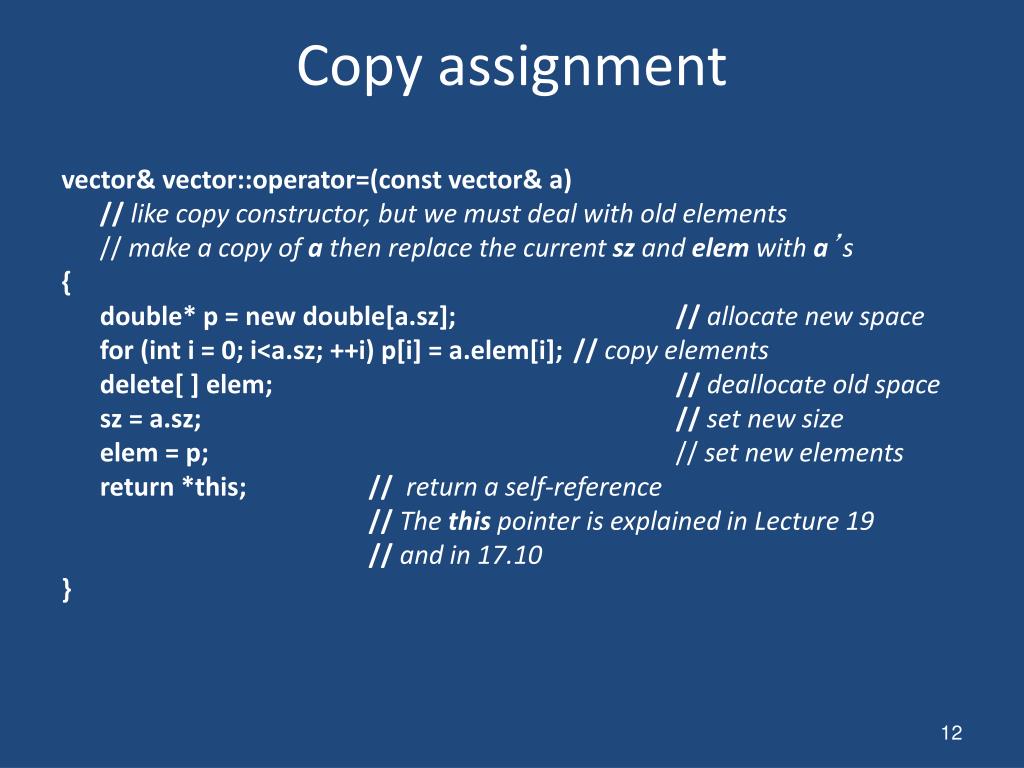

Copy assignment1
Copy assignment

vector& vector::operator=(const vector& a)

// like copy constructor, but we must deal with old elements

// make a copy of a then replace the current sz and elem with a’s

{

double* p = new double[a.sz]; // allocate new space

for (int i = 0; i<a.sz; ++i) p[i] = a.elem[i]; // copy elements

delete[ ] elem; // deallocate old space

sz = a.sz; // set new size

elem = p; // set new elements

return *this; //return a self-reference

//The this pointer is explained in Lecture 19

// and in 17.10

}

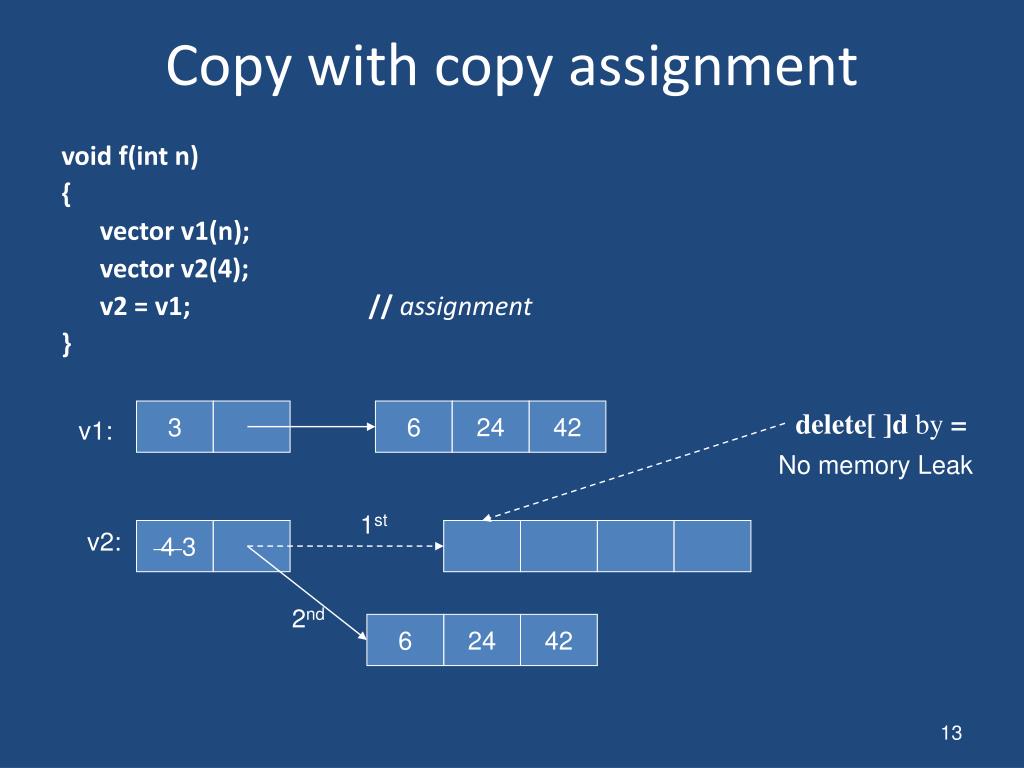

Copy with copy assignment
Copy with copy assignment

void f(int n)

{

vector v1(n);

vector v2(4);

v2 = v1; // assignment

}

3

6

24

42

delete[ ]d by =

v1:

No memory Leak

1st

v2:

4 3

2nd

6

24

42


Copy terminology
Copy terminology

  • Shallow copy: copy only a pointer so that the two pointers now refer to the same object

    • What pointers and references do

  • Deep copy: copy the pointer and also what it points to so that the two pointers now each refer to a distinct object

    • What vector, string, etc. do

    • Requires copy constructors and copy assignments for container classes

    • Must copy “all the way down” if there are more levels in the object

Copy of x:

Copy of x:

x:

x:

y:

y:

Copy of y:

Shallow copy

Deep copy


Deep and shallow copy
Deep and shallow copy

2

2

v2:

v1:

vector<int> v1;

v1.push_back(2);

v1.push_back(4);

vector<int> v2 = v1; // deep copy (v2 gets its own copy of v1’s elements)

v2[0] = 3; // v1[0] is still 2

2

4

2 3

4

9 7

r2:

r1:

b:

int b = 9;

int& r1 = b;

int& r2 = r1; // shallow copy (r2 refers to the same variable as r1)

r2 = 7; // b becomes 7


Arrays
Arrays

  • We have seen with the new command how memory can be set aside at once for several instances of an object

    • e.g.: new chesspiece[16];

  • The [] command can be used to create arrays, even in just normal commands.

  • Be careful about using arrays (going past bounds)

    • Usually, you should use vector instead

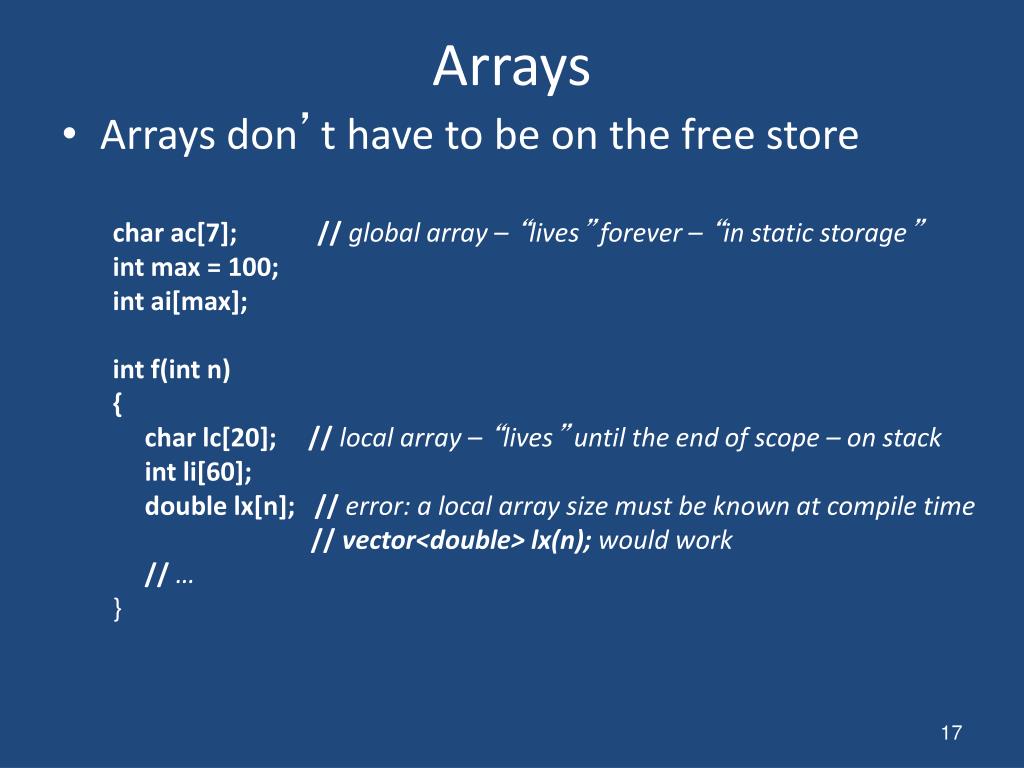

Arrays1
Arrays

  • Arrays don’t have to be on the free store

    char ac[7]; // global array – “lives” forever – “in static storage”

    int max = 100;

    int ai[max];

    int f(int n)

    {

    char lc[20]; // local array – “lives” until the end of scope – on stack

    int li[60];

    double lx[n]; // error: a local array size must be known at compile time

    //vector<double> lx(n); would work

    //…

    }


Address of
Address of: &

  • You can get a pointer to any object

    • not just to objects on the free store

      int a;

      char ac[20];

      void f(int n)

      {

      int b;

      int* p = &b; // pointer to individual variable

      p = &a; // now point to a different variable

      char* pc = ac; // the name of an array names a pointer to its first element

      pc = &ac[0]; //equivalent to pc = ac

      pc = &ac[n]; //pointer to ac’s nth element (starting at 0th)

      //warning: range is not checked

      // …

      }

pc:

p:

a:

ac:

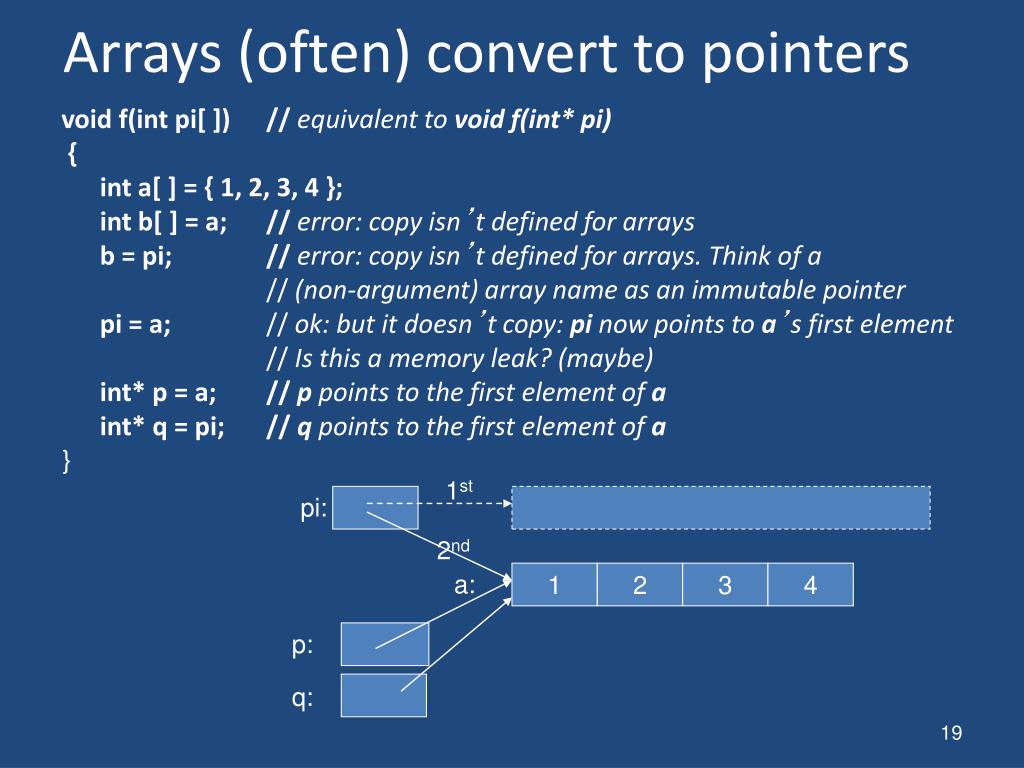

Arrays often convert to pointers
Arrays (often) convert to pointers

void f(int pi[ ]) // equivalent to void f(int* pi)

{

int a[ ] = { 1, 2, 3, 4 };

int b[ ] = a; // error: copy isn’t defined for arrays

b = pi; // error: copy isn’t defined for arrays. Think of a

// (non-argument) array name as an immutable pointer

pi = a; // ok: but it doesn’t copy: pi now points to a’s first element

// Is this a memory leak? (maybe)

int* p = a; // p points to the first element of a

int* q = pi; // q points to the first element of a

}

1st

pi:

2nd

a:

1

2

3

4

p:

q:

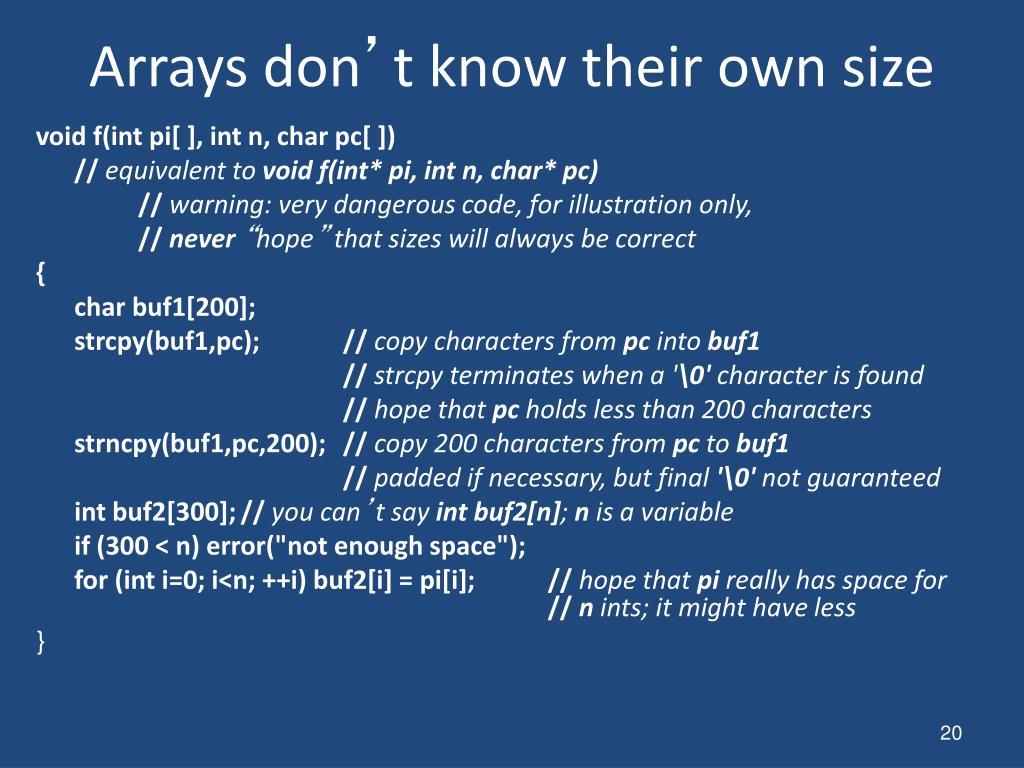

Arrays don t know their own size
Arrays don’t know their own size

void f(int pi[ ], int n, char pc[ ])

// equivalent to void f(int* pi, int n, char* pc)

// warning: very dangerous code, for illustration only,

// never“hope” that sizes will always be correct

{

char buf1[200];

strcpy(buf1,pc); //copy characters from pc into buf1

//strcpy terminates when a '\0' character is found

//hope that pc holds less than 200 characters

strncpy(buf1,pc,200); //copy 200 characters from pc to buf1

//padded if necessary, but final '\0' not guaranteed

int buf2[300]; //you can’t say int buf2[n]; n is a variable

if (300 < n) error("not enough space");

for (int i=0; i<n; ++i) buf2[i] = pi[i]; //hope that pi really has space for //n ints; it might have less

}

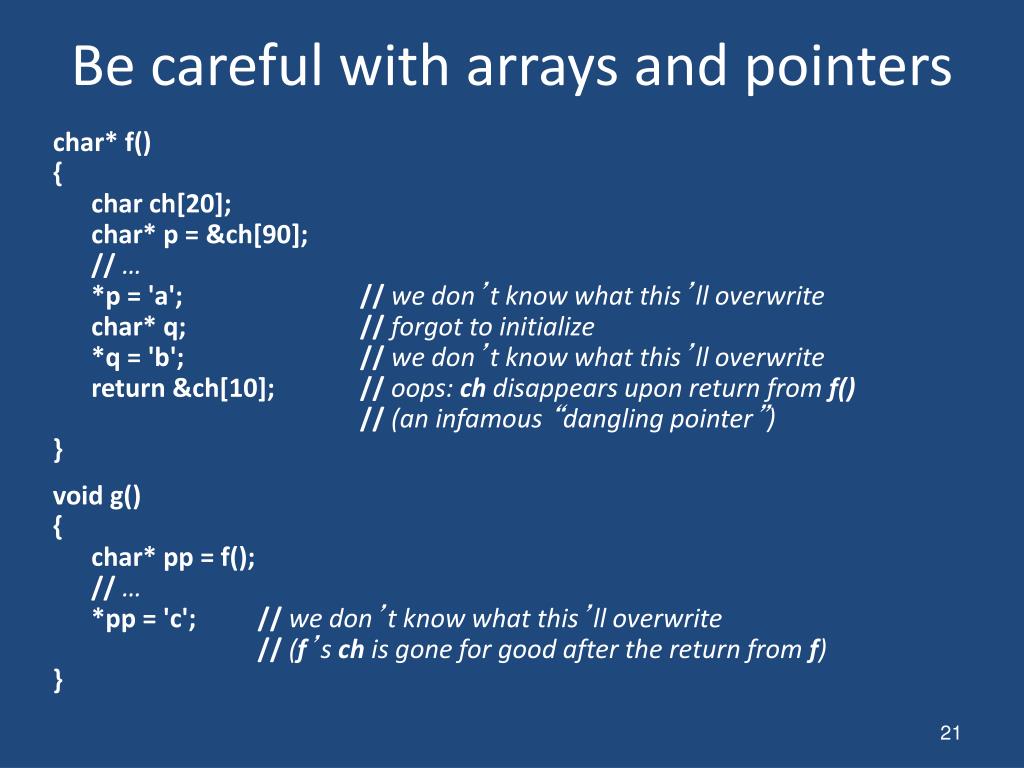

Be careful with arrays and pointers
Be careful with arrays and pointers

char* f()

{

char ch[20];

char* p = &ch[90];

// …

*p = 'a'; // we don’t know what this’ll overwrite

char* q; // forgot to initialize

*q = 'b'; // we don’t know what this’ll overwrite

return &ch[10]; // oops: ch disappears upon return from f()

//(an infamous “dangling pointer”)

}

void g()

{

char* pp = f();

// …

*pp = 'c'; // we don’t know what this’ll overwrite

// (f’s ch is gone for good after the return from f)

}

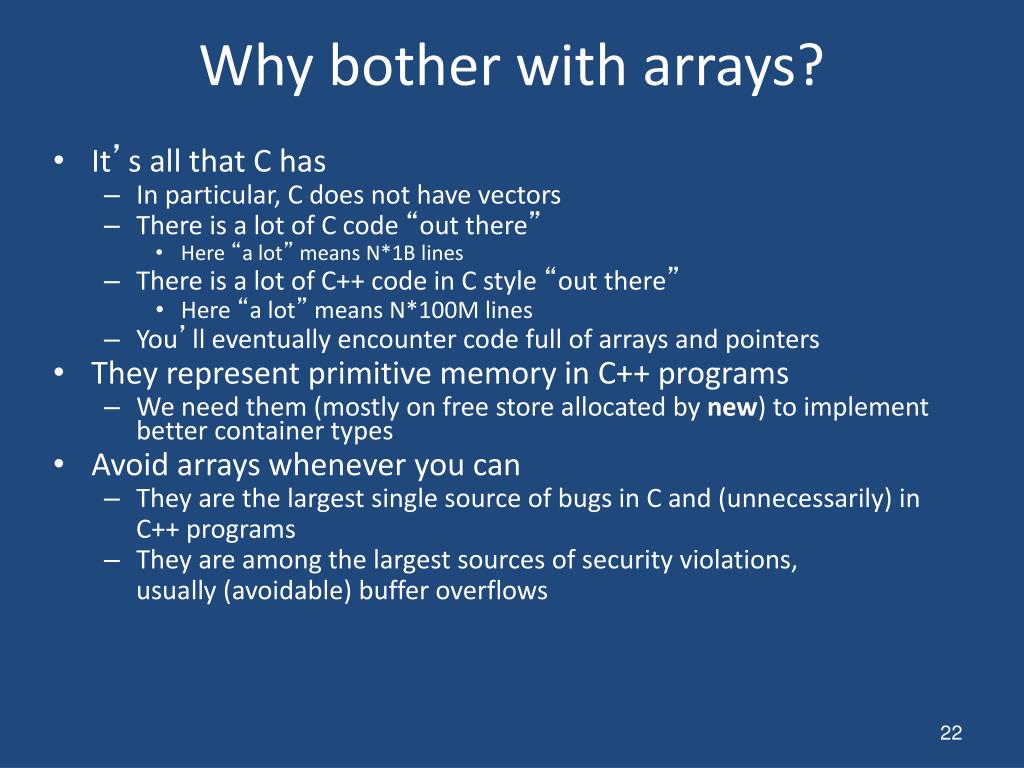

Why bother with arrays
Why bother with arrays?

  • It’s all that C has

    • In particular, C does not have vectors

    • There is a lot of C code “out there”

      • Here “a lot” means N*1B lines

    • There is a lot of C++ code in C style “out there”

      • Here “a lot” means N*100M lines

    • You’ll eventually encounter code full of arrays and pointers

  • They represent primitive memory in C++ programs

    • We need them (mostly on free store allocated by new) to implement better container types

  • Avoid arrays whenever you can

    • They are the largest single source of bugs in C and (unnecessarily) in

      C++ programs

    • They are among the largest sources of security violations,

      usually (avoidable) buffer overflows

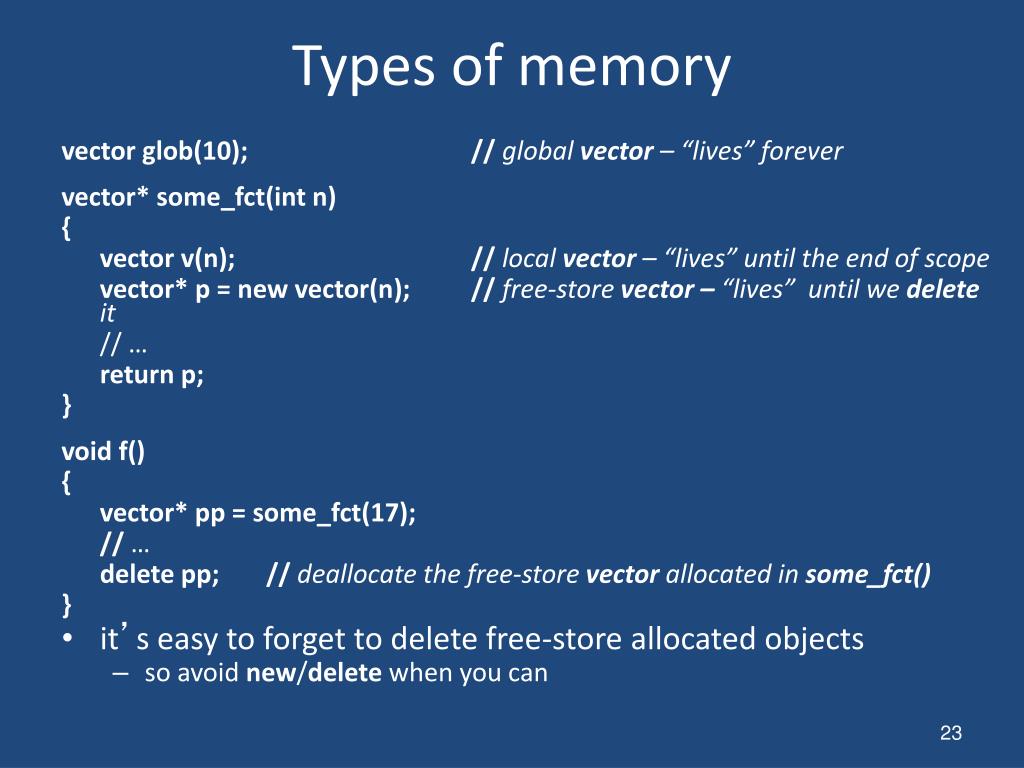

Types of memory
Types of memory

vector glob(10); // global vector – “lives” forever

vector* some_fct(int n)

{

vector v(n); // local vector – “lives” until the end of scope

vector* p = new vector(n); // free-store vector – “lives” until we delete it

// …

return p;

}

void f()

{

vector* pp = some_fct(17);

// …

delete pp; // deallocate the free-store vector allocated in some_fct()

}

  • it’s easy to forget to delete free-store allocated objects

    • so avoid new/delete when you can

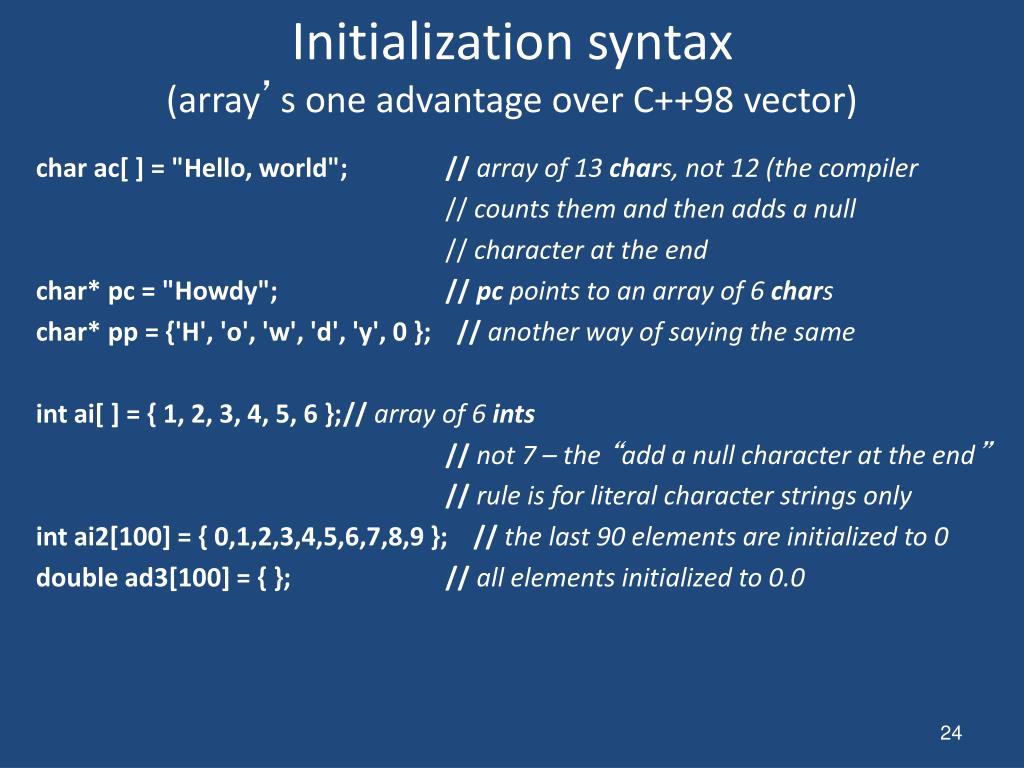

Initialization syntax array s one advantage over c 98 vector
Initialization syntax(array’s one advantage over C++98 vector)

char ac[ ] = "Hello, world"; // array of 13 chars, not 12 (the compiler

// counts them and then adds a null

// character at the end

char* pc = "Howdy"; // pc points to an array of6 chars

char* pp = {'H', 'o', 'w', 'd', 'y', 0 }; //another way of saying the same

int ai[ ] = { 1, 2, 3, 4, 5, 6 }; // array of 6 ints

// not 7 – the “add a null character at the end”

//rule is for literal character strings only

int ai2[100] = { 0,1,2,3,4,5,6,7,8,9 }; // the last 90 elements are initialized to 0

double ad3[100] = { }; // all elements initialized to 0.0

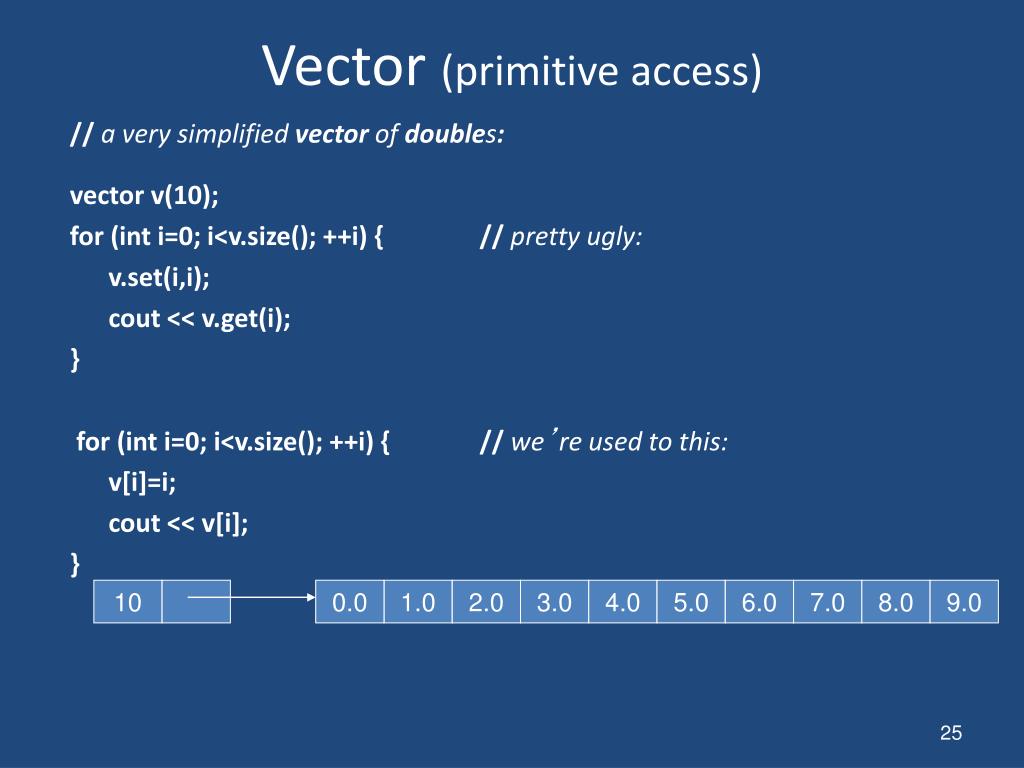

Vector primitive access
Vector (primitive access)

// a very simplified vector of doubles:

vector v(10);

for (int i=0; i<v.size(); ++i) { // pretty ugly:

v.set(i,i);

cout << v.get(i);

}

for (int i=0; i<v.size(); ++i) { // we’re used to this:

v[i]=i;

cout << v[i];

}

10

0.0

1.0

2.0

3.0

4.0

5.0

6.0

7.0

8.0

9.0


Vector we could use pointers for access
Vector (we could use pointers for access)

// a very simplified vector of doubles:

class vector {

int sz; // the size

double* elem; // pointer to elements

public:

vector(int s) :sz(s), elem(new double[s]) { } // constructor

// …

double* operator[ ](int n) { return &elem[n]; } // access: return pointer

};

vector v(10);

for (int i=0; i<v.size(); ++i) { // works, but still too ugly:

*v[i] = i; // means *(v[i]), that is, return a pointer to

//the ith element, and dereference it

cout << *v[i];

}

10

0.0

1.0

2.0

3.0

4.0

5.0

6.0

7.0

8.0

9.0


Vector we use references for access
Vector (we use references for access)

// a very simplified vector of doubles:

class vector {

intsz; // the size

double* elem; // pointer to elements

public:

vector(int s) :sz(s), elem(new double[s]) { } // constructor

// …

double& operator[ ](int n) { return elem[n]; } // access: return reference

};

vector v(10);

for (inti=0; i<v.size(); ++i) { // works and looks right!

v[i] = i; // v[i] returns a reference to the ith element

cout << v[i];

}

10

0.0

1.0

2.0

3.0

4.0

5.0

6.0

7.0

8.0

9.0


Pointer and reference
Pointer and reference

  • You can think of a reference as an automatically dereferenced immutable pointer, or as an alternative name for an object

    • Assignment to a pointer changes the pointer’s value

    • Assignment to a reference changes the object referred to

    • You cannot make a reference refer to a different object

      int a = 10;

      int* p = &a; // you need & to get a pointer

      *p = 7; // assign to a through p

      // you need * (or [ ]) to get to what a pointer points to

      int x1 = *p; // read a through p

      int& r = a; // r is a synonym for a

      r = 9; // assign to a through r

      int x2 = r; // read a through r

      p = &x1; // you can make a pointer point to a different object

      r = &x1; // error: you can’t change the value of a reference


Next lecture
Next lecture

  • We’ll see how we can change vector’s implementation to better allow for changes in the number of elements. Then we’ll modify vector to take elements of an arbitrary type and add range checking. That’ll imply looking at templates and revisiting exceptions.


ad
