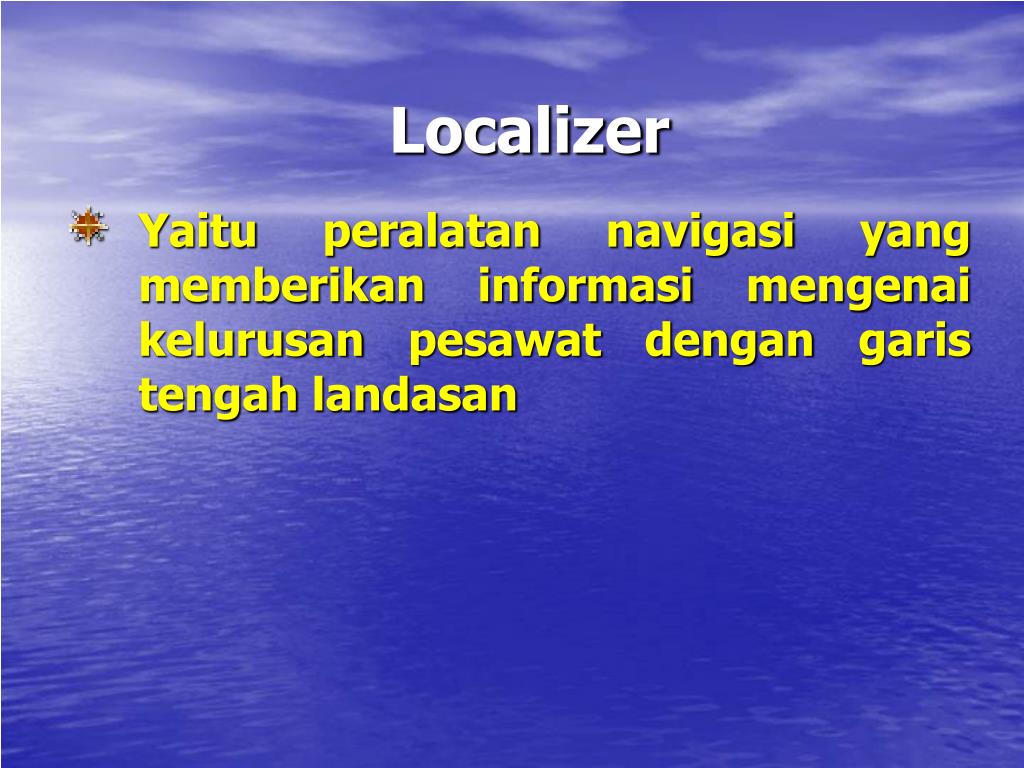

  1. Localizer • Yaitu peralatan navigasi yang memberikan informasi mengenai kelurusan pesawat dengan garis tengah landasan

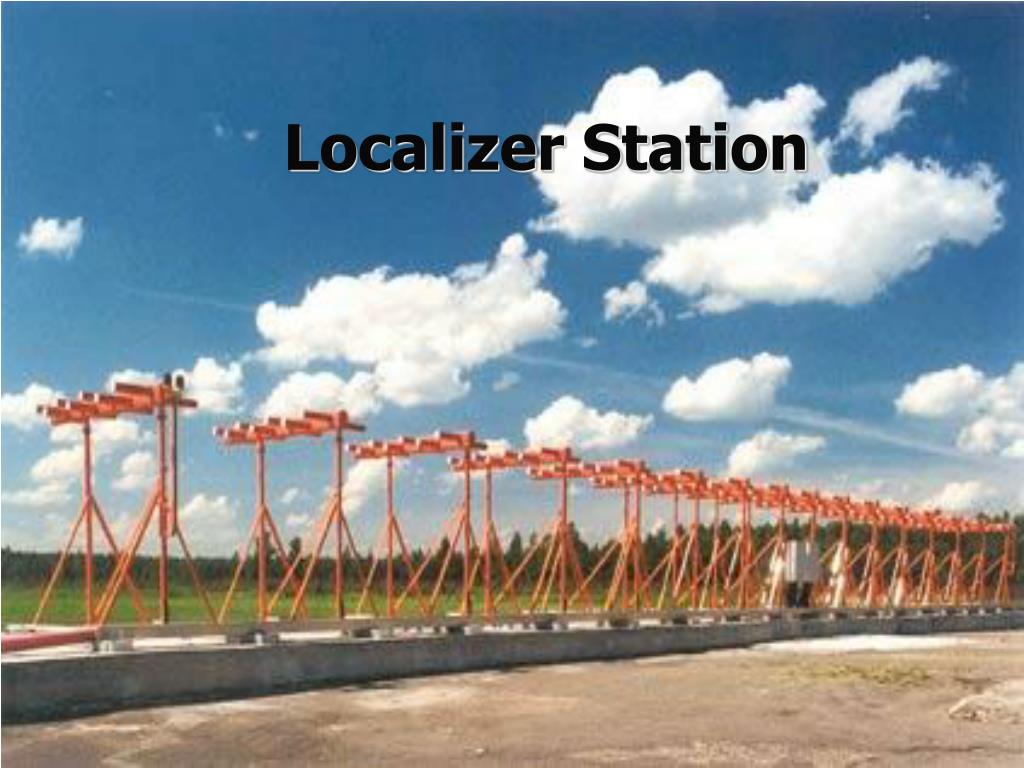

  2. Localizer Station

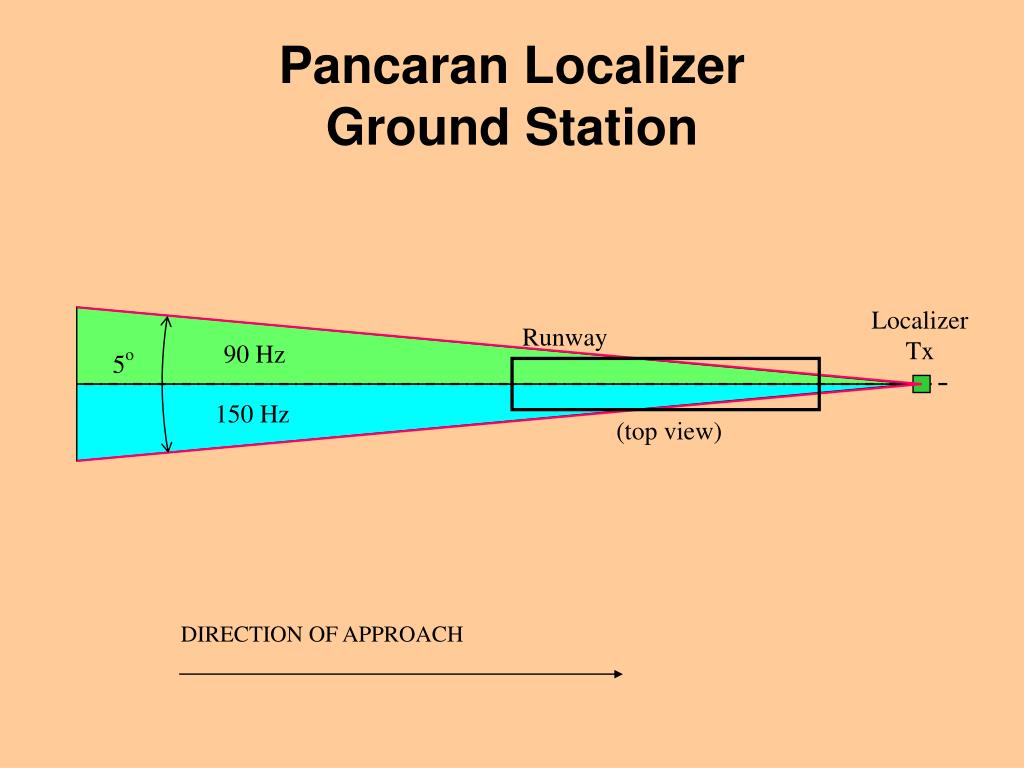

  3. Pancaran LocalizerGround Station Localizer Tx Runway 90 Hz 5o 150 Hz (top view) DIRECTION OF APPROACH

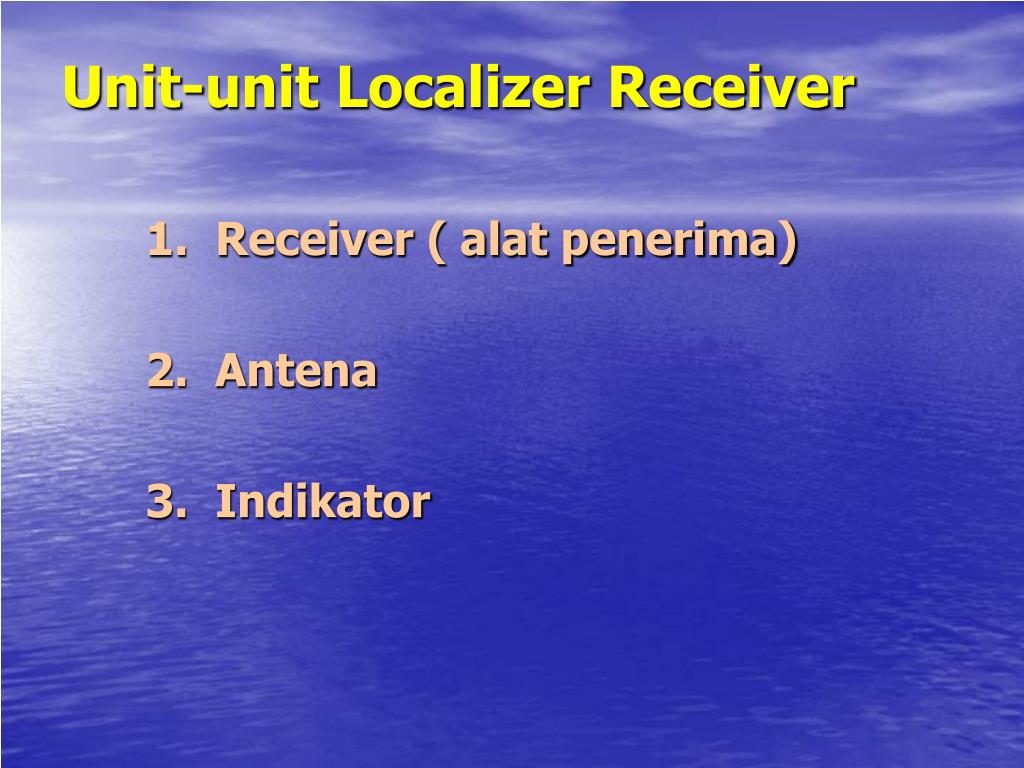

  4. Unit-unit Localizer Receiver 1. Receiver ( alat penerima) 2. Antena 3. Indikator

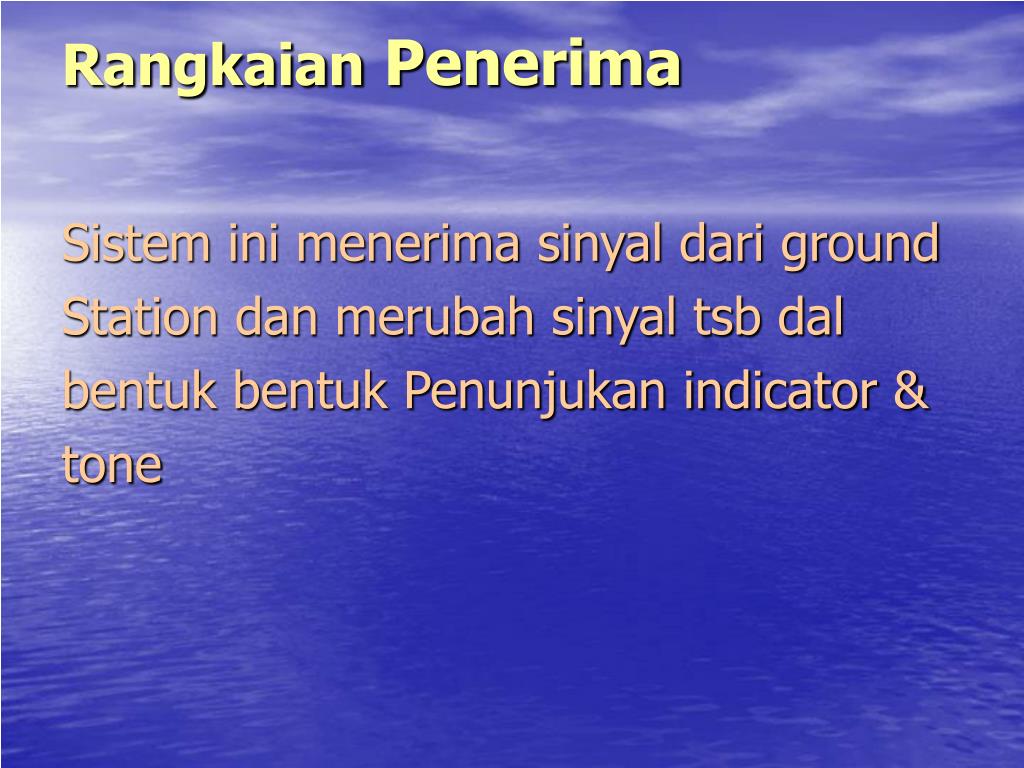

  5. Rangkaian Penerima Sistem ini menerima sinyal dari ground Station dan merubah sinyal tsb dal bentuk bentuk Penunjukan indicator & tone

  6. Bekerja pd range frekuensi 108.00-112.00 Mhz, Dg jarak persepuluhan ganjil. Persepuluhan genap Untuk VOR Misal : ILS WIII R/W 7R Frek Loc. 110.50 Mhz VOR CKG 113.60 Mhz ILS WIIJ R/W 09 Frek. Loc. 109.10 Mhz VOR JOG 109.8O Mhz

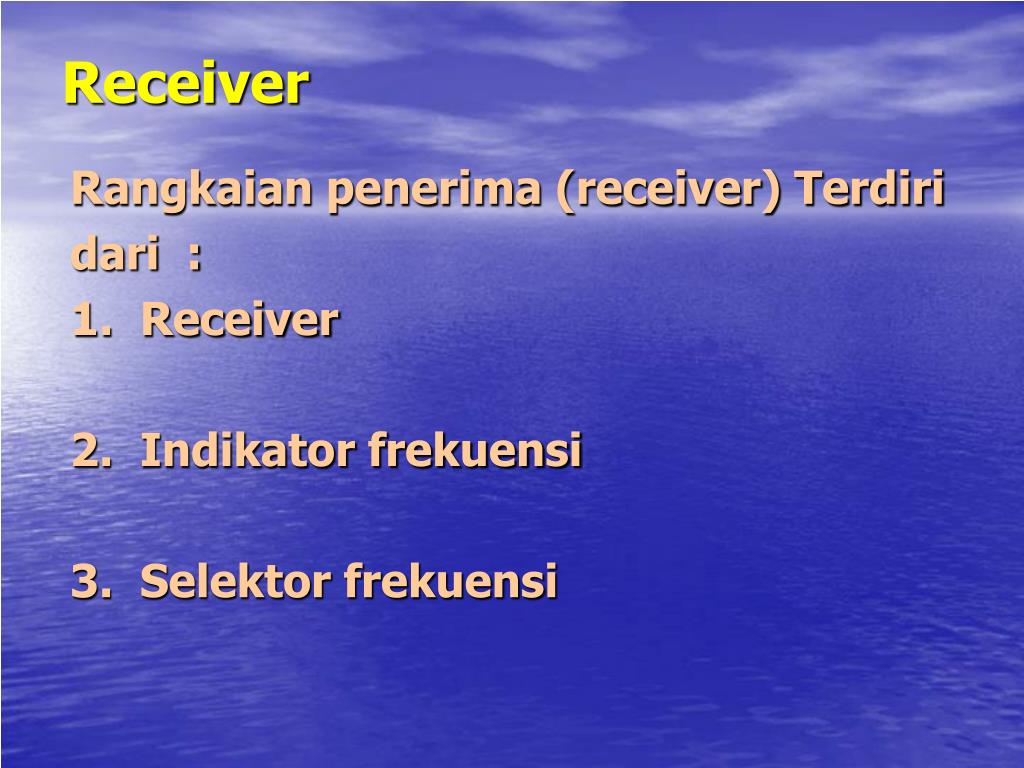

  7. Receiver Rangkaian penerima (receiver) Terdiri dari : 1. Receiver 2. Indikator frekuensi 3. Selektor frekuensi

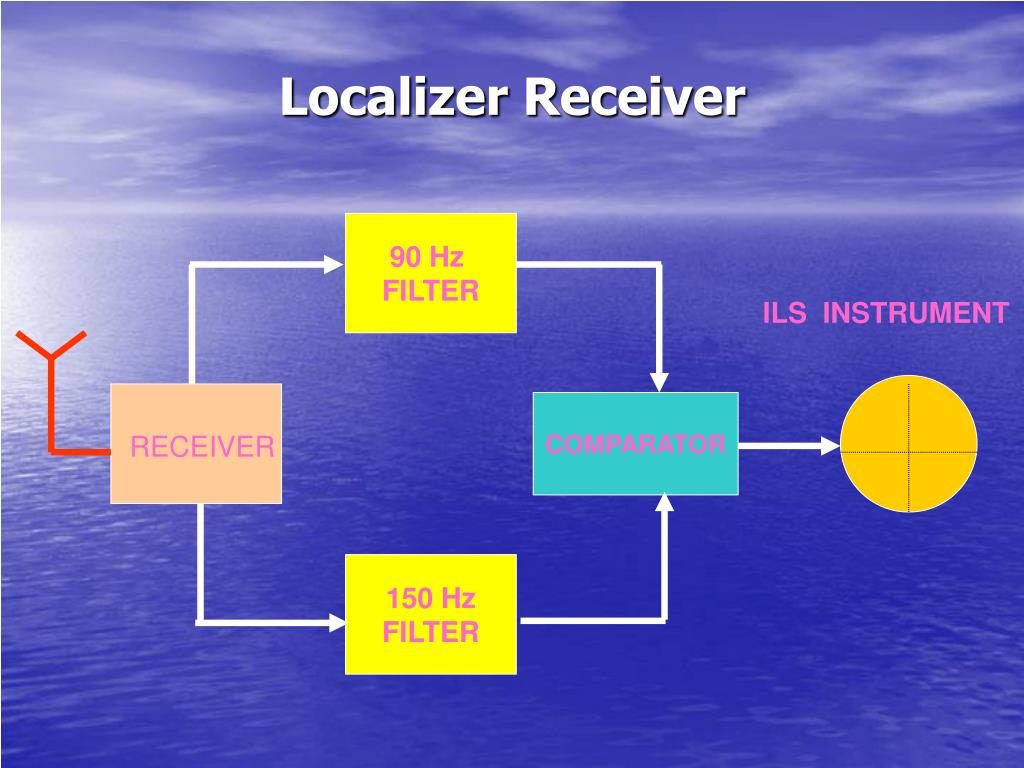

  8. Localizer Receiver 90 Hz FILTER ILS INSTRUMENT COMPARATOR RECEIVER 150 Hz FILTER

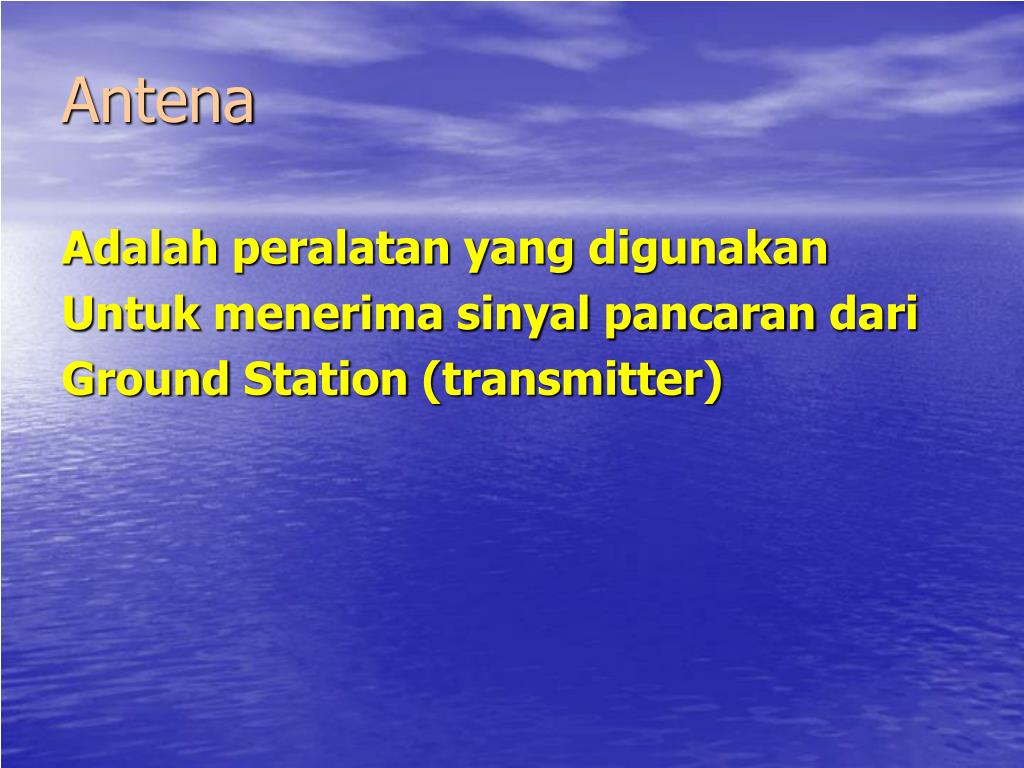

  9. Antena Adalah peralatan yang digunakan Untuk menerima sinyal pancaran dari Ground Station (transmitter)

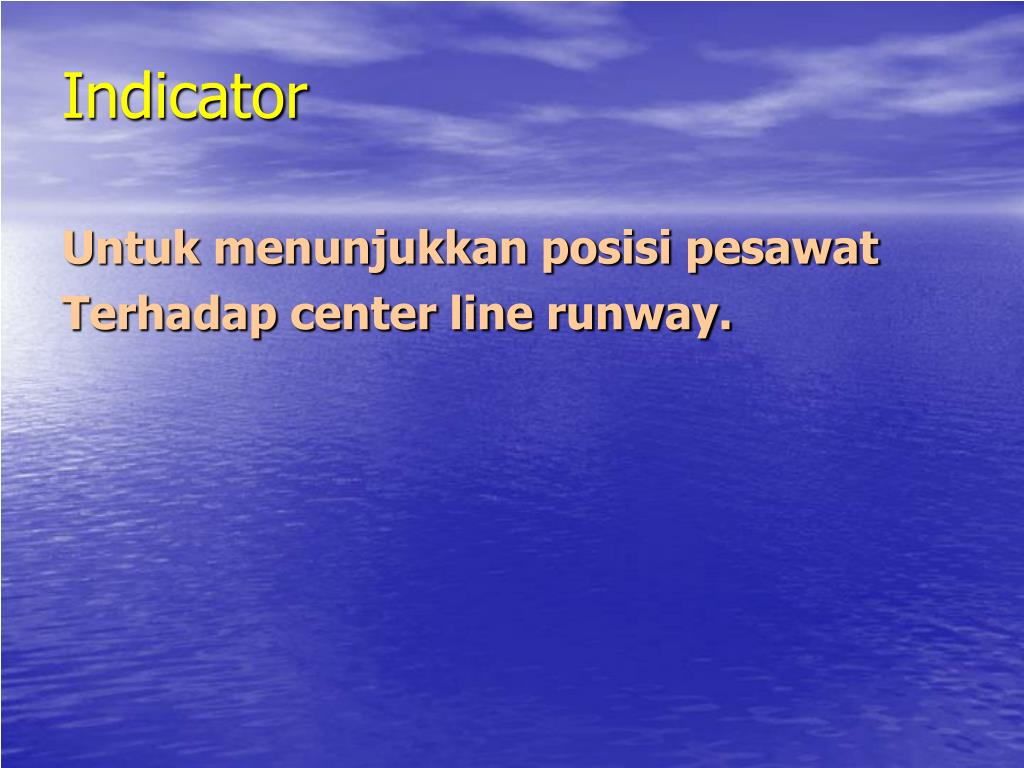

  10. Indicator Untuk menunjukkan posisi pesawat Terhadap center line runway.
