  1. 100GHz arrays orientation and wiring 1 2 3 4 5 6 7 8 9 10 yellow green white 1 2 3 4 5 6 7 8 blue

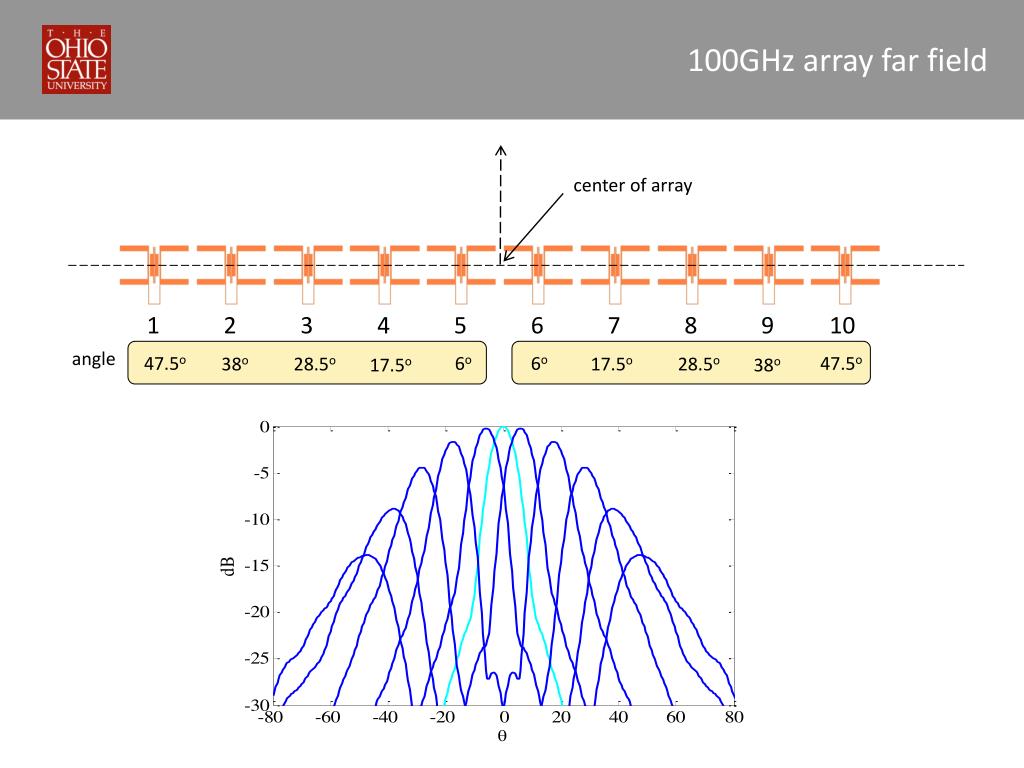

  2. 100GHz array far field center of array 1 2 3 4 5 6 7 8 9 10 angle 47.5o 6o 6o 47.5o 38o 28.5o 17.5o 28.5o 17.5o 38o Far field pattern of the 5 (left) array elements

  3. 100GHz antennas’ characteristics • Horn antenna • (diameter=2cm (dm), length= 5.5cm (L)) Gain = 295 = 24.27 (dB) Aeff = 211.3mm2 => D = 8.2mm • Lens antenna Gain = 335.7 = 25.27 (dB) Aeff = 240.5mm2=> D = 8.75mm Including losses: Ohmic:10%, Air/dielectric interface:30% , Back (air) radiation: 9%
