  1. The HBT excitation functionin relativistic heavy ion collisions Mike Lisa Ohio State University

  2. Plan y |b| pT • I will discuss a set of zero measure in this rich parameter space • what do we think we can learn from systematics in X (=y, pT, |b|…)? • what do we think we have learned from systematics in X (=y, pT, |b|…)? • how does this change with s ? Also, upon request: comments on technical issues (event-mixing, Coulomb, non-Gaussianness, RP resolution correction…) Brief “summary” (intro to discussion)

  3. Reminder Rlong p1 qside x1 p2 qout Rside qlong x2 Rout • HBT: Quantum interference between identical particles 2 C (q) Gaussian model (3-d): 1 • Final-state effects (Coulomb, strong) also can cause correlations, need to be accounted for q (GeV/c) • Two-particle interferometry: p-space separation  space-time separation

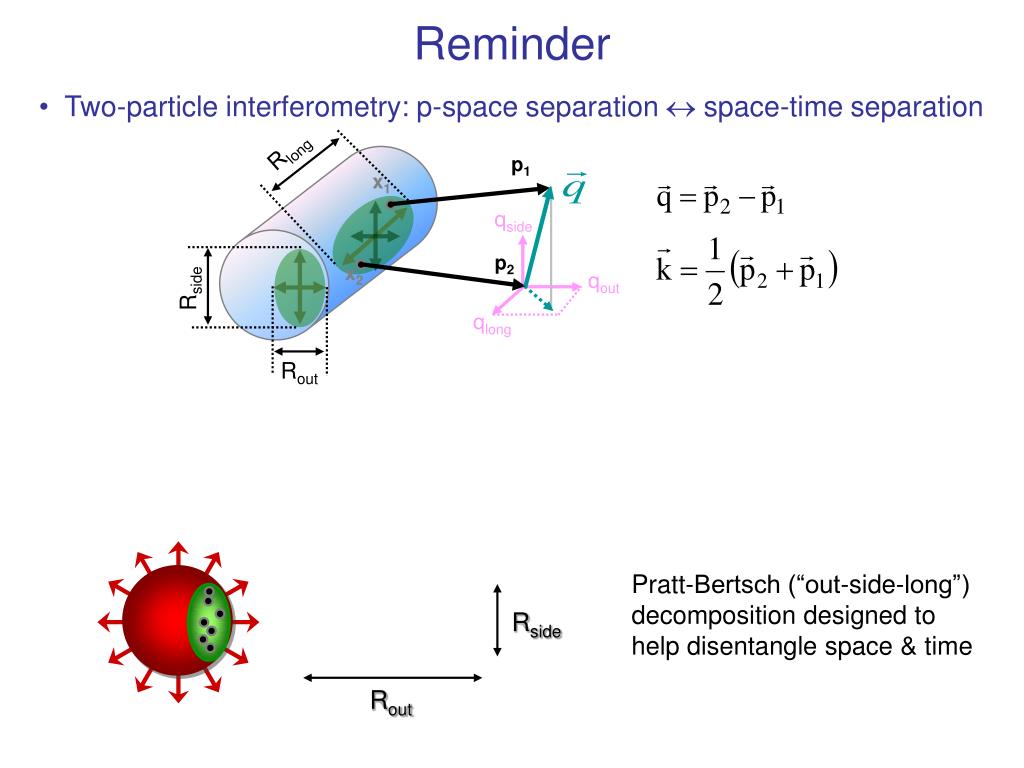

  4. Reminder Rlong p1 qside x1 p2 qout Rside qlong x2 Rout Rside Rout • Two-particle interferometry: p-space separation  space-time separation Pratt-Bertsch (“out-side-long”) decomposition designed to help disentangle space & time

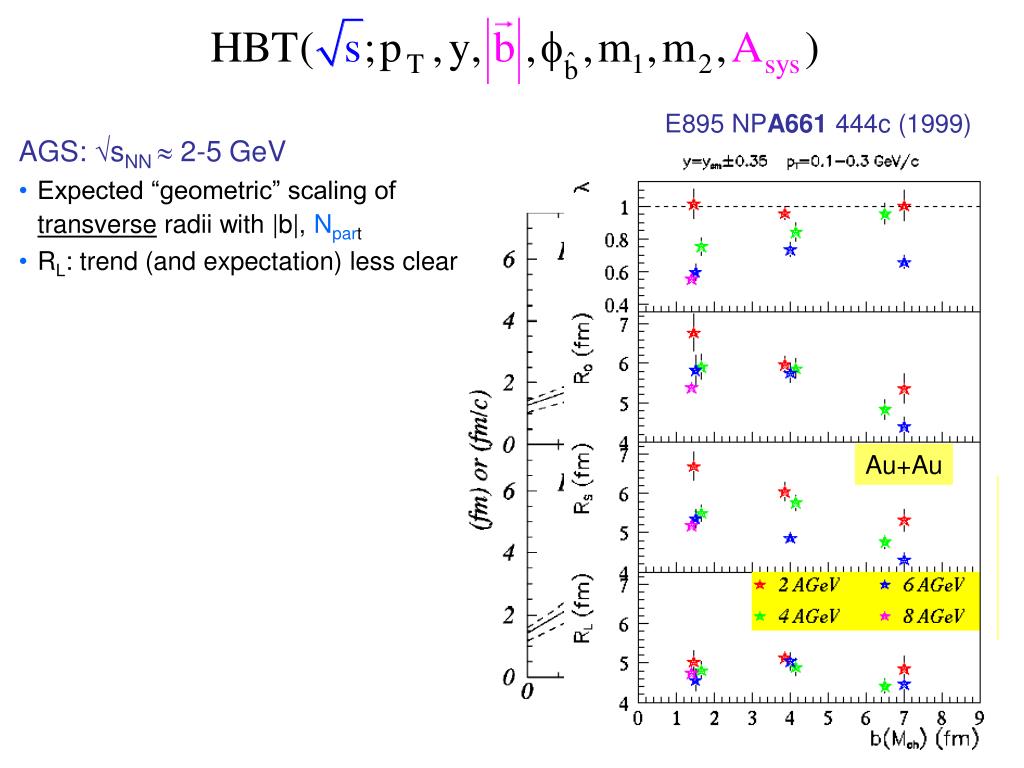

  5. E895 NPA661 444c (1999) E802 PRC66 054906 (2002) Au+Au 14.6 AGeV Si+Al 14.6 AGeV Si+Au 11.6 AGeV Au+Au • AGS: sNN  2-5 GeV • Expected “geometric” scaling of transverse radii with |b|, Npart • RL: trend (and expectation) less clear

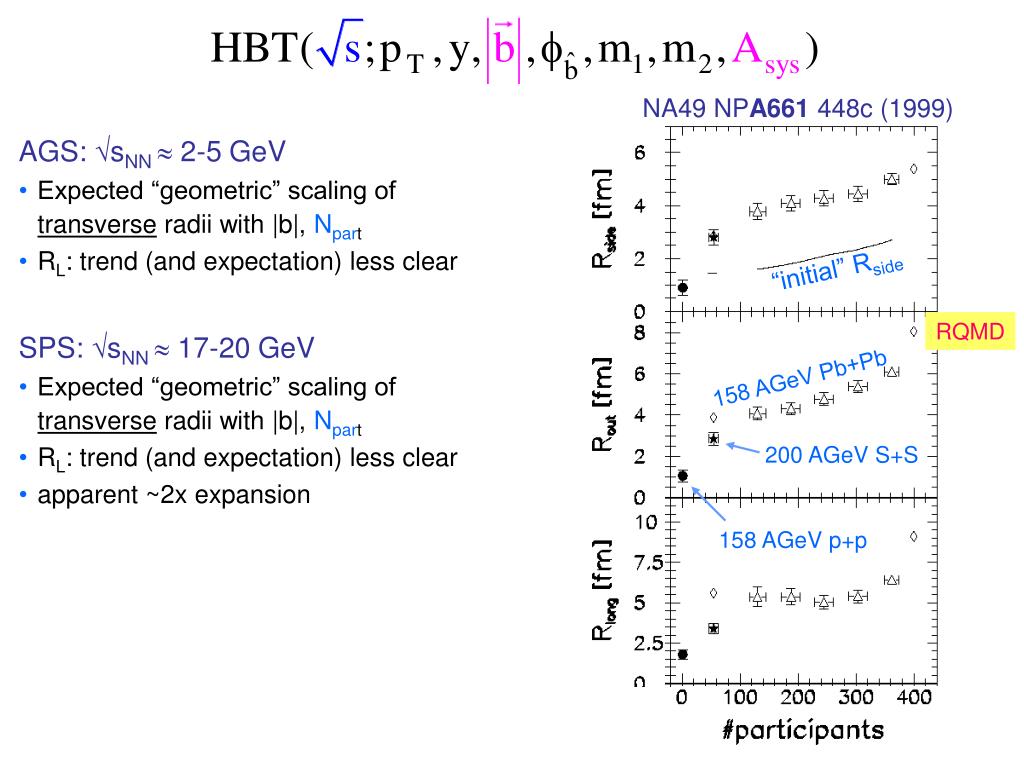

  6. NA49 NPA661 448c (1999) RQMD 158 AGeV Pb+Pb 200 AGeV S+S 158 AGeV p+p • AGS: sNN  2-5 GeV • Expected “geometric” scaling of transverse radii with |b|, Npart • RL: trend (and expectation) less clear “initial” Rside • SPS: sNN  17-20 GeV • Expected “geometric” scaling of transverse radii with |b|, Npart • RL: trend (and expectation) less clear • apparent ~2x expansion

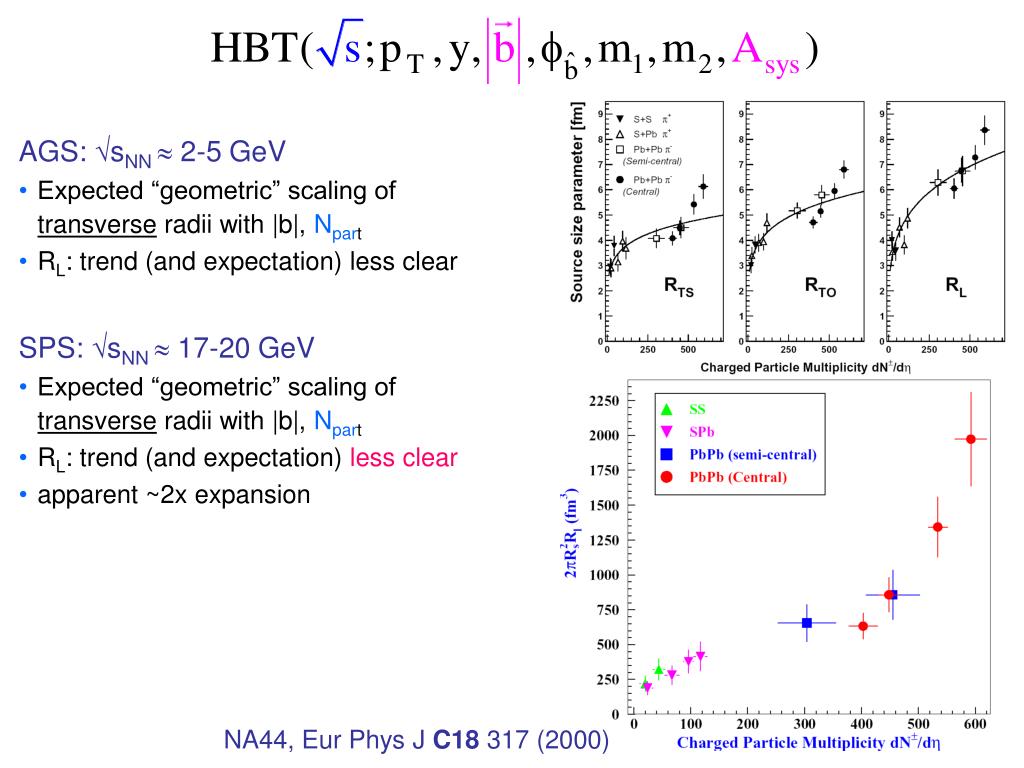

  7. AGS: sNN  2-5 GeV • Expected “geometric” scaling of transverse radii with |b|, Npart • RL: trend (and expectation) less clear • SPS: sNN  17-20 GeV • Expected “geometric” scaling of transverse radii with |b|, Npart • RL: trend (and expectation) less clear • apparent ~2x expansion NA44, Eur Phys J C18 317 (2000)

  8. STAR nucl-ex/0312009 accepted to PRL STAR PRL87 082301 (2001) PHENIX nucl-ex/0401003 32-72% 12-32% 0-12% • AGS: sNN  2-5 GeV • Expected “geometric” scaling of transverse radii with |b|, Npart • RL: trend (and expectation) less clear • SPS: sNN  17-20 GeV • Expected “geometric” scaling of transverse radii with |b|, Npart • RL: trend (and expectation) less clear • apparent ~2x expansion • RHIC: sNN = 130-200 GeV • Expected “geometric” scaling of transverse radii with |b|, Npart • RL trend very similar (expected?) • apparent ~2x expansion

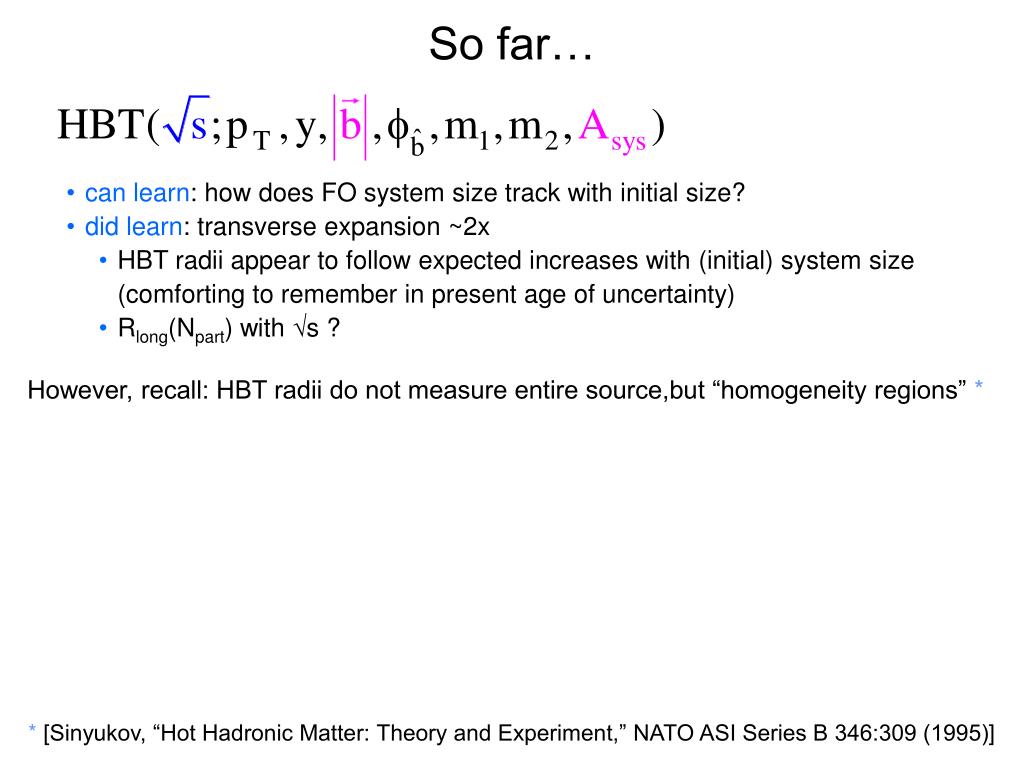

  9. So far… • can learn: how does FO system size track with initial size? • did learn: transverse expansion ~2x • HBT radii appear to follow expected increases with (initial) system size(comforting to remember in present age of uncertainty) • Rlong(Npart) with s ? However, recall: HBT radii do not measure entire source,but “homogeneity regions” * * [Sinyukov, “Hot Hadronic Matter: Theory and Experiment,” NATO ASI Series B 346:309 (1995)]

  10. Decreasing R(pT) • usually attributed to collective flow • flow integral to our understanding of R.H.I.C.; taken for granted • femtoscopy the only way to confirm x-p correlations – impt check Kolb & Heinz, QGP3 nucl-th/0305084

  11. Decreasing R(pT) • usually attributed to collective flow • flow integral to our understanding of R.H.I.C.; taken for granted • femtoscopy the only way to confirm x-p correlations – impt check • Non-flow possibilities • cooling, thermally (not collectively) expanding source • combo of x-t and t-p correlations early times: small, hot source late times: large, cool source

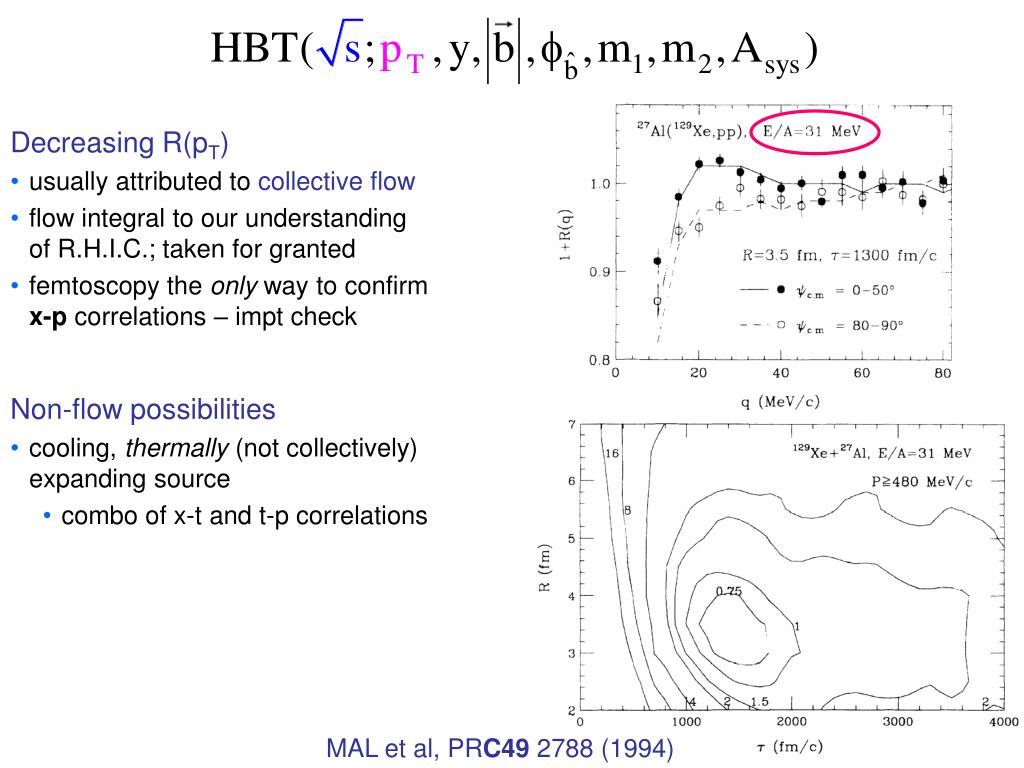

  12. Decreasing R(pT) • usually attributed to collective flow • flow integral to our understanding of R.H.I.C.; taken for granted • femtoscopy the only way to confirm x-p correlations – impt check • Non-flow possibilities • cooling, thermally (not collectively) expanding source • combo of x-t and t-p correlations MAL et al, PRC49 2788 (1994)

  13. Decreasing R(pT) • usually attributed to collective flow • flow integral to our understanding of R.H.I.C.; taken for granted • femtoscopy the only way to confirm x-p correlations – impt check • Non-flow possibilities • cooling, thermally (not collectively) expanding source • combo of x-t and t-p correlations • hot core surrounded by cool shell • important ingredient of Buda-Lund hydro picturee.g. Csörgő & LörstadPRC54 1390 (1996)

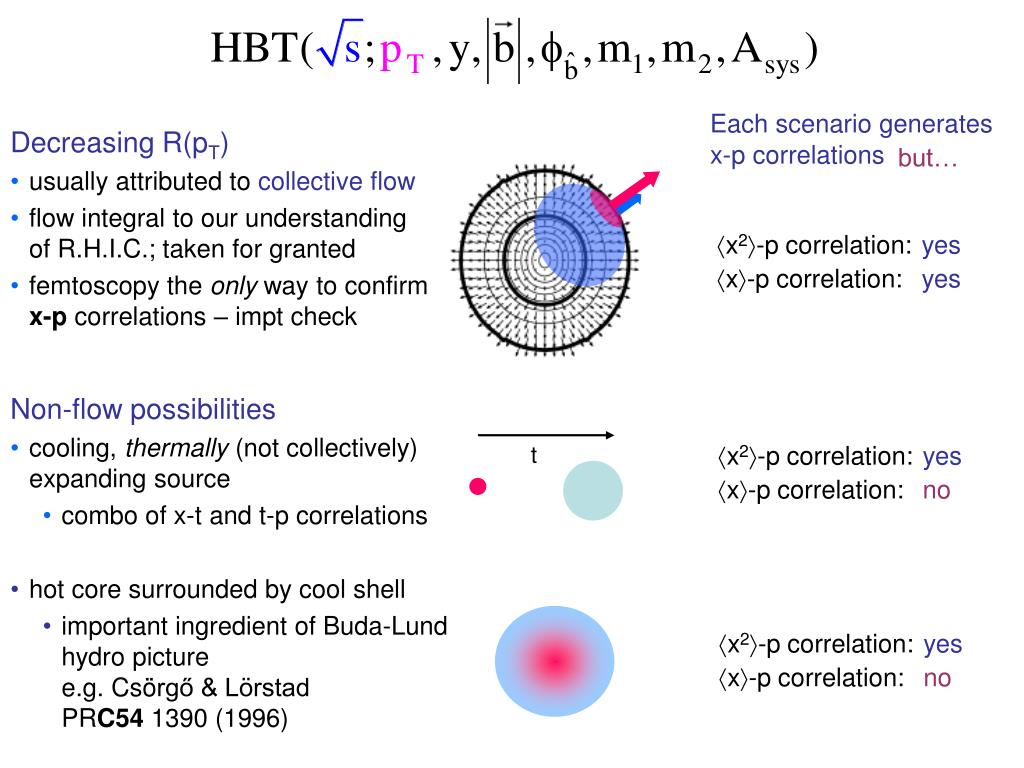

  14. Each scenario generates x-p correlations • Decreasing R(pT) • usually attributed to collective flow • flow integral to our understanding of R.H.I.C.; taken for granted • femtoscopy the only way to confirm x-p correlations – impt check but… x2-p correlation: yes x-p correlation: yes • Non-flow possibilities • cooling, thermally (not collectively) expanding source • combo of x-t and t-p correlations • hot core surrounded by cool shell • important ingredient of Buda-Lund hydro picturee.g. Csörgő & LörstadPRC54 1390 (1996) x2-p correlation: yes x-p correlation: no t x2-p correlation: yes x-p correlation: no

  15. 80 AMeV Ar+Sc(pp,X) E895 PRL84 2798 (2000). y (fm) x (fm) • decreasing HBT R(p) present at all energies • sub-AGS energies (protons, IMFs) • cooling significant • AGS (and upward) – flow dominated • signs of trouble in s dep…(models work at one energy…) RQMD: Sorge PRC52 3291 (1995) MAL et al, PRL70 3709 (1993)

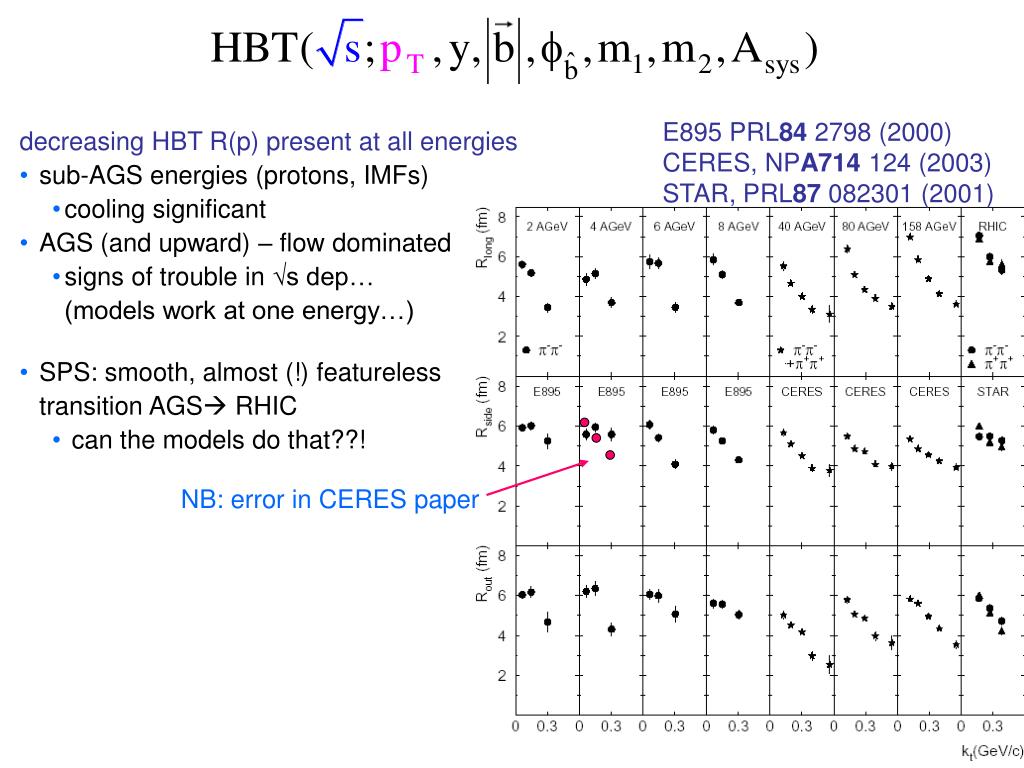

  16. E895 PRL84 2798 (2000) CERES, NPA714 124 (2003) STAR, PRL87 082301 (2001) • decreasing HBT R(p) present at all energies • sub-AGS energies (protons, IMFs) • cooling significant • AGS (and upward) – flow dominated • signs of trouble in s dep…(models work at one energy…) • SPS: smooth, almost (!) featureless transition AGS RHIC • can the models do that??! NB: error in CERES paper

  17. NA44) PRC58, 1656 (1998) D. Hardtke, Ph.D. thesis (1997) E895 PRL84 2798 (2000). • At fixed s, a chance to understand system • higher energy AGS: hadronic flow • @ lower s • could tune RQMD to give less flow… • model source too small and (maybe) emits too slowly? • SPS energy: • source too large? • model could be tuned… • already pre-RHIC: doubts of a complete understanding • but RQMD (nor hydro) did not get p-space perfectly, so… NA44RQMD Rout4.88  0.21 6.96  0.14 Rside4.45  0.32 6.23  0.20 Rlong6.03  0.35 7.94  0.21

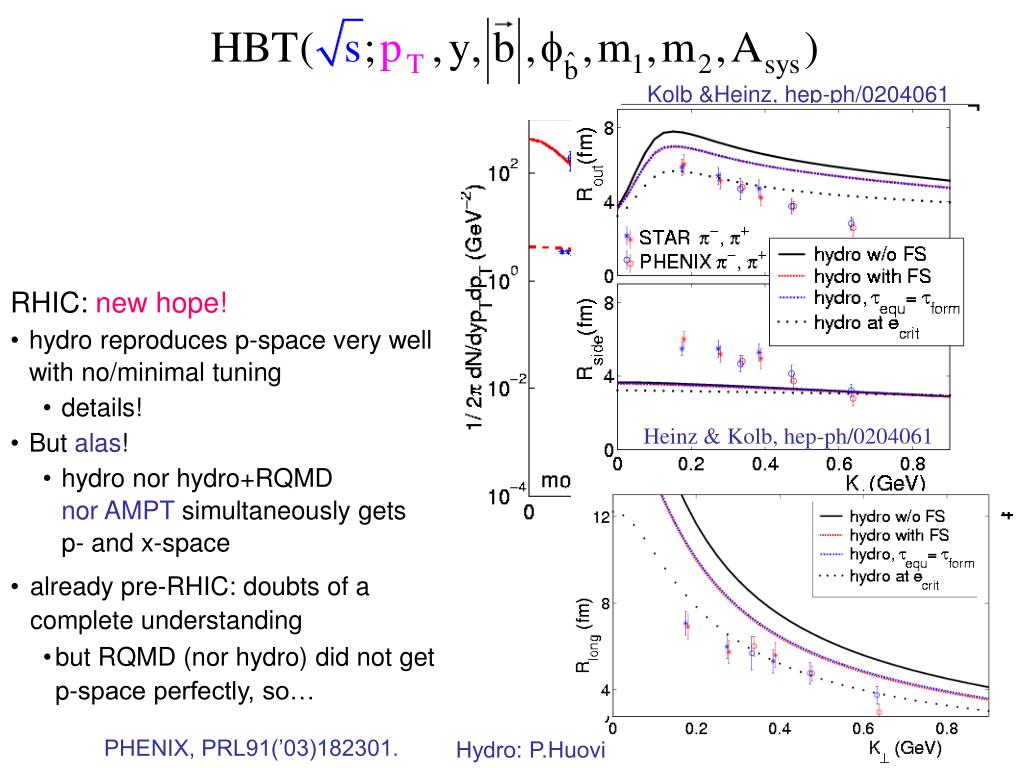

  18. Kolb &Heinz, hep-ph/0204061 QM01 Heinz & Kolb, hep-ph/0204061 PHENIX, PRL91(’03)182301. Hydro: P.Huovinen et al.(’01) • RHIC: new hope! • hydro reproduces p-space very well with no/minimal tuning • details! • But alas! • hydro nor hydro+RQMDnor AMPT simultaneously gets p- and x-space • already pre-RHIC: doubts of a complete understanding • but RQMD (nor hydro) did not get p-space perfectly, so…

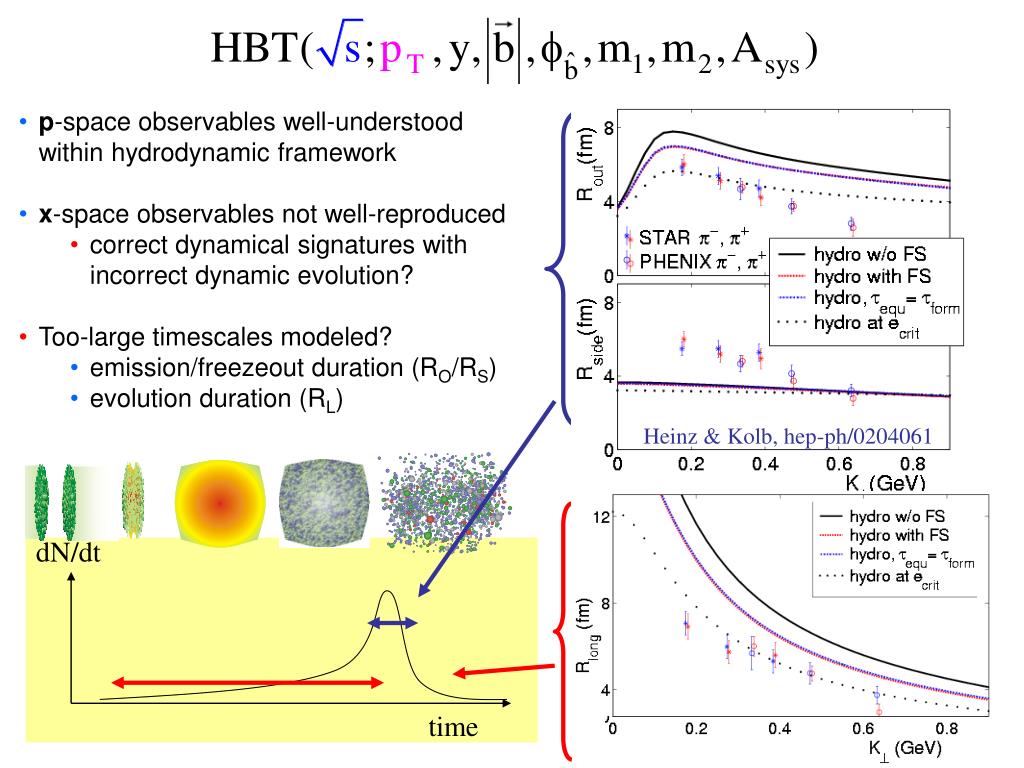

  19. Heinz & Kolb, hep-ph/0204061 dN/dt time • p-space observables well-understood within hydrodynamic framework • x-space observables not well-reproduced • correct dynamical signatures with incorrect dynamic evolution? • Too-large timescales modeled? • emission/freezeout duration (RO/RS) • evolution duration (RL)

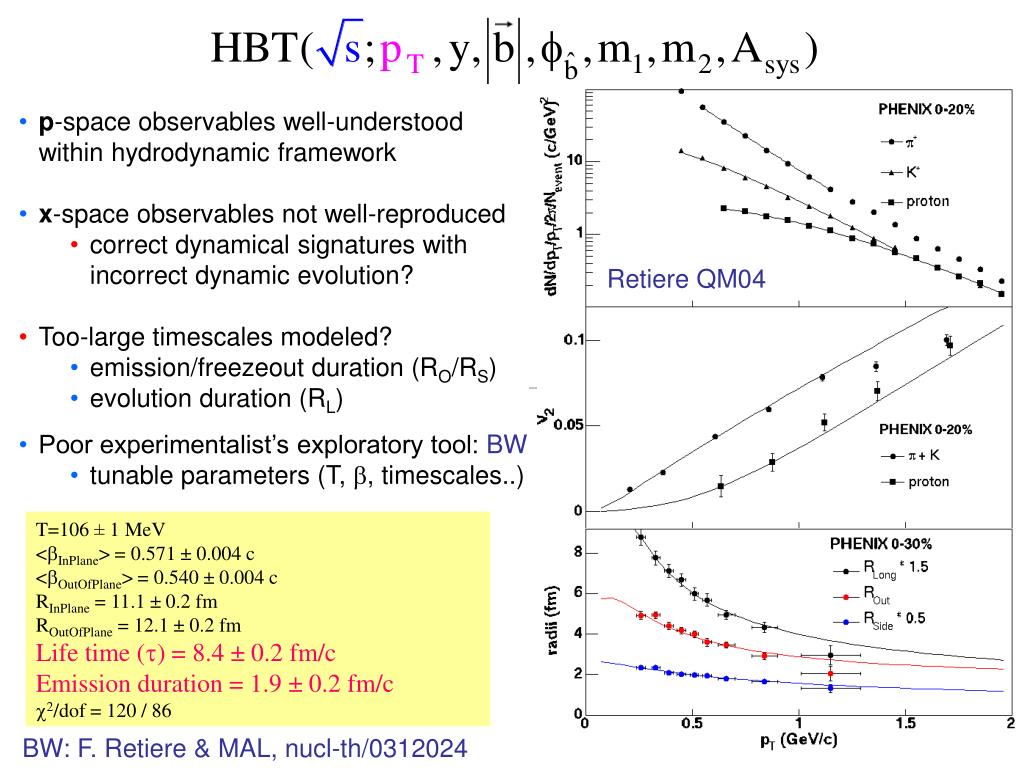

  20. p-space observables well-understood within hydrodynamic framework • x-space observables not well-reproduced • correct dynamical signatures with incorrect dynamic evolution? • Too-large timescales modeled? • emission/freezeout duration (RO/RS) • evolution duration (RL) Retiere QM04 • Poor experimentalist’s exploratory tool: BW • tunable parameters (T, , timescales..) T=106 ± 1 MeV <bInPlane> = 0.571 ± 0.004 c <bOutOfPlane> = 0.540 ± 0.004 c RInPlane = 11.1 ± 0.2 fm ROutOfPlane = 12.1 ± 0.2 fm Life time (t) = 8.4 ± 0.2 fm/c Emission duration = 1.9 ± 0.2 fm/c c2/dof = 120 / 86 BW: F. Retiere & MAL, nucl-th/0312024

  21. Poor experimentalist’s exploratory tool: BW • tunable parameters (T, , timescales..) T=106 ± 1 MeV <bInPlane> = 0.571 ± 0.004 c <bOutOfPlane> = 0.540 ± 0.004 c RInPlane = 11.1 ± 0.2 fm ROutOfPlane = 12.1 ± 0.2 fm Life time (t) = 8.4 ± 0.2 fm/c Emission duration = 1.9 ± 0.2 fm/c c2/dof = 120 / 86 • Similar results from similar hydro-inspired models (e.g. Buda-Lund) Csanád, Csörgő, Lörstad nucl-th/0311102 and nucl-th/0310040

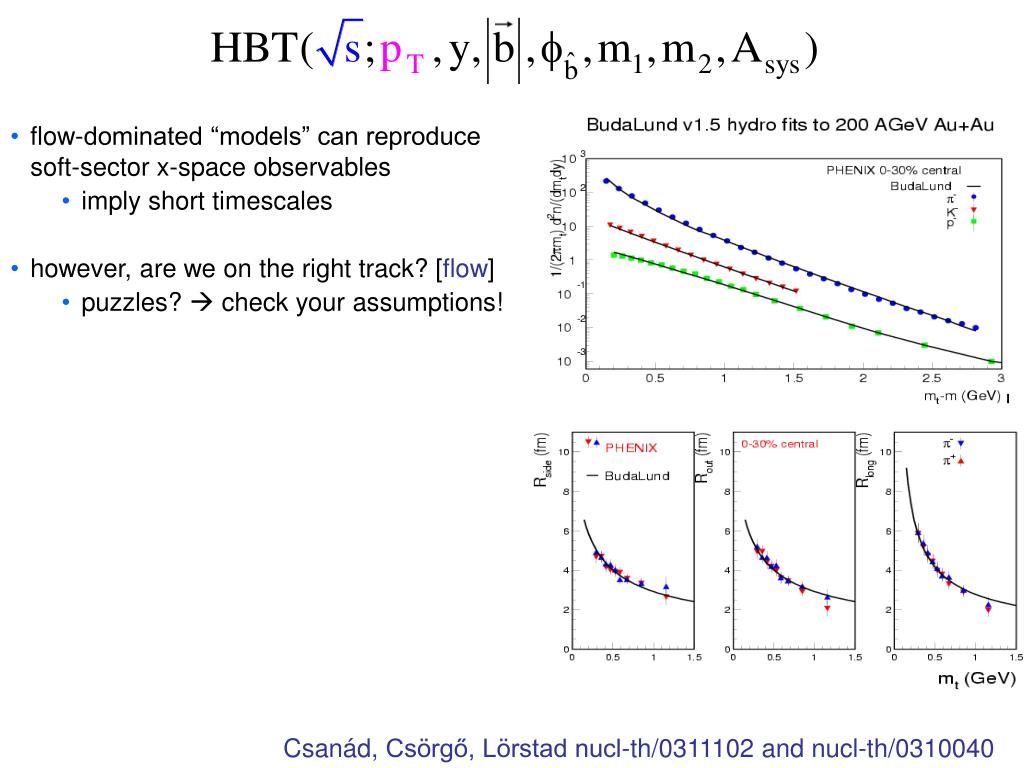

  22. flow-dominated “models” can reproduce soft-sector x-space observables • imply short timescales • however, are we on the right track? [flow] • puzzles?  check your assumptions! Csanád, Csörgő, Lörstad nucl-th/0311102 and nucl-th/0310040

  23. Each scenario generates x-p correlations • Decreasing R(pT) • usually attributed to collective flow • flow integral to our understanding of R.H.I.C.; taken for granted • femtoscopy the only way to confirm x-p correlations – impt check but… x2-p correlation: yes x-p correlation: yes • Non-flow possibilities • cooling, thermally (not collectively) expanding source • combo of x-t and t-p correlations • hot core surrounded by cool shell • important ingredient of Buda-Lund hydro picturee.g. Csörgő & LörstadPRC54 1390 (1996) x2-p correlation: yes x-p correlation: no t x2-p correlation: yes x-p correlation: no

  24. pT T • flow-dominated “models” can reproduce soft-sector x-space observables • imply short timescales • however, are we on the right track? [flow] • puzzles?  check your assumptions! • look for flow’s “special signature”x-p correlation • In flow pictures, low-pT particles emitted closer to source’s center (along “out”) • non-identical particle correlations(FSI at low v) probe: • (x1-x2)2 (as does HBT) • x1-x2  K p [click for more details on non-id correlations] F. Retiere & MAL, nucl-th/0312024 Csanád, Csörgő, Lörstad nucl-th/0311102 and nucl-th/0310040

  25. T T x (fm) x (fm) A. Kisiel (STAR) QM04 • extracted shift in emission point x1-x2 consistent w/ flow-dominated blastwave • In flow pictures, low-pT particles emitted closer to source’s center (along “out”) • non-identical particle correlations(FSI at low v) probe: • (x1-x2)2 (as does HBT) • x1-x2

  26. 2 p+p+X Rlong Rout / Rout(pp) Rside / Rside(pp) Rout 1 Rside p+pstring fragmentation Au+AuCollective expansion Rlong / Rlong(pp) 0.25 0.5 pT • latest “puzzle” in HBT? • HBT radii from pp fall with pT(as observed previously, usually attributed to string kT kick)… • …but as much (proportionally) as dAu and AuAu ?? • coincidence…? • something deeper…? STAR, QM04 transverse plane

  27. local x-p corr. NB: p-space observables identical in the two cases • latest “puzzle” in HBT? • HBT radii from pp fall with pT(as observed previously, usually attributed to string kT kick)… • …but as much (proportionally) as dAu and AuAu ?? • coincidence…? • something deeper…? • What it does NOT mean: • AA=N*(strings) • AA=N*(“little blastwaves”) • AA: global x-p correlations

  28. So far… • HBT radii appear to follow expected increases with (initial) system size • comforting to remember in present age of uncertainty • Rlong(Npart)(s) less clear • can learn • what is nature of dynamic x-p correlations? • how strong is the flow? • what are the timescales involved? • did learn • emitting source dominated by (global) collective flow • HBT (and non-id) correlations described consistently with p-space • short evolution and emission timescales indicated • HBT “puzzle” puzzle? Get more information!

  29. Obtaining more detailed information in p-space… P. Kolb and U. Heinz, hep-ph/0204061 P. Kolb, nucl-th/0306081 “radial flow” “elliptic flow” • generically: breaking azimuthal symmetry (b0)  more differential detailed picture • HBT(): as v2, sensitive to interplay b/t anisotropic geometry & dynamics/evolution • another handle on dynamical timescales – likely impt in HBT puzzle

  30. ? in-plane-extended out-of-plane-extended What can we learn? Strongly-interacting 6Li released from an asymmetric trap O’Hara, et al, Science 298 2179 (2002) transverse FO shape + collective velocity  evolution time estimate check independent of RL(pT) Teaney, Lauret, & Shuryak nucl-th/0110037

  31. small RS big RS • observe the source from all angles with respect to RP • expect oscillations in HBT radii (including “new” cross-terms)

  32. y Au+Au 2 AGeV; E895, PLB 496 1 (2000) out side long 40 R2 (fm2) 20 x b os ol sl 10 0 -10 y 0 0 0 180 180 180 fp (°) x qs z (Beam) Coordinate space! • observe the source from all angles with respect to RP • expect oscillations in HBT radii (including “new” cross-terms) • At AGS: observed at2, 4, 6 AGeV Au+Au • including first-orderoscillations at y=0 • elliptical transverse shapes • strongly tilted w.r.t. beam • physics of directed flow

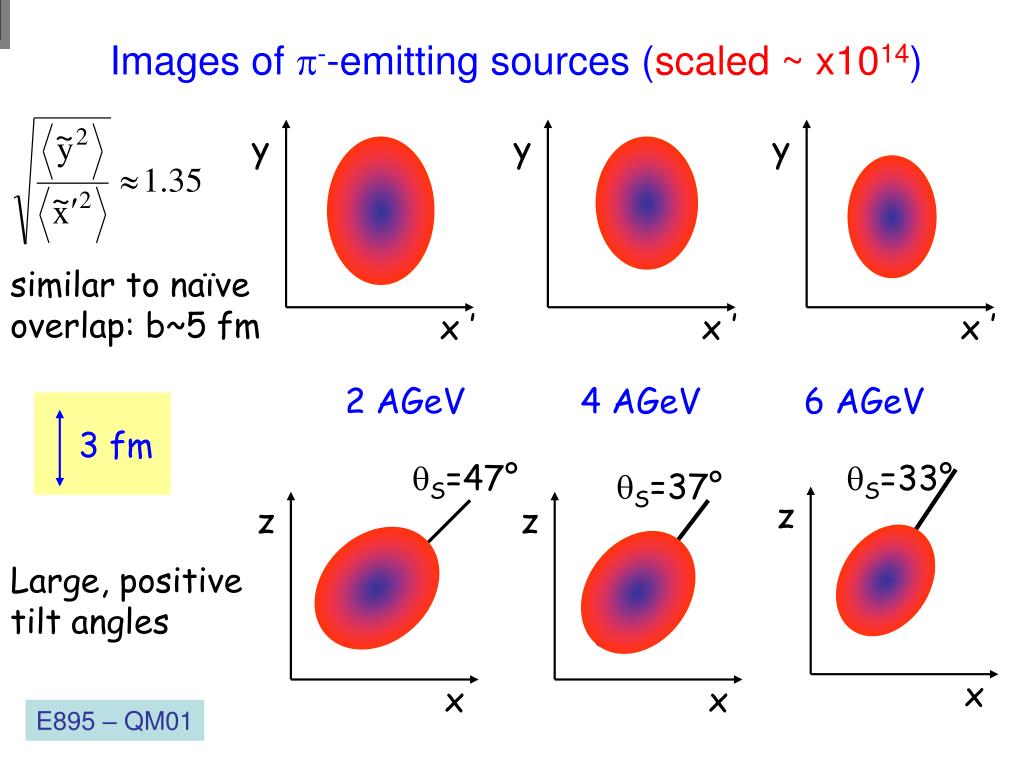

  33. Mike Lisa: 1 fm = 1/4” Images of p--emitting sources (scaled ~ x1014) qS=47° qS=33° qS=37° y z y z y z x ’ x ’ x ’ x x x similar to naïve overlap: b~5 fm 3 fm 2 AGeV 4 AGeV 6 AGeV Large, positive tilt angles E895 – QM01

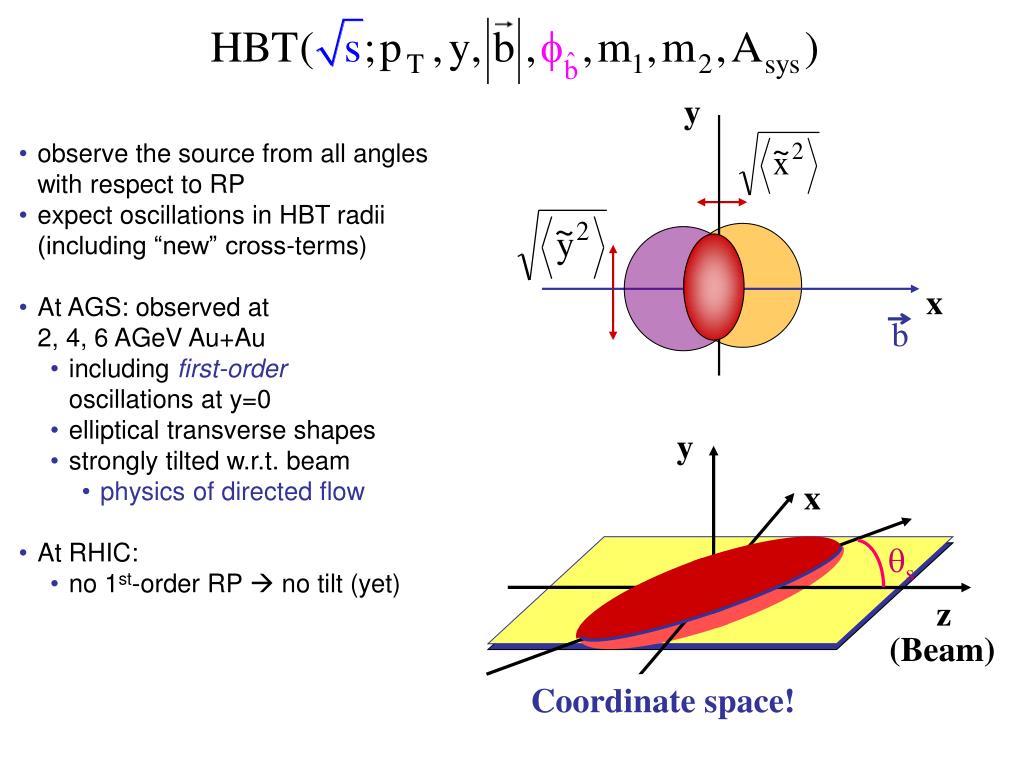

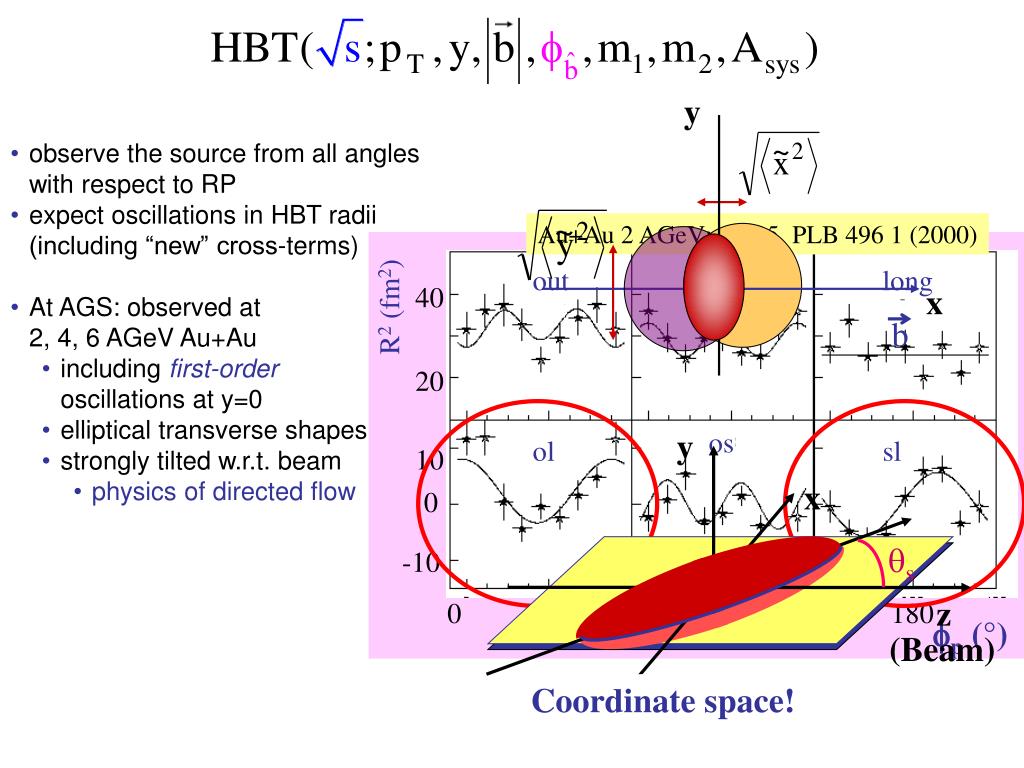

  34. y x b y x qs z (Beam) Coordinate space! • observe the source from all angles with respect to RP • expect oscillations in HBT radii (including “new” cross-terms) • At AGS: observed at2, 4, 6 AGeV Au+Au • including first-orderoscillations at y=0 • elliptical transverse shapes • strongly tilted w.r.t. beam • physics of directed flow • At RHIC: • no 1st-order RP  no tilt (yet)

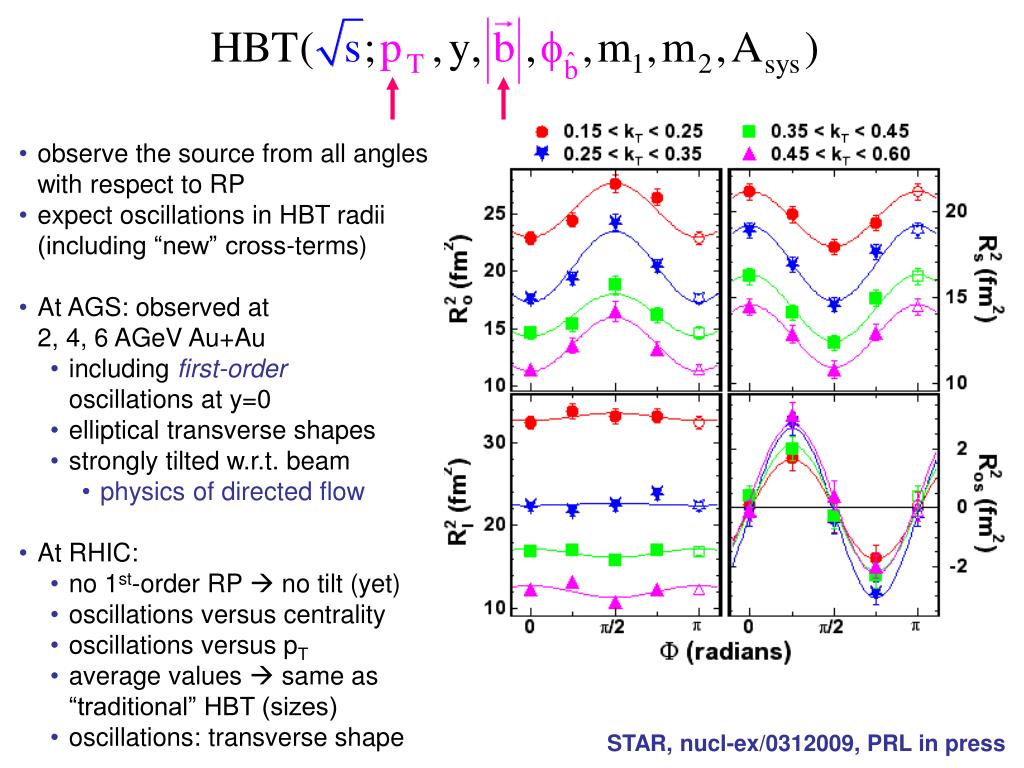

  35. observe the source from all angles with respect to RP • expect oscillations in HBT radii (including “new” cross-terms) • At AGS: observed at2, 4, 6 AGeV Au+Au • including first-orderoscillations at y=0 • elliptical transverse shapes • strongly tilted w.r.t. beam • physics of directed flow • At RHIC: • no 1st-order RP  no tilt (yet) • oscillations versus centrality • oscillations versus pT • average values  same as “traditional” HBT (sizes) • oscillations: transverse shape STAR, nucl-ex/0312009, PRL in press

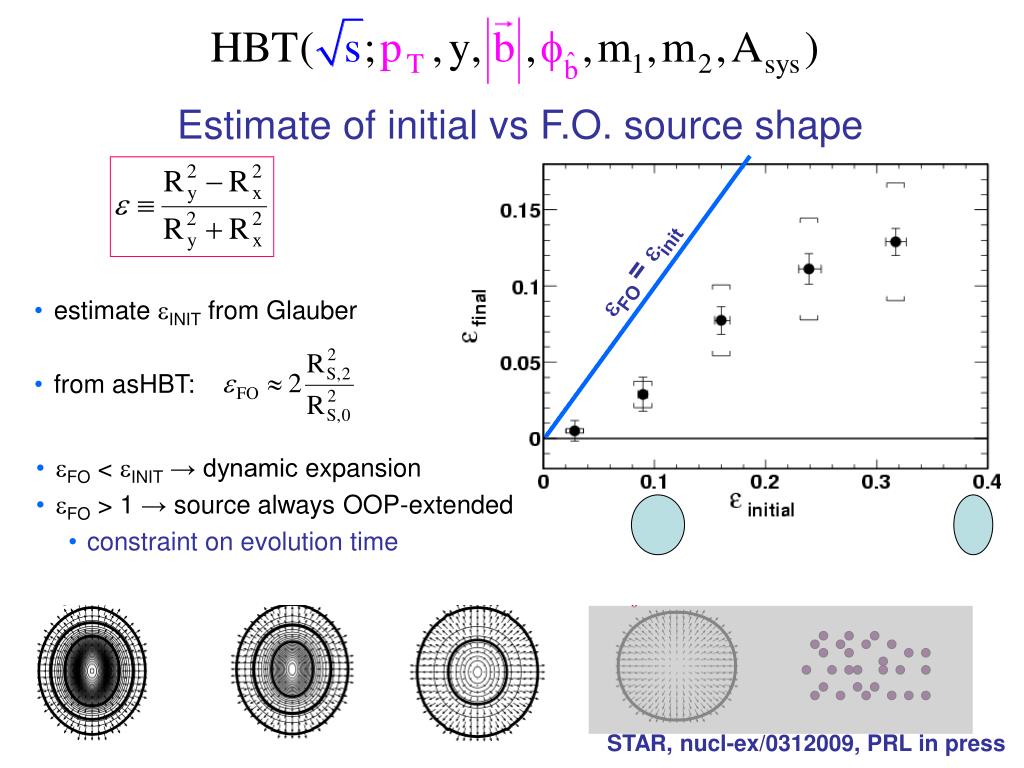

  36. Estimate of initial vs F.O. source shape FO = init • estimate INIT from Glauber • from asHBT: • FO < INIT→ dynamic expansion • FO > 1 → source always OOP-extended • constraint on evolution time STAR, nucl-ex/0312009, PRL in press

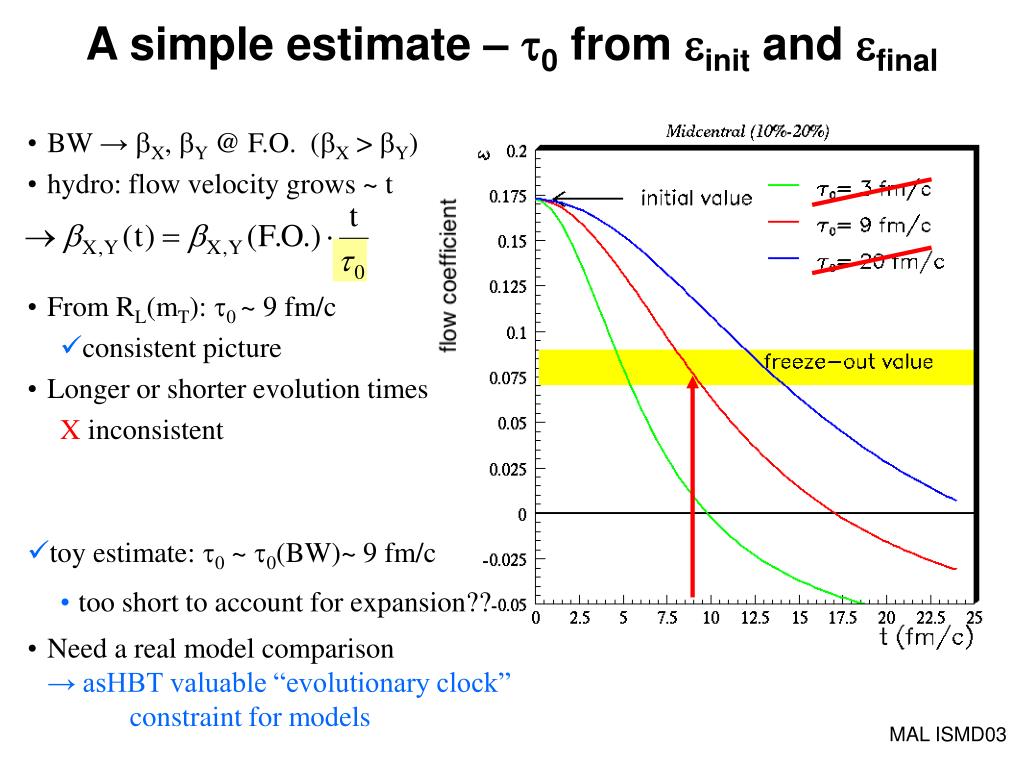

  37. A simple estimate – 0 from init and final “radial flow” P. Kolb, nucl-th/0306081 • BW → X, Y @ F.O. (X > Y) • hydro: flow velocity grows ~ t • From RL(mT): 0 ~ 9 fm/c • consistent picture • Longer or shorter evolution times • inconsistent • toy estimate: 0 ~ 0(BW)~ 9 fm/c • too short to account for expansion?? • Need a real model comparison→ asHBT valuable “evolutionary clock” constraint for models MAL ISMD03

  38. AGS: FO  init RHIC: FO < init (approximately same centrality) sNN (GeV) • transverse shape: • non-trivial excitation function • increased flow*time  rounder FO geometry @ RHIC • insufficient [flow]x[time] to become in-plane

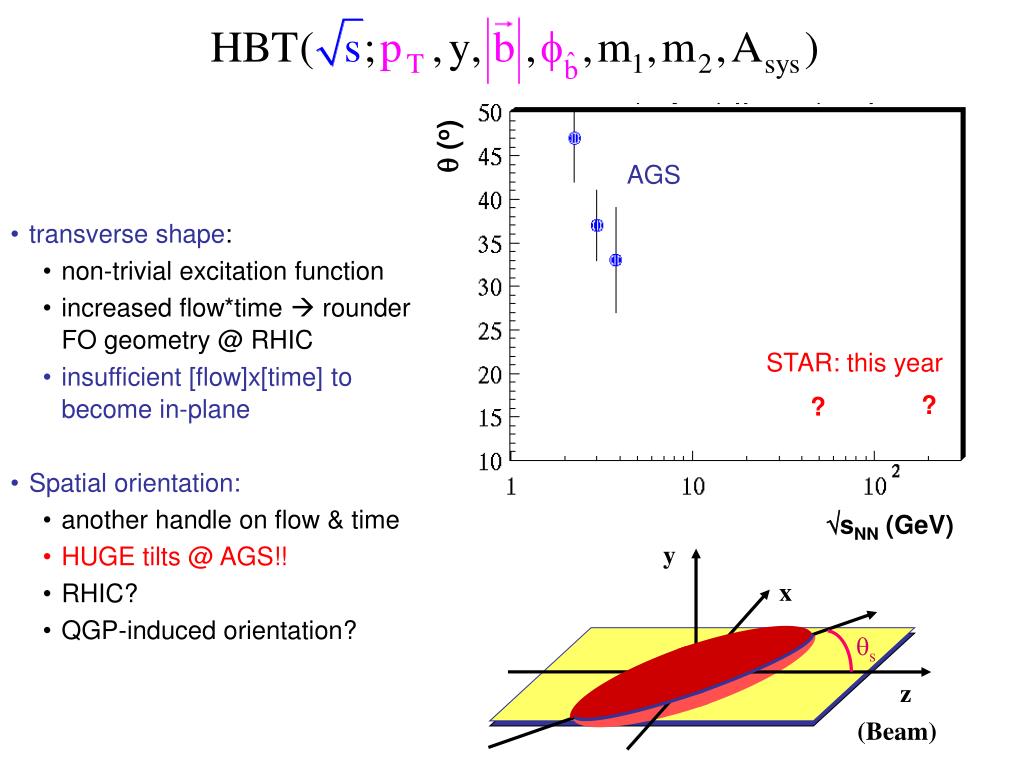

  39.  (o) y x qs sNN (GeV) z (Beam) AGS • transverse shape: • non-trivial excitation function • increased flow*time  rounder FO geometry @ RHIC • insufficient [flow]x[time] to become in-plane • Spatial orientation: • another handle on flow & time • HUGE tilts @ AGS!! • RHIC? • QGP-induced orientation? STAR: this year ? ?

  40. v1 predictions (QGP invoked) x-p transverse-longitudinal coupling may be affected in early (v1) stage L.P. Csernai, D. Rohrich: Phys. Lett. B 458 (1999) 454 J. Brachmann et al., Phys. Rev. C. 61 024909 (2000)

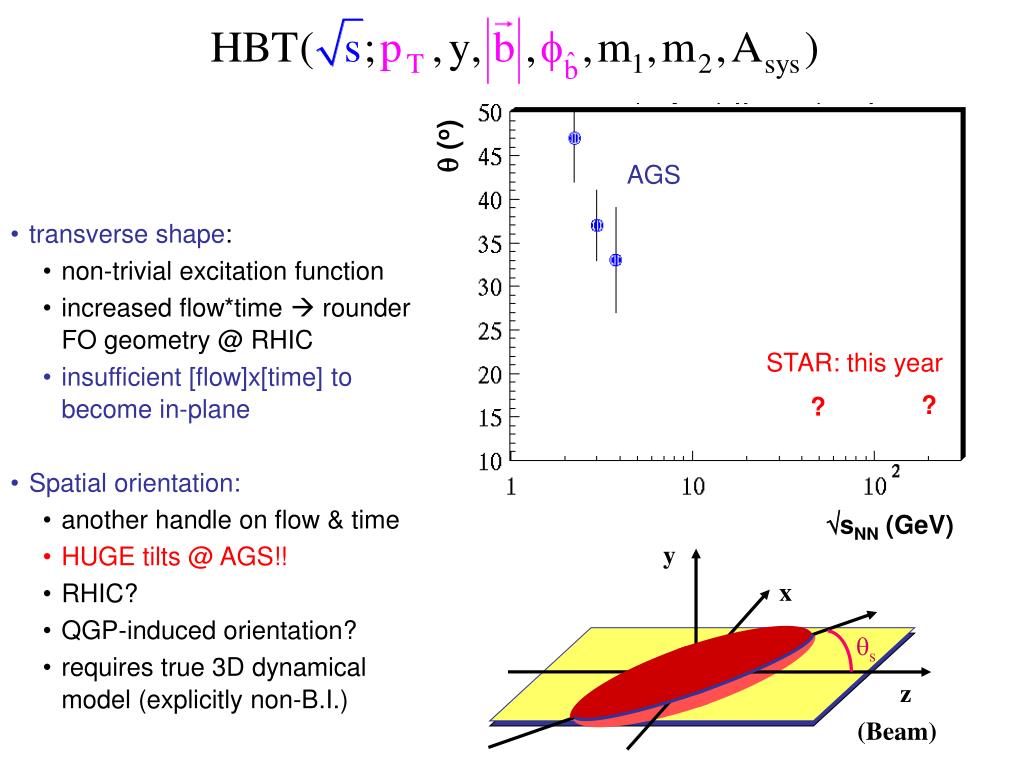

  41.  (o) y x qs sNN (GeV) z (Beam) AGS • transverse shape: • non-trivial excitation function • increased flow*time  rounder FO geometry @ RHIC • insufficient [flow]x[time] to become in-plane • Spatial orientation: • another handle on flow & time • HUGE tilts @ AGS!! • RHIC? • QGP-induced orientation? • requires true 3D dynamical model (explicitly non-B.I.) STAR: this year ? ?

  42. Vf N CERES, PRL 90 (2003) 022301 • neglecting dynamics (flow), timescale, etc: is it trivial? • (though much of the interesting stuff is dynamics and timescales…) • gross geometrical features dictated by rule of critical mfp ~ 1 fm? Mean free path rough FO volume use measured:

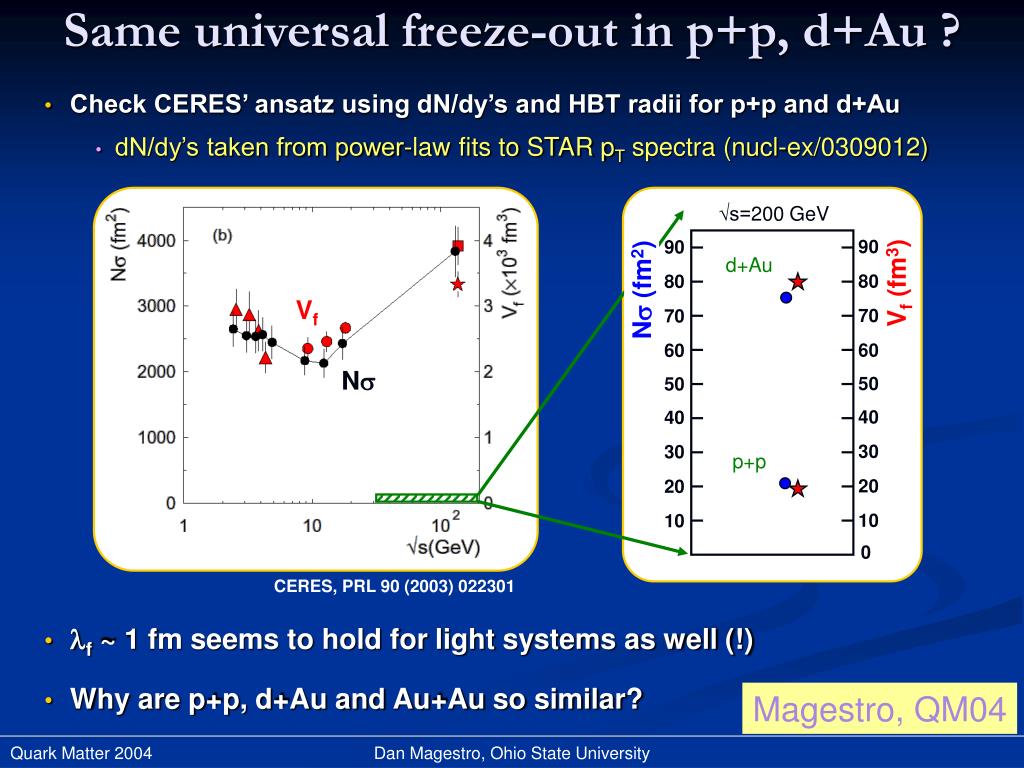

  43. Same universal freeze-out in p+p, d+Au ? √s=200 GeV 90 90 d+Au Vf (fm3) 80 80 N (fm2) 70 70 60 60 50 50 40 40 30 30 p+p 20 20 10 10 0 • Check CERES’ ansatz using dN/dy’s and HBT radii for p+p and d+Au • dN/dy’s taken from power-law fits to STAR pT spectra (nucl-ex/0309012) Vf N CERES, PRL 90 (2003) 022301 • f ~ 1 fm seems to hold for light systems as well (!) • Why are p+p, d+Au and Au+Au so similar? Magestro, QM04 Dan Magestro, Ohio State University

  44. broad strokes… (shorter than usual) • first order: “R=6 fm” (though this means 2x expansion) • Well… R=(1.2 fm)*A1/3 • Well… R ~ (Npart)1/3 • HBT radii are, indeed, connected with geometry… • but these are easy rules: dynamical models cannot follow them? • pT, m1-m2 dep: • strong global collective flow dominates • -dep: freezeout in out-of-plane configuration • non-trivial aspect of excitation function • IMHO: Soft-sector dynamical observations (x- and p-space) demand faster timescales than present understanding allows. • e.g. maybe essentially no hadronic phase? • personal most worrisome “puzzle”: pp = “small AA”??

  45. parting words • s scan of HBT worthless? (not huge changes) • no! at one energy, we would (mistakenly) believe we understood space-time structure of collisions • Experimental HBT dataset is richly structured, with huge systematics and expertise available • IMHO, real work needed on theory side, and not dismissal • (meanwhile, experimentalists will mess around with BW to try to discern what the data is telling us) • Puzzles may be annoying speedbumps on the way (to Stockholm?), but one ignores them at one’s peril.
