Presentation Transcript

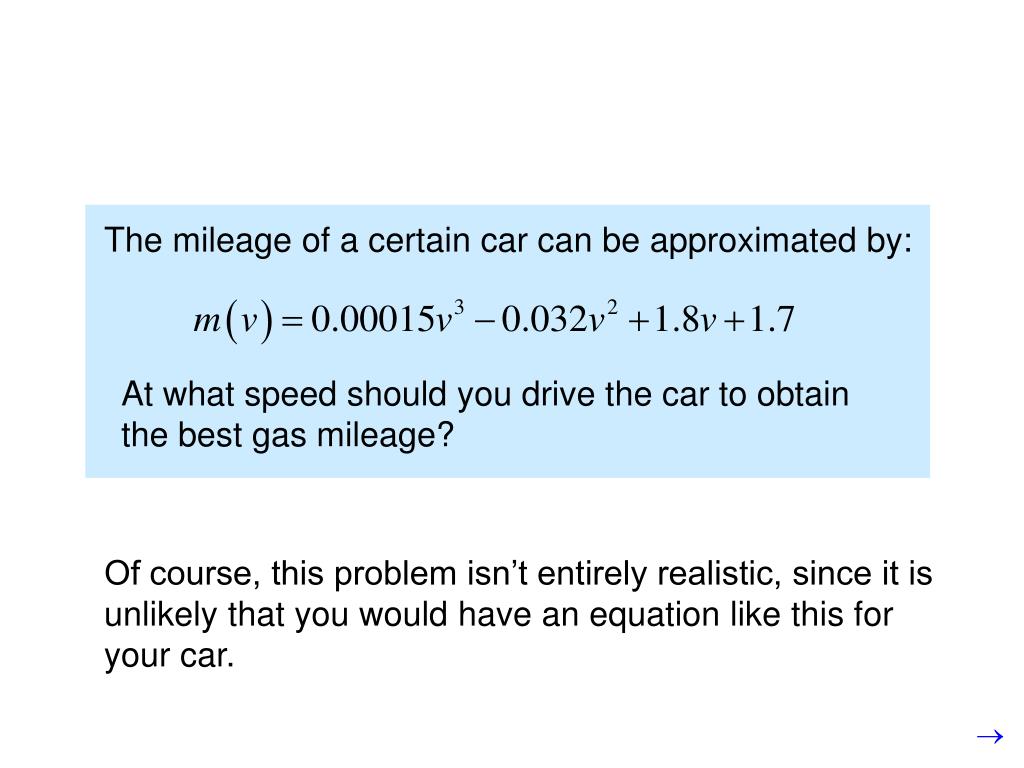

slide1

The mileage of a certain car can be approximated by:

At what speed should you drive the car to obtain the best gas mileage?

Of course, this problem isn’t entirely realistic, since it is unlikely that you would have an equation like this for your car.

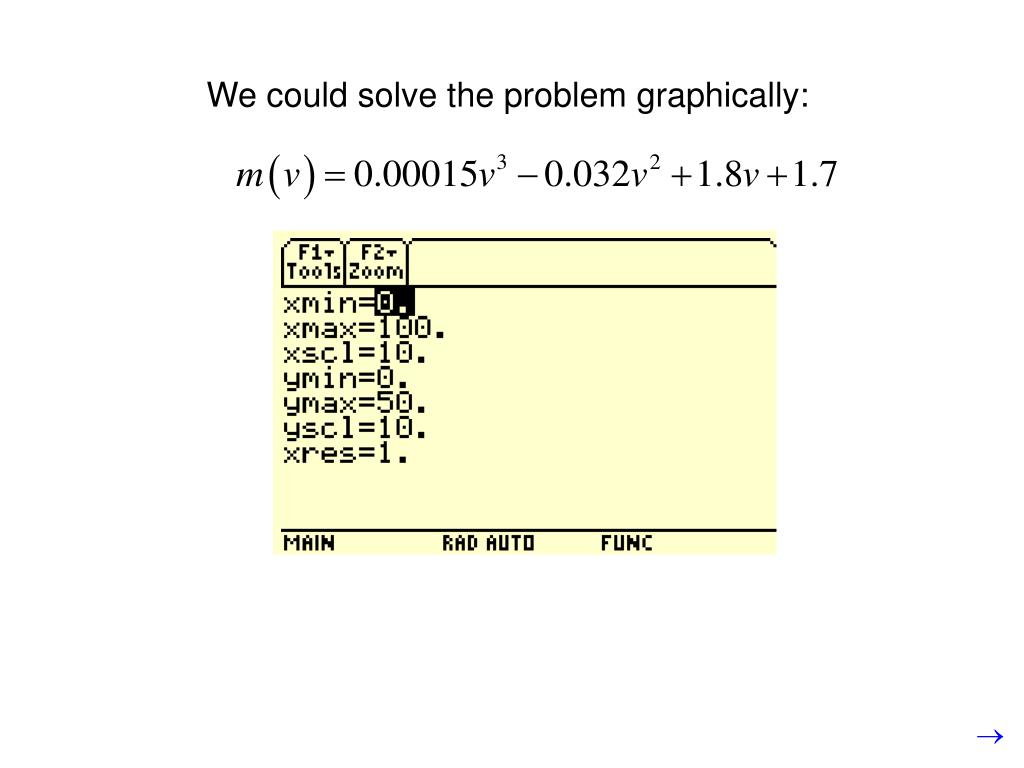

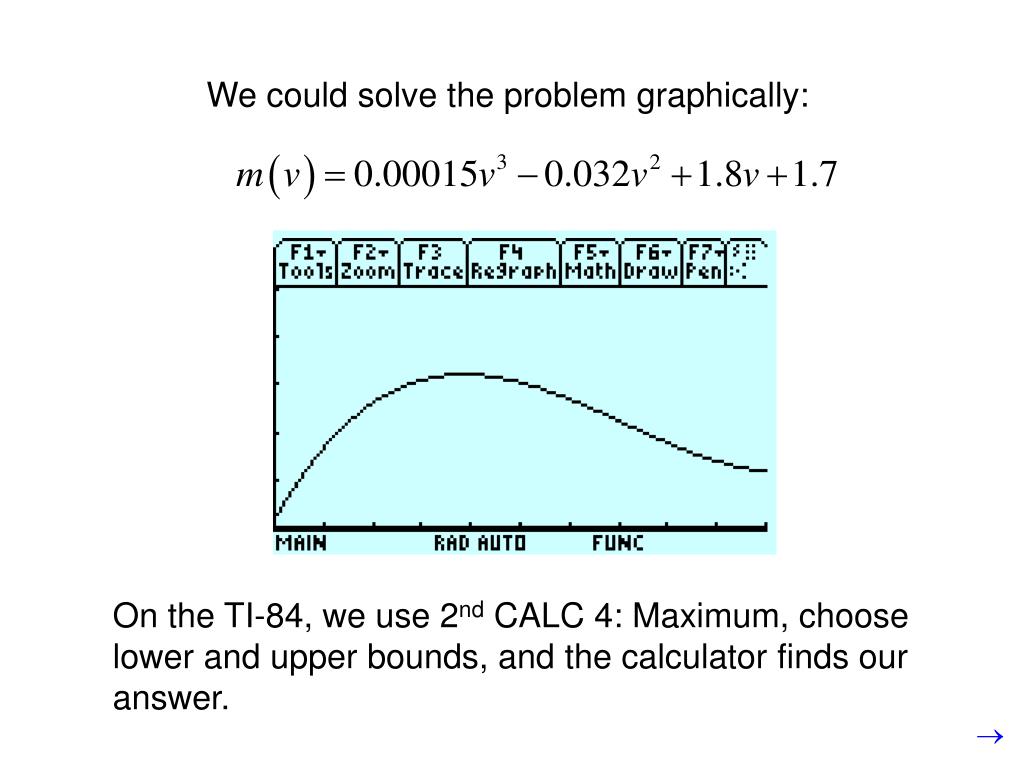

slide3

We could solve the problem graphically:

On the TI-84, we use 2nd CALC 4: Maximum, choose lower and upper bounds, and the calculator finds our answer.

slide4

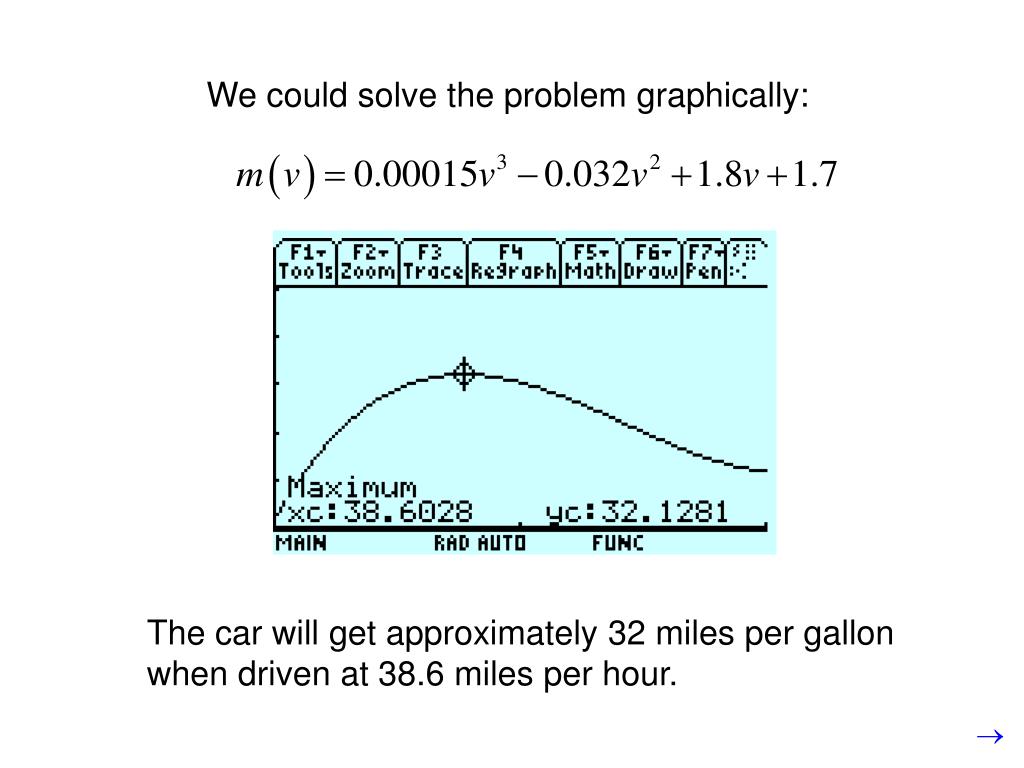

The car will get approximately 32 miles per gallon when driven at 38.6 miles per hour.

We could solve the problem graphically:

On the TI-89, we use F5 (math), 4: Maximum, choose lower and upper bounds, and the calculator finds our answer.

slide5

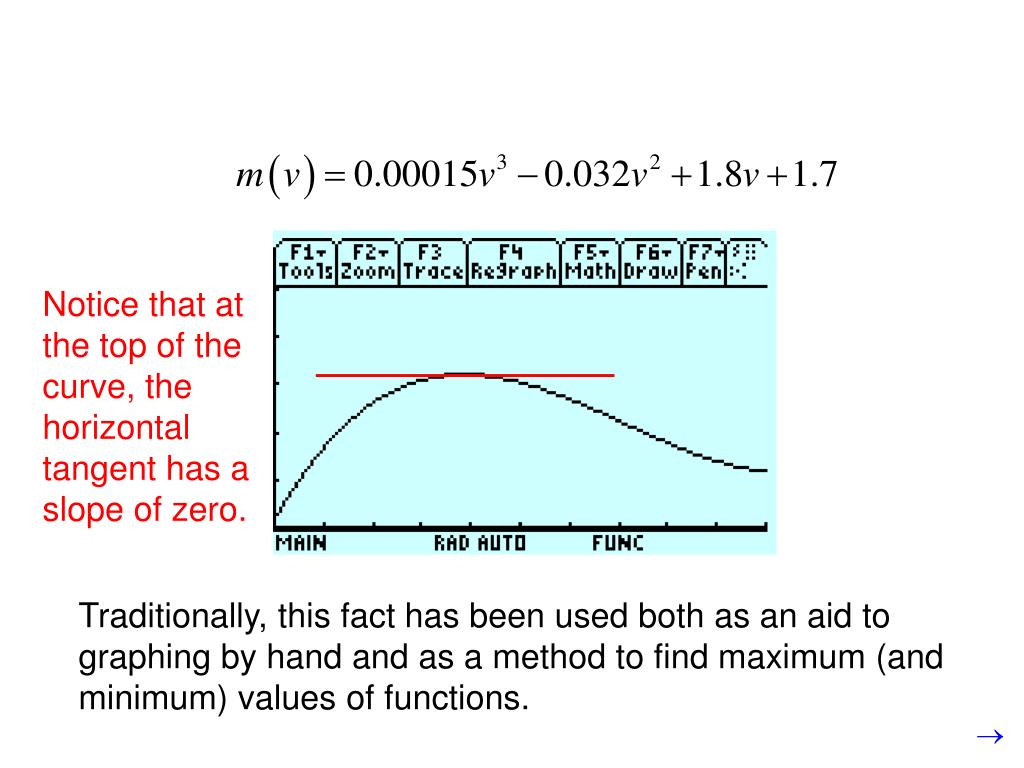

Notice that at the top of the curve, the horizontal tangent has a slope of zero.

Traditionally, this fact has been used both as an aid to graphing by hand and as a method to find maximum (and minimum) values of functions.

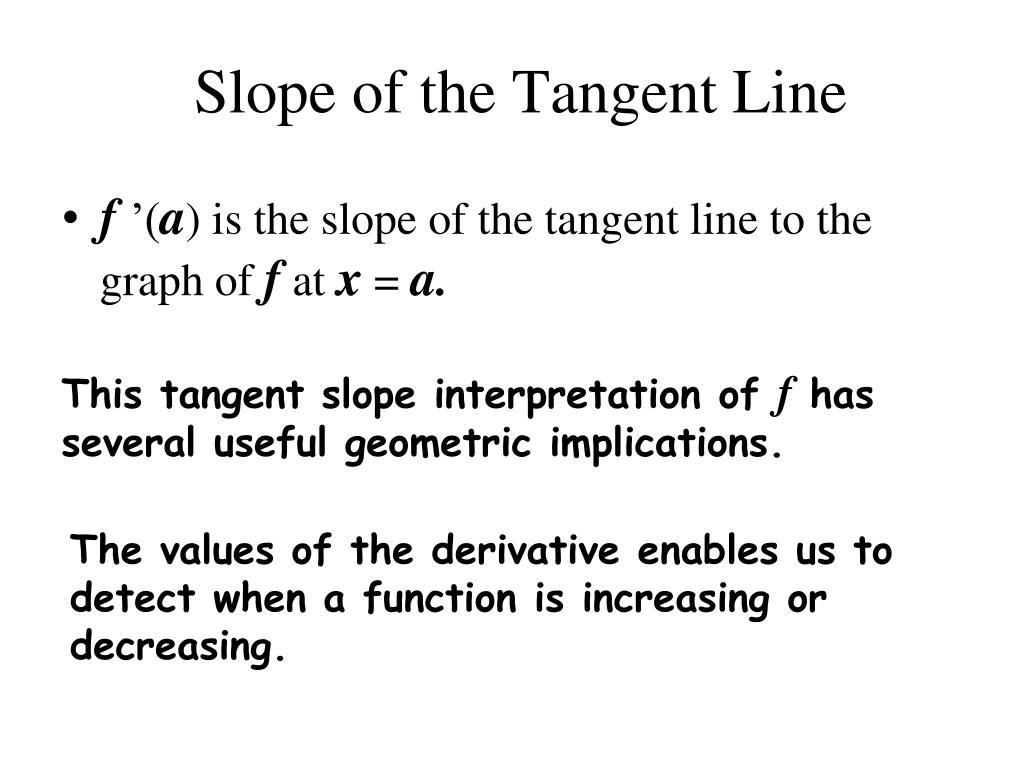

slope of the tangent line
Slope of the Tangent Line
  • f ’(a) is the slope of the tangent line to the graph of f at x = a.

This tangent slope interpretation of fhas several useful geometric implications.

The values of the derivative enables us to detect when a function is increasing or decreasing.

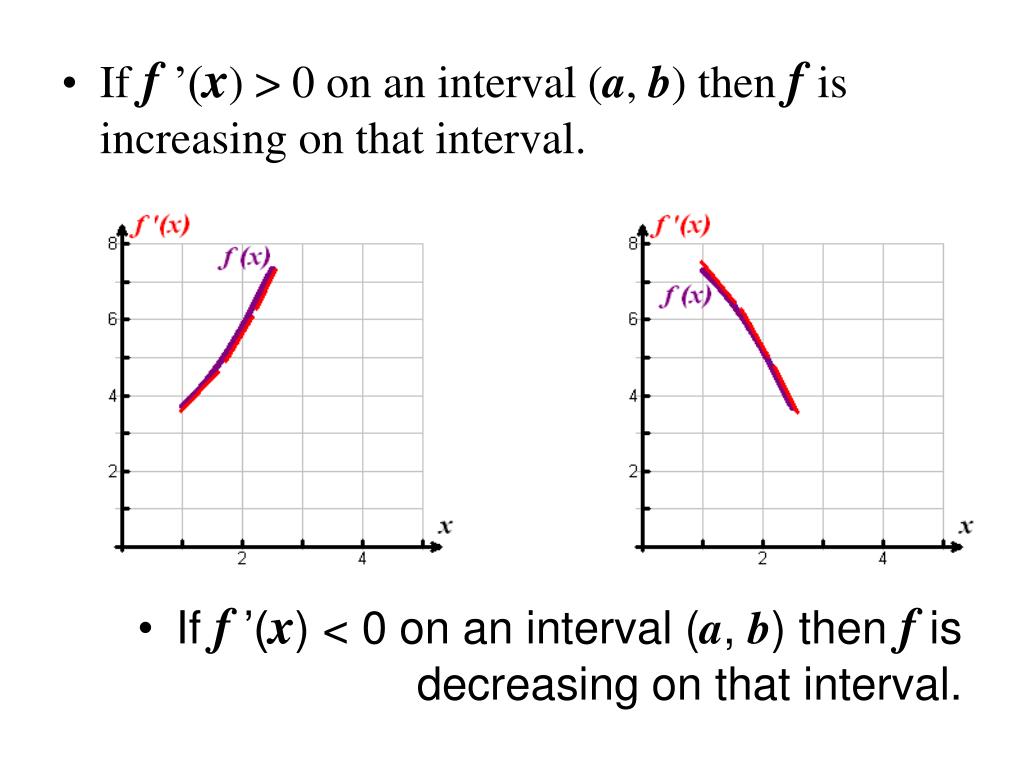

slide7
If f ’(x) > 0 on an interval (a, b) then f is increasing on that interval.
  • If f ’(x) < 0 on an interval (a, b) then f is decreasing on that interval.
slide8

f’(c) = 0

f’(c) does not exist

or

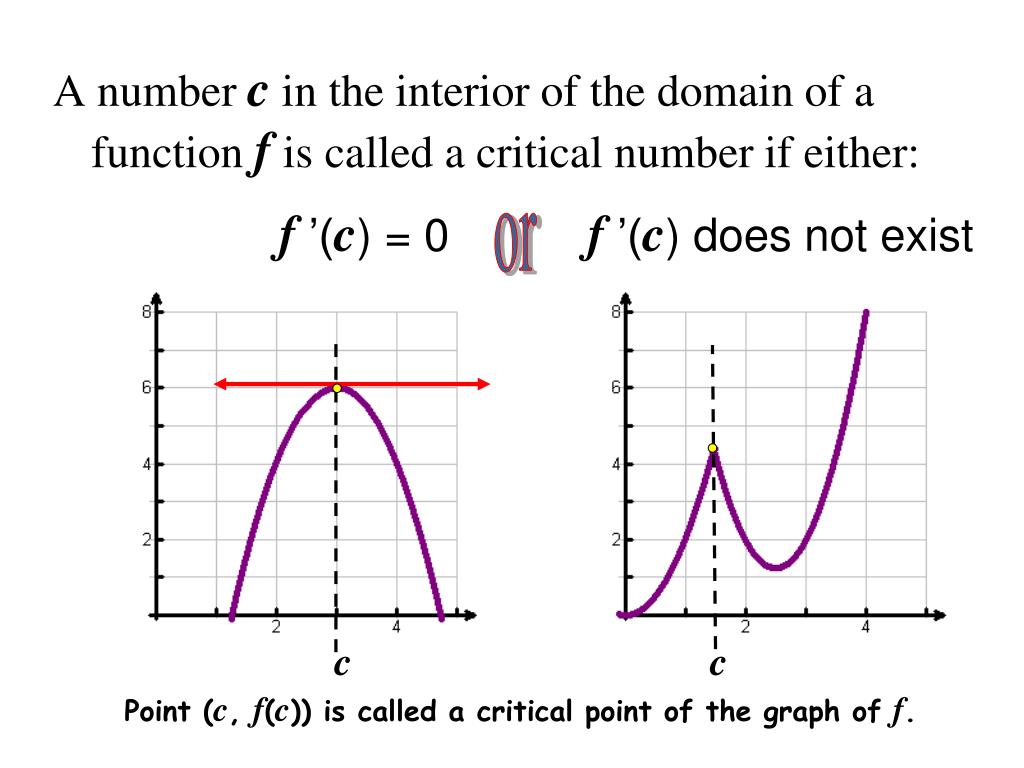

A number c in the interior of the domain of a function f is called a critical number if either:

c

c

Point (c, f(c)) is called a critical point of the graph of f.

slide9

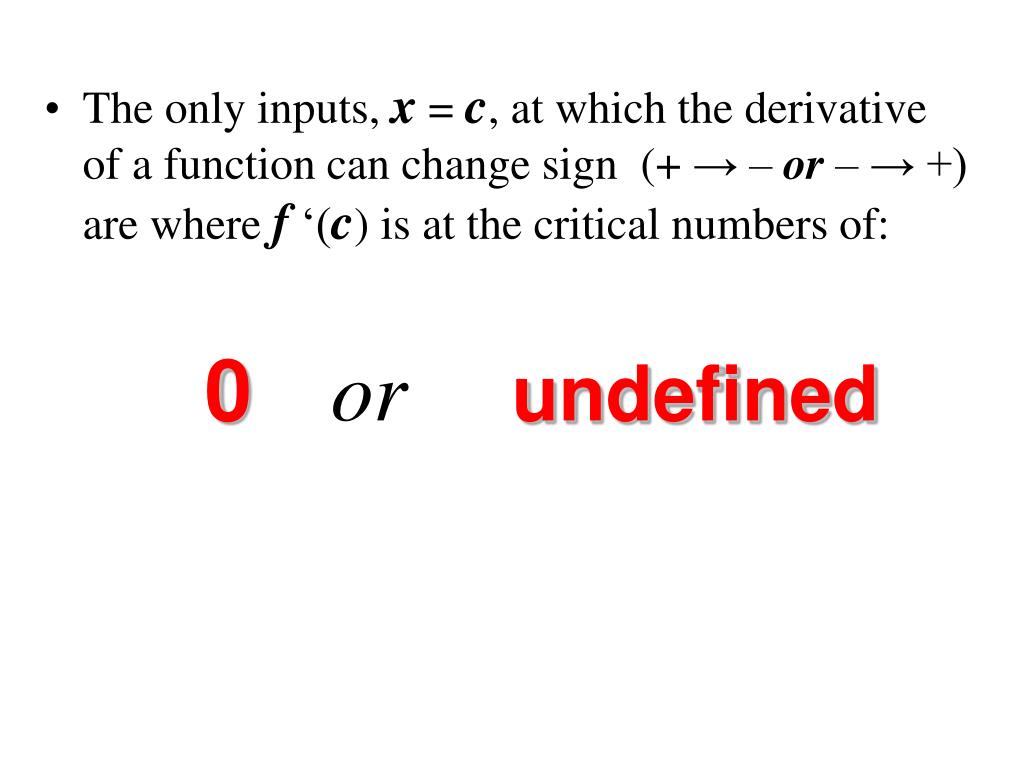

The only inputs, x = c, at which the derivative of a function can change sign (+ → – or – → +) are where f ‘(c) is at the critical numbers of:

0orundefined

slide10

absolute max.

local max.

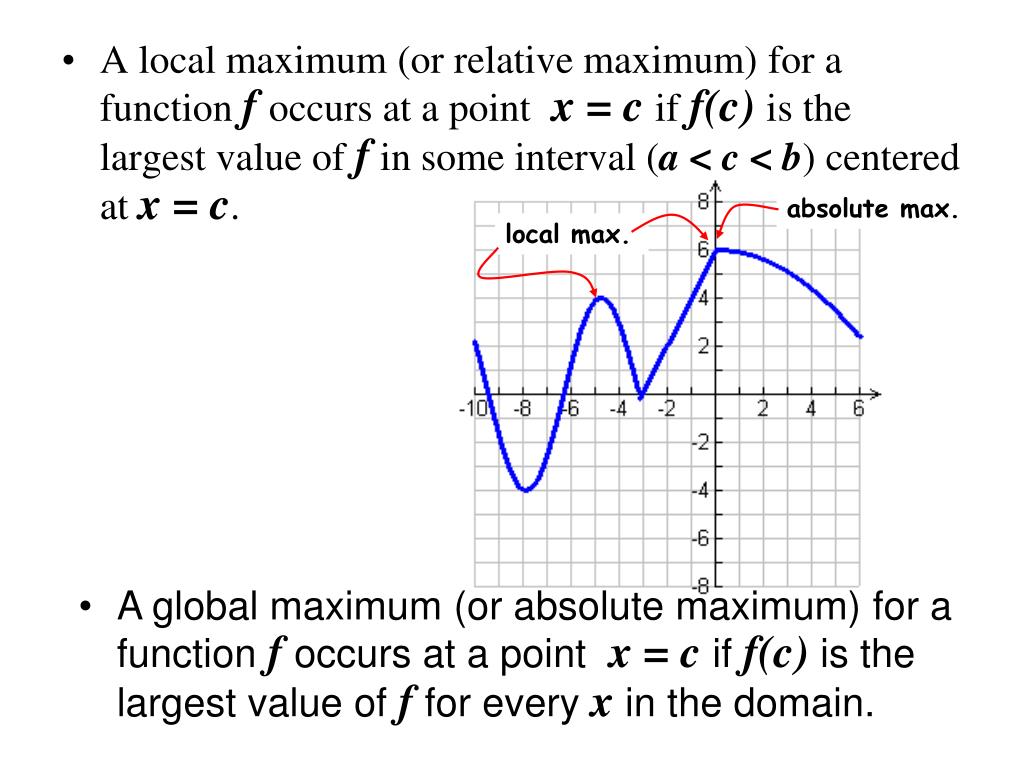

  • A local maximum (or relative maximum) for a function f occurs at a point x = c if f(c) is the largest value of f in some interval (a < c < b) centered at x = c.
  • A global maximum (or absolute maximum) for a function f occurs at a point x = c if f(c) is the largest value of f for every x in the domain.
slide11

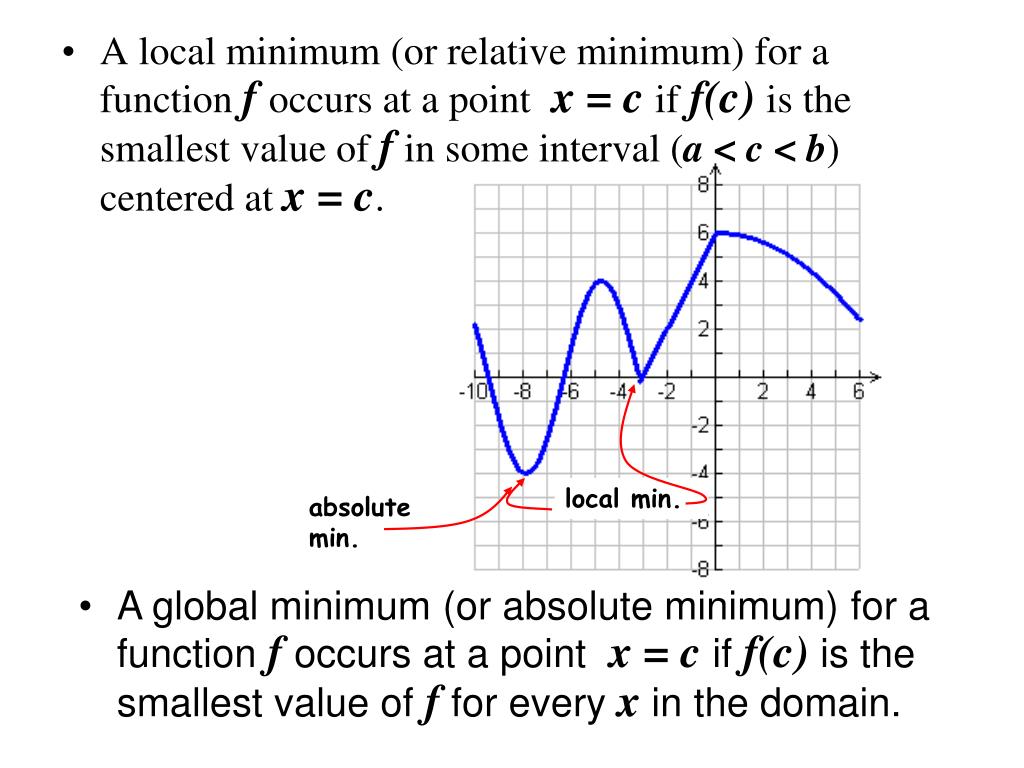

A local minimum (or relative minimum) for a function f occurs at a point x = c if f(c) is the smallest value of f in some interval (a < c < b) centered at x = c.

local min.

absolute min.

  • A global minimum (or absolute minimum) for a function f occurs at a point x = c if f(c) is the smallest value of f for every x in the domain.
slide12

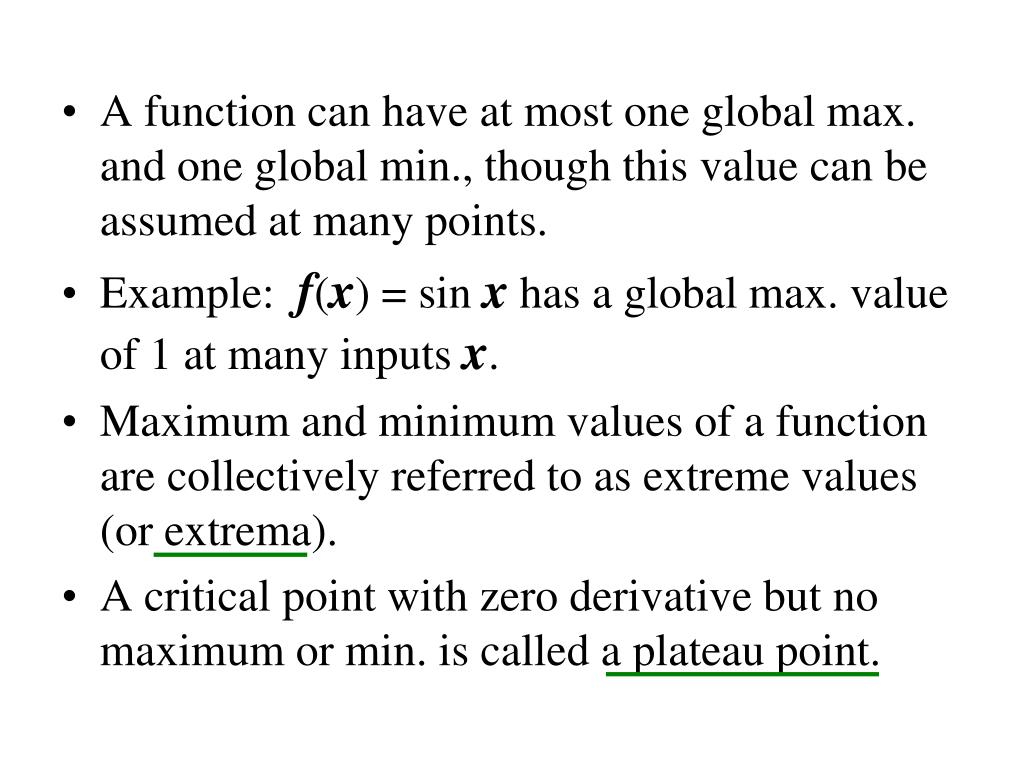

A function can have at most one global max. and one global min., though this value can be assumed at many points.
  • Example: f(x) = sin x has a global max. value of 1 at many inputs x.
  • Maximum and minimum values of a function are collectively referred to as extreme values (or extrema).
  • A critical point with zero derivative but no maximum or min. is called a plateau point.
example 1 find critical numbers for the given
Example 1: Find critical numbers for the given

Algebraically,

Remember, critical numbers occur if the derivative does not exist or is zero.

Our critical numbers!!

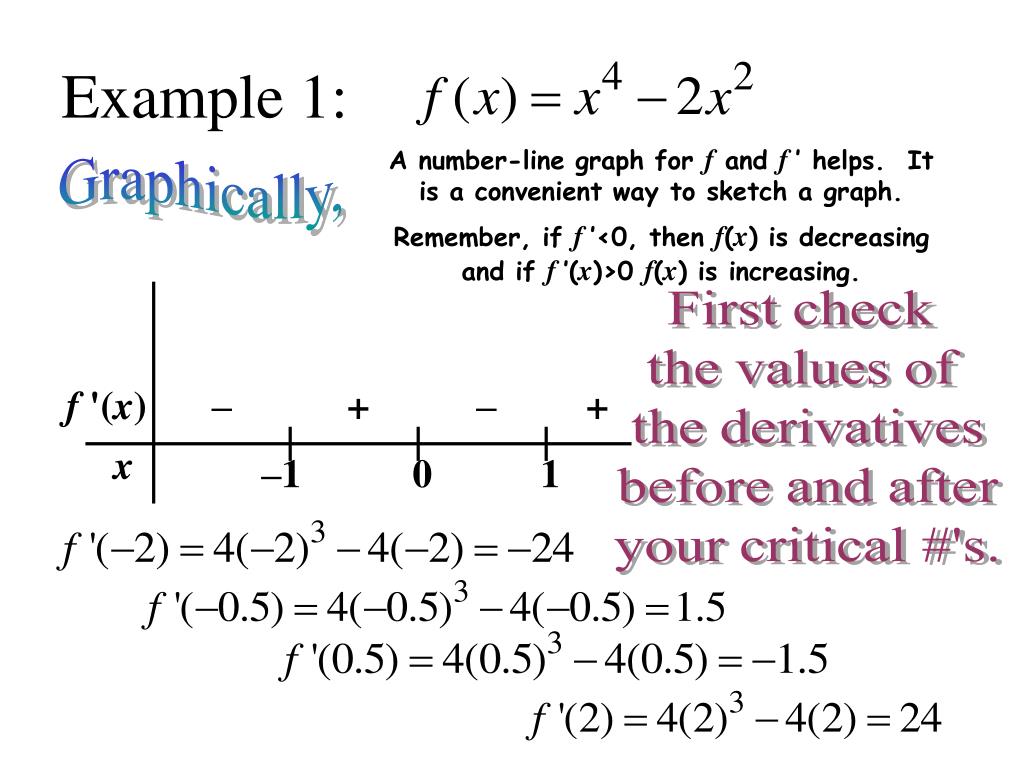

example 1
Example 1:

A number-line graph for f and f ’ helps. It is a convenient way to sketch a graph.

Graphically,

Remember, if f ’<0, then f(x) is decreasing and if f ’(x)>0 f(x) is increasing.

First check

the values of

the derivatives

before and after

your critical #'s.

f '(x)

+

+

x

–1

0

1

example 11

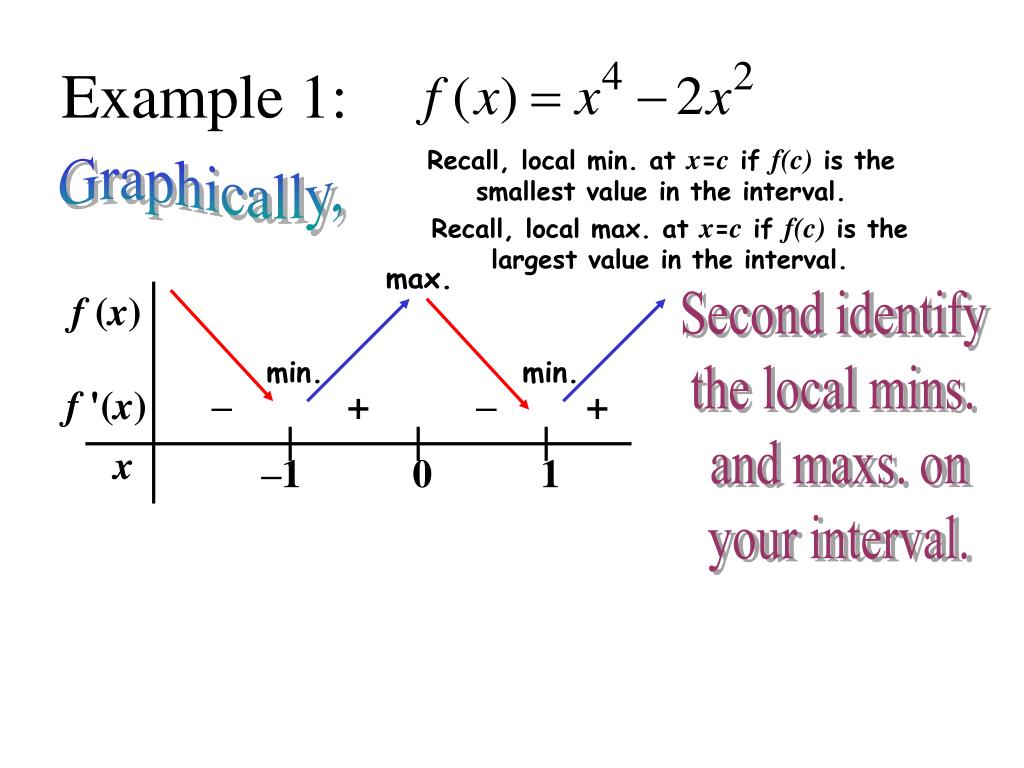

Example 1:

Recall, local min. at x=c if f(c) is the smallest value in the interval.

Graphically,

Recall, local max. at x=c if f(c) is the largest value in the interval.

max.

f (x)

Second identify

the local mins.

and maxs. on

your interval.

min.

min.

f '(x)

+

+

x

–1

0

1

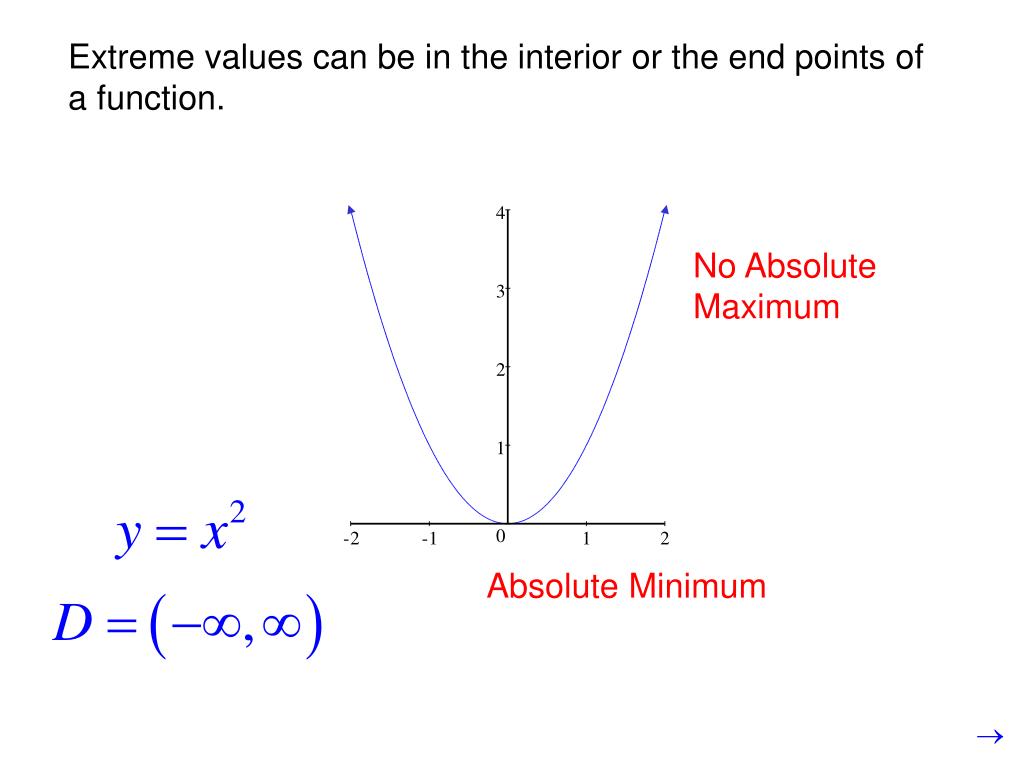

slide16

Extreme values can be in the interior or the end points of a function.

No Absolute

Maximum

Absolute Minimum

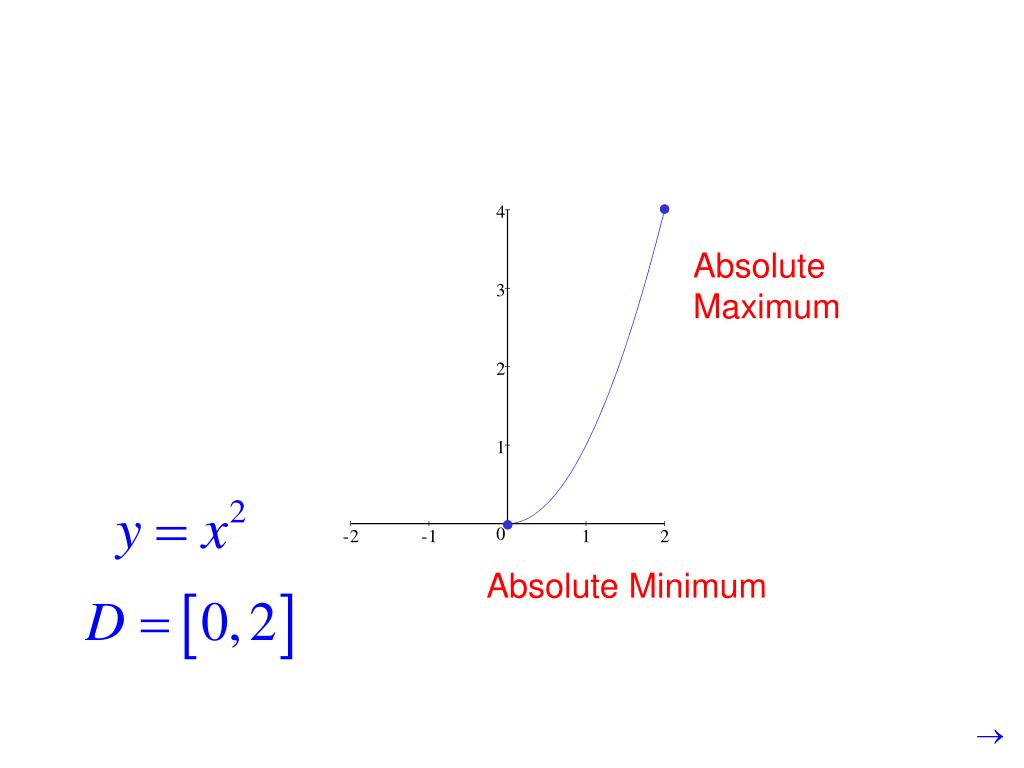

slide17

Absolute

Maximum

Absolute Minimum

slide18

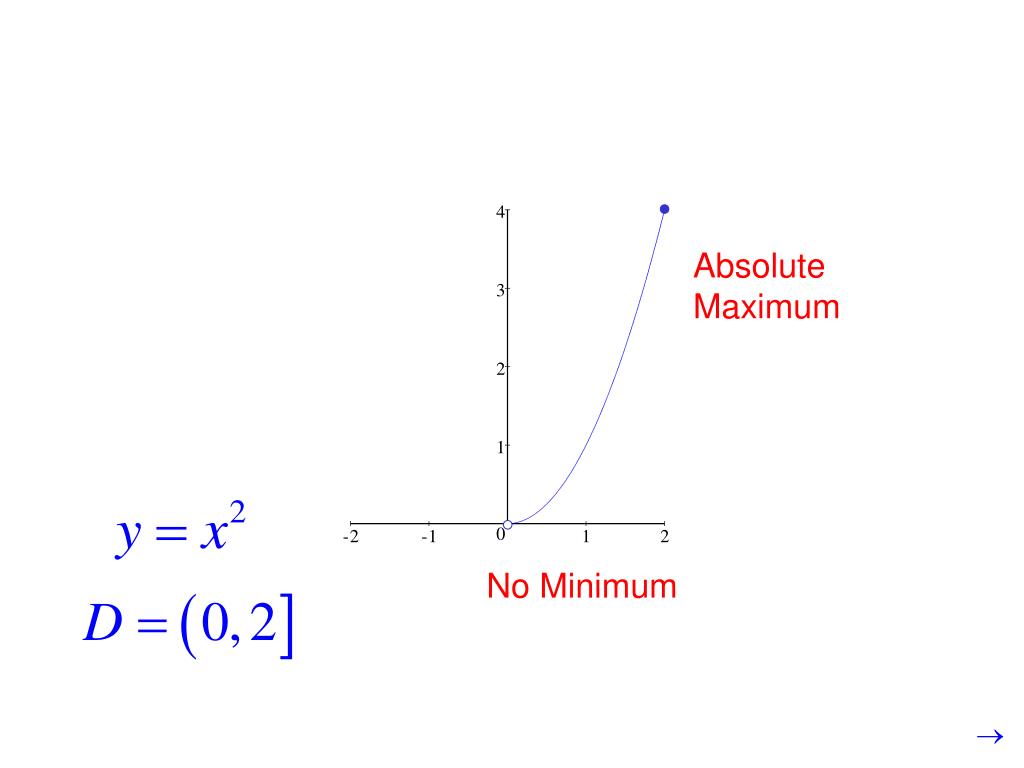

Absolute

Maximum

No Minimum

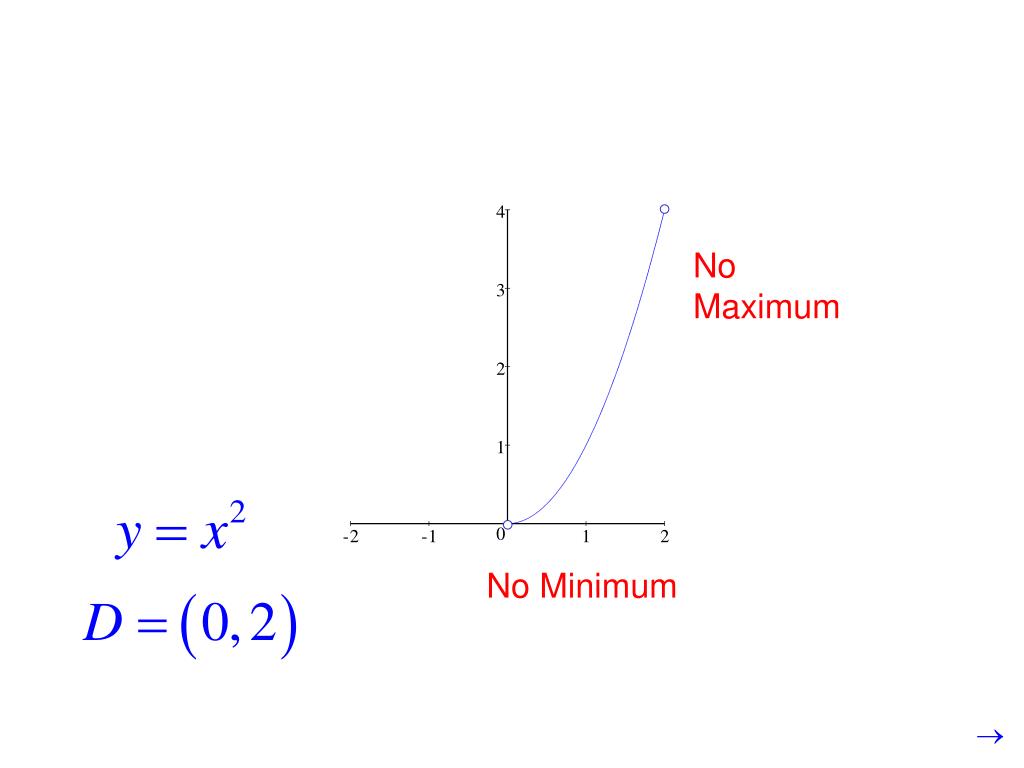

slide19

No

Maximum

No Minimum

slide20

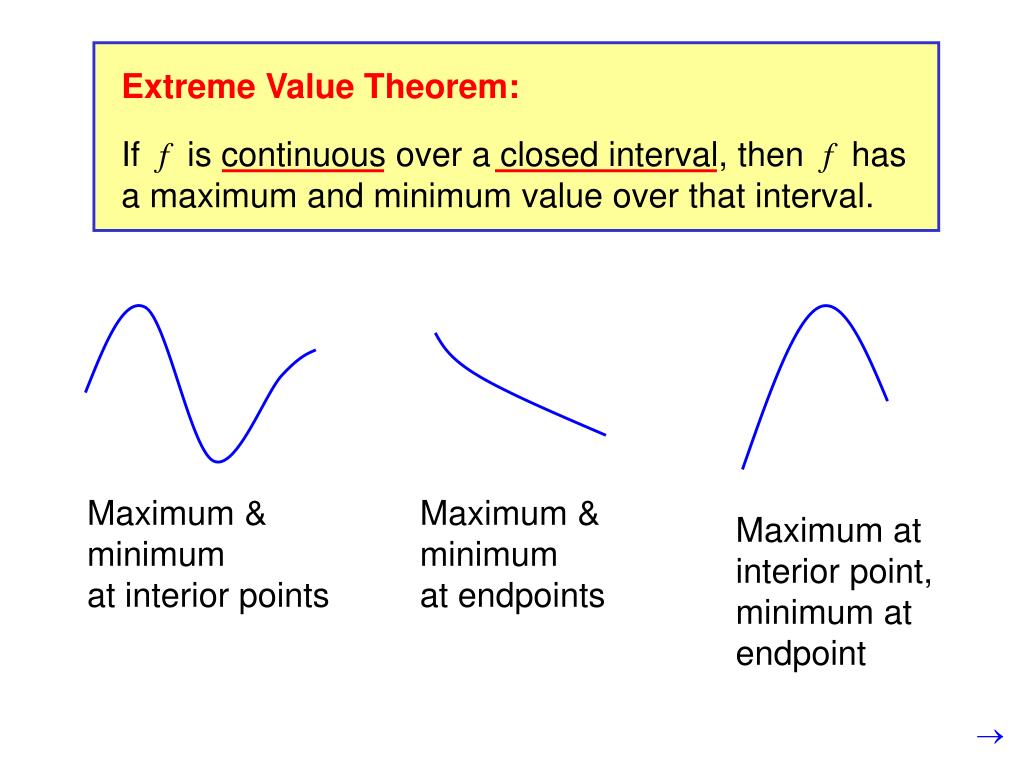

Extreme Value Theorem:

If f is continuous over a closed interval, then f has a maximum and minimum value over that interval.

Maximum & minimum

at interior points

Maximum & minimum

at endpoints

Maximum at interior point, minimum at endpoint

slide21

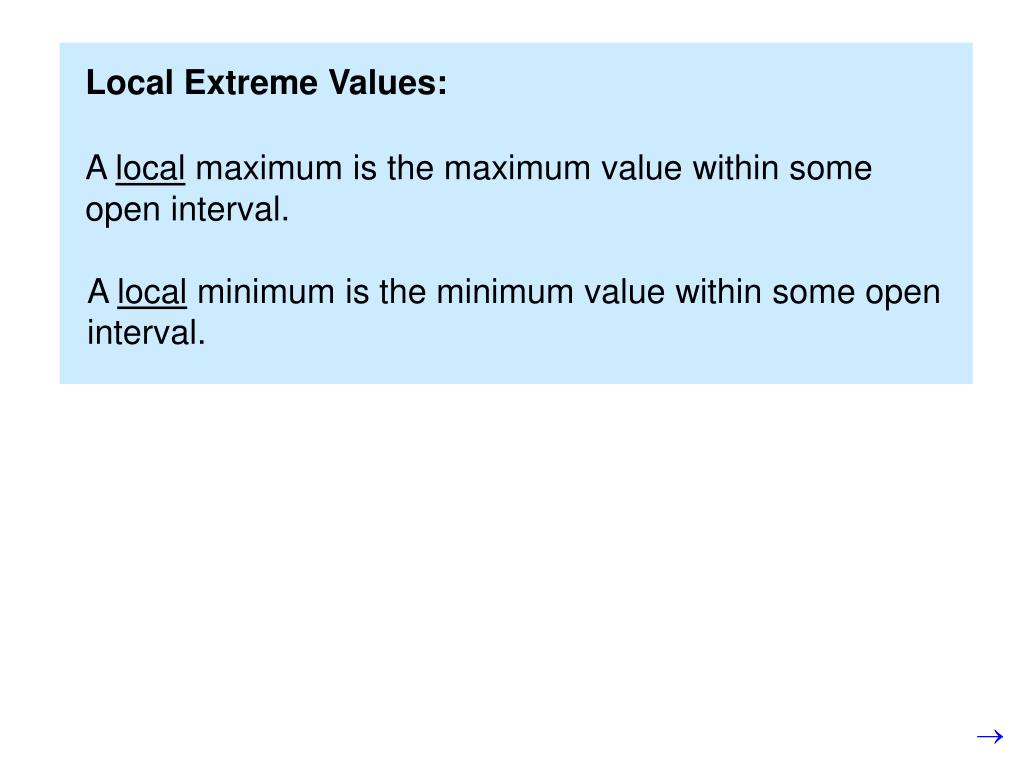

Local Extreme Values:

A local maximum is the maximum value within some open interval.

A local minimum is the minimum value within some open interval.

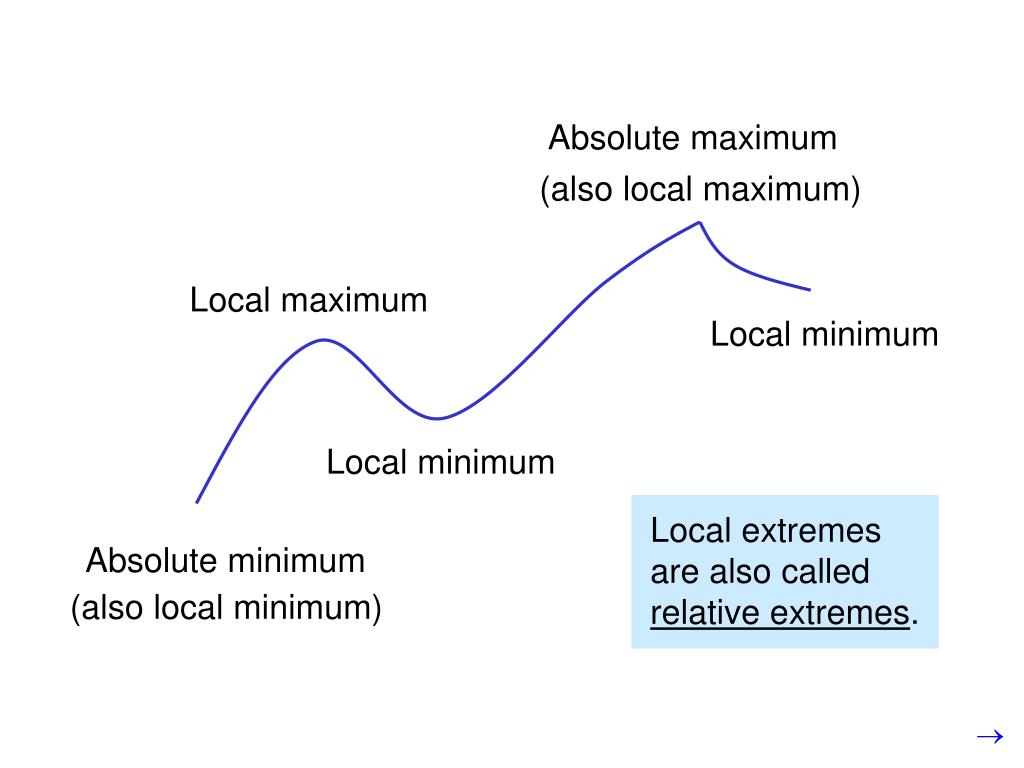

slide22

Local extremes are also called relative extremes.

Absolute maximum

(also local maximum)

Local maximum

Local minimum

Local minimum

Absolute minimum

(also local minimum)

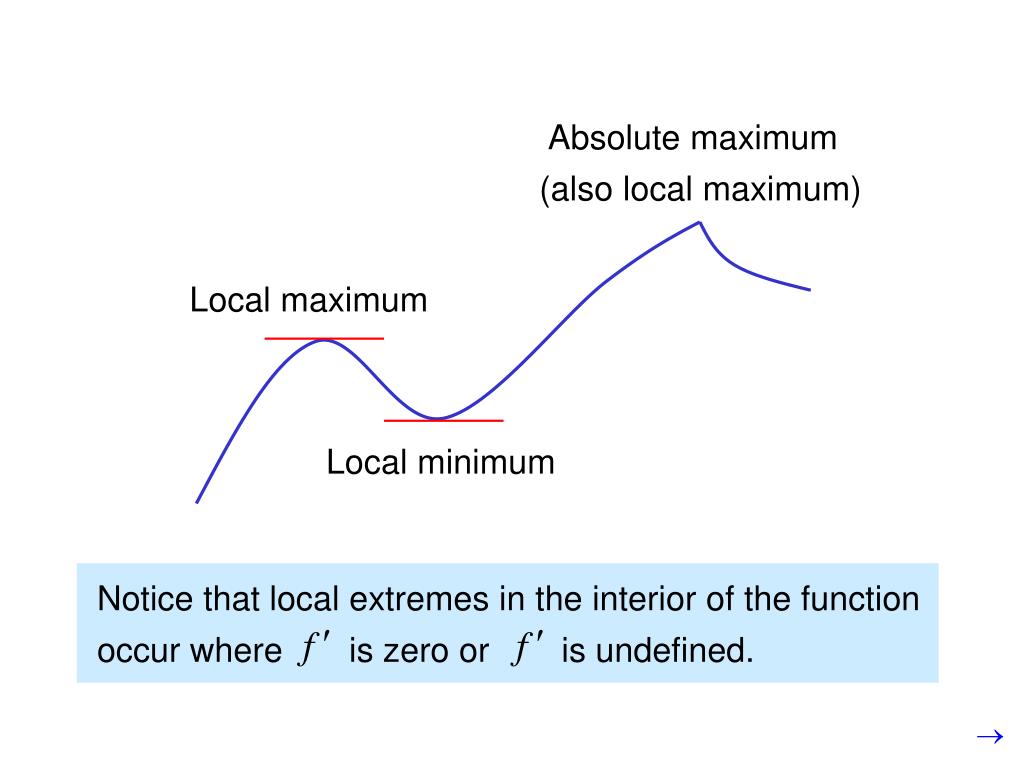

slide23

Notice that local extremes in the interior of the function occur where is zero or is undefined.

Absolute maximum

(also local maximum)

Local maximum

Local minimum

slide24

EXAMPLE FINDING ABSOLUTE EXTREMA

Find the absolute maximum and minimum values of

on the interval .

There are no values of x that will make

the first derivative equal to zero.

The first derivative is undefined at x=0,

so (0,0) is a critical point.

Because the function is defined over a

closed interval, we also must check the

endpoints.

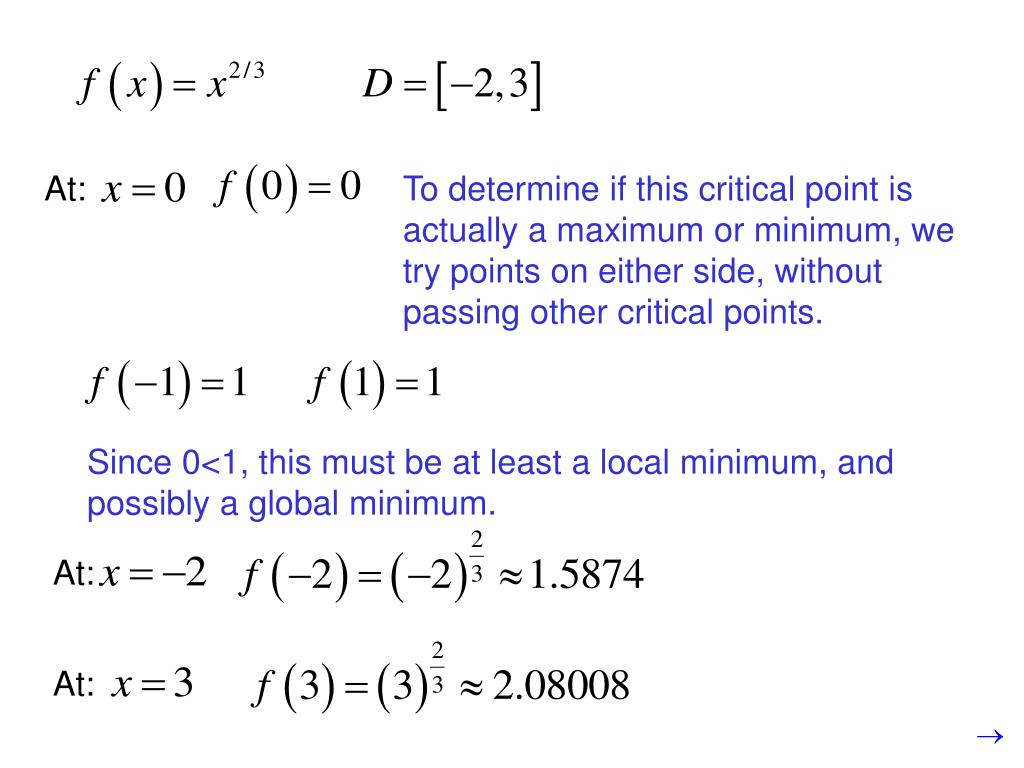

slide25

At:

At:

At:

To determine if this critical point is

actually a maximum or minimum, we

try points on either side, without

passing other critical points.

Since 0<1, this must be at least a local minimum, and possibly a global minimum.

slide26

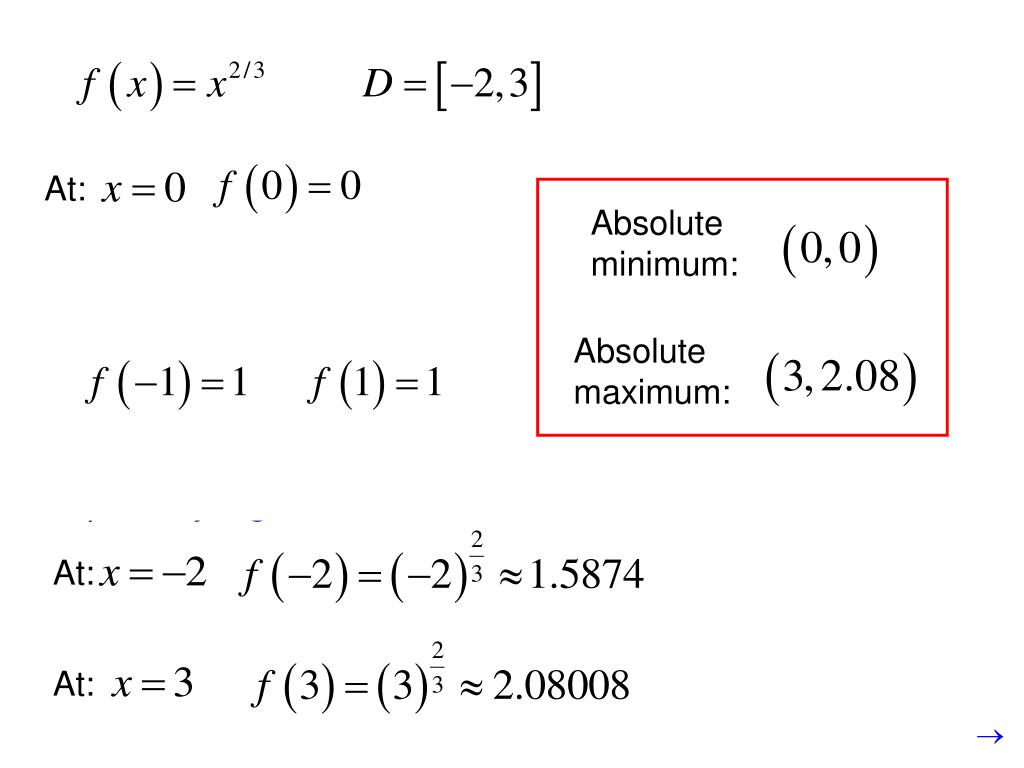

At:

Absolute

minimum:

Absolute

maximum:

At:

At:

To determine if this critical point is

actually a maximum or minimum, we

try points on either side, without

passing other critical points.

Since 0<1, this must be at least a local minimum, and possibly a global minimum.

slide27

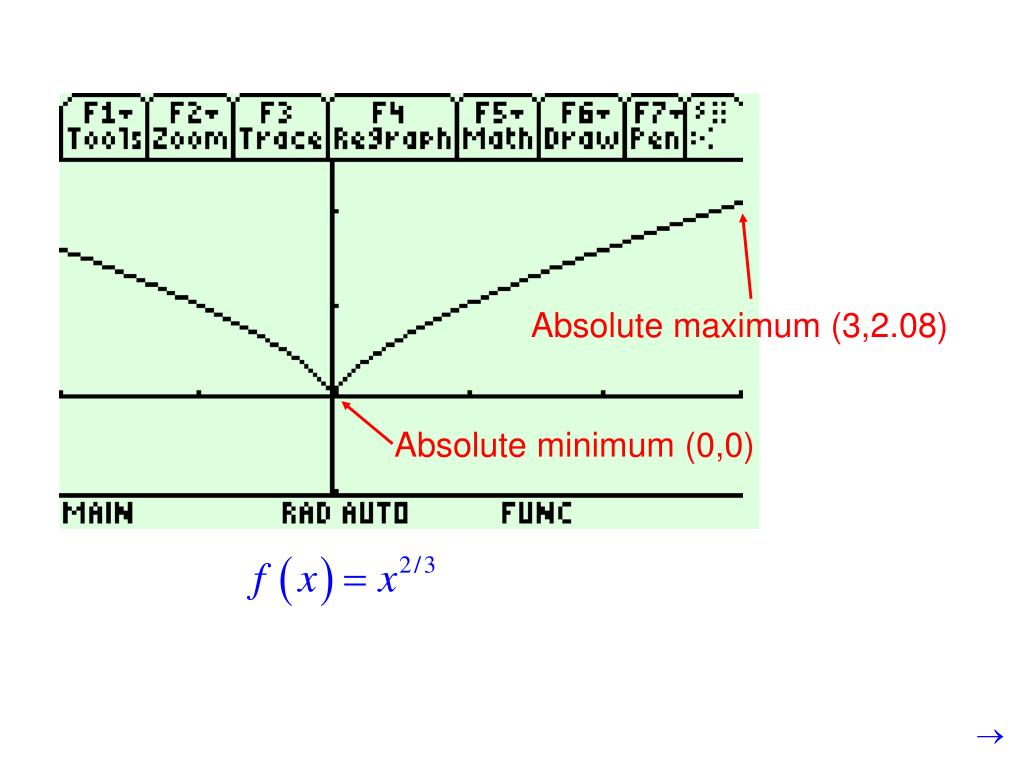

Absolute maximum (3,2.08)

Absolute minimum (0,0)

slide28

1

4

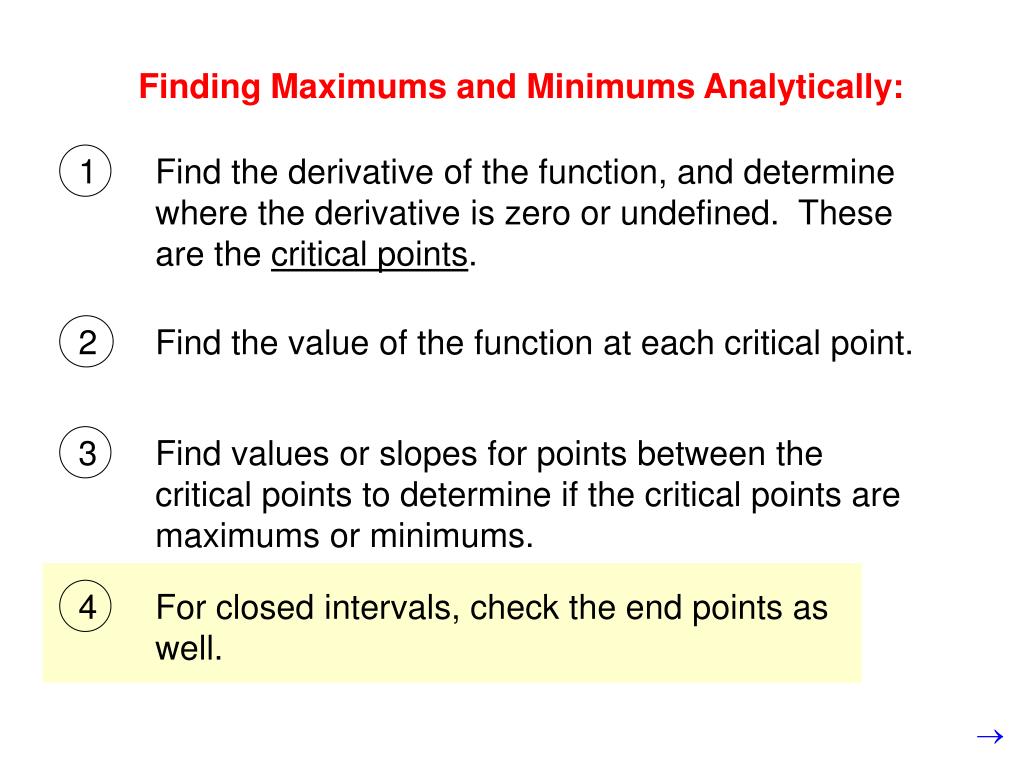

Find the derivative of the function, and determine where the derivative is zero or undefined. These are the critical points.

For closed intervals, check the end points as well.

2

Find the value of the function at each critical point.

3

Find values or slopes for points between the critical points to determine if the critical points are maximums or minimums.

Finding Maximums and Minimums Analytically:

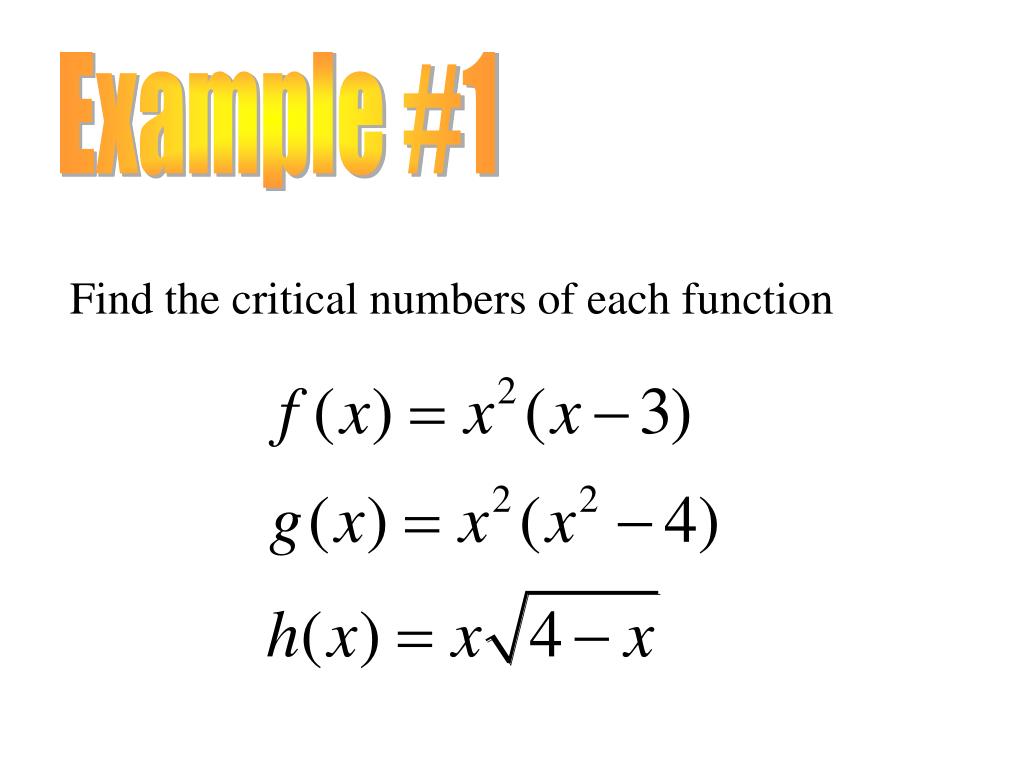

slide31

Example #1

Find the critical numbers of each function

slide32

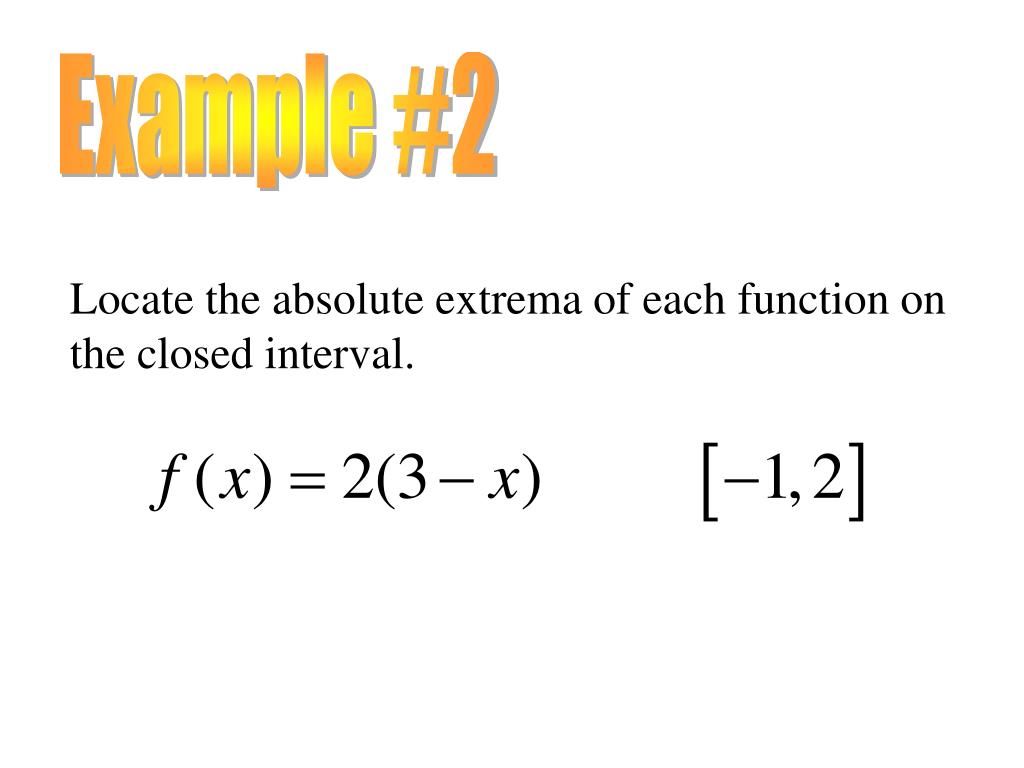

Example #2

Locate the absolute extrema of each function on the closed interval.

slide33

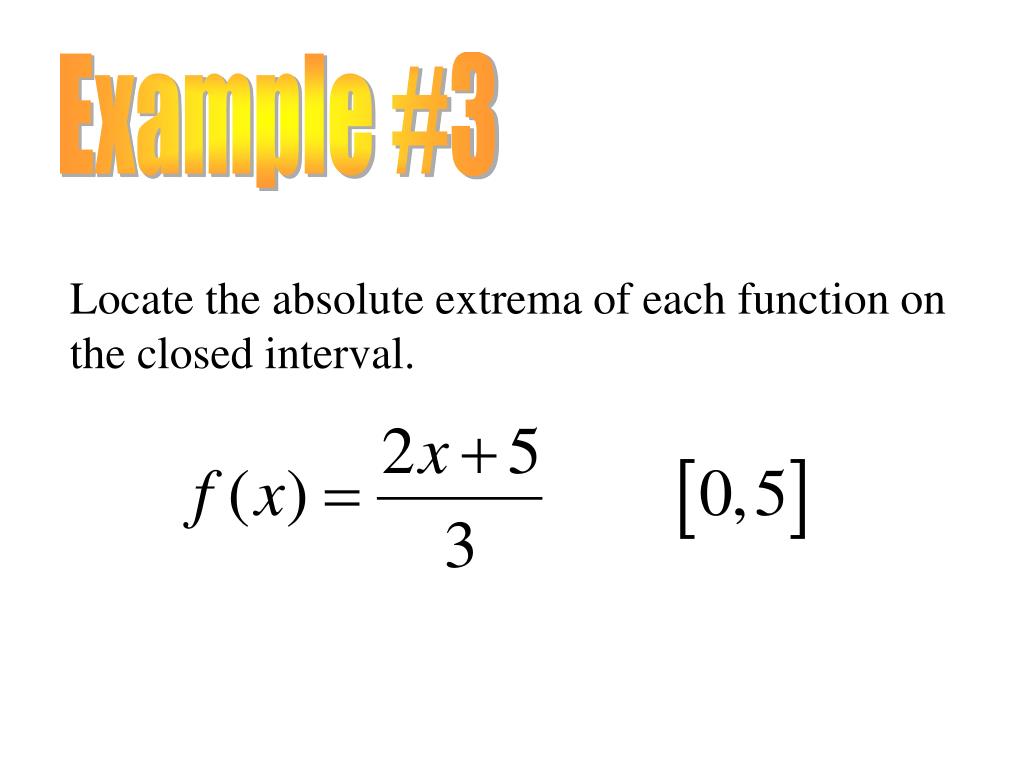

Example #3

Locate the absolute extrema of each function on the closed interval.

slide34

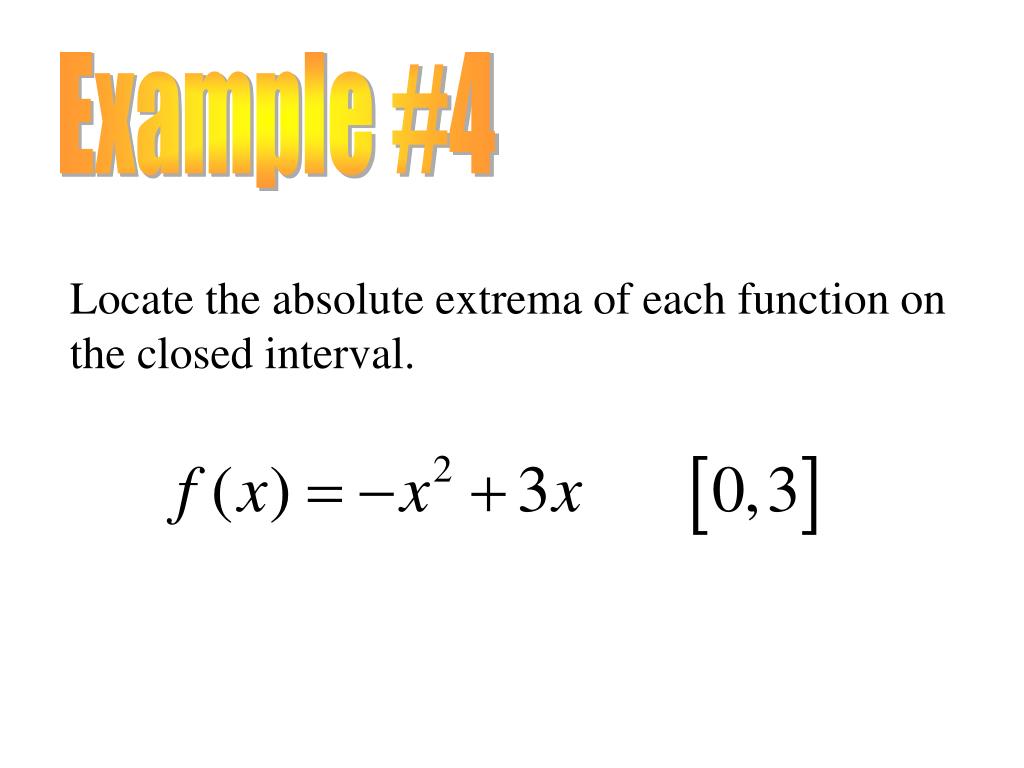

Example #4

Locate the absolute extrema of each function on the closed interval.

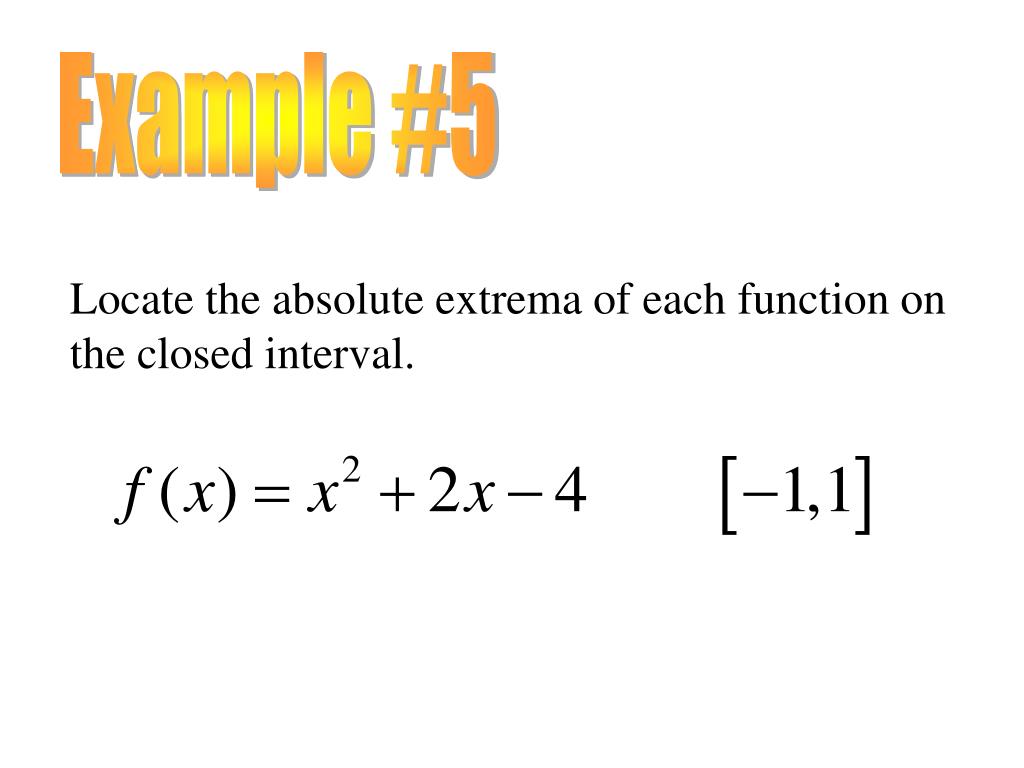

slide35

Example #5

Locate the absolute extrema of each function on the closed interval.

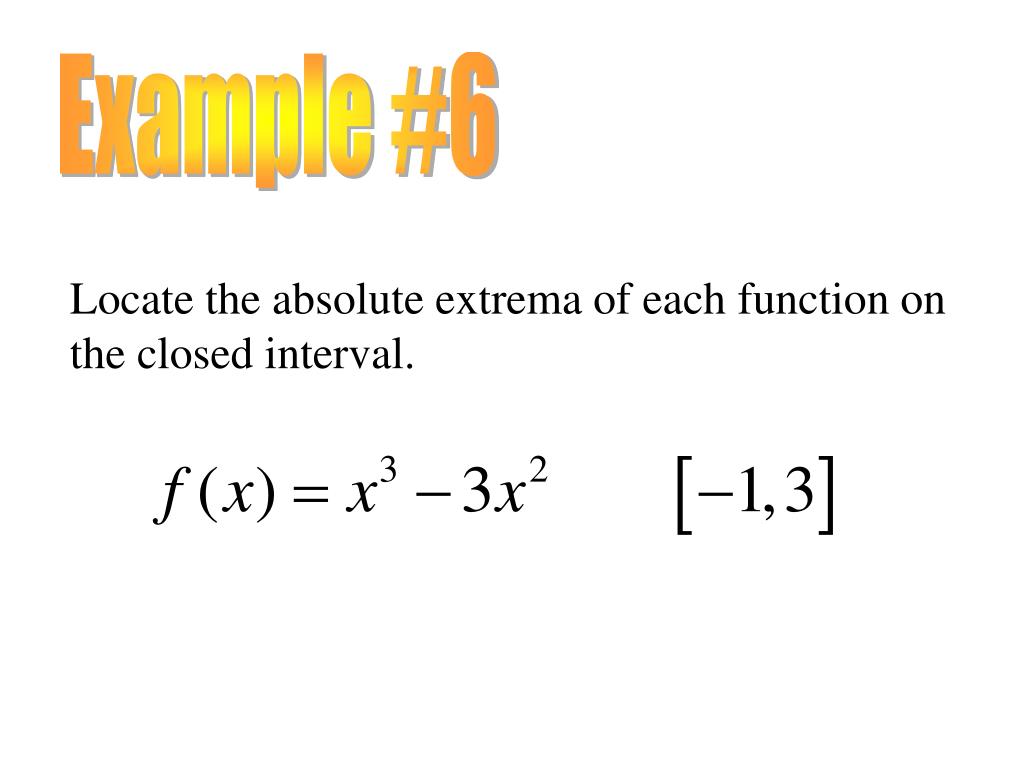

slide36

Example #6

Locate the absolute extrema of each function on the closed interval.

slide37

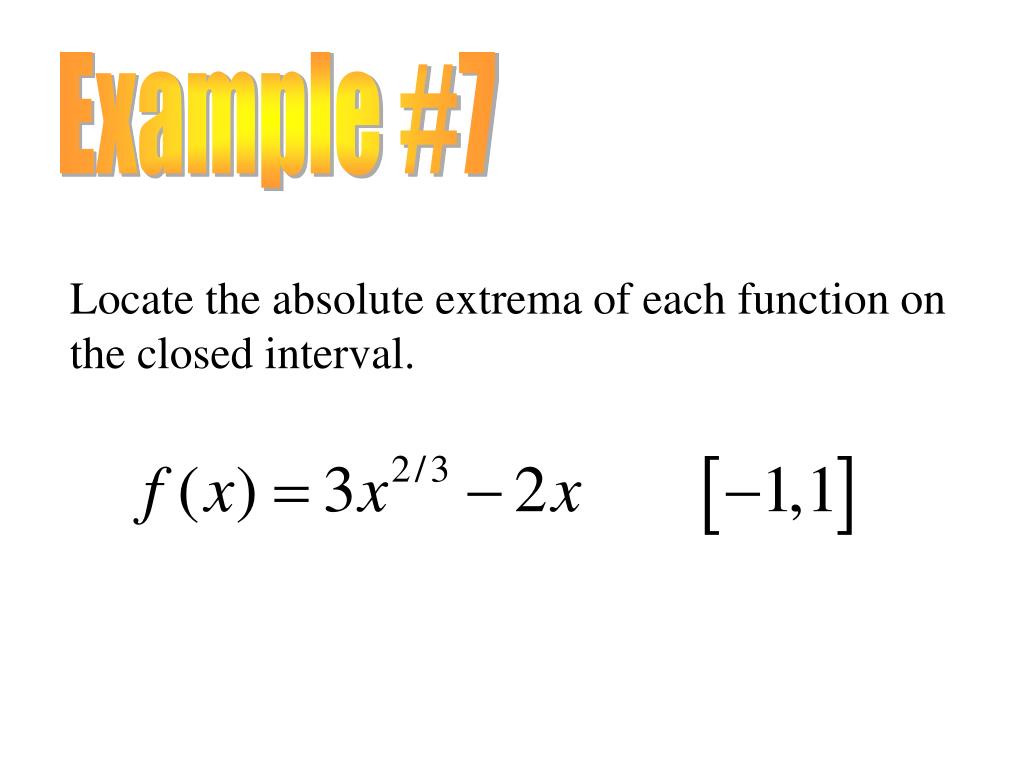

Example #7

Locate the absolute extrema of each function on the closed interval.

slide38

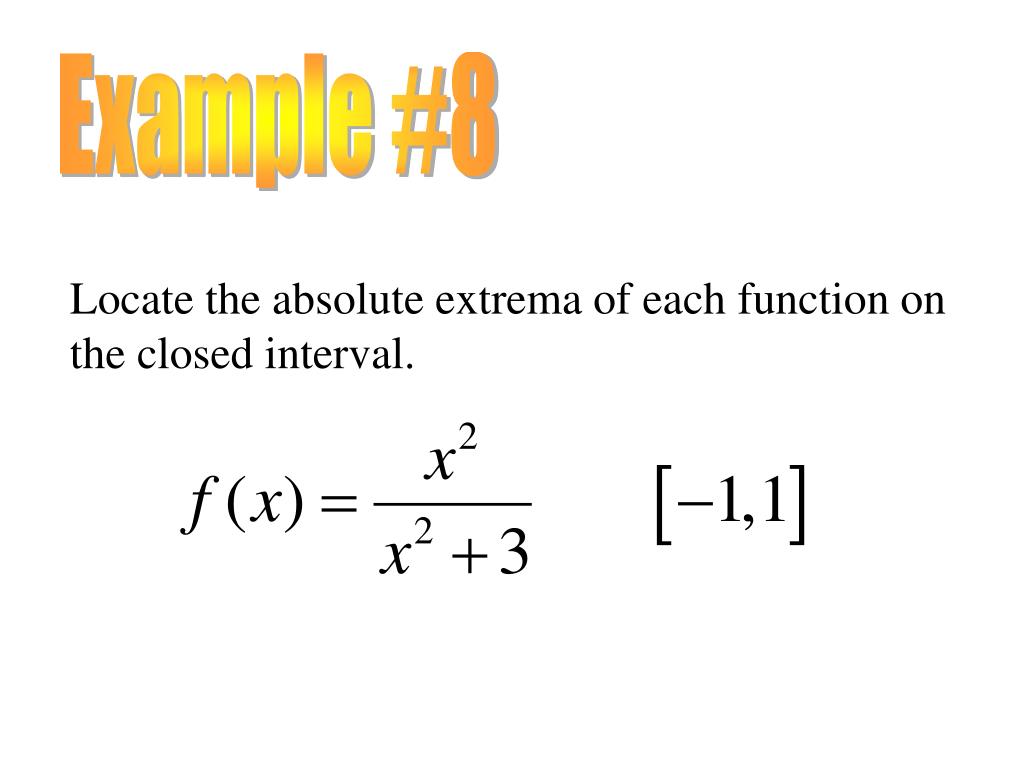

Example #8

Locate the absolute extrema of each function on the closed interval.

slide39

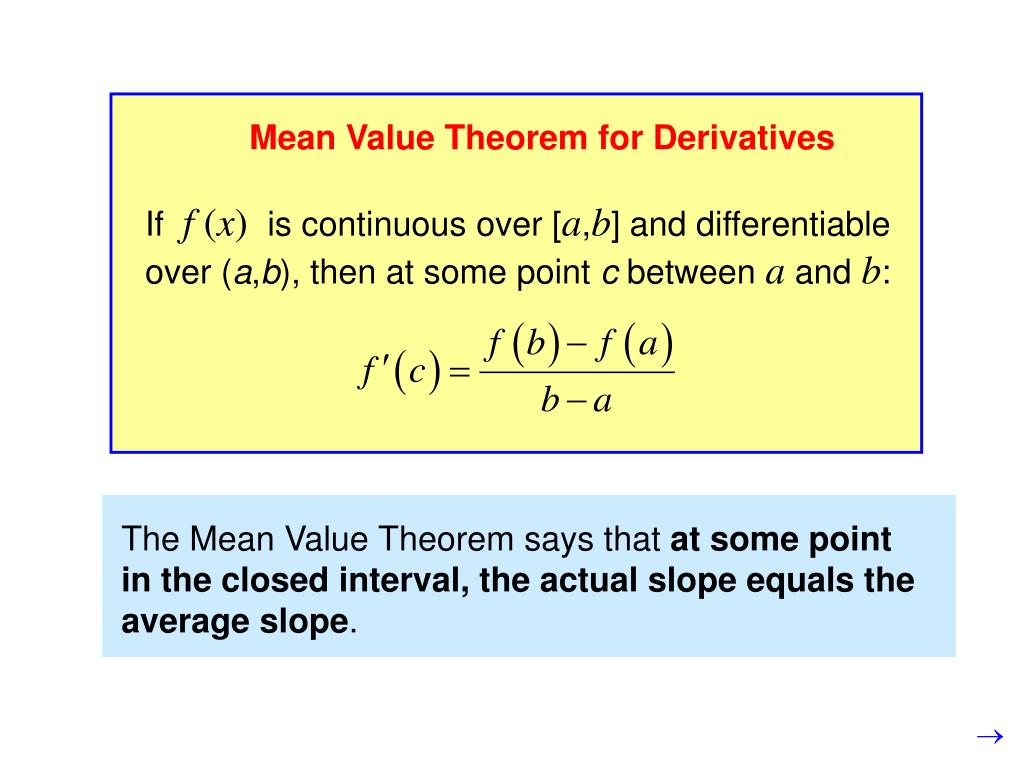

If f (x) is continuous over [a,b] and differentiable over (a,b), then at some point c between a and b:

The Mean Value Theorem says that at some point in the closed interval, the actual slope equals the average slope.

Mean Value Theorem for Derivatives

The Mean Value Theorem only applies over a closed interval.

slide40

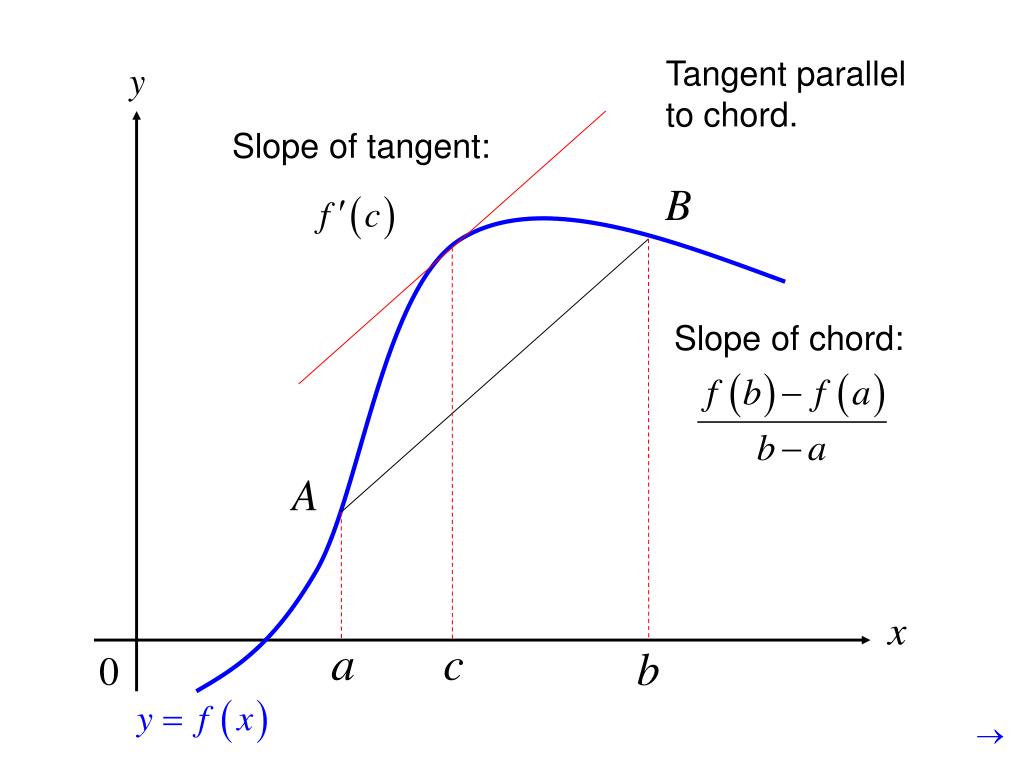

Tangent parallel to chord.

Slope of tangent:

Slope of chord:

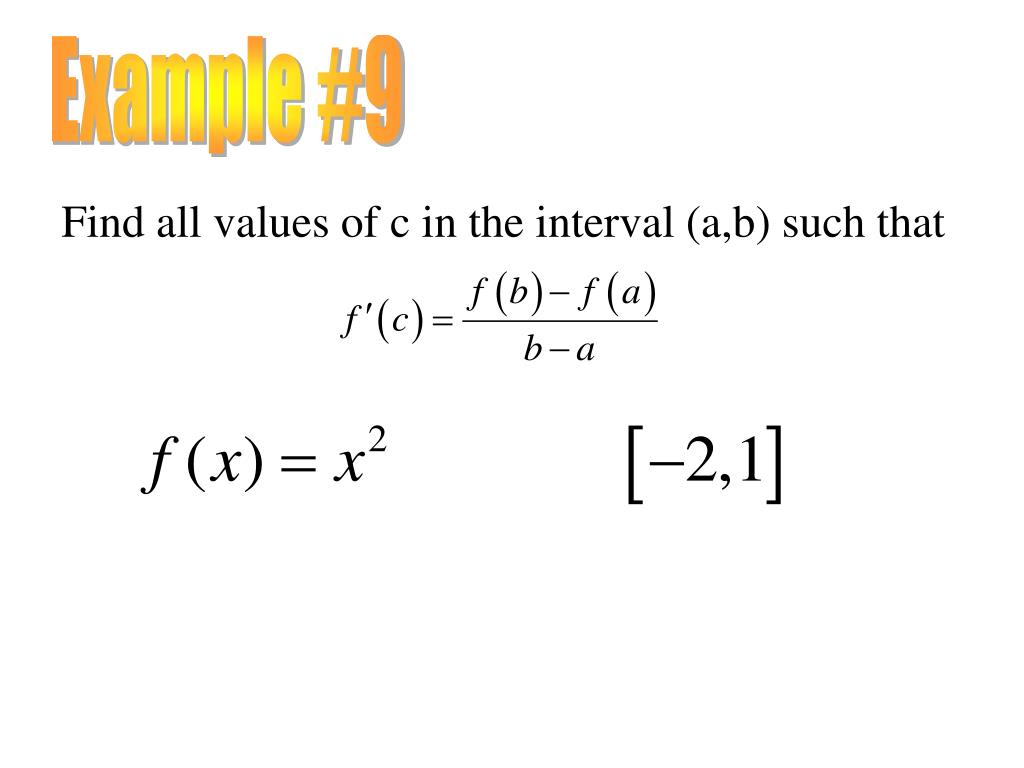

slide41

Example #9

Find all values of c in the interval (a,b) such that

slide42

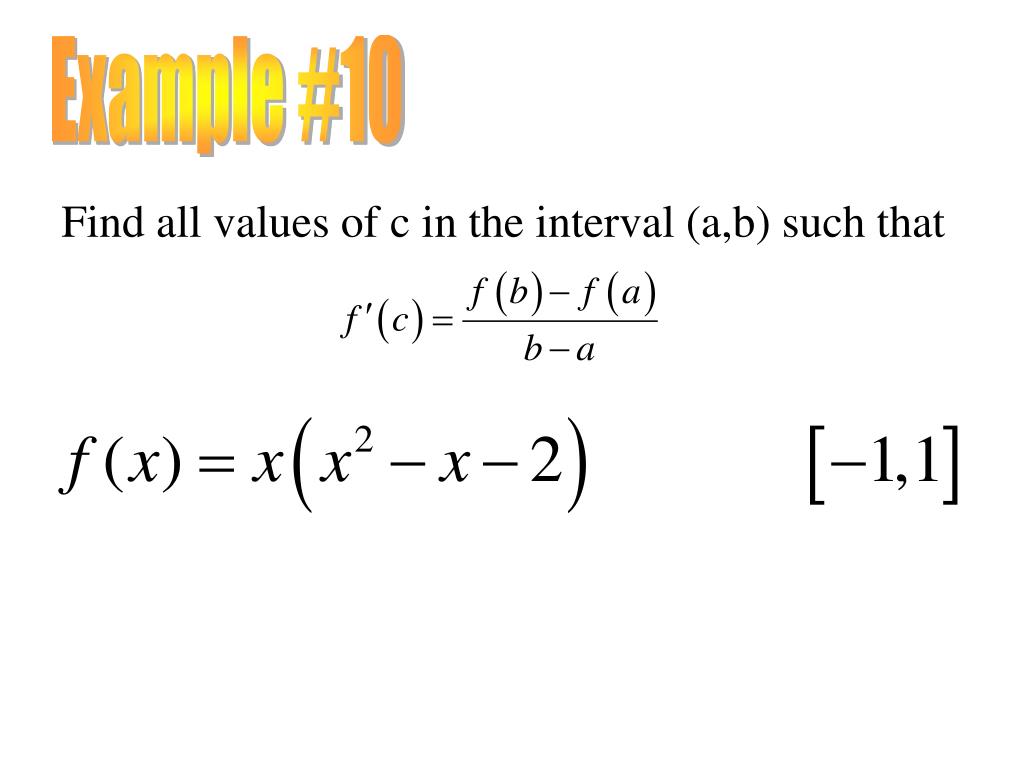

Example #10

Find all values of c in the interval (a,b) such that

slide43

Example #11

Find all values of c in the interval (a,b) such that
