Presentation Transcript
itil overview
ITIL Overview
  • ITIL Goals
  • The Service Desk(why should we be so excited about ITIL)
  • Service Support Processes & Service Delivery Processes
  • Resources (including certification and implementation)

Help Desk Northwest @ MKWEGNER

itil goals
ITIL Goals
  • Align IT Services with the business needs (current and future)
  • Improve the quality of IT services
  • Reduce the long-term cost of provisioning IT services

Help Desk Northwest @ MKWEGNER

but first a little context

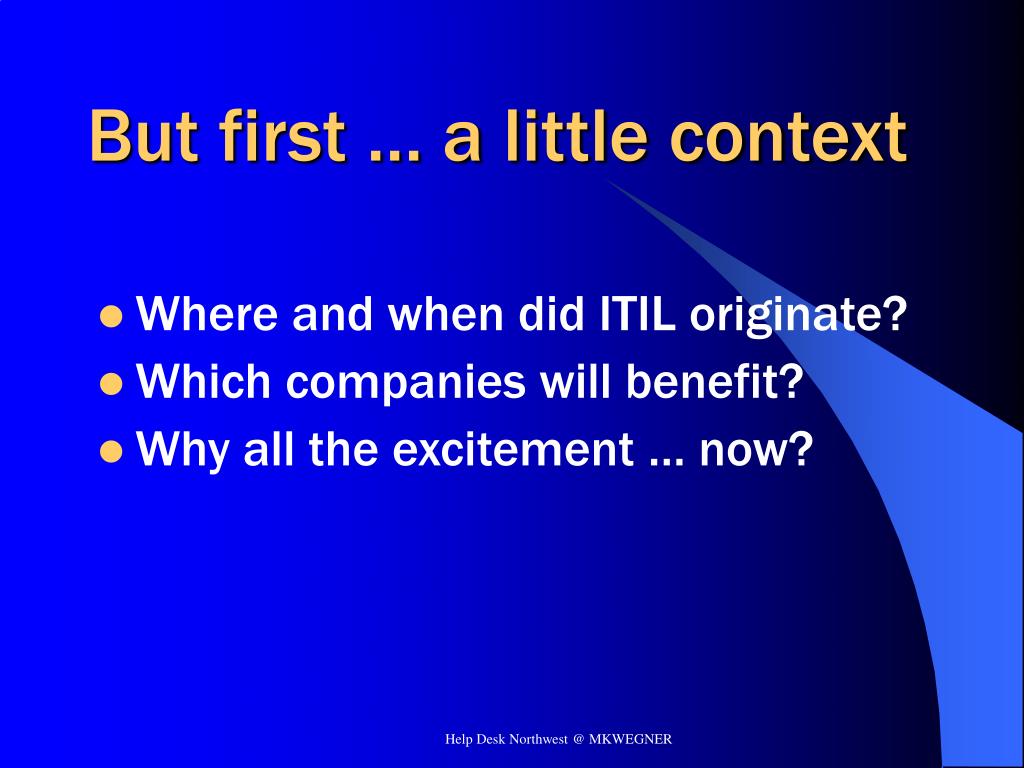

But first … a little context
  • Where and when did ITIL originate?
  • Which companies will benefit?
  • Why all the excitement … now?

Help Desk Northwest @ MKWEGNER

itil processes
ITIL Processes

Service Delivery -

Defining quality services & the framework within which to deliver them; more strategic in nature; working with the customers of IT Services

Service Support –

Supporting quality services; operational/tactical in nature; working with the users of IT services

Help Desk Northwest @ MKWEGNER

itil processes1
ITIL Processes

Service Delivery

  • Service Level Management
  • Availability Management
  • Capacity Management
  • IT Service Continuity
  • Financial Mgmt of IT Services

Service Support

SERVICE DESK function

  • Incident Management
  • Problem Management
  • Configuration Management
  • Change Management
  • Release Management

Help Desk Northwest @ MKWEGNER

service desk
SERVICE DESK

The question is not …

“Why Should We Have A Service Desk?”

The question is …

“What Would We Do Without One?”

Help Desk Northwest @ MKWEGNER

service desk1
SERVICE DESK
  • A function, not a process
  • The goals of the service desk are to:
    • Provide a single point of contact for customers and users
    • Facilitate the restoration of normal operational service with minimal business impact on the customer within agreed service levels and business priorities

Help Desk Northwest @ MKWEGNER

service desk responsibilities
SERVICE DESK responsibilities:
  • Serve as SPOC (single point of contact)
  • Communication
  • Recording, Assessment & Tracking
  • Monitoring & Escalation
  • Coordination
  • Resolution & Closure
  • Provide Management Information
  • Problem Identification

Help Desk Northwest @ MKWEGNER

service desk2

Service SUPPORT Processes

SERVICE DESK

CHANGE MGMT

RELEASE MGMT

INCIDENT MGMT

PROBLEM MGMT

CONFIG MGMT

Operational, addressing the support of IT service “consumers” aka USERS

Help Desk Northwest @ MKWEGNER

service support processes
Service Support Processes
  • Incident Management
  • Problem Management
  • Configuration Management
  • Change Management
  • Release Management

Help Desk Northwest @ MKWEGNER

incident management
Incident Management

The primary objectives are to …

  • Restore normal service operation as quickly as possible (and)
  • Minimize the adverse impact on business operations

“Normal Service Operation” is defined as service operation within Service Level Agreement limits

Help Desk Northwest @ MKWEGNER

incident mgmt activities
Incident Mgmt ACTIVITIES
  • Incident detection and recording
  • Classification and initial support
  • Investigation and Diagnosis
  • Resolution and Recovery
  • Incident Closure
  • Ownership, monitoring, tracking and communication

Help Desk Northwest @ MKWEGNER

terminology priority
TERMINOLOGY: Priority

IMPACT

(business criticality)

+

URGENCY

(the necessary speed to solve an incident)

=

PRIORITY

Help Desk Northwest @ MKWEGNER

terminology incident or service request
TERMINOLOGY:Incident or Service Request?
  • An incident is defined as any event which (a) is not part of the standard operation of a service and (b) causes, or may cause, an interruption to, or reduction in, the quality of service
  • A service request represents an addition, modification or deletion of an existing service or component

Help Desk Northwest @ MKWEGNER

terminology incidents or problems
TERMINOLOGY:Incidents or Problems?
  • An incident is defined as any event which (a) is not part of the standard operation of a service and (b) causes, or may cause, an interruption to, or reduction in, the quality of service
  • A problem is an unknown underlying cause of one or more incidents

Help Desk Northwest @ MKWEGNER

problem management
Problem Management

The primary objective is the …

Detection of the underlying causes of an incident and its subsequent resolution and prevention.

Seeks to get to the root cause of incidents and then initiates actions to improve or correct the situation

Help Desk Northwest @ MKWEGNER

problem mgmt activities
Problem Mgmt ACTIVITIES
  • Problem Control
  • Error Control
  • Proactive Problem Management

Note: very often the problem manager and the knowledge manager are one and the same person (so closely interrelated)

Help Desk Northwest @ MKWEGNER

slide19
PROBLEM CONTROL

Problem identification and recording

Problem classification

Problem investigation and diagnosis

Note these activities are distinct from incident management

ERROR CONTROL

  • Error identification and recording
  • Error assessment
  • Recording error resolution (investigation of solution; the creation of a request-for-change RFC)
  • Error closure
  • Monitoring problem and error resolution progress

Help Desk Northwest @ MKWEGNER

proactive problem mgmt
Proactive Problem Mgmt
  • Trend Analysis
  • Targeting support action
  • Providing information to the organization
  • Conducting major problem reviews

Help Desk Northwest @ MKWEGNER

slide21

If you never get past IncidentManagement you will never stop being a REACTIVE Service Desk!!

Help Desk Northwest @ MKWEGNER

configuration management
Configuration Management

The primary objective is the identification, recording and reporting of IT components, including their versions, constituent components and relationships.

Asset Management on Steroids!!

Help Desk Northwest @ MKWEGNER

config mgmt activities
Config Mgmt ACTIVITIES
  • Planning (the hardest part)
  • Identification (selecting which specifics, allowing only those details into the CMDB)
  • Control (maintaining internal controls)
  • Status Accounting (current and historical status on each CI)
  • Verification & Audit (more formal validation/audit, identify discrepancies and fix process)

Help Desk Northwest @ MKWEGNER

config mgmt terminology
Config Mgmt TERMINOLOGY
  • CI – configuration item; each component in the IT infrastructure
  • CMDB – configuration management database
  • DSL – definitive software library
  • Baseline – a snapshot of details about each CI at a moment in time

Help Desk Northwest @ MKWEGNER

config mgmt
Config Mgmt

Help Desk Northwest @ MKWEGNER

change management

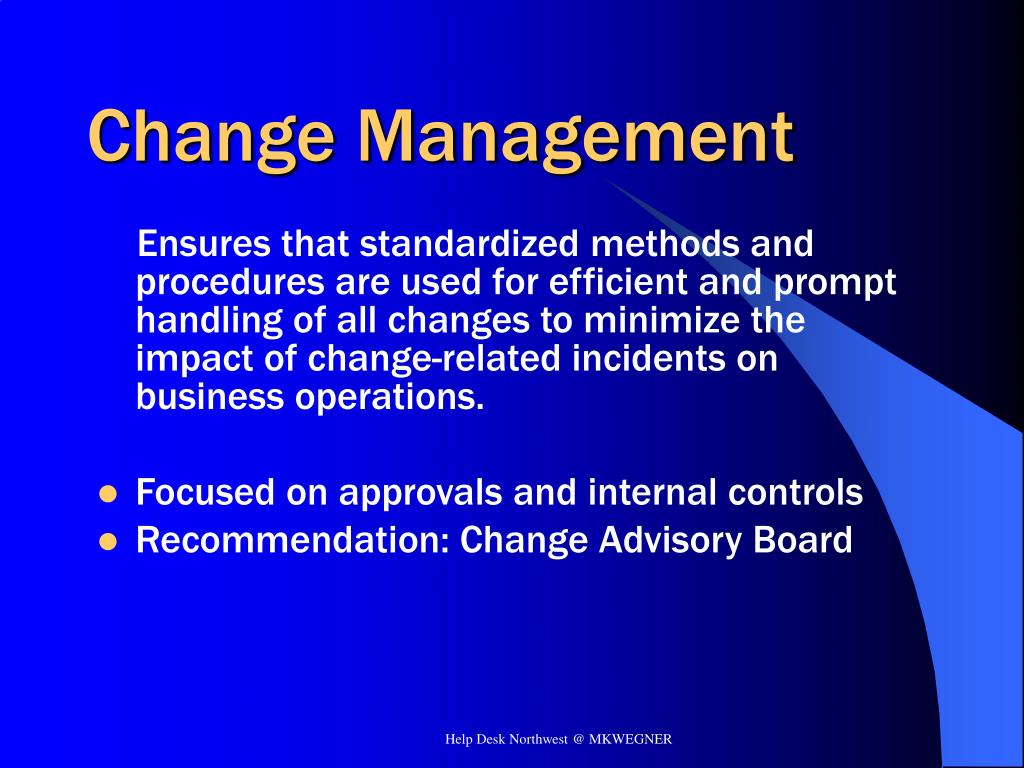

Change Management

Ensures that standardized methods and procedures are used for efficient and prompt handling of all changes to minimize the impact of change-related incidents on business operations.

  • Focused on approvals and internal controls
  • Recommendation: Change Advisory Board

Help Desk Northwest @ MKWEGNER

release mgmt activities
Release Mgmt ACTIVITIES

As distinct from change management

… release management processes include the planning, design, build, configuration and testing of hardware and software through the use of formal procedures and checks before packaging and distributing releases into the production/customer environment.

Help Desk Northwest @ MKWEGNER

rm key performance indicators kpi s
RM Key Performance Indicators (KPI’s)

• % of releases on time and budget

• # of Incidents caused by releases

• Accuracy of DSL

• Software licensing compliance

• Accuracy of CMDB

Help Desk Northwest @ MKWEGNER

what a wonderful world it would be

INCIDENT MGMT

CONFIG MGMT

PROBLEM MGMT

RELEASE MGMT

CHANGE MGMT

What a wonderful world it would be …

SERVICE DESK

Help Desk Northwest @ MKWEGNER

break
BREAK

Help Desk Northwest @ MKWEGNER

service desk3

Service DELIVERY Processes

SERVICE DESK

AVAILABILITY MGMT

CAPACITY MGMT

CONTINUITY MGMT

FINANCIAL MGMT

SERVICE LEVEL MGMT

Strategic, addressing the customers of IT services – those who commission, pay for and own the IT Services

Help Desk Northwest @ MKWEGNER

service delivery processes
Service Delivery Processes
  • Service Level Management
  • Availability Management
  • Capacity Management
  • IT Service Continuity Management
  • Financial Management for IT Svcs

Help Desk Northwest @ MKWEGNER

service level management
Service Level Management

To maintain and improve IT service quality through a constant cycle of identifying, agreeing to, monitoring and reporting on IT Service achievements. This process involves more than just creating Service Level Agreements.

Help Desk Northwest @ MKWEGNER

service level mgmt activities
Service Level Mgmt ACTIVITIES
  • Create a service catalog
  • Negotiate and manage Service Level Agreements (SLAs)
  • Implement Service Level Management
  • Conduct service review meetings
  • Implement a service level improvement program
  • Establish SLA, contract and OLA maintenance cycle

Help Desk Northwest @ MKWEGNER

financial mgmt for it services
Financial Mgmt for IT Services
  • What?
    • Budgeting
    • Accounting
    • Charging (optional)
  • Why?
    • Increase confidence in IT budgets
    • Enhance accuracy of cost information in support of IT investments

Help Desk Northwest @ MKWEGNER

availability management

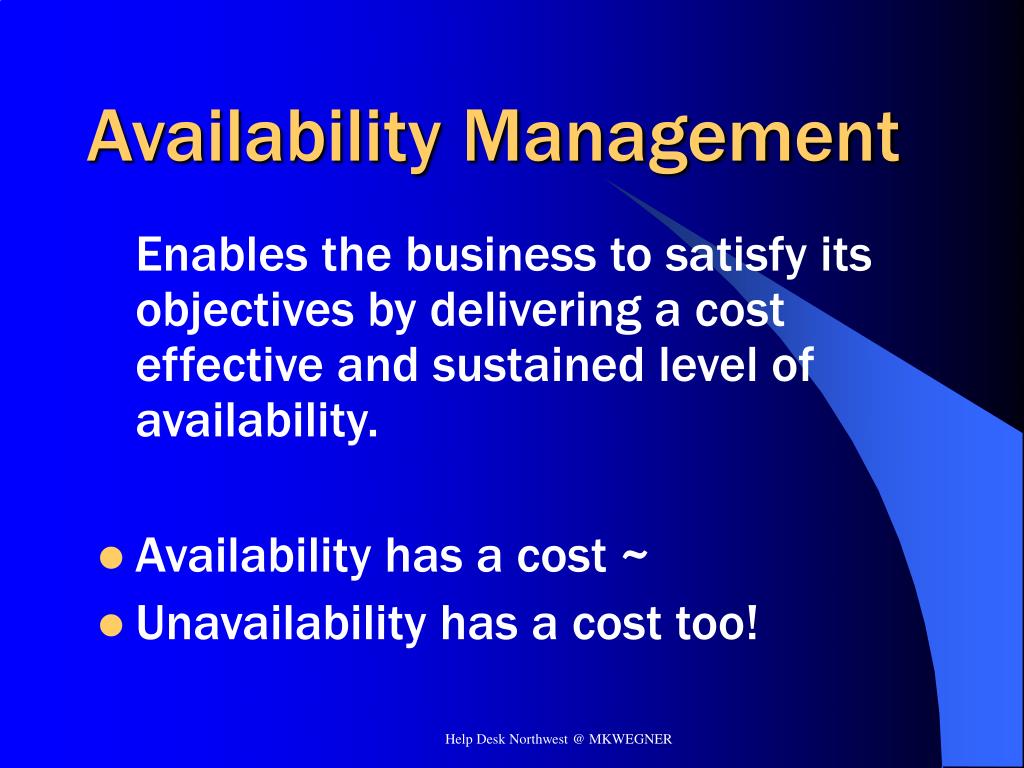

Availability Management

Enables the business to satisfy its objectives by delivering a cost effective and sustained level of availability.

  • Availability has a cost ~
  • Unavailability has a cost too!

Help Desk Northwest @ MKWEGNER

availability mgmt benefits
Availability Mgmt BENEFITS
  • Design IT services to deliver levels of availability required by the business
  • Provide availability reporting to demonstrate reliability and maintainability
  • Reduce over time the frequency and duration of incidents that impact availability

Help Desk Northwest @ MKWEGNER

availability mgmt benefits1
Availability Mgmt BENEFITS
  • A single point of accountability (process owner) is established within the IT organization
  • IT Services are designed to meet the IT Availability requirements determined from the business
  • The levels of IT Availability are cost justified
  • The levels of Availability required are agreed to, measured, and monitored to fully support Service Level Management
  • Shortfalls in achieving the required levels of availability are recognized and appropriate corrective actions identified and implemented
  • A business and user perspective of IT Service Availability is taken toe nsure optimal usage and performance to deliver maximum benefit
  • The frequency and duration or IT Service Failures is reduced over time
  • IT support organization mindset moves from error correction to service enhancement; from reactive to proactive focus
  • The IT support organization is seen to add value to the business

Help Desk Northwest @ MKWEGNER

capacity management
Capacity Management

Ensures that the capacity of the IT Infrastructure matches the evolving demands of the business in the most cost-effective and timely manner

Help Desk Northwest @ MKWEGNER

capacity mgmt activities
Capacity Mgmt ACTIVITIES
  • Ongoing
    • Monitoring
    • Analysis
    • Tuning
    • Implementation
    • Demand Management
    • Storage of Data in the CDB
  • Ad Hoc
    • Modeling
    • Application Sizing
  • Regular Activities
    • Production of the Capacity Plan

Help Desk Northwest @ MKWEGNER

it service continuity mgmt
IT Service Continuity Mgmt

~ aka ~ “Disaster Recovery”

  • Business Impact Analyses
  • Risk Assessments
  • Business Continuity Strategy

Help Desk Northwest @ MKWEGNER

itil processes2
ITIL Processes

Service Delivery

  • Service Level Management
  • Availability Management
  • Capacity Management
  • IT Service Continuity
  • Financial Mgmt of IT Services

Service Support

SERVICE DESK function

  • Incident Management
  • Problem Management
  • Configuration Management
  • Change Management
  • Release Management

Help Desk Northwest @ MKWEGNER

discussion
Discussion …
  • Who (or what) can be ITIL certified?
  • How is your organization measured against ITIL objectives?
  • How do we “sell” ITIL?
  • What do we implement first?
  • Other resources … see handout

Help Desk Northwest @ MKWEGNER

itil certifications
ITIL Certifications …

• ITIL FOUNDATION CERTIFICATE

No prerequisites (orientation training helpful)

One-hour, 40 questions, all multiple choice

• ITIL PRACTITIONER’S CERTIFICATE

Requires: Foundation cert + practical experience

1) In-course assessment

2) Two-hour, 40 question, multiple choice re: case study.

[8 of 10 processes have associated practitioner certifications (nothing for continuity mgmt or release mgmt)]

• ITIL MANAGER’S CERTIFICATE

Requires: Foundation cert; 3 years + training

1) In-course assessment

2) Three-hour case-study essay exam in Service Delivery

3) Three-hour case-study exam in Service Support

Help Desk Northwest @ MKWEGNER

selling others on the value of itil
Selling others on the value of ITIL

“ PAIN can be a great motivator … few organizations developed a comprehensive service management approach from the start. Most come to the realization that their IT service provision is inconsistent at best, or out-of-control at worst. “

Help Desk Northwest @ MKWEGNER

a phased approach
A phased approach …

The implementation of ITIL processes (or improvements to existing processes) brings benefits immediately. An organization does not need to wait until all processes are in place to realize significant benefits!!

Help Desk Northwest @ MKWEGNER

itil and mof
ITIL and MOF
  • The ITIL philosophy is to “adopt and adapt,” and that’s just what Microsoft did when it created Microsoft Operations Framework. MOF is a set of publications providing both descriptive (i.e., what to do and why) and prescriptive (i.e., how to do) guidance on IT service management.
  • Microsoft published the first elements of MOF in 2000 for customer, partner and internal use. Microsoft created MOF with the following objective in mind: Create comprehensive operations guidance to help customers achieve mission-critical production system reliability, availability, and manageability on the Microsoft platform.
  • The Microsoft Operations Framework provides in-depth technical guidance and consulting support for the operation of mission-critical systems on Microsoft technology.
  • ItSMF recognized MOF for providing technical guidance that covers the entire spectrum of IT management, addressing the people, process, technology and management issues involved in complex, distributed and heterogeneous IT environments.
  • To develop MOF, Microsoft worked with partners that have extensive experience with mission-critical computing. The framework is built on best practices from the IT Infrastructure Library, a series of books that hundreds of organizations around the world use for comprehensive guidance on providing quality IT services.

Help Desk Northwest @ MKWEGNER
