Presentation Transcript

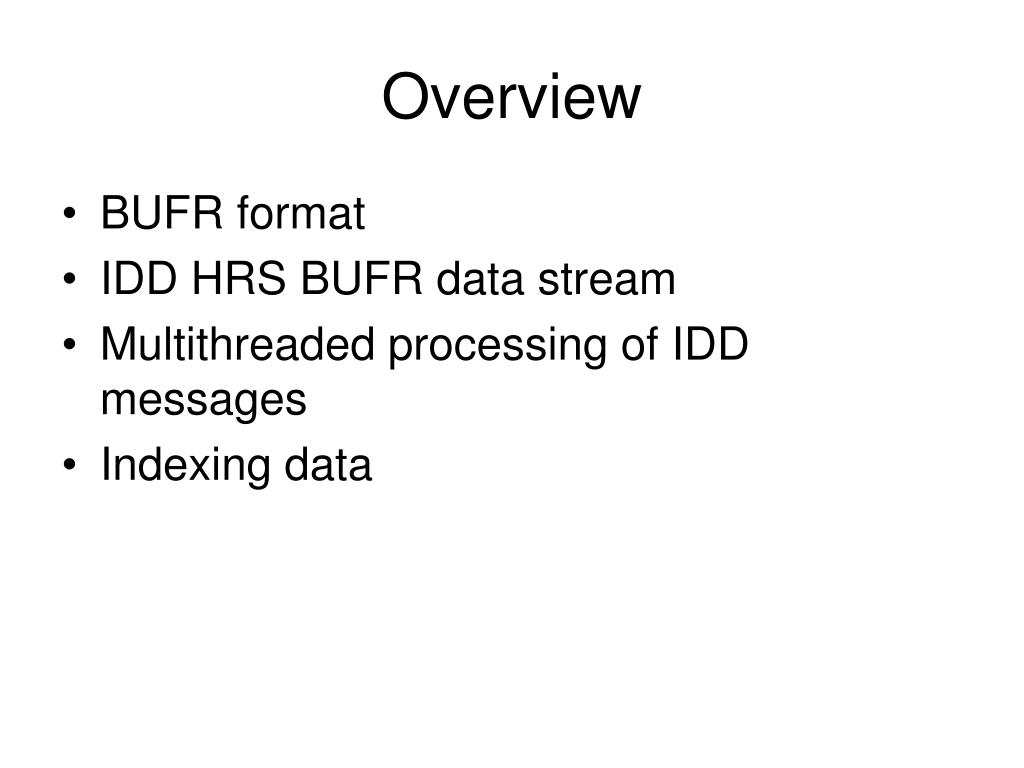

overview
Overview
  • BUFR format
  • IDD HRS BUFR data stream

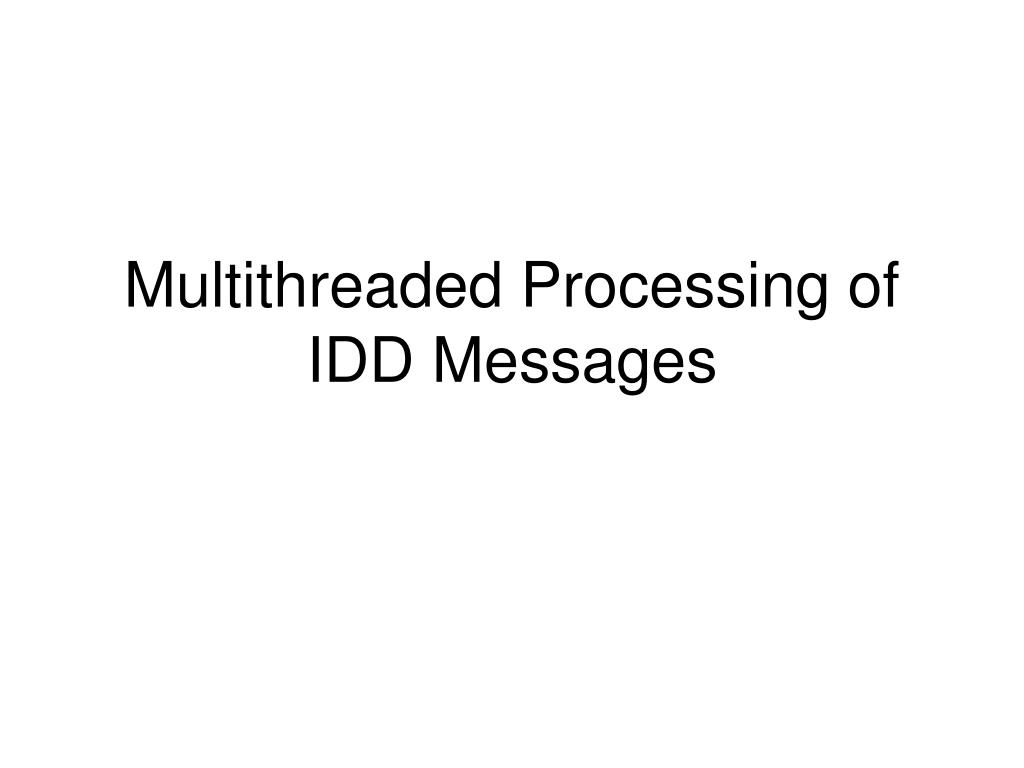

  • Multithreaded processing of IDD messages
  • Indexing data

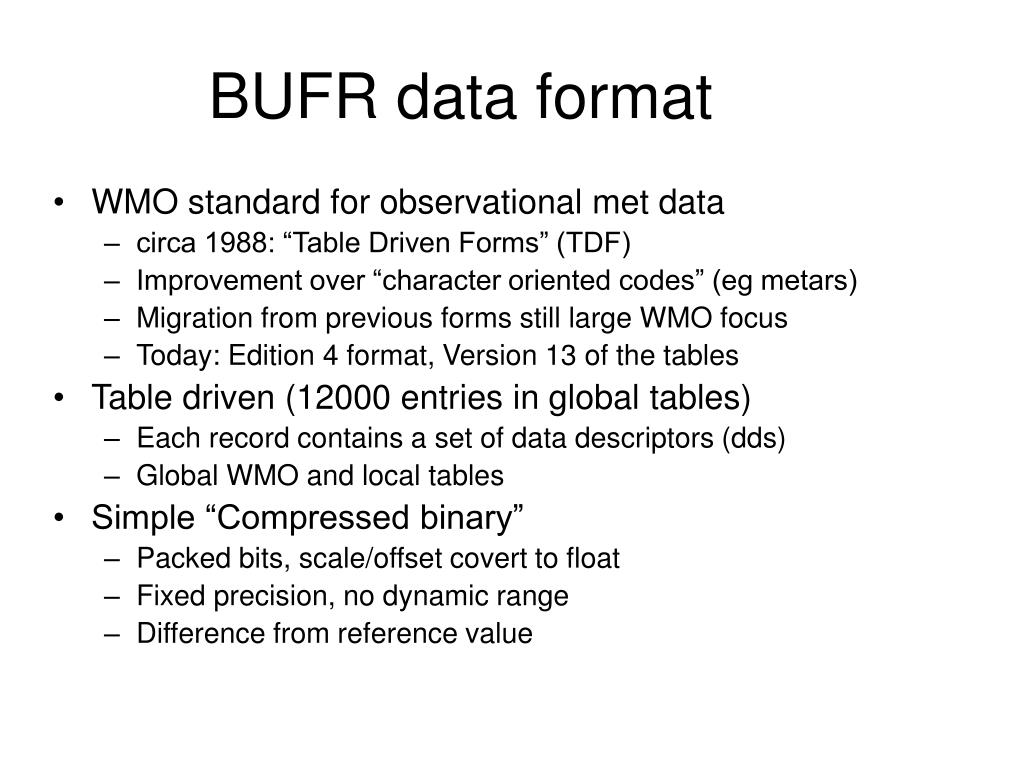

bufr data format
BUFR data format

WMO standard for observational met data

circa 1988: “Table Driven Forms” (TDF)

Improvement over “character oriented codes” (eg metars)

Migration from previous forms still large WMO focus

Today: Edition 4 format, Version 13 of the tables

Table driven (12000 entries in global tables)

Each record contains a set of data descriptors (dds)

Global WMO and local tables

Simple “Compressed binary”

Packed bits, scale/offset covert to float

Fixed precision, no dynamic range

Difference from reference value

slide4

3-1-32 : tableD

3-1-1 : tableD

0-1-1 : WMO_block_number units=Numeric scale=0 refVal=0 nbits=7

0-1-2 : WMO_station_number units=Numeric scale=0 refVal=0 nbits=10

0-2-1 : Type_of_station units=Code table scale=0 refVal=0 nbits=2

3-1-11 : tableD

0-4-1 : Year units=Year scale=0 refVal=0 nbits=12

0-4-2 : Month units=Month scale=0 refVal=0 nbits=4

0-4-3 : Day units=Day scale=0 refVal=0 nbits=6

3-1-12 : tableD

0-4-4 : Hour units=Hour scale=0 refVal=0 nbits=5

0-4-5 : Minute units=Minute scale=0 refVal=0 nbits=6

3-1-24 : tableD

0-5-2 : Latitude units=Degree scale=2 refVal=-9000 nbits=15

0-6-2 : Longitude units=Degree scale=2 refVal=-18000 nbits=16

0-7-1 : Height_of_station units=m scale=0 refVal=-400 nbits=15

0-1-18 : Short_station_or_site_name units=CCITT IA5 nchars=5

0-2-3 : Type_of_measuring_equipment_used units=Code table scale=0 refVal=0

2-1-132 : tableC-operators

2-2-130 : tableC-operators

0-2-121 : Mean_frequency units=Hz scale=-8 refVal=0 nbits=7

2-2-0 : tableC-operators

2-1-0 : tableC-operators

0-8-21 : Time_significance units=Code table scale=0 refVal=0 nbits=5

0-4-26 : Time_period_or_displacement units=Second scale=0 refVal=-4096 nbits=13

1-9-0 : replication

0-31-1 : Delayed_descriptor_replication_factor units=Numeric scale=0 refVal=0

0-7-6 : Height_above_station units=m scale=0 refVal=0 nbits=15

0-25-34 : Wind_profiler_quality_control_test_results units=Flag table scale=0

0-11-1 : Wind_direction units=Degree true scale=0 refVal=0 nbits=9

0-11-2 : Wind_speed units=m s-1 scale=1 refVal=0 nbits=12

2-1-127 : tableC-operators

0-11-50 : Standard_deviation_of_horizontal_wind_speed units=m s-1 scale=1 refVal=0 nbits=12

2-1-0 : tableC-operators

0-11-6 : w-component units=m s-1 scale=2 refVal=-4096 nbits=13

0-11-51 : Standard_deviation_of_vertical_wind_speed units=m s-1 scale=1 refVal=0 nbits=8

bufr problems 1
BUFR problems (1)

BUFR format is too complex:

  • Looks like design by committee
  • Specification not exact
  • No coding/decoding reference implementation
  • Mixture of data model / data encoding / standard quantities

BUFR format is too simple:

  • Fixed length tables (64 categories, 256 entries) eventually run out
  • Fixed dynamic range (no exponents)
bufr problems 2
BUFR problems (2)

Table-driven parsing is brittle

  • No authoritative registry of local Tables
  • WMO global table is not machine-readable
  • Past versions are not available

It seems that:

  • Each provider has their own set of software and tables
  • Often legacy Fortran
bufr table mismatch
BUFR Table mismatch
  • No way to be sure if coder/decoder use the same table
  • If table entry missing, cant decode
  • If wrong table entry is used
    • Bit size wrong, usually can detect with bit counting
    • Scale/Factor/Name/Units wrong = “silent failure” (expert/human may detect)
table mismatches
Table mismatches

Each archive center probably has solved this coder/decoder matching internally

  • NCEP encodes the tables in BUFR messages, and stores in the archive files
  • Others???
bufr progress
BUFR progress
  • As of 9/2008, WMO decided
    • Will make tables available in Microsoft Access format
    • Clarified versioning (sort of)
  • Progress in detecting/fixing encoding errors
  • Unidata nudge: email group, validation web site
  • BritMet effort to map BUFR to ISO, define XML version of tables
bufr data on idd
BUFR data on IDD
  • 177 K messages / day
  • 6.7 M observations / day
  • 1.2 Gbytes / day
  • Avg message size = 7227 bytes
  • Avg obs/message = 37
  • Unique wmo Headers = 555
  • Unique dds = 125
  • wmoHeaders with multiple dds = 61

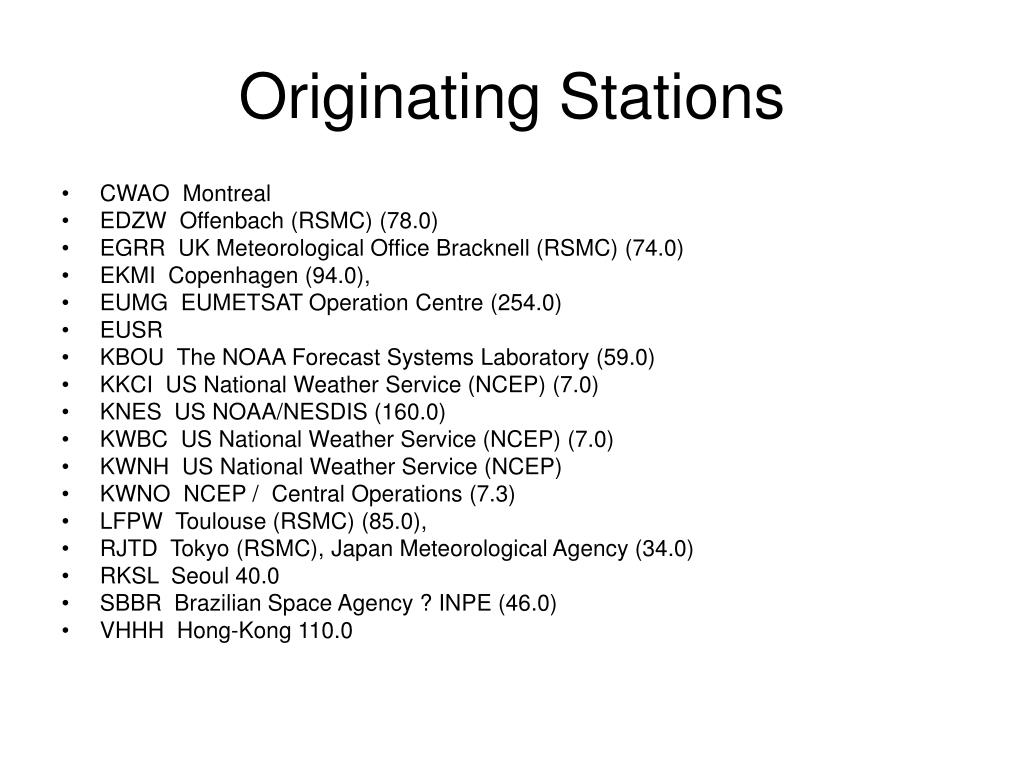

originating stations
Originating Stations
  • CWAO Montreal
  • EDZW Offenbach (RSMC) (78.0)
  • EGRR UK Meteorological Office Bracknell (RSMC) (74.0)
  • EKMI Copenhagen (94.0),
  • EUMG EUMETSAT Operation Centre (254.0)
  • EUSR
  • KBOU The NOAA Forecast Systems Laboratory (59.0)
  • KKCI US National Weather Service (NCEP) (7.0)
  • KNES US NOAA/NESDIS (160.0)
  • KWBC US National Weather Service (NCEP) (7.0)
  • KWNH US National Weather Service (NCEP)
  • KWNO NCEP / Central Operations (7.3)
  • LFPW Toulouse (RSMC) (85.0),
  • RJTD Tokyo (RSMC), Japan Meteorological Agency (34.0)
  • RKSL Seoul 40.0
  • SBBR Brazilian Space Agency ? INPE (46.0)
  • VHHH Hong-Kong 110.0

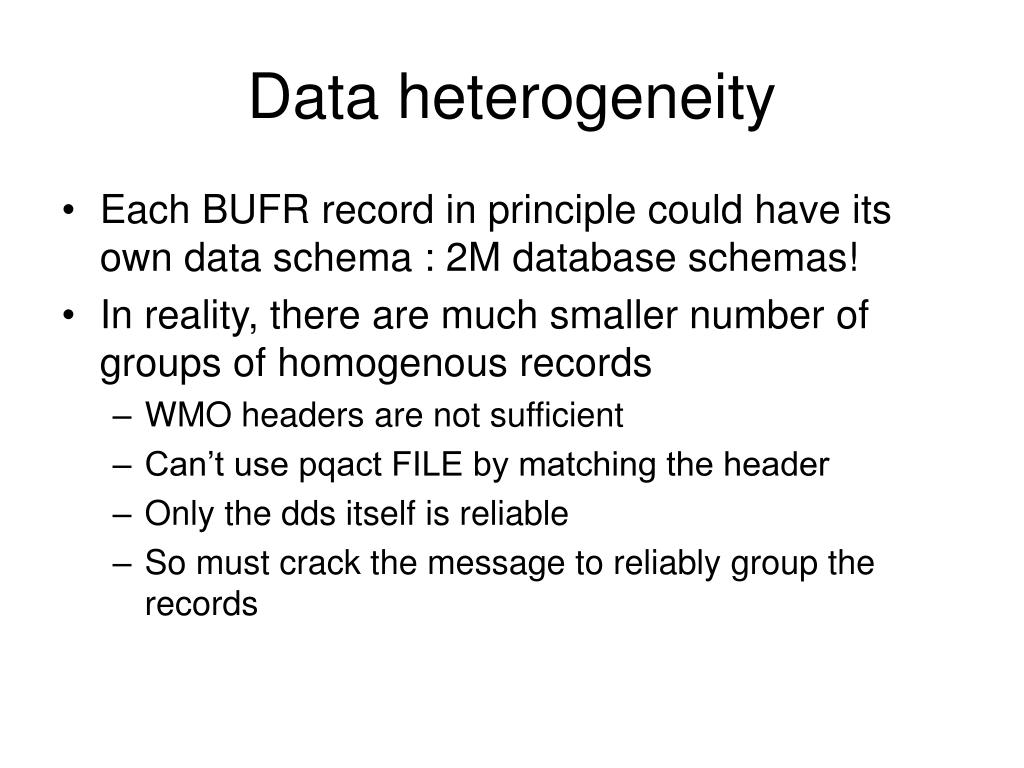

data heterogeneity
Data heterogeneity
  • Each BUFR record in principle could have its own data schema : 2M database schemas!
  • In reality, there are much smaller number of groups of homogenous records
    • WMO headers are not sufficient
    • Can’t use pqact FILE by matching the header
    • Only the dds itself is reliable
    • So must crack the message to reliably group the records
overview15
Overview
  • Get messages from LDM pipe
  • Process in memory, write out to disk
  • Must be very fast, no blocking I/O
  • Use java.util.concurrent library for multithreading

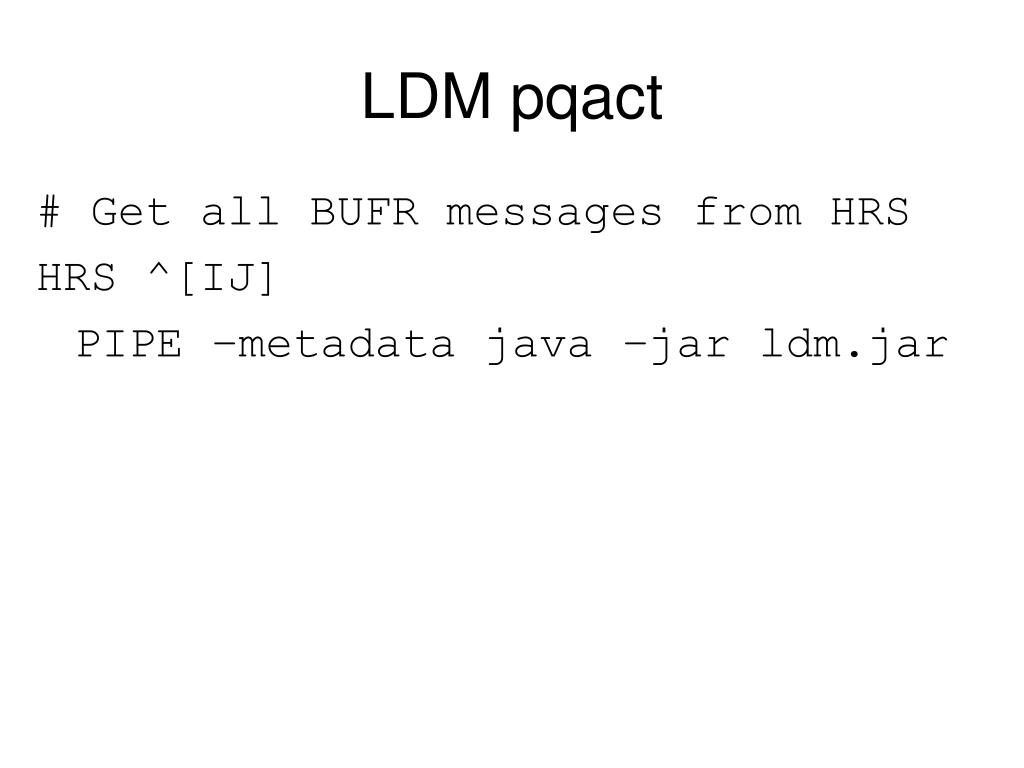

ldm pqact
LDM pqact

# Get all BUFR messages from HRS

HRS ^[IJ]

PIPE –metadata java –jar ldm.jar

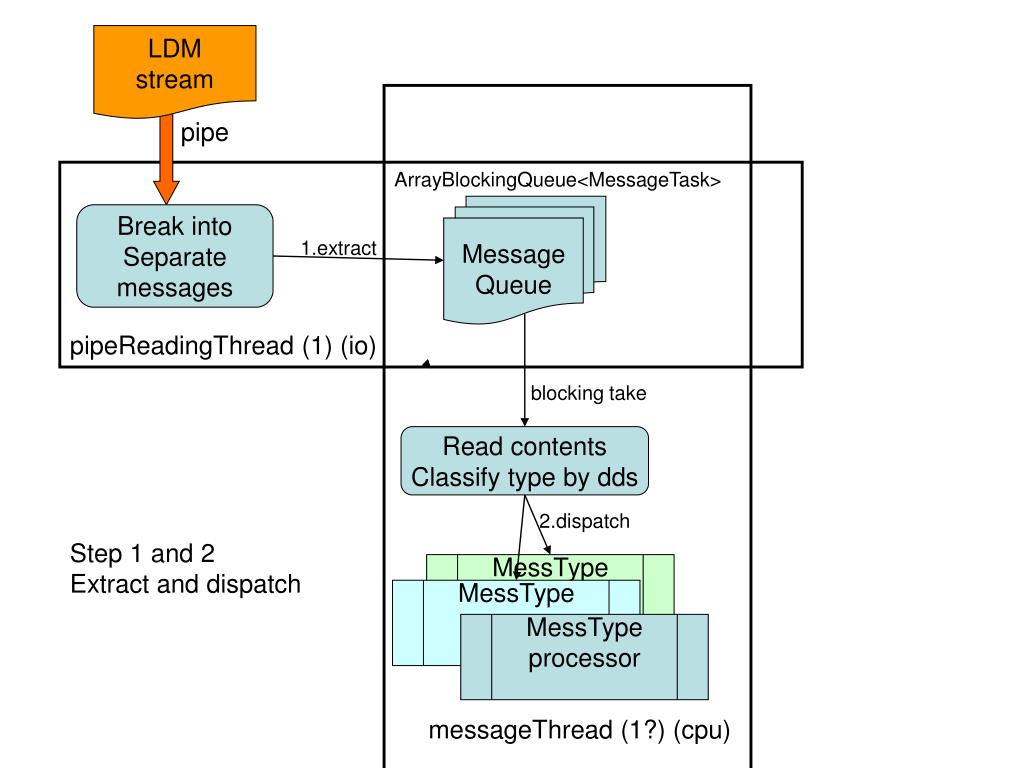

slide17

LDM

stream

pipe

ArrayBlockingQueue<MessageTask>

Message

Queue

Break into

Separate

messages

1.extract

pipeReadingThread (1) (io)

blocking take

Read contents

Classify type by dds

2.dispatch

Step 1 and 2

Extract and dispatch

MessType

processor

MessType

processor

MessType

processor

messageThread (1?) (cpu)

slide18

dispatch

MessType

processor

Step 3

Write message

dispatch

MessageWriter

implements Callable<Result>

ConcurrentLinkedQueue<Message>

Owns file eg 2008-09-11.bufr

submit

MessageWriter

implements Callable<Result>

Result call() {

write message(s)

}

Executor

CompletionService<Result>

3.write

messageThread (1) (cpu)

threadPool (n) (io)

slide19

MessageWriter

implements Callable<IndexerTask>

IndexTask call() {

write message(s)

}

Step 4

Index

Write message

Return IndexerTask

Executor

Queue<Future<IndexerTask>>

Add to Index

blocking take

indexThread (1?) (io)

slide20

dispatch

Step 5

cleanup

MessType

processor

dispatch

Close files

Concurrent hashMap ?

MessageWriter

implements Callable<Result>

ConcurrentLinkedQueue<Message>

Owns file 2008-09-11.bufr

cleanupThread (1) (io)

submit

Executor

CompletionService<Result>

messageThread (1) (cpu)

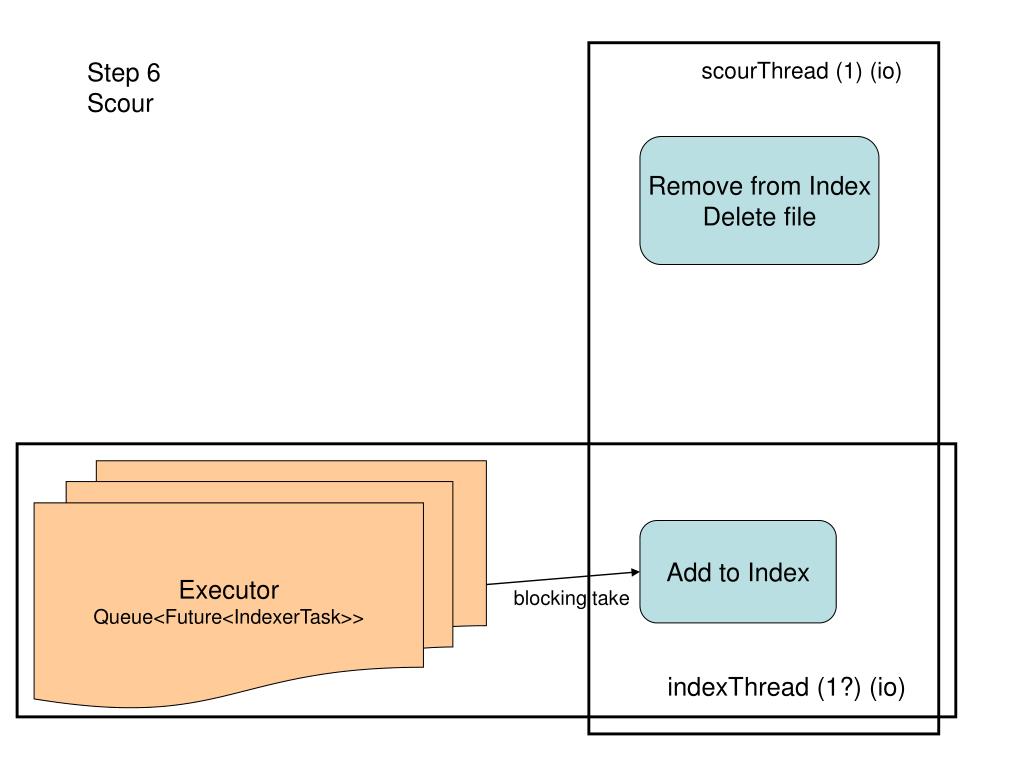

slide21

Step 6

Scour

scourThread (1) (io)

Remove from Index

Delete file

Executor

Queue<Future<IndexerTask>>

Add to Index

blocking take

indexThread (1?) (io)

why isnt scouring part of ldm
Why isnt Scouring part of LDM?
  • LDM is message oriented – doesn’t know contents
  • Decoders know about the contents of the messages
  • Put scouring into the decoders

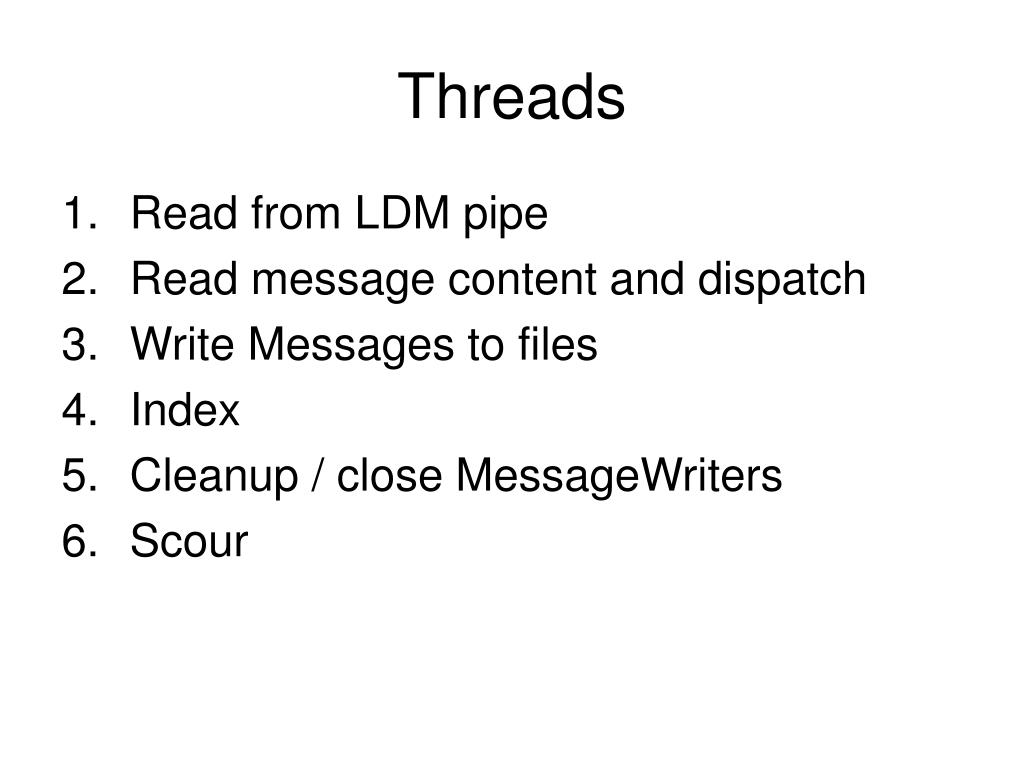

threads
Threads
  • Read from LDM pipe
  • Read message content and dispatch
  • Write Messages to files
  • Index
  • Cleanup / close MessageWriters
  • Scour

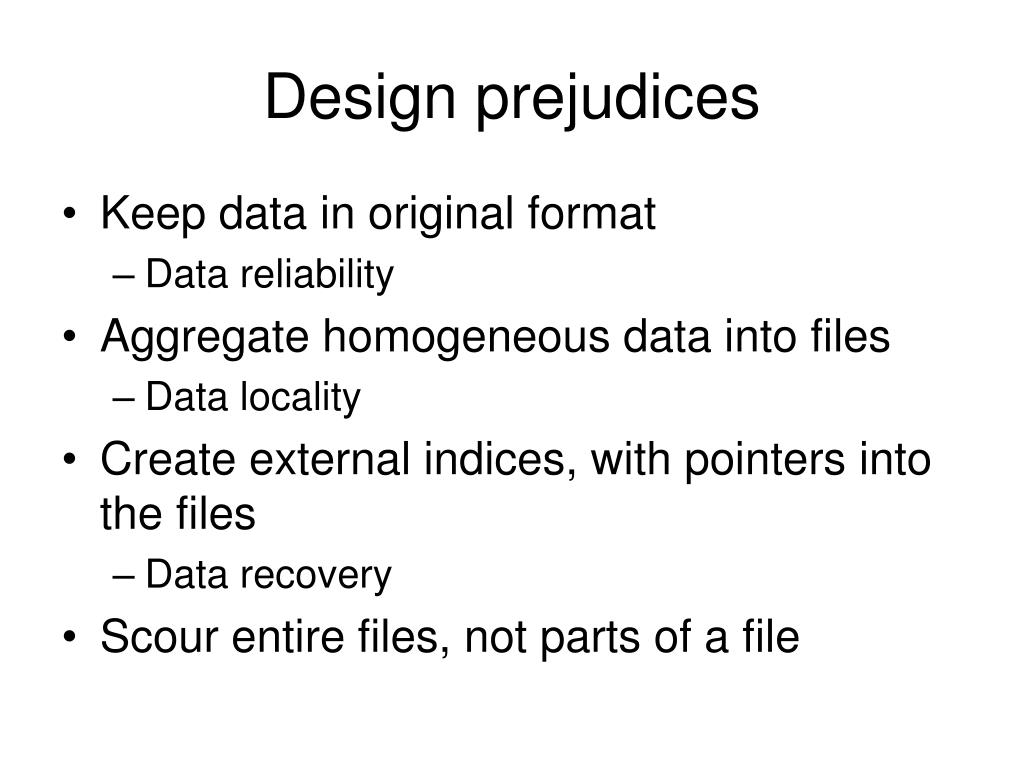

design prejudices
Design prejudices
  • Keep data in original format
    • Data reliability
  • Aggregate homogeneous data into files
    • Data locality
  • Create external indices, with pointers into the files
    • Data recovery
  • Scour entire files, not parts of a file
indexing
Indexing
  • Need 1D indexes (B-trees)
  • Want 2D indices for spatial data
    • Rtree (areas)
    • Quadtree (points)
  • Index selectivity: seek vs. scan
    • Sequential access ~100x faster than random access
    • Index must select < 1% data to be useful
possible open source indexers
Possible Open Source Indexers
  • Berkeley DB Java edition
    • Btree, very fast, no SQL
    • Dual GPL/commercial license
  • Relational databases “SQL on Btrees”
    • Java (Derby, H2, many others)
    • C (MySQL, Postgres)
  • Object databases
    • Db4o (dual GPL/commercial license)

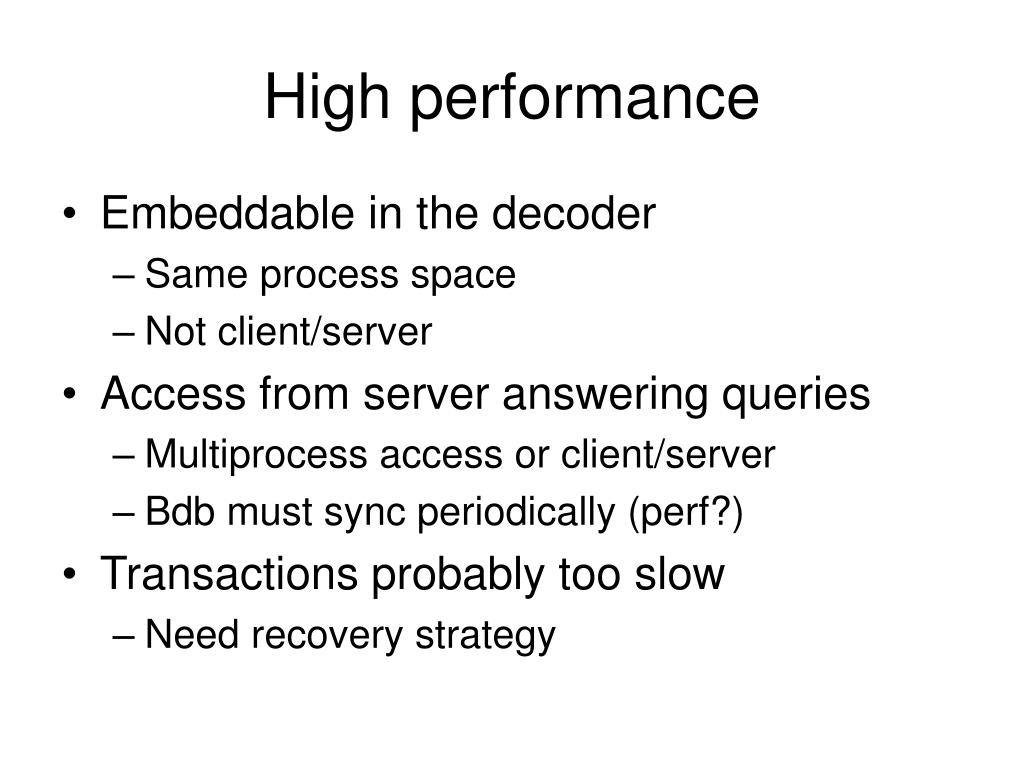

high performance
High performance
  • Embeddable in the decoder
    • Same process space
    • Not client/server
  • Access from server answering queries
    • Multiprocess access or client/server
    • Bdb must sync periodically (perf?)
  • Transactions probably too slow
    • Need recovery strategy

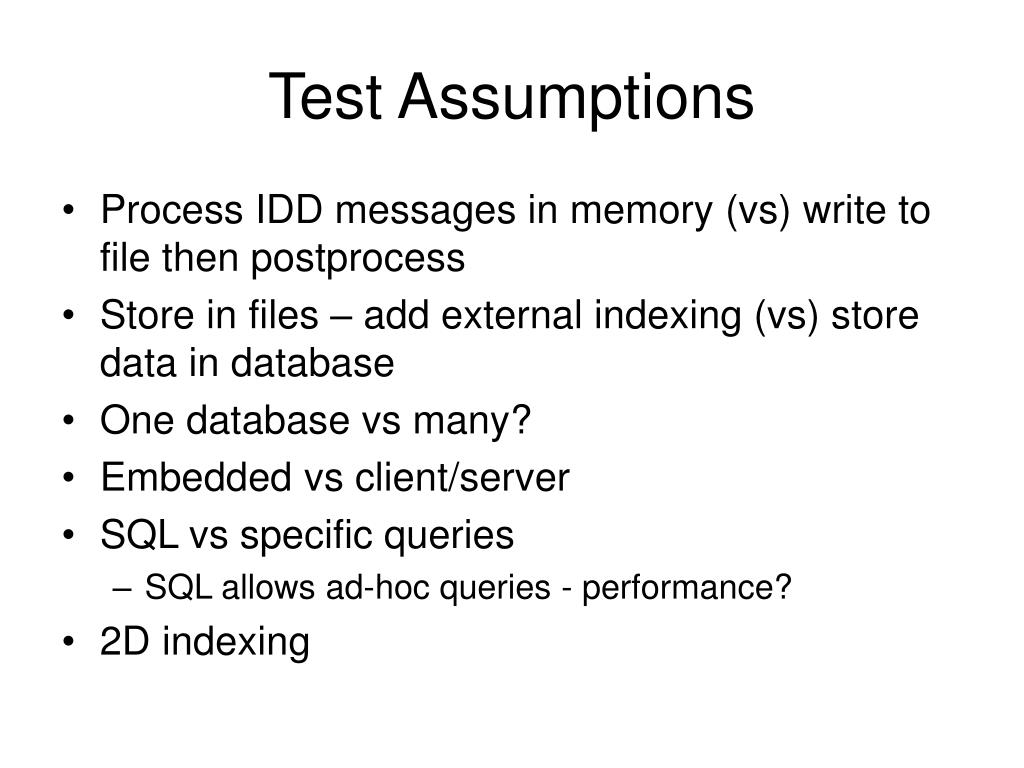

test assumptions
Test Assumptions
  • Process IDD messages in memory (vs) write to file then postprocess
  • Store in files – add external indexing (vs) store data in database
  • One database vs many?
  • Embedded vs client/server
  • SQL vs specific queries
    • SQL allows ad-hoc queries - performance?
  • 2D indexing
conclusions
Conclusions
  • Test/time various indexing strategies and technologies
    • Production
    • scouring
  • Eventually part of IDD/TDS
    • Must be easy to maintain (Java)
    • Scale to large archives / data volumes
