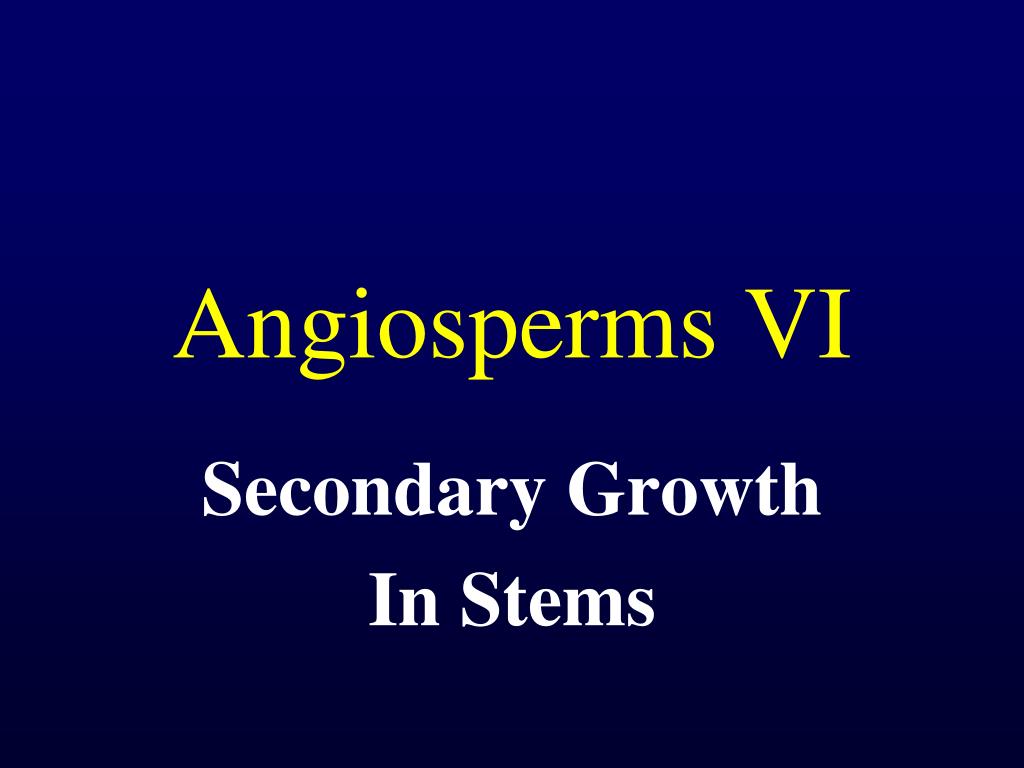

  1. Angiosperms VI Secondary Growth In Stems

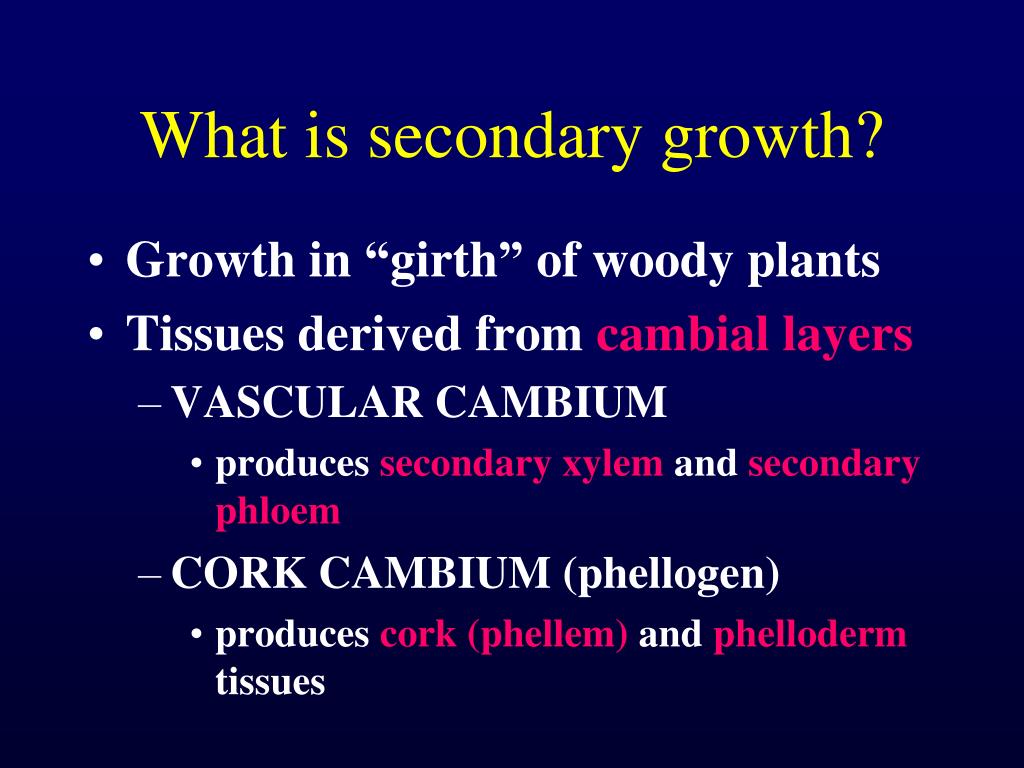

  2. What is secondary growth? • Growth in “girth” of woody plants • Tissues derived from cambial layers • VASCULAR CAMBIUM • produces secondary xylem and secondary phloem • CORK CAMBIUM (phellogen) • produces cork (phellem) and phelloderm tissues

  3. Typical Woody Eudicot Stem (overview) • Periderm or “bark” • Vascular cambium • Secondary xylem • Pith

  4. Woody Eudicot Stem

  5. Typical Woody Eudicot Stem(detail) • Secondary xylem • Vascular cambium • Rays • Secondary phloem (including phloem fibers) • Cortex

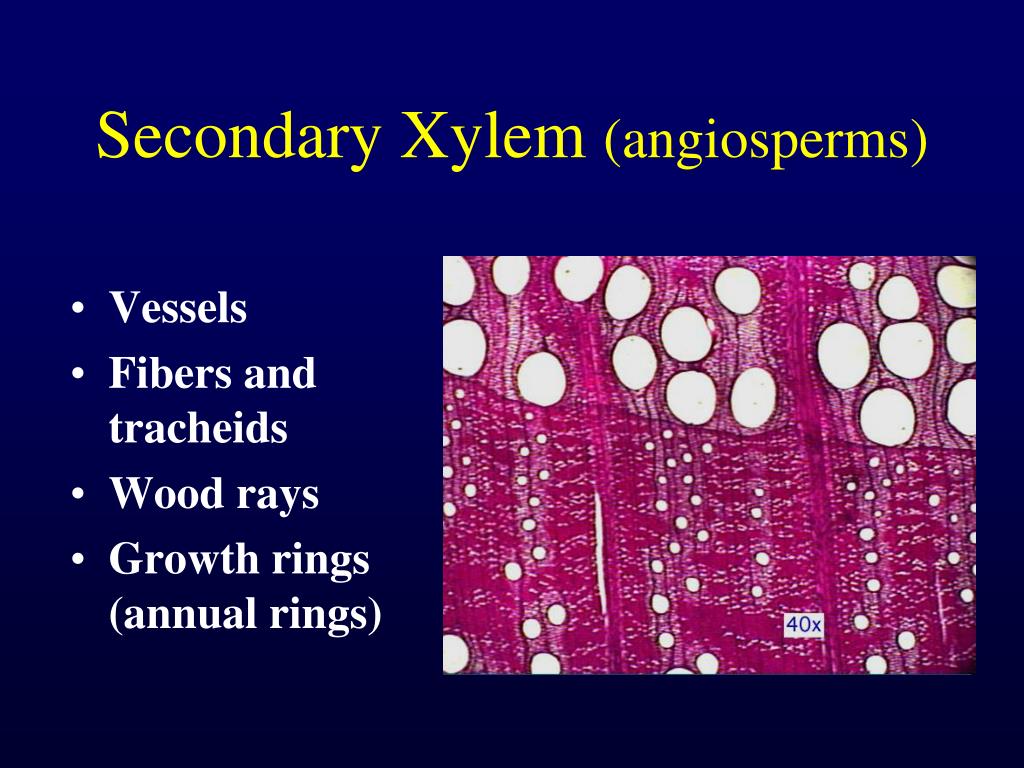

  6. Secondary Xylem (angiosperms) • Vessels • Fibers and tracheids • Wood rays • Growth rings (annual rings)

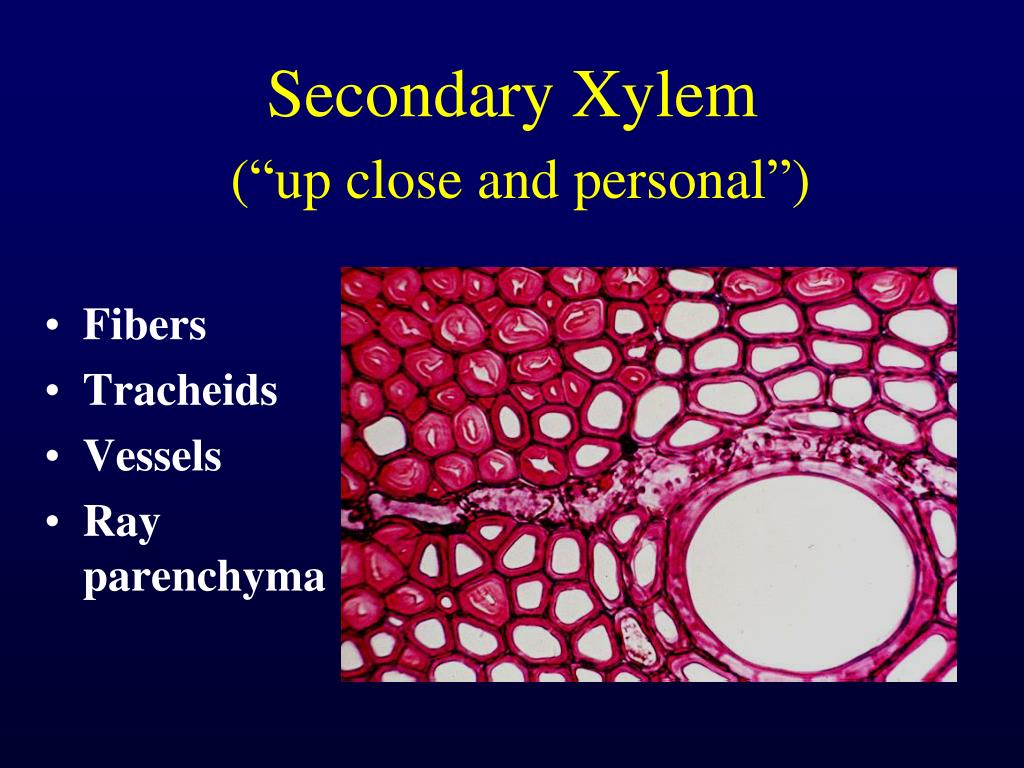

  7. Secondary Xylem(“up close and personal”) • Fibers • Tracheids • Vessels • Ray parenchyma

  8. “Growth Rings” • Spring (Early) Wood • first cells produced by the vascular cambium • large cells (good growing conditions) • Summer (Late) Wood • smaller cells produced toward the end of the growing season • poor conditions (cooler, drier) • Radical change in cell size allows for recognition of annual “growth rings”

  9. Bristlecone Pine(oldest of tree species in North America) 4900 + years old

  10. Oak Wood in Section Note: thick, multiseriate wood rays

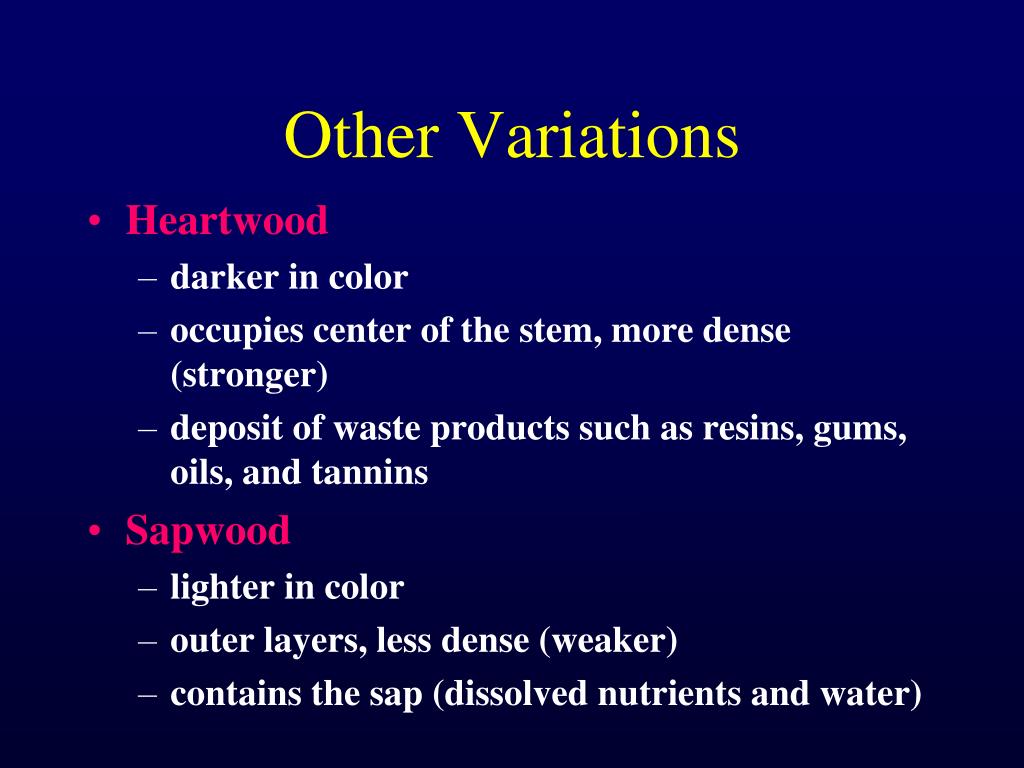

  11. Other Variations • Heartwood • darker in color • occupies center of the stem, more dense (stronger) • deposit of waste products such as resins, gums, oils, and tannins • Sapwood • lighter in color • outer layers, less dense (weaker) • contains the sap (dissolved nutrients and water)

  12. Woody Stem and Periderm sapwood heartwood

  13. Woody Twigs • Terminal bud with bud scales • Axillary buds • Lenticels • Leaf scar

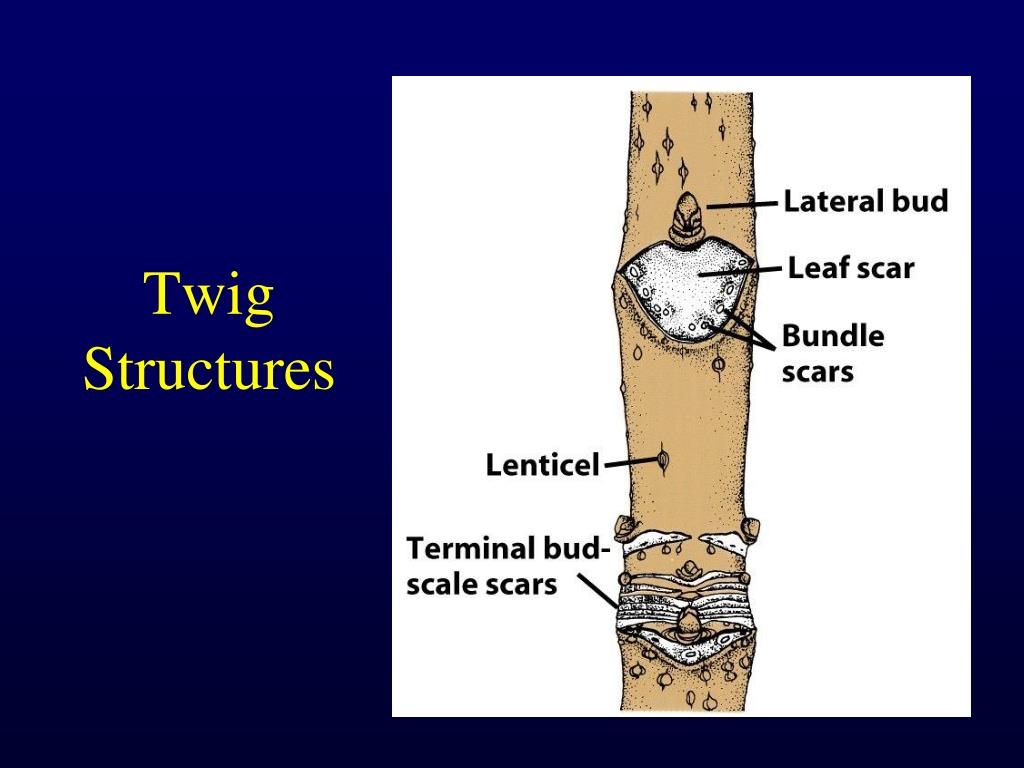

  14. Twig Structures

  15. Lenticels • Pores in the cork layers which allow for gas exchange in the periderm

  16. Uses of Secondary Growth • Wood Products • Various uses based on the density of the wood (often in lbs./cubic foot) • Furniture, baseball bats, plywood, pulp products, musical instruments, particle board, artistic pieces, fuel • Other Products • rope, cinnamon, dyes, drugs (quinine), charcoal, cork, maple syrup

  17. CorkHarvesting

  18. Making MapleSyrup 30-50 gallons of sap to make 1 gallon of syrup
