    1. Chapter 13, part B Viruses, Viroids, and Prions

    2. Attachment, Penetration, and Uncoating Figure 13.14

    3. Release of an enveloped virus by budding Figure 13.20

    4. Multiplication of DNA Virus Papovavirus 1 Virion attaches to host cell 7 Virions are released Host cell DNA Capsid 2 DNA Virion penetrates cell and its DNA is uncoated Cytoplasm 6 Virions mature Capsid proteins mRNA 5 Late translation; capsid proteins are synthesized 3 Early transcription and translation; enzymes are synthesized 4 Late transcription; DNA is replicated Figure 13.15

    5. Pathways of Multiplication for RNA-Containing Viruses Figure 13.17

    6. Cancer • Activated oncogenes transform normal cells into cancerous cells. • Transformed cells have increased growth, loss of contact inhibition, tumor specific transplant and T antigens. • The genetic material of oncogenic viruses becomes integrated into the host cell's DNA.

    7. Oncogenic Viruses • Oncogenic RNA viruses • Retroviridae • Viral RNA is transcribed to DNA which can integrate into host DNA • HTLV 1 • HTLV 2 • Oncogenic DNA Viruses • Adenoviridae • Heresviridae • Poxviridae • Papovaviridae • Hepadnaviridae

    8. Latent Viral Infections • Virus remains in asymptomatic host cell for long periods • Cold sores, shingles • Persistent Viral Infections • Disease processes occurs over a long period, generally fatal • Subacute sclerosing panencephalitis (measles virus)

    9. Prions • Infectious proteins • Inherited and transmissible by ingestion, transplant, & surgical instruments • Spongiform encephalopathies: Sheep scrapie, Creutzfeldt-Jakob disease, Gerstmann-Sträussler-Scheinker syndrome, fatal familial insomnia, mad cow disease • PrPC, normal cellular prion protein, on cell surface • PrPSc, scrapie protein, accumulate in brain cells forming plaques

    10. Prions PrPSc PrPc 2 3 4 1 Lysosome Endosome 5 6 7 8 Figure 13.21

    11. Plant Viruses • Plant viruses enter through wounds or via insects • Viroids • Viroids are infectious RNA; potato spindle tuber disease Figure 13.22

    12. Some Plant Viruses Table 13.6

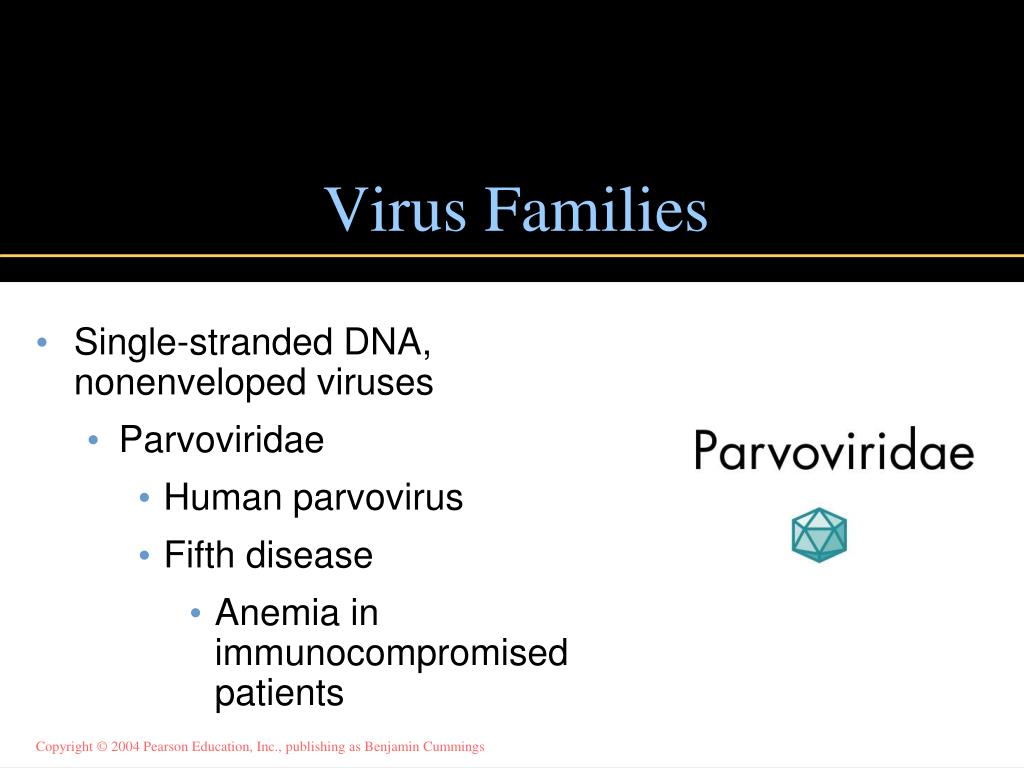

    13. Virus Families • Single-stranded DNA, nonenveloped viruses • Parvoviridae • Human parvovirus • Fifth disease • Anemia in immunocompromised patients

    14. Double-stranded DNA, nonenveloped viruses • Mastadenovirus • Respiratory infections in humans • Tumors in animals

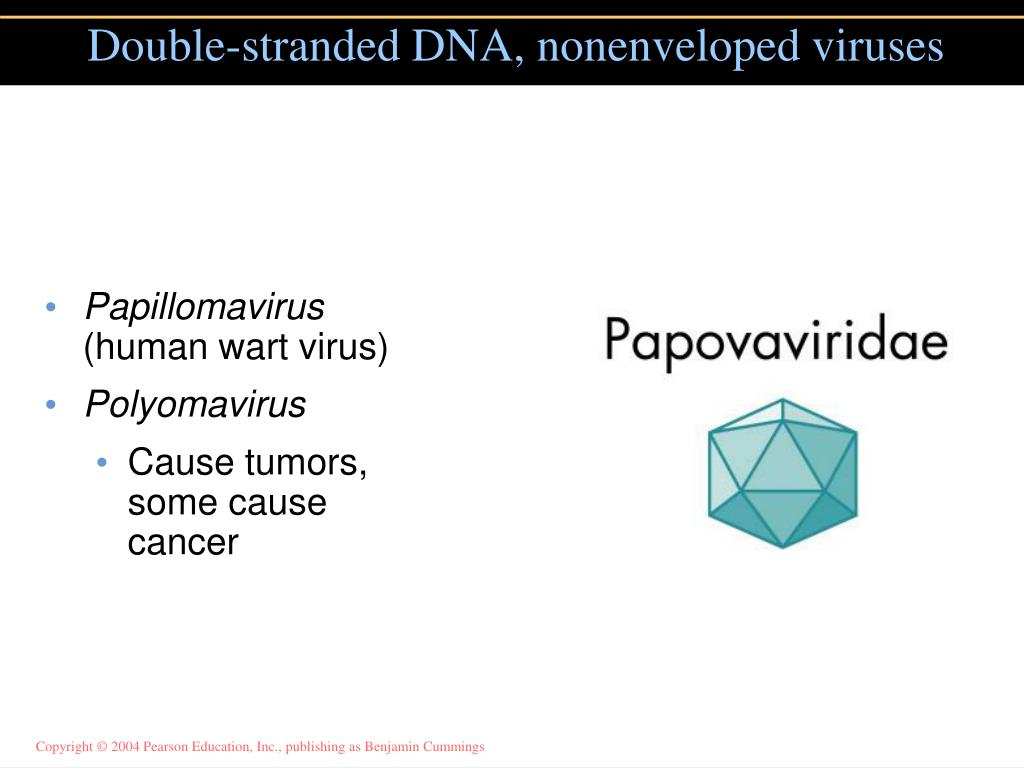

    15. Double-stranded DNA, nonenveloped viruses • Papillomavirus (human wart virus) • Polyomavirus • Cause tumors, some cause cancer

    16. Double-stranded DNA, nonenveloped viruses • Orthopoxvirus (vaccinia and smallpox viruses) • Molluscipoxvirus • Smallpox, molluscum contagiosum, cowpox

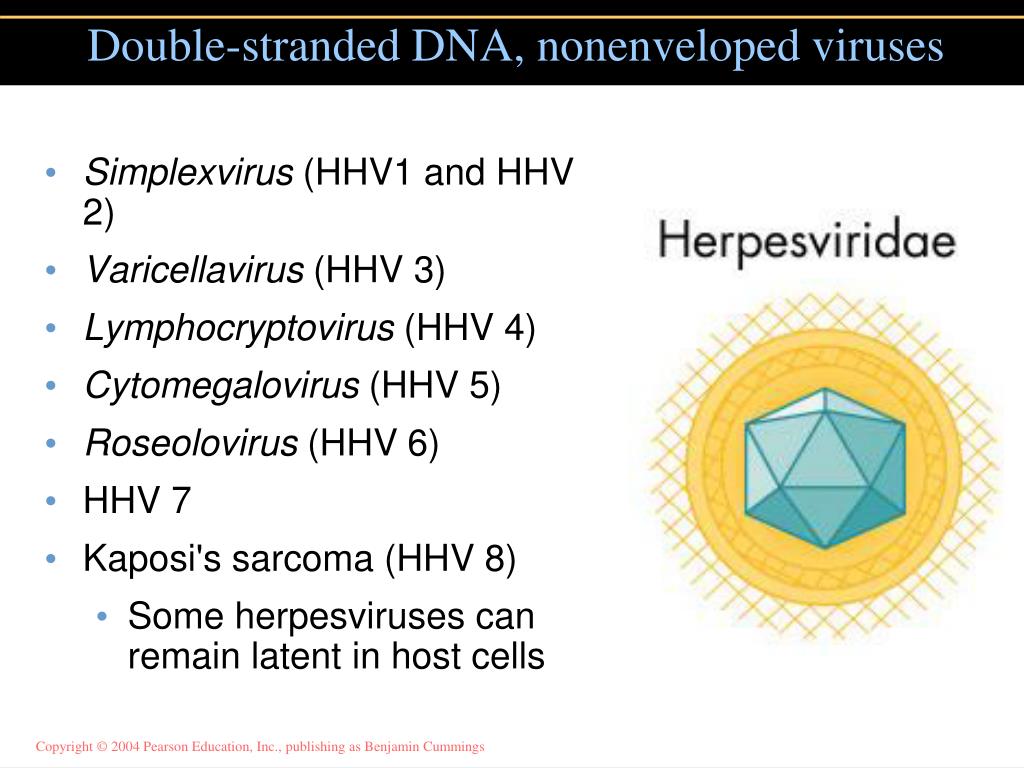

    17. Double-stranded DNA, nonenveloped viruses • Simplexvirus (HHV1 and HHV 2) • Varicellavirus (HHV 3) • Lymphocryptovirus (HHV 4) • Cytomegalovirus (HHV 5) • Roseolovirus (HHV 6) • HHV 7 • Kaposi's sarcoma (HHV 8) • Some herpesviruses can remain latent in host cells

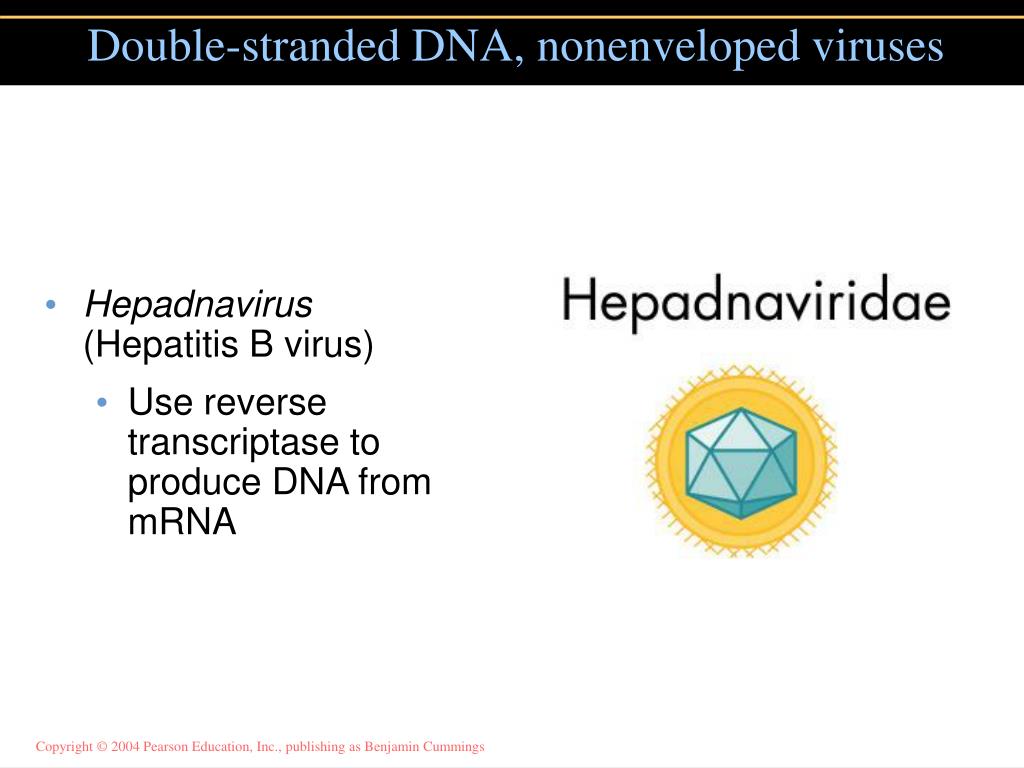

    18. Double-stranded DNA, nonenveloped viruses • Hepadnavirus (Hepatitis B virus) • Use reverse transcriptase to produce DNA from mRNA

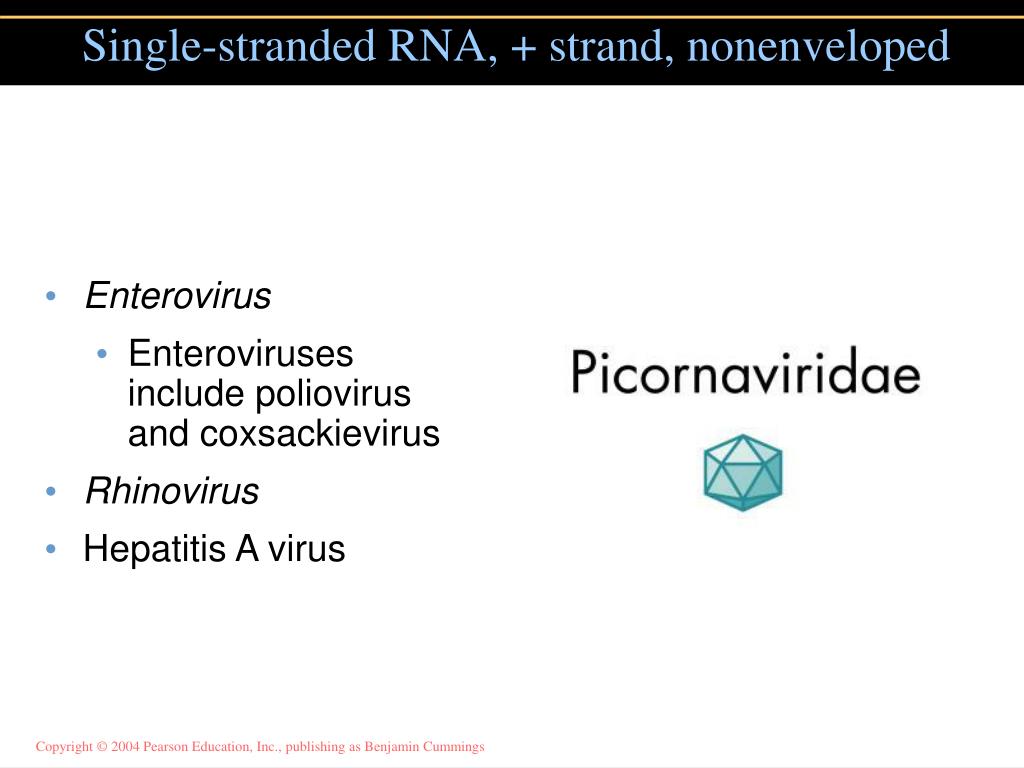

    19. Single-stranded RNA, + strand, nonenveloped • Enterovirus • Enteroviruses include poliovirus and coxsackievirus • Rhinovirus • Hepatitis A virus

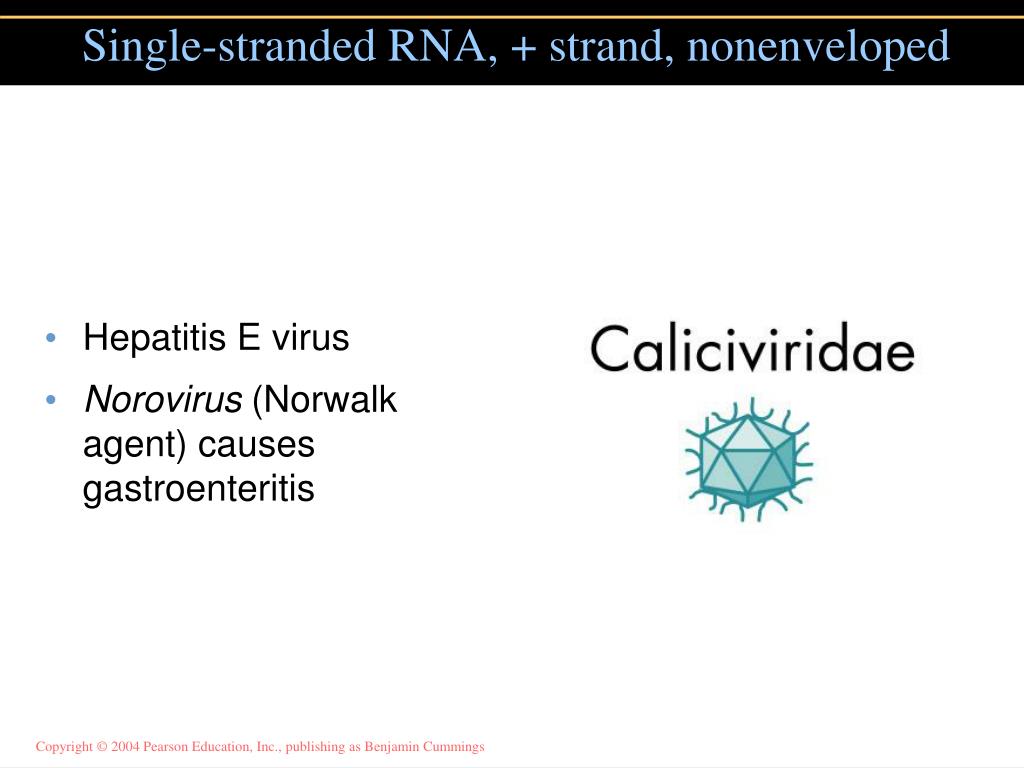

    20. Single-stranded RNA, + strand, nonenveloped • Hepatitis E virus • Norovirus (Norwalk agent) causes gastroenteritis

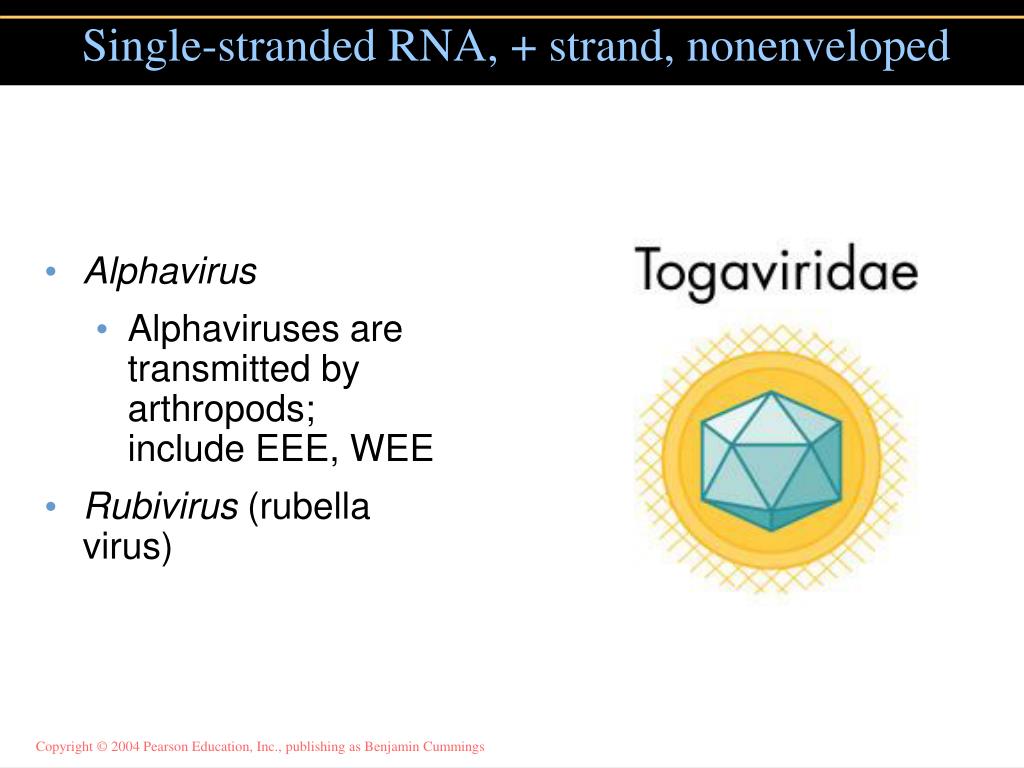

    21. Single-stranded RNA, + strand, nonenveloped • Alphavirus • Alphaviruses are transmitted by arthropods; include EEE, WEE • Rubivirus (rubella virus)

    22. Single-stranded RNA, + strand, nonenveloped • Arbovirusescan replicate in arthropods; include yellow fever, dengue, SLE, and West Nile viruses • Hepatitis C virus

    23. Single-stranded RNA, + strand, nonenveloped • Coronavirus • Upper respiratory infections

    24. Single-stranded RNA, – strand, one RNA strand • Vesiculovirus • Lyssavirus (rabies virus) • Cause numerous animal diseases

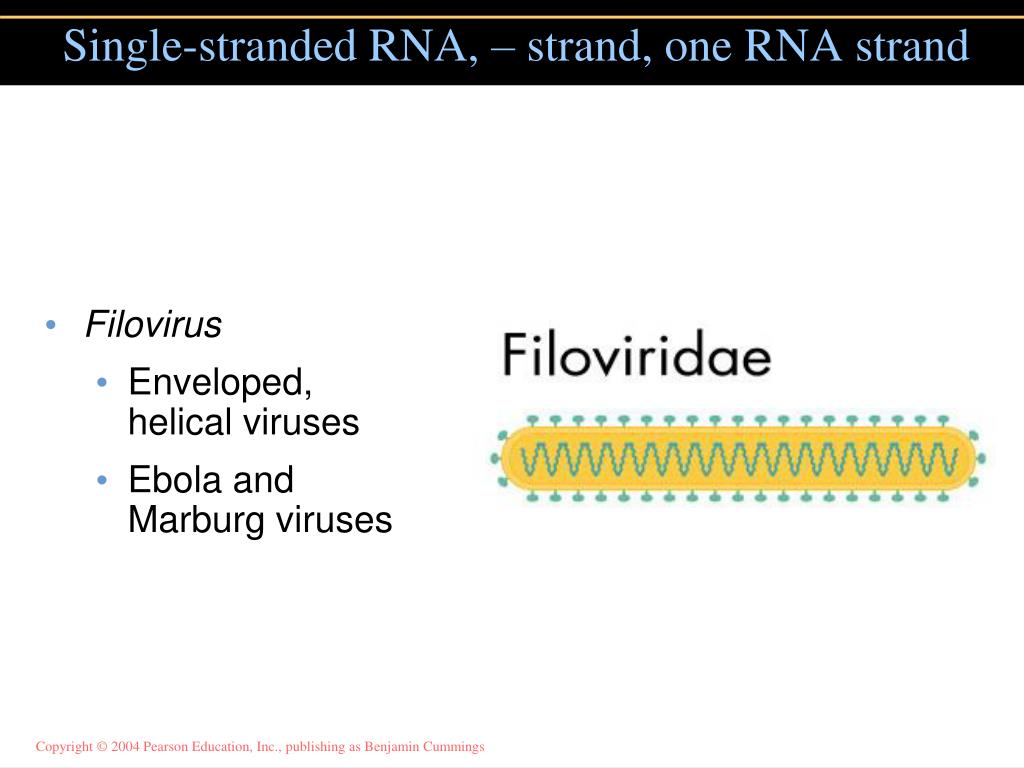

    25. Single-stranded RNA, – strand, one RNA strand • Filovirus • Enveloped, helical viruses • Ebola and Marburg viruses

    26. Single-stranded RNA, – strand, one RNA strand • Paramyxovirus • Morbillivirus • Paramyxovirus causes parainfluenza, mumps and Newcastle disease

    27. Single-stranded RNA, – strand, one RNA strand • Hepatitis D virus • Depends on coinfection with Hepadnavirus

    28. Single-stranded RNA, – strand, multiple RNA strands • Influenzavirus (Influenza viruses A and B) • Influenza C virus • Envelope spikes can agglutinate RBCs

    29. Single-stranded RNA, – strand, multiple RNA strands • Bunyavirus (CE virus) • Hantavirus

    30. Single-stranded RNA, – strand, multiple RNA strands • Arenavirus • Helical capsids contain RNA-containing granules • Lymphocytic choriomeningitis • VEE and Lassa Fever

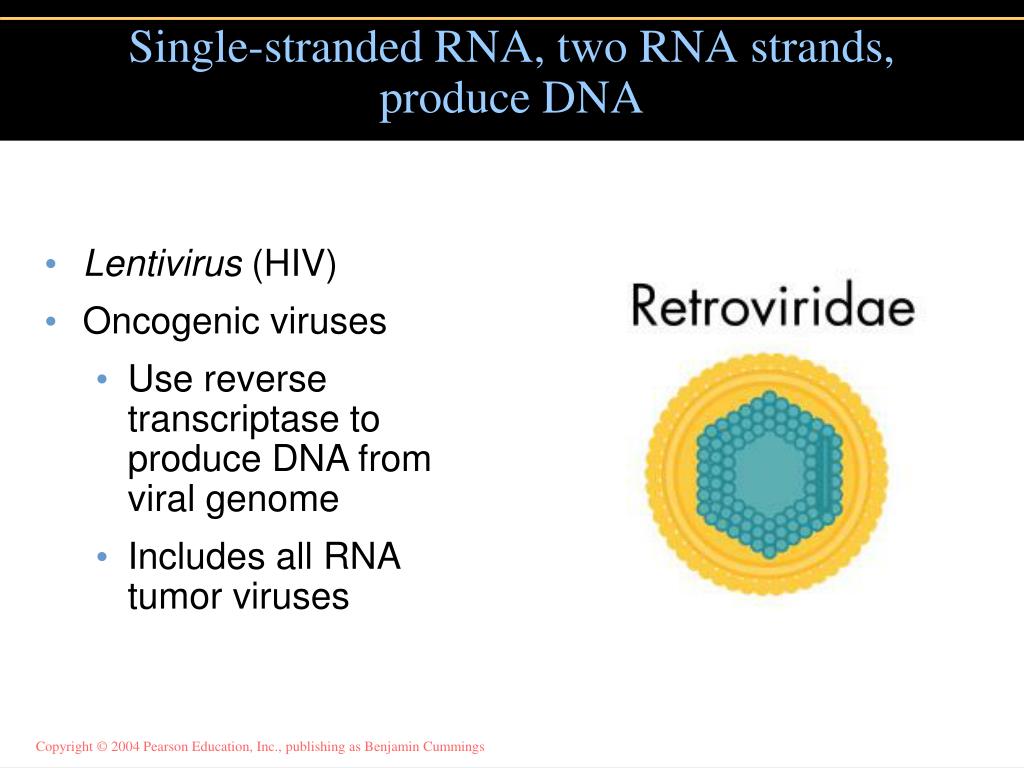

    31. Single-stranded RNA, two RNA strands, produce DNA • Lentivirus (HIV) • Oncogenic viruses • Use reverse transcriptase to produce DNA from viral genome • Includes all RNA tumor viruses

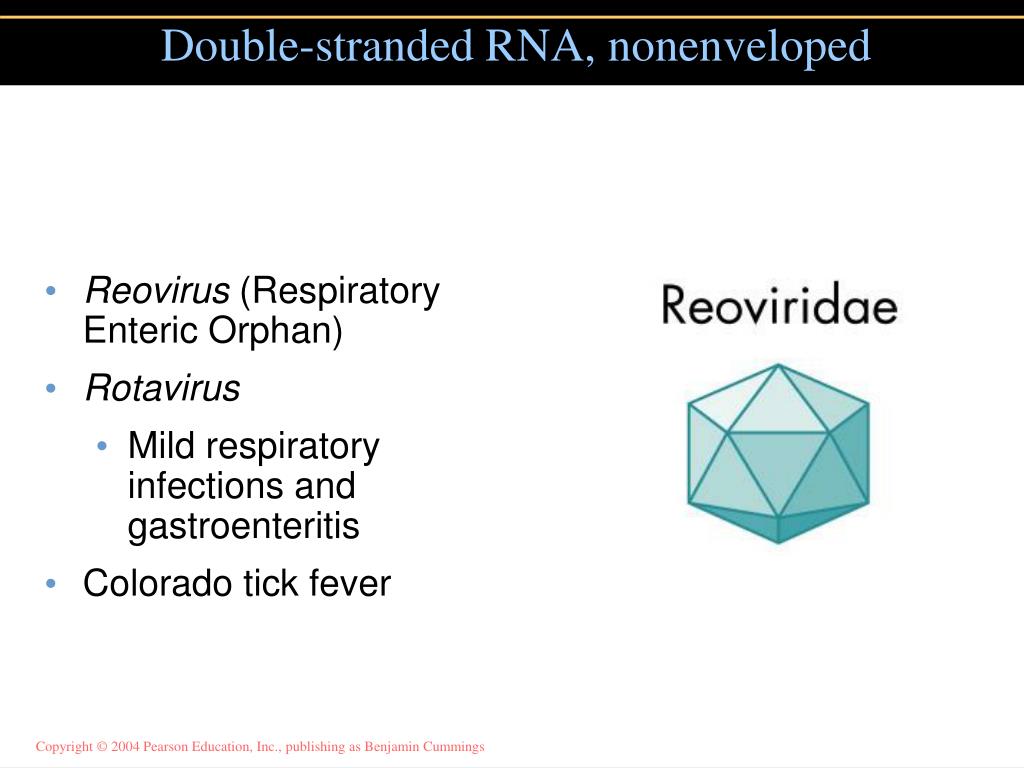

    32. Double-stranded RNA, nonenveloped • Reovirus (Respiratory Enteric Orphan) • Rotavirus • Mild respiratory infections and gastroenteritis • Colorado tick fever
