VR48 CNC Router and Engraver System

The VR48 CNC Router and Engraver is the best heavy-duty 4x8 CNC router that can produce accurate, repeatable, cost-effective work in considerably less time than it takes to do the same work by hand. Featuring our state-of-the-art Vision Series 5 Controller with V-Touch Pendant and our graphically advanced Vision software, this machine is perfect for a wide variety of applications including milling, drilling, contouring, and routing..https://www.signvec.com/product_details_new.php?product=vr48-s5-router

signvecpteltd
Download Presentation

VR48 CNC Router and Engraver System

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

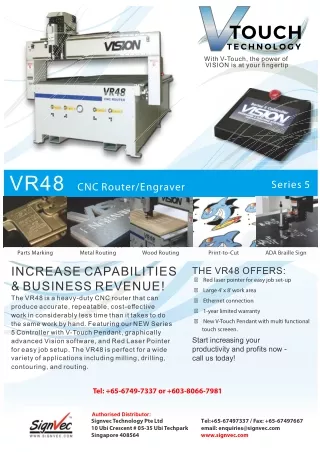

  1. With V-Touch, the power of VISION is at your fingertip VR48 Series 5 CNC Router/Engraver Parts Marking Metal Routing Wood Routing Print-to-Cut ADA Braille Sign g INCREASE CAPABILITIES & BUSINESS REVENUE! The VR48 is a heavy-duty CNC router that can produce accurate, repeatable, cost-effective work in considerably less time than it takes to do the same work by hand. Featuring our NEW Series 5 Controller with V-Touch Pendant, graphically advanced Vision software, and Red Laser Pointer for easy job setup. The VR48 is perfect for a wide variety of applications including milling, drilling, contouring, and routing. THE VR48 OFFERS:   Red laser pointer for easy job set-up   Large 4’ x 8’ work area   Ethernet connection   1-year limited warranty   New V-Touch Pendant with multi functional touch screeen. Start increasing your productivity and prof its now - call us today! Tel: +65-6749-7337 or 60 - + 3 8066 7981 - Authorised Distributor: Signvec Technology Pte Ltd 10 Ubi Crescent # 05-35 Ubi Techpark Singapore 408564 T l: e +65-67497337 / Fax: +65-67497667 email: enquiries@signvec.com www. .com signvec

  2. VR48 CNC Router/Engraver WHY CHOOSE VISION?   Leading worldwide manufacturer of engravers and routers   Made in the USA since 1983   High-quality, reliable products   Dedicated technical support VR48 CNC ROUTER/ENGRAVER SPECIFICATIONS CHART Software Vision Express (Expert or PRO optional) Maximum Work Area 56” x 101” Maximum Work Piece Size 30.5”(L) x Any Width x 10”(H) Z-Axis Stroke 12” Table Resolution .0005” Spindle Type 3 HP Router Motor (5 HP Optional) Table Type Aluminum T-slot or optional vacuum table Interface Ethernet Contoller Series 5 High Speed-Controller With V-Touch Pendant Warranty 1-Year Limited Power Requirements T-Slot version: 220 volts, 50 amps, single phase Physical Dimensions 81”(W) x 129”(D) x 72”(H) - 2,500 lbs Shipping Dimensions 135”(W) x 70”(D) x 75”(H) - 2,500 lbs / Automatic Braille Inserter, DACS (Digitally Aligned Cutting System), 5 HP High Frequency Router Motor, 50,000 RPM Spindle, Oscillating Knife Additional Options Authorised Distributor: Signvec Technology (M) Sdn Bhd 52 Jalan Puteri 5/16, Bandar Puteri 47100 Puchong, Selangor, Malaysia T l: e +603- 0667981 email: enquiries@signvec.com www. .com signvec 8
