  1. WatchdogConfident Event Detection in Heterogeneous Sensor Networks Matthew Keally1, Gang Zhou1, Guoliang Xing2 1College of William and Mary, 2Michigan State University

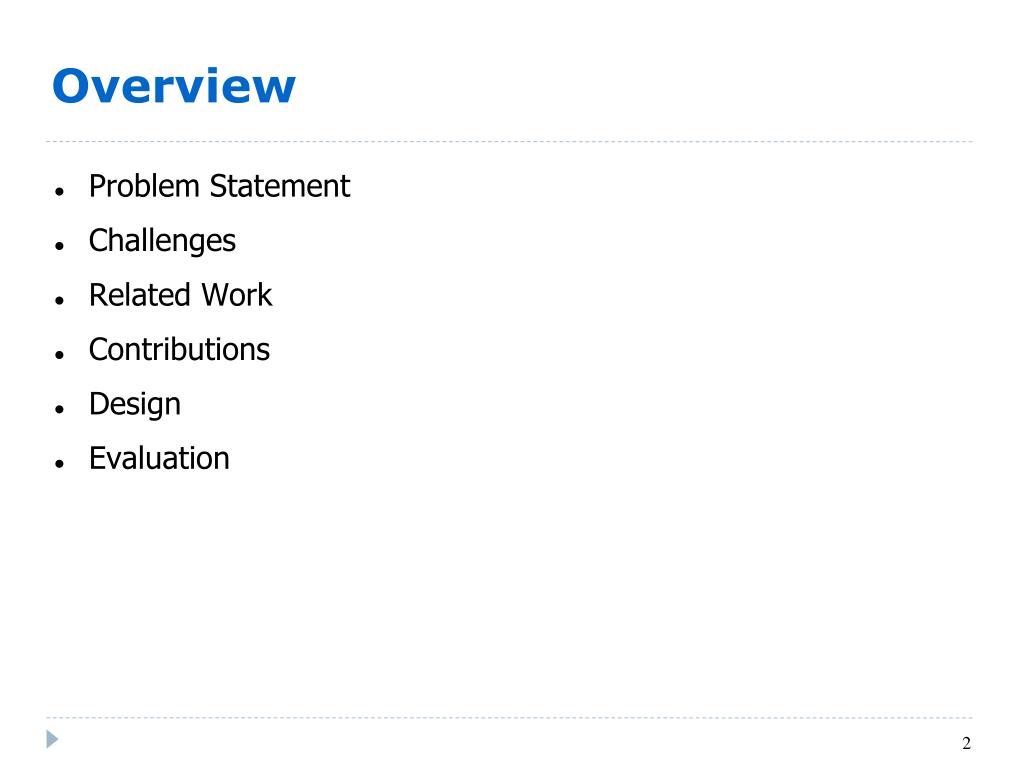

  2. Overview • Problem Statement • Challenges • Related Work • Contributions • Design • Evaluation

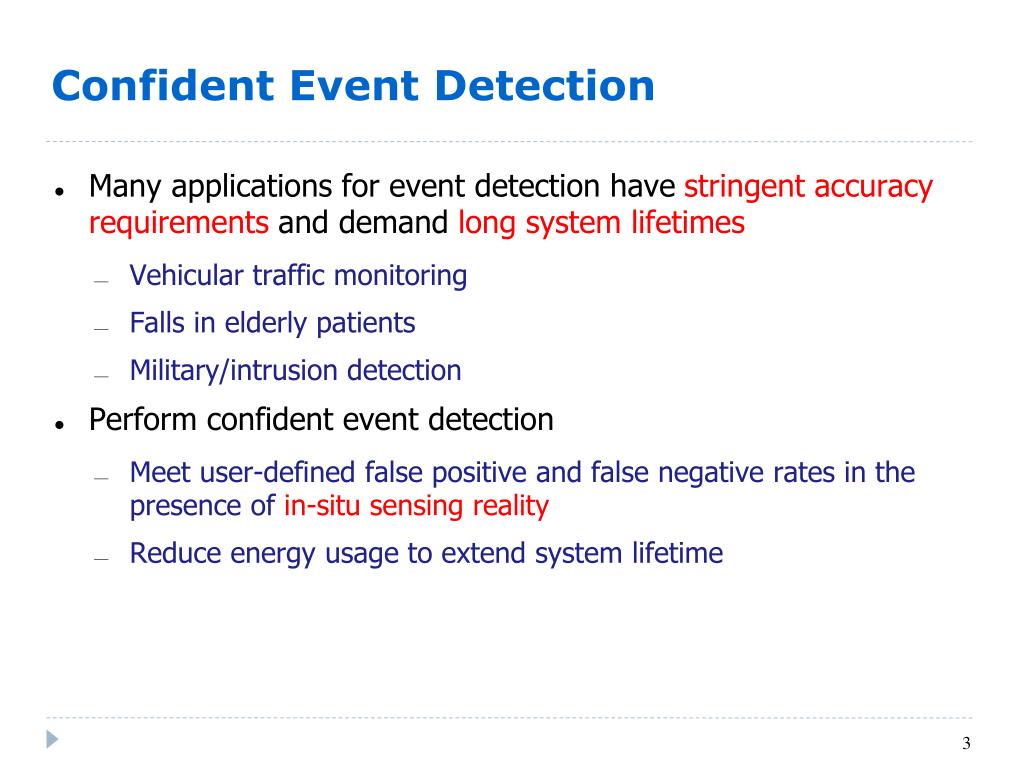

  3. Confident Event Detection • Many applications for event detection have stringent accuracy requirements and demand long system lifetimes • Vehicular traffic monitoring • Falls in elderly patients • Military/intrusion detection • Perform confident event detection • Meet user-defined false positive and false negative rates in the presence of in-situ sensing reality • Reduce energy usage to extend system lifetime

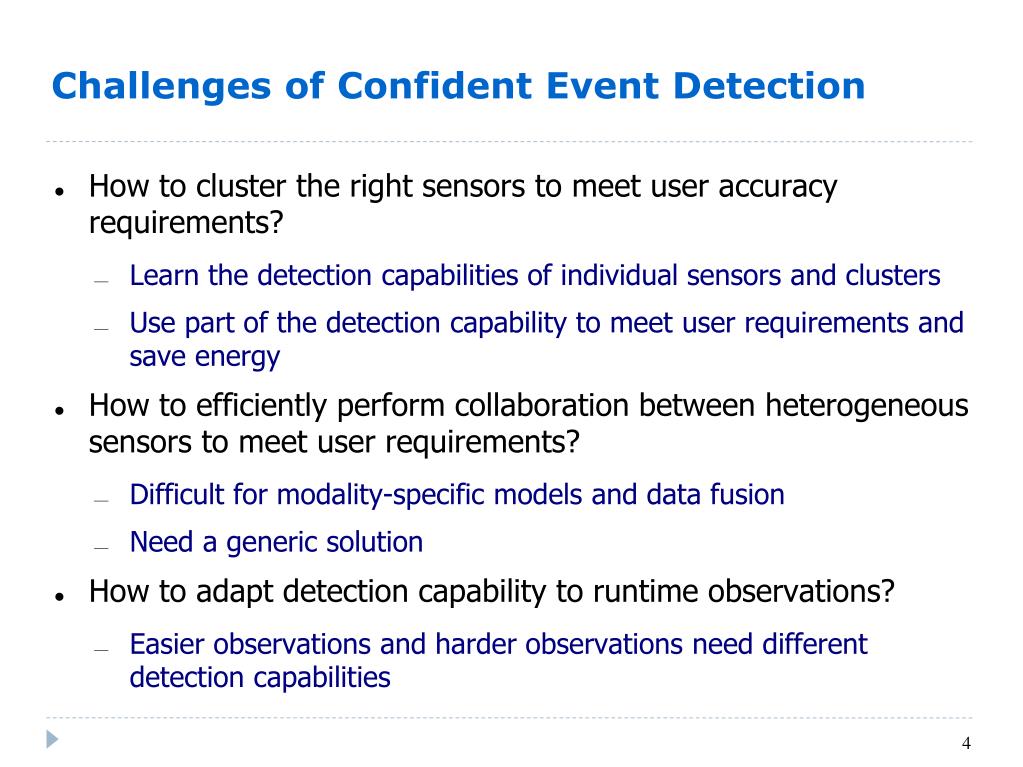

  4. Challenges of Confident Event Detection • How to cluster the right sensors to meet user accuracy requirements? • Learn the detection capabilities of individual sensors and clusters • Use part of the detection capability to meet user requirements and save energy • How to efficiently perform collaboration between heterogeneous sensors to meet user requirements? • Difficult for modality-specific models and data fusion • Need a generic solution • How to adapt detection capability to runtime observations? • Easier observations and harder observations need different detection capabilities

  5. Related Work • Sensing Coverage • Do not address user accuracy requirements • Do not explore detection capability of deployment • Modality-specific Sensing Models and Data Fusion • User requirements not met in reality • Difficult to perform heterogeneous sensor fusion • Do not cluster the right sensors to meet user requirements • Machine Learning • Do not address user accuracy requirements • Do not adapt sensing capability to runtime observations

  6. Motivation: Related Work Shortfalls • Vehicle Detection: sensing irregularity • Same distance, different accuracies • Accuracy can increase with distance • Sensing Coverage may overdetect or underdetect events • Theoretical sensing models assume all sensors are identical

  7. Motivation: Related Work Shortfalls • Different clusters (C1,C2,C3) have the same accuracy, 100%, better than individual sensors • Difficult to capture for existing works: Due to lack of knowledge of detection capability of different sensors and clusters

  8. Watchdog Contributions • A confident and energy efficient event detection framework • Choose the right sensors to meet user requirements • Generic framework that provides heterogeneous sensor fusion • Adapt detection capability to runtime observations • Easy observations: low-power sentinel sensors • Hard observations: higher-power reinforcement sensors • Performance evaluation: two scenarios • Monitor traffic entering and leaving computer science building • Vehicle detection using Wisconsin trace data • Compare against sensing coverage and signal attenuation model

  9. Node Aggregator Sensor Cluster Generation Local Aggregation Sentinel and ReinforcementSelection Request Reinforcement Data Training Results Runtime Event Detection Observations • Local Aggregation • Cluster Generation • Sentinel & Rein. Selection • Runtime Event Detection Watchdog Design Overview • Efficient heterogeneous collaboration • Explore detection capability of a deployment • Cluster the right sensors to meet user requirements • Adapt detection capability to runtime observations

  10. Local Aggregation • Cluster Generation • Sentinel & Rein. Selection • Runtime Event Detection Cluster Generation • Goal: determine detection capability of • Individual sensors and sensor clusters • A specific deployment • Method • Randomly generate up to M clusters for each cluster size • For each generated cluster • Step 1: Train a Hidden Markov Model for the cluster • HMM is good for heterogeneous sensor fusion • HMM captures time and space correlation of sensor data • Step 2: Determine cluster FP/FN based on the HMM decision and ground truth at each time interval

  11. Local Aggregation • Cluster Generation • Sentinel & Rein. Selection • Runtime Event Detection Step 2: Determine cluster FP/FN based on the HMM decision and ground truth • At each aggregation interval: • Determine event detection decision with trained HMM • Compare cluster detection decision with ground truth • Get the cluster FP/FN (accuracy) • Determine FP/FN for each possible event probability

  12. Local Aggregation • Cluster Generation • Sentinel & Rein. Selection • Runtime Event Detection Sentinel and Reinforcement Selection • Choose sentinel cluster: low detection capability • Meets user's FN requirement • Makes easy detection decisions • Choose reinforcement cluster: higher detection capability • Meets both FP and FN requirements • Used to make more difficult detection decisions • All other sensors go to sleep

  13. Local Aggregation • Cluster Generation • Sentinel & Rein. Selection • Runtime Event Detection Runtime Event Detection • Goal: adapt detection capability to runtime observations • Easier observations and harder observations need different detection capabilities • Method: • Sentinels and reinforcements form local observations at each aggregation interval • Sentinels report non-default observations to the aggregator to make detection decisions • Reinforcements requested when sentinel event probability false positive rate exceeds user requirements • Reinforcements return non-default observation data and aggregator makes a confident decision

  14. Local Aggregation • Cluster Generation • Sentinel & Rein. Selection • Runtime Event Detection Runtime Event Detection User requirements: u.FN = u.FP = 0.05 Reinforcements Acoustic Seismic 56 60 52 54 Sentinels Aggregator t=1: No Event, s.FN = .01 < u.FN t=2: Event, s.FP = .02 < u.FP t=3: No Event, s.FN = .01 < u.FN t=4 :Undecided, s.FP = .45 > u.FP t=4 :Event, r.FP = 0.3 < u.FP t=5: No Event, s.FP = 0.2 < u.FP Time interval 0 1 2 3 4 5

  15. Evaluation • App1: Wisconsin SensIT trace data • Vehicle detection at a fixed location • 75 nodes with acoustic, seismic, and infrared sensors • 100ms aggregation interval • App2: Computer Science Building Traffic Monitor • Five IRIS motes mounted on main entrance door • MTS 310: 2-axis accelerometer, 2-axis magnetometer, acoustic, and light sensors • Define event as when someone opens the door and walks through • 4s aggregation interval • Compare with a modality-specific sensing model • Distance-based signal attenuation • Data fusion for event decisions • Compare with V-SAM, a state of the art protocol for handling sensing irregularity • Measure data similarity between sensors • Keep awake only sensors with dissimilar readings

  16. Exploring Detection Capability & Meeting Requirements • Only a limited & discrete number of FP/FN rates supported by the deployment • For a specific FP/FN rate, a large number of clusters may be available • During runtime detection, Watchdog meets FP/FN explored during training

  17. Compare with V-SAM: Accuracy • V-SAM with k-coverage and similarity coverage • Watchdog outperforms all with near perfect accuracy

  18. Compare with Modality-Specific Sensing Model: Accuracy • Vehicle detection with acoustic sensors • Select clusters with two different ranges to target location: near (<25m) and far (>40m) • Watchdog always meets user requirements • Modality-specific model ignores in-situ sensing reality

  19. Compare with Modality-Specific Sensing Model: Energy • Watchdog clusters the right sensors to meet user requirements • Meets requirements with reduced energy • Watchdog adapts its capability to runtime observations to save energy • Modality-specific sensing model uses all sensors in the cluster

  20. Adapting Detection Capability to Runtime Observations • Experimental setting • Vehicle trace data and sensors from <25m • User requires 0% false positives and false negatives • Watchdog clusters the right sensors to meet user requirements • Neither V-SAM nor the modality-specific sensing model adapts detection capability to runtime observations

  21. Conclusions and Future Work • Existing works do not provide event detection with confidence, we need to • Cluster the right sensors to meet user requirements • Provide a generic approach for heterogeneous deployments • Adapt detection capability to runtime observations • Watchdog: a confident event detection framework • Meets user accuracy requirements • Exceeds accuracy of existing approaches • Uses knowledge of detection capability to save energy • Future Work • Online and distributed detection

  22. Thanks to NSF grants ECCS-0901437 and CNS-0916994

  23. Compare with V-SAM: Training Length • Watchdog achieves maximum performance with a short training • V-SAM requires little training, but is less accurate

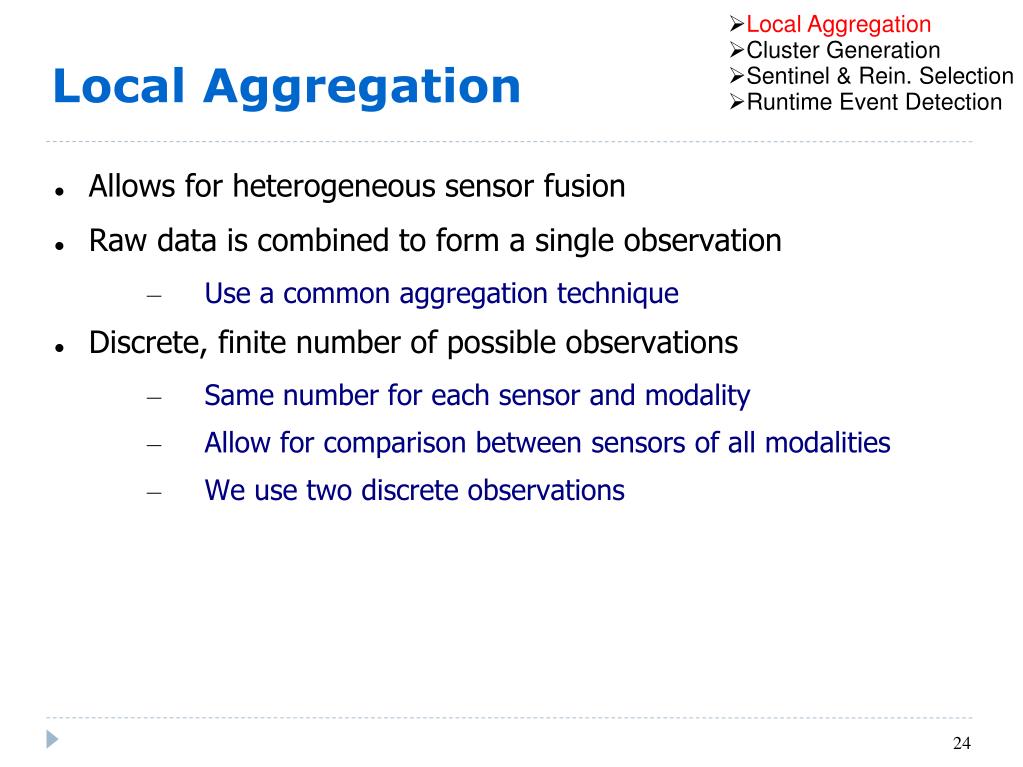

  24. Local Aggregation • Cluster Generation • Sentinel & Rein. Selection • Runtime Event Detection Local Aggregation • Allows for heterogeneous sensor fusion • Raw data is combined to form a single observation • Use a common aggregation technique • Discrete, finite number of possible observations • Same number for each sensor and modality • Allow for comparison between sensors of all modalities • We use two discrete observations

  25. Local Aggregation • Cluster Generation • Sentinel & Rein. Selection • Runtime Event Detection Event Probability Discussion • Differentiate the accuracy between different event probabilities • Some observations are more reliable than others • Probabilities near 0.5 are more inaccurate • Determine FP and FN for each of p probability ranges (p=10) • Probability between .1 and .2 has zero false negatives • Probability between .9 and 1.0 has 6% false positive rate • Ranges with no events have 100% false positive or false negative rates
