Presentation Transcript

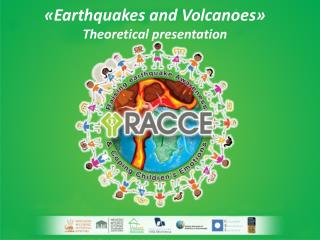

slide1

«Earthquakes and Volcanoes»

Theoretical presentation

«Η σεισμικότητα της Κρήτης και δράσεις ενημέρωσης του ΜΦΙΚ»

Δρ Χαρ. Φασουλάς

Τμημ. Γεωποικιλότητας

Μουσείο Φυσικής Ιστορίας Κρήτης

Πανεπιστήμιο Κρήτης

slide2

An earthquake is a natural phenomenon, like tornados or rain, originated in Earth’s internal!

slide3

Earth interior

Earth’s interior consists of several layers: the crust (divided in continental and oceanic), the mantle and the core (internal and external)

Crust

Mantle

slide4

Lithosphere

The most outer part of mantle that is in continuous contact with crust, together with crust consist earth’s lithosphere. Lithosphere actually “floats” over the molten materials of mantle.

Lithosphere

Mantle

slide5

Lithospheric plates

Lithosphere is fragmented into several pieces called lithospheric or tectonic plates. Plates displace apart each other in three ways.

slide6

Plate displacement

Over heated currents of molten material within mantle, that resemble boiling water, are considered as the main reason that forces plates to move along the surface of the earth.

slide7

Continental drift

Continental drift has changed continents’ locations and thus the image of our planet several times in geological past. Take a look at the last 200 million years…

slide8

Plates and earthquakes

Plate displacements induce forces into rocks that break causing earthquakes.

Plate boundaries were actually mapped using the spatial distribution of earthquake epicenters, like in the Pacific Ocean.

Yellow spots indicate seismic epicenters

slide9

Earthquakes

An earthquake is a sudden tremor of the earth that is usually caused by fault activity and the consequent rock displacement by them.

Fault scarp

Fault

Rock displacement

Epicenter

Waves

Energy is released in the form of seismic waves during earthquakes

Focus

slide10

Mediterranean seismicity

The area of Mediterranean is located at the boundary between African and Eurasian plates, which is the reason for its high seismicity.

slide11

Seismic risk

A seismic risk may be induced in an area from rock displacement and seismic wave propagation following an earthquake.

slide12

Plates and volcanoes

Volcanoes, in most cases, occur near plate boundaries because there crust can break leaving space to magma to raise from the mantle to the surface.

Α

Γ

Β

Thus, volcanoes occur in the areas where to plates approach (Α) or move apart (Β) each other. Also, occur in plates interior at the areas called hot spots.

slide13

Volcano distribution

Most volcanoes occur thus near plate boundaries like in the area of Mediterranean or around Pacific ocean (Ring of fire).

slide14

Types of volcanoes

Volcanoes bring lava on the earth surface forming rocks in small hills or mountains. Depending on the chemical composition of lava several volcano types:

Scoria cones

Stato-volcano

Shield-volcano

slide15

Volcanic risk

Risks induced by volcanic activity may derive from lava flow, exploding materials, volcanic tephra that may travel to long distances, and poisonous gases released some times.

From 2001 Etna eruption, Sicily

slide16

Acknowledgments

  • This presentation accompanies the Museum Kit of RACCE project, aiming to provide students a first introduction to earthquakes and volcanoes in order to trigger their interest and create more questions and issues for investigation and discussion.
  • Several figures and pictures used come from the following sources:
  • Press & Siever: Understanding Earth
  • Additional data can be found in:
  • Skinner, Porter & Park: Dynamic Earth
  • Pavlides S.: Geology of Earthquakes
  • More scientific information can be also found in the “Theory Booklet” of the museum kit.
