  1. GEOSS Architecture Implementation Pilot (AIP)Phase 2Air Quality and Health Working Group Stefan Falke, Rudy Husar, Frank Lindsay, David McCabe, Erin Robinson

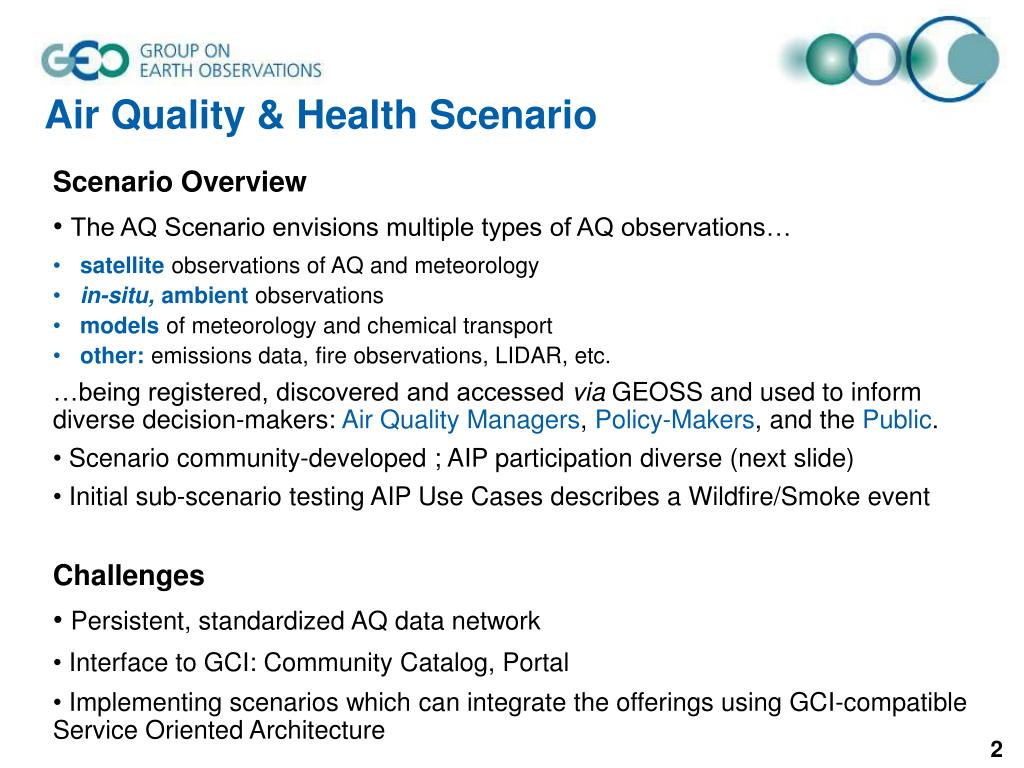

  2. Air Quality & Health Scenario Scenario Overview The AQ Scenario envisions multiple types of AQ observations… satellite observations of AQ and meteorology in-situ, ambientobservations models of meteorology and chemical transport other: emissions data, fire observations, LIDAR, etc. …being registered, discovered and accessed via GEOSS and used to inform diverse decision-makers: Air Quality Managers, Policy-Makers, and the Public. Scenario community-developed ; AIP participation diverse (next slide) Initial sub-scenario testing AIP Use Cases describes a Wildfire/Smoke event Challenges Persistent, standardized AQ data network Interface to GCI: Community Catalog, Portal Implementing scenarios which can integrate the offerings using GCI-compatible Service Oriented Architecture

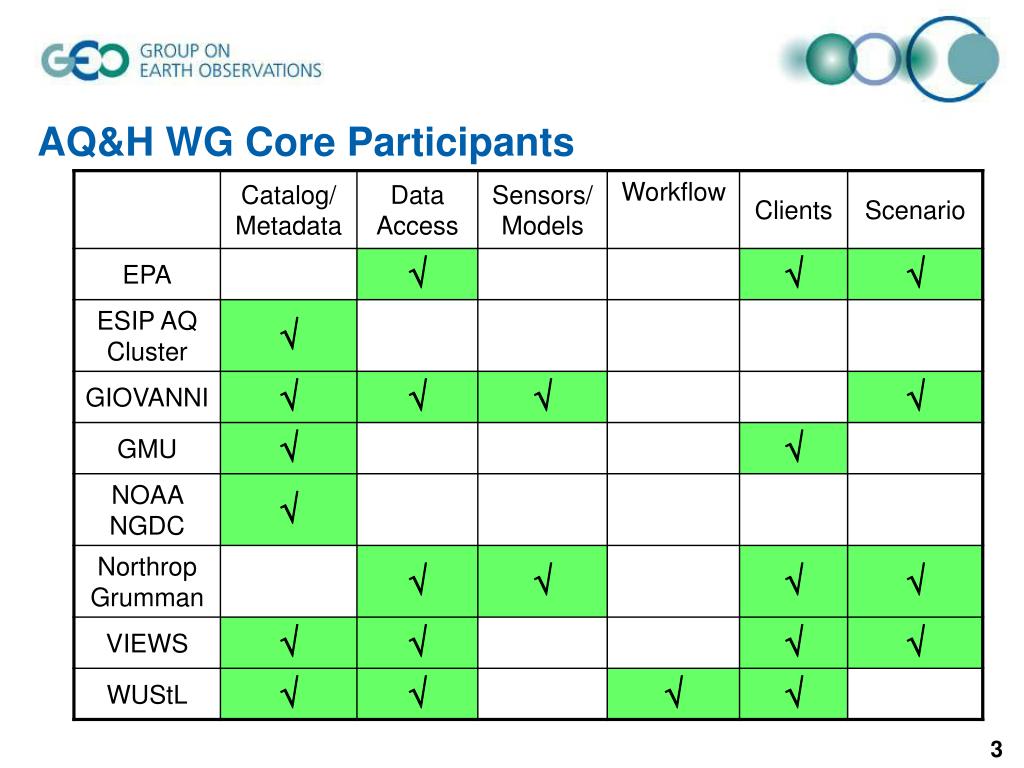

  3. AQ&H WG Core Participants

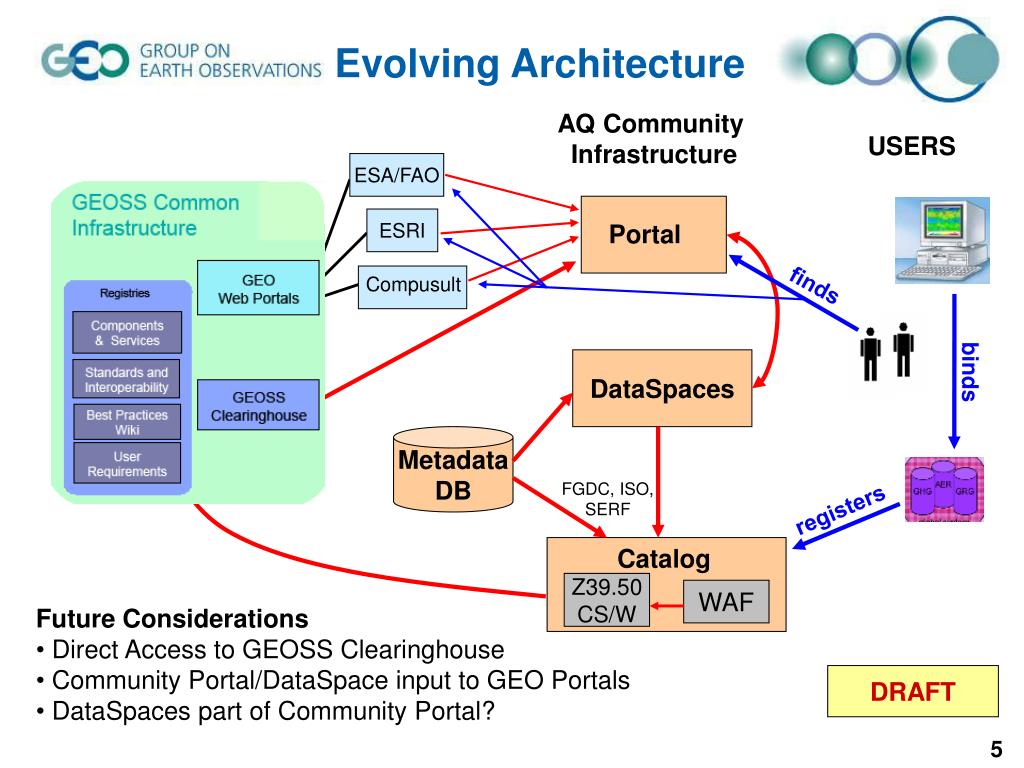

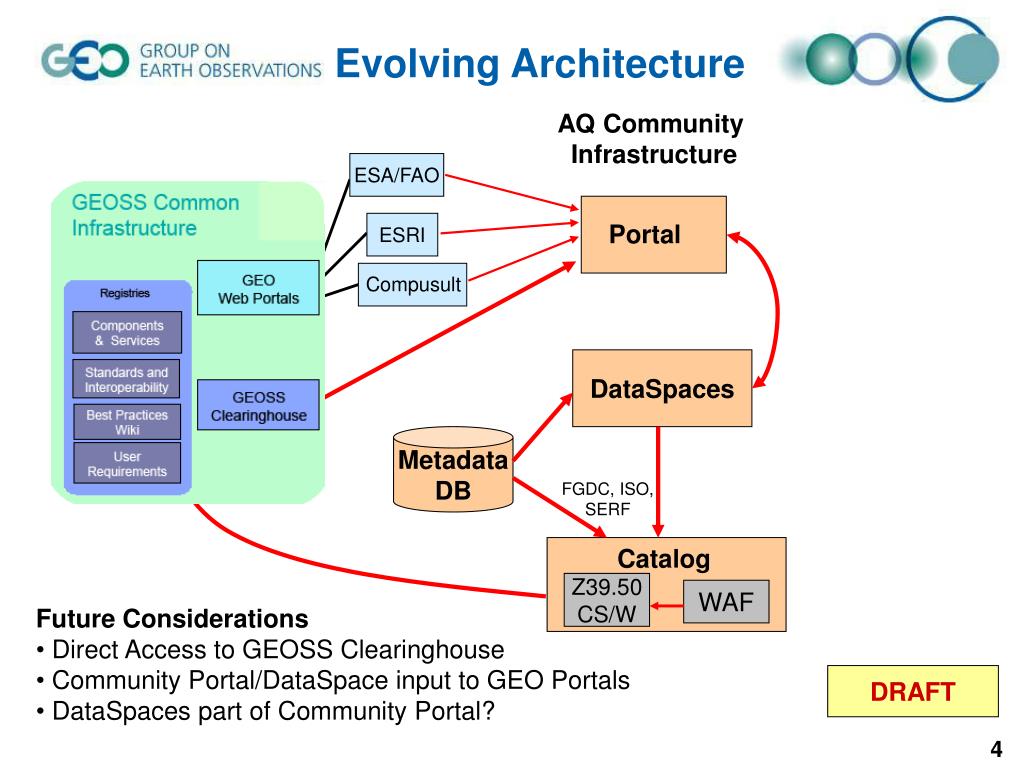

  4. Evolving Architecture AQ Community Infrastructure ESA/FAO ESRI Portal Compusult DataSpaces Metadata DB FGDC, ISO, SERF Catalog Z39.50 CS/W WAF • Future Considerations • Direct Access to GEOSS Clearinghouse • Community Portal/DataSpace input to GEO Portals • DataSpaces part of Community Portal? DRAFT

  5. Evolving Architecture AQ Community Infrastructure USERS ESA/FAO ESRI Portal finds Compusult DataSpaces binds Metadata DB FGDC, ISO, SERF registers Catalog Z39.50 CS/W WAF • Future Considerations • Direct Access to GEOSS Clearinghouse • Community Portal/DataSpace input to GEO Portals • DataSpaces part of Community Portal? DRAFT

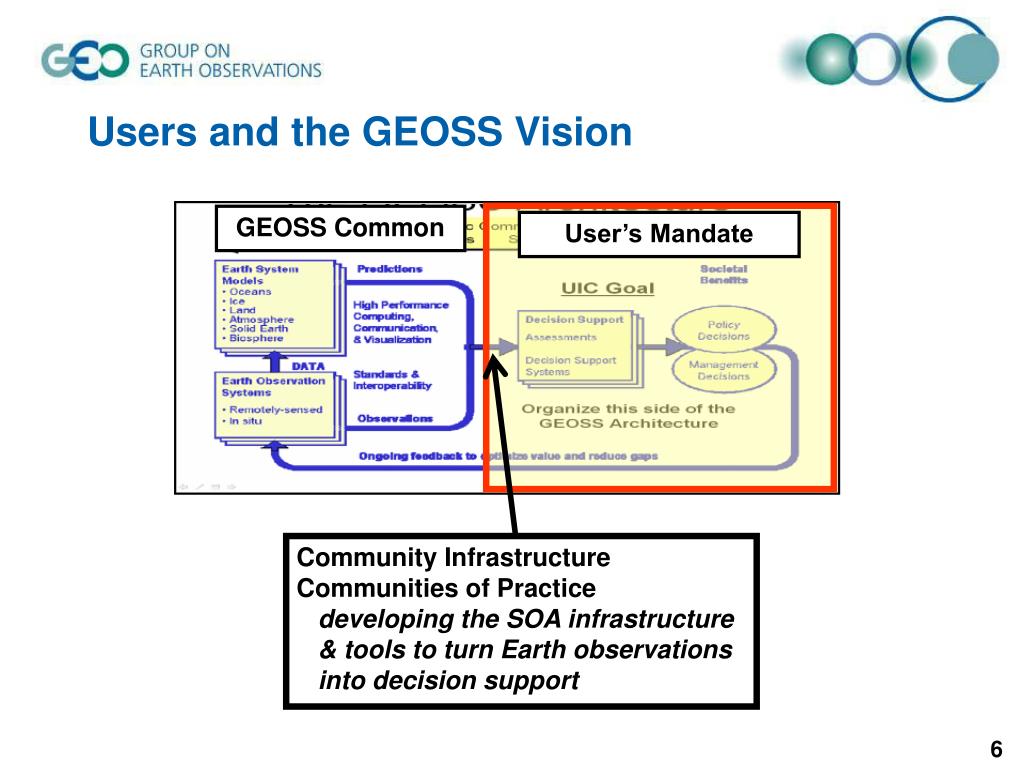

  6. Users and the GEOSS Vision GEOSS Common User’s Mandate Community Infrastructure Communities of Practice developing the SOA infrastructure & tools to turn Earth observations into decision support

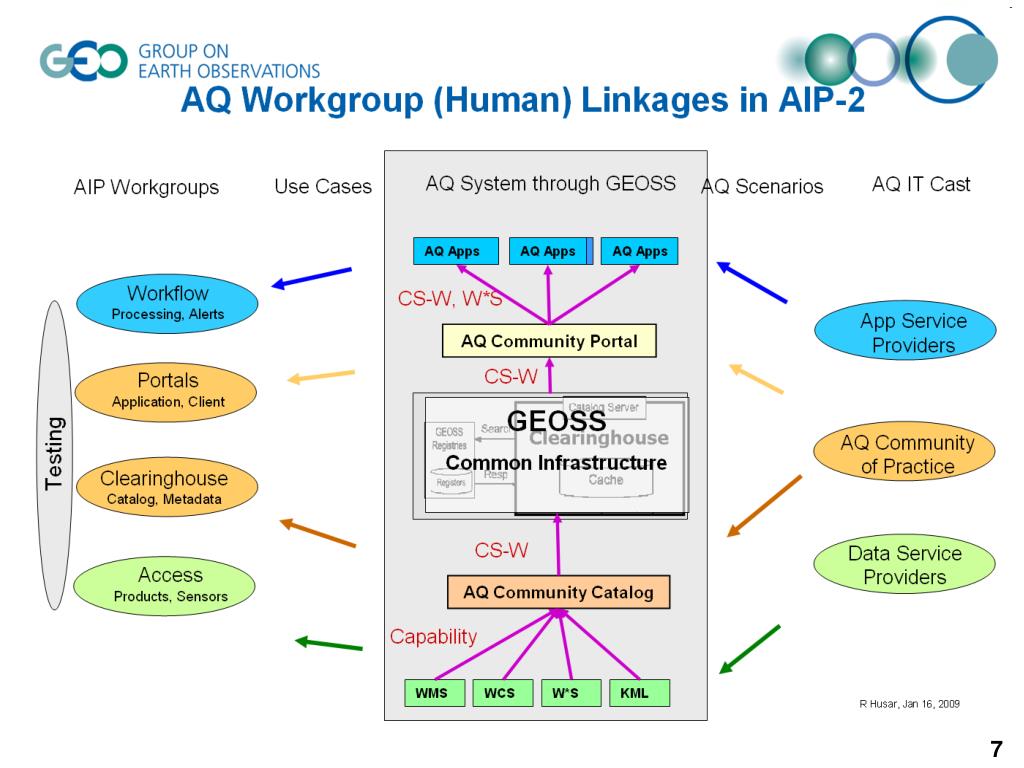

  7. AQ AIP Linkages

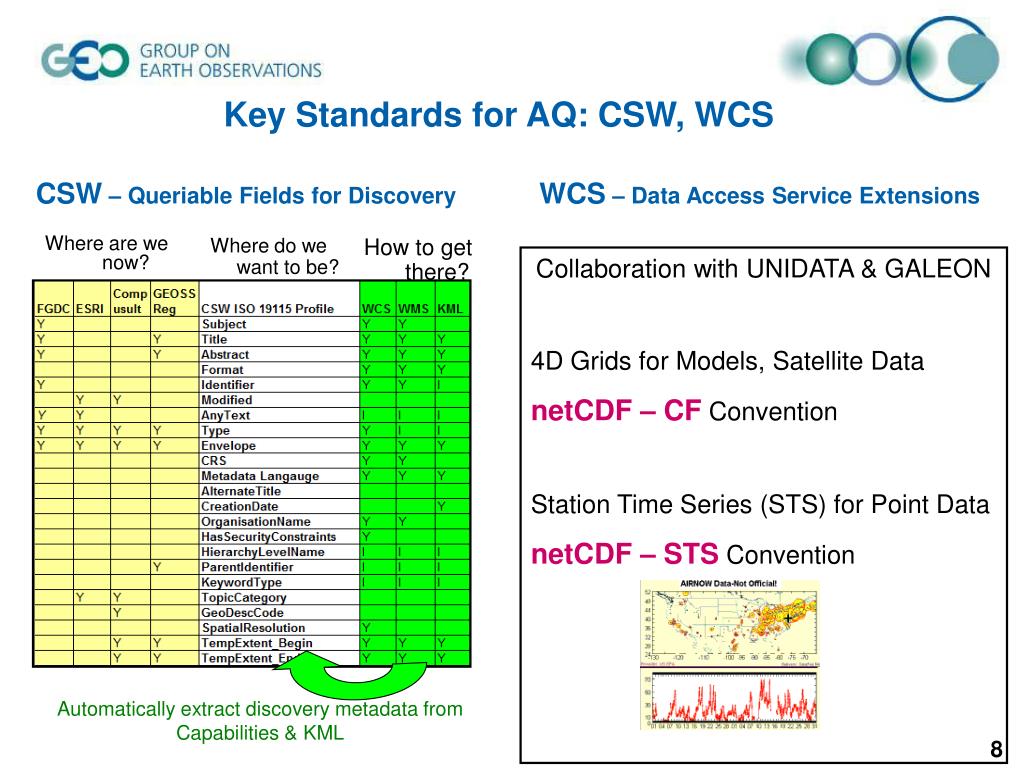

  8. Key Standards for AQ: CSW, WCS CSW – Queriable Fields for Discovery WCS – Data Access Service Extensions Where are we now? Where do we want to be? How to get there? Collaboration with UNIDATA & GALEON 4D Grids for Models, Satellite Data netCDF – CF Convention Station Time Series (STS) for Point Data netCDF – STS Convention Automatically extract discovery metadata from Capabilities & KML

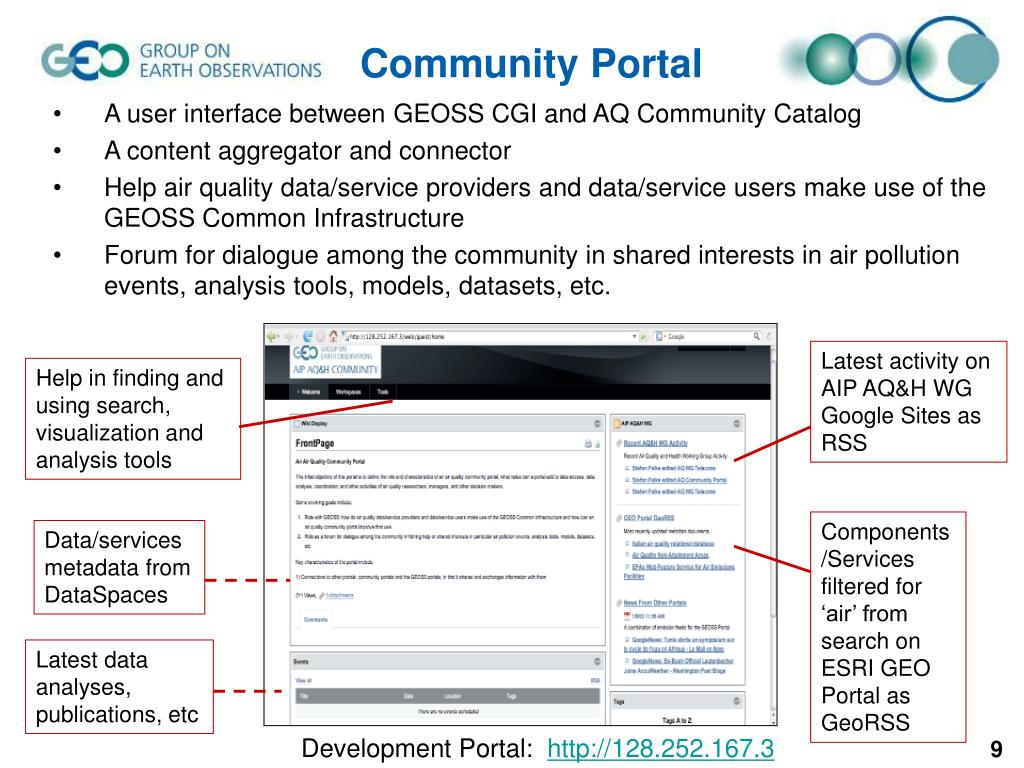

  9. Community Portal • A user interface between GEOSS CGI and AQ Community Catalog • A content aggregator and connector • Help air quality data/service providers and data/service users make use of the GEOSS Common Infrastructure • Forum for dialogue among the community in shared interests in air pollution events, analysis tools, models, datasets, etc. Latest activity on AIP AQ&H WG Google Sites as RSS Help in finding and using search, visualization and analysis tools Components/Services filtered for ‘air’ from search on ESRI GEO Portal as GeoRSS Data/services metadata from DataSpaces Latest data analyses, publications, etc Development Portal: http://128.252.167.3

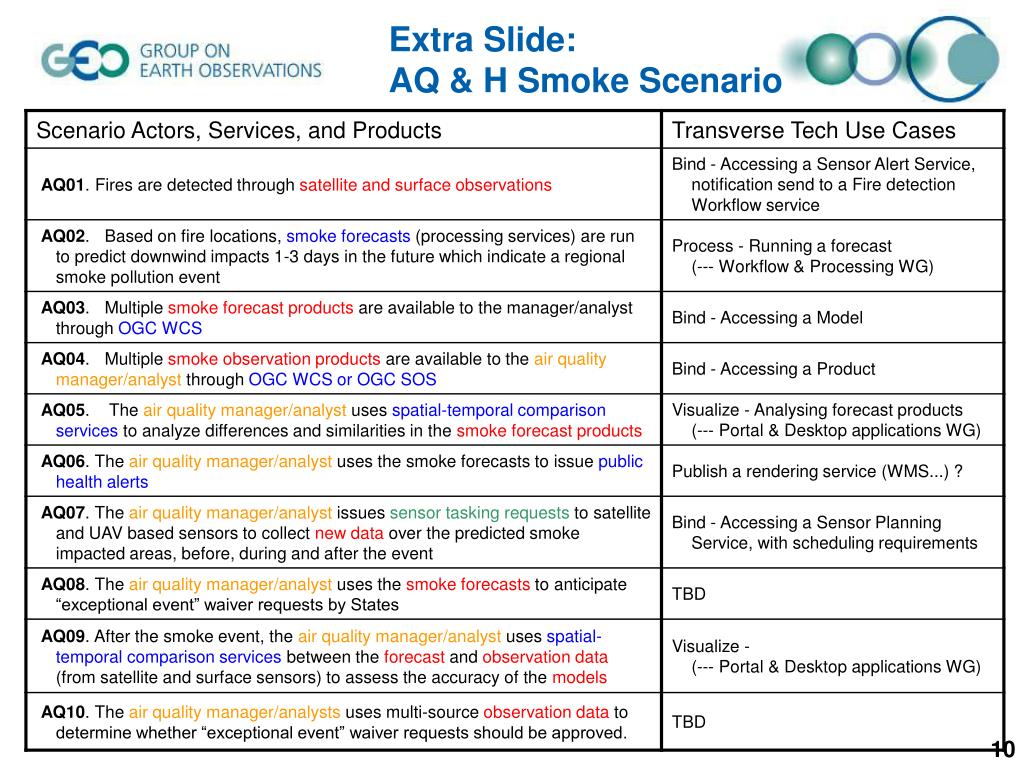

  10. Extra Slide:AQ & H Smoke Scenario
