MOXA MGate MB3180

The MOXA MB3180, MB3280, and MB3480 are standard Modbus gateways that convert between Modbus TCP and Modbus RTU/ASCII protocols. Up to 16 simultaneous Modbus TCP masters are supported, with up to 31 RTU/ASCII slaves per serial port. For RTU/ASCII masters, up to 32 TCP slaves are supported.

shraddha123
Download Presentation

MOXA MGate MB3180

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. INDUSTRIAL AUTOMATION www.asteamtechno.com

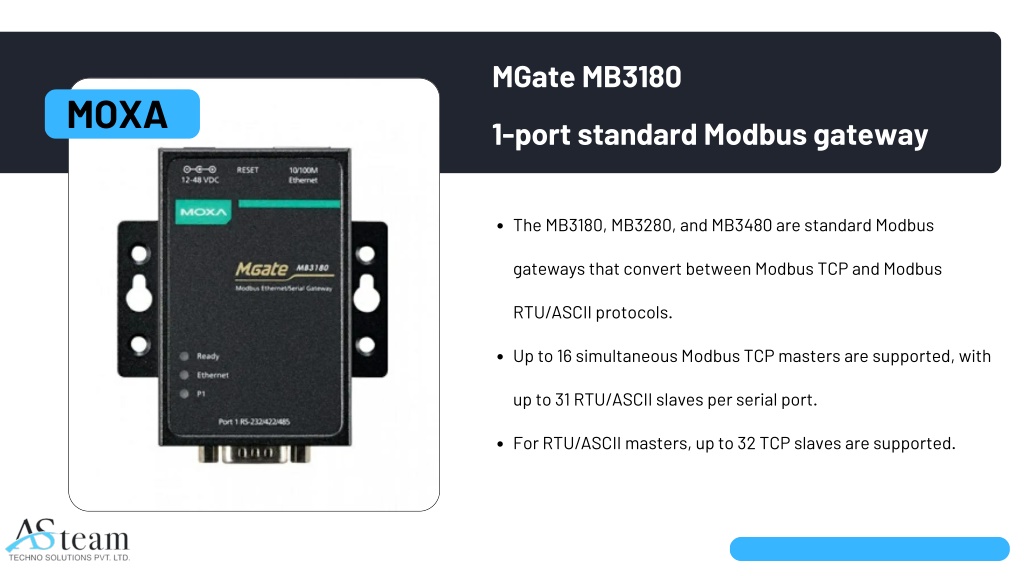

  2. MGate MB3180 MOXA 1-port standard Modbus gateway The MB3180, MB3280, and MB3480 are standard Modbus gateways that convert between Modbus TCP and Modbus RTU/ASCII protocols. Up to 16 simultaneous Modbus TCP masters are supported, with up to 31 RTU/ASCII slaves per serial port. For RTU/ASCII masters, up to 32 TCP slaves are supported.

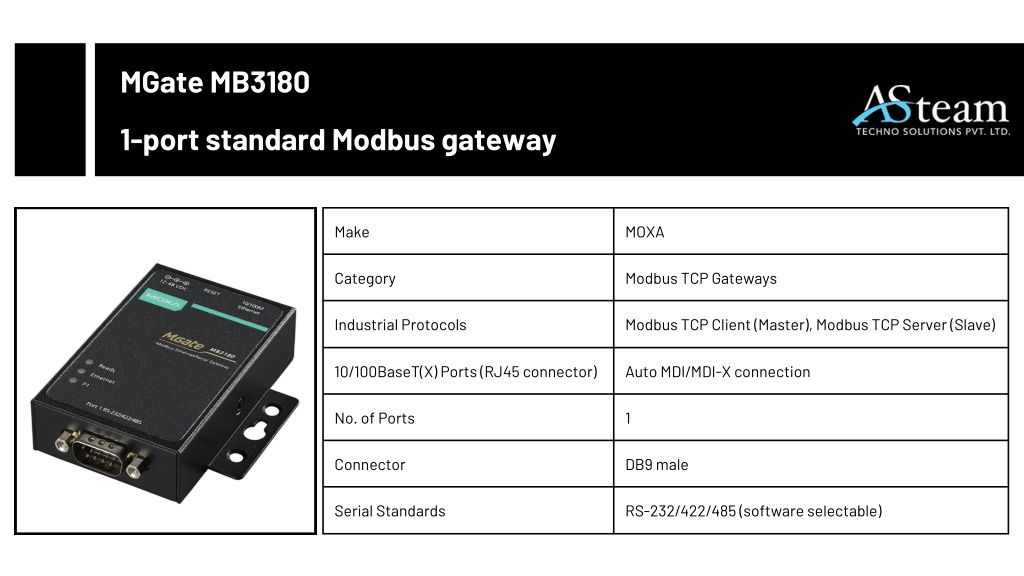

  3. MGate MB3180 1-port standard Modbus gateway Make MOXA Category Modbus TCP Gateways Industrial Protocols Modbus TCP Client (Master), Modbus TCP Server (Slave) 10/100BaseT(X) Ports (RJ45 connector) Auto MDI/MDI-X connection No. of Ports 1 Connector DB9 male Serial Standards RS-232/422/485 (software selectable)

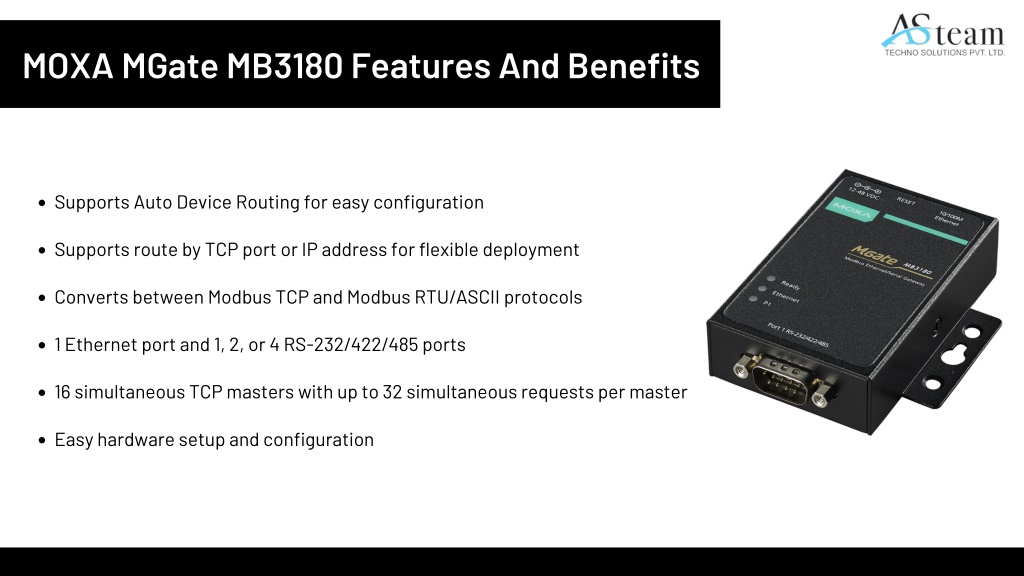

  4. MOXA MGate MB3180 Features And Benefits Supports Auto Device Routing for easy configuration Supports route by TCP port or IP address for flexible deployment Converts between Modbus TCP and Modbus RTU/ASCII protocols 1 Ethernet port and 1, 2, or 4 RS-232/422/485 ports 16 simultaneous TCP masters with up to 32 simultaneous requests per master Easy hardware setup and configuration

  5. Thank you! 95378 40404 www.asteamtechno.com 410- Apple Square, Yogi Chowk, Nana Varachha, Surat, Gujarat, India -395006
