Allen Bradley PowerFlex 4M AC Drive

Basic machine-level motor speed control is the purpose of the affordable and small Allen-Bradley PowerFlex 4M AC drive. It's perfect in scenarios where you need to maintain simplicity and conserve space. The PowerFlex 4M is offered in different voltage classes and horsepower ratings. It has built-in programming keypad, feed-through wiring for simple installation, and device communication capabilities.<br>

shraddha123
Download Presentation

Allen Bradley PowerFlex 4M AC Drive

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. INDUSTRIAL AUTOMATION We provide solutions in Allen Bradley (Rockwell Automation), AVEVA (formerly Wonderware), Siemens, Schneider, ABB, Phoenix Contact, MOXA, Advantech, Weidmuller and many more..... Contact Us: +91 95378 40404 Website : www.asteamtechno.com

  2. INDEX 01 About PowerFlex 4M AC Drive 02 Model Introduction 03 Startup, Programming, and Operation 04 Co ntrol Wiring 05 Network Wiring 06 Fea tures 07 Application 08 Contact

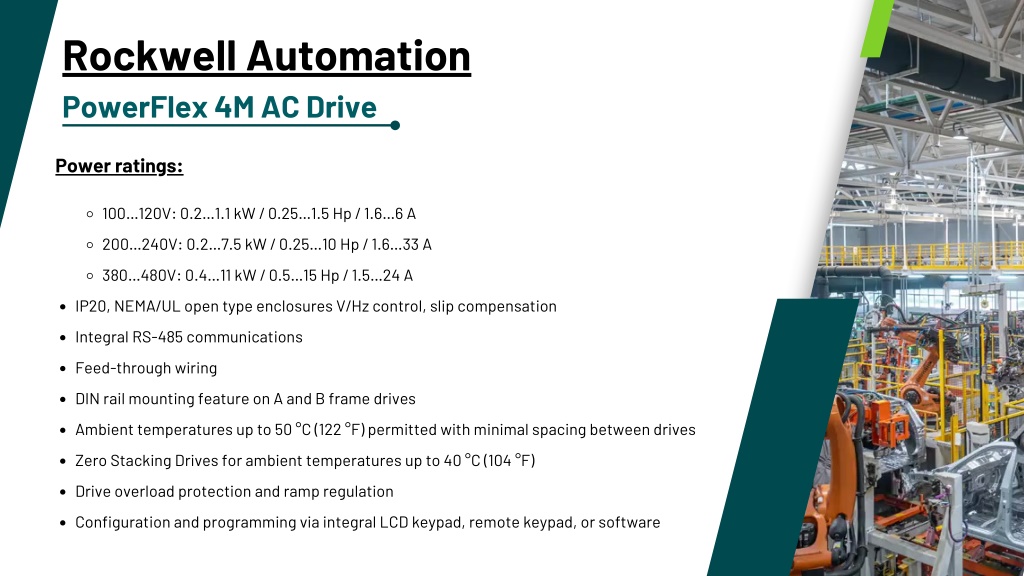

  3. Rockwell Automation PowerFlex 4M AC Drive Power ratings: 100…120V: 0.2…1.1 kW / 0.25…1.5 Hp / 1.6…6 A 200…240V: 0.2…7.5 kW / 0.25…10 Hp / 1.6…33 A 380…480V: 0.4…11 kW / 0.5…15 Hp / 1.5…24 A IP20, NEMA/UL open type enclosures V/Hz control, slip compensation Integral RS-485 communications Feed-through wiring DIN rail mounting feature on A and B frame drives Ambient temperatures up to 50 °C (122 °F) permitted with minimal spacing between drives Zero Stacking Drives for ambient temperatures up to 40 °C (104 °F) Drive overload protection and ramp regulation Configuration and programming via integral LCD keypad, remote keypad, or software

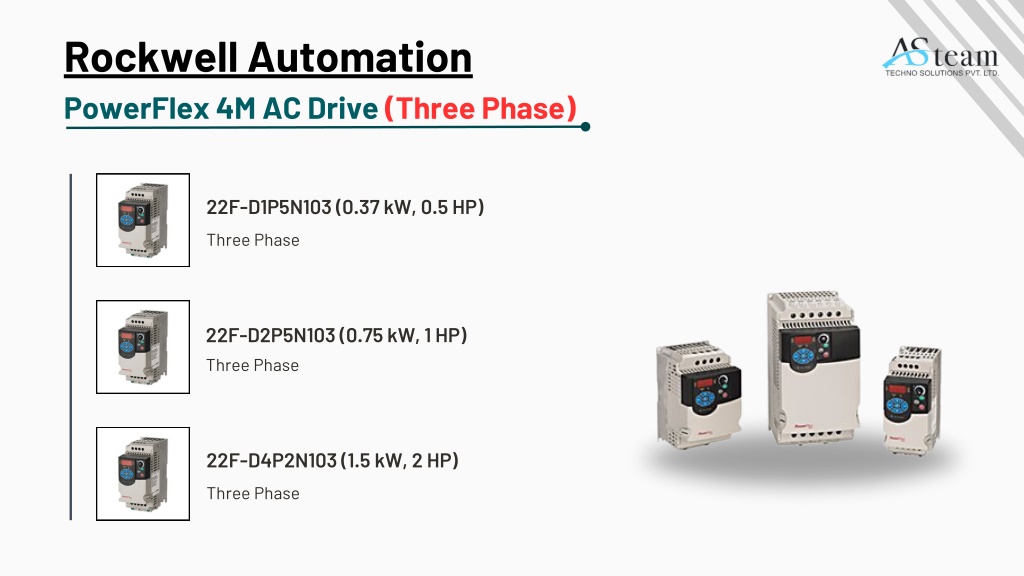

  4. Rockwell Automation PowerFlex 4M AC Drive (Three Phase) 22F-D1P5N103 (0.37 kW, 0.5 HP) Three Phase 22F-D2P5N103 (0.75 kW, 1 HP) Three Phase 22F-D4P2N103 (1.5 kW, 2 HP) Three Phase

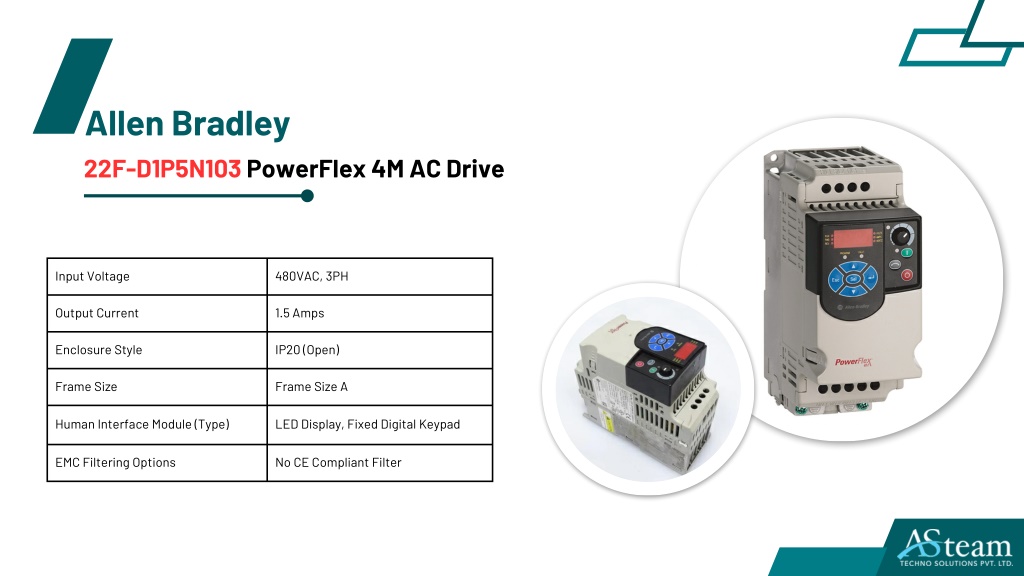

  5. Allen Bradley 22F-D1P5N103 PowerFlex 4M AC Drive Input Voltage 480VAC, 3PH Output Current 1.5 Amps Enclosure Style IP20 (Open) Frame Size Frame Size A Human Interface Module (Type) LED Display, Fixed Digital Keypad EMC Filtering Options No CE Compliant Filter

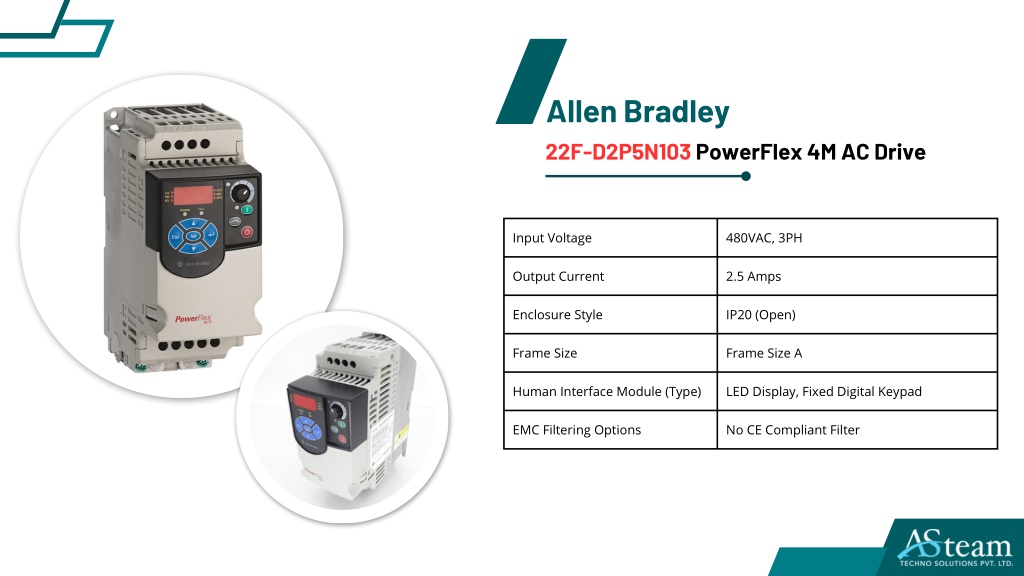

  6. Allen Bradley 22F-D2P5N103 PowerFlex 4M AC Drive Input Voltage 480VAC, 3PH Output Current 2.5 Amps Enclosure Style IP20 (Open) Frame Size Frame Size A Human Interface Module (Type) LED Display, Fixed Digital Keypad EMC Filtering Options No CE Compliant Filter

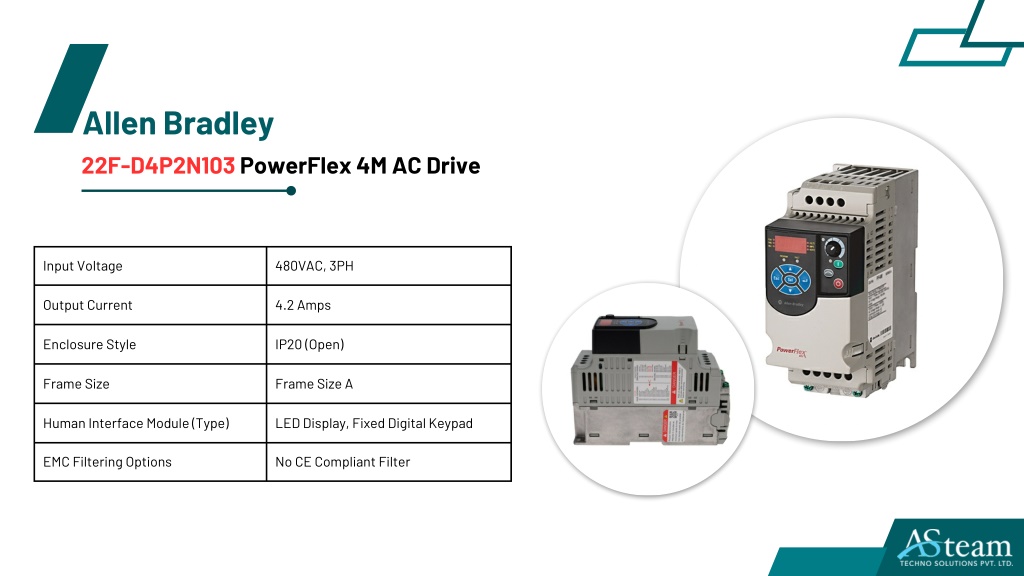

  7. Allen Bradley 22F-D4P2N103 PowerFlex 4M AC Drive Input Voltage 480VAC, 3PH Output Current 4.2 Amps Enclosure Style IP20 (Open) Frame Size Frame Size A Human Interface Module (Type) LED Display, Fixed Digital Keypad EMC Filtering Options No CE Compliant Filter

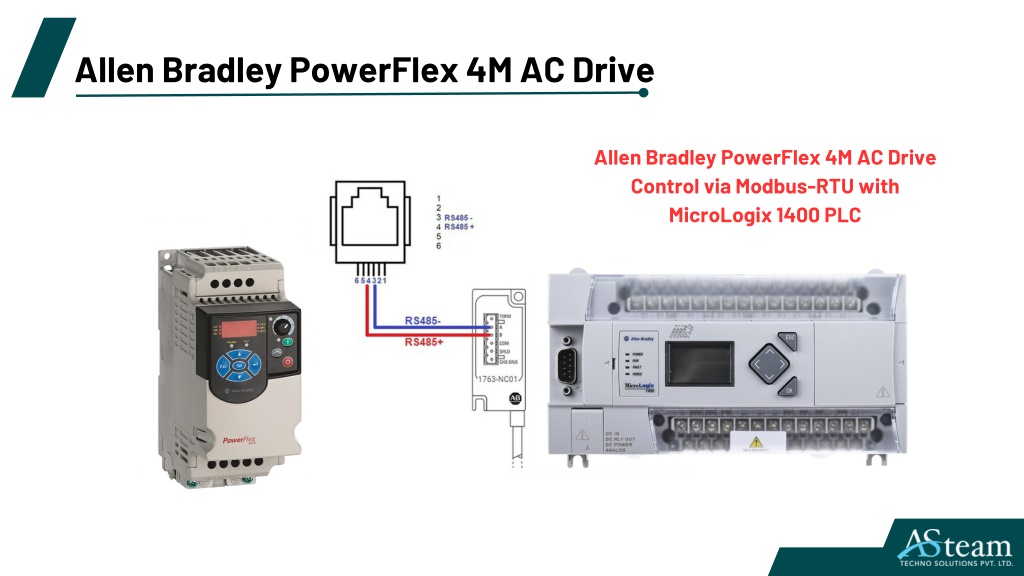

  8. Allen Bradley PowerFlex 4M AC Drive Allen Bradley PowerFlex 4M AC Drive Control via Modbus-RTU with MicroLogix 1400 PLC

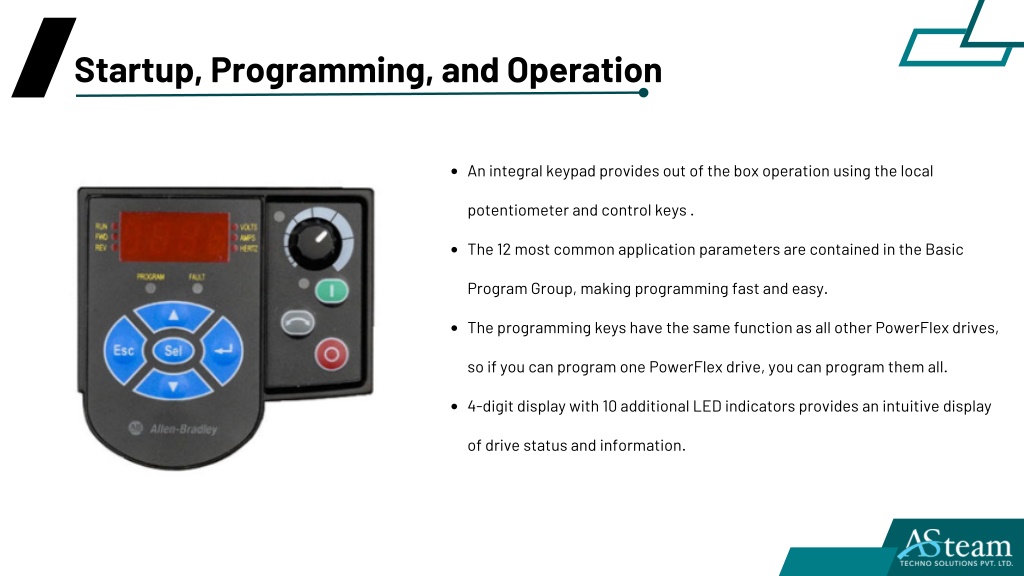

  9. Startup, Programming, and Operation An integral keypad provides out of the box operation using the local potentiometer and control keys . The 12 most common application parameters are contained in the Basic Program Group, making programming fast and easy. The programming keys have the same function as all other PowerFlex drives, so if you can program one PowerFlex drive, you can program them all. 4-digit display with 10 additional LED indicators provides an intuitive display of drive status and information.

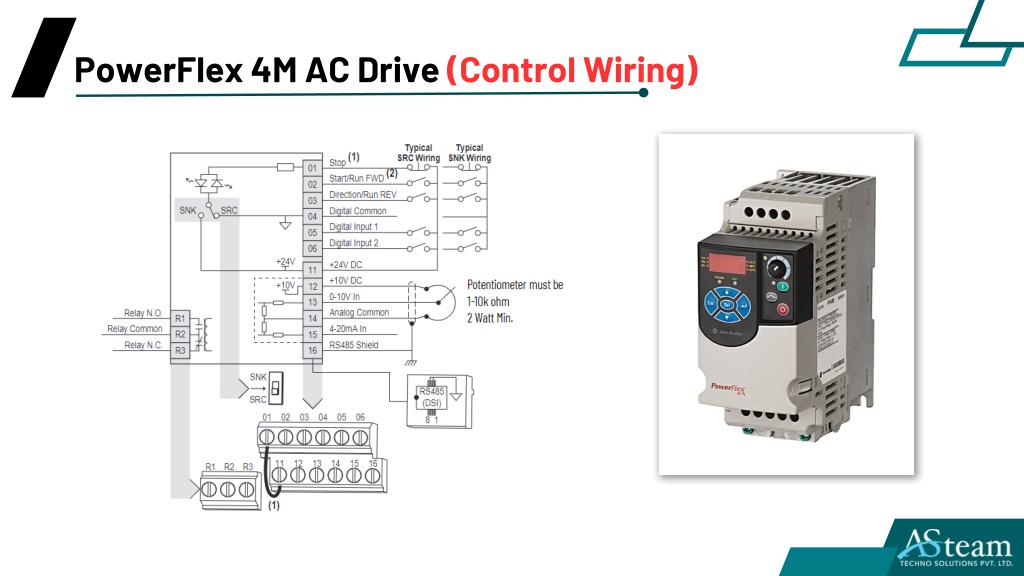

  10. PowerFlex 4M AC Drive (Control Wiring)

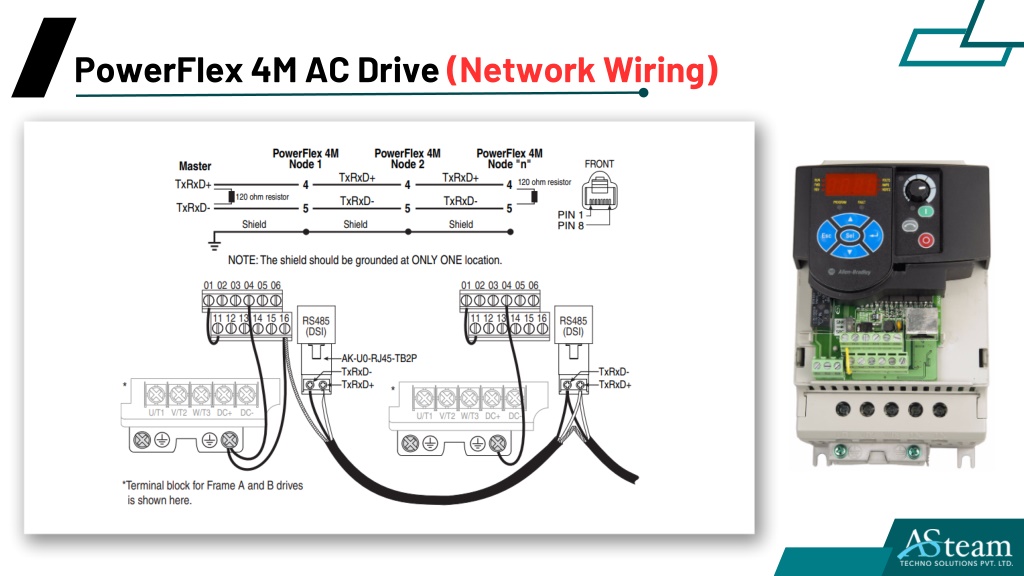

  11. PowerFlex 4M AC Drive (Network Wiring)

  12. PowerFlex 4M AC Drive (Features) Programming and Configuration: User-friendly interface for quick setup and operation. CopyCat function allows parameters to be copied from one drive to another. Flexible I/O Options: Digital and analog inputs and outputs for enhanced control capabilities. Compatibility: Compatible with a wide range of motors and applications.

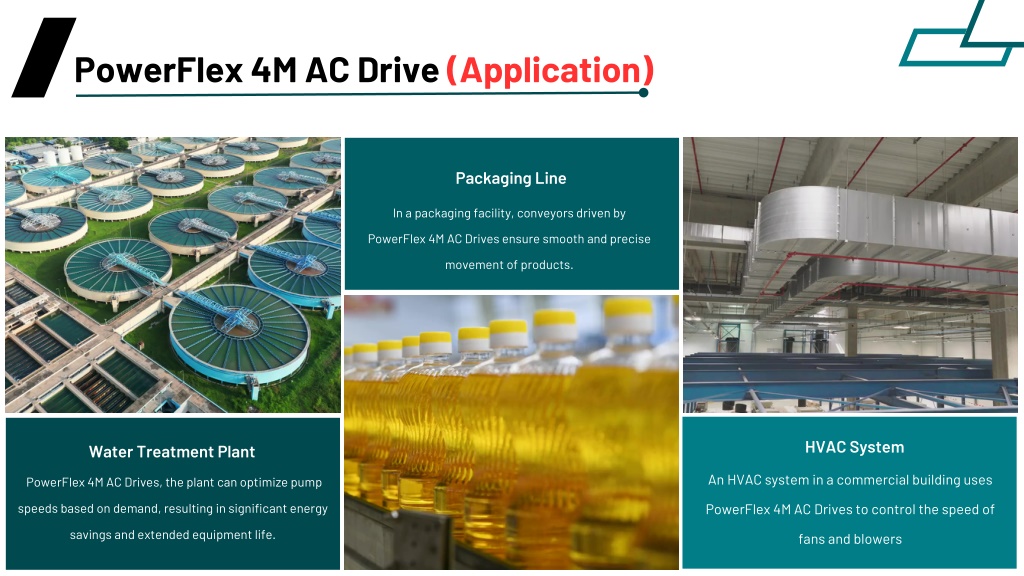

  13. PowerFlex 4M AC Drive (Application) Packaging Line In a packaging facility, conveyors driven by PowerFlex 4M AC Drives ensure smooth and precise movement of products. HVAC System Water Treatment Plant An HVAC system in a commercial building uses PowerFlex 4M AC Drives, the plant can optimize pump speeds based on demand, resulting in significant energy PowerFlex 4M AC Drives to control the speed of savings and extended equipment life. fans and blowers

  14. Contact Us Phone Number +91 95378 40404 Email Address contact@asteamtechno.com Asteam Techno Thank You! Website Address www.asteamtechno.com Office Address 410- Apple Square, Yogi Chowk, Nana Varachha, Surat
