print security in a mobile environment
Print Security in a Mobile Environment
  • Presented by United Business Technologies
  • Steve Moss, Major Account Executive
  • Jesse Goldstein, Major Account Executive

Mobile Printing

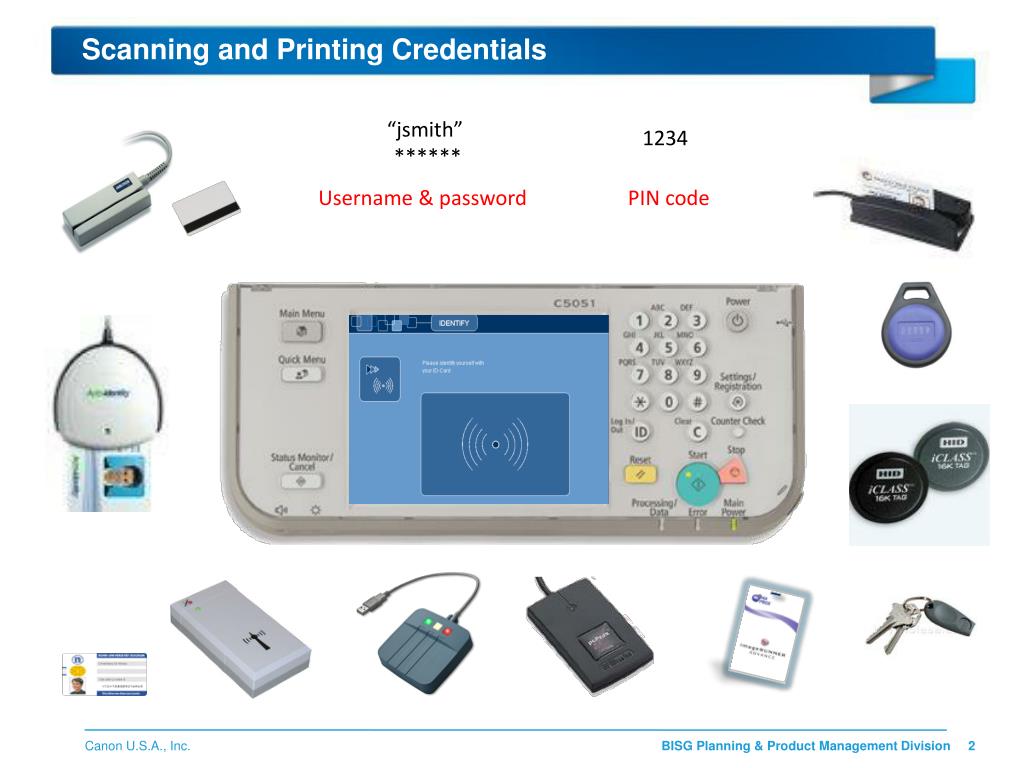

scanning and printing credentials
Scanning and Printing Credentials




Username & password

PIN code

Canon U.S.A., Inc.

follow me scanning through authentication
“Follow Me” Scanning Through Authentication
  • Unlimited Dynamic “Connectors” (configurable without programming)
  • Allows to request and send info to/from several external systems within the same workflow
  • Can quickly and cheaply automate a very wide range of capture processes

Identify user

Present workflows




Request from DB

Query User

Stephanie’s processing workflow

(one of 8 HR workflows on her company’s server.

Accessible to Stephanie from any of her company’s MFPs)

Release device

Human Resources

Change format



Write to DB

Send email

Send Folder

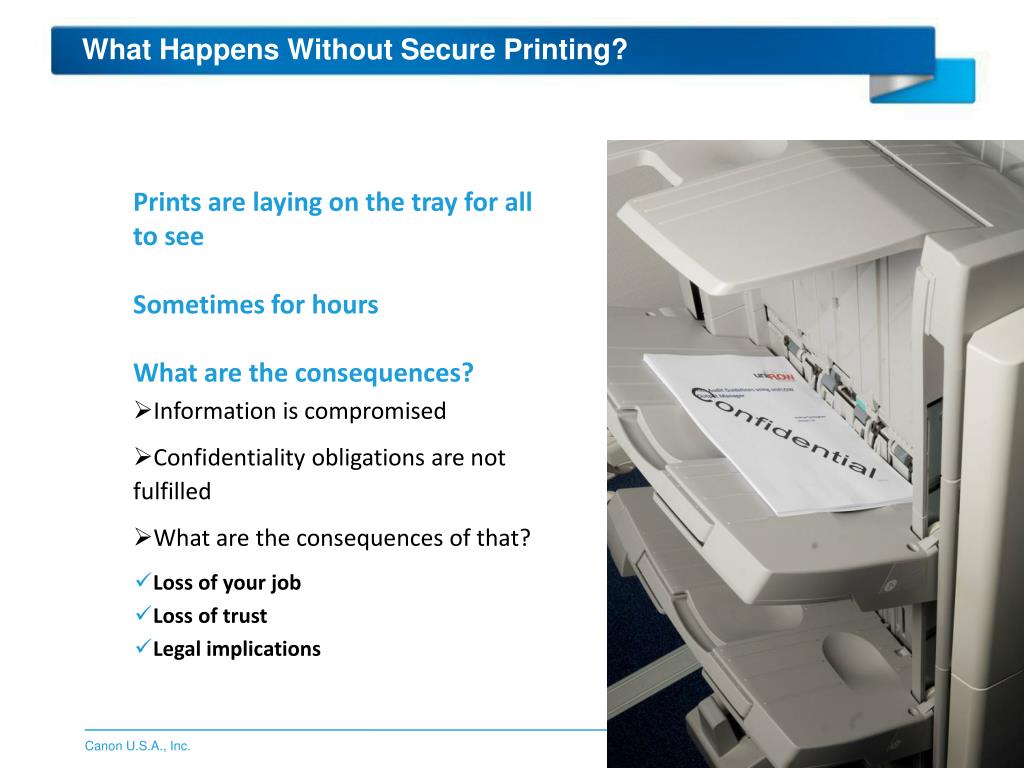

what happens without secure printing
What Happens Without Secure Printing?

Prints are laying on the tray for all to see

Sometimes for hours

What are the consequences?

  • Information is compromised
  • Confidentiality obligations are not fulfilled
  • What are the consequences of that?
    • Loss of your job
    • Loss of trust
    • Legal implications

Canon U.S.A., Inc.

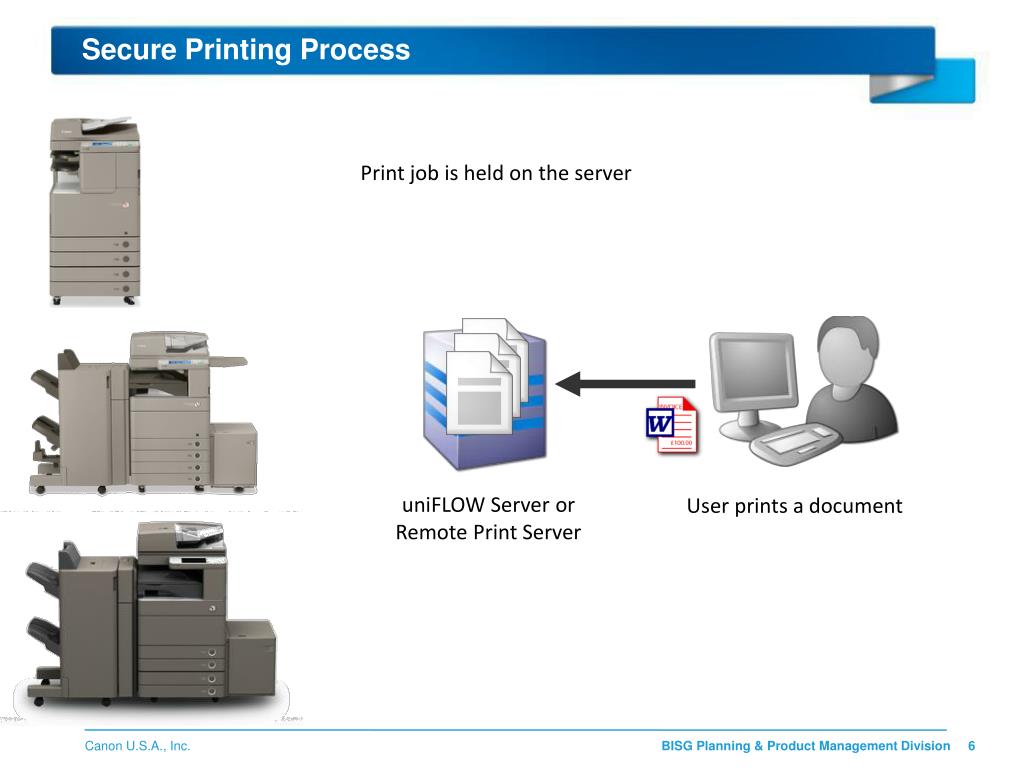

secure printing process
Secure Printing Process

Print job is held on the server

uniFLOW Server or

Remote Print Server

User prints a document

Canon U.S.A., Inc.

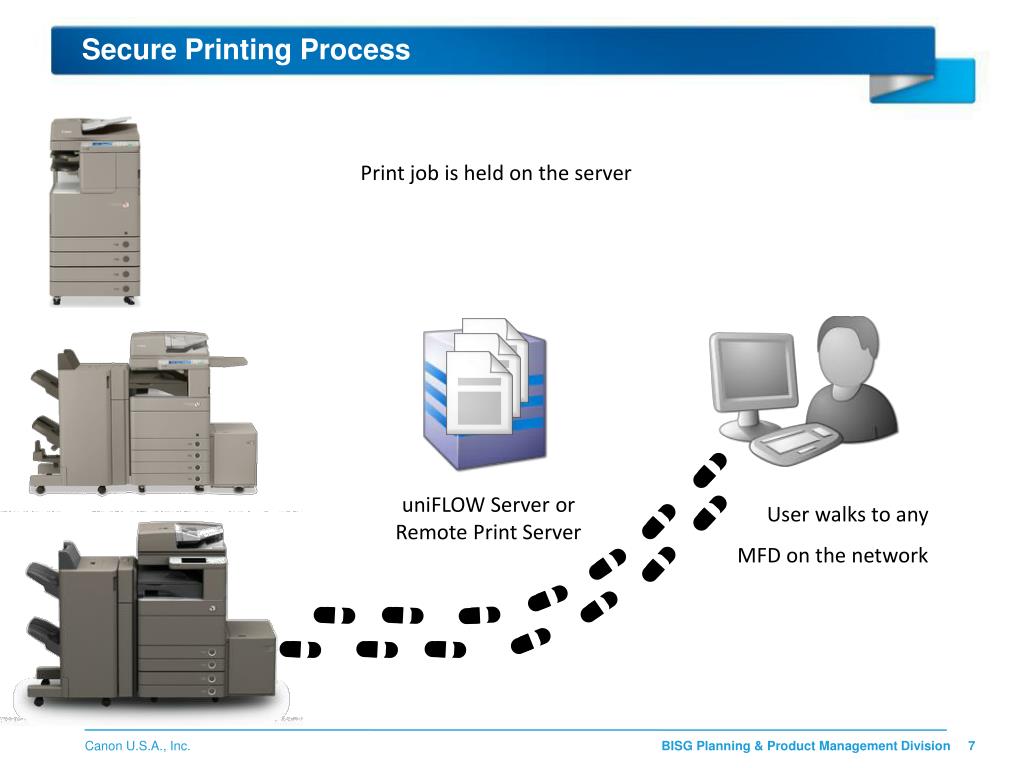

secure printing process1
Secure Printing Process

Print job is held on the server

uniFLOW Server or

Remote Print Server

User walks to any

MFD on the network

Canon U.S.A., Inc.

secure printing process2
Secure Printing Process
  • Job Queue

User can see the secure jobs waiting for them on any device they go to.

Buttons on the bottom of the UI are configurable by customer

All devices can have the same look and feel

Canon U.S.A., Inc.

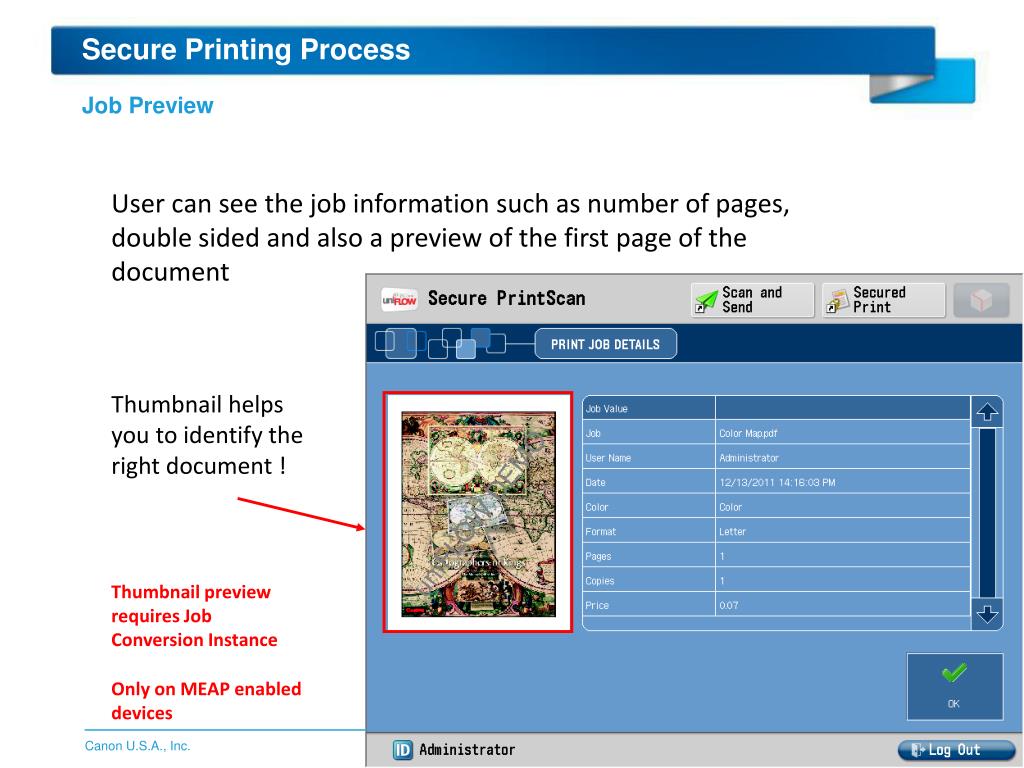

secure printing process3
Secure Printing Process
  • Job Preview

User can see the job information such as number of pages, double sided and also a preview of the first page of the document

Thumbnail helps you to identify the right document !

Thumbnail preview requires Job Conversion Instance

Only on MEAP enabled devices

Canon U.S.A., Inc.

secure printing process4
Secure Printing Process
  • Finishing Options

User can change the printing output options of the job at the device panel, including double sided, the number of copies and the page range to print

No problems if you forgot – make it duplex and stapled now!

U/I will dynamically display available device options

Only on MEAP enabled devices

Canon U.S.A., Inc.

secure printing process5
Secure Printing Process
  • Additional Document Options

Device LCD Panel

Color device w/ Finishing

B&W device w/o any Finishing

Canon U.S.A., Inc.

today s corporate users
Today's corporate users

Professionals carry more work content than ever on their mobile devices:

1. Emails, spreadsheet attachments, PDF attachments, & Word attachments

2. PDFs stored in Apps (e.g. iBooks)

3. PDFs, Word docs, spreadsheets stored on the Cloud

4. Downloaded data from corporate databases (billing system, ordering system, reporting system, etc…

5. Documents written on the mobile device

Canon U.S.A., Inc.

mobile printing
Mobile Printing

Users Perception & Problems

PC Content = Mobile Content

Mobile devices:

  • Carry content around – Efficient!
  • Make notes on the fly – Efficient!
  • Printing – Not Possible, Not Seamless, Not Efficient!!!
  • Need mobile printing to be EASY – same as PC !
  • Want to pick up my mobile print from ANY device!
  • Need mobile printing to be Secure!

Canon U.S.A., Inc.

mobile content an it perspective
Mobile Content an IT perspective

IT Managers Perception & Problems

How do I enable and manage mobile

Printing in my organization?

  • for Company Staff:
    • Support for Internal Printing
    • Support for traveling mobile workers
  • for Guests, Visitors, Vendors, etc…:
    • Securely, without access to my local network
    • With full control over costs
    • Restricting device functions (like email, color print, etc…)
    • Without additional management overhead for IT

Canon U.S.A., Inc.

solutions for a mobile environment
Solutions for a Mobile Environment

The basic mobile printing products simply focus only on the user’s ability to print a job e.g.. send a job via email to a printer or AirPrint – one dimensional solution

Other products focus on the owner of the printing equipment:

  • Security - Who do I want to allow to print via mobile?
  • Management - How will I charge for the print jobs?
  • Reports - Track and generate usage reports
  • How will I integrate it into my already managed print environment?

Canon U.S.A., Inc.

types of mobile printing email mobile printing
Types of Mobile Printing- eMail Mobile Printing

What is email Printing?

Unlike AirPrint, email printing allows anyone to print from anywhere to any device

Simply create an email address


Send/Forward all Mobile Print jobs to this email address

Canon U.S.A., Inc.

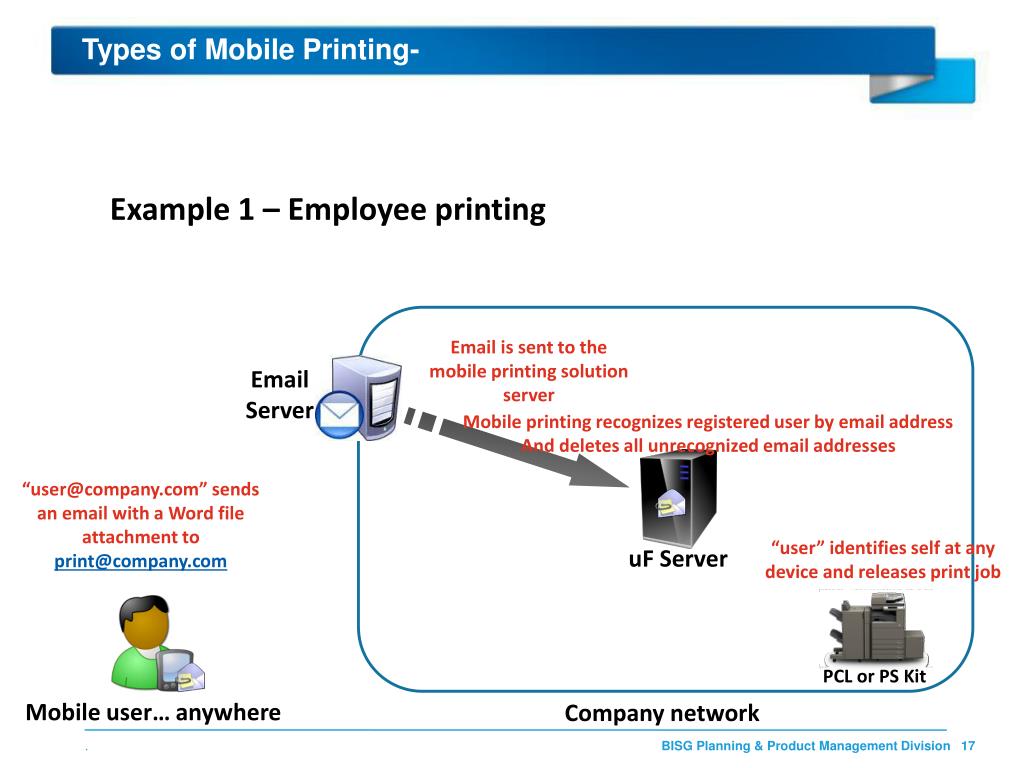

types of mobile printing
Types of Mobile Printing-

Example 1 – Employee printing

Email is sent to the mobile printing solution server

Email Server

  • Mobile printing recognizes registered user by email address
  • And deletes all unrecognized email addresses

“” sends an email with a Word file attachment to

  • “user” identifies self at any device and releases print job

uF Server

PCL or PS Kit

Mobile user… anywhere

Company network



Mobile Printing

Key Advantages

Efficiency: Same email address for all users and all printers

Same experience at device as with printing from PC

Can send PDF or Office files

Separate Email Body and Attachments into separate files

Can release form any printer

Security: Email domains can be restricted (allow only)

All identities are centrally controlled and managed by uniFLOW server

Job is held in the secure print queue for release on any printer

Cost Control: All printing information is stored in the database for complete reporting

Canon U.S.A., Inc.

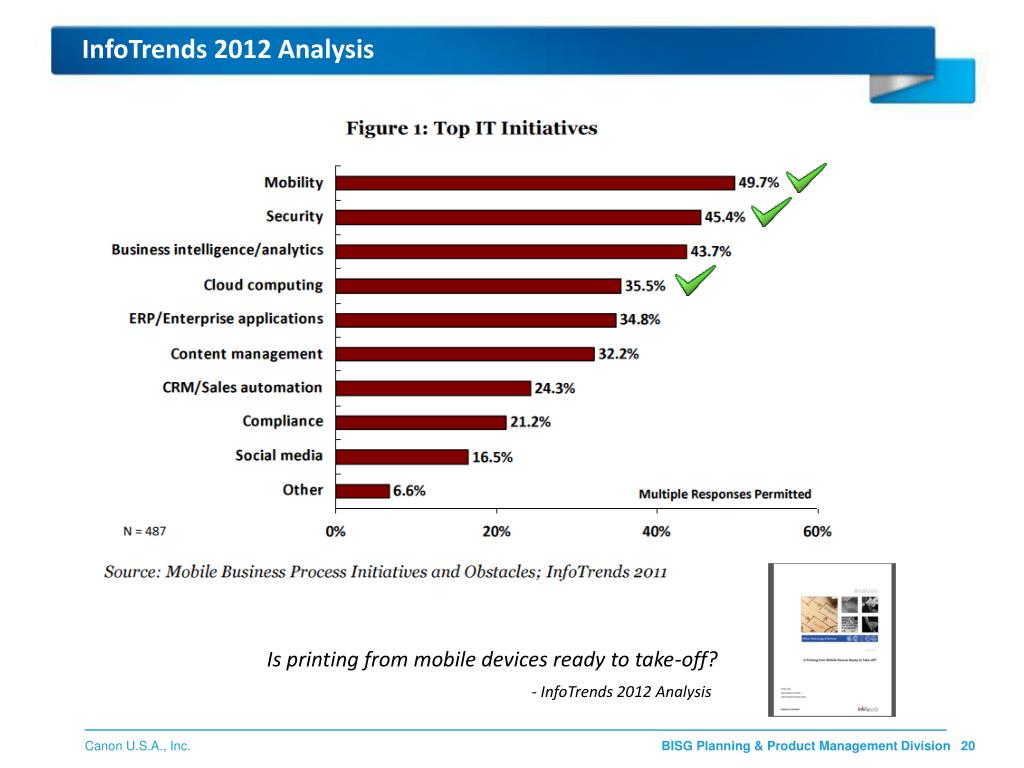

infotrends 2012 analysis
InfoTrends 2012 Analysis

Is printing from mobile devices ready to take-off?

- InfoTrends 2012Analysis

Canon U.S.A., Inc.


…but, why is mobile printing a challenge?

No actual need to print, as viewing on the phone is okay!

I don’t know how to print from my mobile phone

No access to a printer or printer is not supported

Not all files I need to print are supported

Well, it’s just too hard!!!

My phone is too old

Canon U.S.A., Inc.

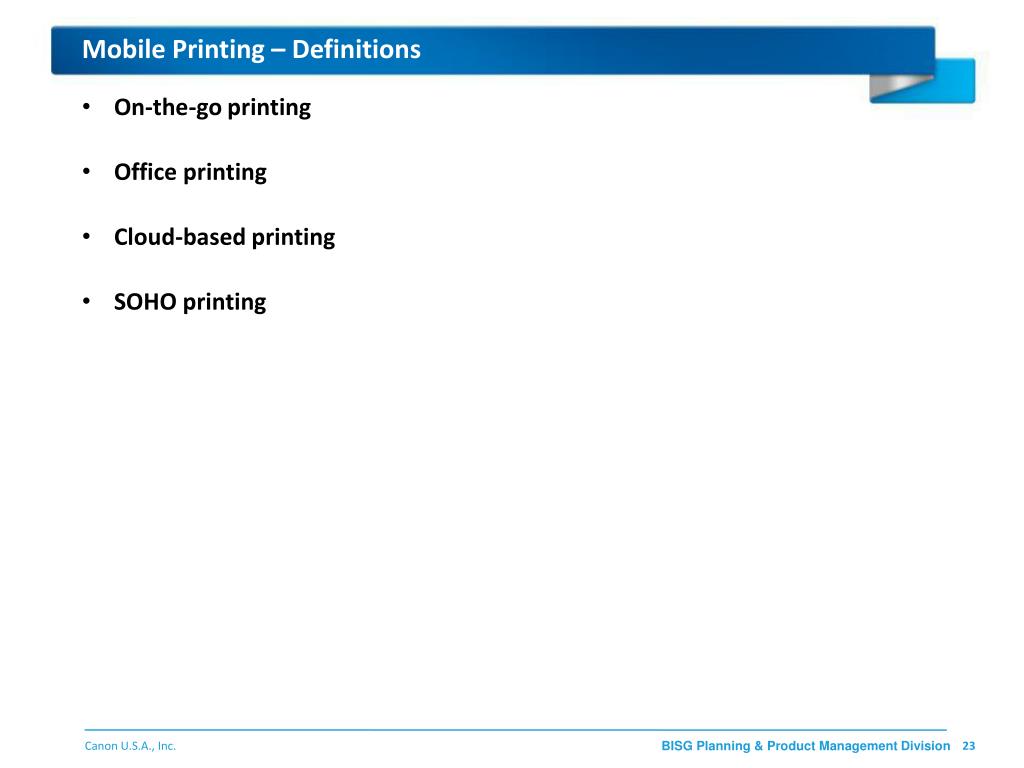

mobile printing definitions
Mobile Printing – Definitions
  • On-the-go printing
  • Office printing
  • Cloud-based printing
  • SOHO printing

Canon U.S.A., Inc.

mobile printing product positioning
Mobile Printing Product Positioning

Cloud Printing

Office Printing


  • Server-basedMobile Printing& Scanning
  • Complete output management, including mobile printing and scanning with access to the cloud
  • Cloud-basedMobile Printing
  • Email print (forward email) from mobile device with output to Canon MFP
  • Any mobile device with email capabilities
  • Cloud-basedPrinting& Scanning
  • Direct connection between Canon MFP and cloud services
  • Google Docs
  • MS SharePoint Online
  • Peer-to-PeerMobile Printing& Scanning
  • Direct communication between mobile device and Canon MFP
  • iOS devices
  • BlackBerrysmartphones
  • Peer-to-PeerMobilePrinting
  • Direct printing to Canon MFP & SFP
  • iOS devices
  • Android devices (TBD)


Customers’ Requirement

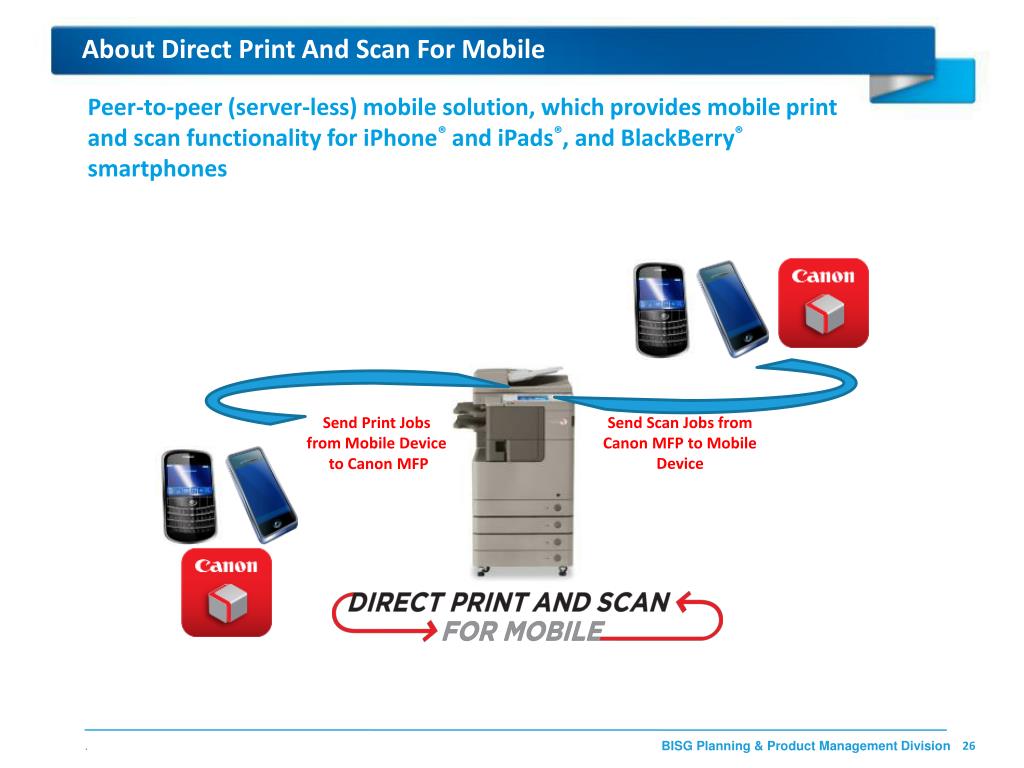

about direct print and scan for mobile
About Direct Print And Scan For Mobile
  • Peer-to-peer (server-less) mobile solution, which provides mobile print and scan functionality for iPhone® and iPads®, and BlackBerry® smartphones

Send Scan Jobs from Canon MFP to Mobile Device

Send Print Jobs

from Mobile Device

to Canon MFP

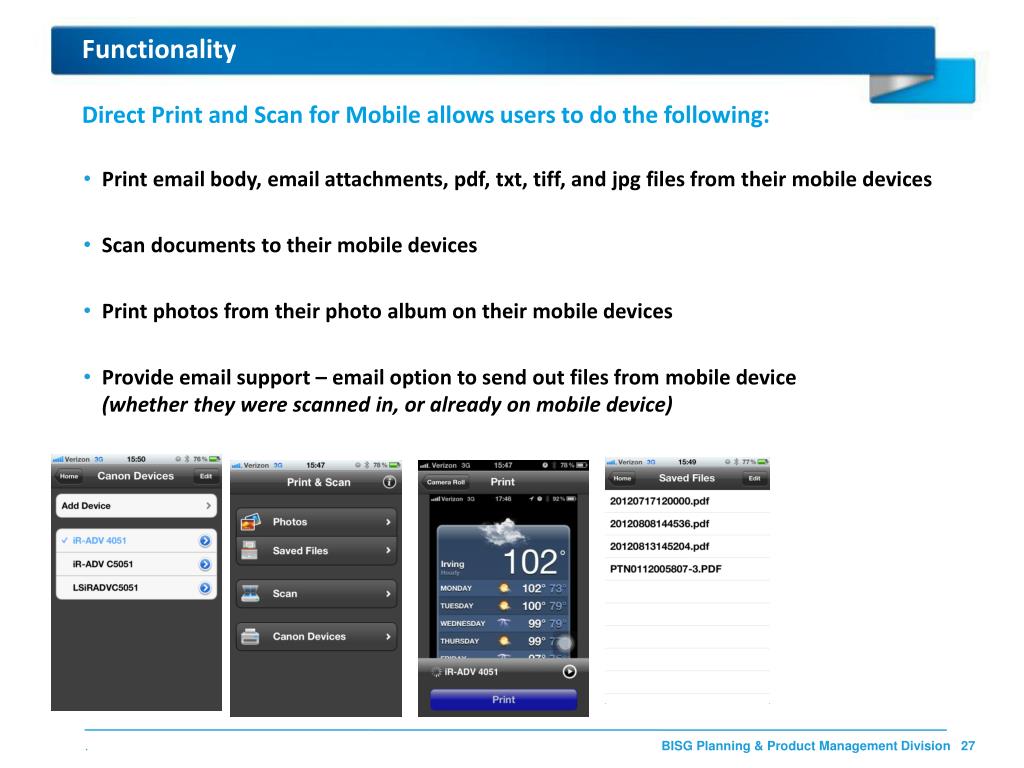

  • Direct Print and Scan for Mobile allows users to do the following:
      • Print email body, email attachments, pdf, txt, tiff, and jpg files from their mobile devices
      • Scan documents to their mobile devices
      • Print photos from their photo album on their mobile devices
      • Provide email support – email option to send out files from mobile device(whether they were scanned in, or already on mobile device)


dpsm customer scenarios
DPSM – Customer Scenarios
  • Where will DPSM fit?
  • SMB offices
  • Corporate offices
dpsm quick review
DPSM – Quick Review

What did we learn about DPSM?

  • It's an easy peer-to-peer mobile print and scan solution
  • It's an office and on-the-go solution
  • It works with iPhones, iPads, and BlackBerry smartphones
    • iOS 4.3 – 5.1
    • BlackBerry OS 5 & OS 6
  • Supports most commonly printed file types
    • PDFs
    • Photo and image files
    • Email body (BlackBerry only) and email attachments
  • Requirements:
    • iPhone, iPad, or BlackBerry smartphone
    • DPSM MEAP application on Canon imageRUNNER ADVANCE (with either Direct print kit or PS kit)
  • Will fit in:
    • SMB offices
    • Corporate offices
mobile printing1
Mobile Printing

Release date: TBD

Canon U.S.A., Inc.

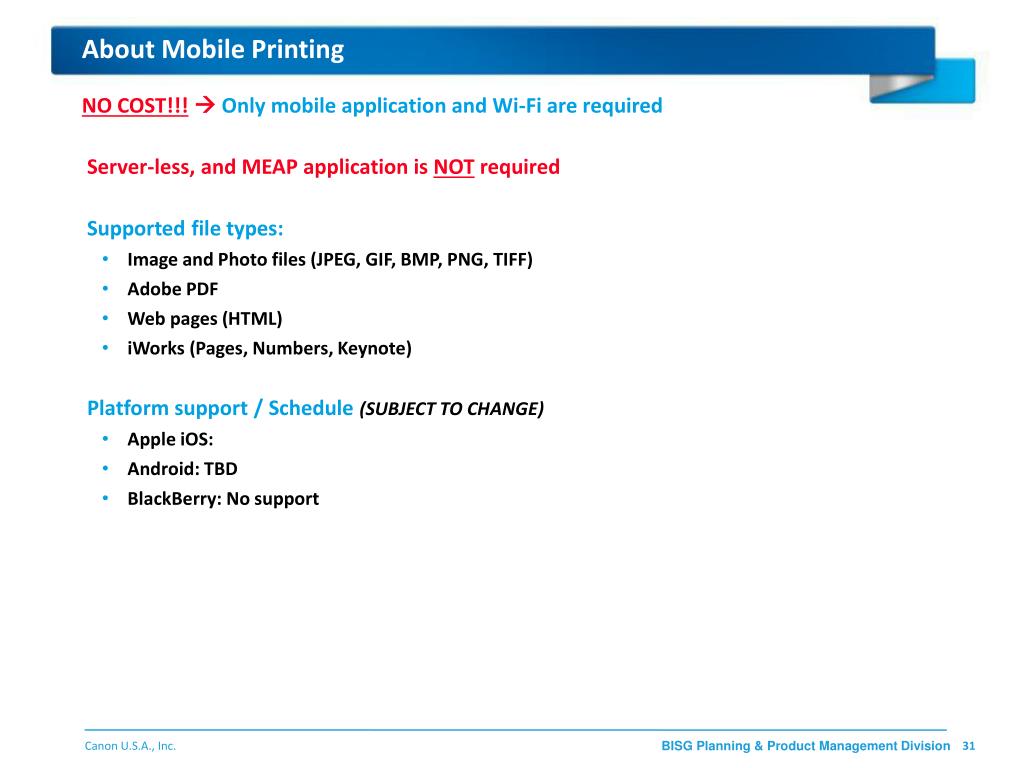

about mobile printing
About Mobile Printing
  • NO COST!!! Only mobile application and Wi-Fi are required
  • Server-less, and MEAP application is NOT required
  • Supported file types:
        • Image and Photo files (JPEG, GIF, BMP, PNG, TIFF)
        • Adobe PDF
        • Web pages (HTML)
        • iWorks (Pages, Numbers, Keynote)
  • Platform support / Schedule (SUBJECT TO CHANGE)
        • Apple iOS:
        • Android: TBD
        • BlackBerry: No support

Canon U.S.A., Inc.

mobile printing quick review
Mobile Printing – Quick Review

What did we learn about Mobile Printing?

  • It's a peer-to-peer mobile print solution
  • It is an office and on-the-go solution
  • No application required
  • It works with iPhonesand iPads
    • iOS 5.1 and above
  • Supports most commonly printed file types
    • PDFs , Photo and image files & web pages
  • Requirements:
    • iPhone or iPad & a Canon device
  • Will fit in:
    • SMB offices
    • Corporate offices

$$ = No Cost

canon mobile printing vs canon dpsm
Canon Mobile Printing vs. Canon DPSM

Great for RFP responses!

Canon U.S.A., Inc.


Mobile Printing

Secure – Managed – Configurable

Canon U.S.A., Inc.

submitting a print job
Submitting a print job…
  • Users can send a job to print from any device
      • Send a job as an email attachment
      • Print directly from iPhone/iPad using AirPrint (native app)
        • Android app will be released very soon

Canon U.S.A., Inc.

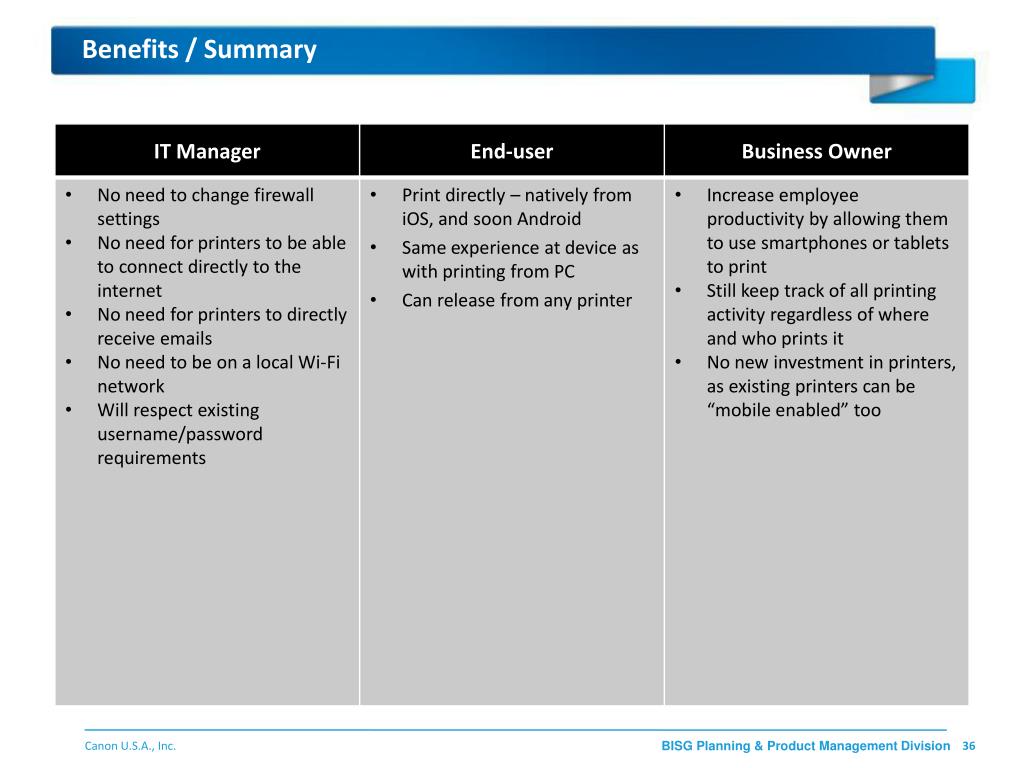

benefits summary
Benefits / Summary

Canon U.S.A., Inc.

managed configurable mobile printing
Managed & Configurable Mobile Printing

Mobile printing as integral part of...

      • Current network security
      • Device access security
      • Print accounting and budgeting
      • Reporting
  • Suitable for any kind of business operation (SMB, Educational , Legal, Financial, Large Enterprise, Medical , etc)

With minimum IT overhead and without re-educating staff


Canon U.S.A., Inc.


Any Questions?

Canon U.S.A., Inc.


Thank you very much for

your time today!

Canon U.S.A., Inc.
