  1. HV Power Supply Itzhak Tserruya HBD meeting, July 3, 2007

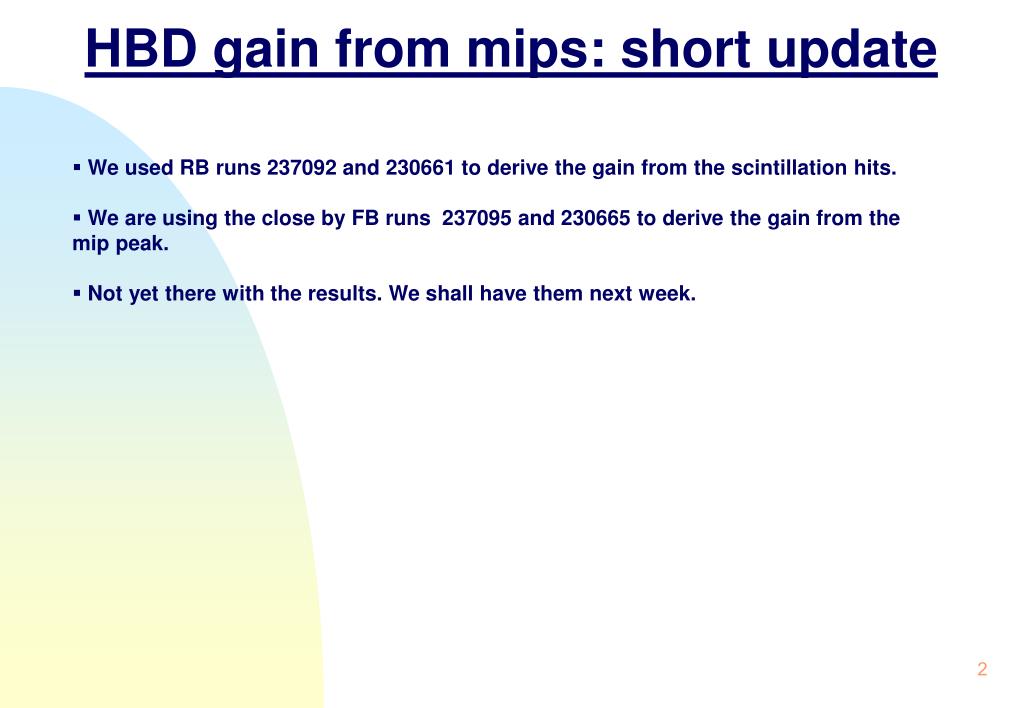

  2. HBD gain from mips: short update • We used RB runs 237092 and 230661 to derive the gain from the scintillation hits. • We are using the close by FB runs 237095 and 230665 to derive the gain from the mip peak. • Not yet there with the results. We shall have them next week.

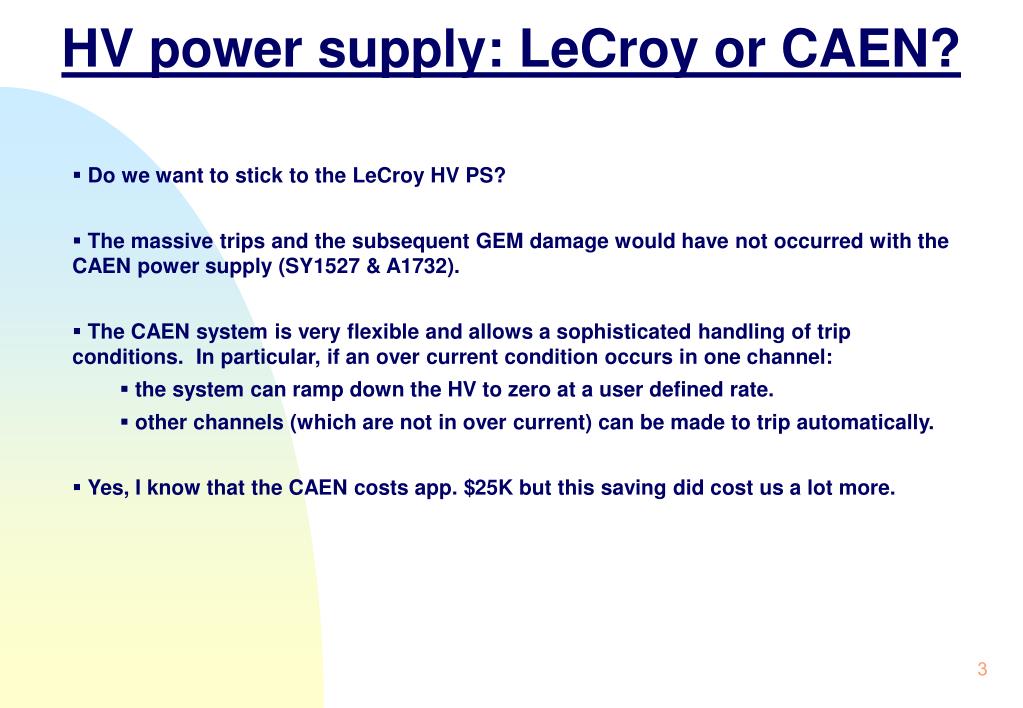

  3. HV power supply: LeCroy or CAEN? • Do we want to stick to the LeCroy HV PS? • The massive trips and the subsequent GEM damage would have not occurred with the CAEN power supply (SY1527 & A1732). • The CAEN system is very flexible and allows a sophisticated handling of trip conditions. In particular, if an over current condition occurs in one channel: • the system can ramp down the HV to zero at a user defined rate. • other channels (which are not in over current) can be made to trip automatically. • Yes, I know that the CAEN costs app. $25K but this saving did cost us a lot more.
