  1. Explain the Different V Belt Types https://www.shibambelting.com/

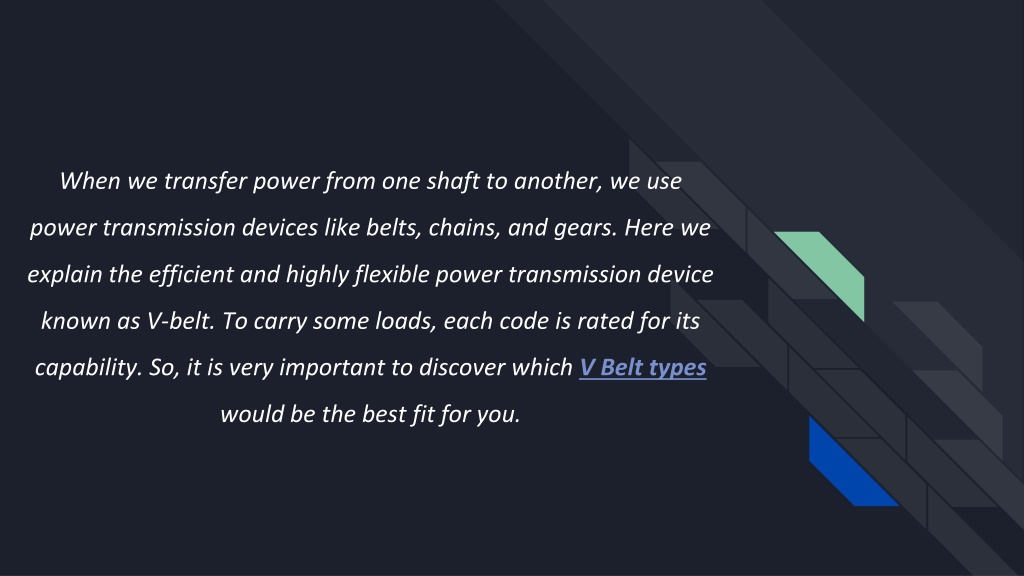

  2. When we transfer power from one shaft to another, we use power transmission devices like belts, chains, and gears. Here we explain the efficient and highly flexible power transmission device known as V-belt. To carry some loads, each code is rated for its capability. So, it is very important to discover which V Belt types would be the best fit for you.

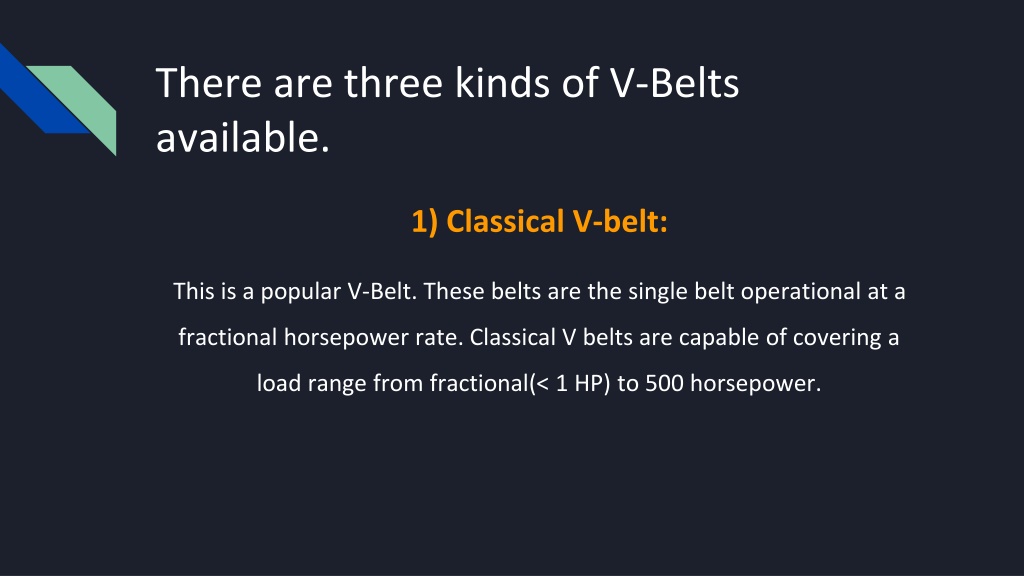

  3. There are three kinds of V-Belts available. 1) Classical V-belt: This is a popular V-Belt. These belts are the single belt operational at a fractional horsepower rate. Classical V belts are capable of covering a load range from fractional(< 1 HP) to 500 horsepower.

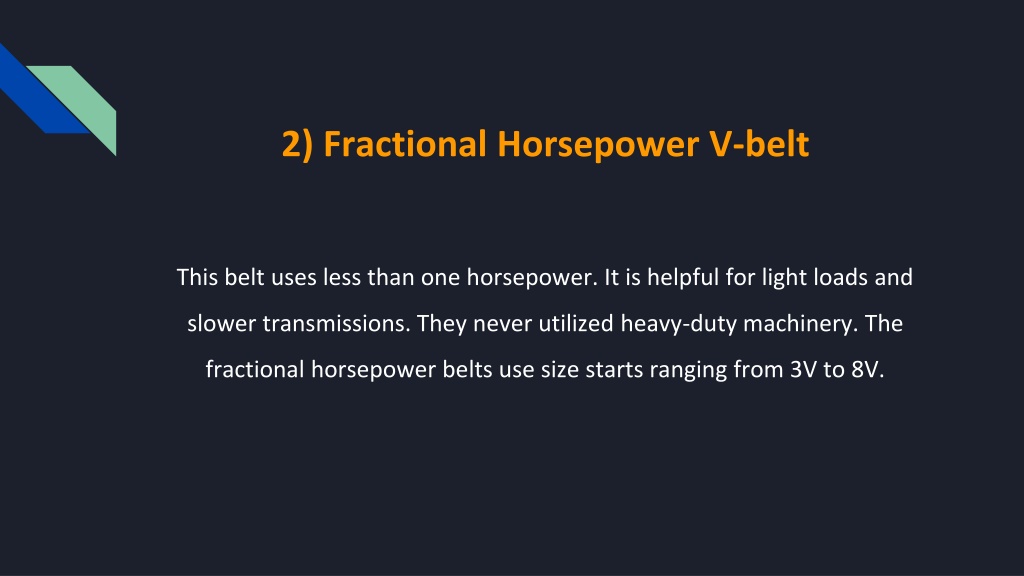

  4. 2) Fractional Horsepower V-belt This belt uses less than one horsepower. It is helpful for light loads and slower transmissions. They never utilized heavy-duty machinery. The fractional horsepower belts use size starts ranging from 3V to 8V.

  5. 3) Narrow Wedge V-belt It is height to width ratio is larger and the ‘V’ shape is more characterized, the narrow wedge V-Belt has a somewhat distinct shape. Narrow belts have the ability to transmit three times the horsepower of a classical V-belt in the same drive space.

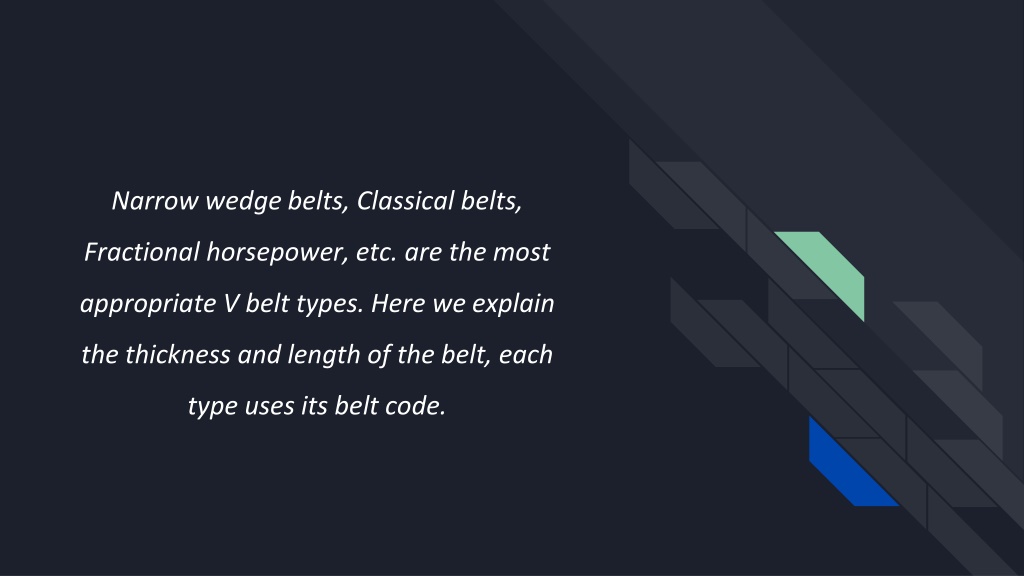

  6. Narrow wedge belts, Classical belts, Fractional horsepower, etc. are the most appropriate V belt types. Here we explain the thickness and length of the belt, each type uses its belt code.

  7. Contact Us Address: PO Box 8665, Building No 434, Contact No 9 Musaffah Abudhabi, +971503825270 United Arab Emirates https://www.shibambelting.com/
