  1. Network Solution for NER States

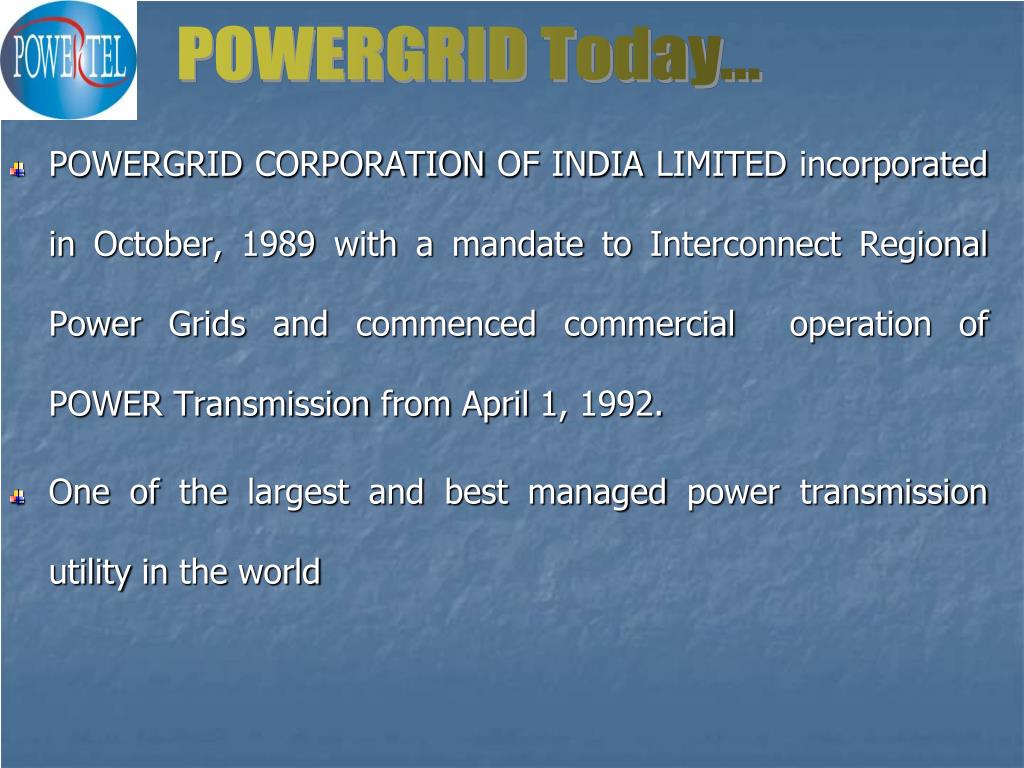

  2. POWERGRID Today… • POWERGRID CORPORATION OF INDIA LIMITED incorporated in October, 1989 with a mandate to Interconnect Regional Power Grids and commenced commercial operation of POWER Transmission from April 1, 1992. • One of the largest and best managed power transmission utility in the world

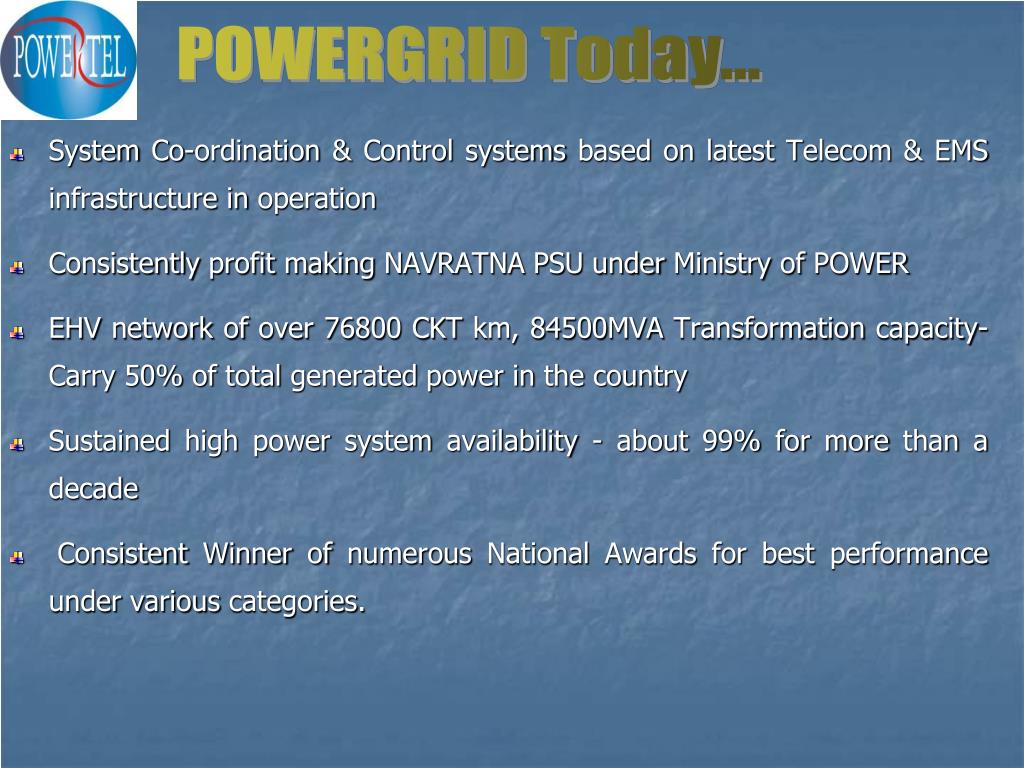

  3. POWERGRID Today… • System Co-ordination & Control systems based on latest Telecom & EMS infrastructure in operation • Consistently profit making NAVRATNA PSU under Ministry of POWER • EHV network of over 76800 CKT km, 84500MVA Transformation capacity- Carry 50% of total generated power in the country • Sustained high power system availability - about 99% for more than a decade • Consistent Winner of numerous National Awards for best performance under various categories.

  4. POWERGRID Broadband Network… • Diversified into Broadband Telecom Business • POWERTEL is the brand name of above business and operates as an integral part of POWERGRID. • Telecom network of 21,400 Kms on overhead power transmission infrastructure covering 120 cities in India. • Sturdy & secure • Rodent menace free • Vandalism proof

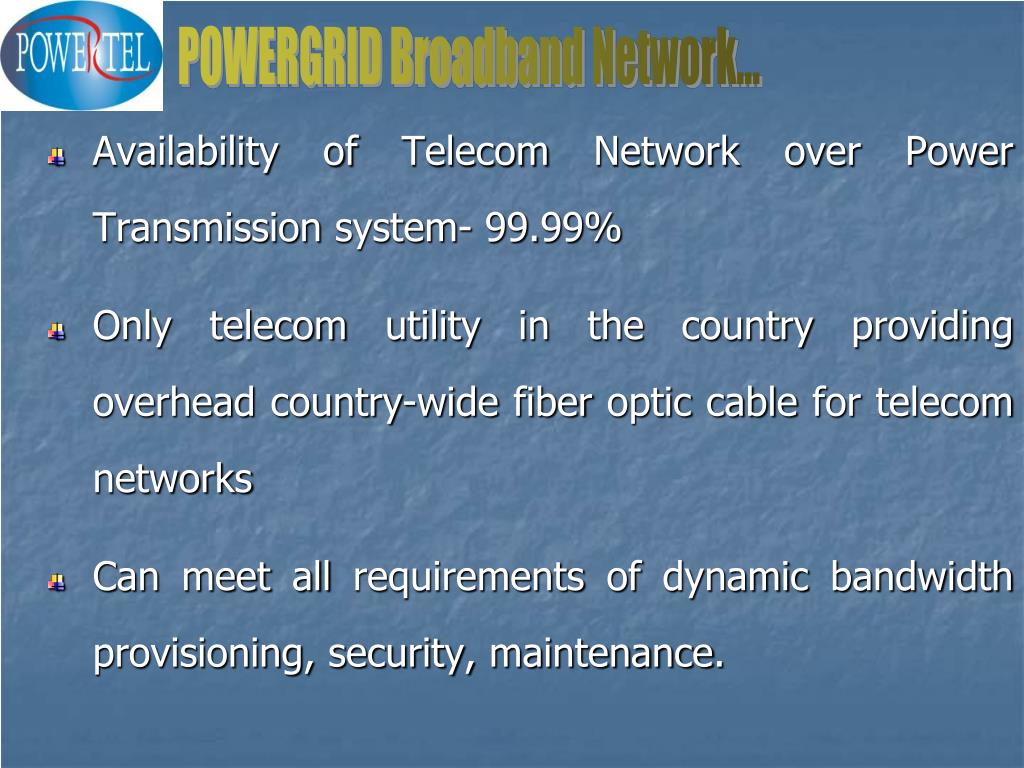

  5. POWERGRID Broadband Network… • Availability of Telecom Network over Power Transmission system- 99.99% • Only telecom utility in the country providing overhead country-wide fiber optic cable for telecom networks • Can meet all requirements of dynamic bandwidth provisioning, security, maintenance.

  6. Overhead Optical fibre installation OPGW ALUMINIUM TUBE ACSR STRANDS FIBRE OPGW CROSS SECTION

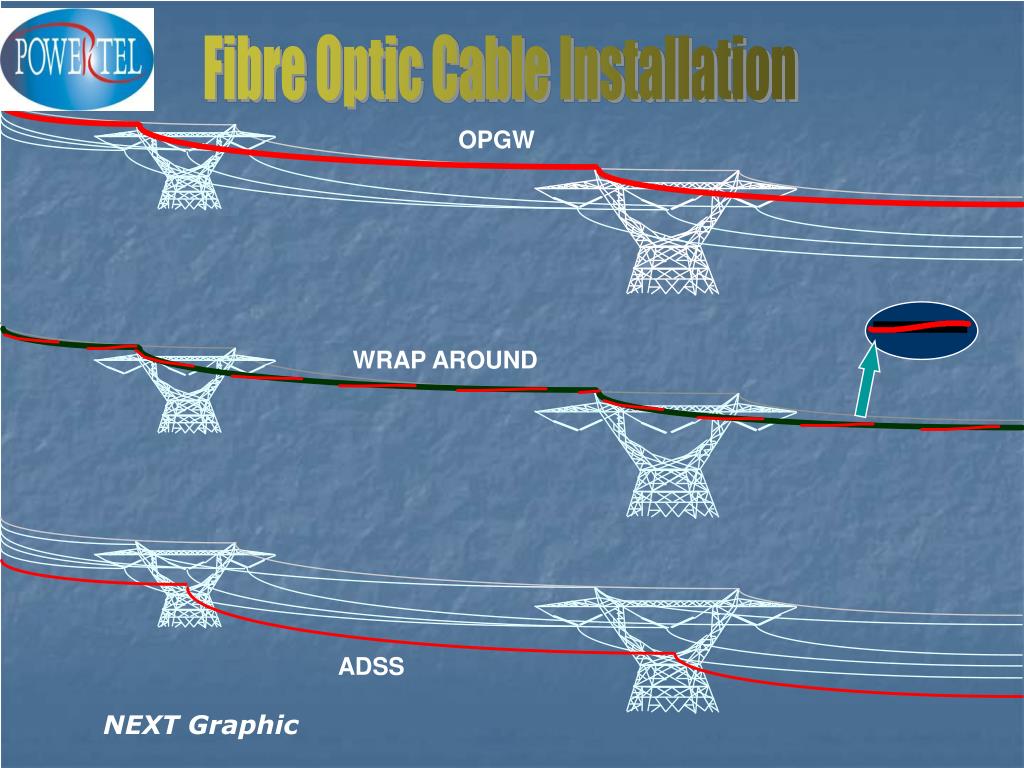

  7. Fibre Optic Cable Installation OPGW WRAP AROUND ADSS NEXT Graphic

  8. Srinagar Udhampur * * Gladni Kishenpur (Jammu) Jallandhar Pathankot * Hamirpur Amritsar * Kunihar Shimla * * Moga * Solan * Ludhiana Chandigarh Ambala * Hissar Bhiwani Panipat * Mandola NEW DELHI Dadri Nagaon Muradnagar Badarpur * * * Tezpur * * Moradabad * Ballabhgarh Bongaigaon Balipara Meerut Lucknow Siliguri * * Misa * * Agra Guwahati * * Jaipur Kahelipara * Patna * Umium I * Nehu Varanasi * Kanpur * Kota * Khleihriat Malda * * Shillong Biharsariff * Allahabad Badarpur * Farakka * Dimapur * * Bhopal * Sasaram * Kahalgaon Kumarghat Gandhinagar Ujjain * Kohima * Singrauli * Durgapur * Imphal * Agartala Vindhyachal Dehgam * * Jabalpur Ranchi Itarsi Asoj Jeerat * * Ahmedabad Indore * * Korba * * Jamshedpur Kolkata Vadodara Rourkela * * Raipur * Talcher Koradi Bhilai Surat * Cuttack Dhule * * Rengali * Vapi Nagpur Nasik * Bhubaneshwar Chandrapur * Padghe * Indravati MUMBAI * Ramagundam Jeypore * Pune Khammam Lonikhand * * Gazuwaka HYDERABAD (Vishakapatnam) * Vijayawada N’Sagar * * Nellore * Gooty BANGALORE CHENNAI Kolar Mysore Salem Neyveli * * Coimbature Udumalpet * Trichur Trichy * Kalamassery * * * Madurai Cochin/ Ernakulam Trivandrum

  9. POWERGRID Broadband Network… Imphal Jammu Nagaon Ludhiana Hojai Kohima Shimla Dimapur Kumarghat Agartala Jallandhar Itanagar Tezpur  Silchar Lucknow Chandigarh Varanasi Shillong Misa Khleriat  Guwahati Siliguri Aizwal NewDelhi Allahabad  Kanpur Patna  Agra Jaipur Bhopal Itarsi Vadodara Bhilai Kolkatta    Nagpur Ranchi Mumbai Bhubaneshwar Pune DWDM (32  system) Vijayawada SDH-STM16 Hyderabad  SDH-STM4 Bangalore Chennai  Coimbatore Kozhikode Cochin Trivandrum

  10. POWERGRID USP to service providers POWERGRIDDWDM SDH Network • Wide & Instant connectivity • Right capacity, high quality circuits • Complete Control & Management Basic Service Providers Mobile Operators ISPs

  11. Our Clients Our Pride.. GOVERNMENT DEPTs N ASSAM POLICE NF RAIL BPOs & MNCs MEDIA NETV

  12. Our Clients Our Pride.. Major Telecom Service Providers & ISPs UNINOR

  13. POWERGRID's DWDM/SDH Network (Layer 1 Service) CORE Tellabs6300 NMS TejasTJCP 1210 STM-4 / STM-16 STM-4 / STM-16 DISTRIBUTION NETWORK STM-1 Radio STM-1/4 Leased Line xDSL ACCESS NETWORK

  14. ARUNACHAL PRADESH ASSAM Nagaon NAGALAND Balipara Tezpur Dimapur Misa Bongaigaon Kohima Guwahati Hojai Kheleriat Shillong MEGHALAYA Badarpur Silchar Imphal MANIPUR Kumarghat MIZORAM Agartala TRIPURA NER Network Diagram Itanagar Siliguri Aizwal

  15. Assam SWAN : Project Expenditure Meghalaya SWAN : Project Expenditure Tripura SWAN : Project Expenditure Nagaland SWAN : Project Expenditure Mizoram SWAN : Project Expenditure Phase I : Rs. 78.58 Cr. Phase II : Rs. 28 Cr. Phase I : Rs. 73 Cr. Phase I : Rs. 24.29 Cr. Phase I : Rs. 22 Cr. Phase I : Rs. 21 Cr. SWAN proposal for NER network solution

  16. 42KM 80KM 134KM 80KM Siliguri 115KM Misa 90KM 105KM 55KM 175KM 161KM 28KM Dimapur 63KM 95KM 86KM 101KM 149KM Kohima 125KM 90KM Kheleriat Shillong Badarpur 30KM Imphal Future OPGW on SEB lines Silchar 30KM Existing PGCIL OPGW Kumarghat Agartala Assam SWAN Network : District Head Quarter Connectivity

  17. 20 KM PurbaKanchanbari 2 KM 43 KM Ambassa Kumarghat 35 KM 40 KM Rokhia Tripura SWAN Network : District Head Quarter Connectivity Kheleriat Meghalaya Badarpur Silchar Future OPGW on SEB lines Existing PGCIL OPGW

  18. Misa Kumarghat Agartala Meghalaya SWAN Network : District Head Quarter Connectivity Future OPGW on SEB lines Existing PGCIL OPGW

  19. 90KM Misa 37KM 20KM Dhep 22KM 26KM Dimapur Future OPGW on SEB lines 55 KM 52 KM Existing PGCIL OPGW Imphal Nagaland SWAN Network : District Head Quarter Connectivity

  20. Mizoram SWAN Network : District Head Quarter Connectivity Misa Kheleriat MEGHALAYA Silchar Badarpur Kumarghat 108 KM Agartala 67 KM 57KM 75KM 28KM 43KM 36 KM Saitual 61KM Kwazal Phaleing 69KM Future OPGW on SEB lines Existing PGCIL OPGW 57KM 6.5KM

  21. Benefits of SWAN project in NER to State Govt. • The unique strength of Optical Ground Wire (OPGW) based network on power transmission network provides a sturdy, reliable and scalable backbone network for SWAN.This network would serve as the communication backbone for state E-governance applications, citizen information portals, internet access, messaging, voice and video. • Computerization of Government Institutions like Secretariat ,Treasury & Accounts, Election Commission, Fishery, Veterinary, Sales Tax, Revenue, Land Records , Driving License, Schools, Hospitals etc. • Implementation of Web Development of the Geographical Information Systems in Computer (Satellite Imaging, Forestry, Flood Control, Agriculture etc.) The State can utilise this network potential as an opportunity for employment generation and entrepreneurship development in various villages and towns. As the network reach expands, the state can plan to invite local entrepreneurs to open up and run information kiosks leading to overall economic development of the region. • Extend government interaction and services for citizen services through local entrepreneurs who will manage the applications while government can extend the connectivity services • The network being a high speed network will provide seamless connectivity for citizens, business and all public sector electronic services

  22. Benefits of SWAN project in NER to State Govt. • Despite rapid developments in technology and the proliferation of communication infrastructure in the country, the number of telecom and IT players in the North Eastern Region is limited as compared to other regions of the country. Concerted efforts are required to develop the information infrastructure of the region thereby making the region viable and attractive for various IT industries. A highly scalable and robust back bone information network in the state can spearhead revolutionary changes in the state of IT and the economic and social status of the state in particular and the North-Eastern region in general. While the government machinery would become more transparent and information rich, the information backbone network can become effective vehicles to ensure that benefits of IT reach the masses at grass root level. • Broadband internet connectivity to every household that other wise do not have access to high quality communications will become a reality • State Government can extend its network capability to defence and other para-military services who would require a reliable, sturdy and secure communication channel. • The network will be suitable for deployment of distance education programmes / tele-medicine programmes where expertise from even other parts of the country can easily be leveraged for the benefit of rural areas in NER .

  23. Benefits of SWAN project in NER to Power Sector • All Power utilities can connect their respective Sub-Station for SCADA, EMS facility with their respective HQ • All the commercial offices can be connected to HQ through this Network • The State Power utilities can earn revenue from ROW Charges for installation of OPGW on Transmission lines • Service providers can use the same network for reaching to the remote places without any network duplicity
